Model LG 23CAV42K-D – Common Parts & Diagrams

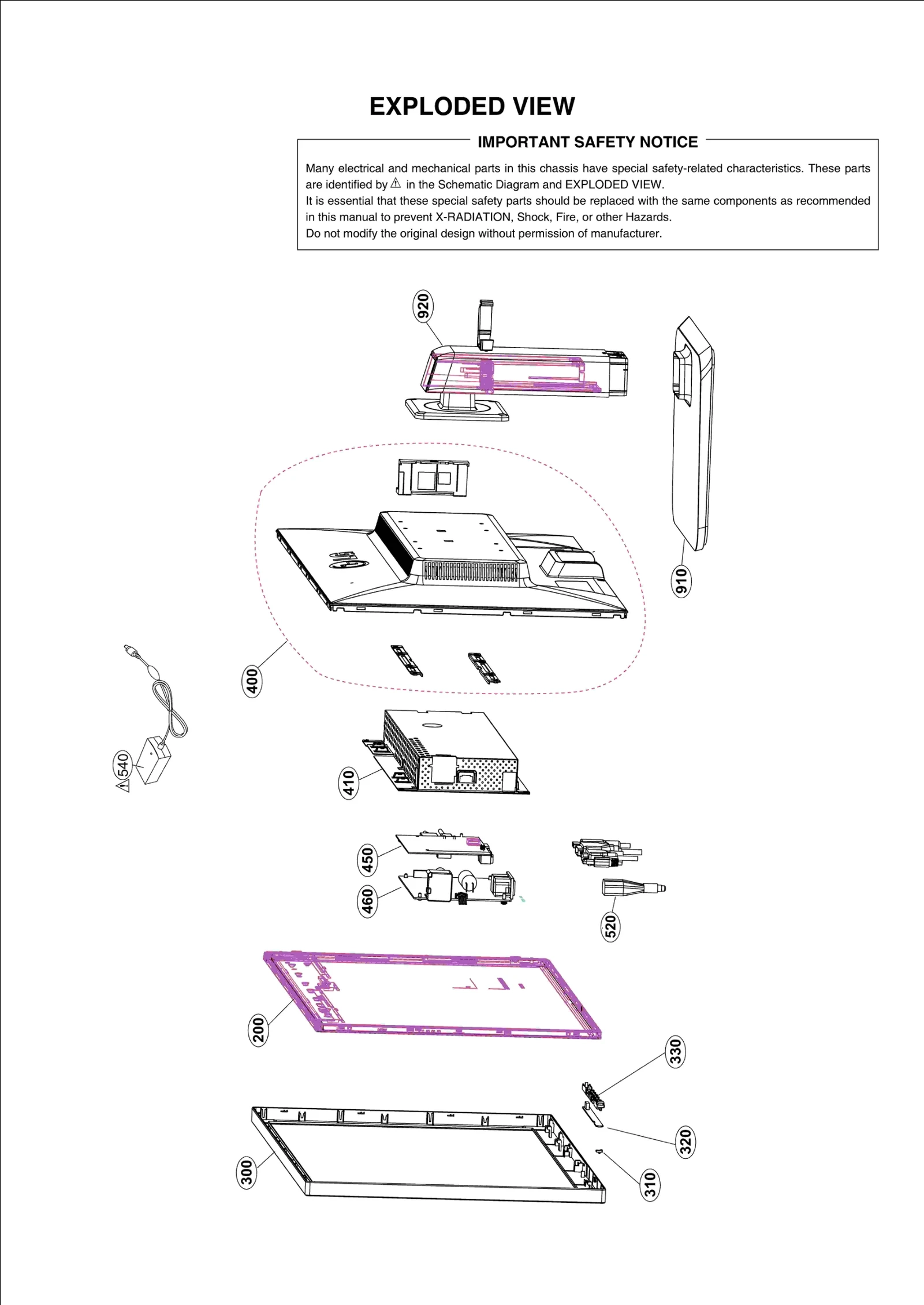

Diagram 0
Diagram 1
Common parts from model LG 23CAV42K-D
200
LCD,Module-TFT LGE EAJ62071601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73808414 Contact Us For Availability
400
Cover Assembly LGE ACQ86256401 Contact Us For Availability
410
Frame Assembly LGE ADV74426701 Contact Us For Availability
490
Cable,Assembly LGE EAD57734003 Contact Us For Availability
540
Adapters LGE EAY61231403 Contact Us For Availability
800
BPR Total Assembly LGE EBU61985101 Contact Us For Availability
810
DMS Chassis Assembly LGE EBT62356201 Contact Us For Availability
900
Base Assembly LGE AAN74291801 Contact Us For Availability
910
Base Assembly LGE AAN74292007 Contact Us For Availability
A1
S/W Package LGE SAB33074530 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE MBM63817707 Contact Us For Availability
C102
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C111
CAPACITOR,FIXED CERA LGE 0CK271CK46A Contact Us For Availability
C127
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C151
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C153
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C186
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C288
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C318
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C334
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C376
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C378
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C384
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C415
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C435
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C447
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C456
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C504
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C576
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C597
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C600
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D122
Diode,Schottky LGE EAH39250401 Contact Us For Availability
D122
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
D125
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D130
Diode,Switching LGE 0DSDI00038A Contact Us For Availability
IC101
S/W,Firmware LGE SAA36552002 Contact Us For Availability
IC104
S/W,Firmware LGE SAA36327304 Contact Us For Availability
IC110
IC,CMOS LGE 0ISTL00036A Contact Us For Availability
IC112
S/W,Firmware LGE SAA36304102 Contact Us For Availability
IC122
IC,Inverter LGE 0IPH741400C Contact Us For Availability
IC123
S/W,Firmware LGE SAA36248201 Contact Us For Availability
IC130
IC,Gate LGE 0ILNRON009B Contact Us For Availability
JK106
Connector,USB LGE 6630SK00704 Contact Us For Availability
LD100
LED LGE 0DLBE0158AA Contact Us For Availability
LV1
Cable,FFC LGE EAD61217872 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P106
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P107
Conector,Wafer LGE 6602T20009K Contact Us For Availability
P111
Conector,BtoB LGE 6630V25002F Contact Us For Availability
Q115
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q127
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ0822C478 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R138
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R166
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R171
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R174
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R214
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R240
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R243
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R247
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R249
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R257
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R278
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R281
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R284
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R327
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R331
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R344
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R346
Resistor,Chip LGE 0RJ0100D472 Contact Us For Availability
R355
Resistor,Chip LGE 0RH1101D422 Contact Us For Availability
R364
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R375
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R376
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R383
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R387
Resistor,Chip LGE 0RJ7502D677 Contact Us For Availability
R397
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ1005D677 Contact Us For Availability
R405
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R425
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R445
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R451
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R466
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R467
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R469
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R490
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R491
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R517
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R531
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R569
RESISTOR,METAL GLAZE LGE 0RJ5603D677 Contact Us For Availability
SW101
SWITCH,POLY LGE 6600AR9458Q Contact Us For Availability
X102
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
ZD102
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
