Model Whirlpool 2382W2A ELECTRIC RANGE – Common Parts & Diagrams
05 - LOWER BODY
08 - WIRING DIAGRAM

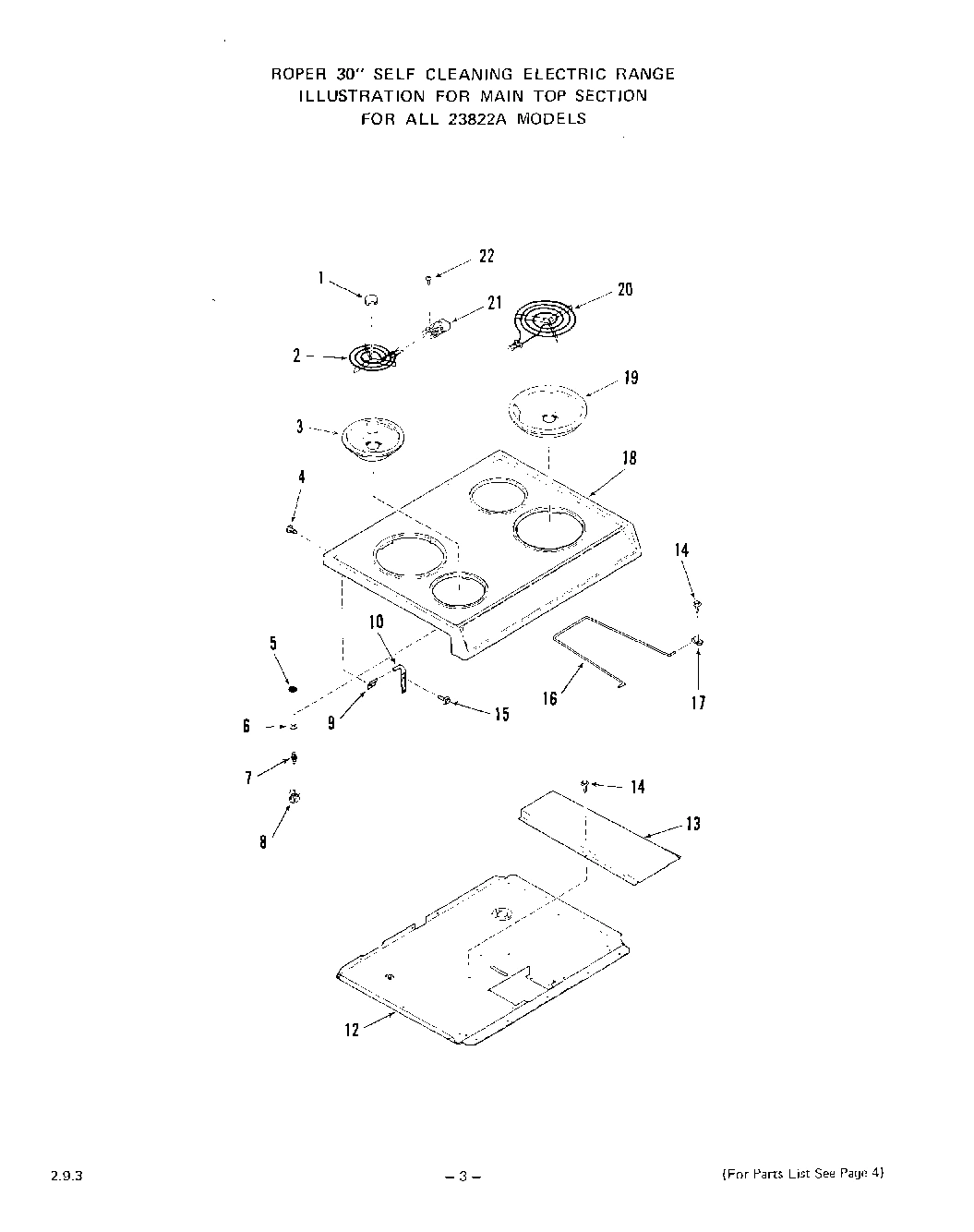

03 - MAIN TOP

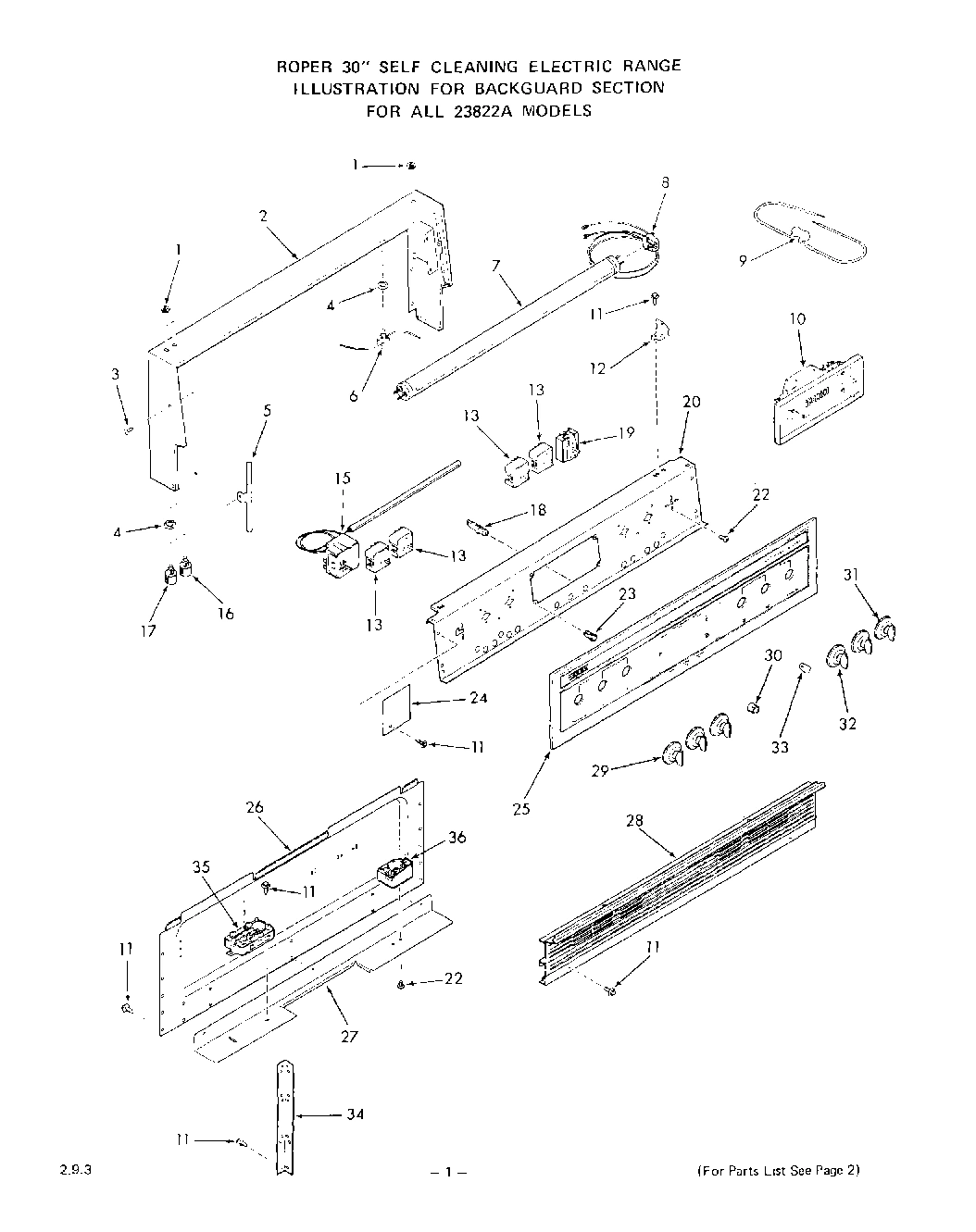

02 - BACKGUARD

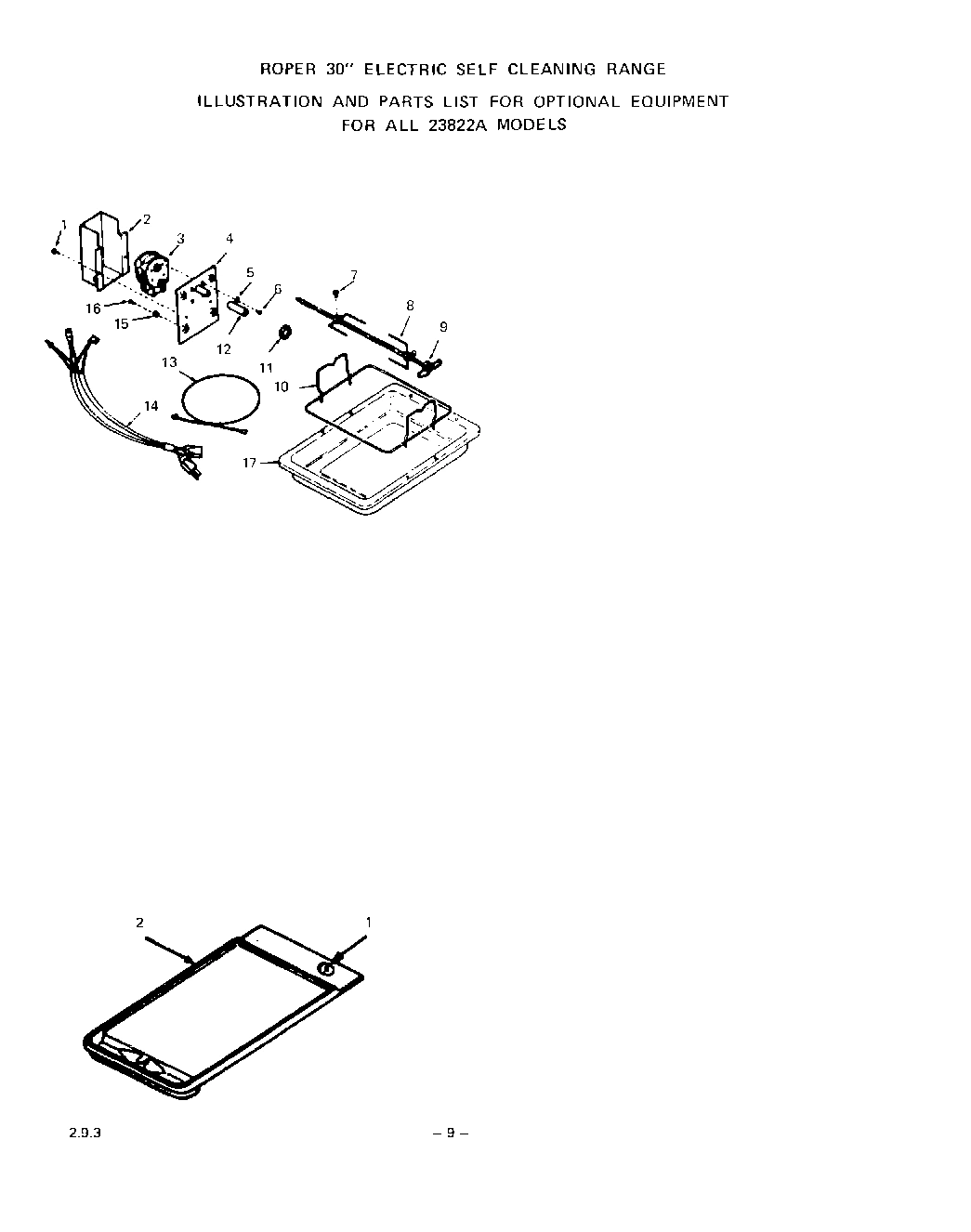

07 - ROTISSERIE , GRIDDLE

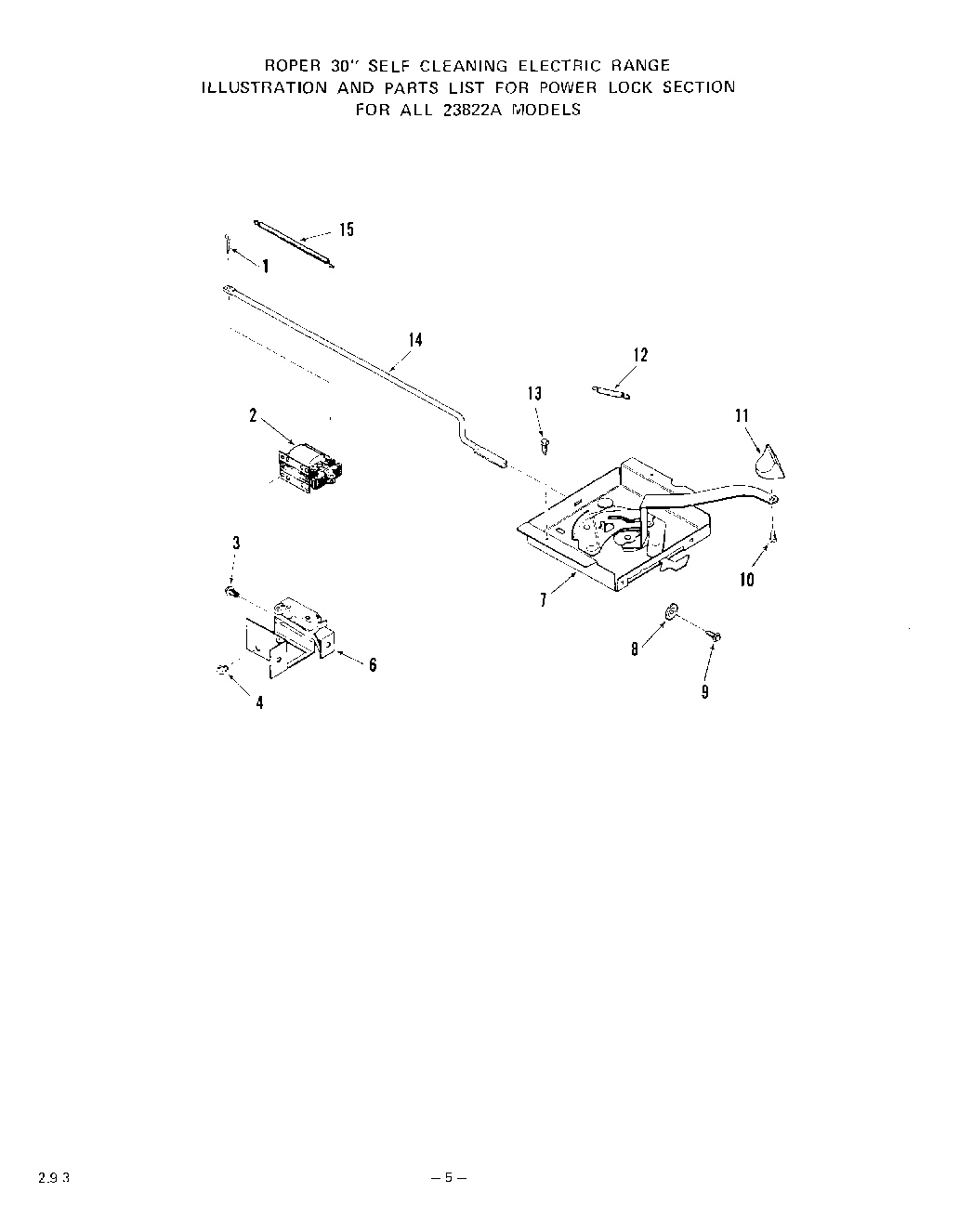

04 - POWER LOCK

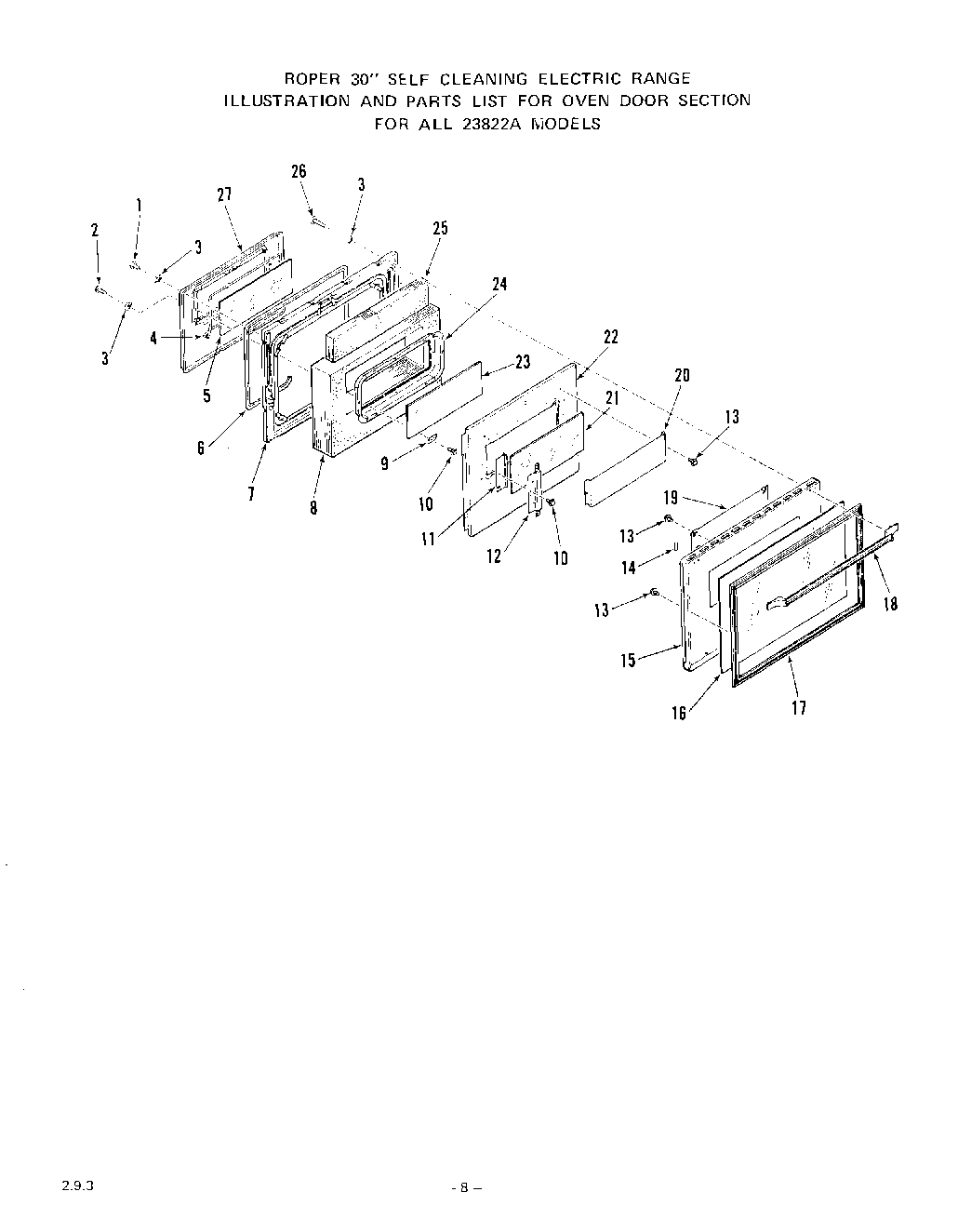

06 - OVEN DOOR
Common parts from model Whirlpool 2382W2A ELECTRIC RANGE
xSwitch (For Key No. 252) WPL 280199 Contact Us For Availability
xInstallation & Operating Instructions WPL 299347 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI10625A2 Contact Us For Availability
1
Wire Cover WPL 296026 Contact Us For Availability
1
Medallion (4 Required) WPL 318586 Contact Us For Availability
1
Knurled Nut WPL 87403 Contact Us For Availability
1
Thermometer WPL 87996 Contact Us For Availability
1
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
1
Cotter Pin WPL 318089 Contact Us For Availability
2
Spacer-Main Top (Lt. or Rt.) WPL 303513 Contact Us For Availability
2
6`` Surface Element-Lt. Front & Rt. Rear WPL 321014 Contact Us For Availability
2
Frame-Backguard WPL 301316 Contact Us For Availability
2
Set-On Griddle WPL 236766 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Solenoid Only WPL 319431 Contact Us For Availability
2
Screw 10ABx1 WPL 105799 Contact Us For Availability
3
Retainer-Insulation (Lt. or Rt.) WPL 313284 Contact Us For Availability
3
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
3
Washer WPL 21067 Contact Us For Availability
4
Insulation-Oven Bottom & Back WPL 308861 Contact Us For Availability
4
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
4
Pal Nut WPL 236129 Contact Us For Availability
4
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
4
Mounting Screw WPL 319433 Contact Us For Availability
4
Seal-Fiberglass WPL 303156 Contact Us For Availability
5
Keps Nut 8-32 WPL 239764 Contact Us For Availability
5
End Trim- Top Lamp Glass (Lt. or Rt.) WPL 299705 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Inner Glass-Oven Door WPL 312426 Contact Us For Availability
6
Lower Retainer-Insulation WPL 312517 Contact Us For Availability
6
Washer WPL 99279 Contact Us For Availability
6
Push Switch (Lock-Unlock) WPL 234416 Contact Us For Availability
6
Screw 8-32 x 3/8`` WPL 87860 Contact Us For Availability
6
Bracket w/Switch WPL 319432 Contact Us For Availability
6
Gasket-Oven Door WPL 292244 Contact Us For Availability
7
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
7
Strike-Main Top (Lt. or Rt.) WPL 299784 Contact Us For Availability
7
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Oven Door Lock Asem. (Inc. Key 12) WPL 324833 Contact Us For Availability
7
Lining-Oven Door WPL 324425 Contact Us For Availability
8
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
8
Catch-Main Top Strike WPL 71003 Contact Us For Availability
8
Holder-Fluorescent Lamp (Right) WPL 113745 Contact Us For Availability
8
Holder-Fluorescent Lamp (Left) WPL 237316 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Washer WPL 106462 Contact Us For Availability
9
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
9
Body Side (White-Right) WPL 323084 Contact Us For Availability
9
Body Side (White-Left) WPL 323085 Contact Us For Availability
9
Body Side (Coffee-Right) WPL 323086 Contact Us For Availability
9
Body Side (Coffee-Left) WPL 323087 Contact Us For Availability
9
Body Side (Avocado-Right) WPL 323088 Contact Us For Availability
9
Body Side (Avocado-Left) WPL 323089 Contact Us For Availability
9
Body Side (Golden Wheat-Right) WPL 323090 Contact Us For Availability
9
Body Side (Golden Wheat-Left) WPL 323091 Contact Us For Availability
9
Body Side (Almond- Right) WPL 323092 Contact Us For Availability
9
Body Side (Almond-Left) WPL 323093 Contact Us For Availability
9
Bracket-Hinge (Lt. or Rt.) WPL 320931 Contact Us For Availability
9
Wire Lead w/Resistor (10K,4-5 Watt) WPL 300326 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Retainer-Door Glass (4 Required) WPL 312888 Contact Us For Availability
10
Leg Leveler WPL 69065 Contact Us For Availability
10
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
10
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
10
Clock w/1 Hr. Timer WPL 307550 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
11
Spring - Oven Door (Lt. or Rt.) WPL 308839 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Knob-Oven Door Lock Handle WPL 299627 Contact Us For Availability
11
Spacer-Oven Door Glass (Lt. or Rt.) WPL 307841 Contact Us For Availability
12
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
12
Burner Box Bottom WPL 322102 Contact Us For Availability
12
Bracket-Fluorescent Lamp (Rt. or Lt.) WPL 113236 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Spring-Lock Handle WPL 299599 Contact Us For Availability
13
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
13
Cover-Lock Rod WPL 308830 Contact Us For Availability
13
Infinite Control WPL 320944 Contact Us For Availability
13
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggy B WPL 291284 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
14
Storage Drawer WPL 296150 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Rod-Oven Door Lock WPL 315373 Contact Us For Availability
14
Cushion WPL 112370 Contact Us For Availability
15
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
15
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
15
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
15
Oven Thermostat WPL 324686 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Spring-Solenoid WPL 299704 Contact Us For Availability
15
Front Panel-Oven Door WPL 321832 Contact Us For Availability
16
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
16
Support Rod-Main Top WPL 320725 Contact Us For Availability
16
Push Switch-Fluorescent Lamp WPL 105386 Contact Us For Availability
16
Outer Door Glass WPL 319298 Contact Us For Availability
17
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
17
Clip (2 Required) WPL 285945 Contact Us For Availability
17
Push Switch-Oven Light WPL 283523 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
Frame-Oven Door WPL 321851 Contact Us For Availability
18
Front Frame WPL 324424 Contact Us For Availability
18
Main Top (White) WPL 320960 Contact Us For Availability
18
Main Top (Coffee) WPL 320961 Contact Us For Availability
18
Main Top (Avocado) WPL 320962 Contact Us For Availability
18
Main Top (Golden Wheat) WPL 320963 Contact Us For Availability
18
Main Top (Almond) WPL 320964 Contact Us For Availability
18
Indicator Light-Oven, Lock & Surface WPL 296317 Contact Us For Availability
18
Handle-Oven Door WPL 282093 Contact Us For Availability
19
Vent Tube WPL 308822 Contact Us For Availability
19
8`` Burner Bowl-Rt. Front & Lt. Rear WPL 304969 Contact Us For Availability
19
Selector Switch WPL 320835 Contact Us For Availability
19
Shield-Oven Door Lining WPL 314912 Contact Us For Availability
20
Cover Plate-Thermostat Bulb WPL 237762 Contact Us For Availability
20
8`` Surface Element-Rt. Front & Lt. Rear WPL 321012 Contact Us For Availability
20
Control Panel WPL 307690 Contact Us For Availability
20
Baffle-Insulation Retainer WPL 314910 Contact Us For Availability
21
Main Back WPL 322467 Contact Us For Availability
21
Terminal Block w/Wire Lead (4 Required) WPL 304645 Contact Us For Availability
21
Intermediate Glass-Oven Door WPL 308239 Contact Us For Availability
22
Washer WPL 299425 Contact Us For Availability
22
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
22
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
22
Retainer-Oven Door Insulation WPL 314909 Contact Us For Availability
23
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
23
Tubular Clip (4 Required) WPL 293577 Contact Us For Availability
23
Center Glass-Oven Door WPL 299921 Contact Us For Availability
24
G.M. Hex Nut 10-32 WPL 453284 Contact Us For Availability
24
Cover-Switch Shield WPL 301799 Contact Us For Availability
24
Retainer-Oven Door Glass WPL 314352 Contact Us For Availability
25
Ground Strap WPL 304987 Contact Us For Availability
25
Top Lamp Glass WPL 322322 Contact Us For Availability
25
Insulation-Oven Door (Top) WPL 299930 Contact Us For Availability
26
Screw 10-32x1`` WPL 313190 Contact Us For Availability
26
Wire Cover-Backguard WPL 302906 Contact Us For Availability
26
Screw 10-24x2-1/2`` WPL 75740 Contact Us For Availability
27
Junction Block WPL 290105 Contact Us For Availability
27
Wire Cover Bottom WPL 323123 Contact Us For Availability
27
Main Top WPL 322504 Contact Us For Availability
27
Plug-Oven Door Lining WPL 324427 Contact Us For Availability
27
Selector Switch WPL 325002 Contact Us For Availability
27
Controls WPL 325520 Contact Us For Availability
28
Range Service Mounting Plate WPL 304272 Contact Us For Availability
28
Front-Backguard Bottom WPL 313668 Contact Us For Availability
29
Insulation-Oven Top & Sides (1 Piece) WPL 308860 Contact Us For Availability
29
Knob-Oven Thermostat WPL 322320 Contact Us For Availability
30
Insulation-Rt. or Lt. WPL 303097 Contact Us For Availability
30
Knob-Clock (1 Req) (Minute Timer) WPL 294810 Contact Us For Availability
31
Broiler Pan Grid WPL 319159 Contact Us For Availability
31
Knob-Selector Switch WPL 322319 Contact Us For Availability
32
Broiler Pan WPL 319158 Contact Us For Availability
32
Knob-Infinite Control (4 Required) WPL 322318 Contact Us For Availability
33
Oven Rack (2 Req) WPL 305346 Contact Us For Availability
33
Knob-Clock (Start & Stop Time) (2) WPL 109225 Contact Us For Availability
34
Cover WPL 304835 Contact Us For Availability
34
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
35
Retainer-Thermostat Bulb WPL 238052 Contact Us For Availability
35
Oven Relay WPL 239802 Contact Us For Availability
36
Holder-Oven Lamp Bulb WPL 87883 Contact Us For Availability
36
Fixed Input Control WPL 293428 Contact Us For Availability
37
Oven Body WPL 324423 Contact Us For Availability
38
Washer WPL 303963 Contact Us For Availability
40
WPL 111257 WPL 111257 Contact Us For Availability
41
WPL 281914 WPL 281914 Contact Us For Availability
42
WPL 312467 WPL 312467 Contact Us For Availability
44
WPL 107158 WPL 107158 Contact Us For Availability
45
WPL 286357 WPL 286357 Contact Us For Availability
46
WPL 312500 WPL 312500 Contact Us For Availability
47
WPL 102430 WPL 102430 Contact Us For Availability
48
WPL 309359 WPL 309359 Contact Us For Availability
49
WPL 229372 WPL 229372 Contact Us For Availability
50
WPL 114989 WPL 114989 Contact Us For Availability
51
WPL 229371 WPL 229371 Contact Us For Availability
52
WPL 323362 WPL 323362 Contact Us For Availability
53
WPL 316185 WPL 316185 Contact Us For Availability
54
WPL 324808 WPL 324808 Contact Us For Availability
56
WPL 98186 WPL 98186 Contact Us For Availability
× ![]()
