Model Whirlpool 2323^0A ELECTRIC RANGE – Common Parts & Diagrams

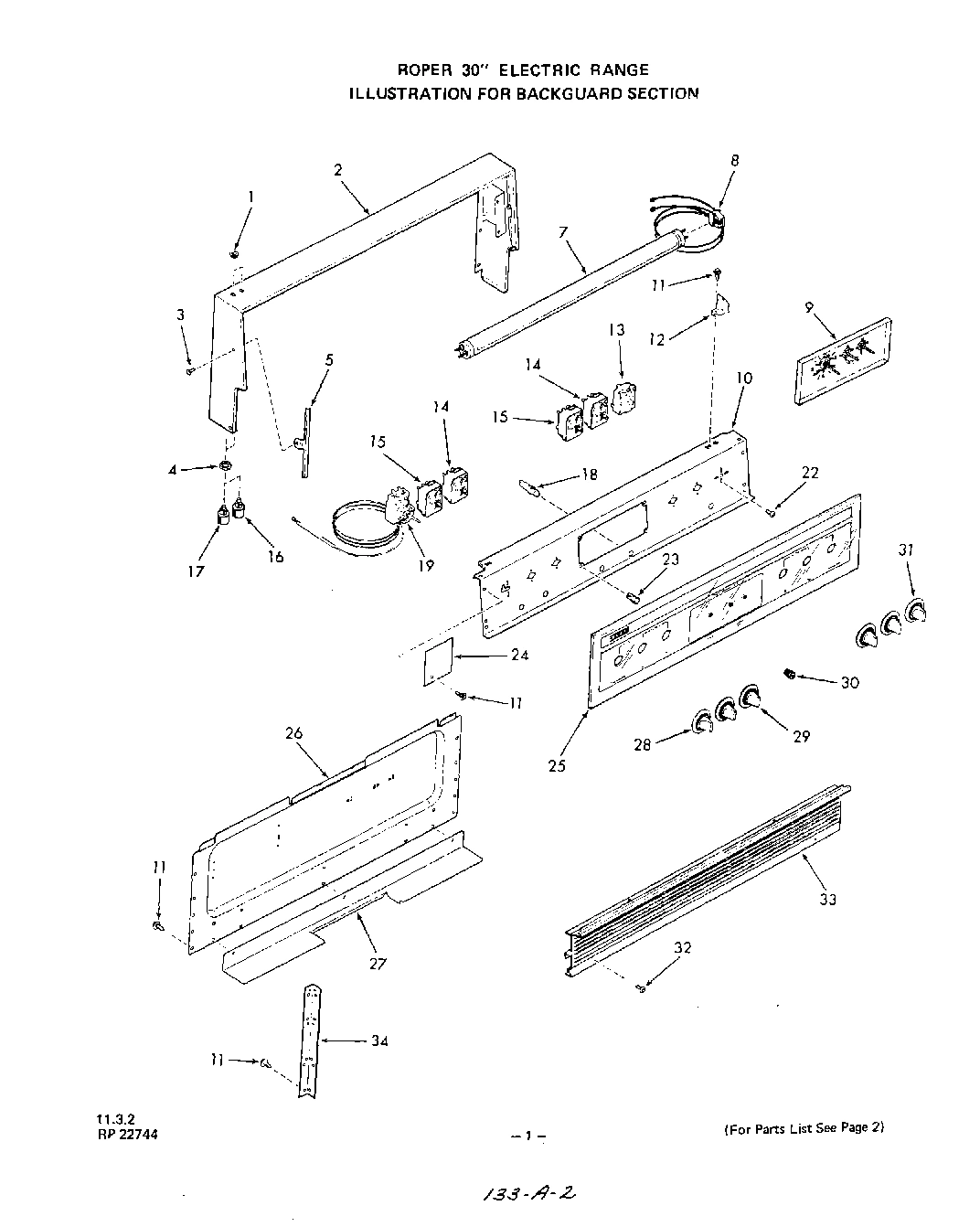

02 - BACKGUARD

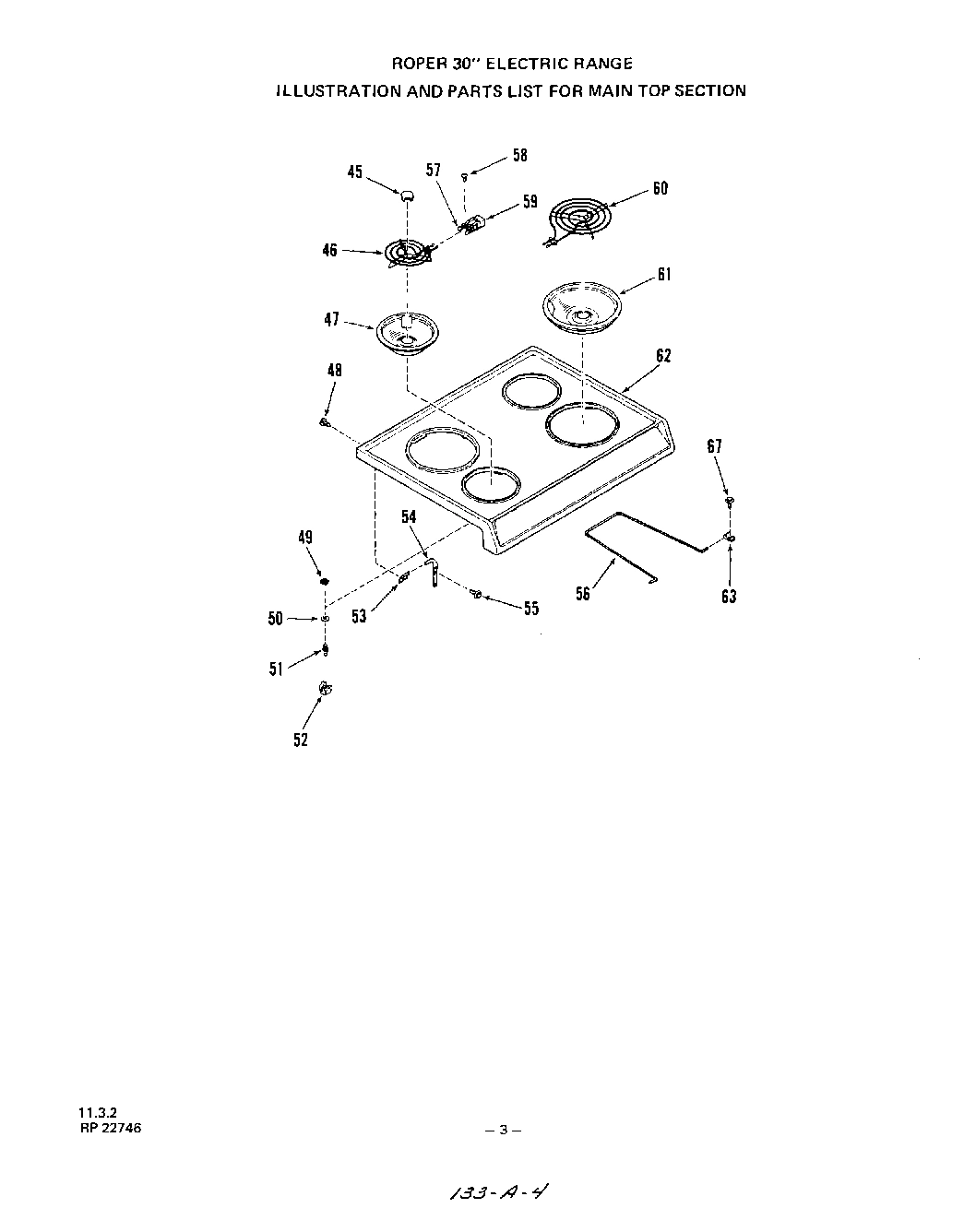

03 - MAIN TOP
06 - LIT/OPTIONAL

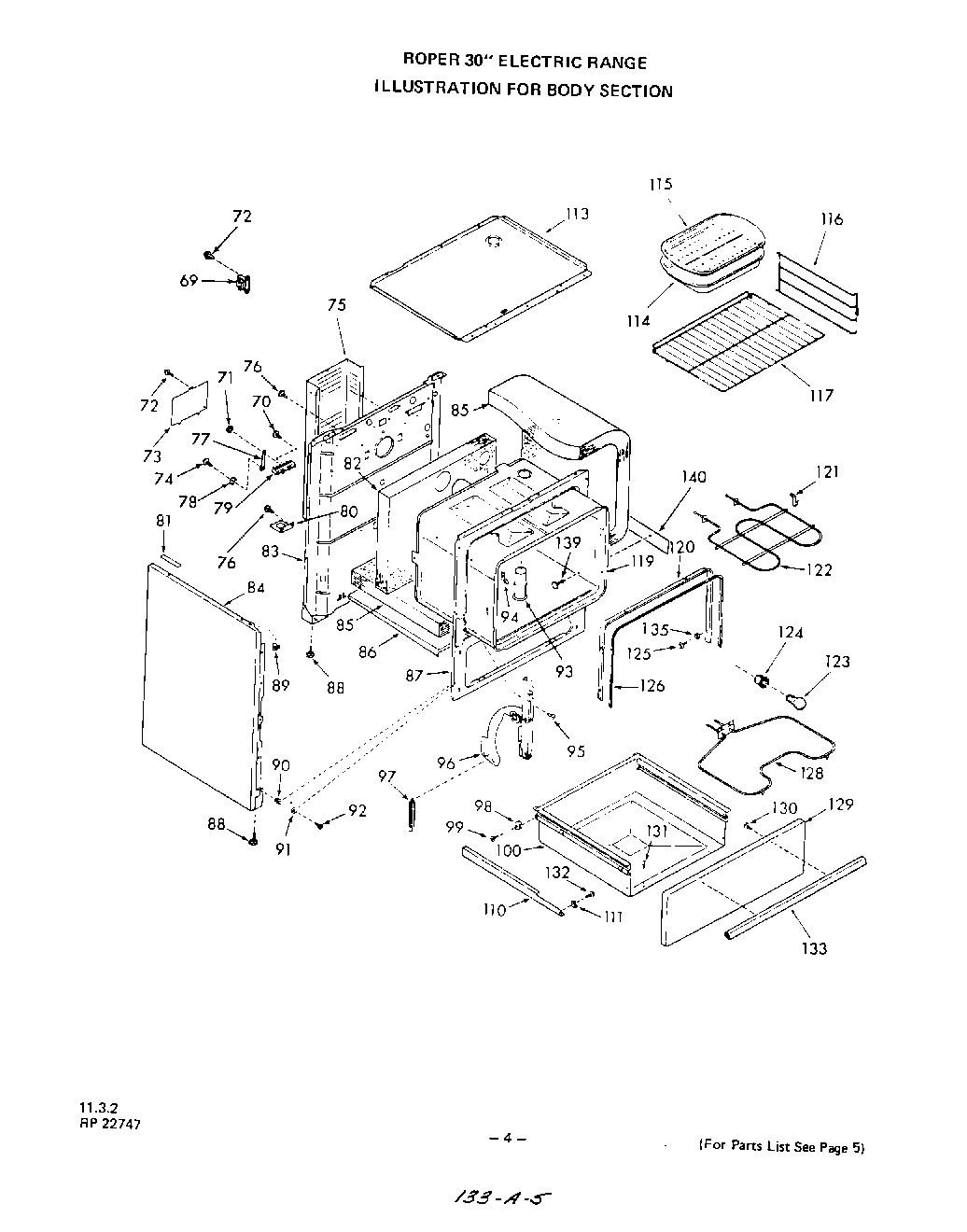

04 - BODY
05 - OVEN DOOR

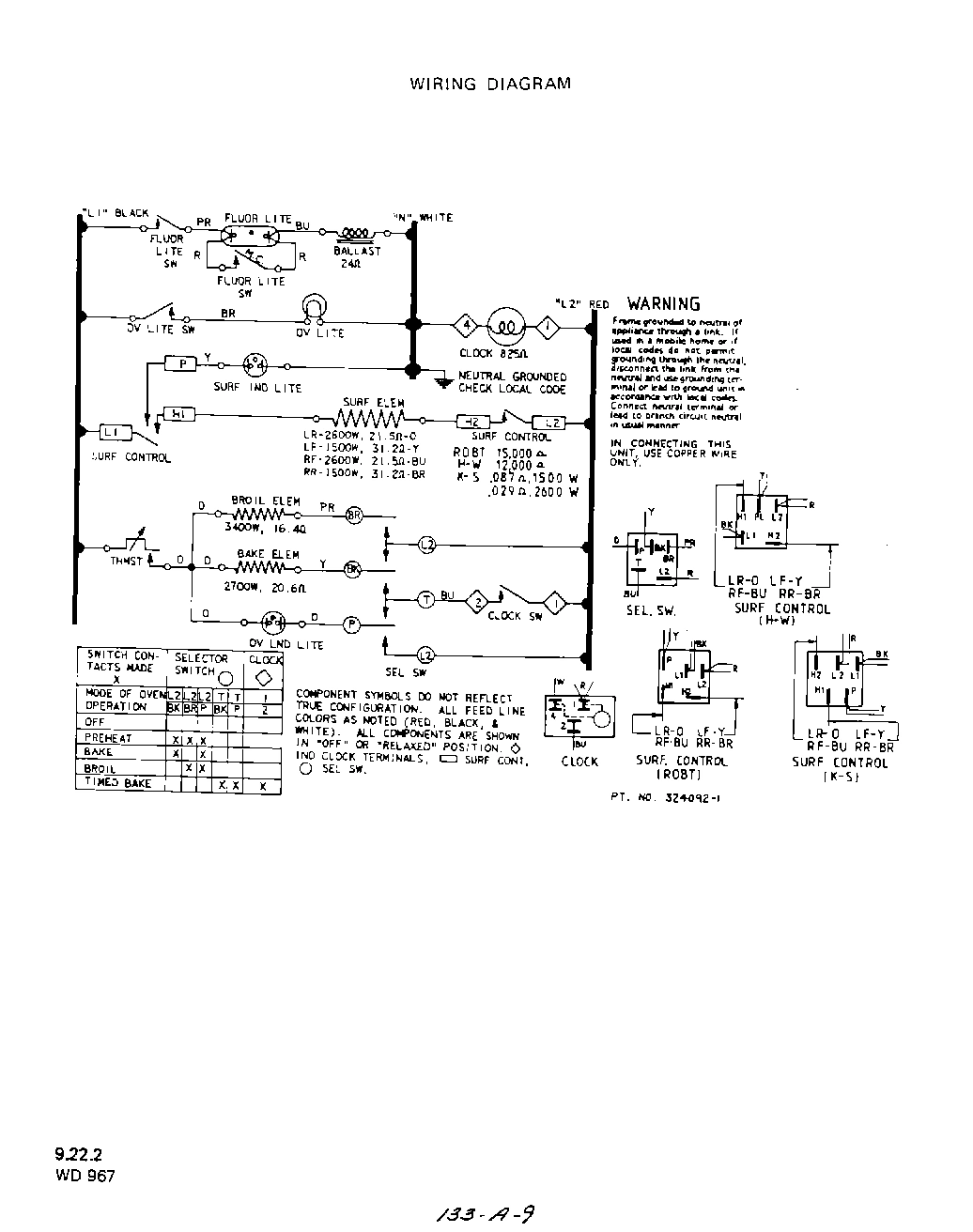

07 - WIRING DIAGRAM
Common parts from model Whirlpool 2323^0A ELECTRIC RANGE
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI10199A7 Contact Us For Availability
1
Knurled Nut WPL 87403 Contact Us For Availability
2
Frame-Backguard WPL 296584 Contact Us For Availability
4
Pal Nut WPL 236129 Contact Us For Availability
5
End Trim- Top Lamp Glass (Lt. or Rt.) WPL 299705 Contact Us For Availability
7
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
8
Holder-Fluorescent Lamp (Right) WPL 113745 Contact Us For Availability
8
Holder-Fluorescent Lamp (Left) WPL 237316 Contact Us For Availability
9
Clock w/1 Hr Timer WPL 315267 Contact Us For Availability
10
Mounting Panel-Controls WPL 307688 Contact Us For Availability
12
Bracket-Fluorescent Lamp (Rt. or Lt.) WPL 113236 Contact Us For Availability
13
Selector Switch WPL 320942 Contact Us For Availability
14
Infinite Switch Control-Rt. Front & Lt. Rear WPL 324609 Contact Us For Availability
15
Infinite Switch Control-Lt. Front & Rt. Rear WPL 324608 Contact Us For Availability
16
Push Switch-Fluorescent Lamp WPL 105386 Contact Us For Availability
17
Push Switch-Oven Light WPL 283523 Contact Us For Availability
18
Indicator Light (Oven) WPL 296316 Contact Us For Availability
18
Indicator Light (Surface) WPL 296317 Contact Us For Availability
19
Oven Thermostat WPL 320937 Contact Us For Availability
22
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
23
Tubular Clip (4 Req.) WPL 293577 Contact Us For Availability
24
Shield Switch WPL 300330 Contact Us For Availability
25
Top Lamp Glass WPL 324095 Contact Us For Availability
26
Wire Cover-Backguard WPL 302906 Contact Us For Availability
27
Bottom-Backguard Wire Cover WPL 323123 Contact Us For Availability
28
Knob-Thermostat WPL 324098 Contact Us For Availability
29
Knob-Infinite Switch Control (4 Req.) WPL 320899 Contact Us For Availability
30
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
31
Knob-Selector Switch WPL 324097 Contact Us For Availability
32
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
33
Bottom Front-Backguard WPL 313668 Contact Us For Availability
34
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
45
Medallion (4 Required) WPL 319704 Contact Us For Availability
46
6`` Surface Element (Lt. Frt. & Rt. Rear) WPL 321010 Contact Us For Availability
47
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
48
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
50
Washer WPL 99279 Contact Us For Availability
51
Strike-Main Top (Lt. or Rt.) WPL 299784 Contact Us For Availability
53
Bracket-Hinge (Lt. or Rt.) WPL 320931 Contact Us For Availability
54
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
54
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
56
Support Rod-Main Top WPL 284164 Contact Us For Availability
57
Bracket-Terminal Block WPL 318872 Contact Us For Availability
58
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
59
Terminal Block w/Wire Lead (4 Required) WPL 318960 Contact Us For Availability
60
8`` Surface Element (Rt. Frt. & Lt. Rr.) WPL 321008 Contact Us For Availability
61
8`` Burner Bowl (Rt. Frt. & Lt. Rr.) WPL 304969 Contact Us For Availability
62
Main Top (White) WPL 320960 Contact Us For Availability
62
Main Top (Coffee) WPL 320961 Contact Us For Availability
62
Main Top (Avocado) WPL 320962 Contact Us For Availability
62
Main Top (Golden Wheat) WPL 320963 Contact Us For Availability
62
Main Top (Almond) WPL 320964 Contact Us For Availability
63
Clip WPL 285945 Contact Us For Availability
69
Ballast WPL 98186 Contact Us For Availability
70
Screw 10-32x1`` WPL 313190 Contact Us For Availability
71
Hex Nut 10-32 WPL 97816 Contact Us For Availability
73
Access Plate WPL 299472 Contact Us For Availability
74
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
75
Wire Cover-Main Back WPL 296026 Contact Us For Availability
77
Ground Strap WPL 304987 Contact Us For Availability
78
Washer WPL 299425 Contact Us For Availability
79
Junction Block WPL 290105 Contact Us For Availability
80
Range Service Mounting Plate WPL 281903 Contact Us For Availability
81
Pad-Body Side (2 Required) WPL 303513 Contact Us For Availability
82
Insulation - Oven Back WPL 296140 Contact Us For Availability
83
Main Back WPL 322229 Contact Us For Availability
84
White WPL 323084 Contact Us For Availability
84
Body Side-Lt. (White) WPL 323085 Contact Us For Availability
84
Coffee WPL 323086 Contact Us For Availability
84
Body Side-Lt. (Coffee) WPL 323087 Contact Us For Availability
84
Avocado WPL 323088 Contact Us For Availability
84
Body Side-Lt. (Avocado) WPL 323089 Contact Us For Availability
84
Golden Wheat WPL 323090 Contact Us For Availability
84
Body Side-Lt. (Golden Wheat) WPL 323091 Contact Us For Availability
84
Almond WPL 323092 Contact Us For Availability
84
Body Side-Lt. (Almond) WPL 323093 Contact Us For Availability
85
Insulation-Oven Top, Bottom & Sides (1 Piece) WPL 296138 Contact Us For Availability
86
Retainer-Insulation WPL 313281 Contact Us For Availability
87
Front Frame WPL 316992 Contact Us For Availability
88
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
89
Catch-Main Top Strike (2 Required) WPL 71003 Contact Us For Availability
90
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
91
Washer WPL 303963 Contact Us For Availability
93
Oven Vent Tube WPL 308726 Contact Us For Availability
94
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
95
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
96
Oven Door Hinge (Right) WPL 303132 Contact Us For Availability
96
Oven Door Hinge (Left) WPL 303133 Contact Us For Availability
97
Spring-Oven Door (2 Required) WPL 296170 Contact Us For Availability
98
Rear Slide Block-Service Drawer WPL 281913 Contact Us For Availability
99
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
100
Service Drawer WPL 296150 Contact Us For Availability
110
Support-Service Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
111
Front Slide Block-Service Drawer WPL 281914 Contact Us For Availability
113
Burner Box Bottom WPL 322110 Contact Us For Availability
114
Broiler Pan WPL 293098 Contact Us For Availability
115
Broiler Pan Grid WPL 293099 Contact Us For Availability
116
Oven Rack Guide-Rt. or Lt. WPL 305409 Contact Us For Availability
117
Oven Rack (2 Required) WPL 305408 Contact Us For Availability
119
Oven Body WPL 316519 Contact Us For Availability
120
Retainer - Oven Door Seal WPL 296103 Contact Us For Availability
121
Support-B WPL 285840 Contact Us For Availability
122
WPL 319487 WPL 319487 Contact Us For Availability
123
WPL 111257 WPL 111257 Contact Us For Availability
124
WPL 87883 WPL 87883 Contact Us For Availability
125
WPL 321162 WPL 321162 Contact Us For Availability
126
WPL 296102 WPL 296102 Contact Us For Availability
129
WPL 307750 WPL 307750 Contact Us For Availability
129
WPL 309042 WPL 309042 Contact Us For Availability
129
WPL 309043 WPL 309043 Contact Us For Availability
129
WPL 309044 WPL 309044 Contact Us For Availability
130
WPL 295850 WPL 295850 Contact Us For Availability
131
WPL 316365 WPL 316365 Contact Us For Availability
132
WPL 295849 WPL 295849 Contact Us For Availability
133
WPL 292240 WPL 292240 Contact Us For Availability
135
WPL 21067 WPL 21067 Contact Us For Availability
139
WPL 313498 WPL 313498 Contact Us For Availability
140
WPL 314487 WPL 314487 Contact Us For Availability
200
Outer Glass-Oven Door WPL 318315 Contact Us For Availability
201
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
202
Keps Nut 8-32 WPL 239764 Contact Us For Availability
203
Inner Glass-Oven Door WPL 296214 Contact Us For Availability
204
Lining-Oven Door WPL 316528 Contact Us For Availability
205
Insulation WPL 303556 Contact Us For Availability
206
Retainer - Oven Door Insulation WPL 296471 Contact Us For Availability
207
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
208
Handle-Oven Door WPL 303342 Contact Us For Availability
209
Frame-Oven Door WPL 296473 Contact Us For Availability
210
Cushion-Door Glass (3 Required) WPL 112370 Contact Us For Availability
211
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
211
Main Top WPL 322326 Contact Us For Availability
211
Thermostat WPL 323145 Contact Us For Availability
211
Controls WPL 324093 Contact Us For Availability
350
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
351
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
352
Rotisserie Motor WPL 106575 Contact Us For Availability
353
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
354
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
355
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
356
Thumbscrew WPL 70287 Contact Us For Availability
357
Skewer WPL 88433 Contact Us For Availability
358
Rotisserie Spit WPL 100092 Contact Us For Availability
359
Spit Support WPL 232137 Contact Us For Availability
360
Plug Button WPL 100095 Contact Us For Availability
361
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggy B WPL 291284 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggy B WPL 294278 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
363
Rotisserie Cord WPL 282924 Contact Us For Availability
364
Lockwasher WPL 69603 Contact Us For Availability
366
Rotisserie Pan WPL 291397 Contact Us For Availability
370
Set-On-Griddle (Optional) WPL 1006802 Contact Us For Availability
× ![]()
