Model LG 22MP55VQ-B – Common Parts & Diagrams

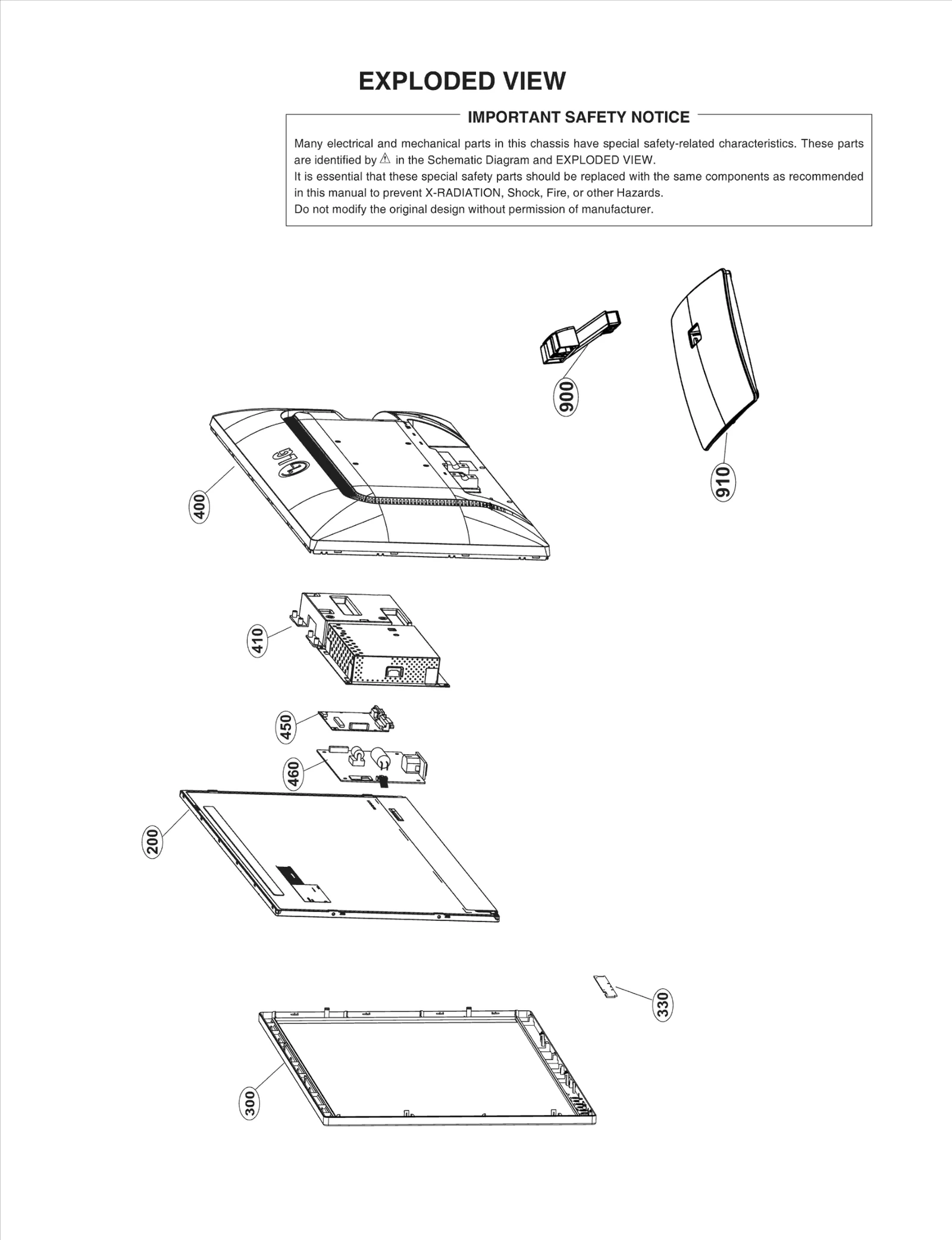

Diagram 0
Diagram 1
Common parts from model LG 22MP55VQ-B
200
LCD,Module-TFT LGE EAJ62968001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73967938 Contact Us For Availability
330
PCB Assembly LGE EBR78883901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87172507 Contact Us For Availability
410
Frame Assembly LGE ADV74747209 Contact Us For Availability
450
BPR Total Assembly LGE EBU62542001 Contact Us For Availability
460
Power Supply Assembly LGE EAY62909402 Contact Us For Availability
900
Base Assembly LGE AAN73628814 Contact Us For Availability
910
Base Assembly LGE AAN73629014 Contact Us For Availability
A1
Manual Assembly LGE AFN77011813 Contact Us For Availability
A3
Power Cord,Detach LGE EAD60813904 Contact Us For Availability
A4
Card LGE MBM64118129 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734006 Contact Us For Availability
A6
Cable,Assembly LGE EAD57760006 Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C110
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C123
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C137
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C141
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C143
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C145
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
IC101
S/W,Firmware LGE SAA37586701 Contact Us For Availability
IC201
IC,EEPROM LGE EAN60997601 Contact Us For Availability
JK201
Connector,DSUB LGE EAG61073003 Contact Us For Availability
LV1
Cable,FFC LGE EAD62389081 Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P101
Connector,Wafer LGE EAG62172203 Contact Us For Availability
P102
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P103
Connector,Wafer LGE 6630V90220L Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R112
Resistor,Metal Oxide Film LGE EBC62297501 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R162
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R177
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R178
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R179
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R182
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R186
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R194
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R215
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R220
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R221
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R223
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R339
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
