Model LG 22MK600M-B – Common Parts & Diagrams

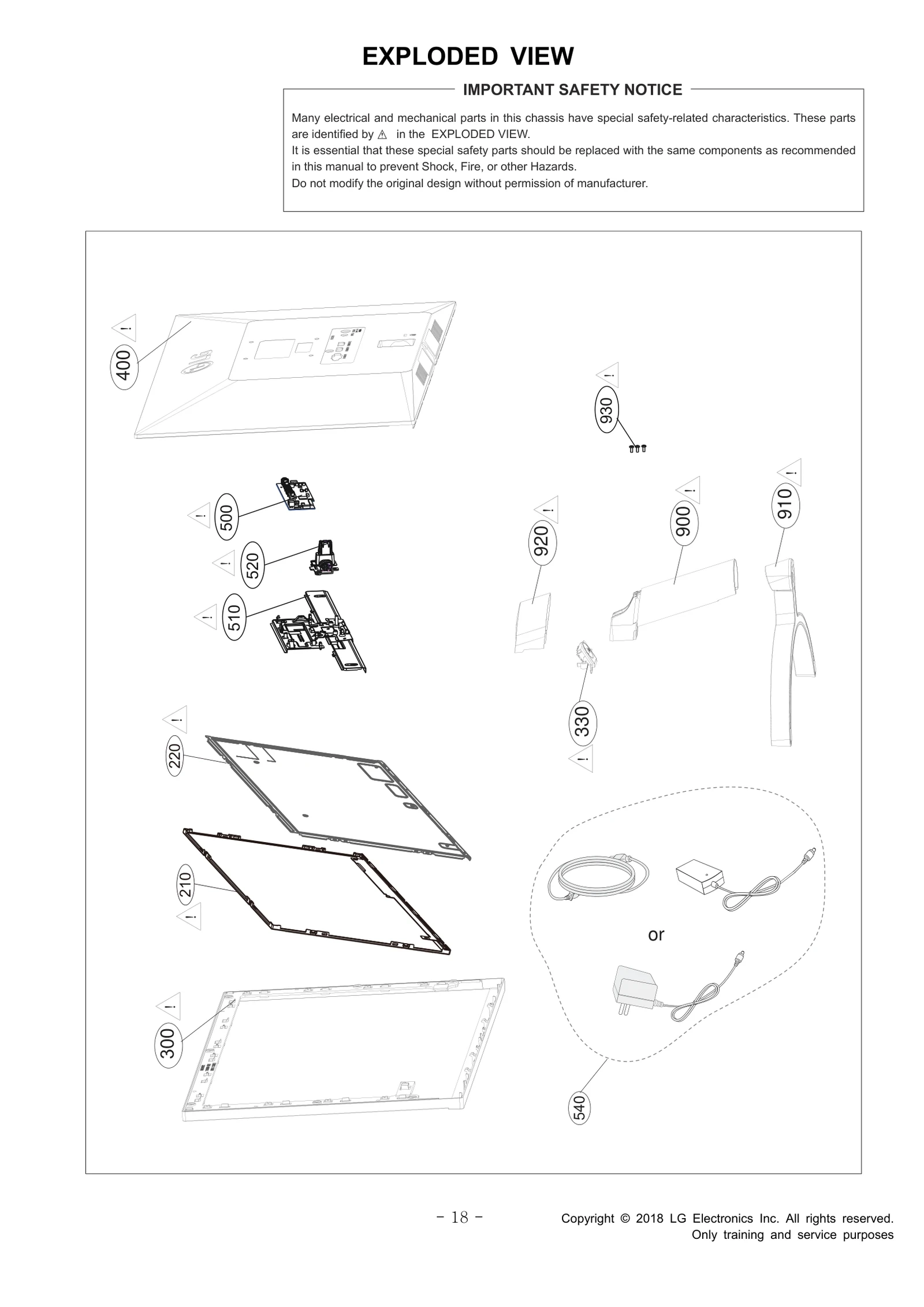

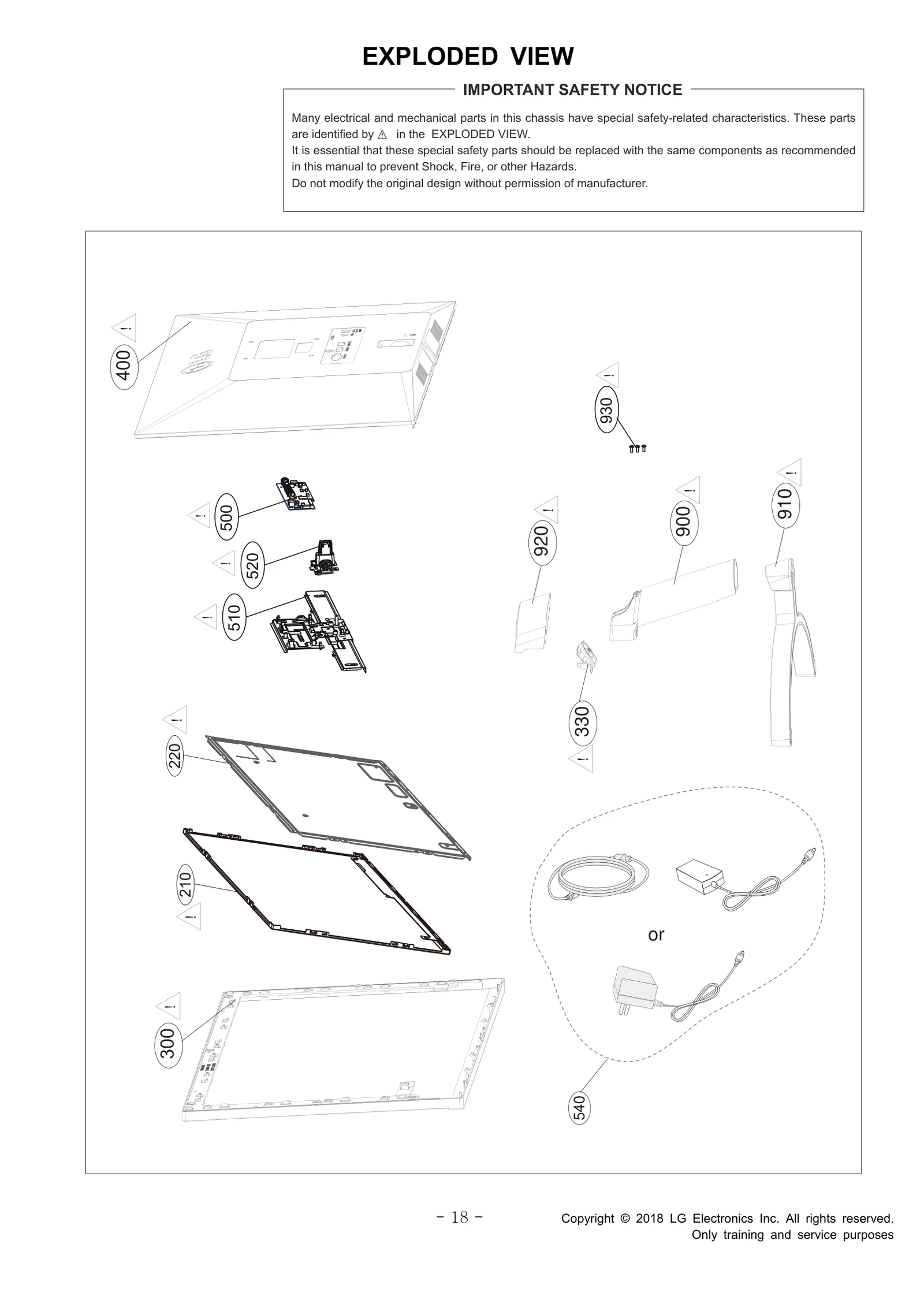

Diagram 0
Diagram 1
Common parts from model LG 22MK600M-B
200
Module,Assembly LGE EAT63400006 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ64589001 Contact Us For Availability
220
Back Light Assembly LGE EBV60978087 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR86108001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ90309201 Contact Us For Availability
520
Bracket Assembly LGE ABA76808201 Contact Us For Availability
540
Adapters LGE EAY62708915 Contact Us For Availability
900
Base Assembly LGE AAN76628801 Contact Us For Availability
910
Base Assembly LGE AAN76648701 Contact Us For Availability
920
Package Assembly LGE AGF77182298 Contact Us For Availability
A1
Manual Assembly LGE AFN78341121 Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A7
Card LGE MBM66185432 Contact Us For Availability
A8
Cable,Assembly LGE EAD63954401 Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
C103
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C109
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C115
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C120
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C121
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C125
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C137
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C219
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C243
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C251
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
LV1
Cable,FFC LGE EAD63169875 Contact Us For Availability
P200
WAFER LGE 6602T20009E Contact Us For Availability
P201
Connector,DSUB LGE EAG61072907 Contact Us For Availability
P201
Connector,DSUB LGE EAG61072905 Contact Us For Availability
P202
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
R10
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R14
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R114
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ2003C678 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R132
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R133
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ2700C478 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R147
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R150
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R231
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R250
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R253
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R257
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R262
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R273
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R331
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R356
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
× ![]()
