Model LG 22MB35DM-B – Common Parts & Diagrams

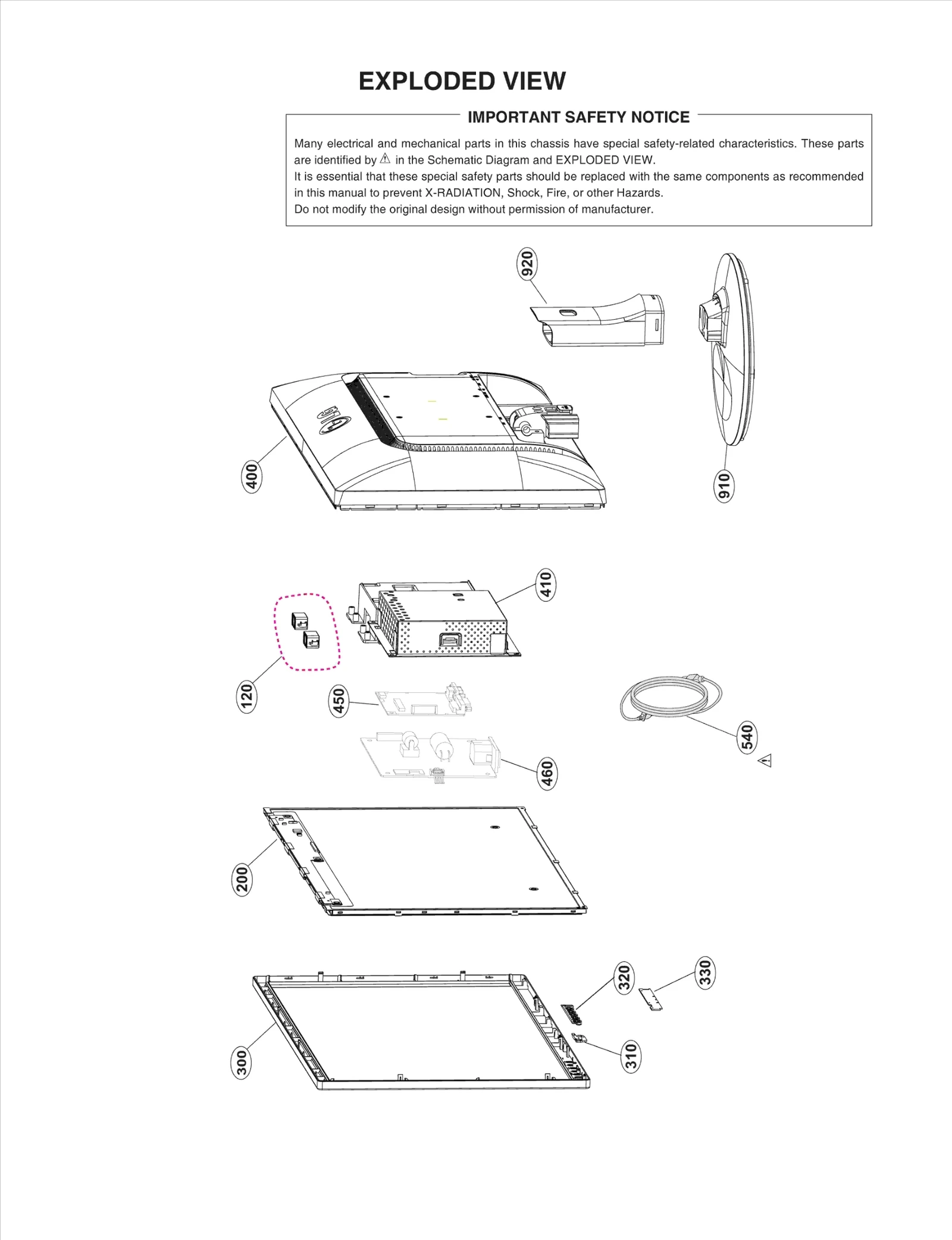

Diagram 0
Diagram 1
Common parts from model LG 22MB35DM-B
120
Speaker Assembly LGE EAB51749306 Contact Us For Availability
120
Speaker Assembly LGE EAB51749301 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63107601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74208903 Contact Us For Availability
310
Bracket Assembly LGE ABA72946301 Contact Us For Availability
330
PCB Assembly LGE EBR74906817 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85355332 Contact Us For Availability
410
Frame Assembly LGE ADV74747202 Contact Us For Availability
460
Power Supply Assembly LGE EAY62909402 Contact Us For Availability
500
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
A1
Manual Assembly LGE AFN76232421 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A6
CABLE,DVI LGE 68509J0004A Contact Us For Availability
A7
Card LGE MBM64076507 Contact Us For Availability
C1
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C129
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C137
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C144
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C149
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C210
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C225
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C228
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
D203
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D203
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC101
S/W,Firmware LGE SAA37465301 Contact Us For Availability
IC201
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
JK202
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
LV1
Cable,FFC LGE EAD62389089 Contact Us For Availability
P100
Connector,Wafer LGE 6630V90220L Contact Us For Availability
P101
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
P200
Connector,Wafer LGE EAG31366104 Contact Us For Availability
P200
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
Q201
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R126
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R143
Resistor,Chip LGE EBC62857601 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R170
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R174
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R179
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R183
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R250
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
SW3
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW3
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW3
Switch,Tact LGE EBF60670802 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
