Model LG 22M38D-B – Common Parts & Diagrams

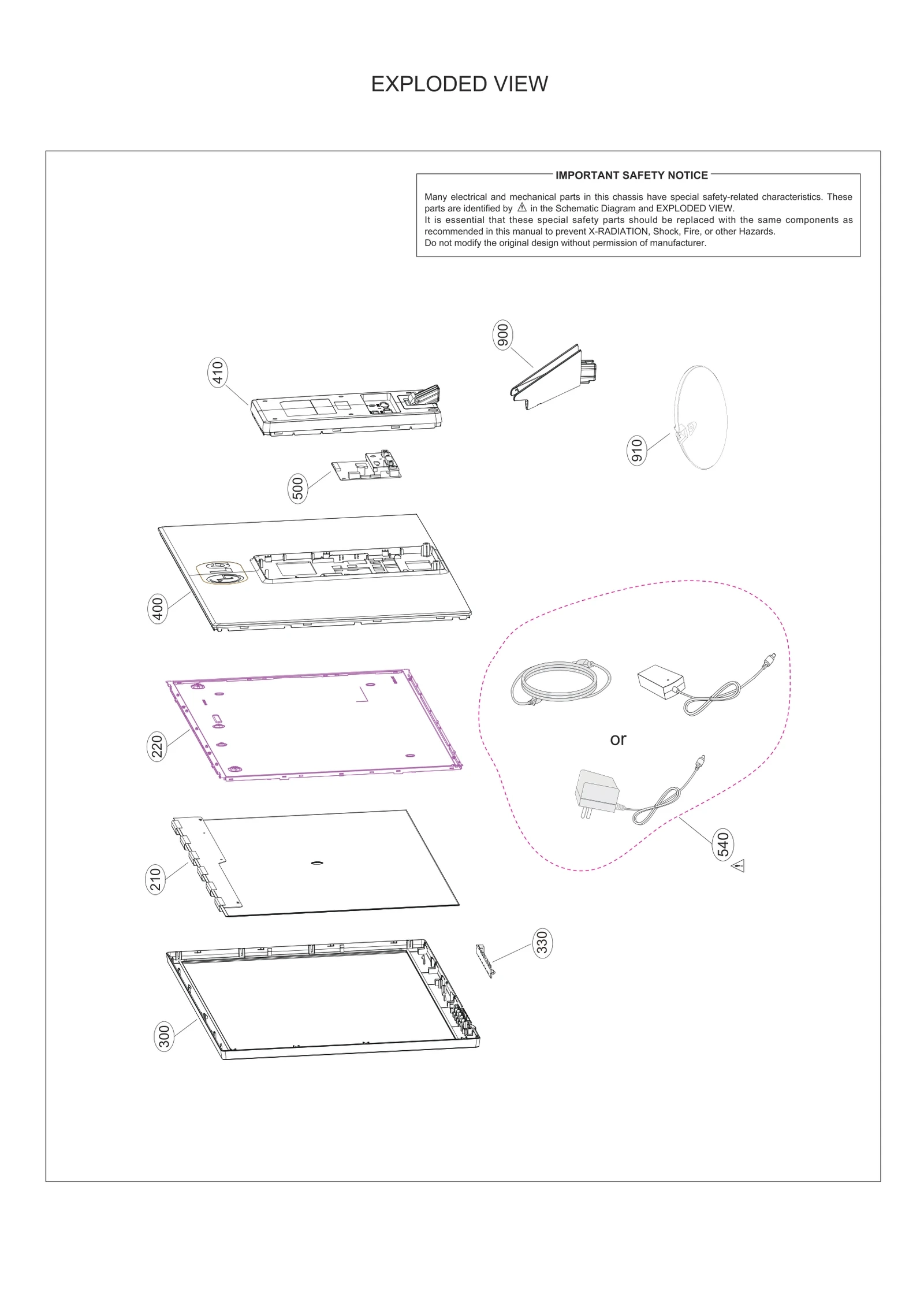

Diagram 0
Diagram 1
Common parts from model LG 22M38D-B
200
Module,Assembly LGE EAT61914207 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ63910501 Contact Us For Availability
220
Back Light Assembly LGE EBV60978065 Contact Us For Availability
330
PCB Assembly LGE EBR78285901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86076519 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ85976502 Contact Us For Availability
500
BPR Total Assembly LGE EBU63601912 Contact Us For Availability
540
Adapters LGE EAY62768613 Contact Us For Availability
900
Base Assembly LGE AAN74131901 Contact Us For Availability
910
Base Assembly LGE AAN74310601 Contact Us For Availability
A1
Manual Assembly LGE AFN77467721 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A9
Card LGE MBM65356117 Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C126
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C137
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C143
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C150
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C160
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
D203
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D203
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
IC,EEPROM LGE EAN60997601 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072907 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072905 Contact Us For Availability
LV1
Cable,FFC LGE EAD62389087 Contact Us For Availability
P101
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R143
Resistor,Chip LGE EBC62857601 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R174
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R190
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R231
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
× ![]()
