Model LG 22M34D-B – Common Parts & Diagrams

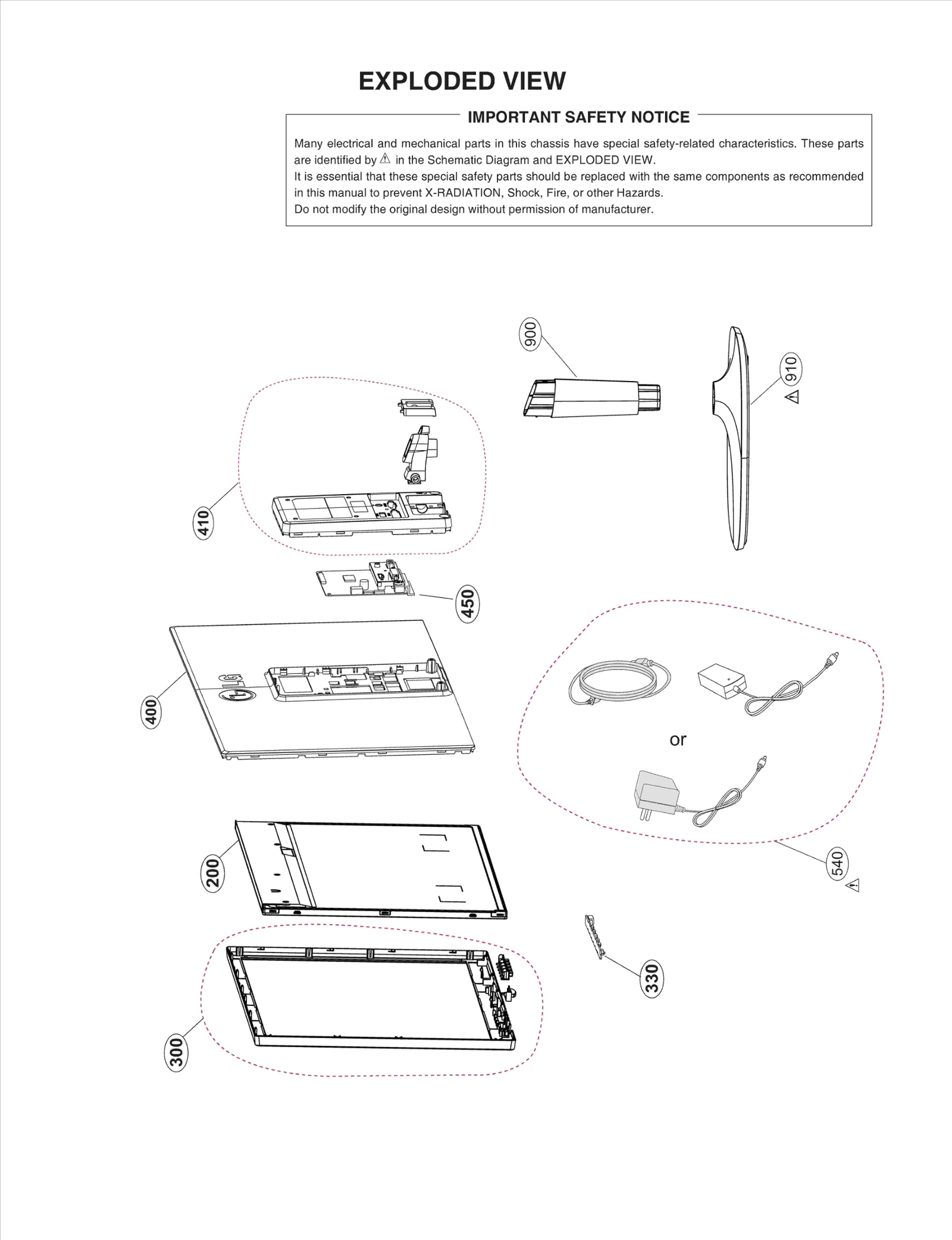

Diagram 0
Diagram 1
Common parts from model LG 22M34D-B
200
Module,Assembly LGE EAT62113404 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73750251 Contact Us For Availability
330
PCB Assembly LGE EBR78285901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86076502 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ87028701 Contact Us For Availability
450
BPR Total Assembly LGE EBU62384616 Contact Us For Availability
540
Adapters LGE EAY62768607 Contact Us For Availability
540
Adapters LGE EAY62708908 Contact Us For Availability
900
Base Assembly LGE AAN74589001 Contact Us For Availability
910
Base Assembly LGE AAN74589201 Contact Us For Availability
A1
Manual Assembly LGE AFN76572221 Contact Us For Availability
A4
Card LGE MBM64076530 Contact Us For Availability
A6
Cable,Assembly LGE EAD57760001 Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK392CK56A Contact Us For Availability
C129
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C137
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C144
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C149
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C158
Capacitor,Ceramic,Chip LGE EAE62772301 Contact Us For Availability
C160
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
D203
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D203
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
IC,EEPROM LGE EAN60997601 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
LV1
Cable,FFC LGE EAD61905279 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P101
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
Q100
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R1
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R143
Resistor,Chip LGE EBC62857601 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R183
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R192
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R234
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R244
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
VA206
Varistor LGE EAF61530301 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
