Model LG 22LY340C – Common Parts & Diagrams

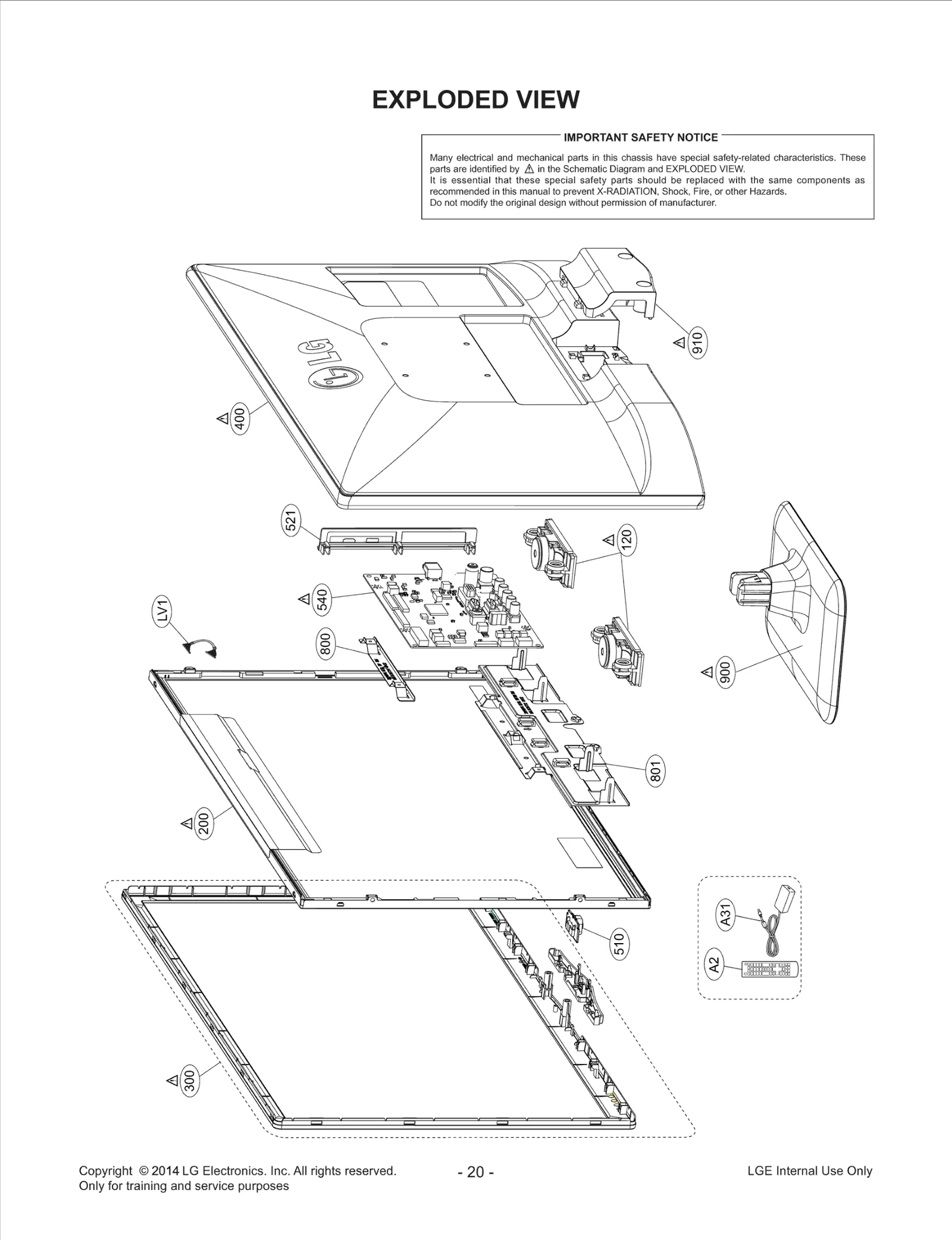

Diagram 0
Diagram 1
Common parts from model LG 22LY340C
120
Speaker,Full Range LGE EAB35995505 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62828001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74148102 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86838845 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR79630801 Contact Us For Availability
521
Cover LGE MCK67135050 Contact Us For Availability
540
PCB Assembly,Main LGE EBR79630701 Contact Us For Availability
800
Plate,Metal LGE MGJ63673402 Contact Us For Availability
801
Frame Assembly LGE ADV74686002 Contact Us For Availability
900
Base Assembly LGE AAN74510702 Contact Us For Availability
910
Cover LGE MCK67924502 Contact Us For Availability
A31
Adapters LGE EAY62850203 Contact Us For Availability
C111
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C250
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C440
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C4603
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C4622
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C5616
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C5634
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
L432
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62108529 Contact Us For Availability
× ![]()
