Model LG 22LV2500 – Common Parts & Diagrams

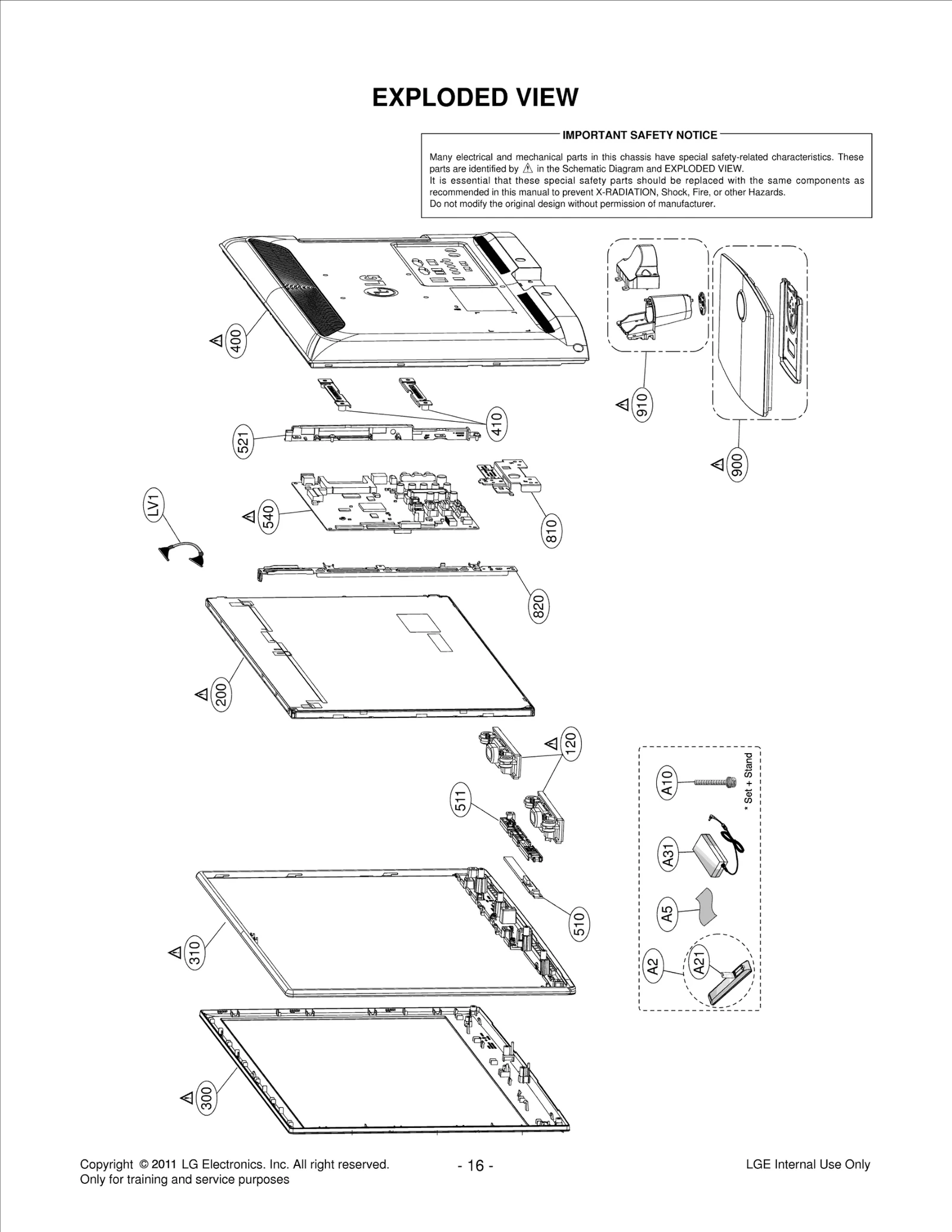

Diagram 0
Diagram 1
Common parts from model LG 22LV2500
120
Speaker,Full Range LGE EAB62088504 Contact Us For Availability
120
Speaker,Full Range LGE EAB62088501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61349501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73289313 Contact Us For Availability
310
Cabinet LGE MBH62243301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83854013 Contact Us For Availability
410
Supporter LGE MJH61888202 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671301 Contact Us For Availability
511
Bracket LGE MAZ62846402 Contact Us For Availability
540
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
540
DMS Chassis Assembly LGE EBT61580102 Contact Us For Availability
810
Supporter LGE MJH62274502 Contact Us For Availability
820
Plate,Metal LGE MGJ62682202 Contact Us For Availability
900
Base Assembly LGE AAN73533116 Contact Us For Availability
910
Bracket Assembly LGE ABA73808204 Contact Us For Availability
A1
Title LGE SAC34134216 Contact Us For Availability
A4
Manual,Owners LGE MFL62882741 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A10
Screw,Machine LGE FAB30006405 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
A31
Adapters LGE EAY62290001 Contact Us For Availability
A31
Adapters LGE EAY62289801 Contact Us For Availability
A31
Adapters LGE EAY62289901 Contact Us For Availability
D2405
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
R7956
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R7957
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R10015
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
× ![]()
