Model LG 22LT560C – Common Parts & Diagrams

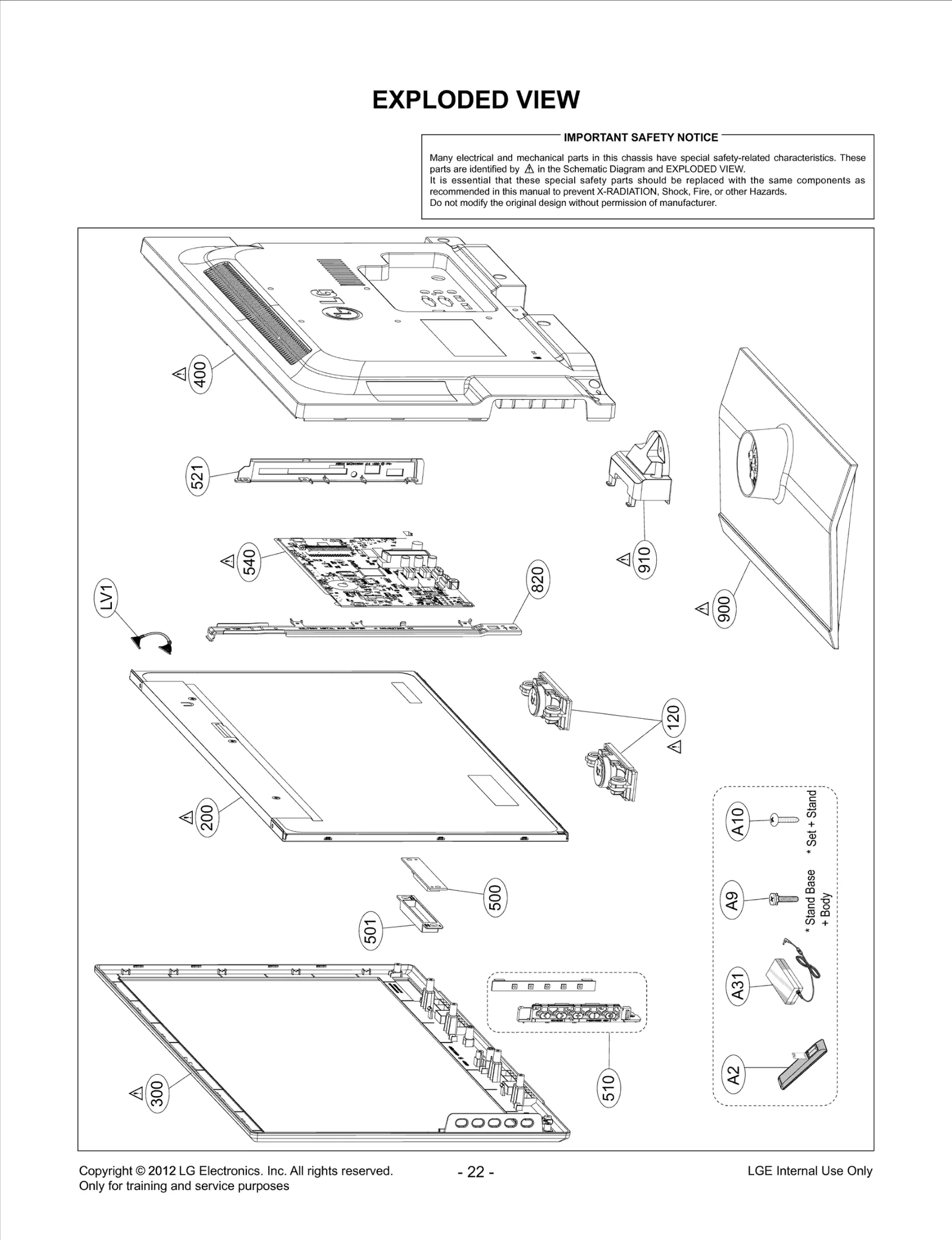

Diagram 0
Diagram 1
Common parts from model LG 22LT560C
200
LCD,Module-TFT LGE EAJ62108001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73808902 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85971703 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR75802201 Contact Us For Availability
501
Indicator LGE MES62758302 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR74891801 Contact Us For Availability
521
Bracket Assembly LGE ABA74274102 Contact Us For Availability
540
PCB Assembly LGE EBR75763901 Contact Us For Availability
820
Supporter LGE MJH62739202 Contact Us For Availability
910
Supporter LGE MJH62739103 Contact Us For Availability
A9
Screw Assembly LGE FAB30007706 Contact Us For Availability
A31
Adapters LGE EAY62290001 Contact Us For Availability
A31
Adapters LGE EAY62289901 Contact Us For Availability
AR101
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C200
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C206
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C236
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C277
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C523
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C530
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1000
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1128
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1133
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C1134
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3302
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C3318
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C3324
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C3347
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C3348
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C3349
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C3357
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C3359
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C3363
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C3365
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C3367
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C3369
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C3377
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C3378
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C3383
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C3738
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4068
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C4071
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C5803
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C10006
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C10007
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C10014
Capacitor,AL,Chip LGE EAE61361901 Contact Us For Availability
C10018
Capacitor,Ceramic,Chip LGE EAE61103401 Contact Us For Availability
CA1
Harness,Single LGE EAD61729403 Contact Us For Availability
CA2
Harness,Single LGE EAD60736905 Contact Us For Availability
CA3
Harness,Single LGE EAD61646252 Contact Us For Availability
D200
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D821
Diode,Switching LGE EAH61714301 Contact Us For Availability
D1002
Diode,Switching LGE EAH60666101 Contact Us For Availability
D1121
Diode,TVS LGE EAH39491701 Contact Us For Availability
D2405
Diode,Zener LGE EAH61752501 Contact Us For Availability
D3300
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D10001
Diode,Schottky LGE EAH61112701 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62354101 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61848801 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC3302
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC3304
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC3305
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC3307
IC,DC,DC Converter LGE EAN60993001 Contact Us For Availability
IC3309
IC,Reset LGE EAN60670101 Contact Us For Availability
IC3703
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC5801
IC,OP Amplifier LGE EAN61829701 Contact Us For Availability
IC5802
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC10000
IC,LED Driver LGE EAN60866801 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1001
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1450
Connector,USB LGE EAG62893101 Contact Us For Availability
JK3300
Jack,DC Power LGE EAG61231301 Contact Us For Availability
JK5801
Jack,Phone LGE EAG60841808 Contact Us For Availability
L202
Filter,Bead LGE EAM32500903 Contact Us For Availability
L503
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1451
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L3307
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L3312
Filter,Bead LGE EAM58113401 Contact Us For Availability
L3315
Inductor,Wire Wound,Chip LGE EAP61130001 Contact Us For Availability
L3316
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L10001
Inductor,Wire Wound,Chip LGE EAP61007301 Contact Us For Availability
P1
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P3102
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
Q801
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q3309
FET LGE EBK60752501 Contact Us For Availability
Q3310
FET LGE EBK61311401 Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R512
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R888
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1133
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1151
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1154
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1201
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1231
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1236
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1405
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R2405
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2413
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R2426
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R3305
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R3320
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R3321
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R3347
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R3348
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R3349
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R3350
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R3352
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R3359
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R3360
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3367
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R3374
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3375
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R3376
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R3377
RESISTOR,METAL GLAZED(CHIP) LGE 0RJ1003E672 Contact Us For Availability
R3378
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R3380
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R3384
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R3386
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R3387
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R4003
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4023
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R4025
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R4029
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R5820
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R5822
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R10001
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R10006
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R10007
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R10008
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R10013
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R10014
Resistor,Chip LGE 0RH7501D422 Contact Us For Availability
R10015
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R10017
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R10018
Resistor,Chip LGE 0RH5603D622 Contact Us For Availability
R10019
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R10024
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
SW1
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU3700
Tuner,Analog/Digital LGE EBL61060101 Contact Us For Availability
× ![]()
