Model LG 22LF10 – Common Parts & Diagrams

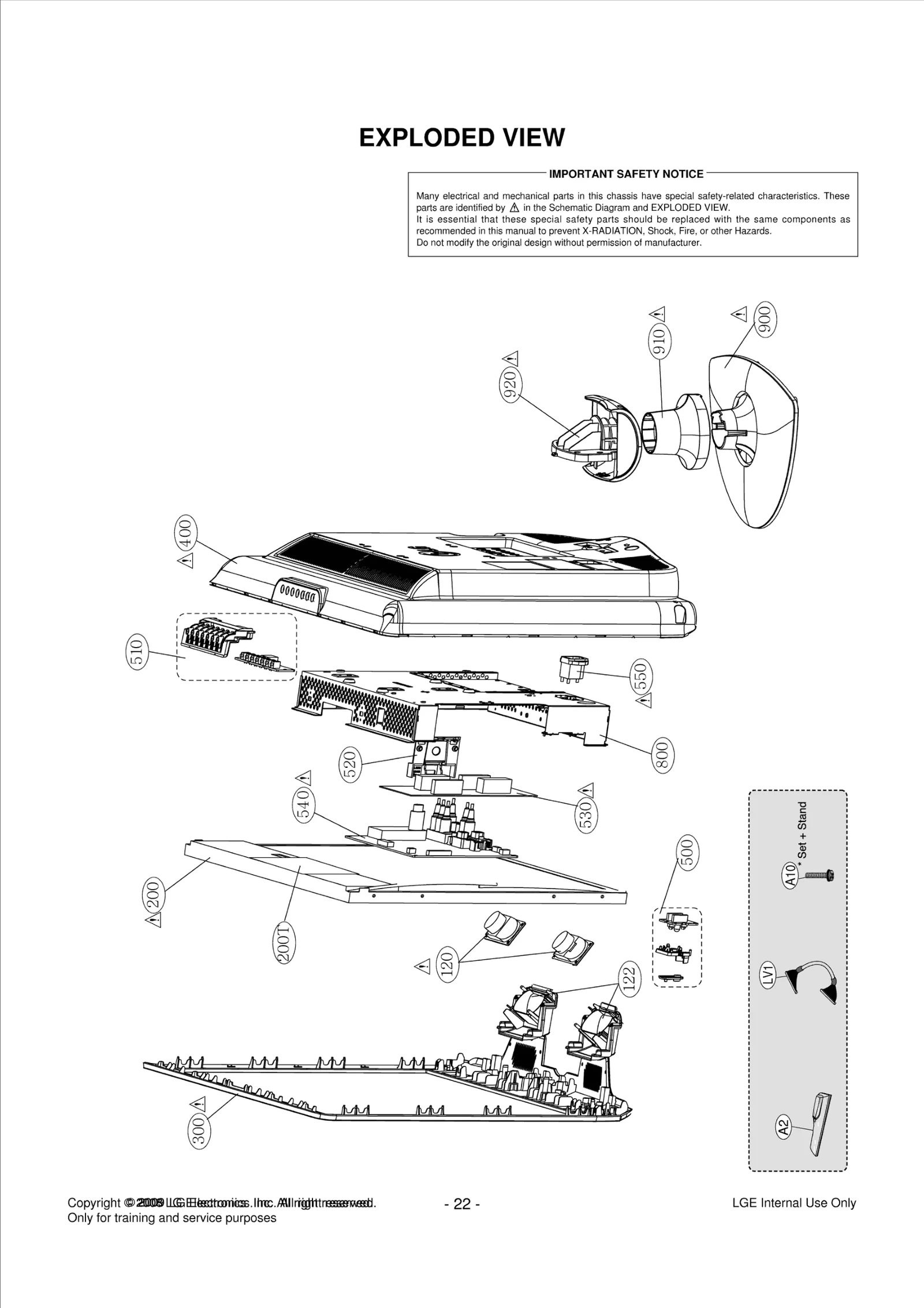

Diagram 0
Diagram 1
Common parts from model LG 22LF10
120
Speaker,Full Range LGE EAB35995502 Contact Us For Availability
122
Bracket LGE MAZ41294301 Contact Us For Availability
122
Bracket LGE MAZ41295601 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ52968301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ36172915 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ36173029 Contact Us For Availability
510
Package Assembly LGE AGF50268601 Contact Us For Availability
520
Bracket LGE MAZ41376302 Contact Us For Availability
530
Power Supply Assembl LGE EAY37155801 Contact Us For Availability
550
Socket,Power LGE 6620K00017F Contact Us For Availability
800
Frame Assembly LGE ADV35940618 Contact Us For Availability
900
Base Assembly LGE AAN36159002 Contact Us For Availability
910
Base Assembly LGE AAN36173202 Contact Us For Availability
910
Cover LGE MCK41293601 Contact Us For Availability
920
Supporter Assembly LGE AJJ72910902 Contact Us For Availability
A1
Manual,Owners LGE MFL34797055 Contact Us For Availability
A2
Remote Controller LGE MKJ36998105 Contact Us For Availability
A10
Screw,Taptite LGE FAB30007504 Contact Us For Availability
AR104
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR205
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C120
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C125
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C131
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C135
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C142
Capacitor,Ceramic,Chip LGE 0CH3224K946 Contact Us For Availability
C172
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C221
CAPACITOR,FIXED ELEC LGE 0CE226WJ6DC Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE 0CH5240K416 Contact Us For Availability
C435
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C436
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C440
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C510
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C524
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C531
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C708
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C709
CAPACITOR,FIXED CERA LGE 0CK822CK56A Contact Us For Availability
C710
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C720
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C732
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C739
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C804
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C4001
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
D502
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D625
Diode,TVS LGE EAH33946001 Contact Us For Availability
IC100
IC,Video Processors LGE EAN37156404 Contact Us For Availability
IC104
IC,CMOS LGE EAN38078001 Contact Us For Availability
IC200
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC400
IC,Data Controller LGE 0ICTMLG019C Contact Us For Availability
IC500
IC,Audio Amplifier LGE EAN40130001 Contact Us For Availability
IC501
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
IC700
IC,POWER MANAGEMENT LGE 0IPMGKE032A Contact Us For Availability
IC701
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC702
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC710
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC800
IC,EEPROM LGE EAN35989901 Contact Us For Availability
JK600
Jack,Complex LGE EAG35541101 Contact Us For Availability
JK601
Jack,RCA LGE 6612J10031C Contact Us For Availability
JK603
JACK,PHONE LGE 6612F00001D Contact Us For Availability
JK604
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK605
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
L402
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L407
Inductor,Multilayer, LGE EAP39314701 Contact Us For Availability
L512
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L604
Filter,Bead LGE EAM38769501 Contact Us For Availability
L701
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L715
Filter,Bead LGE EAM30764101 Contact Us For Availability
LV1
Harness,Single LGE 6631900109G Contact Us For Availability
P302
Conector,Wafer LGE 6630V90219A Contact Us For Availability
P303
Conector,Wafer LGE 6602T20009B Contact Us For Availability
P500
WAFER LGE 6602T25009C Contact Us For Availability
Q305
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q703
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R109
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R175
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R176
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R205
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R206
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R215
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R233
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R301
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R402
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R423
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ6202E472 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ1503E472 Contact Us For Availability
R521
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R634
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R639
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R648
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R669
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R709
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RJ8252D477 Contact Us For Availability
R716
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R721
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R732
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R740
Resistor,Chip LGE 0RJ4320D477 Contact Us For Availability
R750
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R816
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R825
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R4001
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R4002
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R4003
Resistor,Metal Film LGE 0RN6801F409 Contact Us For Availability
SW4006
Switch,Tact LGE 6600R00001B Contact Us For Availability
TU400
Tuner,Analog/Digital LGE EBL37676801 Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
