Model LG 22LD350C – Common Parts & Diagrams

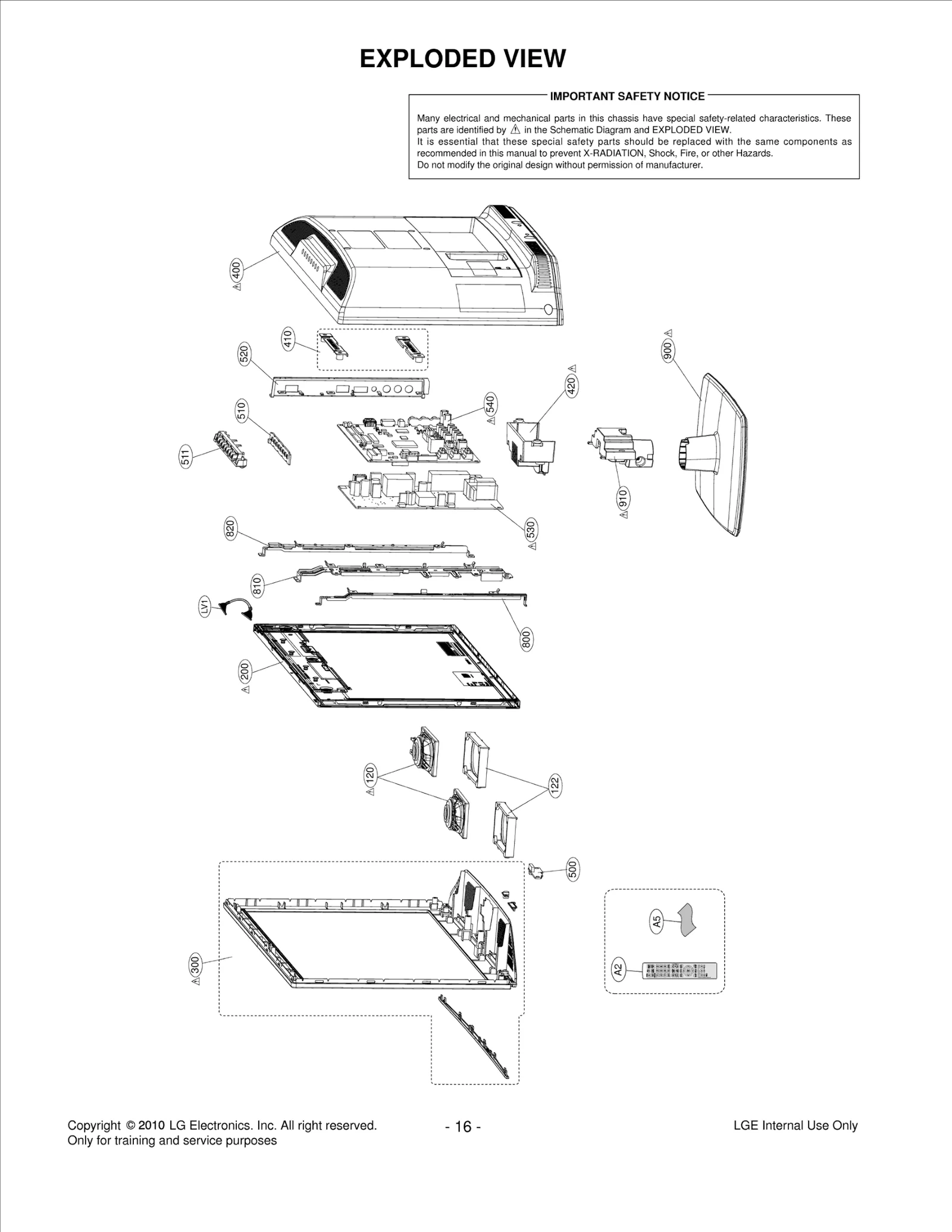

Diagram 0
Diagram 1
Common parts from model LG 22LD350C
120
Speaker,Full Range LGE EAB60961601 Contact Us For Availability
122
Bracket LGE MAZ61989202 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60140401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72926216 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75182342 Contact Us For Availability
410
Supporter LGE MJH61888202 Contact Us For Availability
420
Cover LGE MCK62764002 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64965301 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR66049801 Contact Us For Availability
520
Bracket Assembly LGE ABA73009509 Contact Us For Availability
530
Power Supply Assembly LGE EAY60801101 Contact Us For Availability
540
PCB Assembly,Main LGE EBR70054001 Contact Us For Availability
800
Supporter LGE MJH61885402 Contact Us For Availability
810
Supporter LGE MJH61885602 Contact Us For Availability
820
Supporter LGE MJH61885702 Contact Us For Availability
900
Base Assembly LGE AAN72948211 Contact Us For Availability
910
Base Assembly LGE AAN73031302 Contact Us For Availability
A10
Screw,Taptite LGE FAB30006324 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR7
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1079
Resistor,Array LGE EBC32260601 Contact Us For Availability
C13
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C23
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C110
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C118
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C120
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C132
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C139
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C161
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C179
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C187
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C414
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C451
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C458
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C479
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C603
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C632
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C646
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C807
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1028
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1066
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1069
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1071
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1076
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C1078
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1103
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C1106
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C1121
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1127
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1231
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1235
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1242
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C5000
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C5012
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
CA1
Harness,Single LGE EAD61049701 Contact Us For Availability
CA2
Harness,Single LGE EAD60676315 Contact Us For Availability
CA2
Harness,Single LGE EAD60732901 Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D7703
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D9806
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC2
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC103
IC,Reset LGE EAN43244901 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC400
IC,LDO Voltage Regulator LGE EAN60990601 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC1000
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC1100
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
IC1104
IC,CMOS LGE EAN42650901 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC5001
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC7701
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1201
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK3301
Jack,Phone LGE EAG61030001 Contact Us For Availability
L404
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L416
Filter,Bead LGE EAM58113401 Contact Us For Availability
L421
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
LD1000
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Cable,FFC LGE EAD61070412 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P801
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
P2401
Connector,Wafer LGE 6630V90141H Contact Us For Availability
Q108
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q411
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q1103
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q7703
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R9
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R39
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R47
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R126
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R187
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R449
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R450
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R457
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R612
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R621
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R626
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1062
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R1077
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1116
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R1137
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1152
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1155
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1278
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1299
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1454
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R2112
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R2118
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2194
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R2413
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3005
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R3006
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R5008
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R5018
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R5033
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R7703
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R7745
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R9808
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R9816
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
SW3008
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU5001
Tuner,Analog/Digital LGE EBL60720401 Contact Us For Availability
VR7700
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
