Model LG 22LD350 – Common Parts & Diagrams

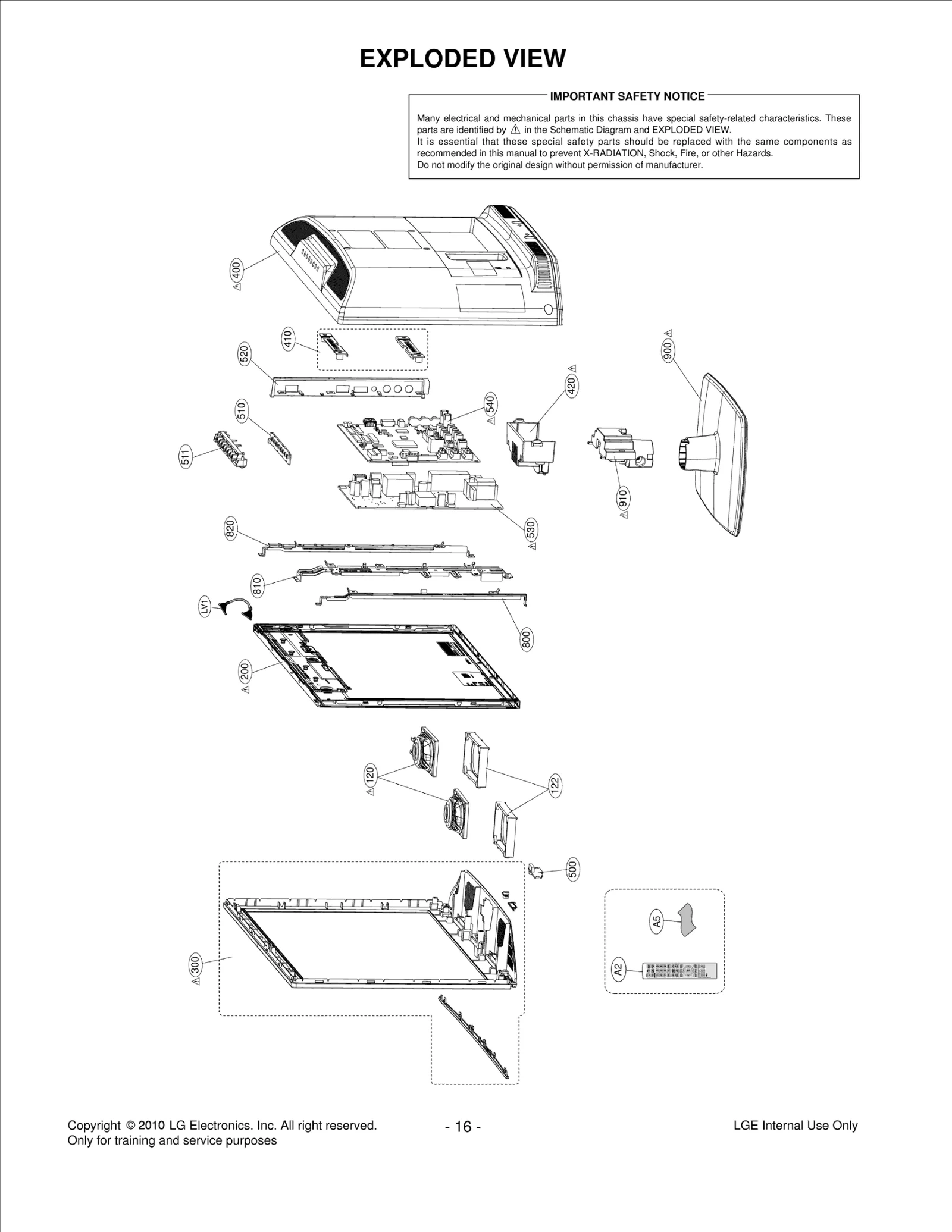

Diagram 0
Diagram 1
Common parts from model LG 22LD350
120
Speaker,Full Range LGE EAB60961601 Contact Us For Availability
122
Bracket LGE MAZ61989202 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60140401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72926216 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75182342 Contact Us For Availability
410
Supporter LGE MJH61888202 Contact Us For Availability
420
Cover LGE MCK62764002 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64965301 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR66049801 Contact Us For Availability
520
Bracket Assembly LGE ABA73009509 Contact Us For Availability
530
Power Supply Assembly LGE EAY60801101 Contact Us For Availability
540
BPR Total Assembly LGE EBU60849804 Contact Us For Availability
800
Supporter LGE MJH61885402 Contact Us For Availability
810
Supporter LGE MJH61885602 Contact Us For Availability
820
Supporter LGE MJH61885702 Contact Us For Availability
900
Base Assembly LGE AAN72948211 Contact Us For Availability
910
Base Assembly LGE AAN73031302 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR11
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR101
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1071
Resistor,Array LGE EBC32260601 Contact Us For Availability
C11
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C30
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C108
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C111
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C120
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C121
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C145
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C186
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C201
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C414
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C451
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C457
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C467
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C479
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C603
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C607
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C611
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C643
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C807
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1018
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1028
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1071
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1076
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C1078
Capacitor,Ceramic,Chip LGE 0CN106FF66A Contact Us For Availability
C1079
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1103
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C1107
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1109
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C1128
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1230
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1239
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1242
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C5000
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C5013
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C5020
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
CA1
Harness,Single LGE EAD61049701 Contact Us For Availability
CA2
Harness,Single LGE EAD60676315 Contact Us For Availability
CA2
Harness,Single LGE EAD60732901 Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D2407
Diode,TVS LGE EAH39491701 Contact Us For Availability
D7703
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC1
IC,DDR2 SDRAM LGE EAN60762901 Contact Us For Availability
IC1
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC103
IC,Reset LGE EAN43244901 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC400
IC,LDO Voltage Regulator LGE EAN60990601 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC600
IC,Audio Amplifier LGE EAN60664002 Contact Us For Availability
IC1000
IC,LDO Voltage Regulator LGE EAN61387603 Contact Us For Availability
IC1000
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC1000
IC,LDO Voltage Regulator LGE EAN61387602 Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC1100
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
IC1104
IC,CMOS LGE EAN42650901 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC5001
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC7701
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1201
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK3301
Jack,Phone LGE EAG61030001 Contact Us For Availability
L401
Filter,Bead LGE EAM58113401 Contact Us For Availability
L423
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1451
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD1000
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Cable,FFC LGE EAD61070412 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P801
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
P2401
Connector,Wafer LGE 6630V90141H Contact Us For Availability
Q407
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q410
FET LGE EBK60752501 Contact Us For Availability
Q411
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q1101
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q7703
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R24
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R31
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R42
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R181
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R226
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R281
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R405
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R440
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R449
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R457
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R467
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R468
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R486
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R620
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R621
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R626
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R1061
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R1116
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R1118
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1135
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1302
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R2109
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R2118
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2194
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R2413
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3003
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R3006
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R3007
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R5008
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R5018
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R5033
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R7703
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R7745
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R9803
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R9811
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R9812
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R9815
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
SW3004
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
VR7700
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
