Model LG 2263672 – Common Parts & Diagrams

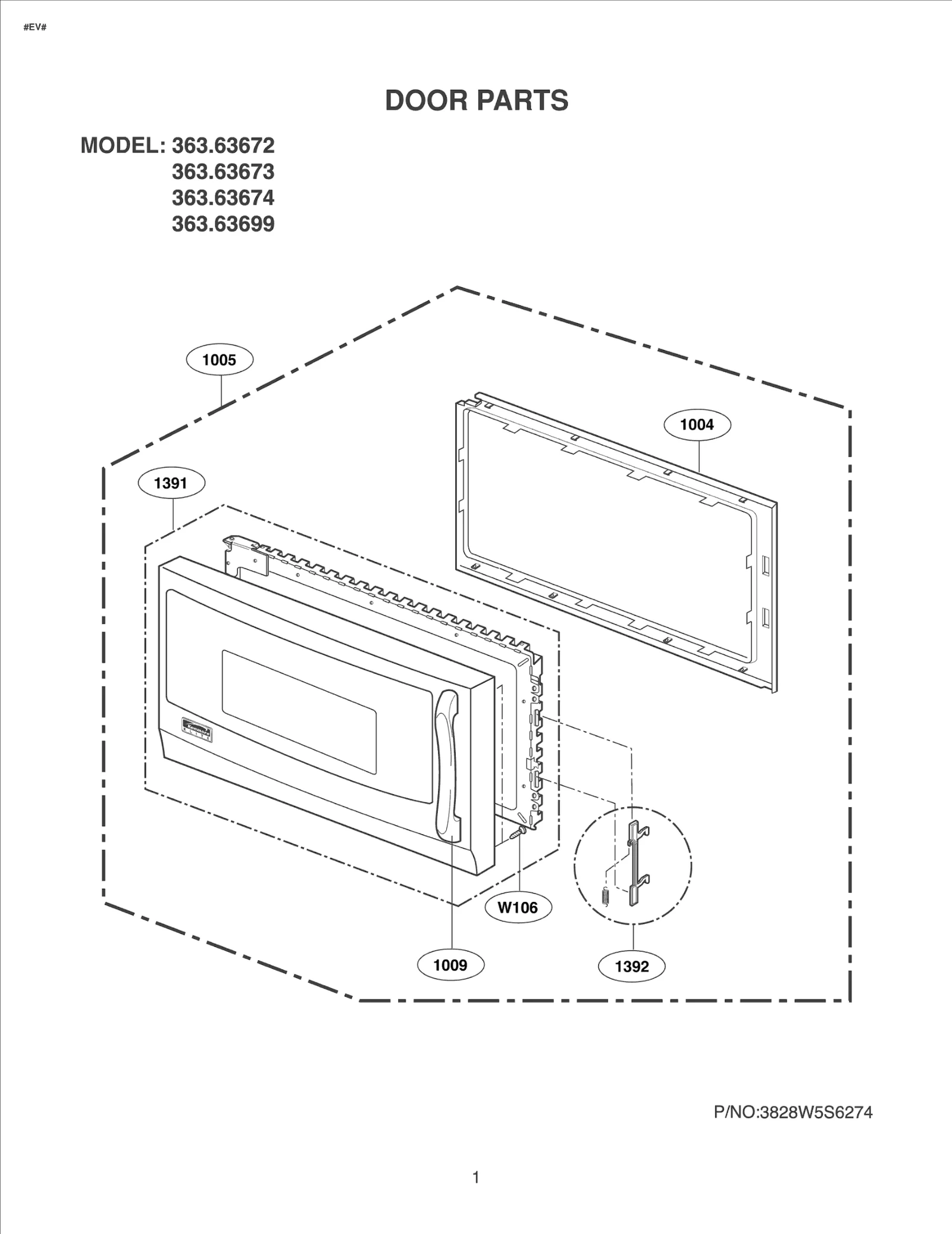

Diagram 0

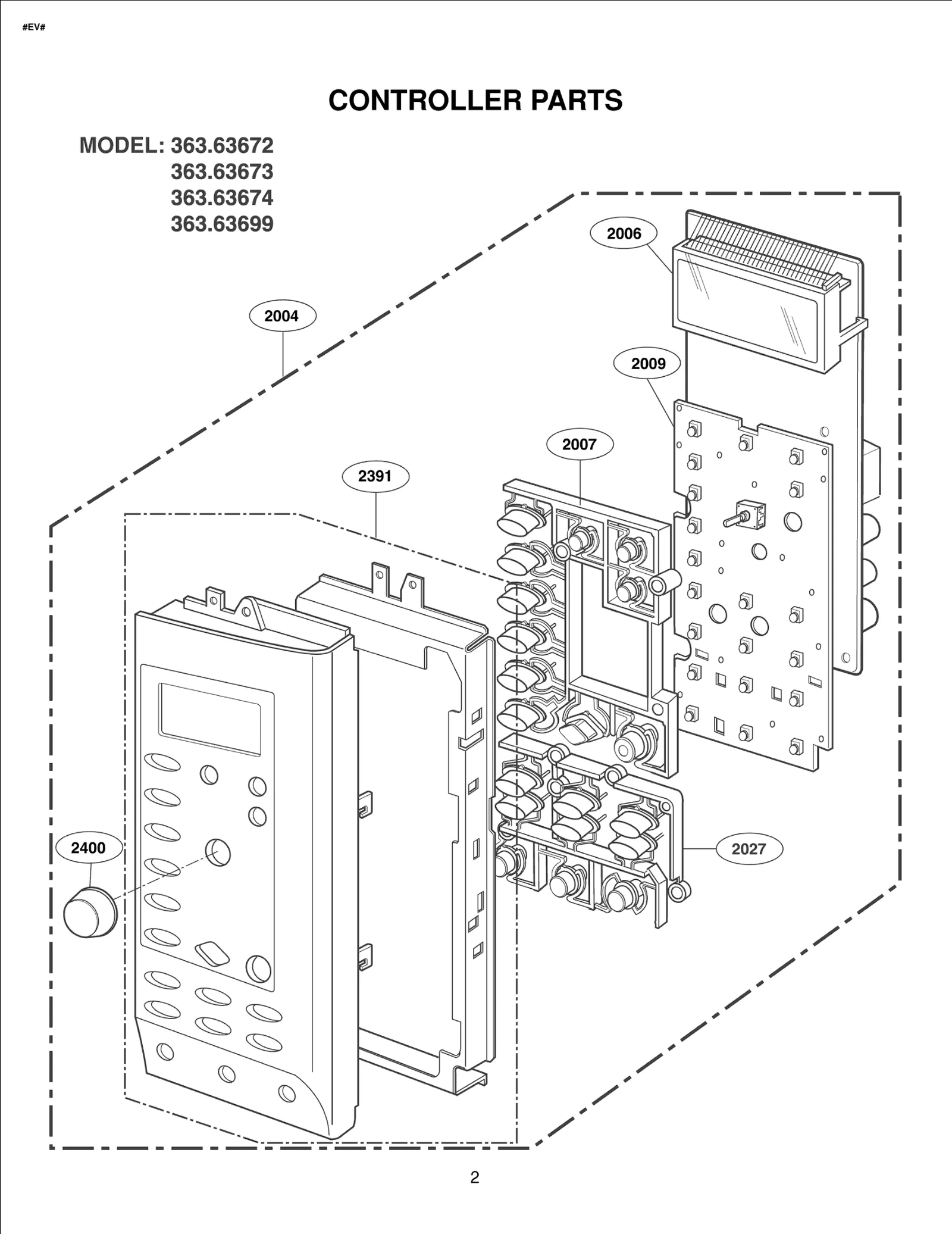

Diagram 1

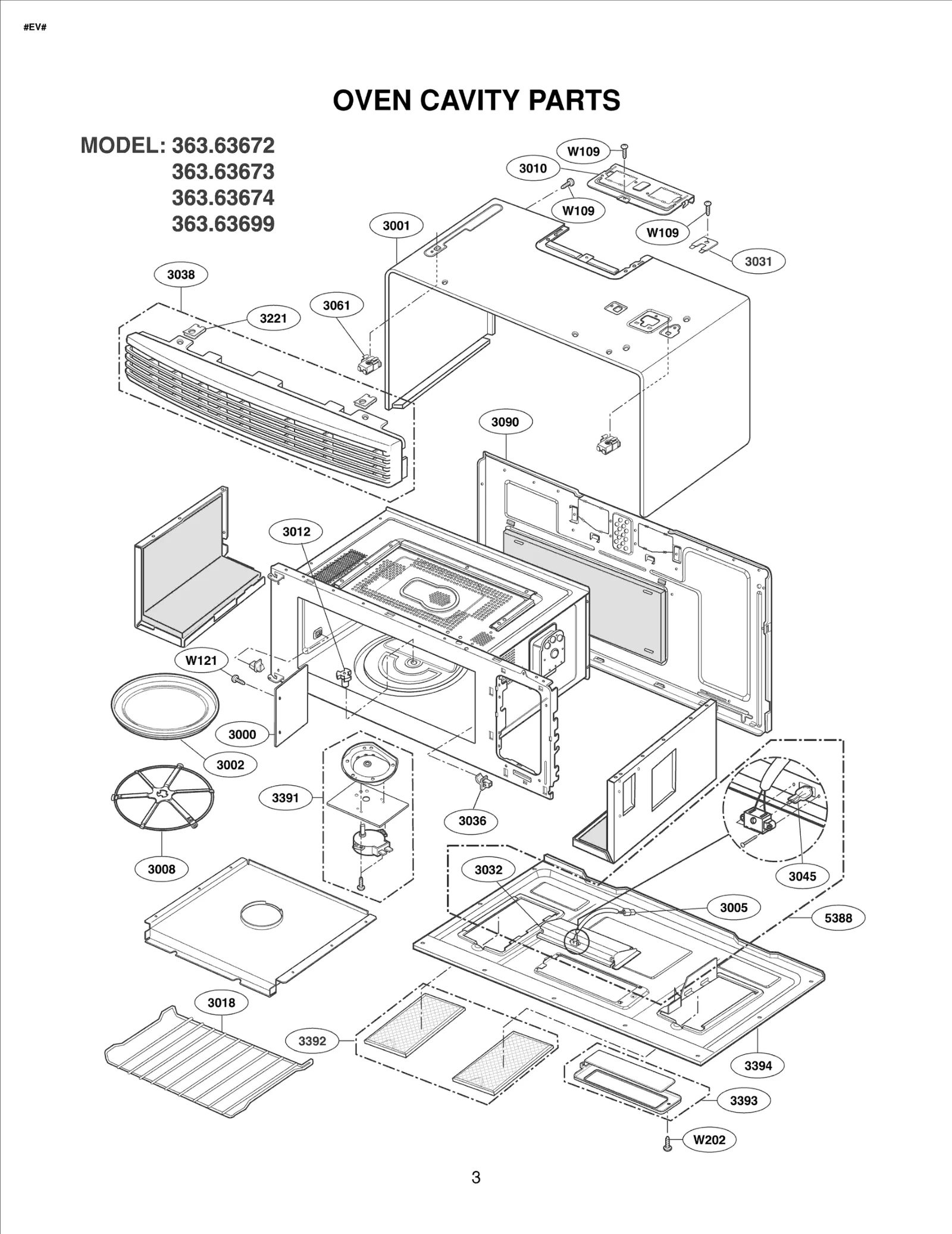

Diagram 2

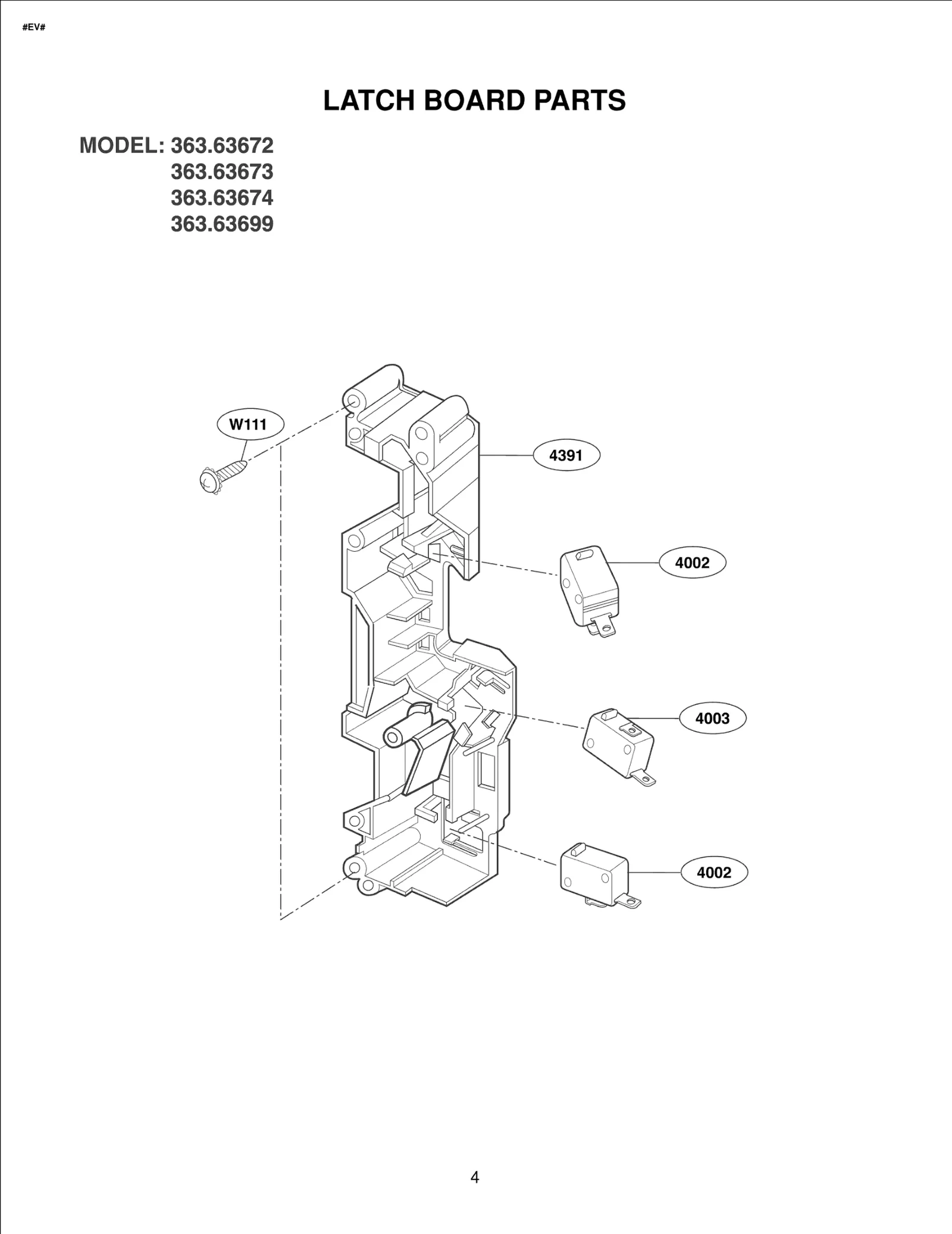

Diagram 3

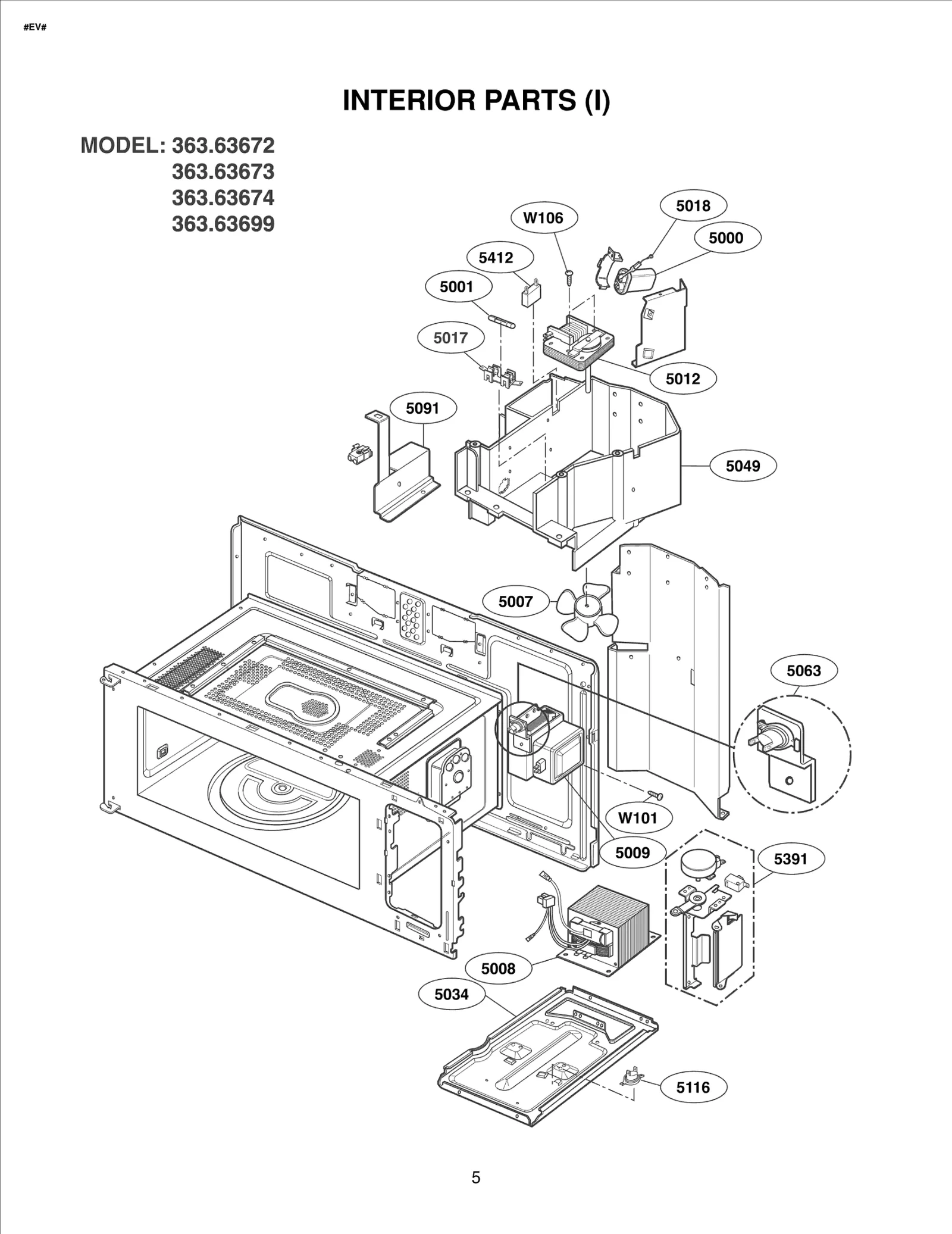

Diagram 4

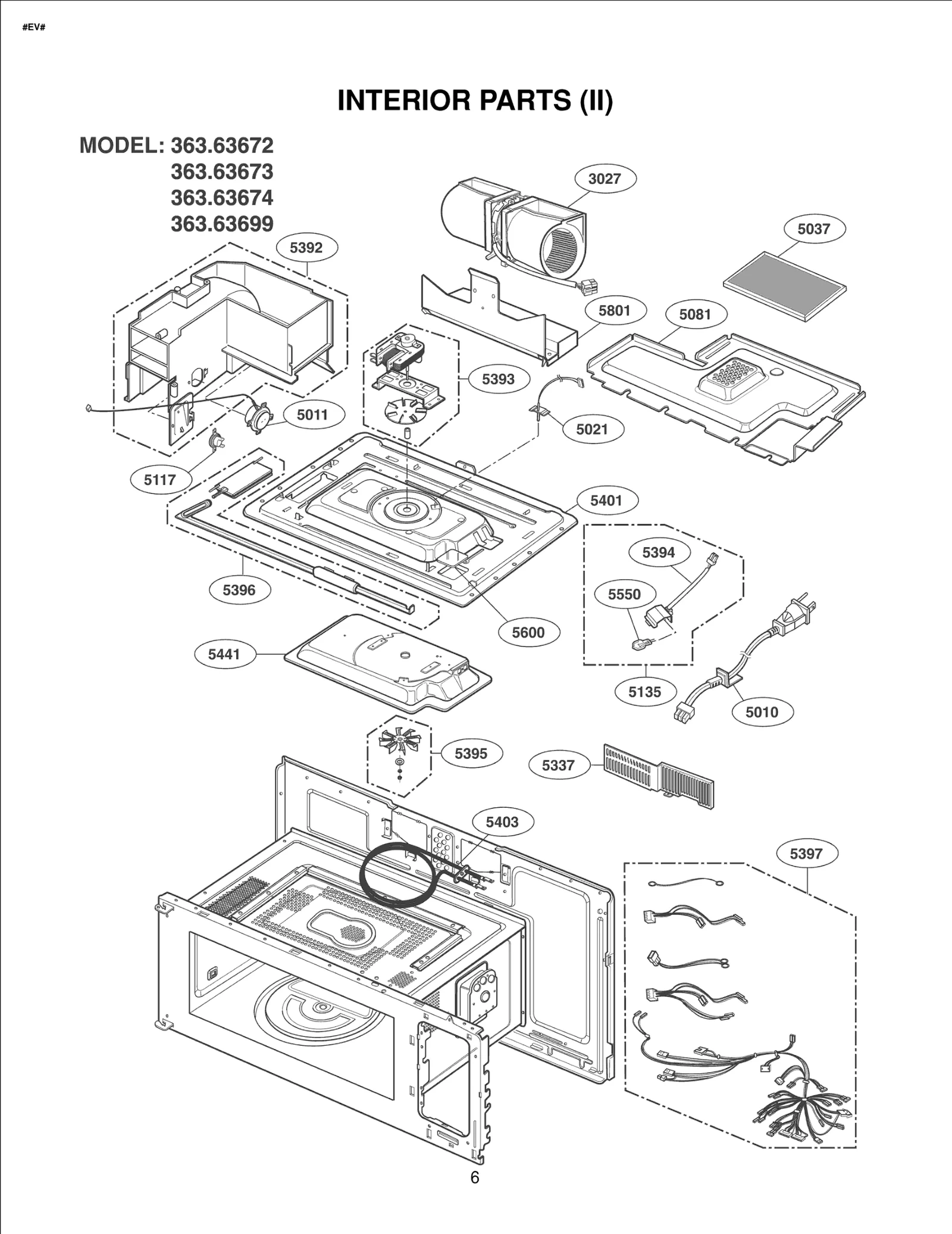

Diagram 5
Diagram 6
Diagram 7
Common parts from model LG 2263672
3002
GLASS TRAY LGE 1B71961A Contact Us For Availability
3008
ROTATING RING ASSY LGE 5889W1A001D Contact Us For Availability
3012
SHAFT ASSY LGE 4371W1A001A Contact Us For Availability
3018
Shelf LGE 5026W1A044C Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V006H Contact Us For Availability
3031
COVER ALL MV-1320,COVER,POWER LGE 3550W3A084A Contact Us For Availability
3032
REFLECTOR LGE 3034W1A008A Contact Us For Availability
3036
HOLDER,[SHELF & ROTI BAR HOLDE LGE 4930W1A008A Contact Us For Availability
3038
GRILLE ASSEMBLY LGE 3531W1A016A Contact Us For Availability
3061
Holder Assembly LGE 4021W3A001B Contact Us For Availability
3090
COVER ASSEMBLY,BACK LGE 3809W0A002B Contact Us For Availability
3221
BRACKET,[MWO] LGE 4810W3G142A Contact Us For Availability
3391
T/T MOTOR ASSY LGE 383EW1A022A Contact Us For Availability
3392
GREASE FILTER ASSY LGE 383EW1A023A Contact Us For Availability
3393
COOKTOP GLASS ASSY LGE 383EW1A021B Contact Us For Availability
3394
BASE PLATE ASSY LGE 383EW1A036D Contact Us For Availability
4391
SERVICE PARTS LGE 383EW1A005A Contact Us For Availability
5007
PROPELLER LGE 2B72125A Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D052T Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D049B Contact Us For Availability
5009
MAGNETRON LGE 6324W1A001A Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014U Contact Us For Availability
5010
Power Cord Assembly LGE 6411W1A014V Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014Y Contact Us For Availability
5012
MOTOR(CIRC),FAN LGE 2B73670L Contact Us For Availability
5017
HOLDER ALL 20A,300V MAX,LITTEL LGE 4930W3B025A Contact Us For Availability
5017
FUSE HOLDER LGE 4930W3B025B Contact Us For Availability
5034
PLATE,[BOTTOM PLATE] LGE 3300W1A001B Contact Us For Availability
5037
FILTER(MECH),CHARCOAL LGE 5230W1A004A Contact Us For Availability
5049
GUIDE,[SUCTION GUIDE] LGE 4974W0A001A Contact Us For Availability
5063
BRACKET ASSY LGE 4811W3A016A Contact Us For Availability
5081
COVER ASSY,[HEATER COVER] LGE 3551W1A025A Contact Us For Availability
5091
BRACKET,[MOUNT] LGE 4810W2Q001A Contact Us For Availability
5116
BASE THERMOSTAT LGE 3B70068V Contact Us For Availability
5135
REFLECTOR ASSEMBLY LGE 3035W1A008C Contact Us For Availability
5337
PROTECTOR (MECH) LGE 3740W3A004A Contact Us For Availability
5388
SERVICE PARTS LGE 383EW1A136A Contact Us For Availability
5391
DAMPER INLET ASSY LGE 383EW1A025A Contact Us For Availability
5392
AIR TUNNEL OUTLET ASSY LGE 383EW1A027A Contact Us For Availability
5393
CONVECTION MOTOR ASSY LGE 383EW1A035A Contact Us For Availability
5394
Parts Assembly,SVC LGE 383EW1A028C Contact Us For Availability
5395
CONVECTION FAN ASSY LGE 383EW1A032B Contact Us For Availability
5396
DAMPER OUTLET ASSY LGE 383EW1A029A Contact Us For Availability
5397
SERVICE PARTS LGE 383EW1A034B Contact Us For Availability
5401
CHAMBER LGE 3504W0A001A Contact Us For Availability
5403
HEATER,[SHEATH] LGE 5300W1S006C Contact Us For Availability
5441
CHAMBER LGE 3504W1A001A Contact Us For Availability
5600
GLASS LGE 4890W3A010A Contact Us For Availability
5801
MOUNT LGE 4960W2A004A Contact Us For Availability
6008
PLATE ASSY LGE 3301W1A028A Contact Us For Availability
6391
SERVICE PARTS LGE 383EW2A002A Contact Us For Availability
6392
SERVICE PARTS LGE 383EW1A038A Contact Us For Availability
MAX1
COOK BOOK LGE 3878W5A0066 Contact Us For Availability
MBM2
Card,Technical LGE 3840W5T098C Contact Us For Availability
MBM4
TEMPLATE LGE 4922W5A022C Contact Us For Availability
MBM5
TEMPLATE LGE 4922W5A024B Contact Us For Availability
MFL1
MANUAL,OWNERS LGE 3828W5A3555 Contact Us For Availability
MFL3
Manual,Installation LGE 3828W5U0237 Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
× ![]()
