Model Whirlpool 22401 ELECTRIC COOK-TOP – Common Parts & Diagrams

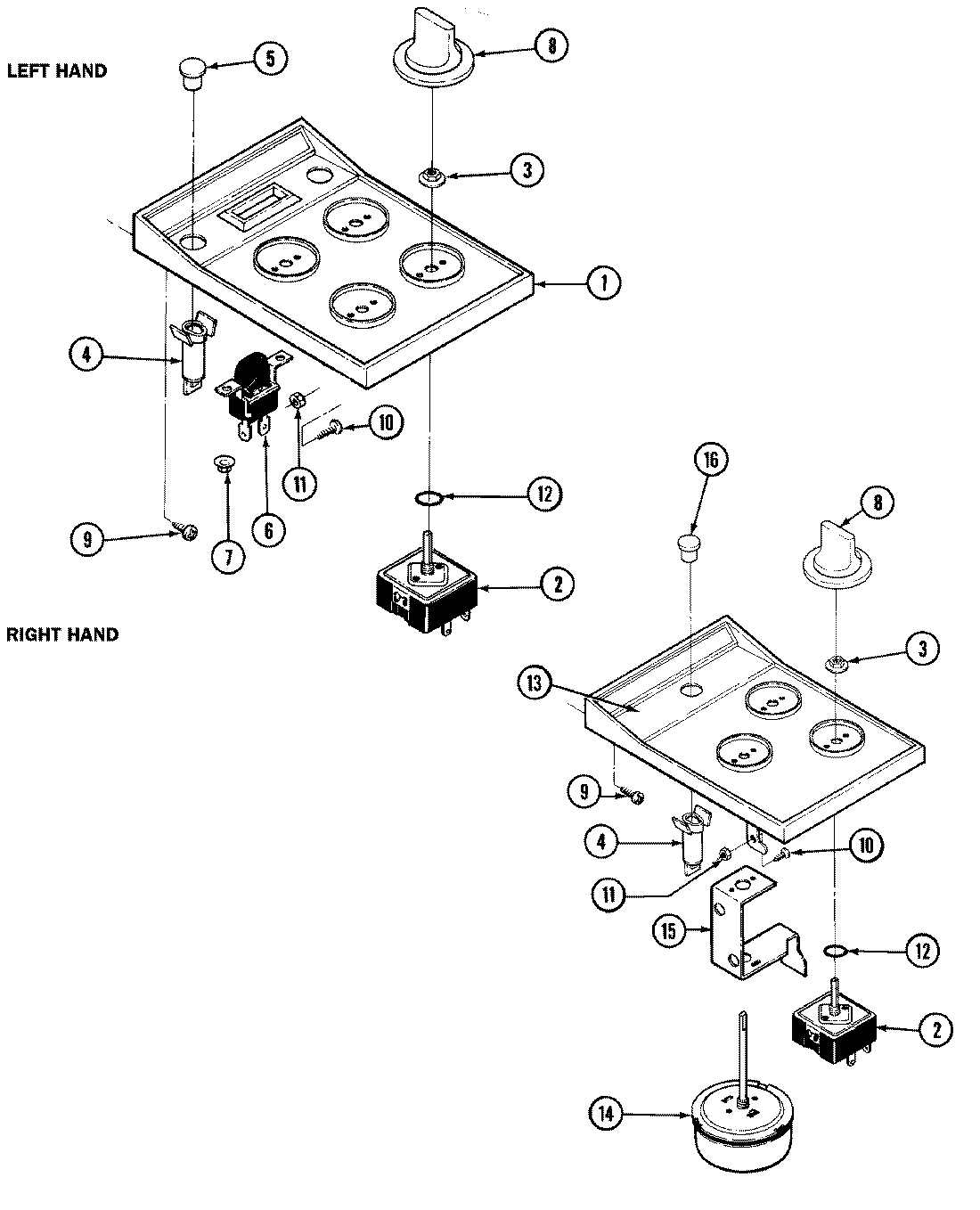

03 - CONTROL PANEL

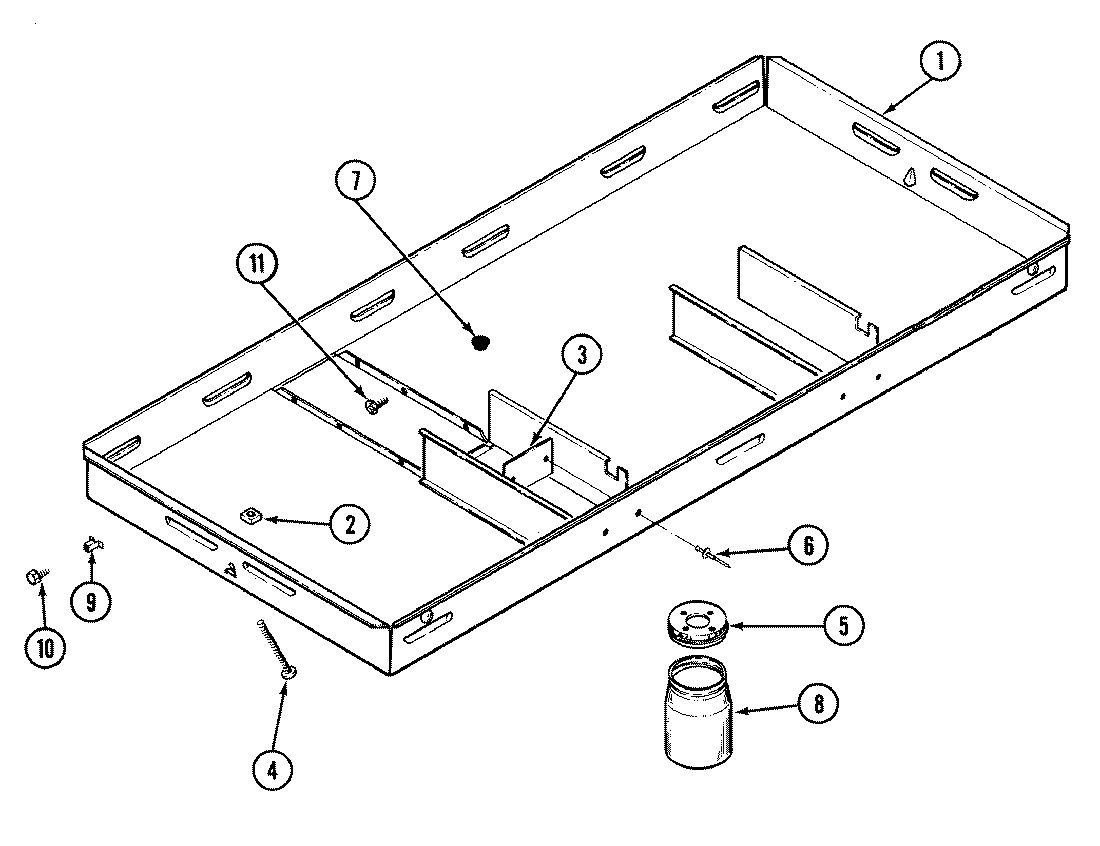

02 - BODY

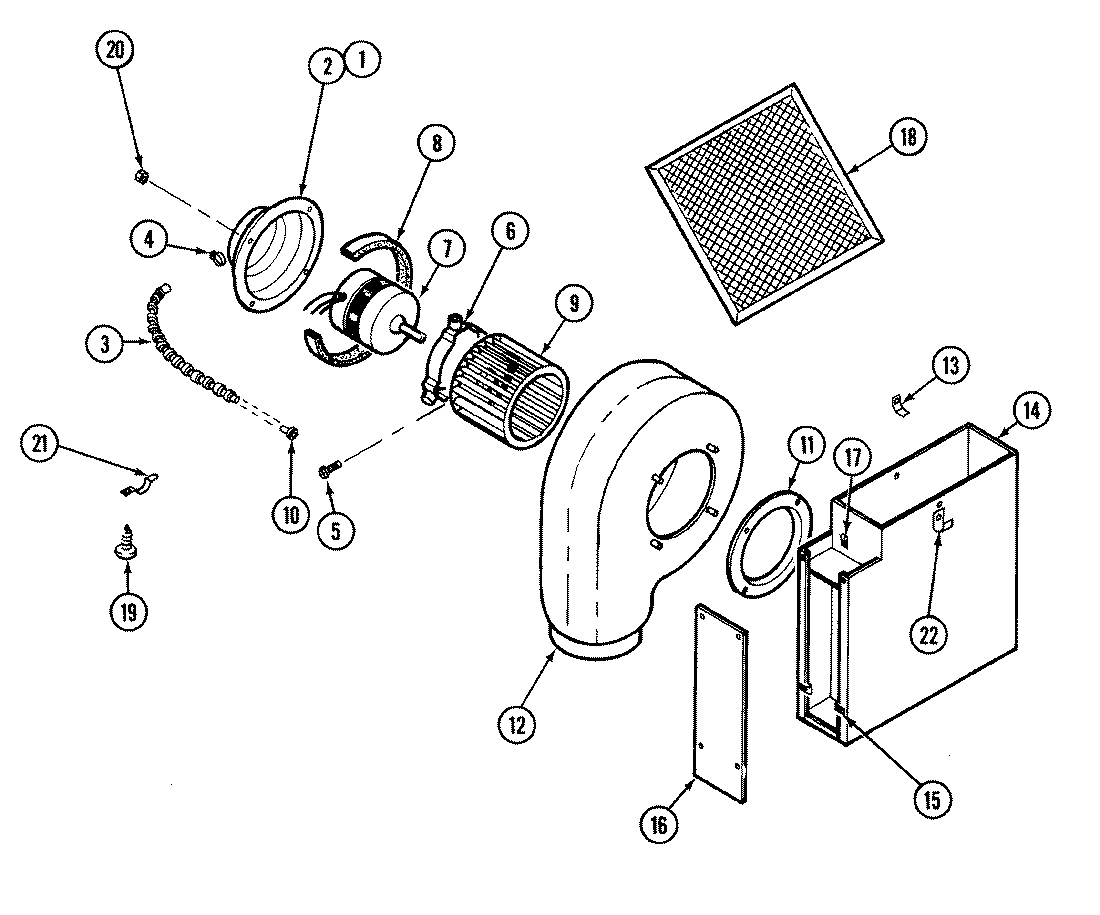

01 - BLOWER ASSEMBLY

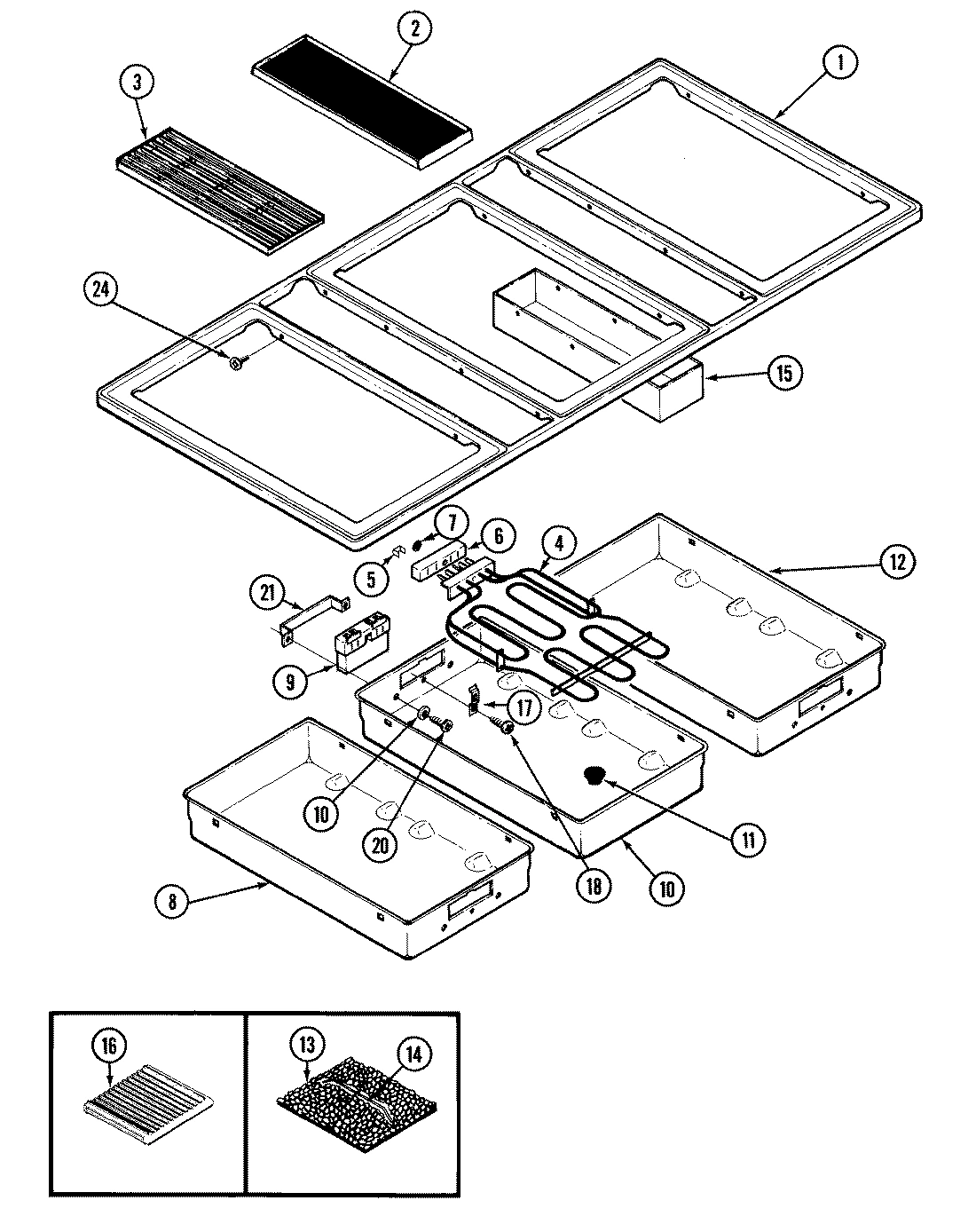

04 - TOP ASSEMBLY
Common parts from model Whirlpool 22401 ELECTRIC COOK-TOP
1
BOX, BURNER WPL 701993 Contact Us For Availability
1
MOTOR COVER ASSEMBLY WPL 700027 Contact Us For Availability
1
TOP WPL 701852 Contact Us For Availability
2
COVER,MOTOR WPL 708863 Contact Us For Availability
2
COVER, MOTOR WPL Y704968 Contact Us For Availability
2
COVER ASSEMBLY WPL 700729 Contact Us For Availability
3
INSULATOR WPL 707746 Contact Us For Availability
3
SCREW WPL 707407 Contact Us For Availability
3
CONDUIT WPL Y707758 Contact Us For Availability
3
GRILL, AIR WPL Y703658 Contact Us For Availability
4
SCREW WPL Y707121 Contact Us For Availability
4
CONNECTOR WPL 707766 Contact Us For Availability
4
CLAMP, CABLE WPL 715780 Contact Us For Availability
4
CLIP WPL Y707335 Contact Us For Availability
5
LID, JAR WPL Y707870 Contact Us For Availability
5
NUT WPL 707161 Contact Us For Availability
5
SCREW WPL Y707402 Contact Us For Availability
5
CLIP, SHUNT WPL Y700450 Contact Us For Availability
6
SWITCH, FAN WPL 703664 Contact Us For Availability
6
BAND, MOTOR WPL Y707393 Contact Us For Availability
7
PALNUT WPL Y705023 Contact Us For Availability
7
BUSHING WPL Y707695 Contact Us For Availability
7
MOTOR, BLOWER WPL Y705032 Contact Us For Availability
8
FOAM, URETHANE WPL Y715957 Contact Us For Availability
8
WIRE, BLUE WPL Y712030 Contact Us For Availability
8
WIRE, BROWN WPL Y712197 Contact Us For Availability
8
KIT, WIRE WPL Y712431 Contact Us For Availability
9
CLIP WPL Y700834 Contact Us For Availability
9
STANDOFF----NA WPL Y700672 Contact Us For Availability
10
KIT, WIRE WPL Y712438 Contact Us For Availability
10
SCREW WPL 701933 Contact Us For Availability
10
BUSHING WPL 708185 Contact Us For Availability
10
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
10
WIRE, BROWN WPL Y712199 Contact Us For Availability
11
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
11
RING, INLET WPL Y702295 Contact Us For Availability
11
RING, INLET WPL Y704758 Contact Us For Availability
11
PLUG, RUBBER WPL Y702825 Contact Us For Availability
12
O RING WPL Y700833 Contact Us For Availability
12
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
12
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
12
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
12
WIRE, YELLOW WPL Y712200 Contact Us For Availability
12
WIRE, VIOLET WPL Y712203 Contact Us For Availability
12
KIT-WIRE WPL Y712437 Contact Us For Availability
12
WIRE, BROWN WPL Y712439 Contact Us For Availability
13
ESCUTCHEON ASSEMBLY WPL 712482 Contact Us For Availability
13
RETAINER, FILTER WPL Y707688 Contact Us For Availability
13
PLATE, ROCK WPL 708929 Contact Us For Availability
14
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
14
TIMER WPL 707732 Contact Us For Availability
14
PLENUM WPL 712434 Contact Us For Availability
15
BRACKET, TIMER WPL 715924 Contact Us For Availability
15
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
15
BOX, UTENSIL WPL 701991 Contact Us For Availability
16
WIRE, ORANGE (RIGHT) WPL 703523 Contact Us For Availability
16
KIT, ESTUTCHEON WIRE (LEFT) WPL 712528 Contact Us For Availability
16
PLATE, COVER WPL Y700464 Contact Us For Availability
16
GRATES, GRILL (2) WPL Y703746 Contact Us For Availability
17
CLIP WPL Y707831 Contact Us For Availability
19
WASHER WPL Y707664 Contact Us For Availability
19
NOT REQUIRED PART OR SEE NOTE WASHER WPL W10124350 Contact Us For Availability
21
TINNERMAN WPL 712310 Contact Us For Availability
21
BRACKET WPL Y702698 Contact Us For Availability
22
CLAMP, CABLE WPL 712254 Contact Us For Availability
× ![]()
