Model Electrolux 21KPMAWAN4 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - DOOR PARTS

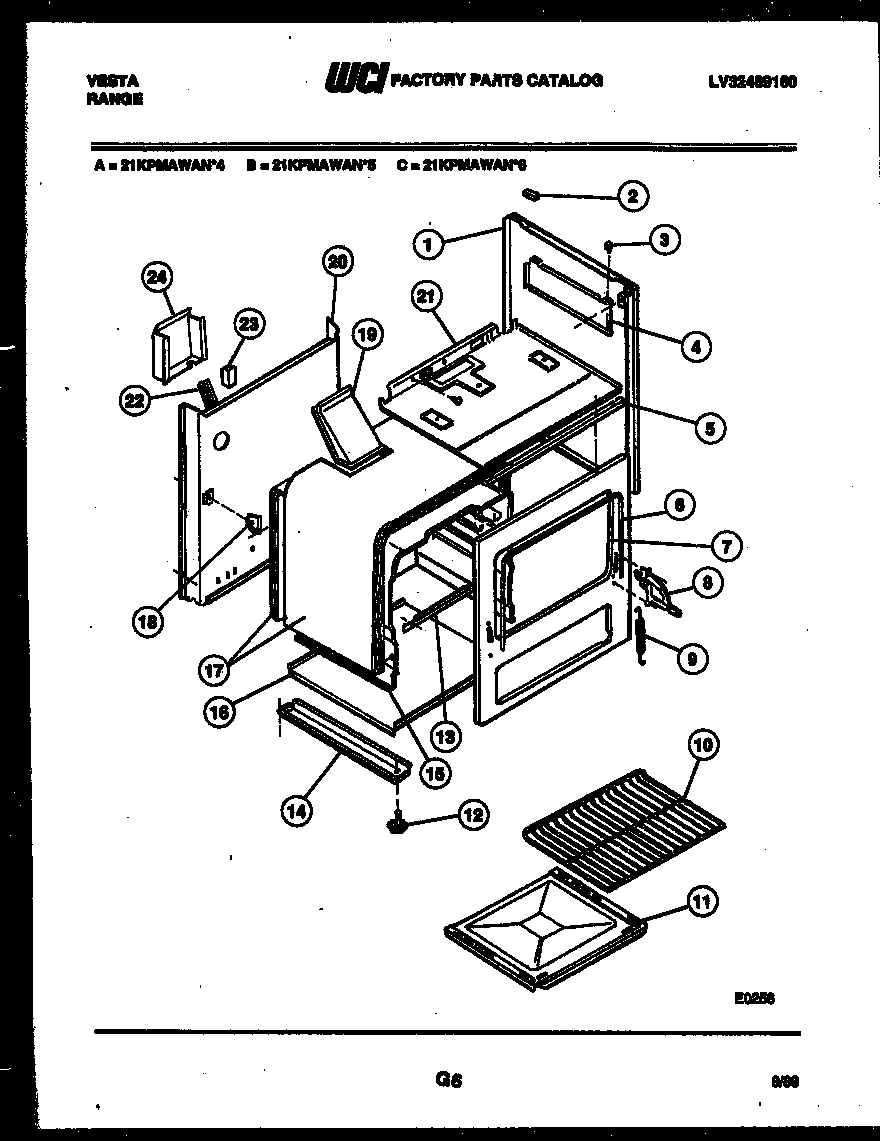

04 - BODY PARTS

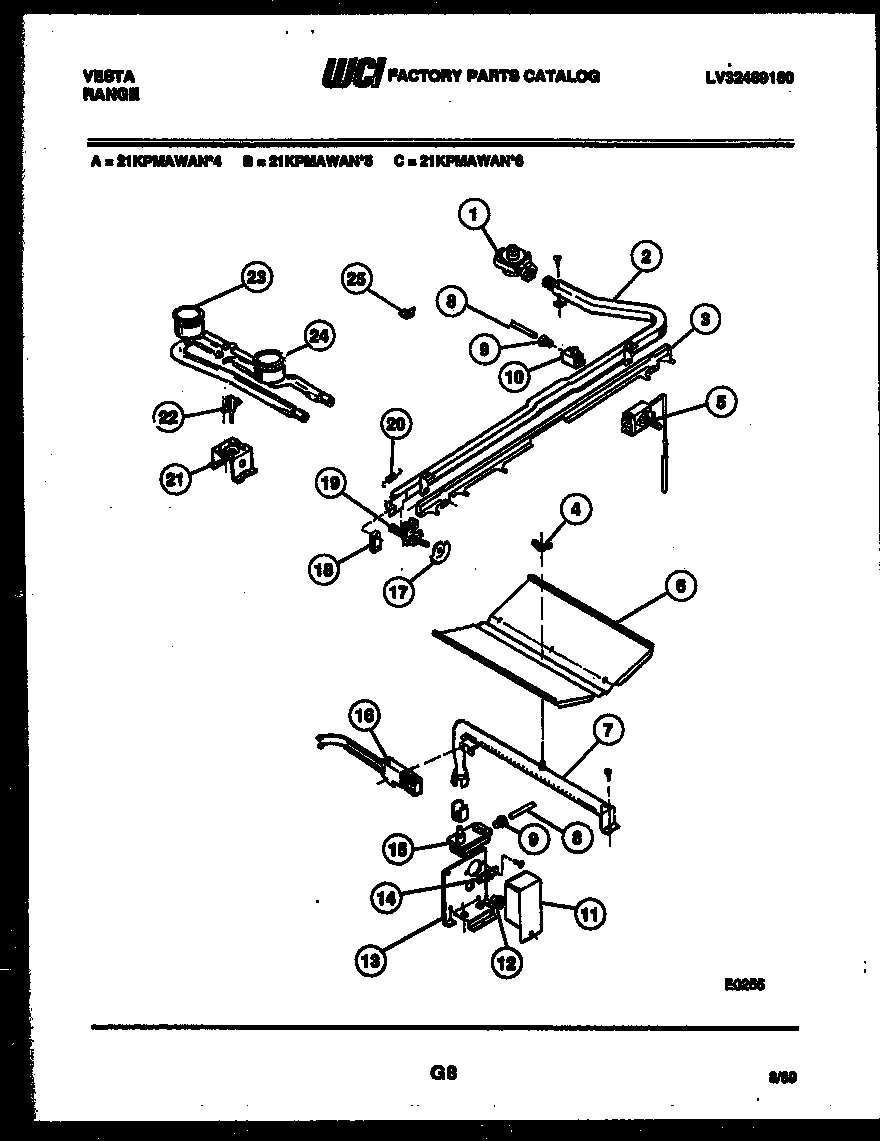

05 - BURNER PARTS

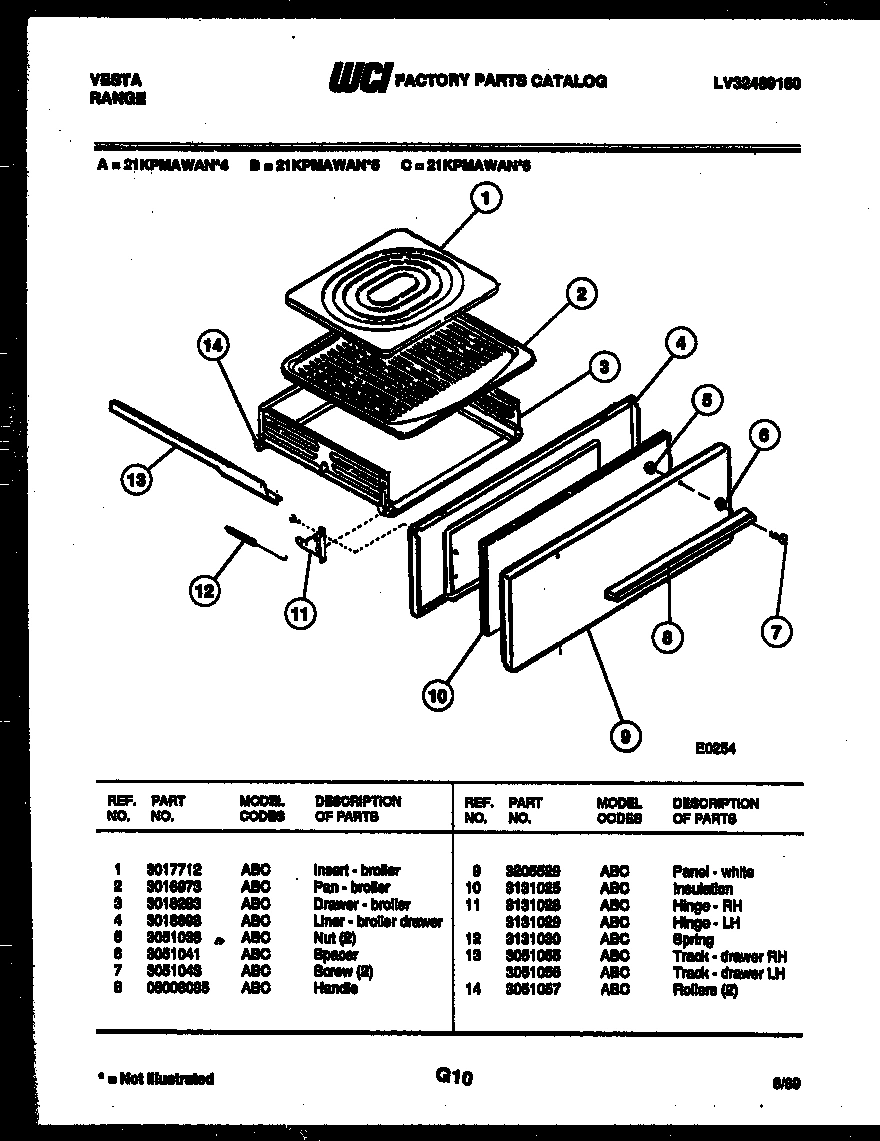

06 - BROILER DRAWER PARTS
Common parts from model Electrolux 21KPMAWAN4 RANGE
1
PNL-BACKGUARD (WHITE) WCI 3205590 Contact Us For Availability
1
WCI 3017711 WCI 3017711 Contact Us For Availability
1
PNL - B/S (WHITE) (2) WCI 3051061 Contact Us For Availability
1
INSERT-BROILER WCI 3017712 Contact Us For Availability
2
WCI 3131012 WCI 3131012 Contact Us For Availability
2
WCI 76115000 WCI 76115000 Contact Us For Availability
2
WCI 3009334 WCI 3009334 Contact Us For Availability
2
GROMMET-TOP REAR (4) WCI 3205587 Contact Us For Availability
2
WCI 3131081 WCI 3131081 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
3
WCI 3009309 WCI 3009309 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 3051063 Contact Us For Availability
3
WCI 3131082 WCI 3131082 Contact Us For Availability
4
WCI 3131019 WCI 3131019 Contact Us For Availability
4
WCI 3131053 WCI 3131053 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4
WCI 3018698 WCI 3018698 Contact Us For Availability
4A
WCI 3131054 WCI 3131054 Contact Us For Availability
5
WCI 08013898 WCI 08013898 Contact Us For Availability
5
SUPPORT-CONT PNL WCI 3051067 Contact Us For Availability
5
WCI 08013926 WCI 08013926 Contact Us For Availability
6
PNL-MANIFOLD (WHITE) WCI 3205585 Contact Us For Availability
6
SPACER WCI 3051041 Contact Us For Availability
6
WCI 3051069 WCI 3051069 Contact Us For Availability
6
WCI 3131061 WCI 3131061 Contact Us For Availability
7
WCI 3015249 WCI 3015249 Contact Us For Availability
7
WCI 3205589 WCI 3205589 Contact Us For Availability
7
FRAME-FRONT WCI 3203621 Contact Us For Availability
7
WCI 3202752 WCI 3202752 Contact Us For Availability
8
WCI 3131007 WCI 3131007 Contact Us For Availability
8
WCI 08008085 WCI 08008085 Contact Us For Availability
8
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
8
WCI 3009495 WCI 3009495 Contact Us For Availability
9
WCI 3051079 WCI 3051079 Contact Us For Availability
9
LOXIT - NUT (2) WCI 08008363 Contact Us For Availability
9
WCI 3205529 WCI 3205529 Contact Us For Availability
10
RACK (2) WCI 3016158 Contact Us For Availability
10
WCI 3131099 WCI 3131099 Contact Us For Availability
10
WCI 3131025 WCI 3131025 Contact Us For Availability
11
WCI 3018697 WCI 3018697 Contact Us For Availability
11
WCI 3131088 WCI 3131088 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11A
HINGE - LH WCI 3131029 Contact Us For Availability
12
SCREW - LEVELLING (4) WCI 3051080 Contact Us For Availability
12
WCI 3051101 WCI 3051101 Contact Us For Availability
12
SPRING WCI 3131030 Contact Us For Availability
13
WCI 3131038 WCI 3131038 Contact Us For Availability
13
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
13
TRACK DRAWER RH WCI 3051055 Contact Us For Availability
13A
TRACK DRAWER LH WCI 3051056 Contact Us For Availability
14
WCI A98373000 WCI A98373000 Contact Us For Availability
14
WCI 3131087 WCI 3131087 Contact Us For Availability
14
ROLLERS (2) WCI 3051057 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15
WCI 3018285 WCI 3018285 Contact Us For Availability
15
WCI 3131089 WCI 3131089 Contact Us For Availability
15A
WCI 3018700 WCI 3018700 Contact Us For Availability
15B
WCI 3018699 WCI 3018699 Contact Us For Availability
16
WCI 3131042 WCI 3131042 Contact Us For Availability
17
WCI 3131043 WCI 3131043 Contact Us For Availability
17
WCI 08008002 WCI 08008002 Contact Us For Availability
17A
WCI 3131044 WCI 3131044 Contact Us For Availability
18
SUPPORT-OVEN REAR (2) WCI 3051096 Contact Us For Availability
18
WCI 3131094 WCI 3131094 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
19
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
20
WCI 3131045 WCI 3131045 Contact Us For Availability
20
WCI 3131096 WCI 3131096 Contact Us For Availability
21
WCI 3017573 WCI 3017573 Contact Us For Availability
21
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
21A
ANTI - TIP BRACKET (NON-ILLUSTRATED) WCI 3934059 Contact Us For Availability
21B
CLIP - B/S (NON-ILLUSTRATED) WCI 3009582 Contact Us For Availability
22
WCI 3131046 WCI 3131046 Contact Us For Availability
22
WCI 3015196 WCI 3015196 Contact Us For Availability
23
BURNER - REAR WCI 3131079 Contact Us For Availability
24
WCI 3131047 WCI 3131047 Contact Us For Availability
24
BURNER - FRONT WCI 3131080 Contact Us For Availability
25
CLIP-CAPILLARY WCI 9126 Contact Us For Availability
× ![]()
