Model Maytag 21137 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

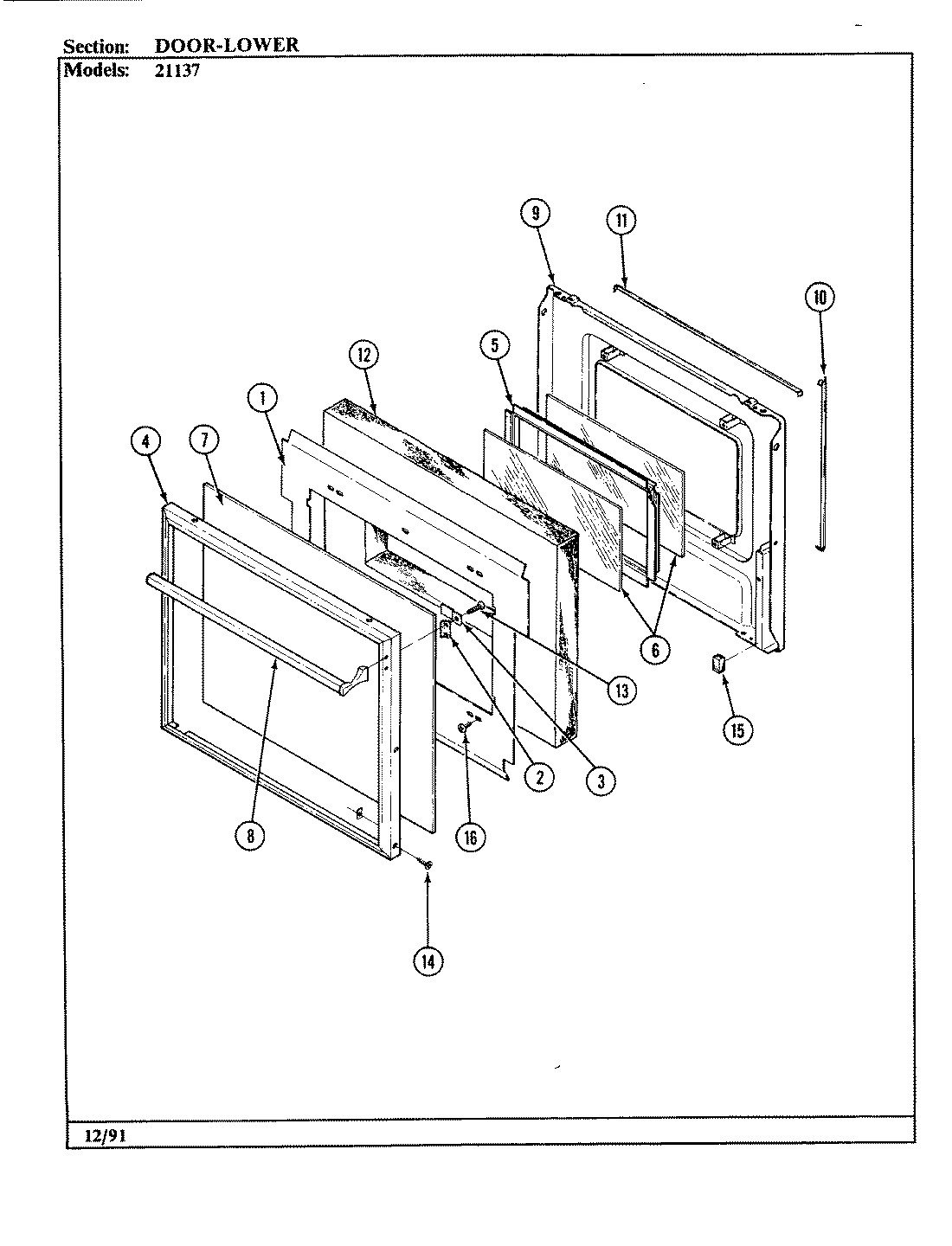

03 - DOOR (LOWER)

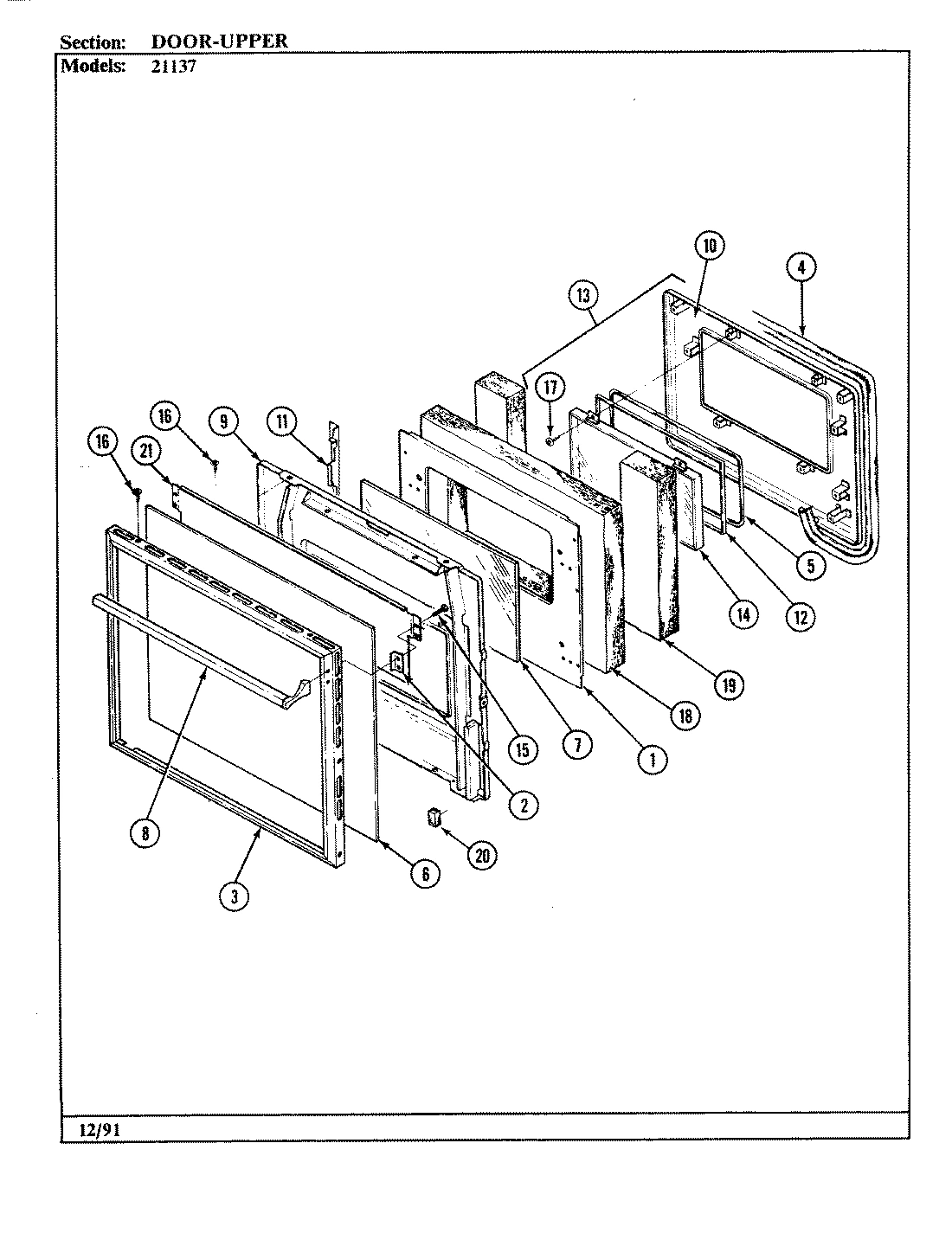

04 - DOOR (UPPER)

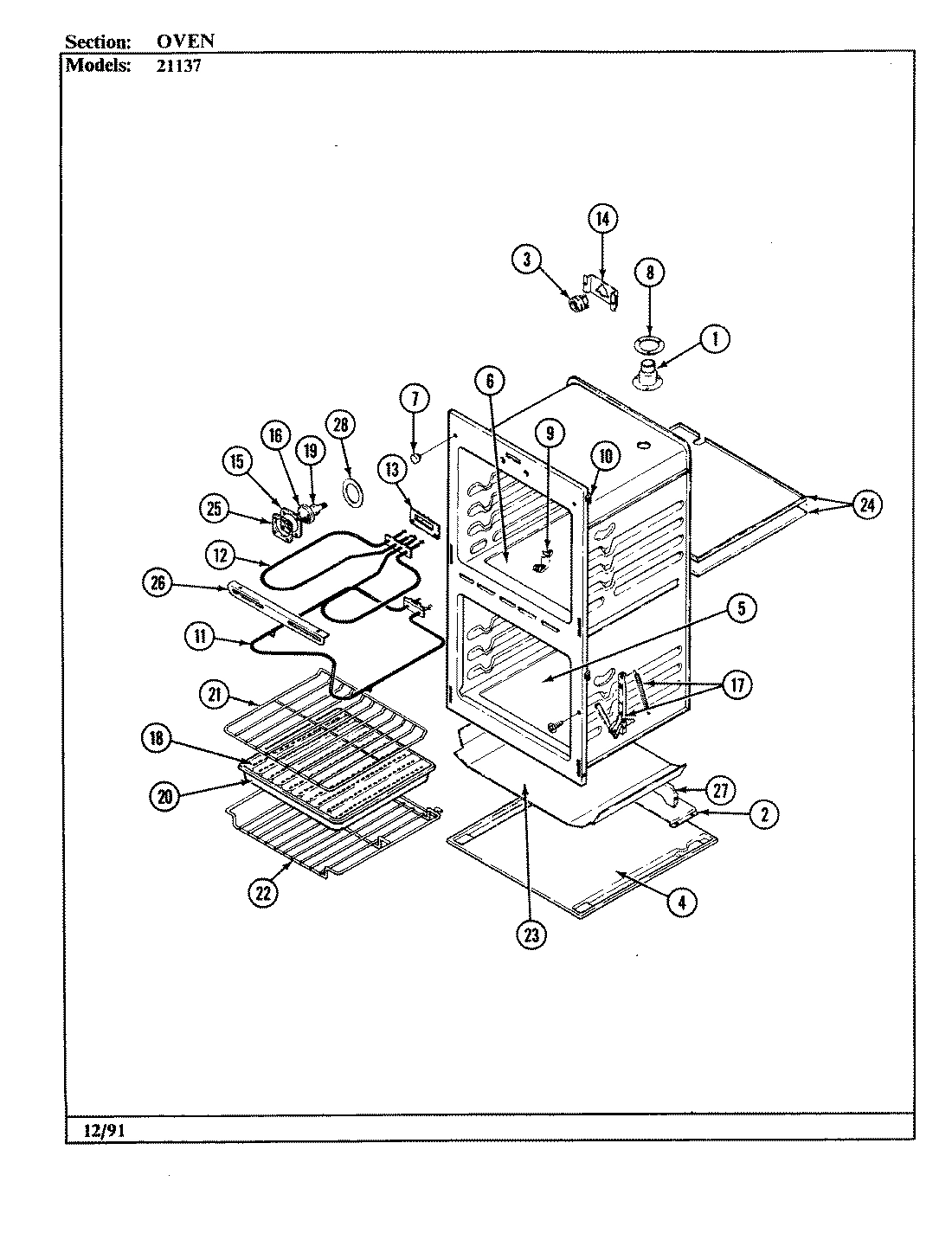

05 - OVEN
Common parts from model Maytag 21137 ELECTRIC WALL OVEN
1
MAY 7601P053-60 MAY 7601P053-60 Contact Us For Availability
1
MAY 3601F103-51 MAY 3601F103-51 Contact Us For Availability
1
MAY 3601W131-51 MAY 3601W131-51 Contact Us For Availability
1
SCREW (10ABX1.0-ZN) MAY 7101P060-60 Contact Us For Availability
1
MAY 7505P018-60 MAY 7505P018-60 Contact Us For Availability
2
MAY 7434P006-60 MAY 7434P006-60 Contact Us For Availability
2
MAY 8018P002-60 MAY 8018P002-60 Contact Us For Availability
2
MAY 7112P017-60 MAY 7112P017-60 Contact Us For Availability
2
MAY 3601F005-80 MAY 3601F005-80 Contact Us For Availability
3
MAY 7417P003-60 MAY 7417P003-60 Contact Us For Availability
3
MAY 7417P017-60 MAY 7417P017-60 Contact Us For Availability
3
MAY 3804F010-50 MAY 3804F010-50 Contact Us For Availability
3
MAY 7706P250-60 MAY 7706P250-60 Contact Us For Availability
3
MAY 7101P084-60 MAY 7101P084-60 Contact Us For Availability
3
MAY 7408P001-60 MAY 7408P001-60 Contact Us For Availability
3
MAY 7408P002-60 MAY 7408P002-60 Contact Us For Availability
4
MAY 4005F150-51 MAY 4005F150-51 Contact Us For Availability
4
MAY 7706P248-60 MAY 7706P248-60 Contact Us For Availability
4
MAY 7201P004-60 MAY 7201P004-60 Contact Us For Availability
4
MAY 4003F011-80 MAY 4003F011-80 Contact Us For Availability
5
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
5
MAY 3603F013-80 MAY 3603F013-80 Contact Us For Availability
5
MAY 7201P020-60 MAY 7201P020-60 Contact Us For Availability
5
MAY 2205F004-15 MAY 2205F004-15 Contact Us For Availability
5
MAY 2205F004-19 MAY 2205F004-19 Contact Us For Availability
6
MAY 7427P006-60 MAY 7427P006-60 Contact Us For Availability
6
MAY 8008P004-60 MAY 8008P004-60 Contact Us For Availability
6
MAY 7902P035-60 MAY 7902P035-60 Contact Us For Availability
6
MAY 7902P265-60 MAY 7902P265-60 Contact Us For Availability
6
MAY 8270P065-60 MAY 8270P065-60 Contact Us For Availability
6
MAY 2205F003-15 MAY 2205F003-15 Contact Us For Availability
6
MAY 2205F003-19 MAY 2205F003-19 Contact Us For Availability
7
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
7
MAY 7912P042-60 MAY 7912P042-60 Contact Us For Availability
7
MAY 7902P263-60 MAY 7902P263-60 Contact Us For Availability
7
MAY 8003P002-60 MAY 8003P002-60 Contact Us For Availability
7
MAY 8003P009-60 MAY 8003P009-60 Contact Us For Availability
8
MAY 7407P007-60 MAY 7407P007-60 Contact Us For Availability
8
MAY 7414P004-60 MAY 7414P004-60 Contact Us For Availability
8
MAY 7701P017-60 MAY 7701P017-60 Contact Us For Availability
8
MAY 7201P016-60 MAY 7201P016-60 Contact Us For Availability
9
MAY 7711P171-60 MAY 7711P171-60 Contact Us For Availability
9
MAY 2402W132-15 MAY 2402W132-15 Contact Us For Availability
9
MAY 2402W132-19 MAY 2402W132-19 Contact Us For Availability
9
MAY 2402W130-15 MAY 2402W130-15 Contact Us For Availability
9
MAY 2402W130-19 MAY 2402W130-19 Contact Us For Availability
9
MAY 8114P274-60 MAY 8114P274-60 Contact Us For Availability
9
MAY 4005F011-35 MAY 4005F011-35 Contact Us For Availability
10
MAY 7212P007-60 MAY 7212P007-60 Contact Us For Availability
10
MAY 7711P427-60 MAY 7711P427-60 Contact Us For Availability
10
MAY 2410W034-15 MAY 2410W034-15 Contact Us For Availability
10
MAY 2410W038-15 MAY 2410W038-15 Contact Us For Availability
10
MAY 2410W038-19 MAY 2410W038-19 Contact Us For Availability
10
MAY 7112P020-60 MAY 7112P020-60 Contact Us For Availability
11
MAY 7735P020-60 MAY 7735P020-60 Contact Us For Availability
11
MAY 3804F021-45 MAY 3804F021-45 Contact Us For Availability
11
MAY 7406P013-60 MAY 7406P013-60 Contact Us For Availability
12
MAY 7214P007-60 MAY 7214P007-60 Contact Us For Availability
12
MAY 7002P112-60 MAY 7002P112-60 Contact Us For Availability
12
MAY 7002P019-60 MAY 7002P019-60 Contact Us For Availability
12
MAY 3804F051-80 MAY 3804F051-80 Contact Us For Availability
12
MAY 7406P003-60 MAY 7406P003-60 Contact Us For Availability
13
MAY 7201P003-60 MAY 7201P003-60 Contact Us For Availability
13
MAY 7706P153-60 MAY 7706P153-60 Contact Us For Availability
13
MAY 3605F131-51 MAY 3605F131-51 Contact Us For Availability
13
MAY 2410A034-15 MAY 2410A034-15 Contact Us For Availability
13
MAY 2410A038-15 MAY 2410A038-15 Contact Us For Availability
13
MAY 2410A042-19 MAY 2410A042-19 Contact Us For Availability
14
MAY 5700A082-60 MAY 5700A082-60 Contact Us For Availability
14
MAY 7706P112-60 MAY 7706P112-60 Contact Us For Availability
14
MAY 7750P014-60 MAY 7750P014-60 Contact Us For Availability
14
MAY 7750P029-60 MAY 7750P029-60 Contact Us For Availability
14
MAY 3605F113-80 MAY 3605F113-80 Contact Us For Availability
14
MAY 3801F024-51 MAY 3801F024-51 Contact Us For Availability
15
MAY 7706P113-60 MAY 7706P113-60 Contact Us For Availability
15
MAY 7750P015-60 MAY 7750P015-60 Contact Us For Availability
15
MAY 7750P030-60 MAY 7750P030-60 Contact Us For Availability
15
MAY 7403P109-60 MAY 7403P109-60 Contact Us For Availability
15
MAY 7101P239-60 MAY 7101P239-60 Contact Us For Availability
15
MAY 7208P001-60 MAY 7208P001-60 Contact Us For Availability
15
MAY 7201P015-60 MAY 7201P015-60 Contact Us For Availability
16
MAY 7706P114-60 MAY 7706P114-60 Contact Us For Availability
16
MAY 7403P023-60 MAY 7403P023-60 Contact Us For Availability
16
MAY 7101P242-60 MAY 7101P242-60 Contact Us For Availability
16
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
16
MAY 7101P089-60 MAY 7101P089-60 Contact Us For Availability
16
MAY 7902P057-60 MAY 7902P057-60 Contact Us For Availability
17
MAY 7404P039-60 MAY 7404P039-60 Contact Us For Availability
17
MAY 7706P185-60 MAY 7706P185-60 Contact Us For Availability
17
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
17
MAY 7003P033-60 MAY 7003P033-60 Contact Us For Availability
17
MAY 7101P279-60 MAY 7101P279-60 Contact Us For Availability
17
MAY 7106A019-60 MAY 7106A019-60 Contact Us For Availability
17
MAY 7106A020-60 MAY 7106A020-60 Contact Us For Availability
18
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
18
MAY 7756P006-60 MAY 7756P006-60 Contact Us For Availability
18
MAY 7756P023-60 MAY 7756P023-60 Contact Us For Availability
18
MAY 7002P023-60 MAY 7002P023-60 Contact Us For Availability
18
MAY 3413F013-15 MAY 3413F013-15 Contact Us For Availability
19
MAY 7701P068-60 MAY 7701P068-60 Contact Us For Availability
19
MAY 3605F164-51 MAY 3605F164-51 Contact Us For Availability
19
MAY 7002P021-60 MAY 7002P021-60 Contact Us For Availability
19
MAY 3604F037-44 MAY 3604F037-44 Contact Us For Availability
19
MAY 4001W012-51 MAY 4001W012-51 Contact Us For Availability
19
MAY 7002P094-60 MAY 7002P094-60 Contact Us For Availability
19
MAY 7407P026-60 MAY 7407P026-60 Contact Us For Availability
20
MAY 8009P011-60 MAY 8009P011-60 Contact Us For Availability
20
MAY 7739P026-60 MAY 7739P026-60 Contact Us For Availability
20
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
20
MAY 3401F014-19 MAY 3401F014-19 Contact Us For Availability
20
MAY 3401F015-15 MAY 3401F015-15 Contact Us For Availability
21
MAY 7101P079-60 MAY 7101P079-60 Contact Us For Availability
21
MAY 3804F017-51 MAY 3804F017-51 Contact Us For Availability
21
MAY 7801P005-60 MAY 7801P005-60 Contact Us For Availability
22
MAY 7404P042-60 MAY 7404P042-60 Contact Us For Availability
22
MAY 2618F055-51 MAY 2618F055-51 Contact Us For Availability
22
MAY 2618F056-51 MAY 2618F056-51 Contact Us For Availability
22
MAY 7801P007-60 MAY 7801P007-60 Contact Us For Availability
23
MAY 3804F052-51 MAY 3804F052-51 Contact Us For Availability
23
MAY 8312P017-60 MAY 8312P017-60 Contact Us For Availability
23
MAY 3804W034-51 MAY 3804W034-51 Contact Us For Availability
24
MAY 3804F053-51 MAY 3804F053-51 Contact Us For Availability
24
MAY 7002P007-60 MAY 7002P007-60 Contact Us For Availability
24
MAY 3801F054-51 MAY 3801F054-51 Contact Us For Availability
25
MAY 3604F101-80 MAY 3604F101-80 Contact Us For Availability
25
MAY 7735P021-60 MAY 7735P021-60 Contact Us For Availability
25
MAY 3804F011-45 MAY 3804F011-45 Contact Us For Availability
26
MAY 3604F048-80 MAY 3604F048-80 Contact Us For Availability
26
MAY 7103P021-60 MAY 7103P021-60 Contact Us For Availability
26
MAY 3807F176-15 MAY 3807F176-15 Contact Us For Availability
27
MAY 7003P001-60 MAY 7003P001-60 Contact Us For Availability
27
MAY 7403P007-60 MAY 7403P007-60 Contact Us For Availability
27
MAY 3807F135-80 MAY 3807F135-80 Contact Us For Availability
28
MAY 7201P014-60 MAY 7201P014-60 Contact Us For Availability
29
MAY 8026P014-60 MAY 8026P014-60 Contact Us For Availability
30
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
30
MAY 7103P040-60 MAY 7103P040-60 Contact Us For Availability
30
MAY 7103P051-60 MAY 7103P051-60 Contact Us For Availability
× ![]()
