Model LG 20MK400H-B – Common Parts & Diagrams

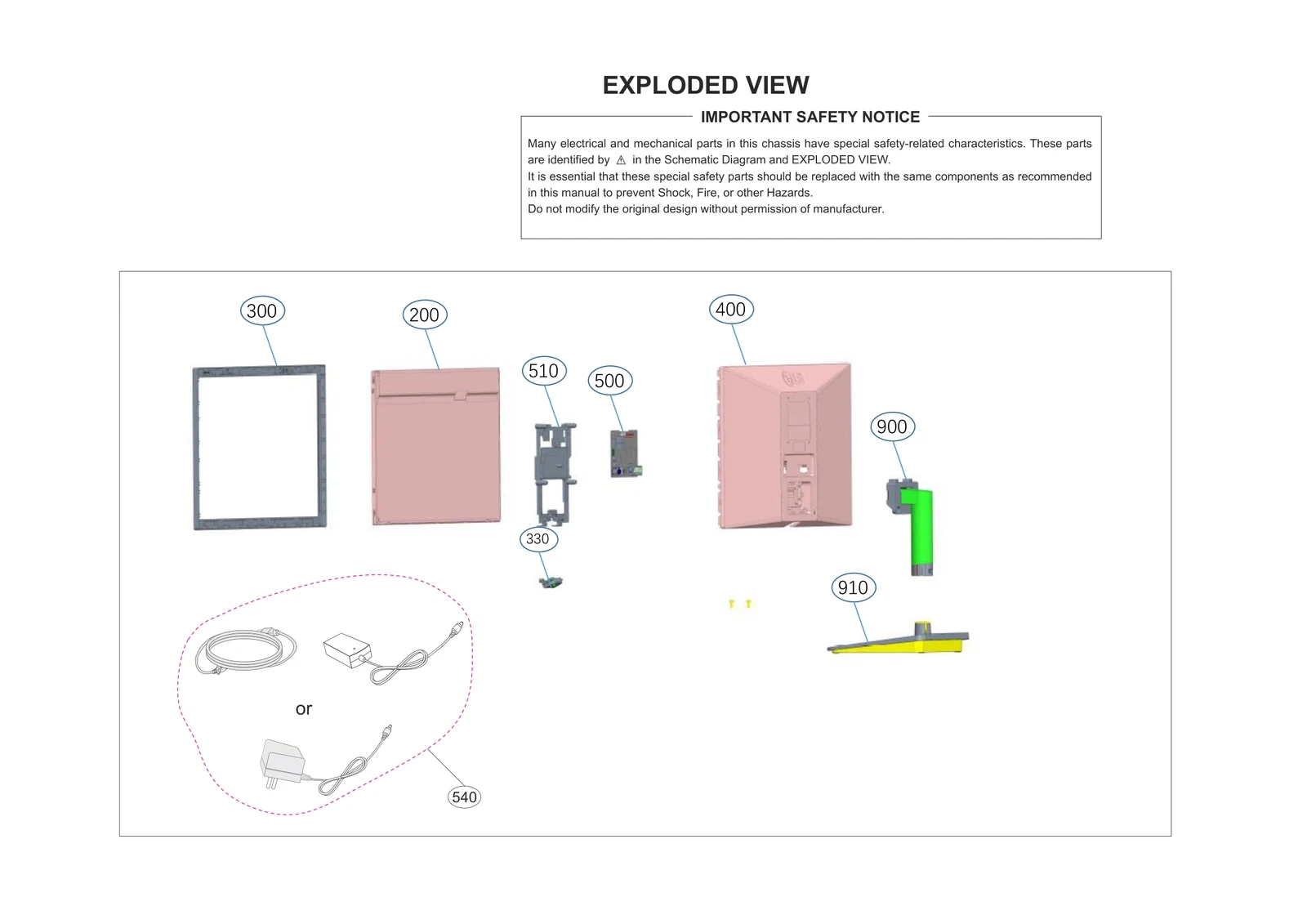

Diagram 0
Diagram 1
Common parts from model LG 20MK400H-B
200
LGE EAJ63689401 LGE EAJ63689401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75947201 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR85378901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ90349102 Contact Us For Availability
500
BPR Total Assembly LGE EBU64606601 Contact Us For Availability
540
Adapters LGE EAY62992308 Contact Us For Availability
910
Base Assembly LGE AAN76349401 Contact Us For Availability
A1
Manual Assembly LGE AFN78138821 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A8
Cable,Assembly LGE EAD63954401 Contact Us For Availability
A9
Card LGE MBM66205732 Contact Us For Availability
C167
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099H Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099E Contact Us For Availability
LV1
Cable,FFC LGE EAD63169871 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R13
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R103
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R193
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R300
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
× ![]()
