Model LG 20M37D-B – Common Parts & Diagrams

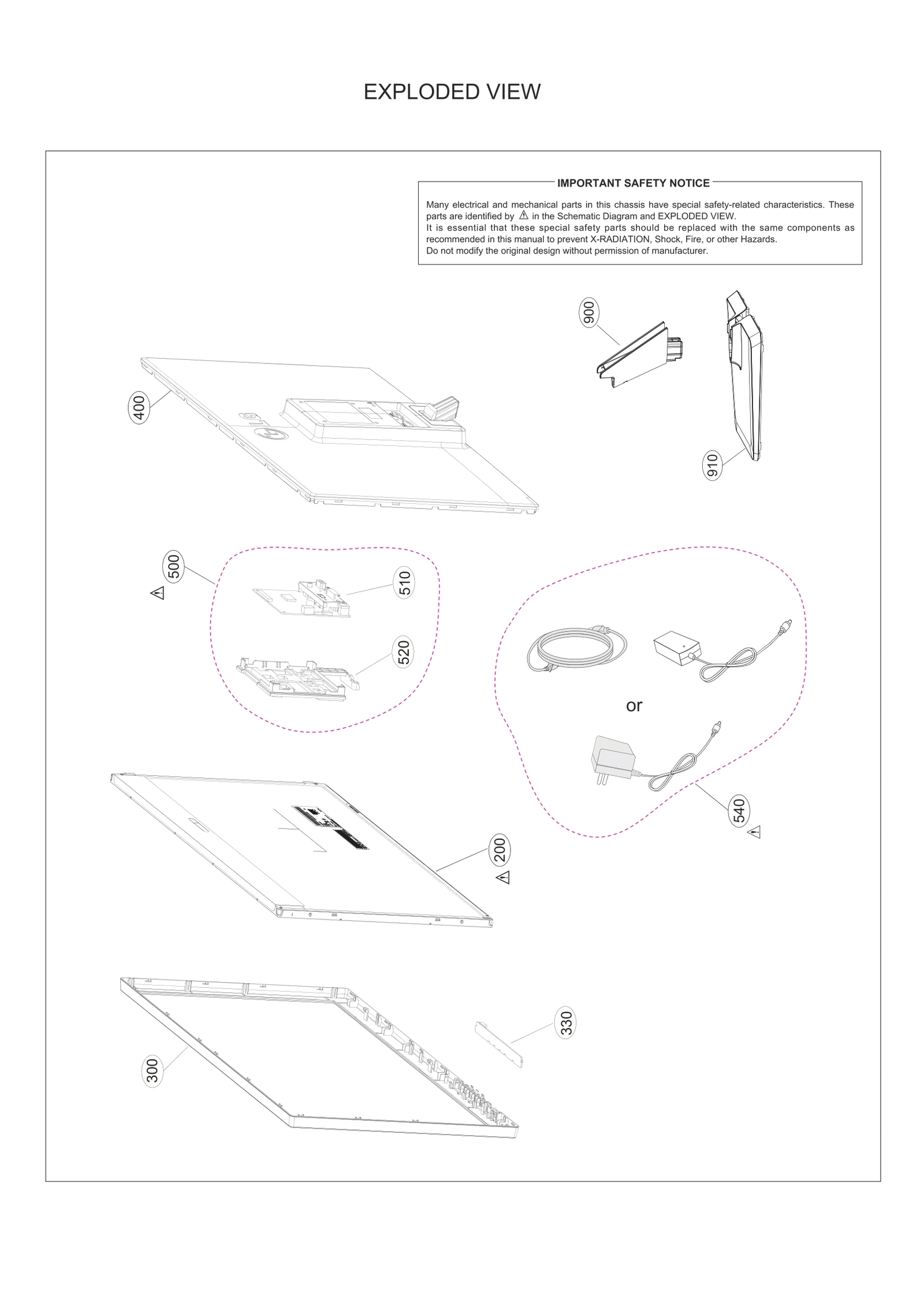

Diagram 0
Diagram 1
Common parts from model LG 20M37D-B
200
LCD,Module-TFT LGE EAJ63910401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73970246 Contact Us For Availability
330
PCB Assembly LGE EBR78285901 Contact Us For Availability
400
Cover Assembly LGE ACQ86366103 Contact Us For Availability
500
Package Assembly LGE AGF77138702 Contact Us For Availability
510
BPR Total Assembly LGE EBU62364803 Contact Us For Availability
520
Bracket LGE MAZ63429701 Contact Us For Availability
540
Adapters LGE EAY62992308 Contact Us For Availability
900
Base Assembly LGE AAN74131901 Contact Us For Availability
910
Base Assembly LGE AAN74132101 Contact Us For Availability
A1
Manual Assembly LGE AFN76933380 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C10
Harness,Single LGE EAD62186001 Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C138
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C144
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C147
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C149
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C157
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C160
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
D203
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D203
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
IC,EEPROM LGE EAN60997601 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072906 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
LV1
Cable,FFC LGE EAD62389067 Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P101
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R126
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R143
Resistor,Chip LGE EBC62857601 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R173
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R190
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R191
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R234
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
