Model LG 20M35PD-M – Common Parts & Diagrams
Diagram 0

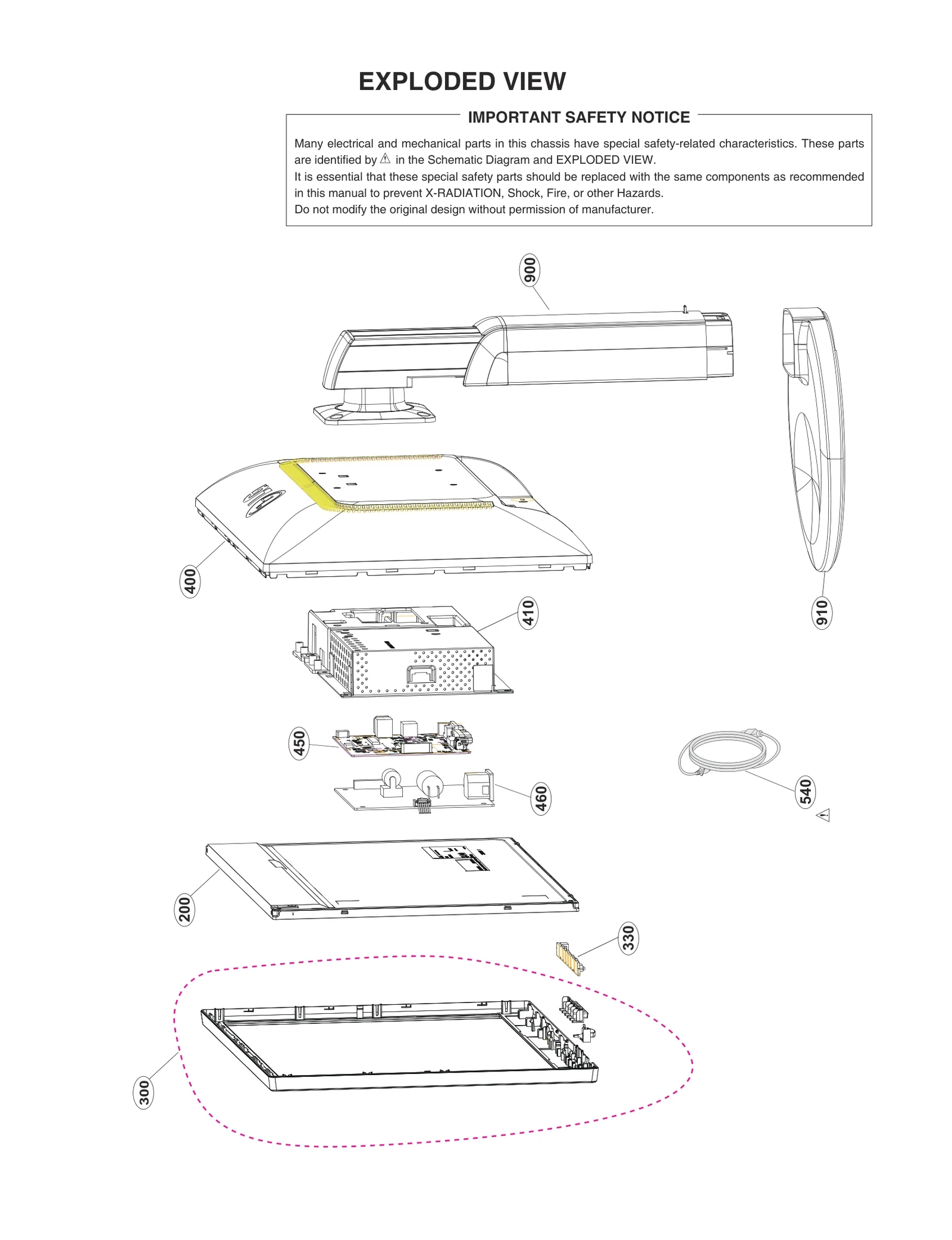

Diagram 1
Common parts from model LG 20M35PD-M
200
LCD,Module-TFT LGE EAJ63910301 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63910302 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73970245 Contact Us For Availability
330
PCB Assembly LGE EBR79338201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87249908 Contact Us For Availability
410
Frame Assembly LGE ADV74747222 Contact Us For Availability
450
PCB Assembly,Main LGE EBR79785602 Contact Us For Availability
460
Power Supply Assembly LGE EAY62909403 Contact Us For Availability
460
Power Supply Assembly LGE EAY62909402 Contact Us For Availability
460
Power Supply Assembly LGE EAY62909404 Contact Us For Availability
540
Power Cord,Detach LGE EAD60813904 Contact Us For Availability
900
Base Assembly LGE AAN73069056 Contact Us For Availability
910
Base Assembly LGE AAN73068916 Contact Us For Availability
A1
S/W Package LGE SAB35979219 Contact Us For Availability
A4
Card LGE MBM64076534 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734006 Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C126
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C138
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C144
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C150
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C160
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
D1
Diode,TVS LGE EAH42720601 Contact Us For Availability
D203
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D203
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
IC,EEPROM LGE EAN60997601 Contact Us For Availability
JK202
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
JK203
Connector,DSUB LGE EAG61073003 Contact Us For Availability
LD100
LED,DIP LGE EAV60692402 Contact Us For Availability
LD100
LED,DIP LGE EAV60692401 Contact Us For Availability
LV1
Cable,FFC LGE EAD62389085 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P100
Connector,Wafer LGE 6630V90220L Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R183
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R198
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R219
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R231
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
SW100
Switch,Tact LGE EBF61074501 Contact Us For Availability
SW100
Switch,Tact LGE EBF61914601 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
