Model Whirlpool 2092B0A BUILT-IN ELECTRIC OVEN – Common Parts & Diagrams
03 - OVEN DOOR LOCK
05 - OVEN DOOR

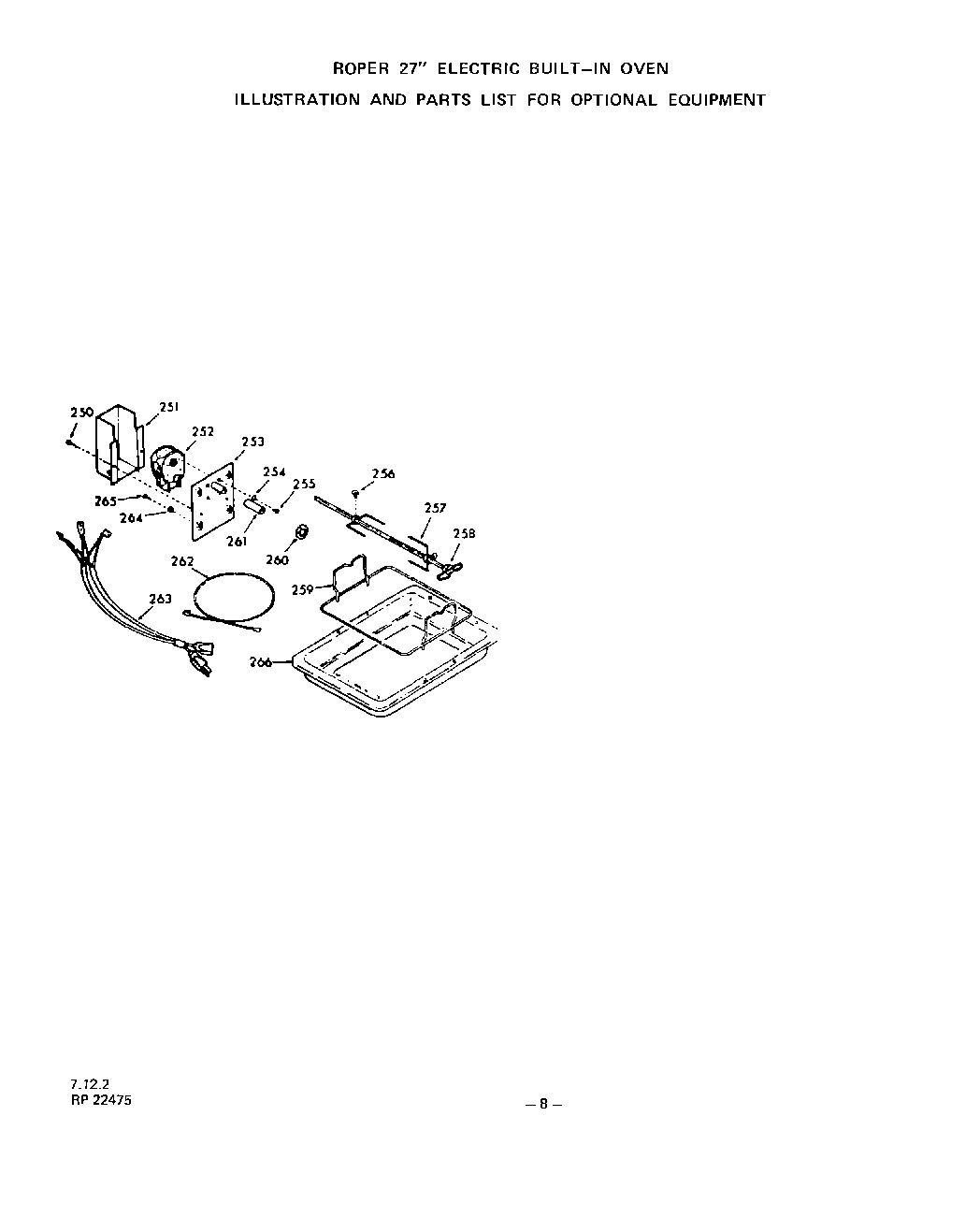

07 - OPTIONAL

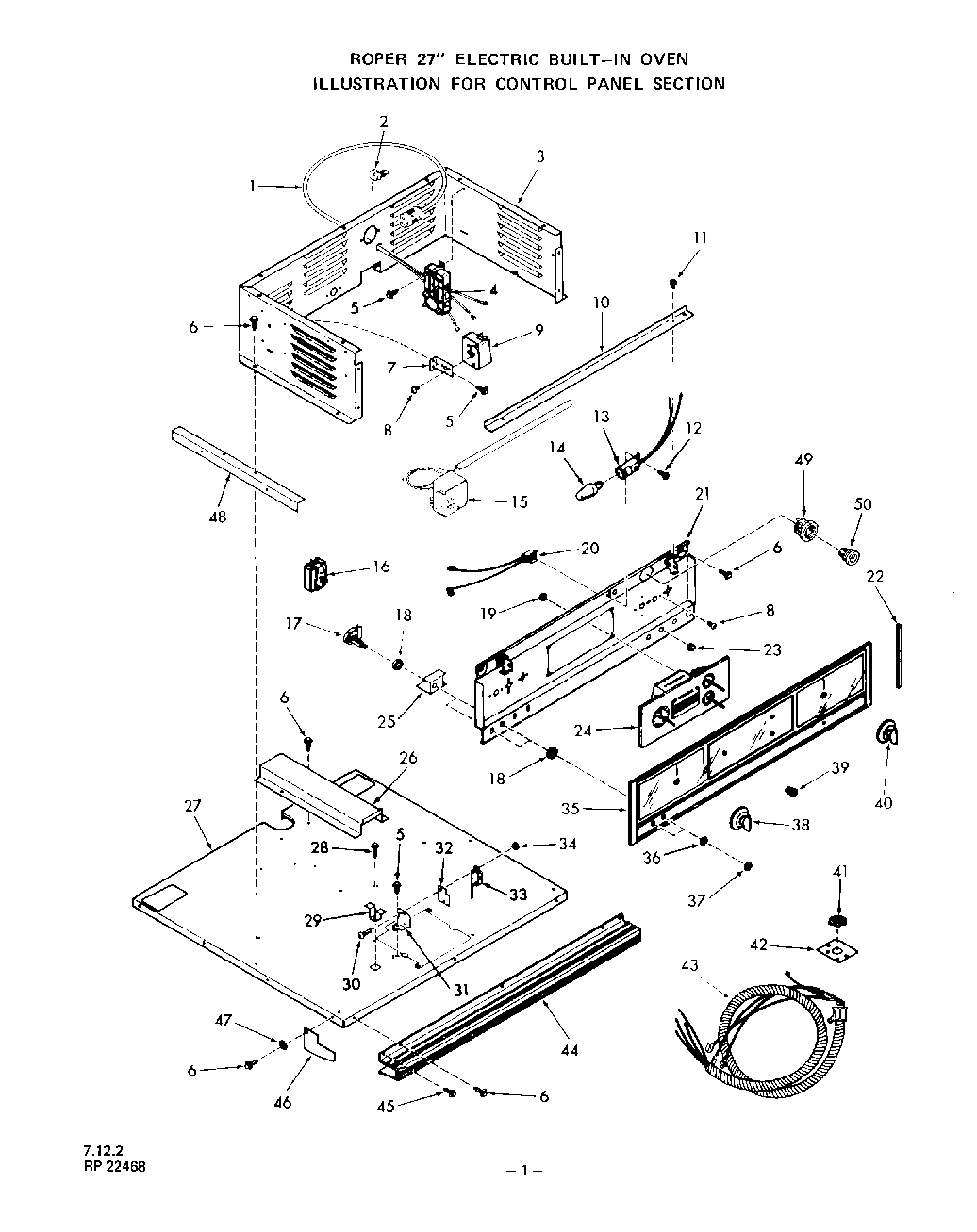

02 - CONTROL PANEL

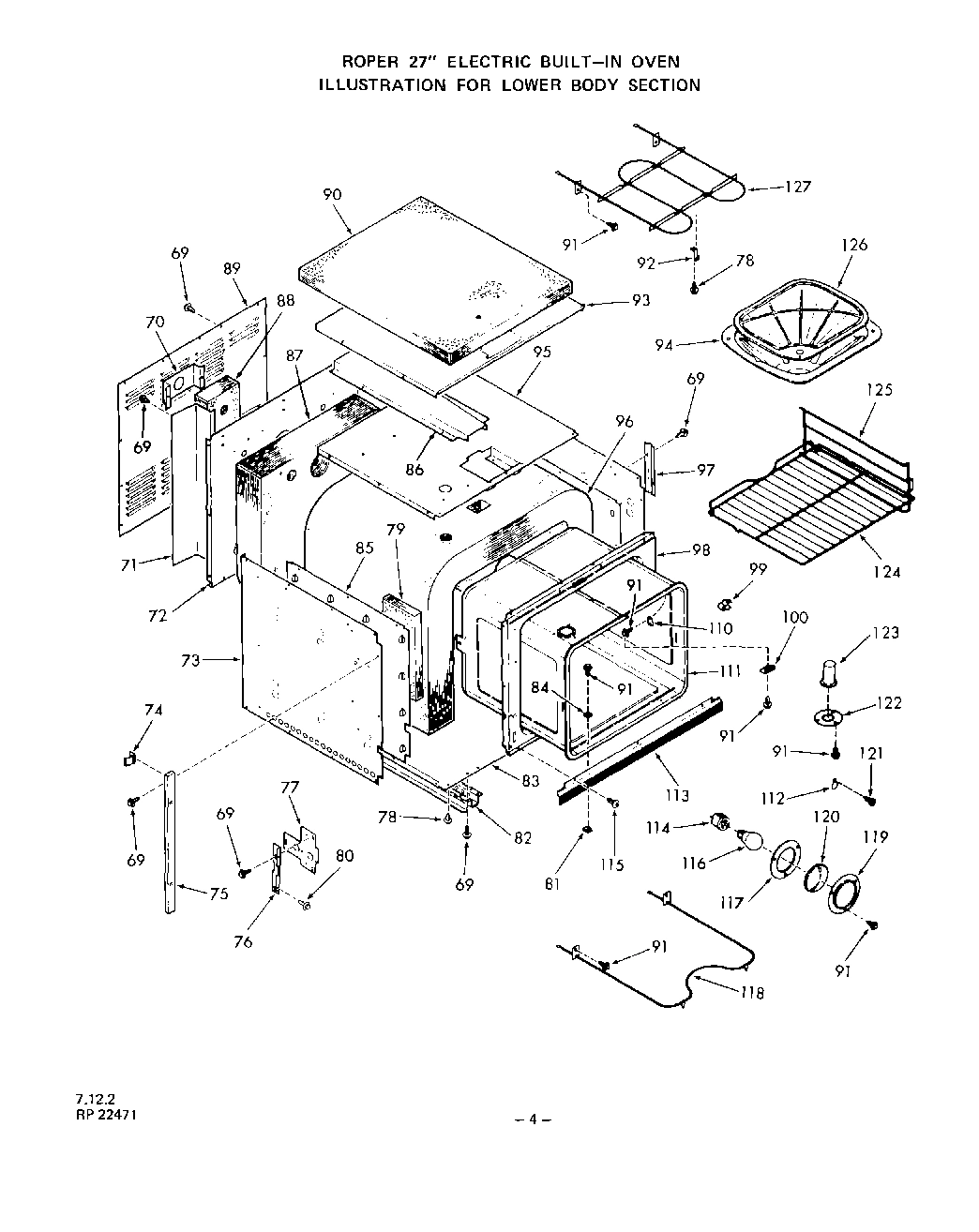

04 - LOWER BODY

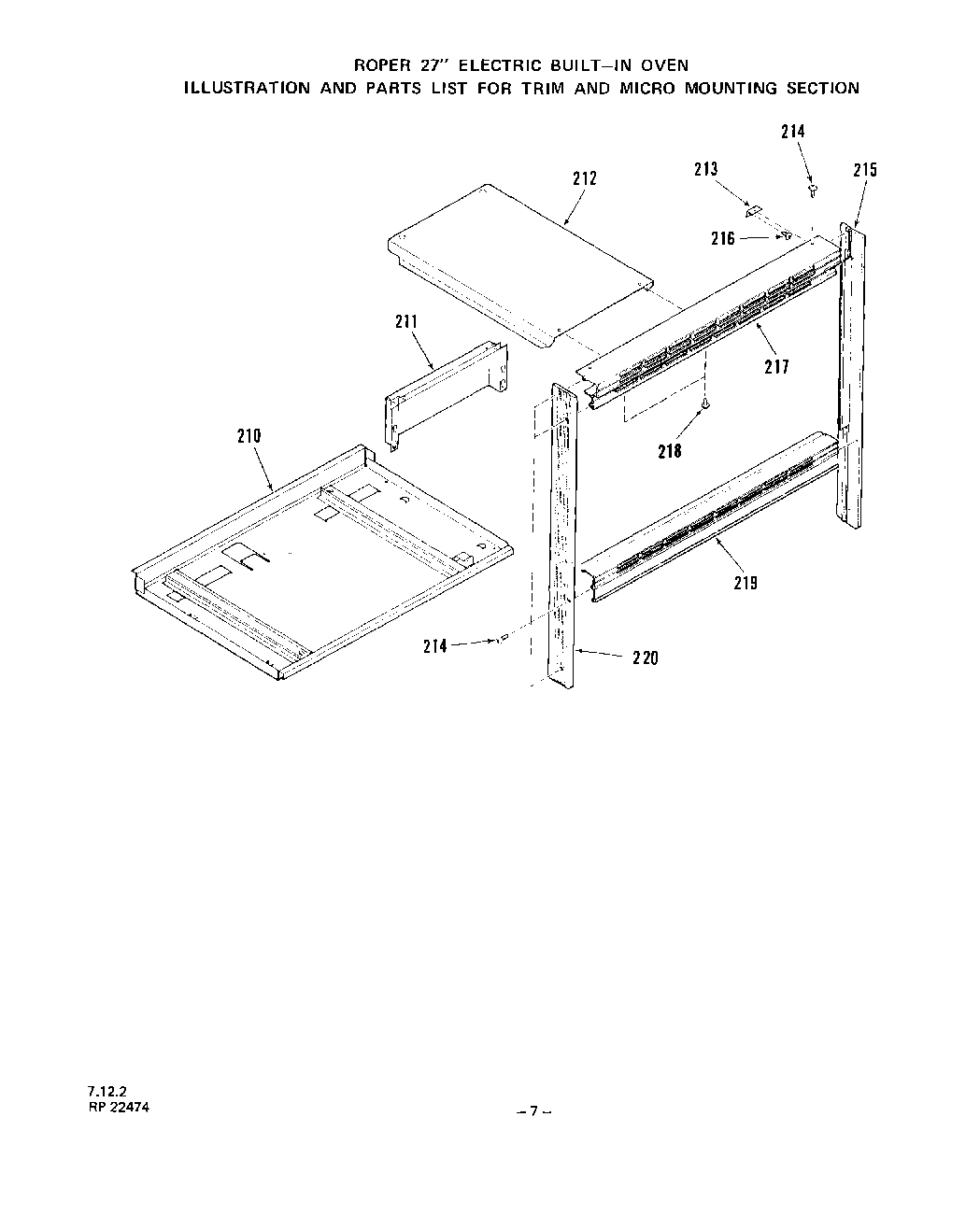

06 - TRIM AND MICRO MOUNTING, LIT/OPTIONAL

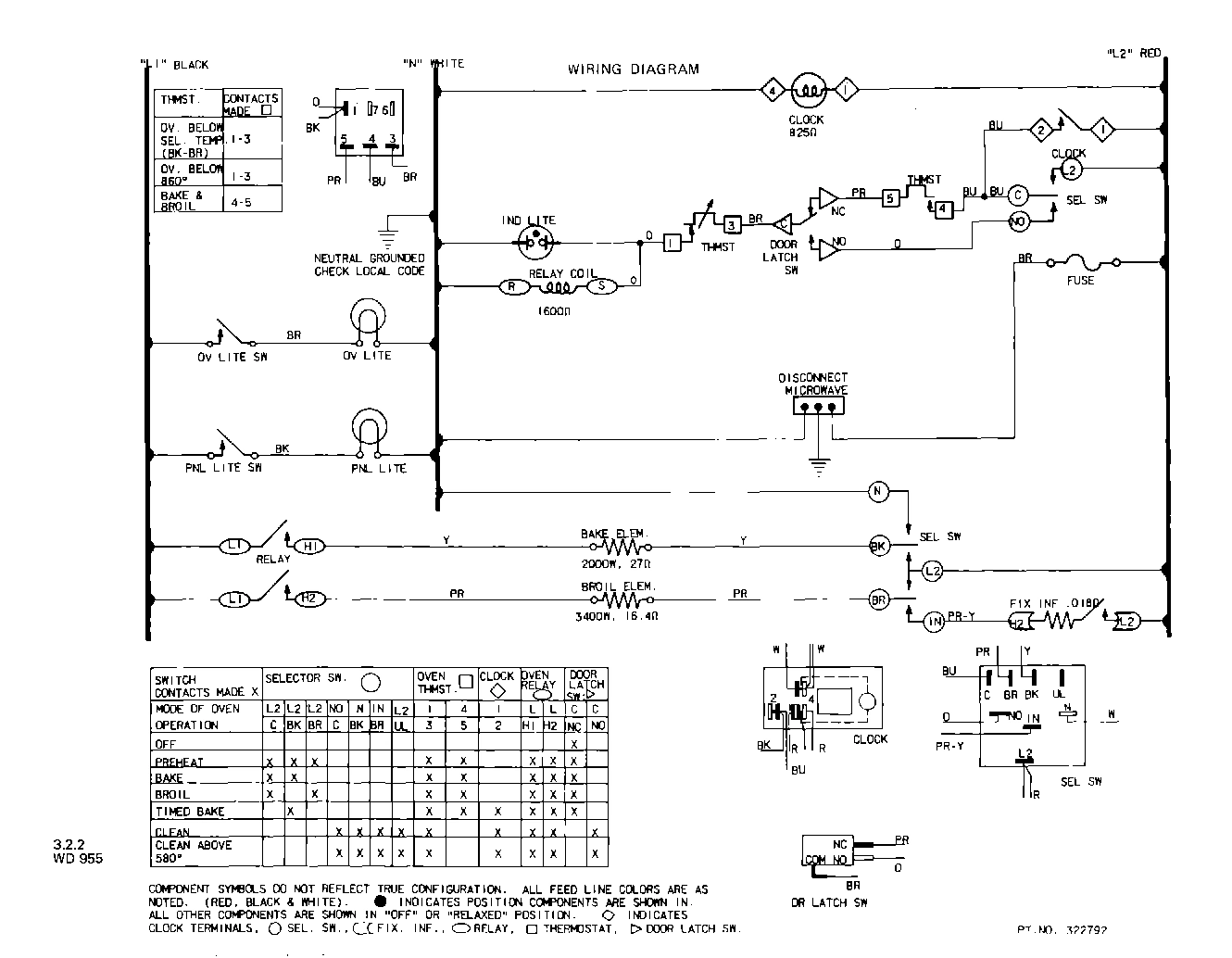

08 - WIRING DIAGRAM
Common parts from model Whirlpool 2092B0A BUILT-IN ELECTRIC OVEN
Main WPL 323517 Contact Us For Availability
1
Cord w/Plug WPL 322826 Contact Us For Availability
2
Strain Relief WPL 311112 Contact Us For Availability
3
Control Housing WPL 322796 Contact Us For Availability
4
Oven Relay WPL 239802 Contact Us For Availability
5
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
7
Mounting Bracket-Fixed Input Control WPL 234623 Contact Us For Availability
8
Screw 8-32x7/16`` WPL 78565 Contact Us For Availability
9
Fixed Input Control WPL 293428 Contact Us For Availability
10
Shield-Wires WPL 313980 Contact Us For Availability
11
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
12
Screw 6-32x1/4`` WPL 97220 Contact Us For Availability
13
Lamp Bulb Holder WPL 99034 Contact Us For Availability
14
Lamp Bulb WPL 99035 Contact Us For Availability
15
Oven Thermostat WPL 320801 Contact Us For Availability
16
Selector Switch WPL 315607 Contact Us For Availability
17
Push Switch (Oven & Panel Light) WPL 298794 Contact Us For Availability
18
Lock Nut WPL 236129 Contact Us For Availability
19
Keps Nut 10-24 WPL 74056 Contact Us For Availability
20
Indicator Light WPL 233808 Contact Us For Availability
21
Mounting Panel-Controls WPL 323511 Contact Us For Availability
22
End Trim-Control Panel Glass (Rt or Lt) WPL 239565 Contact Us For Availability
23
Lens-Indicator Light WPL 233161 Contact Us For Availability
24
Clock w/1 Hr. Timer WPL 305666 Contact Us For Availability
25
Shield-Switch (2 Required) WPL 291351 Contact Us For Availability
26
Wire Cover WPL 311729 Contact Us For Availability
27
Cabinet Top WPL 313928 Contact Us For Availability
29
Spacer WPL 237626 Contact Us For Availability
30
Screw 4-40x3/4`` (2 Required) WPL 229288 Contact Us For Availability
31
Bracket-Micro Switch WPL 312089 Contact Us For Availability
32
Insulator WPL 305276 Contact Us For Availability
33
Micro Switch - Lock WPL 311868 Contact Us For Availability
34
Keps Nut 4-40 (2 Required) WPL 306638 Contact Us For Availability
35
Control Panel Glass WPL 323512 Contact Us For Availability
36
Washer WPL 104838 Contact Us For Availability
37
Knurled Nut WPL 87403 Contact Us For Availability
38
Knob-Selector Switch WPL 302446 Contact Us For Availability
39
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
40
Knob-Oven Thermostat WPL 322787 Contact Us For Availability
41
Nut (For Key 43) WPL 110340 Contact Us For Availability
42
Plate (For Key 43) WPL 294983 Contact Us For Availability
43
Harness Conduit Asm. WPL 311877 Contact Us For Availability
44
Lower Trim-Control Panel WPL 314284 Contact Us For Availability
45
Screw 10-32x1/2`` WPL 109869 Contact Us For Availability
46
Heat Shield (Lt. or Rt.) WPL 312395 Contact Us For Availability
48
Stiffener-Lt. or Rt. WPL 315596 Contact Us For Availability
49
Fuse Holder WPL 277608 Contact Us For Availability
50
Fuse-15 Amp. WPL 106208 Contact Us For Availability
55
Spring WPL 313075 Contact Us For Availability
57
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
58
Lock Handle WPL 313879 Contact Us For Availability
59
Knob-Lock Handle WPL 299627 Contact Us For Availability
60
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
61
Oven Door Lock Asm. WPL 311869 Contact Us For Availability
70
Insulation Retainer-Oven Light WPL 311538 Contact Us For Availability
71
Side-Air Channel (Lt. or Rt.) WPL 314109 Contact Us For Availability
72
Main Back WPL 313929 Contact Us For Availability
73
Cabinet Side (Left) WPL 311723 Contact Us For Availability
73
Cabinet Side (Right) WPL 311724 Contact Us For Availability
74
Spacer (4 Required) WPL 311726 Contact Us For Availability
75
Side Trim-Lt. or Rt. WPL 311725 Contact Us For Availability
76
Hinge Angle-Lt. or Rt. WPL 322611 Contact Us For Availability
77
Hinge Box-Lt. or Rt. WPL 322609 Contact Us For Availability
78
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
79
Insulation (Lt. or Rt.) WPL 279470 Contact Us For Availability
81
Speed Nut 10-32 WPL 107956 Contact Us For Availability
82
Base-Lt. or Rt. WPL 313970 Contact Us For Availability
83
Cabinet Bottom WPL 313927 Contact Us For Availability
84
Washer WPL 106462 Contact Us For Availability
85
Insulation Retainer-Oven Side WPL 311551 Contact Us For Availability
86
Top Vent Box WPL 311733 Contact Us For Availability
91
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
92
Broiler Element Support WPL 104923 Contact Us For Availability
93
Insulation Retainer-Cabinet Top WPL 311553 Contact Us For Availability
94
Broiler Pan WPL 311878 Contact Us For Availability
95
Insulation Retainer-Oven Top WPL 311552 Contact Us For Availability
96
Insulation Oven Top & Sides (1 Piece) WPL 311712 Contact Us For Availability
97
Raceway WPL 311727 Contact Us For Availability
98
Front Frame WPL 311560 Contact Us For Availability
99
Thermostat Bulb Retainer (2 Required) WPL 288392 Contact Us For Availability
100
Cover WPL 304835 Contact Us For Availability
110
Cover Plate-Thermostat Bulb WPL 237762 Contact Us For Availability
111
Oven Body WPL 311584 Contact Us For Availability
112
Cover Plate, Rotisserie WPL 229607 Contact Us For Availability
113
Lower Trim WPL 313995 Contact Us For Availability
114
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
115
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
116
Oven Light Bulb WPL 111257 Contact Us For Availability
117
Gasket-Oven Light WPL 229371 Contact Us For Availability
118
Bake Element WPL 320418 Contact Us For Availability
119
Lens Retainer-Oven Light WPL 229372 Contact Us For Availability
120
Oven Light Lens WPL 114989 Contact Us For Availability
121
Shoulder Bolt 10-32x1/2`` WPL 289730 Contact Us For Availability
122
Oven Vent Clamp WPL 303612 Contact Us For Availability
124
Oven Rack (2 Required) WPL 311735 Contact Us For Availability
125
Oven Rack Guide-Rt. or Lt. WPL 305350 Contact Us For Availability
126
Broiler Pan Grid WPL 280259 Contact Us For Availability
127
Br WPL 319526 Contact Us For Availability
151
Asbestos Seal WPL 302935 Contact Us For Availability
152
Washer WPL 21067 Contact Us For Availability
153
Plug-Oven Door Lining WPL 311748 Contact Us For Availability
154
Oven Door Gasket WPL 311925 Contact Us For Availability
156
Insulation-Oven Door Plug WPL 311872 Contact Us For Availability
157
Insulation-Oven Door Lining WPL 311874 Contact Us For Availability
158
Door Glass Retainer (4 Required) WPL 312888 Contact Us For Availability
159
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
160
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
161
Retainer-Oven Door Insulation WPL 312902 Contact Us For Availability
164
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
165
Frame-Oven Door WPL 311737 Contact Us For Availability
166
Oven Door Handle WPL 318941 Contact Us For Availability
167
Keps Nut 8-32 WPL 239764 Contact Us For Availability
168
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
169
Oven Door Glass-Outer WPL 311738 Contact Us For Availability
170
Door Glass Retainer (6 Required) WPL 299596 Contact Us For Availability
171
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
172
Oven Door Glass-Intermediate WPL 308239 Contact Us For Availability
175
Baffle-Oven Door Lining WPL 311751 Contact Us For Availability
176
Oven Door Glass-Center WPL 296214 Contact Us For Availability
177
Retainer-Oven door Glass WPL 311746 Contact Us For Availability
178
Oven Door Hinge-Rt. or Lt. WPL 311556 Contact Us For Availability
180
Oven Door Lining WPL 311744 Contact Us For Availability
181
Oven Door Glass-Inner WPL 312426 Contact Us For Availability
182
Screw 10ABx1 WPL 105799 Contact Us For Availability
210
Module Support Bottom WPL 322774 Contact Us For Availability
211
Vent Box WPL 322764 Contact Us For Availability
212
Extension-Vent WPL 322766 Contact Us For Availability
213
Bracket-Control Panel (2 Required) WPL 313943 Contact Us For Availability
214
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
215
Right Side Trim WPL 322770 Contact Us For Availability
216
Screw 8ABx1/2`` WPL 71666 Contact Us For Availability
217
Top Trim WPL 322775 Contact Us For Availability
219
Lamp Shade WPL 322799 Contact Us For Availability
220
Electric Use & Care Guide WPL 313301 Contact Us For Availability
220
Left Side trim WPL 322771 Contact Us For Availability
220
Auxiliary WPL 322794 Contact Us For Availability
220
Repair Parts Manual WPL 322801 Contact Us For Availability
220
Installation & Reference Guide WPL 322828 Contact Us For Availability
220
Operating Guide WPL 322829 Contact Us For Availability
220
xWire Harness WPL ARI9184A49 Contact Us For Availability
251
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
252
Rotisserie Motor WPL 106575 Contact Us For Availability
253
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
254
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
255
Screw 8-32 x 3/8`` WPL 87860 Contact Us For Availability
256
Thumbscrew WPL 70287 Contact Us For Availability
257
Skewer WPL 88433 Contact Us For Availability
258
Rotisserie Spit WPL 100092 Contact Us For Availability
259
Spit Support WPL 232137 Contact Us For Availability
260
Plug Button WPL 100095 Contact Us For Availability
261
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
262
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
262
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 291284 Contact Us For Availability
262
Fixture Wire Lead (With 1/4`` Faston & Eyelet WPL 321951 Contact Us For Availability
262
Fixture Wire Lead (With 1/4`` Faston & Eyelet WPL 321952 Contact Us For Availability
262
fixture wire lead WPL ARI9185A62 Contact Us For Availability
263
Rotisserie Cord WPL 282924 Contact Us For Availability
264
Lockwasher WPL 69603 Contact Us For Availability
265
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
266
Rotisserie Pan WPL 291397 Contact Us For Availability
266
Installation Instructions WPL 300668 Contact Us For Availability
× ![]()
