Model Whirlpool 2075B2A BUILT-IN ELECTRIC OVEN – Common Parts & Diagrams

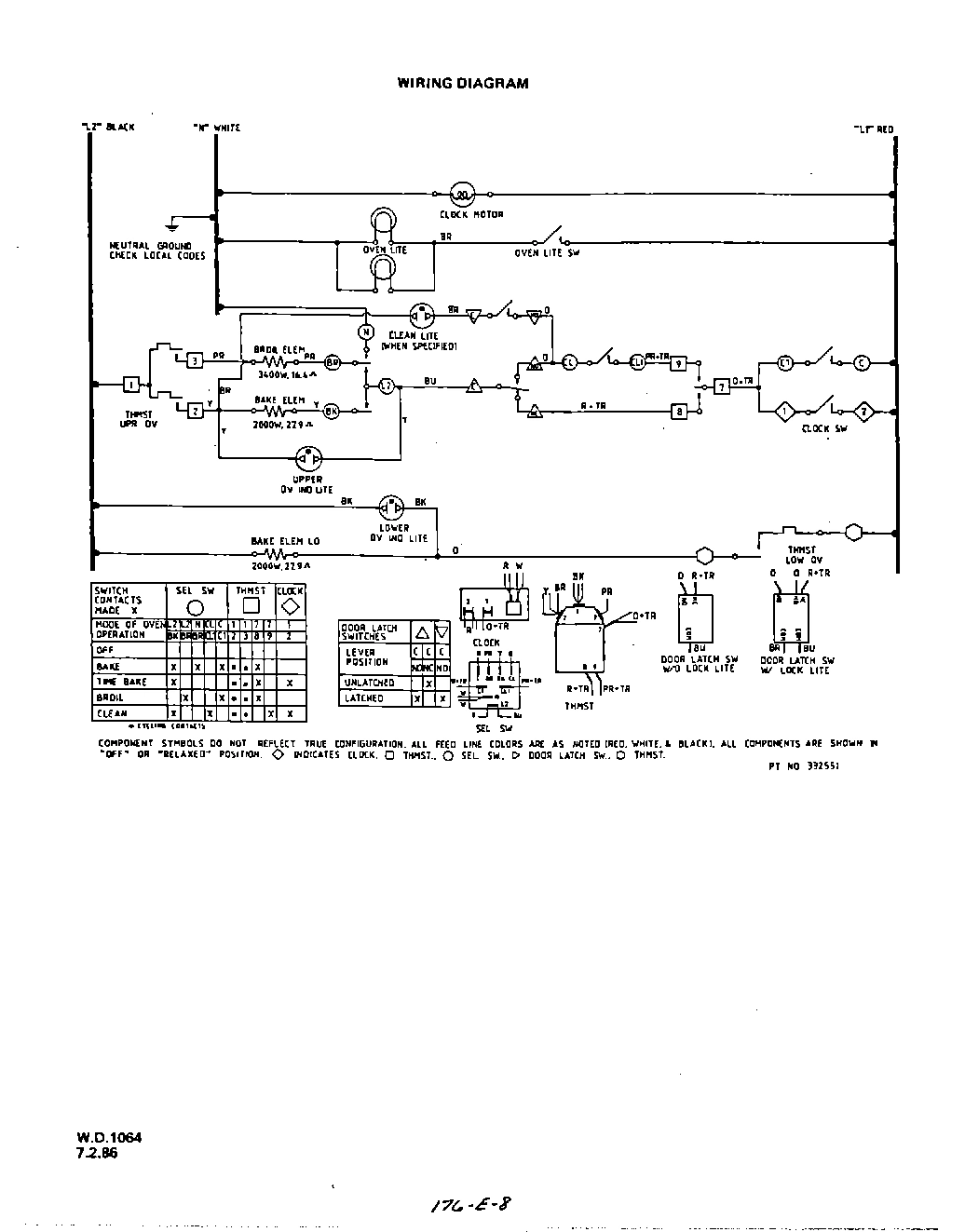

07 - WIRING DIAGRAM

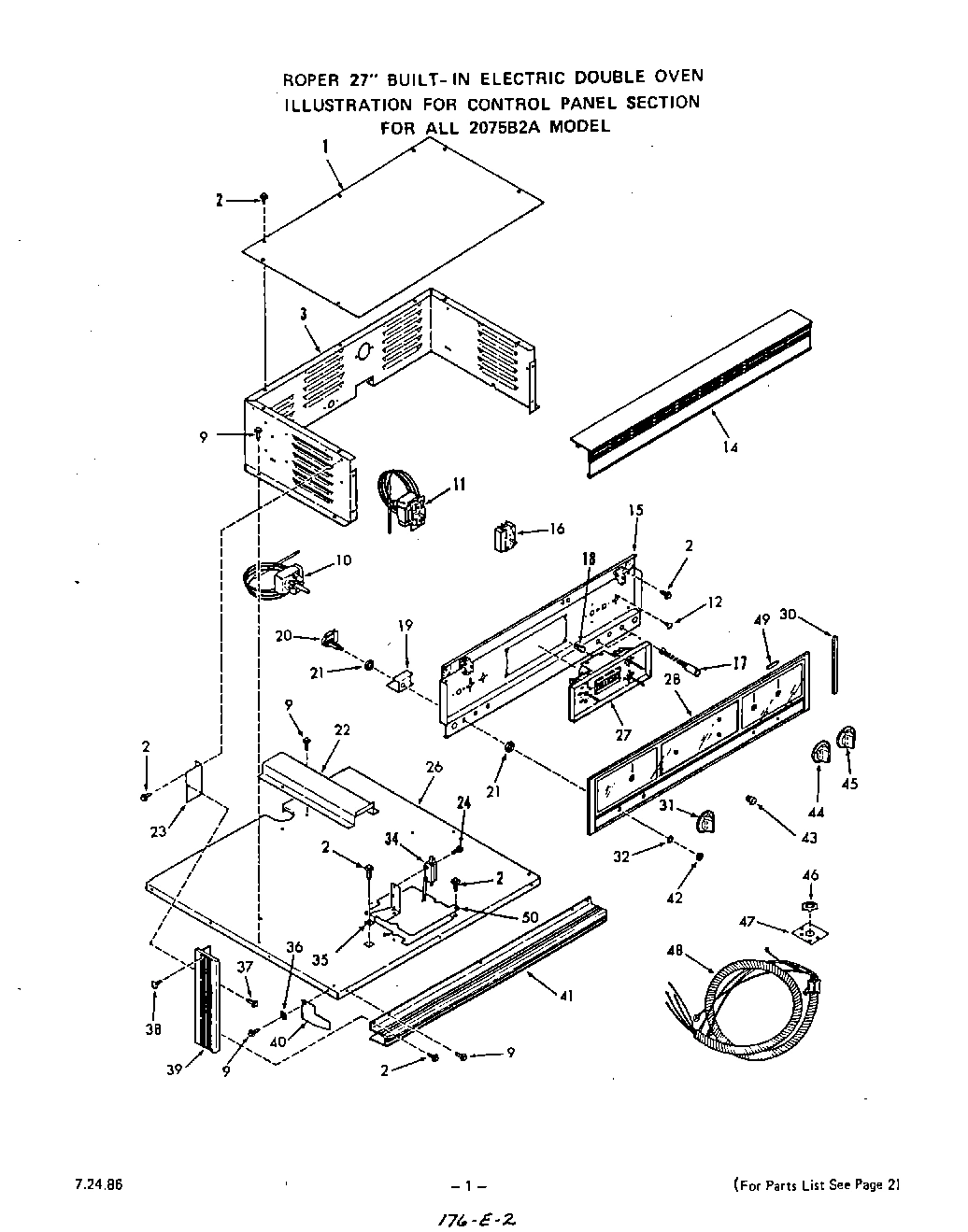

02 - CONTROL PANEL

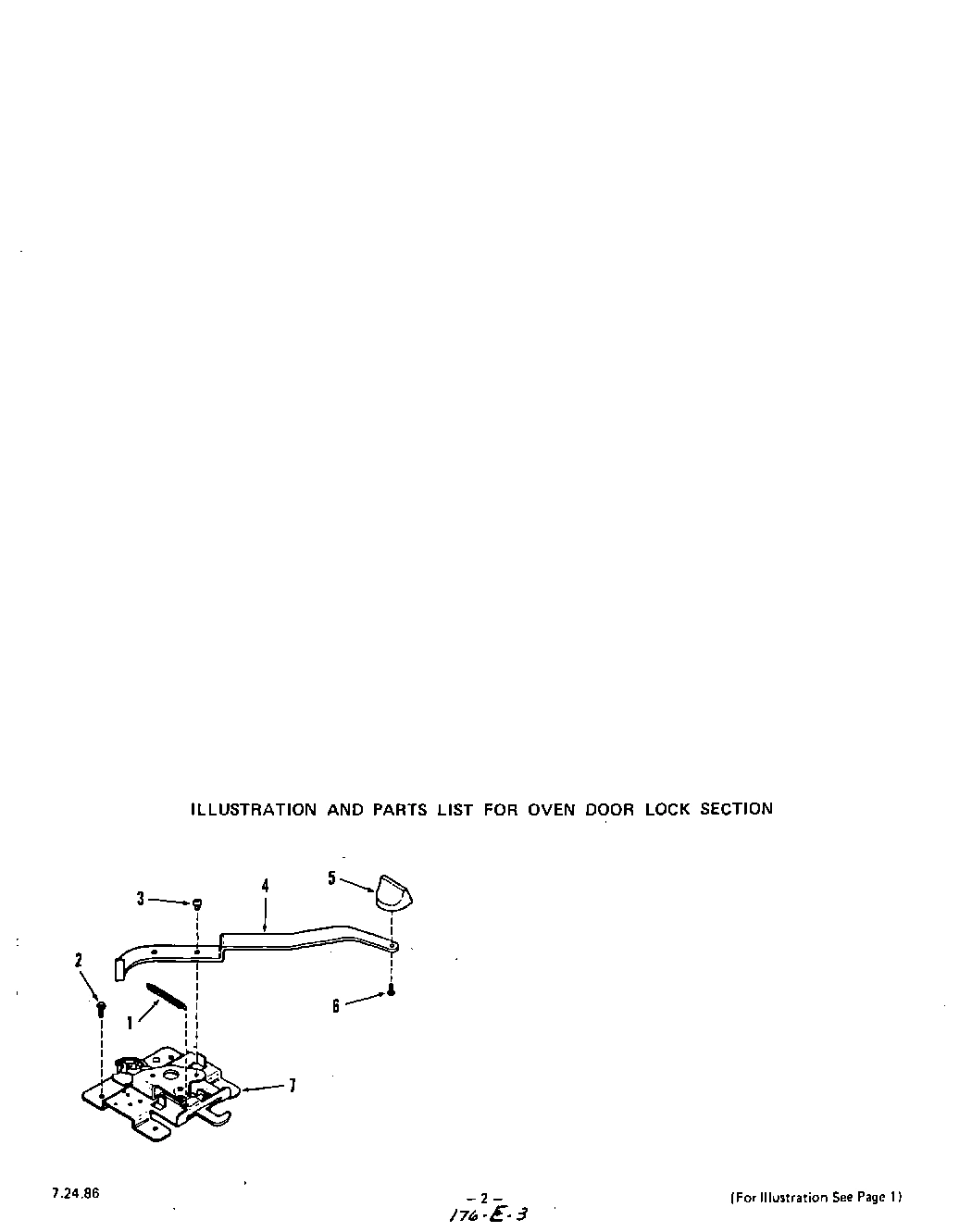

03 - OVEN DOOR LOCK

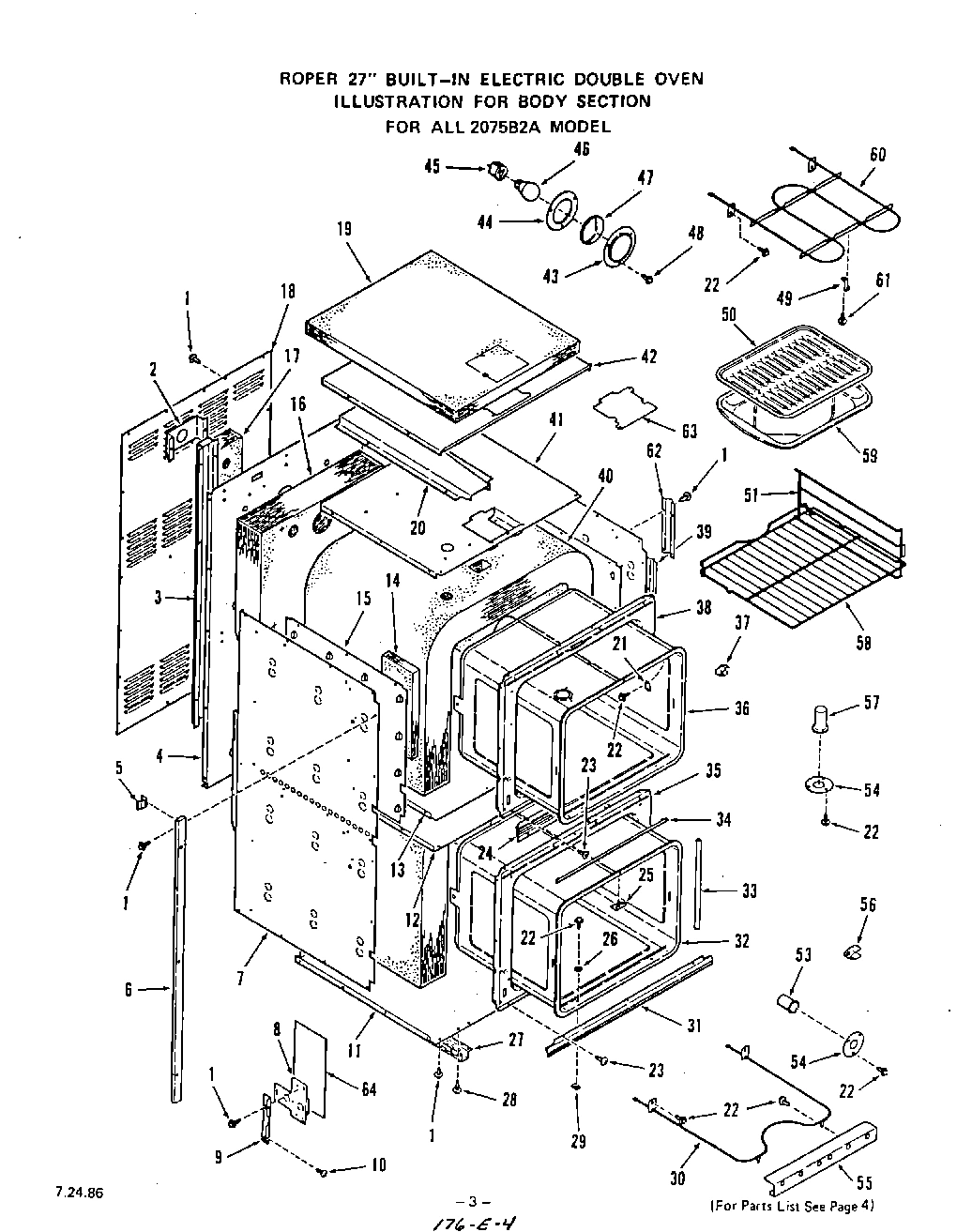

04 - BODY , LIT/OPTIONAL

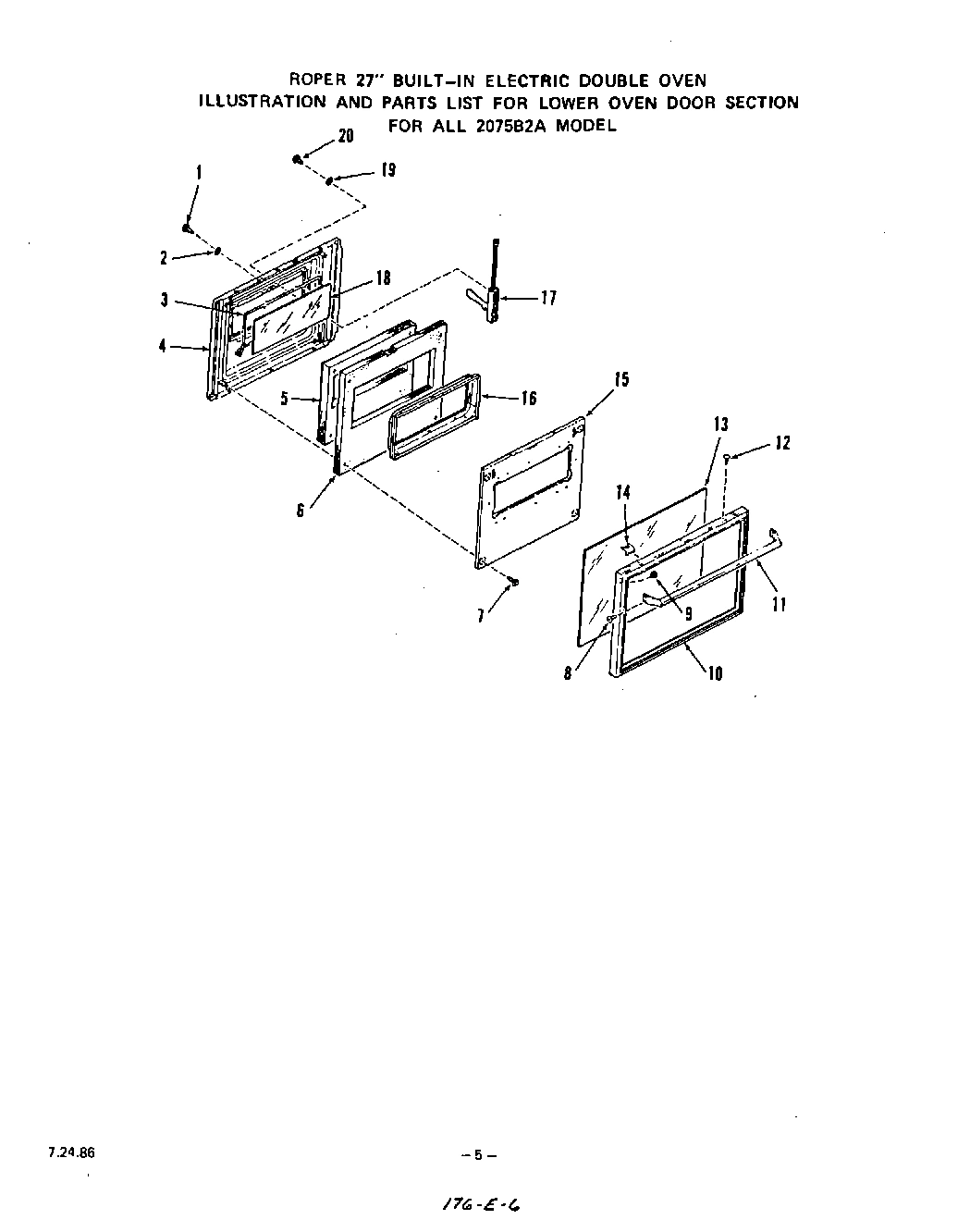

05 - LOWER OVEN DOOR
06 - UPPER OVEN DOOR
Common parts from model Whirlpool 2075B2A BUILT-IN ELECTRIC OVEN
xWire Harness WPL ARI9183A42 Contact Us For Availability
1
Top-Control Housing WPL 323667 Contact Us For Availability
1
Spring WPL 313075 Contact Us For Availability
1
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
2
Insulation Retainer-Oven Light WPL 323630 Contact Us For Availability
2
Door Seal WPL 302935 Contact Us For Availability
3
Control Housing WPL 323659 Contact Us For Availability
3
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
3
Rear Oven Vent Box WPL 323638 Contact Us For Availability
3
Washer WPL 21067 Contact Us For Availability
3
Seal-Oven Door WPL 303156 Contact Us For Availability
4
Lock Handle WPL 318379 Contact Us For Availability
4
Main Back WPL 323626 Contact Us For Availability
4
Lining-Oven Door WPL 331684 Contact Us For Availability
4
Plug-Oven Door Lining WPL 331674 Contact Us For Availability
5
Knob-Lock Handle WPL 323363 Contact Us For Availability
5
Spacer (6 Req) WPL 311726 Contact Us For Availability
5
Oven Door Gasket WPL 311925 Contact Us For Availability
6
Washer WPL 106462 Contact Us For Availability
6
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
6
Side Trim (Lt. or Rt.) WPL 311728 Contact Us For Availability
7
Oven Door Lock Assm. WPL 311869 Contact Us For Availability
7
Left WPL 325527 Contact Us For Availability
7
Right WPL 325528 Contact Us For Availability
7
Cabinet Side WPL ARI9181A77 Contact Us For Availability
7
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
8
Hinge Box Assm.-Lt. or Rt. WPL 322609 Contact Us For Availability
8
Insulation-Oven Door Plug WPL 311872 Contact Us For Availability
9
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
9
Hinge Angle-Lt or Rt (Up & Lo Ov) WPL 322611 Contact Us For Availability
9
Insulation-Oven Door Lining WPL 311874 Contact Us For Availability
10
Lower Oven Thermostat WPL 320938 Contact Us For Availability
10
Door Glass Retainer (4 Req) WPL 312888 Contact Us For Availability
11
Upper Oven Thermostat WPL 331880 Contact Us For Availability
11
Cabinet Bottom WPL 323624 Contact Us For Availability
11
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
12
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
12
Insulation Retainer-Ov. Top (Lo) WPL 323628 Contact Us For Availability
12
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
13
Insulation Retainer-Btm. (Up.) WPL 323632 Contact Us For Availability
13
Retainer-Oven Door Insulation WPL 323678 Contact Us For Availability
14
Lamp Shade WPL 329398 Contact Us For Availability
14
Insulation (Lt. or Rt.) WPL 279470 Contact Us For Availability
15
Mounting Panel-Controls WPL 333133 Contact Us For Availability
15
Insulation Retainer-Body Side WPL 323636 Contact Us For Availability
15
Retainer-Oven Door Insulation WPL 323676 Contact Us For Availability
16
Selector Switch WPL 331881 Contact Us For Availability
16
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
17
Upper Oven WPL 334853 Contact Us For Availability
17
Lower Oven WPL 334854 Contact Us For Availability
17
Indicator Light WPL ARI9179A68 Contact Us For Availability
17
Frame-Oven Door WPL 325836 Contact Us For Availability
17
Hinge-Oven Door (Rt. or Lt.) WPL 331029 Contact Us For Availability
18
Clip WPL 293577 Contact Us For Availability
18
Cabinet Back WPL 323661 Contact Us For Availability
18
Oven Door Handle WPL 325837 Contact Us For Availability
19
Shield-Switch WPL 291351 Contact Us For Availability
19
Insulation-Cabinet Top WPL 333119 Contact Us For Availability
19
Keps Nut 8-32 WPL 239764 Contact Us For Availability
20
Push Switch-Oven Light WPL 298794 Contact Us For Availability
20
Vent Box-Oven Top WPL 323640 Contact Us For Availability
20
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
21
Lock Nut WPL 236129 Contact Us For Availability
21
Cover Plate-Thermostat Bulb WPL 237762 Contact Us For Availability
21
Oven Door Glass-Outer WPL 311738 Contact Us For Availability
22
Wire Cover WPL 323663 Contact Us For Availability
22
Door Glass Retainer (6 Req) WPL 299596 Contact Us For Availability
23
Control Panel Support (Lt. or Rt.) WPL 311759 Contact Us For Availability
23
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
23
Screw 10ABx3/4`` WPL 69364 Contact Us For Availability
24
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
24
Center Front Trim WPL 311554 Contact Us For Availability
24
Oven Door Glass-Intermediate WPL 308239 Contact Us For Availability
25
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
25
Cover (Lo. & Up. Ov) WPL 304835 Contact Us For Availability
26
Cabinet Top WPL 333121 Contact Us For Availability
26
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
27
Clock w/1 Hr. Timer WPL 330938 Contact Us For Availability
27
Bottom Channel-Lt. or Rt. WPL 328042 Contact Us For Availability
27
Baffle-Oven Door Lining WPL 311751 Contact Us For Availability
28
Control Panel Glass WPL 329429 Contact Us For Availability
28
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
28
Oven Door Glass-Center WPL 296214 Contact Us For Availability
29
Speed Nut 10-32 WPL 107956 Contact Us For Availability
29
Retainer-Oven Door Glass WPL 323672 Contact Us For Availability
30
End Trim-Control Panel Glass (Rt or Lt) WPL 239565 Contact Us For Availability
30
Upper Oven WPL 331163 Contact Us For Availability
30
Lower Oven WPL 331164 Contact Us For Availability
30
Bake Element WPL ARI9182A37 Contact Us For Availability
30
Oven Door Hinge-Rt. or Lt. WPL 331028 Contact Us For Availability
31
Knob-Lower Oven Thermostat WPL 329447 Contact Us For Availability
31
Lower Front Trim WPL 311558 Contact Us For Availability
32
Washer WPL 104838 Contact Us For Availability
32
Lower Oven Body WPL 331655 Contact Us For Availability
32
Oven Door Lining WPL 331682 Contact Us For Availability
33
Lower Oven Door WPL 313059 Contact Us For Availability
33
Oven Door Glass-Inner WPL 312426 Contact Us For Availability
34
Micro Switch-Lock WPL 334973 Contact Us For Availability
34
Lower Oven Seal Lt or Rt WPL 313055 Contact Us For Availability
34
Screw 10ABx1 WPL 105799 Contact Us For Availability
34
Main WPL 332555 Contact Us For Availability
34
Lock Switch WPL 333040 Contact Us For Availability
35
Bracket-Micro Switch WPL 335115 Contact Us For Availability
35
Front Frame WPL 331669 Contact Us For Availability
36
Upper Oven Body WPL 331651 Contact Us For Availability
37
Thmst. Bulb Retainer Clip WPL 321539 Contact Us For Availability
38
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
38
Upper Front Frame WPL 331666 Contact Us For Availability
39
Left WPL 314271 Contact Us For Availability
39
Right WPL 314272 Contact Us For Availability
39
Side Trim-Control Panel WPL ARI9180A50 Contact Us For Availability
39
Raceway WPL 325532 Contact Us For Availability
40
Heat Shield (Lt. or Rt.) WPL 312395 Contact Us For Availability
40
Insulation-Ov. Top & Sides WPL 311712 Contact Us For Availability
41
Control Panel Trim WPL 314284 Contact Us For Availability
41
Insulation Retainer-Up. Oven Top WPL 323634 Contact Us For Availability
42
Knurled Nut WPL 87403 Contact Us For Availability
42
Insulation Retainer-Cabinet Top WPL 333117 Contact Us For Availability
43
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
43
Lens Retainer-Oven Light (Up. Oven) WPL 229372 Contact Us For Availability
44
Knob-Upper Oven Thermostat WPL 334678 Contact Us For Availability
44
Gasket-Oven Light Lens-Up. Oven WPL 229371 Contact Us For Availability
45
Knob-Selector Switch WPL 329446 Contact Us For Availability
45
Oven L WPL 87883 Contact Us For Availability
46
Nut (For Key 48) WPL 110340 Contact Us For Availability
46
WPL 111257 WPL 111257 Contact Us For Availability
47
Plate (For Key 48) WPL 294983 Contact Us For Availability
47
WPL 114989 WPL 114989 Contact Us For Availability
48
Harness Conduit Asm. WPL 333036 Contact Us For Availability
48
WPL 102428 WPL 102428 Contact Us For Availability
49
Cushion (2 Req) WPL 112370 Contact Us For Availability
49
WPL 324809 WPL 324809 Contact Us For Availability
50
Cover Plate Lock WPL 333124 Contact Us For Availability
50
WPL 326297 WPL 326297 Contact Us For Availability
51
WPL 305350 WPL 305350 Contact Us For Availability
53
WPL 294679 WPL 294679 Contact Us For Availability
54
WPL 303612 WPL 303612 Contact Us For Availability
55
WPL 331670 WPL 331670 Contact Us For Availability
56
WPL 291123 WPL 291123 Contact Us For Availability
58
WPL 311735 WPL 311735 Contact Us For Availability
59
WPL 331592 WPL 331592 Contact Us For Availability
60
WPL 319526 WPL 319526 Contact Us For Availability
61
WPL 69605 WPL 69605 Contact Us For Availability
62
WPL 323665 WPL 323665 Contact Us For Availability
63
WPL 323648 WPL 323648 Contact Us For Availability
64
WPL 114300 WPL 114300 Contact Us For Availability
× ![]()
