Model Whirlpool 2065B1A BUILT-IN ELECTRIC OVEN – Common Parts & Diagrams
07 - WIRING DIAGRAM
05 - UPPER OVEN DOOR

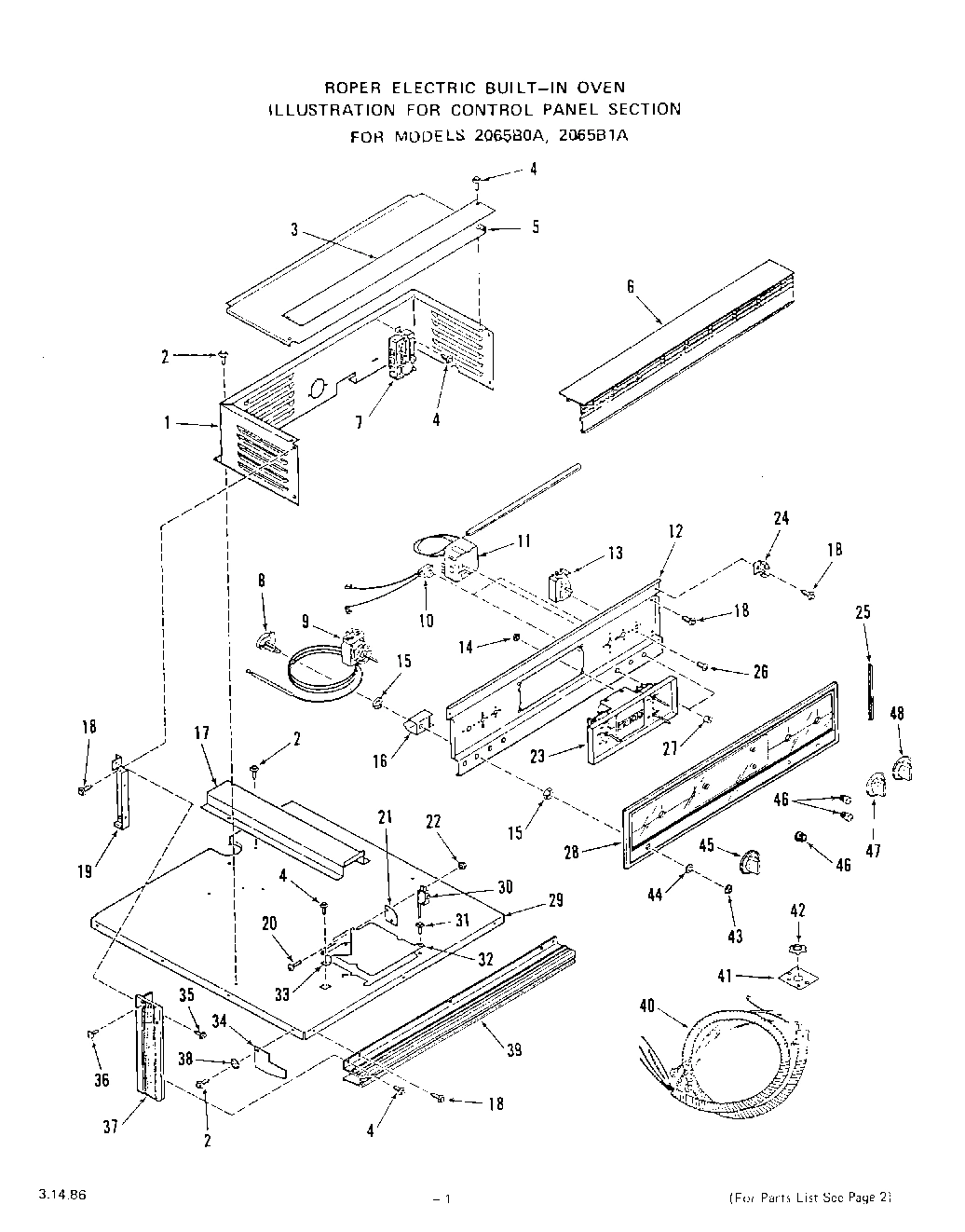

02 - CONTROL PANEL

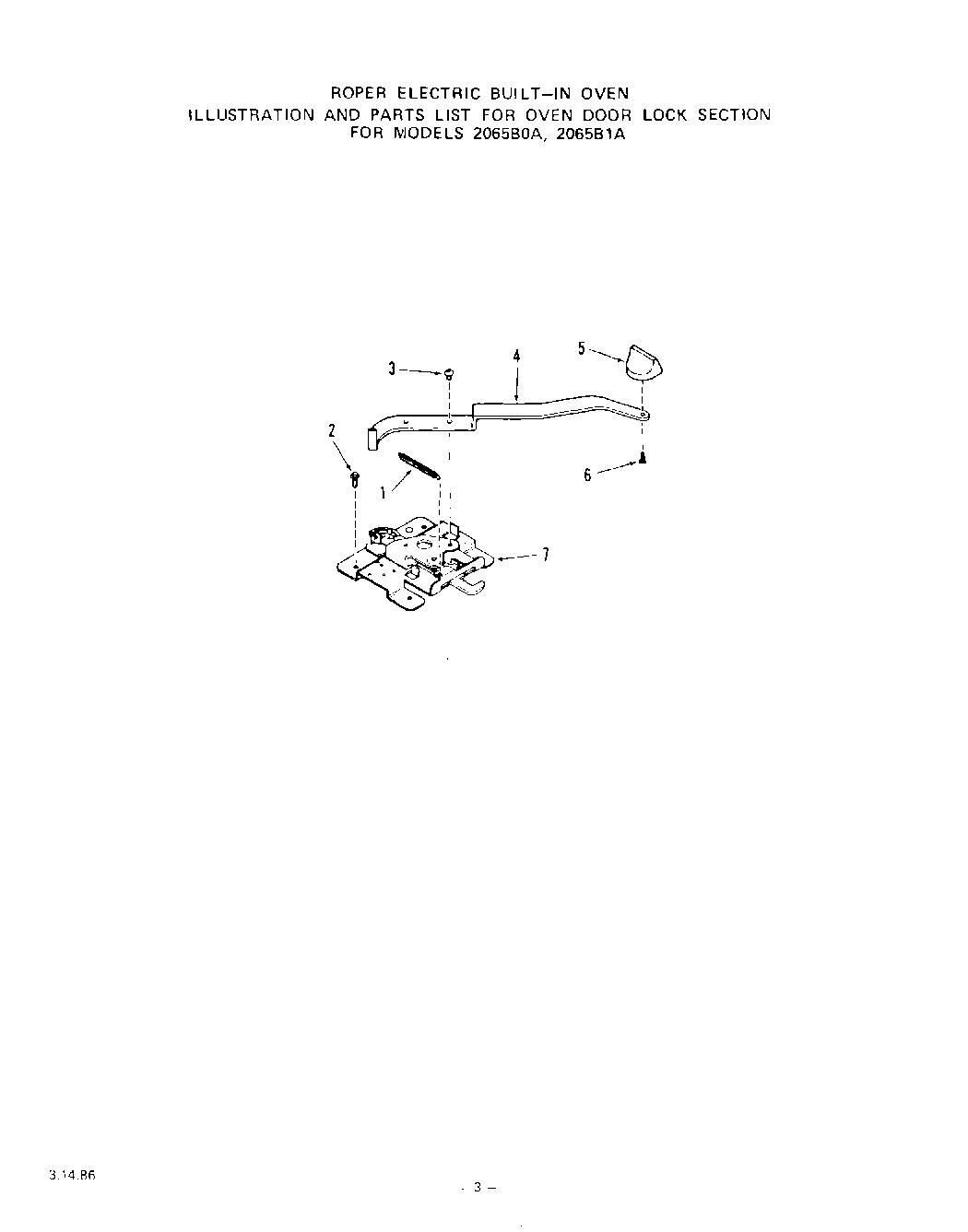

03 - OVEN DOOR LOCK

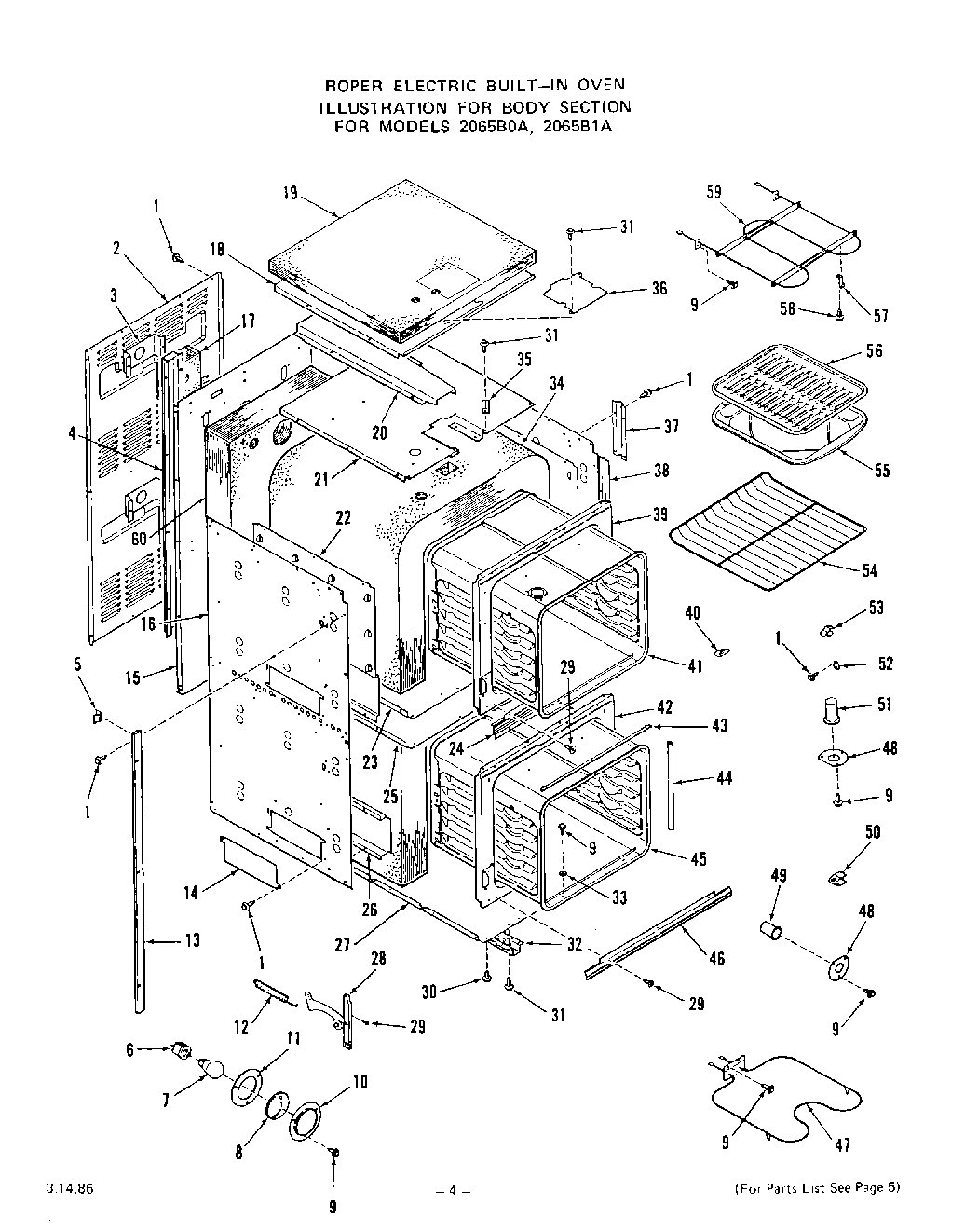

04 - BODY

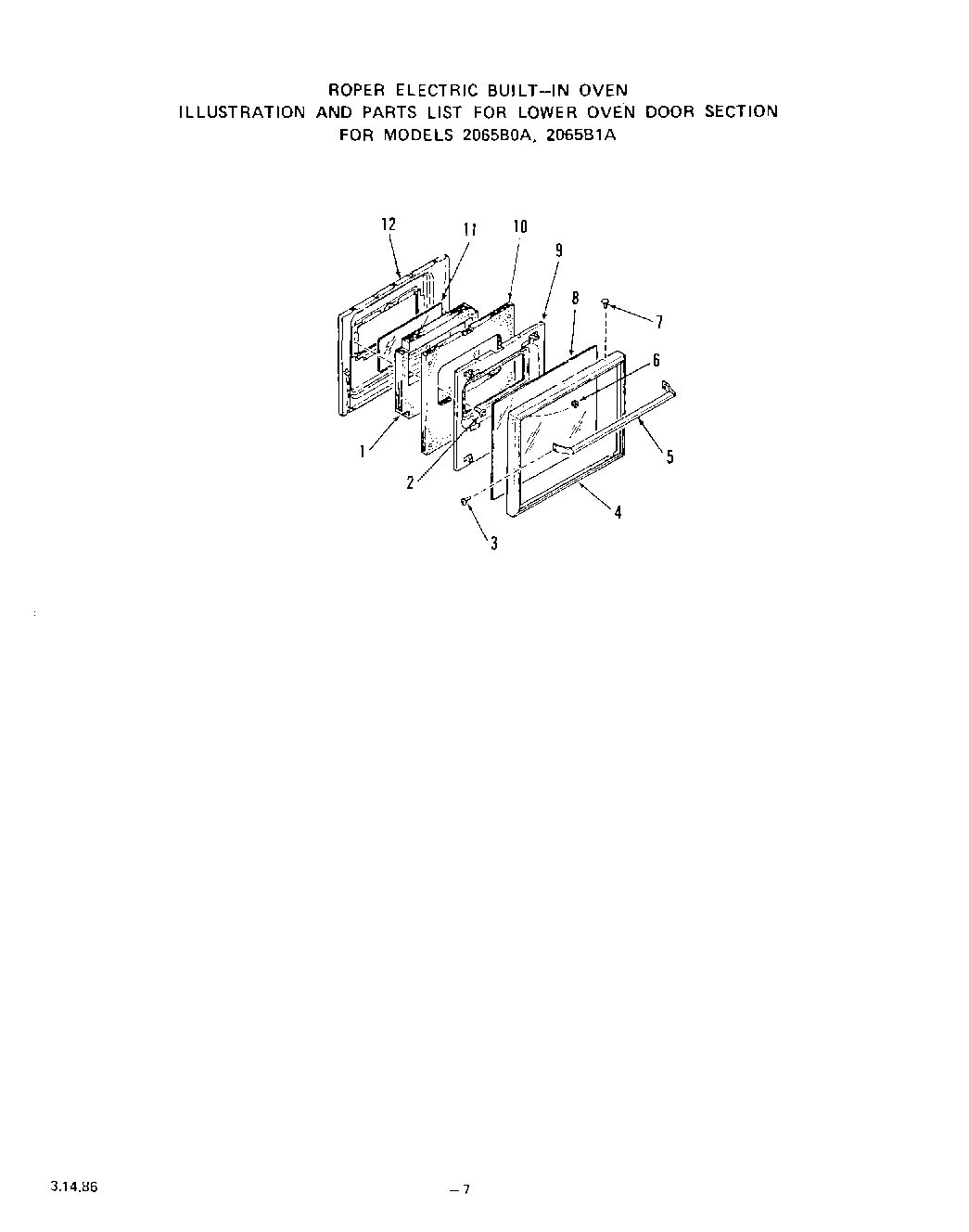

06 - LOWER OVEN DOOR, LIT/OPTIONAL
Common parts from model Whirlpool 2065B1A BUILT-IN ELECTRIC OVEN
1
2065B0A Model WPL 328037 Contact Us For Availability
1
2065B1A Model WPL 331677 Contact Us For Availability
1
Plug-Oven Door Lining WPL ARI9141A33 Contact Us For Availability
1
Insulation WPL 328107 Contact Us For Availability
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
1
Control Housing WPL 327989 Contact Us For Availability
1
Spring WPL 313075 Contact Us For Availability
2
Door Seal WPL 302935 Contact Us For Availability
2
Cabinet Back WPL 328090 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
3
Extension-Top Cover WPL 329544 Contact Us For Availability
3
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
3
Insulation Retainer-Oven Light (Up. & Lo. Ove WPL 323630 Contact Us For Availability
4
Gasket-Oven Door WPL 328123 Contact Us For Availability
4
Frame-Oven Door WPL 328080 Contact Us For Availability
4
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
4
Lock Handle WPL 318379 Contact Us For Availability
4
Rear Oven Vent Box WPL 328148 Contact Us For Availability
5
Handle WPL 328062 Contact Us For Availability
5
Top Cover-Control Housing WPL 328038 Contact Us For Availability
5
Knob-Lock Handle WPL 323363 Contact Us For Availability
5
Spacer (6 Req.) WPL 328077 Contact Us For Availability
6
Keps Nut 8-32 WPL 239764 Contact Us For Availability
6
Trim WPL 328837 Contact Us For Availability
6
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
6
Holder-Oven Light Bulb (Up. & Lo. Oven) WPL 87883 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
7
Oven Relay WPL 239802 Contact Us For Availability
7
Oven Door Lock Assm. WPL 311869 Contact Us For Availability
7
Oven Light Bulb (Up. & Lo. Oven) WPL 111257 Contact Us For Availability
8
Retainer-Oven Door Glass (Lt. or Rt.) WPL 328064 Contact Us For Availability
8
Oven Door Glass-Outer WPL 328044 Contact Us For Availability
8
Push Switch-Oven Light WPL 298794 Contact Us For Availability
8
Oven Light Lens (Up. Oven) WPL 114989 Contact Us For Availability
9
Retainer-Oven Door Insulation WPL 328153 Contact Us For Availability
9
Thermostat-Lower Oven WPL 320938 Contact Us For Availability
9
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
10
Insulation WPL 328106 Contact Us For Availability
10
Lower Oven WPL 282719 Contact Us For Availability
10
Upper Oven WPL 282728 Contact Us For Availability
10
Indicator Light WPL ARI9131A15 Contact Us For Availability
10
Lens Retainer-Oven Light (Up. Oven) WPL 229372 Contact Us For Availability
11
Oven Door Glass-Inner WPL 328045 Contact Us For Availability
11
Thermostat-Upper Oven WPL 324685 Contact Us For Availability
11
Gasket-Oven Light (Up. Oven) WPL 229371 Contact Us For Availability
12
Control Mounting Panel WPL 327979 Contact Us For Availability
12
Lower Oven WPL 328961 Contact Us For Availability
12
Upper Oven WPL 328962 Contact Us For Availability
12
Spring-Oven Door (Lt. or Rt.) WPL ARI9134A95 Contact Us For Availability
12
xElectric Use & Care Guide WPL 326670 Contact Us For Availability
12
2065B0A Models WPL 328012 Contact Us For Availability
12
xInstallation Guide WPL 329090 Contact Us For Availability
12
xOperating Guide WPL 329091 Contact Us For Availability
12
Main WPL 329300 Contact Us For Availability
12
Auxiliary WPL 329301 Contact Us For Availability
12
2065B1A Models WPL 331686 Contact Us For Availability
12
xRepair Parts List WPL 331700 Contact Us For Availability
12
Lining-Oven Door WPL ARI9143A71 Contact Us For Availability
12
xWire Harness WPL ARI9144A90 Contact Us For Availability
13
Selector Switch WPL 326326 Contact Us For Availability
13
Side Trim (Lt. or Rt.) WPL 328070 Contact Us For Availability
14
Keps Nut 10-24 WPL 74056 Contact Us For Availability
14
Cover Plate (4 Req.) WPL 328112 Contact Us For Availability
15
Lock Nut WPL 236129 Contact Us For Availability
15
Main Back WPL 328083 Contact Us For Availability
16
Oven Door Glass-Intermediate WPL 328046 Contact Us For Availability
16
Shield-Switch WPL 291351 Contact Us For Availability
16
Cabinet Side-Lt. or Rt. WPL 328085 Contact Us For Availability
17
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
17
Wire Cover WPL 327990 Contact Us For Availability
18
Retainer-Door Glass (4 Req) WPL 326009 Contact Us For Availability
18
Insulation Retainer-Cabinet Top WPL 327969 Contact Us For Availability
19
Right WPL 328060 Contact Us For Availability
19
Left WPL 328061 Contact Us For Availability
19
Support-Control Panel WPL ARI9132A17 Contact Us For Availability
19
Insulation-Cabinet Top WPL 328105 Contact Us For Availability
20
Screw 4-40x3/4`` WPL 229288 Contact Us For Availability
20
Vent Box WPL 328052 Contact Us For Availability
21
Insulation WPL 327770 Contact Us For Availability
21
Insulation Retainer-Oven Top WPL 327968 Contact Us For Availability
22
2065B0A Models WPL 328016 Contact Us For Availability
22
2065B1A Models WPL 331816 Contact Us For Availability
22
Lining-Oven Door WPL ARI9142A92 Contact Us For Availability
22
Keps Nut 4-40 WPL 306638 Contact Us For Availability
22
Insulation Retainer-Oven Side (Lt. or Rt.) WPL 328089 Contact Us For Availability
23
Oven Door Glass-Inner WPL 328043 Contact Us For Availability
23
Clock w/1 Hr. Timer WPL 329383 Contact Us For Availability
23
Bottom Insulation Retainer (Up. Oven) WPL 327966 Contact Us For Availability
24
Retainer-Glass (Rt. or Lt.) WPL 328863 Contact Us For Availability
24
Center Front Trim WPL 328003 Contact Us For Availability
25
End Trim-Control Panel Glass (Rt. or Lt.) WPL 328958 Contact Us For Availability
25
Insulation Retainer-Oven Top (Lo. Oven) WPL 327963 Contact Us For Availability
26
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
26
Door Spring Insulation Retainer (Lt. or Rt.) WPL 328071 Contact Us For Availability
27
Lens-Indicator Light (2 Req) WPL 233161 Contact Us For Availability
27
Cabinet Bottom WPL 327948 Contact Us For Availability
28
Control Panel Glass WPL 329072 Contact Us For Availability
28
Right (2 Req) WPL 328024 Contact Us For Availability
28
Left (2 Req) WPL 328025 Contact Us For Availability
28
Hinge WPL ARI9135A23 Contact Us For Availability
29
Cabinet Top WPL 327974 Contact Us For Availability
29
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
30
Micro Switch - Lock WPL 311868 Contact Us For Availability
30
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
31
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
32
Cover Plate-Lock WPL 323652 Contact Us For Availability
32
Bottom Cabinet-Lt. or Rt. WPL 328042 Contact Us For Availability
33
Bracket-Micro Switch WPL 328862 Contact Us For Availability
33
Washer WPL 106462 Contact Us For Availability
34
Heat Shield (Lt. or Rt.) WPL 312395 Contact Us For Availability
34
Insulation-Oven Top & Sides (1 Piece) (Up & L WPL 328103 Contact Us For Availability
35
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
35
Bracket (2 Req) WPL 313627 Contact Us For Availability
36
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
36
Cover Plate-Lock WPL 323648 Contact Us For Availability
37
Right WPL 327991 Contact Us For Availability
37
Left WPL 327992 Contact Us For Availability
37
Side Trim-Control Panel WPL ARI9133A58 Contact Us For Availability
37
Raceway WPL 324352 Contact Us For Availability
38
Raceway WPL 325532 Contact Us For Availability
39
2065B0A Model WPL 327956 Contact Us For Availability
39
2065B1A Model WPL 331659 Contact Us For Availability
39
F WPL ARI9136A73 Contact Us For Availability
40
Harness Conduit Asem. WPL 328111 Contact Us For Availability
40
WPL 304835 WPL 304835 Contact Us For Availability
41
Plate (For Key 40) WPL 294983 Contact Us For Availability
41
WPL 327413 WPL 327413 Contact Us For Availability
41
WPL 331643 WPL 331643 Contact Us For Availability
41
WPL ARI9137A46 WPL ARI9137A46 Contact Us For Availability
42
Nut (For Key 40) WPL 110340 Contact Us For Availability
42
WPL 327960 WPL 327960 Contact Us For Availability
42
WPL 331663 WPL 331663 Contact Us For Availability
42
WPL ARI9138A42 WPL ARI9138A42 Contact Us For Availability
43
Knurled Nut WPL 87403 Contact Us For Availability
43
WPL 328809 WPL 328809 Contact Us For Availability
44
Washer WPL 104838 Contact Us For Availability
44
WPL 329204 WPL 329204 Contact Us For Availability
45
Knob-Lower Oven Thermostat WPL 329447 Contact Us For Availability
45
WPL 327417 WPL 327417 Contact Us For Availability
45
WPL 331647 WPL 331647 Contact Us For Availability
45
WPL ARI9139A42 WPL ARI9139A42 Contact Us For Availability
46
WPL 328000 WPL 328000 Contact Us For Availability
46
Knob-Clock WPL 294810 Contact Us For Availability
47
Knob-Upper Oven Thermostat WPL 329445 Contact Us For Availability
47
WPL 328113 WPL 328113 Contact Us For Availability
48
Knob-Selector Switch WPL 329446 Contact Us For Availability
48
WPL 328303 WPL 328303 Contact Us For Availability
49
WPL 294679 WPL 294679 Contact Us For Availability
50
WPL 291123 WPL 291123 Contact Us For Availability
52
WPL 237762 WPL 237762 Contact Us For Availability
53
WPL 238052 WPL 238052 Contact Us For Availability
55
WPL 326300 WPL 326300 Contact Us For Availability
55
WPL 331592 WPL 331592 Contact Us For Availability
55
WPL ARI9140A43 WPL ARI9140A43 Contact Us For Availability
56
WPL 326297 WPL 326297 Contact Us For Availability
57
WPL 324809 WPL 324809 Contact Us For Availability
58
WPL 69605 WPL 69605 Contact Us For Availability
59
WPL 328115 WPL 328115 Contact Us For Availability
60
WPL 328104 WPL 328104 Contact Us For Availability
× ![]()
