Model Whirlpool 2055B0A BUILT-IN ELECTRIC OVEN – Common Parts & Diagrams
03 - OVEN DOOR LOCK
06 - WIRING DIAGRAM

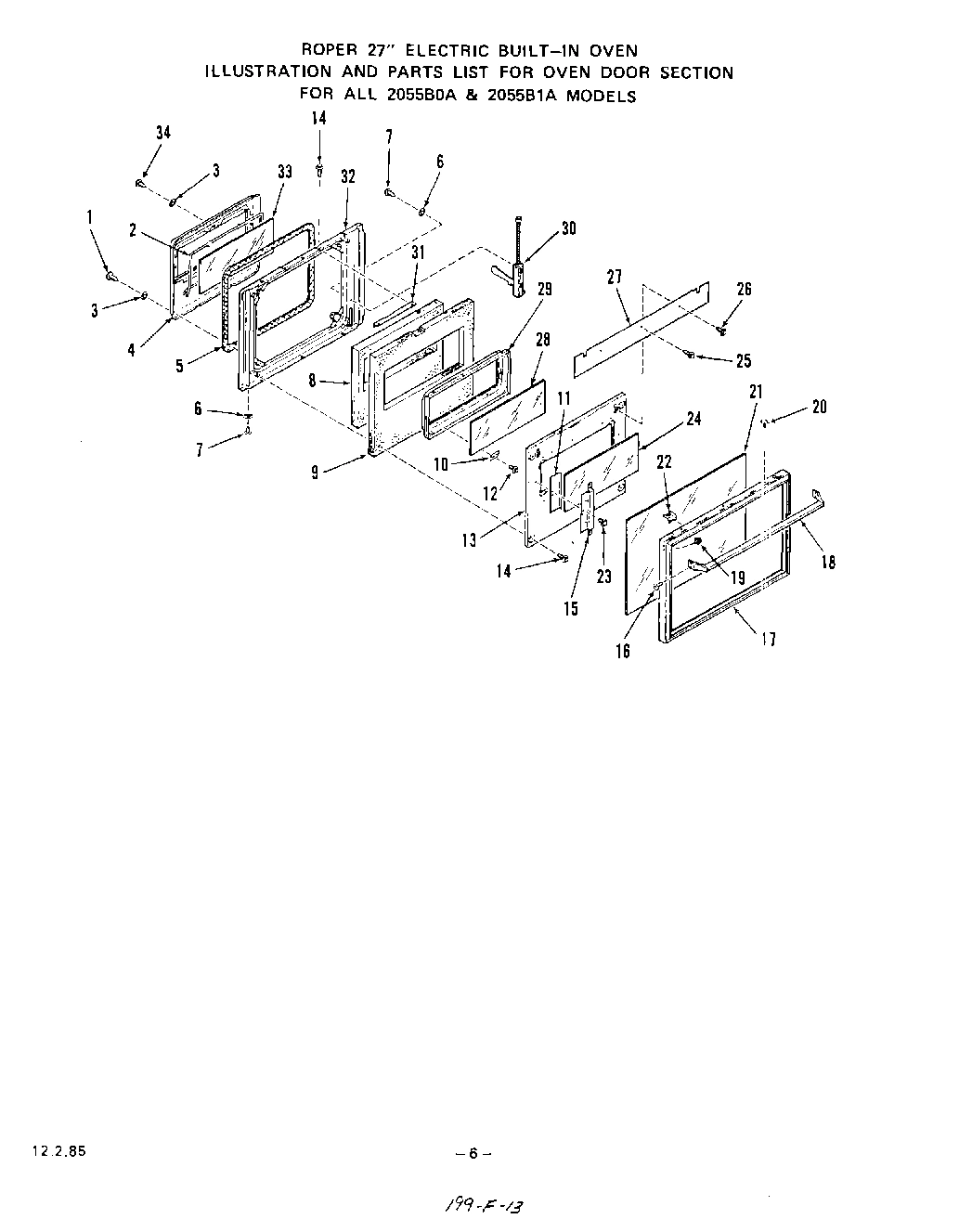

05 - OVEN DOOR , LIT/OPTIONAL

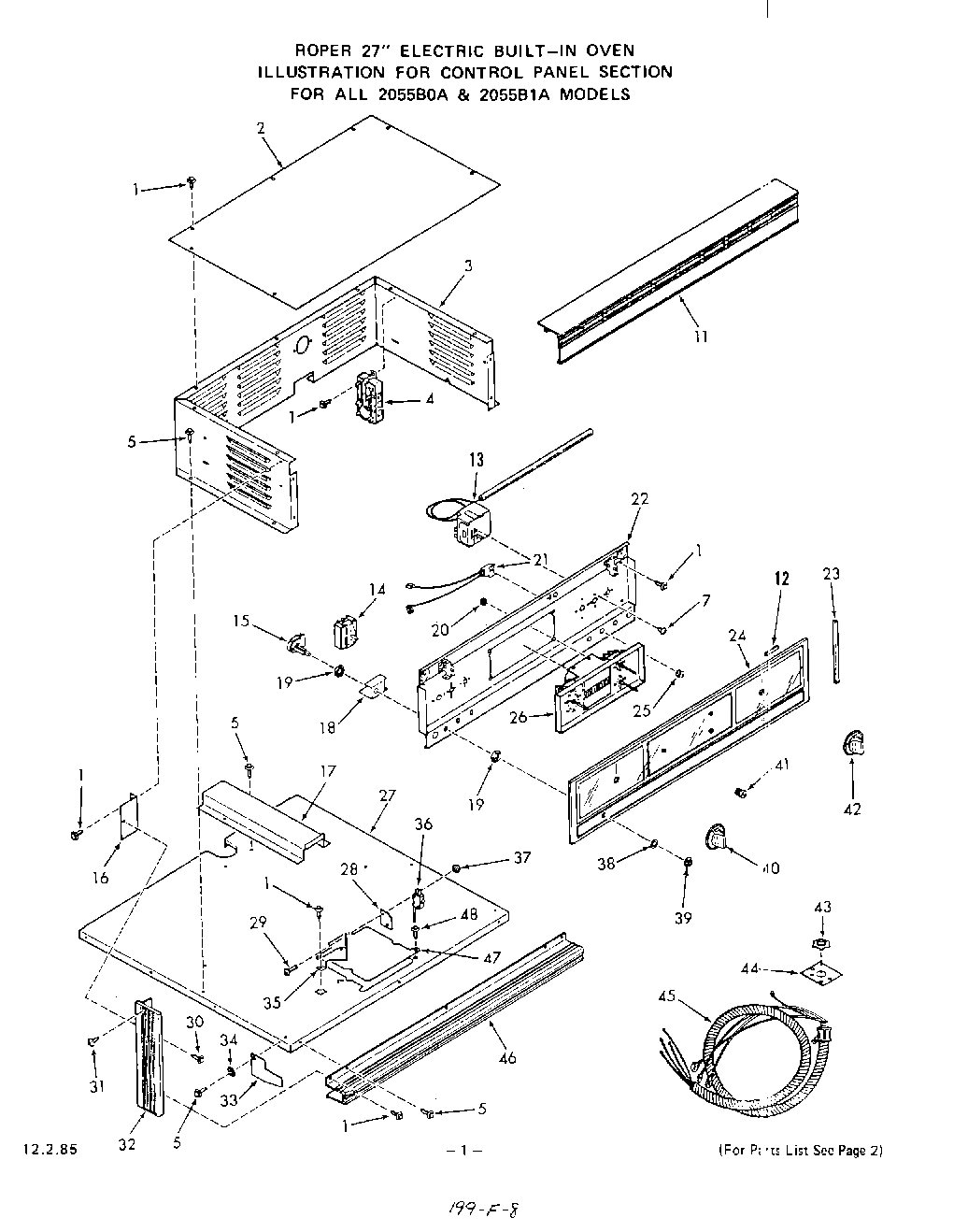

02 - CONTROL PANEL

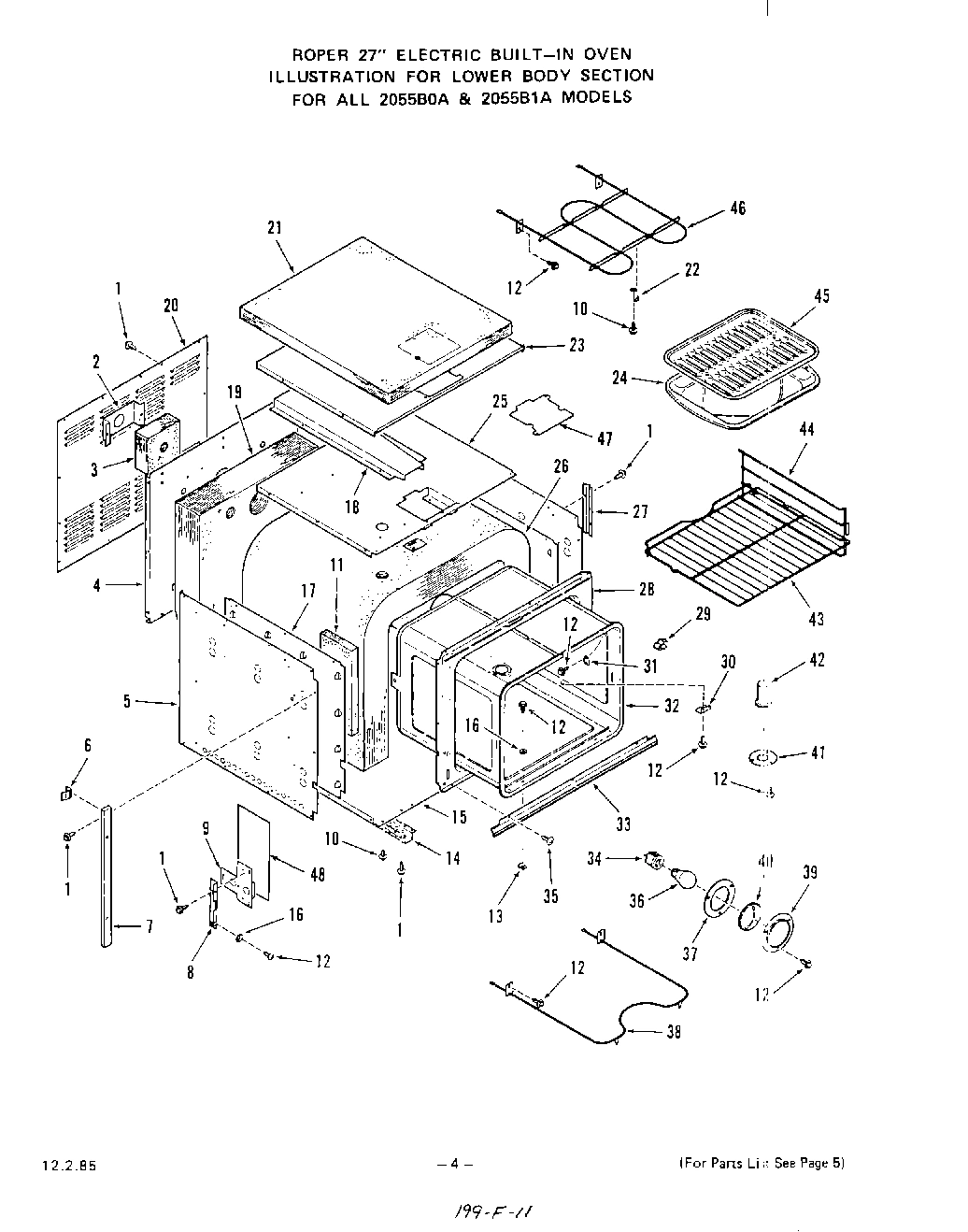

04 - LOWER BODY
Common parts from model Whirlpool 2055B0A BUILT-IN ELECTRIC OVEN
xWire Harness WPL ARI9105A20 Contact Us For Availability
1
Spring WPL 313075 Contact Us For Availability
1
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
1
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
2
Door Seal WPL 302935 Contact Us For Availability
2
Top-Control Housing WPL 323667 Contact Us For Availability
2
Insulation Retainer-Oven Light WPL 323630 Contact Us For Availability
3
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
3
Plug-Oven Door Lining WPL 21067 Contact Us For Availability
3
Control Housing WPL 323659 Contact Us For Availability
4
Lock Handle WPL 318379 Contact Us For Availability
4
2055B0A Model WPL 325834 Contact Us For Availability
4
2055B1A Model WPL 331672 Contact Us For Availability
4
Plug-Oven Door WPL ARI9103A48 Contact Us For Availability
4
Oven Relay WPL 239802 Contact Us For Availability
4
Main Back WPL 323742 Contact Us For Availability
5
Knob-Lock Handle WPL 323363 Contact Us For Availability
5
Oven Door Gasket WPL 311925 Contact Us For Availability
5
Left WPL 323715 Contact Us For Availability
5
Right WPL 323716 Contact Us For Availability
5
Cabinet Side WPL ARI9099A69 Contact Us For Availability
6
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
6
Spacer (4 Req) WPL 311726 Contact Us For Availability
7
Oven Door Lock Assm. WPL 311869 Contact Us For Availability
7
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
7
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
7
Side Trim-Lt. or Rt. WPL 311725 Contact Us For Availability
8
Insulation-Oven Door Plug WPL 311872 Contact Us For Availability
8
Hinge Angle-Lt. or Rt. WPL 322611 Contact Us For Availability
9
Insulation-Oven Door Lining WPL 311874 Contact Us For Availability
9
Hinge Box-Lt. or Rt. WPL 322609 Contact Us For Availability
10
Door Glass Retainer (4 Req) WPL 312888 Contact Us For Availability
10
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
11
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
11
Top Trim WPL 329398 Contact Us For Availability
11
Insulation (Lt. or Rt.) WPL 279470 Contact Us For Availability
12
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
12
Cushion WPL 112370 Contact Us For Availability
12
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
13
Retainer-Oven Door Insulation WPL 323678 Contact Us For Availability
13
Oven Thermostat WPL 324685 Contact Us For Availability
13
Speed Nut 10-32 WPL 107956 Contact Us For Availability
14
Selector Switch WPL 326326 Contact Us For Availability
14
Bottom Channel-Lt. or Rt. WPL 328042 Contact Us For Availability
15
Push Switch-Oven Light WPL 298794 Contact Us For Availability
15
Cabinet Bottom WPL 323740 Contact Us For Availability
16
Washer WPL 106462 Contact Us For Availability
16
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
16
Control Panel Support (Lt. or Rt.) WPL 311759 Contact Us For Availability
17
Frame-Oven Door WPL 325836 Contact Us For Availability
17
Wire Cover WPL 323663 Contact Us For Availability
17
Insulation Retainer-Oven Side (lt. or Rt.) WPL 323636 Contact Us For Availability
18
Oven Door Handle WPL 325837 Contact Us For Availability
18
Shield-Switch WPL 291351 Contact Us For Availability
18
Top Oven Vent Box WPL 323640 Contact Us For Availability
19
Keps Nut 8-32 WPL 239764 Contact Us For Availability
19
Lock Nut WPL 236129 Contact Us For Availability
20
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
20
Keps Nut 10-24 WPL 74056 Contact Us For Availability
20
Cabinet Back WPL 323722 Contact Us For Availability
21
Oven Door Glass-Outer WPL 311738 Contact Us For Availability
21
Indicator Light WPL 329632 Contact Us For Availability
22
Door Glass Retainer (6 Req) WPL 299596 Contact Us For Availability
22
Mounting Panel-Controls WPL 325151 Contact Us For Availability
22
Broiler Element Support WPL 324809 Contact Us For Availability
23
Screw 10ABx3/4`` WPL 69364 Contact Us For Availability
23
End Trim-Control Panel Glass (Rt or Lt) WPL 239565 Contact Us For Availability
23
Insulation Retainer-Cabinet Top WPL 323646 Contact Us For Availability
24
Oven Door Glass-Intermediate WPL 308239 Contact Us For Availability
24
Control Panel Glass WPL 329428 Contact Us For Availability
24
2055B0A Model WPL 326300 Contact Us For Availability
24
2055B1A Model WPL 331592 Contact Us For Availability
24
Broiler Pan WPL ARI9100A43 Contact Us For Availability
25
Lens-Indicator Light WPL 114003 Contact Us For Availability
25
Insulation Retainer-Oven Top WPL 323634 Contact Us For Availability
26
Clock w/1 Hr. Timer WPL 329383 Contact Us For Availability
26
Insulation Oven Top & Sides (1 Piece) WPL 311712 Contact Us For Availability
27
Baffle-Oven Door Lining WPL 311751 Contact Us For Availability
27
Cabinet Top WPL 323650 Contact Us For Availability
27
Raceway WPL 324352 Contact Us For Availability
28
Oven Door Glass-Center WPL 296214 Contact Us For Availability
28
Insulator WPL 327770 Contact Us For Availability
28
2055B0A Model WPL 325832 Contact Us For Availability
28
2055B1A Model WPL 331666 Contact Us For Availability
28
Front Frame WPL ARI9101A32 Contact Us For Availability
29
Retainer-Oven Door Glass WPL 323672 Contact Us For Availability
29
Screw 4-40x3/4`` WPL 229288 Contact Us For Availability
29
Thermostat Bulb-Retainer (2 Req) WPL 238052 Contact Us For Availability
30
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
30
Oven Door Hinge-Rt. or Lt. WPL 331028 Contact Us For Availability
30
Cover WPL 304835 Contact Us For Availability
31
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
31
Cover Plate-Thermostat Bulb WPL 237762 Contact Us For Availability
32
2055B0A Model WPL 325835 Contact Us For Availability
32
2055B1A Model WPL 331682 Contact Us For Availability
32
Oven Door Lining WPL ARI9104A54 Contact Us For Availability
32
Left WPL 314271 Contact Us For Availability
32
Right WPL 314272 Contact Us For Availability
32
Side Trim-Control Panel WPL ARI9098A17 Contact Us For Availability
32
2055B0A Model WPL 325831 Contact Us For Availability
32
2055B1A Model WPL 331651 Contact Us For Availability
32
Oven Body WPL ARI9102A59 Contact Us For Availability
33
Oven Door Glass-Inner WPL 312426 Contact Us For Availability
33
Heat Shield (Lt. or Rt.) WPL 312395 Contact Us For Availability
33
Lower Trim WPL 311558 Contact Us For Availability
34
Screw 10ABx1 WPL 105799 Contact Us For Availability
34
Auxiliary WPL 329321 Contact Us For Availability
34
Main WPL 329438 Contact Us For Availability
34
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
35
Bracket-Micro Switch WPL 328862 Contact Us For Availability
35
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
36
Micro Switch - Lock WPL 311868 Contact Us For Availability
36
Oven Light Bulb WPL 111257 Contact Us For Availability
37
Keps Nut 4-40 WPL 306638 Contact Us For Availability
37
Gasket-Oven Light WPL 229371 Contact Us For Availability
38
Washer WPL 104838 Contact Us For Availability
38
Bake Element WPL 320418 Contact Us For Availability
39
Knurled Nut WPL 87403 Contact Us For Availability
39
Lens Retainer-Oven Light WPL 229372 Contact Us For Availability
40
Knob-Selector Switch WPL 329446 Contact Us For Availability
40
Oven Light Lens WPL 114989 Contact Us For Availability
41
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
41
Oven Vent Clamp WPL 303612 Contact Us For Availability
42
Knob-Oven Thermostat WPL 329445 Contact Us For Availability
43
Nut (For Key 45) WPL 110340 Contact Us For Availability
43
Oven Rack (2 Req) WPL 311735 Contact Us For Availability
44
Plate (For Key 45) WPL 294983 Contact Us For Availability
44
Oven Rack Guide-Rt. or Lt. WPL 305350 Contact Us For Availability
45
Harness Conduit Asm. WPL 325845 Contact Us For Availability
45
Broiler Pan Grid WPL 326297 Contact Us For Availability
46
Control Panel Trim WPL 314284 Contact Us For Availability
46
Broiler Element WPL 319526 Contact Us For Availability
47
Cover Plate-Lock WPL 323652 Contact Us For Availability
47
Cover Plat WPL 323648 Contact Us For Availability
48
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
48
WPL 114300 WPL 114300 Contact Us For Availability
× ![]()
