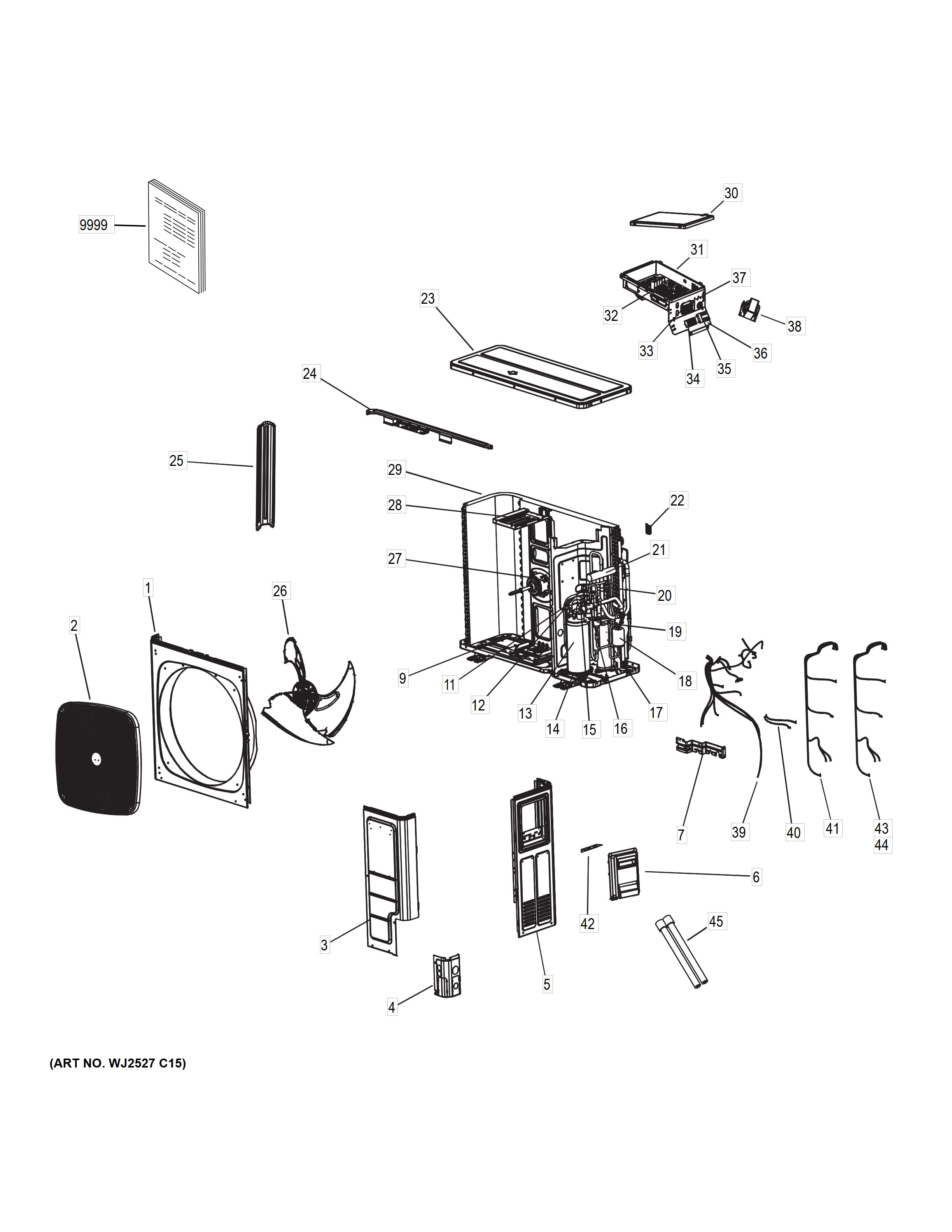

Model GE 1U36T3PC1HE Room Air Conditioner Built In – Common Parts & Diagrams

1
FRONT PANEL
FRONT PANEL GEN WJ71X36556 Contact Us For Availability
View on Model
2
OUTLET GRILL
OUTLET GRILL GEN WJ71X36557 Contact Us For Availability
View on Model
3
FRONT RIGHT SERVICE PANEL
FRONT RIGHT SERVICE PANEL GEN WJ71X36360 Contact Us For Availability
View on Model
4
FRONT RIGHT SERVICE PANEL
FRONT RIGHT SERVICE PANEL GEN WJ71X36361 Contact Us For Availability
View on Model
5
RIGHT SERVICE PANEL
RIGHT SERVICE PANEL GEN WJ71X36362 Contact Us For Availability
View on Model
6
HANDLE
HANDLE GEN WJ71X36555 Contact Us For Availability
View on Model
7
VALVE SEAT GROUP
VALVE SEAT GROUP GEN WJ53X35598 Contact Us For Availability
View on Model
9
HEATER
HEATER GEN WJ27X34675 Contact Us For Availability
View on Model
13
DC COMPRESSOR
DC COMPRESSOR GEN WJ98X34691 Contact Us For Availability
View on Model
14
CRANK CASE HEATER
CRANK CASE HEATER GEN WJ27X31167 Contact Us For Availability
View on Model
17
GAS-LIQUID SEPERATOR
GAS-LIQUID SEPERATOR GEN WJ53X34653 Contact Us For Availability
View on Model
19
EXPANSION VALVE
EXPANSION VALVE GEN WJ53X34652 Contact Us For Availability
View on Model
21
4-WAY VALVE
4-WAY VALVE GEN WJ53X34654 Contact Us For Availability
View on Model
22
SENSOR CLIP
SENSOR CLIP GEN WJ26X24079 Contact Us For Availability
View on Model
23
TOP COVER
TOP COVER GEN WJ76X36364 Contact Us For Availability
View on Model
24
BEAM
BEAM GEN WJ71X35537 Contact Us For Availability
View on Model
25
STAND COLUMN
STAND COLUMN GEN WJ71X36365 Contact Us For Availability
View on Model
26
FAN BLADE
FAN BLADE GEN WJ73X34638 Contact Us For Availability
View on Model
28
MOTOR BRACKET
MOTOR BRACKET GEN WJ65X35599 Contact Us For Availability
View on Model
29
CONDENSER ASSY
CONDENSER ASSY GEN WJ88X34679 Contact Us For Availability
View on Model
30
ELECTRICAL BOX COVER
ELECTRICAL BOX COVER GEN WJ76X34637 Contact Us For Availability
View on Model
31
ELECTRIC CONTROL BOX BASE
ELECTRIC CONTROL BOX BASE GEN WJ76X35614 Contact Us For Availability
View on Model
32
MAIN PCB
MAIN PCB GEN WJ26X34689 Contact Us For Availability
View on Model
33
SERVICE POWER CONTROL BOARD
SERVICE POWER CONTROL BOARD GEN WJ26X29336 Contact Us For Availability
View on Model
34
TERMINAL BLOCK
TERMINAL BLOCK GEN WJ35X34645 Contact Us For Availability
View on Model
35
TERMINAL BLOCK
TERMINAL BLOCK GEN WJ35X34633 Contact Us For Availability
View on Model
36
TERMINAL STRIP SHEET METAL
TERMINAL STRIP SHEET METAL GEN WJ76X35605 Contact Us For Availability
View on Model
40
WIRING HARNESS
WIRING HARNESS GEN WJ35X34646 Contact Us For Availability
View on Model
42
SHEET METAL FOR SECURING WIRES
SHEET METAL FOR SECURING WIRES GEN WJ76X35609 Contact Us For Availability
View on Model
43
WIRING HARNESS (Y1 R DEFR)
WIRING HARNESS (Y1 R DEFR) GEN WJ35X36434 Contact Us For Availability
View on Model
44
WIRING HARNESS (GND WIRE)
WIRING HARNESS (GND WIRE) GEN WJ35X36433 Contact Us For Availability
View on Model
45
TUBING EXTENSION
TUBING EXTENSION GEN WJ53X36574 Contact Us For Availability
View on Model
9999
PRINTED AND ONLINEOTHER
PRINTED AND ONLINEOTHER GEN 31-5001116 Contact Us For Availability
View on Model
9999
PRINTED AND ONLINEINSTALL INSTRUCTIONS
PRINTED AND ONLINEINSTALL INSTRUCTIONS GEN 31-5001109 Contact Us For Availability
View on Model
9999
PRINTED AND ONLINESERVICE INSTRUCTIONS
PRINTED AND ONLINESERVICE INSTRUCTIONS GEN 31-5001110 Contact Us For Availability
View on Model
