Model Haier 1U24TL2HFA1 Room Air Conditioner Built In – Common Parts & Diagrams

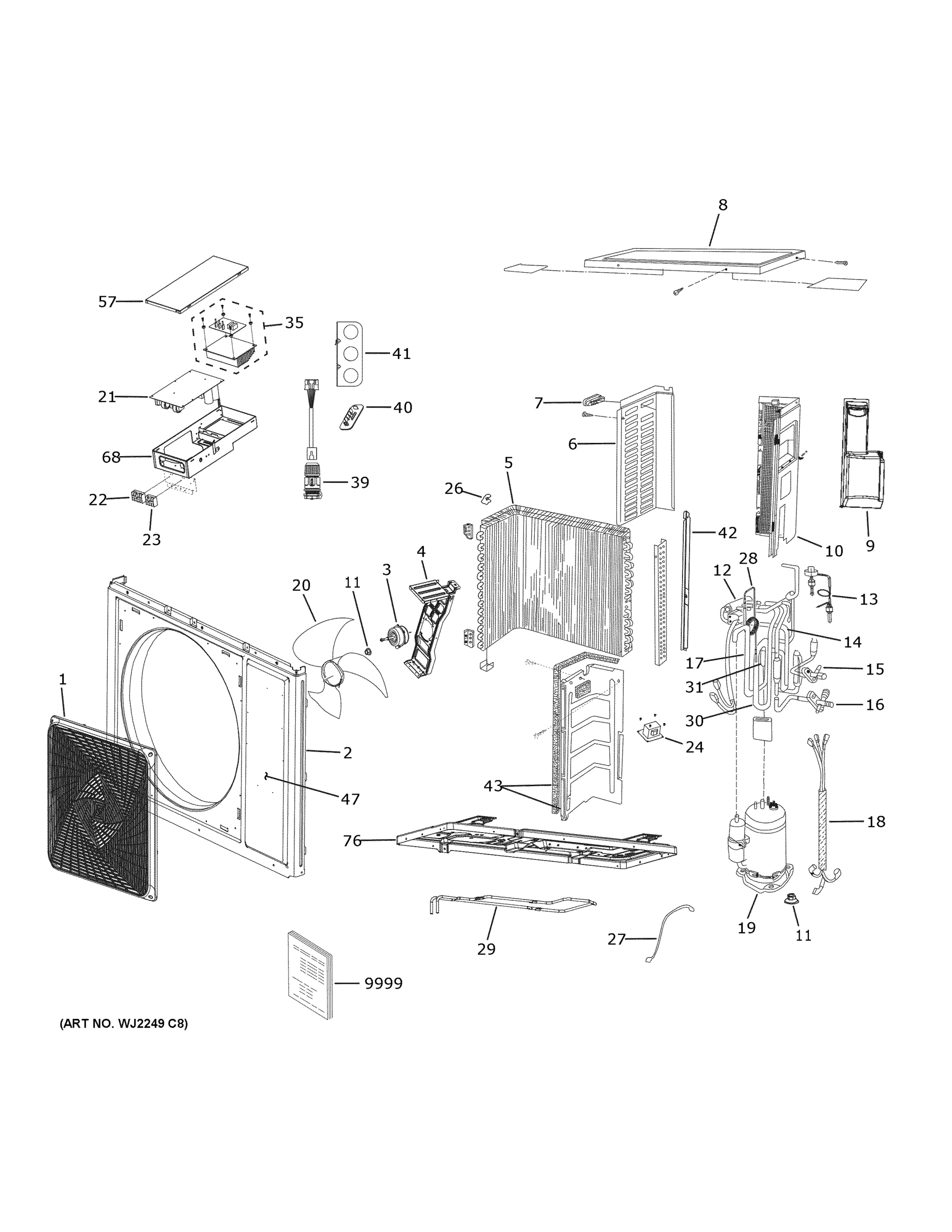

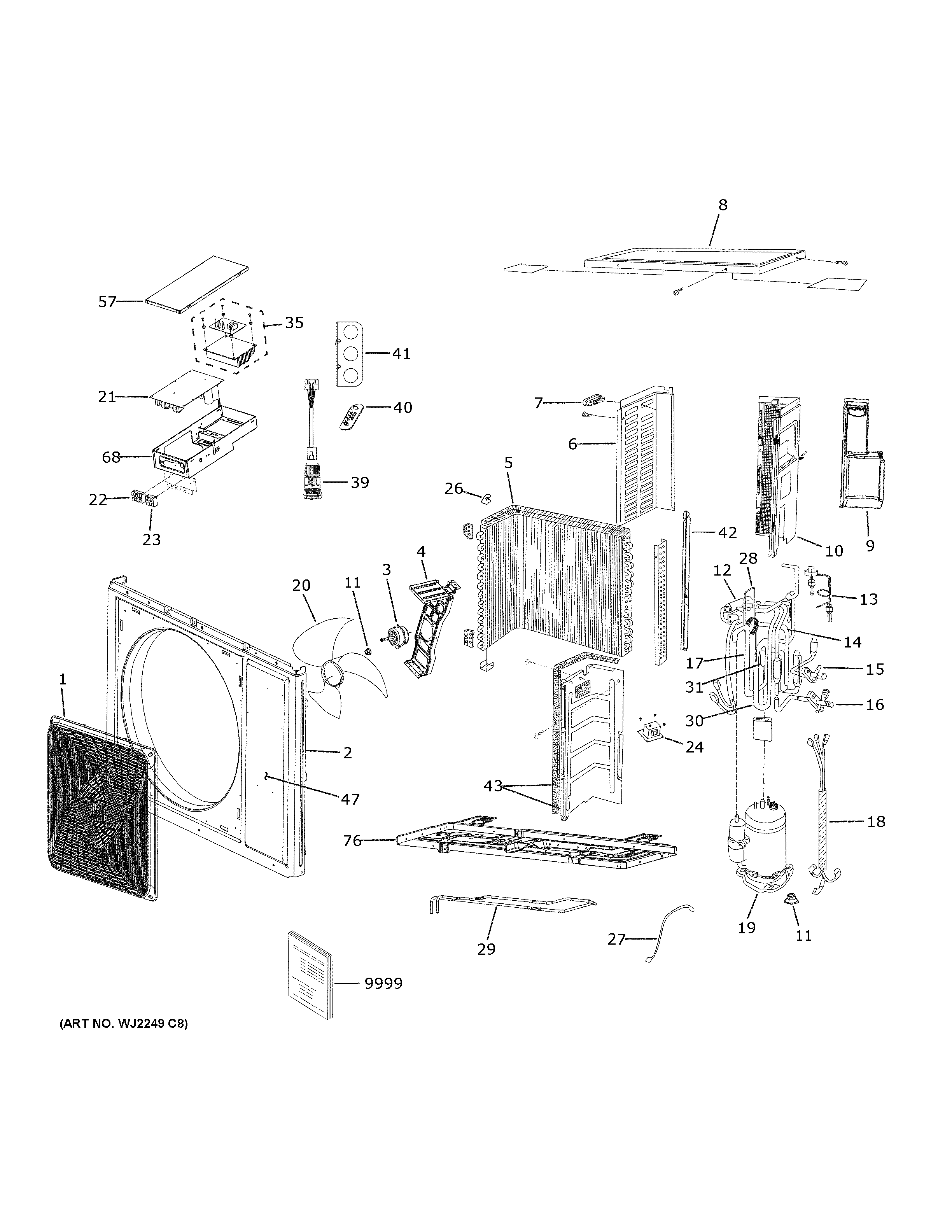

Common parts from model Haier 1U24TL2HFA1 Room Air Conditioner Built In

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

1

GRILLE Backorder GEN WJ71X26394 View Details $47.47

View on Model

2

WJ76X23221 GE Casing Backorder GEN WJ76X23221 View Details $46.67

View on Model

3

OUTDOOR FAN MOTOR GEN WJ94X23000 Contact Us For Availability

View on Model

4

WJ65X23015 GE Outdoor Fan Motor Bracket Backorder GEN WJ65X23015 View Details $30.01

View on Model

5

WJ88X26444 GE Condenser Backorder GEN WJ88X26444 View Details $297.16

View on Model

6

LEFT SIDE PANEL Backorder GEN WJ76X23170 View Details $30.93

View on Model

7

WJ01X24664 GE Handle Backorder GEN WJ01X24664 View Details $4.58

View on Model

8

TOP COVER Backorder GEN WJ76X23231 View Details $38.05

View on Model

9

WJ76X23018 GE Valve Cover Backorder GEN WJ76X23018 View Details $19.03

View on Model

10

RIGHT SIDE PANEL GEN WJ71X23229 Contact Us For Availability

View on Model

11

WJ01X22974 GE Flange Nut Backorder GEN WJ01X22974 View Details $7.69

View on Model

12

WJ53X30854 GE 4-Way Valve Tube Assembly Backorder GEN WJ53X30854 View Details $85.52

View on Model

13

EEV VALVE Backorder GEN WJ53X26445 View Details $44.19

View on Model

14

WJ53X29532 GE Discharge Tube Backorder GEN WJ53X29532 View Details $56.25

View on Model

15

WJ53X24974 GE Vapor Service Valve Backorder GEN WJ53X24974 View Details $17.75

View on Model

16

VAPOR SERVICE VALVE Backorder GEN WJ26X29534 View Details $37.48

View on Model

17

WJ53X29533 GE Suction Tube Backorder GEN WJ53X29533 View Details $29.79

View on Model

18

WJ35X29527 GE Outdoor Harness Wire Backorder GEN WJ35X29527 View Details $52.85

View on Model

19

WJ98X26204 GE Compressor Backorder GEN WJ98X26204 View Details $690.80

View on Model

20

FAN BLADE Backorder GEN WJ73X23014 View Details $39.97

View on Model

21

POWER CONTROL BOARD GEN WJ26X29537 Contact Us For Availability

View on Model

22

WJ27X23011 GE Indoor Terminal Block Backorder GEN WJ27X23011 View Details $7.69

View on Model

23

WJ26X23520 GE Terminal Block Backorder GEN WJ26X23520 View Details $5.12

View on Model

24

WJ27X29538 GE Reactor Assembly Backorder GEN WJ27X29538 View Details $63.48

View on Model

26

WJ01X23219 GE Sensor Clip Backorder GEN WJ01X23219 View Details $4.58

View on Model

27

WJ26X23009 GE Suction Sensor Backorder GEN WJ26X23009 View Details $8.55

View on Model

28

WJ53X29531 GE Tube Cap Backorder GEN WJ53X29531 View Details $15.76

View on Model

29

COMPRESSOR HEATER Backorder GEN WJ27X26437 View Details $9.99

View on Model

30

WJ53X29530 GE Suction Tube Backorder GEN WJ53X29530 View Details $38.81

View on Model

31

GAS-LIQUID SEPARATOR GEN WJ26X29529 Contact Us For Availability

View on Model

35

INVERTER GEN WJ26X29676 Contact Us For Availability

View on Model

39

RJ45 GEN WJ27X27115 Contact Us For Availability

View on Model

40

WJ76X27114 GE Cover Backorder GEN WJ76X27114 View Details $4.81

View on Model

41

WJ65X27113 GE Bracket Strain Relief Backorder GEN WJ65X27113 View Details $4.81

View on Model

42

CROSS BEAM GEN WJ71X32633 Contact Us For Availability

View on Model

43

WJ71X32635 GE Partition Panel Plate Backorder GEN WJ71X32635 View Details $34.40

View on Model

47

WJ76X24672 GE Casing Assembly Backorder GEN WJ76X24672 View Details $32.28

View on Model

57

CONTROL BOX COVER GEN WJ76X32634 Contact Us For Availability

View on Model

68

ELECTRICAL BOX GEN WJ76X32636 Contact Us For Availability

View on Model

76

BOTTOM PLATE ASSY. GEN WJ76X32637 Contact Us For Availability

View on Model

9999

PM INSTALLATION INSTRUCTION GEN 315000532 Contact Us For Availability

View on Model

×
