Model Haier 1U24AP2HDB1 Room Air Conditioner Built In – Common Parts & Diagrams

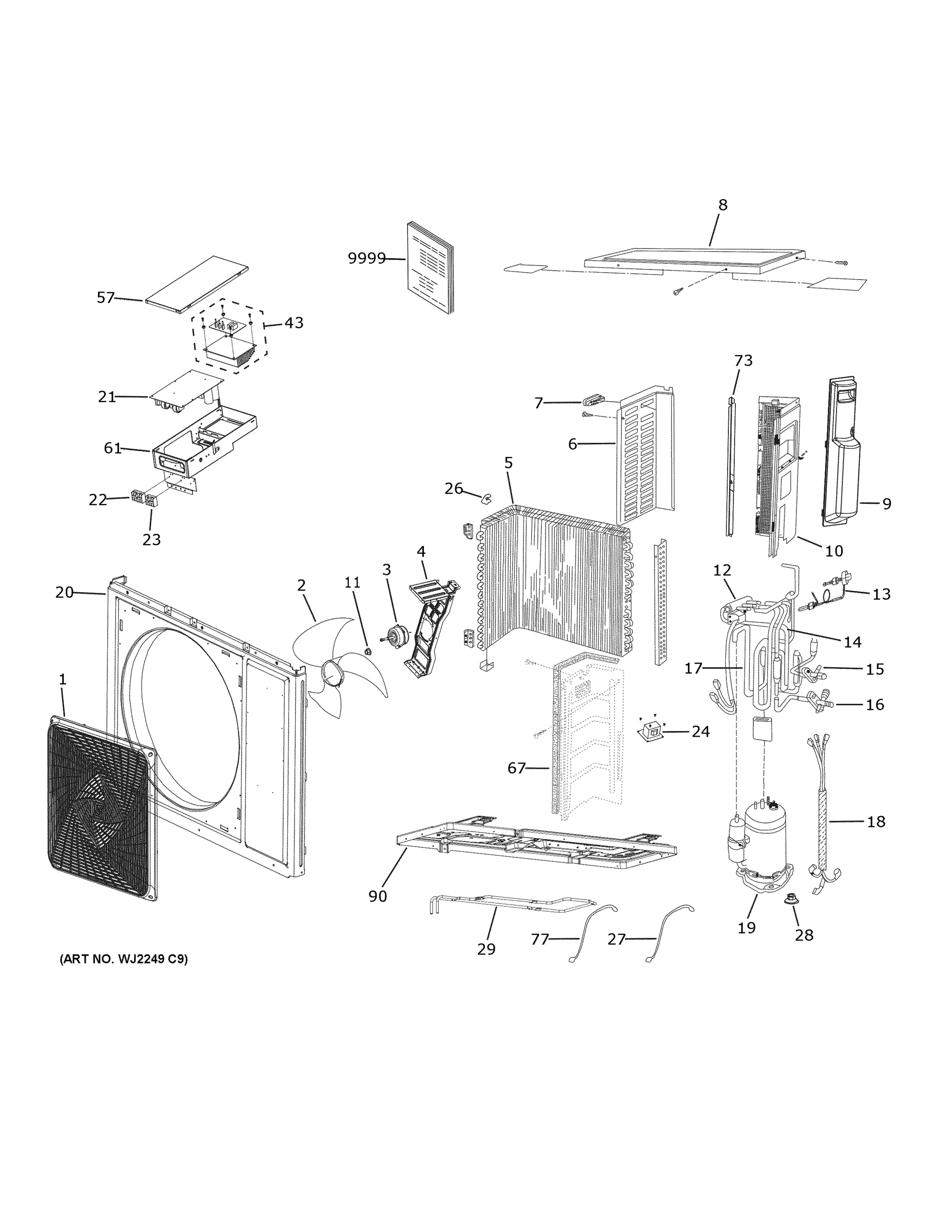

Common parts from model Haier 1U24AP2HDB1 Room Air Conditioner Built In

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

1

GRILLE GEN WJ71X23225 Contact Us For Availability

View on Model

2

FAN BLADE GEN WJ73X23014 Contact Us For Availability

View on Model

3

OUTDOOR FAN MOTOR GEN WJ94X23000 Contact Us For Availability

View on Model

4

WJ65X23015 GE Outdoor Fan Motor Bracket Backorder GEN WJ65X23015 View Details $30.01

View on Model

5

WJ88X23016 GE Condenser Backorder GEN WJ88X23016 View Details $331.90

View on Model

6

LEFT SIDE PANEL GEN WJ76X23170 Contact Us For Availability

View on Model

7

WJ01X24664 GE Handle Backorder GEN WJ01X24664 View Details $4.58

View on Model

8

TOP COVER GEN WJ76X23231 Contact Us For Availability

View on Model

9

WJ76X23018 GE Valve Cover Backorder GEN WJ76X23018 View Details $19.03

View on Model

10

RIGHT SIDE PANEL GEN WJ71X23229 Contact Us For Availability

View on Model

12

4-WAY VALVE TUBE ASSEMBLY GEN WJ53X24702 Contact Us For Availability

View on Model

13

WJ26X25395 GE Electronic Expansion Valve Backorder GEN WJ26X25395 View Details $52.89

View on Model

14

WJ53X25636 GE Discharge Tube Backorder GEN WJ53X25636 View Details $27.29

View on Model

15

WJ53X24973 GE Liquid Service Valve Backorder GEN WJ53X24973 View Details $14.60

View on Model

16

WJ53X24975 GE Vapor Service Valve Backorder GEN WJ53X24975 View Details $23.42

View on Model

17

WJ53X23020 GE Suction Tube Backorder GEN WJ53X23020 View Details $21.59

View on Model

18

WJ35X25394 GE Outdoor Wire Harness Backorder GEN WJ35X25394 View Details $46.28

View on Model

19

WJ98X23021 GE Compressor Backorder GEN WJ98X23021 View Details $803.72

View on Model

20

WJ76X23221 GE Casing Backorder GEN WJ76X23221 View Details $46.67

View on Model

21

WJ26X33177 GE Power Control Board Backorder GEN WJ26X33177 View Details $165.54

View on Model

22

WJ27X23011 GE Indoor Terminal Block Backorder GEN WJ27X23011 View Details $7.69

View on Model

23

WJ27X25393 GE Terminal Block Supply Backorder GEN WJ27X25393 View Details $4.94

View on Model

24

WJ27X23006 GE Reactor Backorder GEN WJ27X23006 View Details $34.40

View on Model

26

WJ01X23219 GE Sensor Clip Backorder GEN WJ01X23219 View Details $4.58

View on Model

27

WJ26X23009 GE Suction Sensor Backorder GEN WJ26X23009 View Details $8.55

View on Model

28

WJ01X22974 GE Flange Nut Backorder GEN WJ01X22974 View Details $7.69

View on Model

29

WJ27X23172 GE Heater Pan Backorder GEN WJ27X23172 View Details $65.96

View on Model

43

INVERTER ASSEMBLY GEN WJ26X24102 Contact Us For Availability

View on Model

57

CONTROL BOX COVER GEN WJ76X32634 Contact Us For Availability

View on Model

61

ELECTRICAL BOX GEN WJ76X32636 Contact Us For Availability

View on Model

67

WJ71X32635 GE Partition Panel Plate Backorder GEN WJ71X32635 View Details $34.40

View on Model

73

WJ65X33048 GE Crossbeam Assembly Backorder GEN WJ65X33048 View Details $28.18

View on Model

77

WJ35X33043 GE Electric Heater Harness Backorder GEN WJ35X33043 View Details $4.58

View on Model

90

BOTTOM PLATE ASSY. GEN WJ76X33051 Contact Us For Availability

View on Model

9999

PM INSTALL INSTRUCTIONS GEN 315000587 Contact Us For Availability

View on Model

×
