Model Whirlpool 1AHF25090 AIR CONDITIONER – Common Parts & Diagrams
02 - SECTION
03 - SECTION

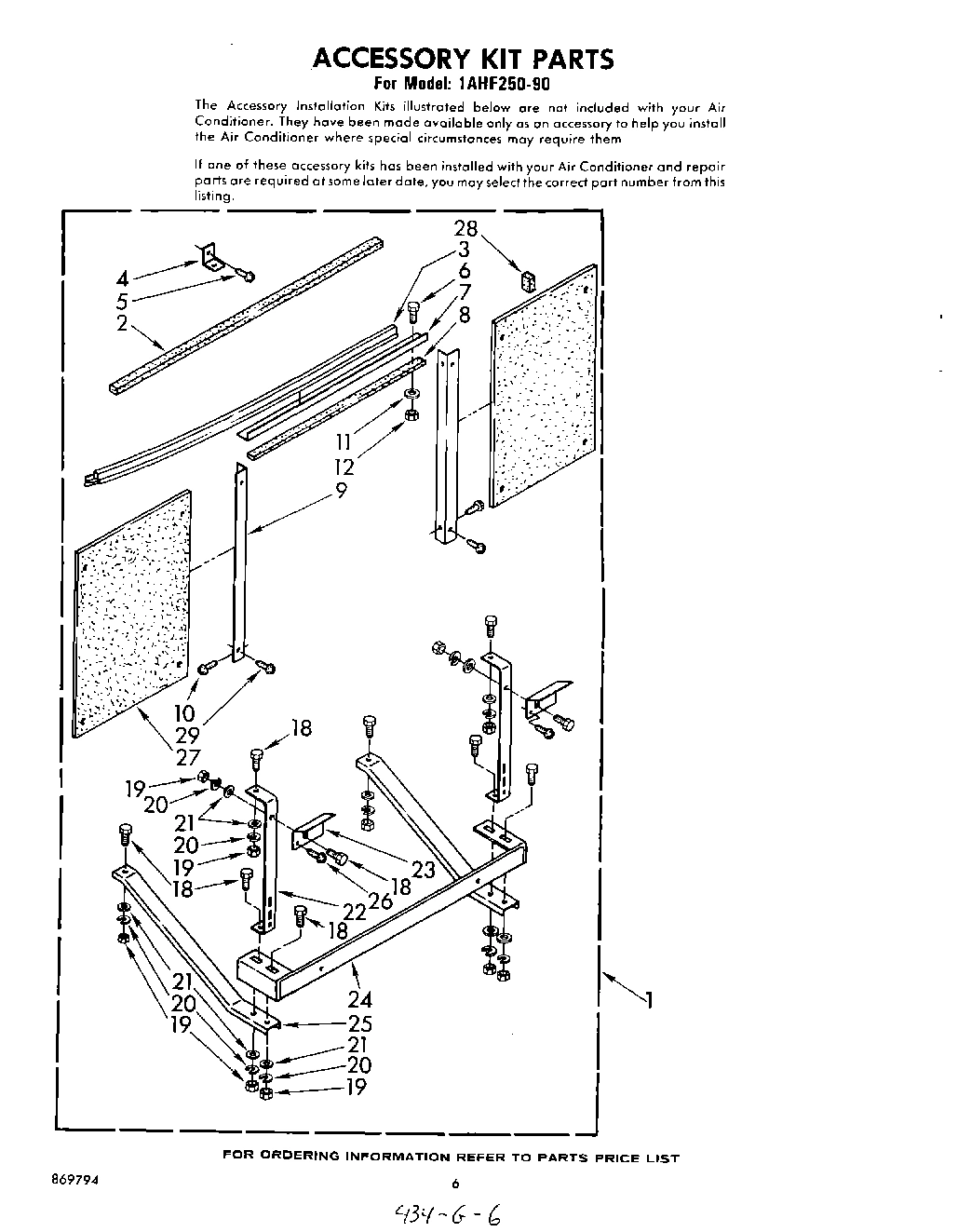

04 - SECTION

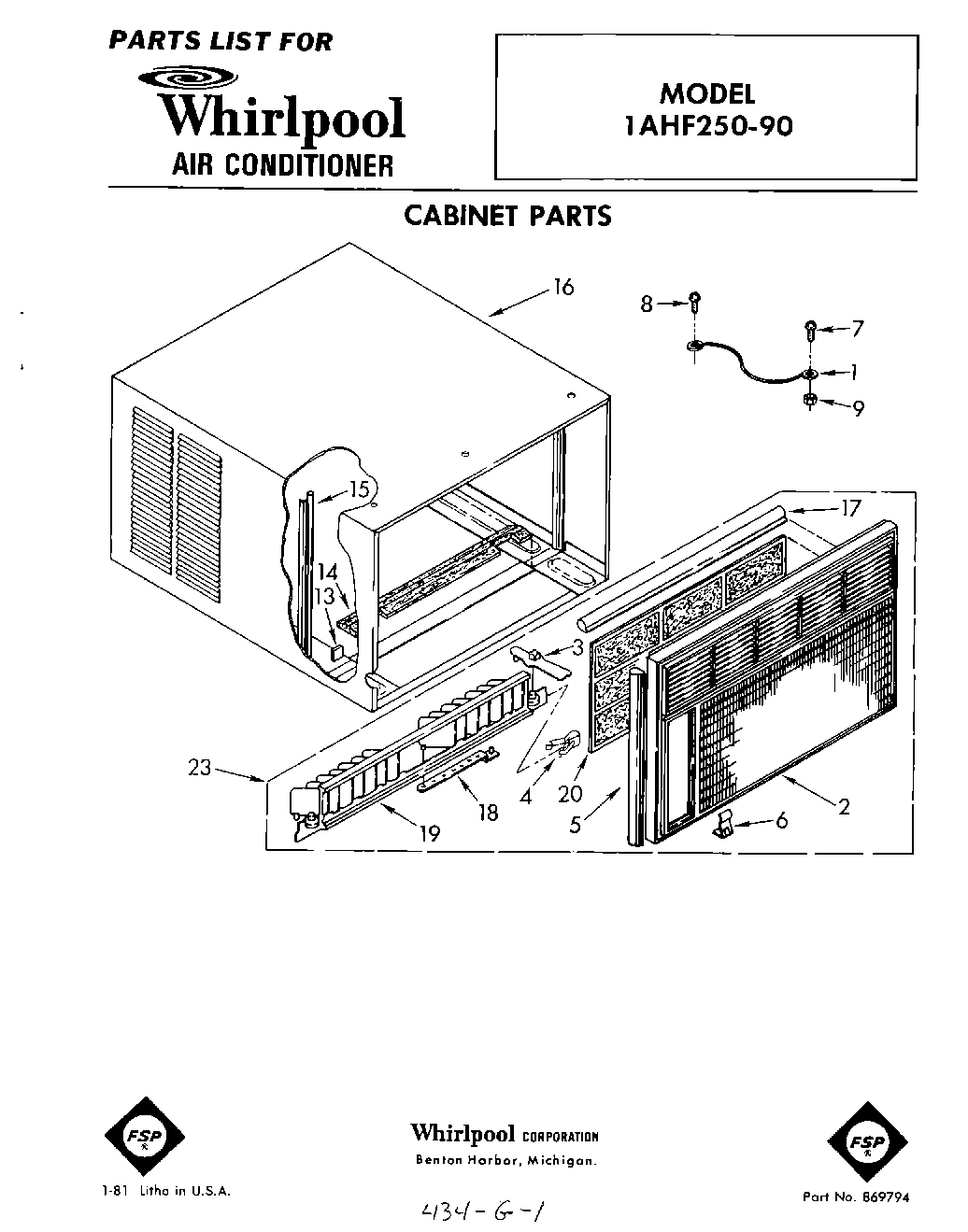

01 - SECTION
Common parts from model Whirlpool 1AHF25090 AIR CONDITIONER
1
xShroud WPL 475716 Contact Us For Availability
1
Standard Installation Kit WPL 485451 Contact Us For Availability
1
Wire, Ground WPL 857078 Contact Us For Availability
2
Clamp WPL 43996 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
2
Cabinet, Front WPL 947875 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Handle, Vertical Louver (2) WPL 644165 Contact Us For Availability
4
Pan, Condenser (Includes Illus. 59) WPL 475709 Contact Us For Availability
4
Bracket WPL 644228 Contact Us For Availability
4
Spring, Detent (2) WPL 641484 Contact Us For Availability
5
Insulation, Condensate Shroud WPL 855213 Contact Us For Availability
5
Screw, 8 x 3/4 (Wood) WPL 488255 Contact Us For Availability
5
Seal, Side (2) WPL 644168 Contact Us For Availability
6
Guard, Evaporator Impeller WPL 856507 Contact Us For Availability
6
Bolt, 10 x 3/8 WPL 487336 Contact Us For Availability
6
Clip, Front (4) WPL 644169 Contact Us For Availability
7
Support, Unit WPL 475742 Contact Us For Availability
7
Angle, Top WPL 645514 Contact Us For Availability
7
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
8
Screen WPL 470986 Contact Us For Availability
8
Seal, Strip WPL 855265 Contact Us For Availability
8
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
9
Tube, Inlet Assembly WPL 485849 Contact Us For Availability
9
Wall, Dividing WPL 998313 Contact Us For Availability
9
Angle (2) WPL 644272 Contact Us For Availability
10
Retainer WPL 475062 Contact Us For Availability
10
Screw, 10 x 3/8 WPL 488481 Contact Us For Availability
10
Actuator, Fresh Air Door WPL 648138 Contact Us For Availability
11
Screw, Small (8 x 3/8A) WPL 488624 Contact Us For Availability
11
Washer (3) WPL 486608 Contact Us For Availability
12
Clamp (2) WPL 642684 Contact Us For Availability
12
Tube, Left WPL 475710 Contact Us For Availability
12
Tube, Right WPL 477542 Contact Us For Availability
12
Nut, Hex WPL 487642 Contact Us For Availability
13
Blade WPL 646247 Contact Us For Availability
13
Seal, Tube Line WPL 856916 Contact Us For Availability
14
Bend, Return WPL 855644 Contact Us For Availability
14
Seal, Bottom WPL 857154 Contact Us For Availability
15
Cable, Appliance WPL 647223 Contact Us For Availability
15
Seal, Side (2) WPL 476796 Contact Us For Availability
16
Bend, 3-Way Return (2) WPL 476078 Contact Us For Availability
16
Bracket WPL 997218 Contact Us For Availability
16
Cabinet WPL 856602 Contact Us For Availability
17
Cover, Terminal WPL 475061 Contact Us For Availability
17
Seal, Top & Bottom (2) WPL 644167 Contact Us For Availability
18
Base WPL 856498 Contact Us For Availability
18
Capacitor, Compressor Running WPL 947923 Contact Us For Availability
18
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
18
Link (2) WPL 644166 Contact Us For Availability
19
Screw, 1/4 x 5/8 WPL 488311 Contact Us For Availability
19
Bracket WPL 997215 Contact Us For Availability
19
Nut, Hex (10) WPL 486035 Contact Us For Availability
19
Louver, Vertical WPL 644156 Contact Us For Availability
20
Lockwasher (10) WPL 486009 Contact Us For Availability
20
Cradle, Motor (2) WPL 471719 Contact Us For Availability
20
Filter WPL 648475 Contact Us For Availability
21
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
21
Plate, Back WPL 998324 Contact Us For Availability
22
Anticipator WPL 472046 Contact Us For Availability
22
Seal, Lower (R.S.) WPL 475740 Contact Us For Availability
22
Seal, Top (L.S.) WPL 475741 Contact Us For Availability
22
Support, Extension (2) WPL 645517 Contact Us For Availability
23
Bend WPL 49493 Contact Us For Availability
23
Pin WPL 471108 Contact Us For Availability
23
Bracket, Sill (2) WPL 645515 Contact Us For Availability
23
Front, Complete WPL 947874 Contact Us For Availability
24
Handle, Base WPL 647971 Contact Us For Availability
24
Spring, Hinge WPL 471109 Contact Us For Availability
24
Bracket, Support WPL 645516 Contact Us For Availability
25
Fan Motor WPL 998964 Contact Us For Availability
25
Door WPL 473781 Contact Us For Availability
25
Support, Caninet (2) WPL 645518 Contact Us For Availability
26
Wheel, Blower WPL 856953 Contact Us For Availability
26
Switch WPL 947885 Contact Us For Availability
26
Wood Screw, 10 x 1 WPL 487488 Contact Us For Availability
27
Screw, 5/16 x 1/4 WPL 595085 Contact Us For Availability
27
Control, Temperature WPL 649423 Contact Us For Availability
27
Board, Filler WPL 645513 Contact Us For Availability
28
Evaporator Assembly WPL 855436 Contact Us For Availability
28
Block, Terminal WPL 855634 Contact Us For Availability
28
Spacer, Block (4) WPL 995274 Contact Us For Availability
29
Clip (2) WPL 472047 Contact Us For Availability
29
Spring, Fresh Air & Exhaust Door WPL 649428 Contact Us For Availability
29
Instructions, Installation (Standard Kit) WPL 993383 Contact Us For Availability
30
Bend (32) Condenser (30) Evaporator WPL 855199 Contact Us For Availability
30
Fresh Air Door Assembly WPL 648137 Contact Us For Availability
31
Bend (5) Condenser (1) Evaporator WPL 854624 Contact Us For Availability
31
Screw, 6 x 3/8Z WPL 488966 Contact Us For Availability
32
Wire, Exhaust Control WPL 648321 Contact Us For Availability
32
Wire, Fresh Air Control WPL 648322 Contact Us For Availability
33
Screw, 6-20 x .362 WPL 488735 Contact Us For Availability
34
Screw, 6 x .175 WPL 488734 Contact Us For Availability
35
Box, Control WPL 648482 Contact Us For Availability
36
Spacer (3) WPL 469175 Contact Us For Availability
38
Cover, Air Duct WPL 475730 Contact Us For Availability
39
Cover, Evaporator WPL 648319 Contact Us For Availability
40
Pan, Evaporator WPL 475708 Contact Us For Availability
41
Wire, Ground WPL 856509 Contact Us For Availability
42
Insulation WPL 856917 Contact Us For Availability
43
Plate, Escutcheon WPL 947877 Contact Us For Availability
44
Knob (2) WPL 947264 Contact Us For Availability
45
Wire, Ground WPL 998010 Contact Us For Availability
47
Outlet Tube Assembly WPL 485826 Contact Us For Availability
50
Strainer WPL 49599 Contact Us For Availability
51
Clip, Shroud (2) WPL 477442 Contact Us For Availability
52
Tube, Outlet (Rear) WPL 485827 Contact Us For Availability
53
Clip, Balancing WPL 485334 Contact Us For Availability
54
Seal, Shaft WPL 476719 Contact Us For Availability
54
Sleeve WPL 475841 Contact Us For Availability
55
Bend, Return WPL 854625 Contact Us For Availability
55
Bushing, Fresh Air & Exhaust WPL 647879 Contact Us For Availability
56
Bend, Return WPL 854626 Contact Us For Availability
56
Cam, Fresh Air & Exhaust WPL 648131 Contact Us For Availability
57
Shaft, Fresh Air & Exhaust WPL 648130 Contact Us For Availability
58
Gasket, Term Cover WPL 475063 Contact Us For Availability
58
Washer, Spring WPL 647881 Contact Us For Availability
59
Tube, Crossover WPL 644146 Contact Us For Availability
59
Seal (2) WPL 476089 Contact Us For Availability
60
Cover (Includes Illus. 61) WPL 475711 Contact Us For Availability
61
Relay (Component Of Start Kit) WPL 484177 Contact Us For Availability
61
Seal, Strip WPL 476099 Contact Us For Availability
62
Seal, Cabinet Top WPL 475733 Contact Us For Availability
64
Capacitor (Component Of Start Kit) WPL 47406 Contact Us For Availability
65
Cap, Capacitor (Component Of Start Kit) WPL 791868 Contact Us For Availability
66
Bracket, Capacitor (Component Of Start Kit) WPL 41629 Contact Us For Availability
67
Screw, 10 x 5/8 (Component Of Start Kit) WPL 487880 Contact Us For Availability
68
Multiplier, Terminal (Component Of Start Kit) WPL 90654 Contact Us For Availability
69
WPL 978029 WPL 978029 Contact Us For Availability
69
WPL 505168 WPL 505168 Contact Us For Availability
69
WPL 484066 WPL 484066 Contact Us For Availability
69
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
69
Terminal, Flag (Component Of S WPL 45571 Contact Us For Availability
69
WPL 469938 WPL 469938 Contact Us For Availability
69
WPL 47261 WPL 47261 Contact Us For Availability
69
WPL 47262 WPL 47262 Contact Us For Availability
69
WPL 47263 WPL 47263 Contact Us For Availability
69
WPL 484220 WPL 484220 Contact Us For Availability
69
WPL 484310 WPL 484310 Contact Us For Availability
69
WPL 485426 WPL 485426 Contact Us For Availability
69
WPL 485883 WPL 485883 Contact Us For Availability
69
WPL 649939 WPL 649939 Contact Us For Availability
69
WPL 799351 WPL 799351 Contact Us For Availability
69
WPL 869794 WPL 869794 Contact Us For Availability
69
WPL 978028 WPL 978028 Contact Us For Availability
69
WPL 993377 WPL 993377 Contact Us For Availability
69
WPL 994202 WPL 994202 Contact Us For Availability
69
WPL 994741 WPL 994741 Contact Us For Availability
× ![]()
