Model Whirlpool 1AHF10590 AIR CONDITIONER – Common Parts & Diagrams

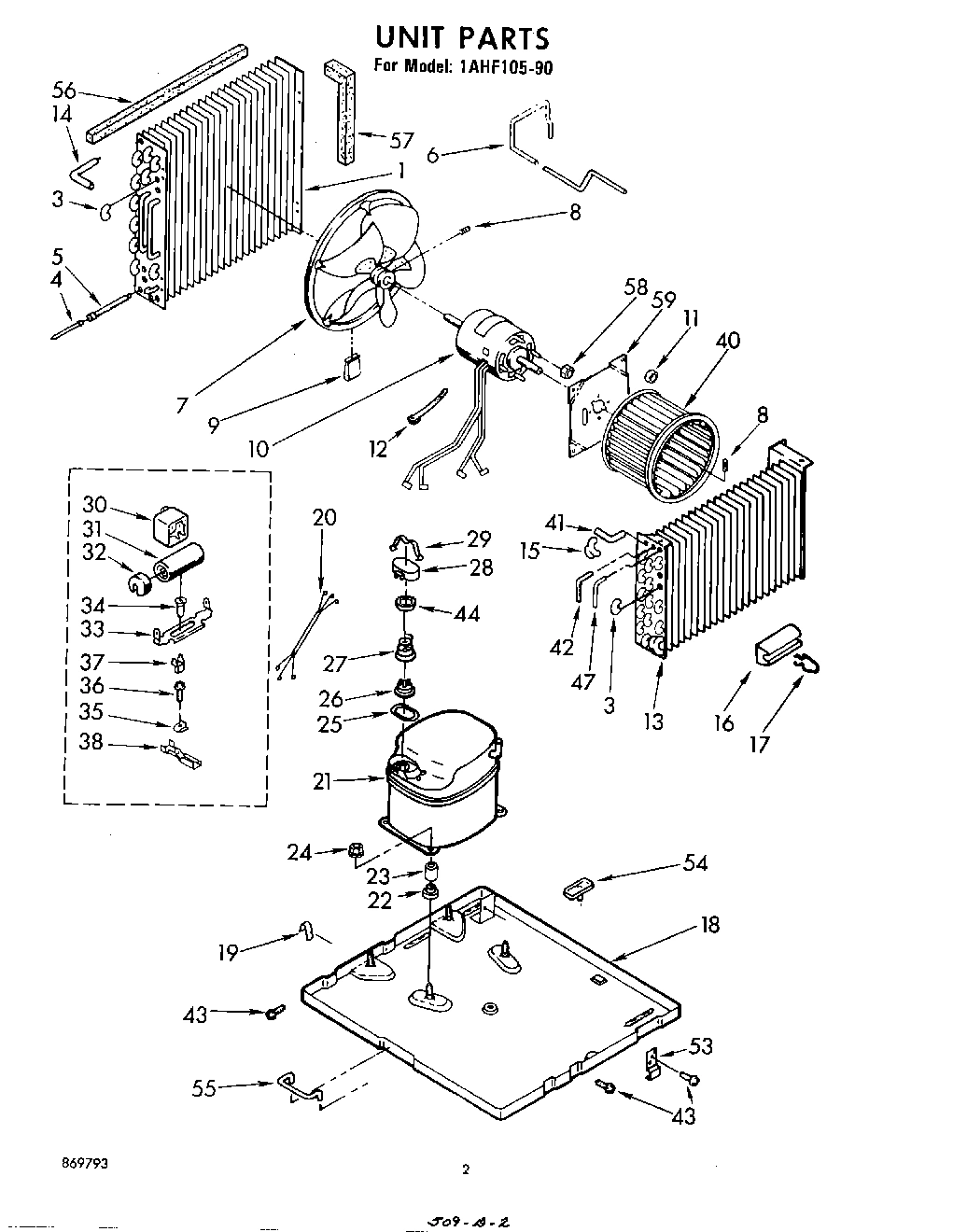

02 - SECTION

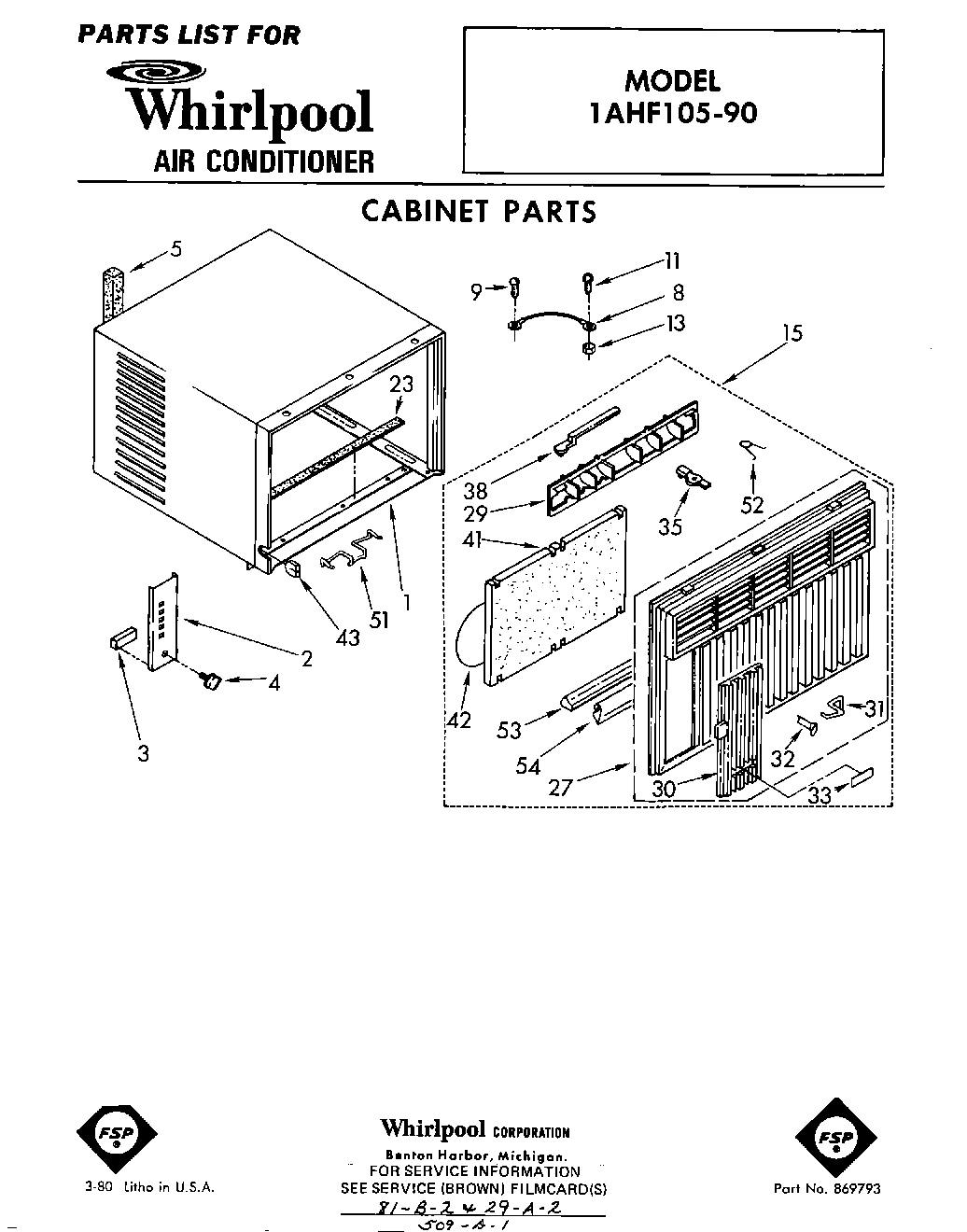

01 - SECTION

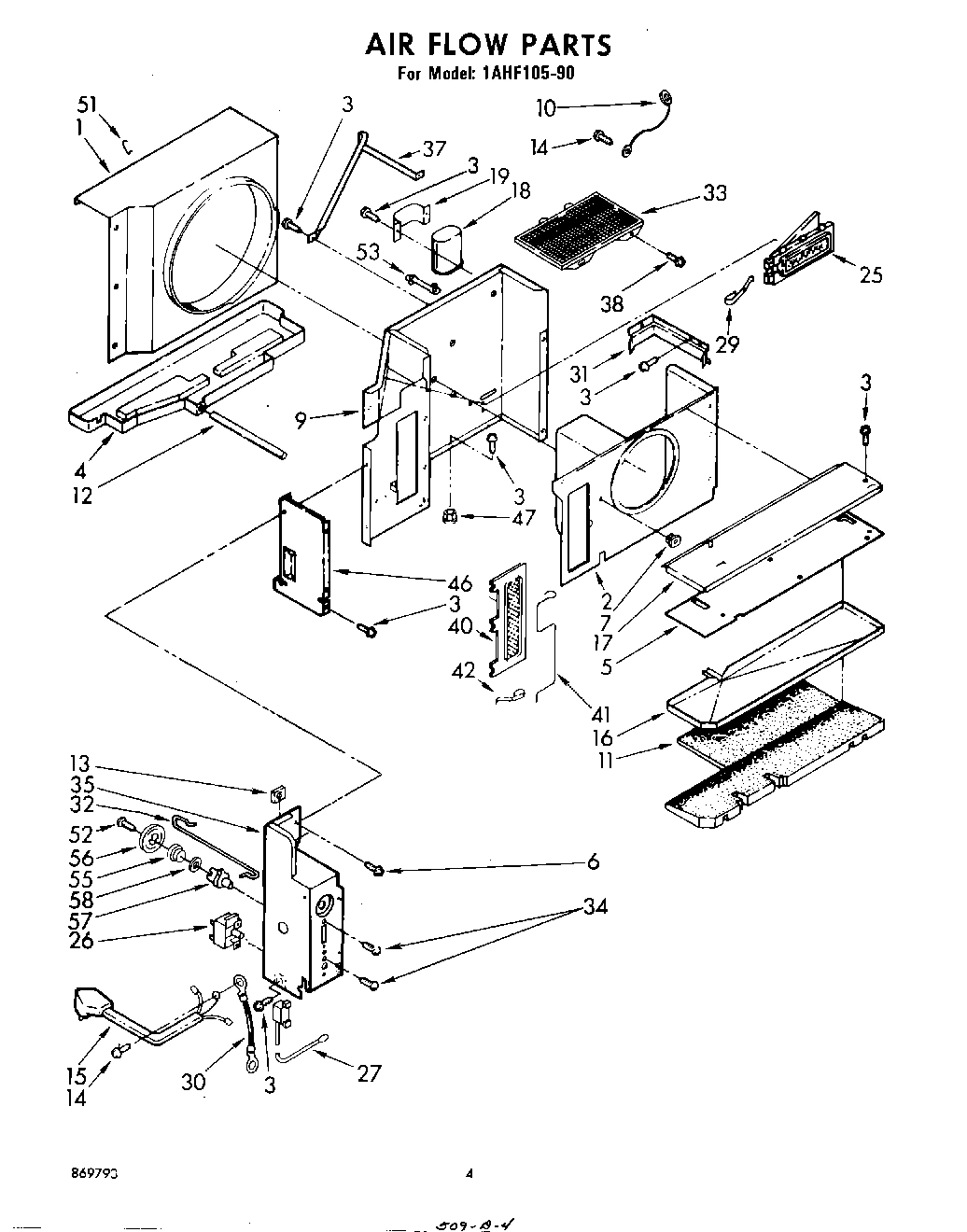

03 - SECTION

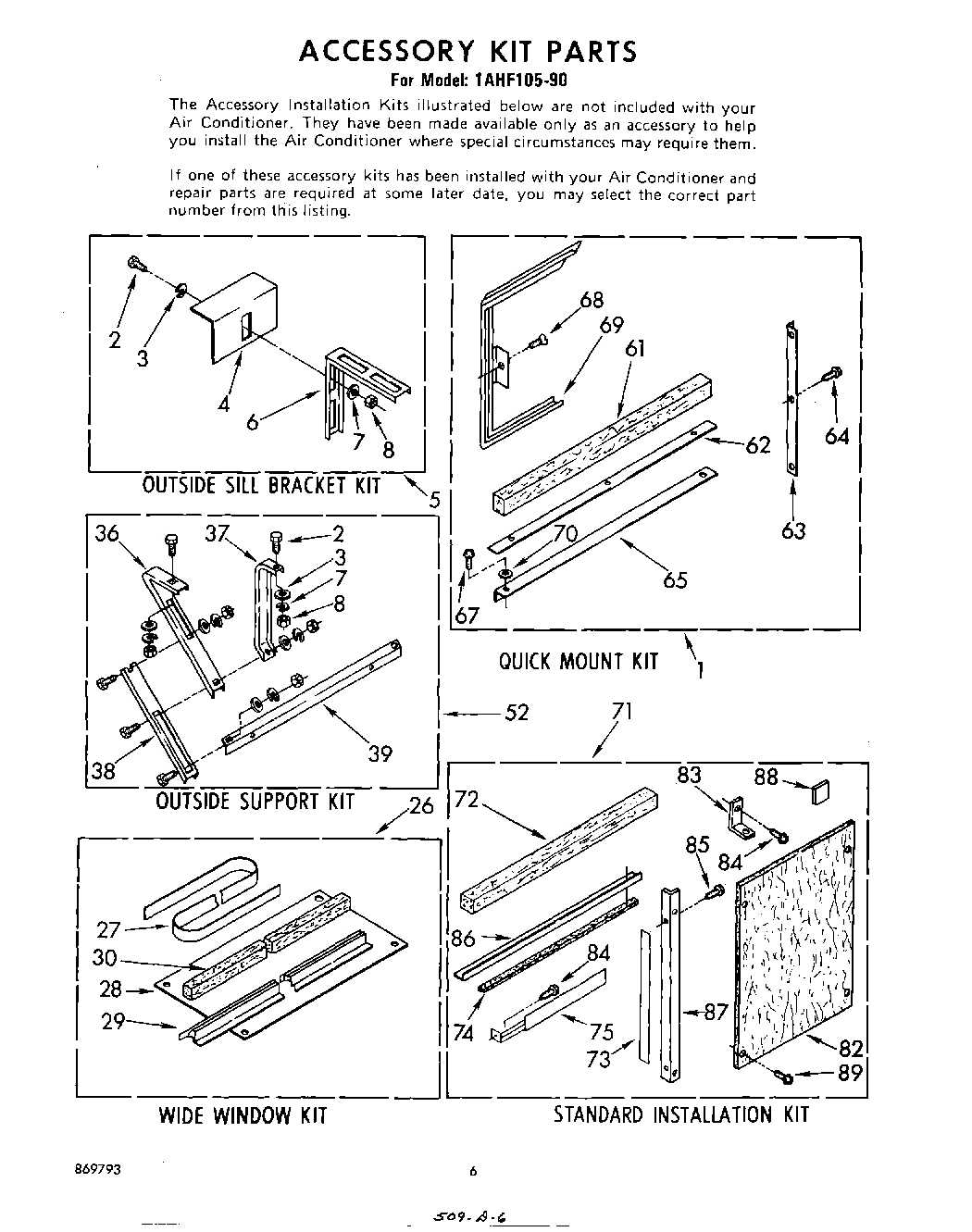

04 - SECTION
Common parts from model Whirlpool 1AHF10590 AIR CONDITIONER
1
Cabinet WPL 858828 Contact Us For Availability
1
Shroud, Condenser WPL 647862 Contact Us For Availability
1
Kit, Quick Mount WPL 485675 Contact Us For Availability
2
Escutcheon WPL 947665 Contact Us For Availability
2
Housing, Blower Wheel WPL 852876 Contact Us For Availability
2
bolt, 1/4 x 3/4 WPL 488750 Contact Us For Availability
3
Spacer, Escutcheon (3) WPL 470036 Contact Us For Availability
4
Knob, Control (3) WPL 947264 Contact Us For Availability
4
Pan, Condensate WPL 859238 Contact Us For Availability
4
Bracket, Sill Mounting (2) WPL 645515 Contact Us For Availability
5
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
5
Kit, Outside Sill Bracket WPL 485678 Contact Us For Availability
6
Bracket, Rail Support (2) WPL 485466 Contact Us For Availability
7
Lockwasher WPL 486009 Contact Us For Availability
7
Fastener, snap (2) WPL 487808 Contact Us For Availability
8
Ground, Wire WPL 857017 Contact Us For Availability
8
Nut, Hex WPL 486035 Contact Us For Availability
9
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
9
Wall WPL 998488 Contact Us For Availability
10
Wire Assembly, Ground WPL 948285 Contact Us For Availability
11
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
11
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
12
Tube, Condensate WPL 49181 Contact Us For Availability
13
Evaporator WPL 855790 Contact Us For Availability
13
Grommet WPL 647865 Contact Us For Availability
14
Tube, Inlet WPL 485022 Contact Us For Availability
15
Bend, Return 3-Way WPL 49493 Contact Us For Availability
15
Cabinet Front (Complete) WPL 947666 Contact Us For Availability
15
Cable WPL 649070 Contact Us For Availability
16
Anticipator, Temperature WPL 475573 Contact Us For Availability
16
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Cover, Evaporator WPL 856957 Contact Us For Availability
18
Base WPL 856430 Contact Us For Availability
18
Capacitor, Running WPL 947913 Contact Us For Availability
19
Clamp WPL 642684 Contact Us For Availability
19
Bracket, Capacitor (Lower) WPL 475844 Contact Us For Availability
19
Bracket, Capacitor (Upper) WPL 852992 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
21
Compressor WPL 484361 Contact Us For Availability
22
Grommet (4) WPL 469581 Contact Us For Availability
23
Sleeve (4) WPL 858148 Contact Us For Availability
23
Seal, Cabinet Bottom WPL 647854 Contact Us For Availability
24
Locknut (4) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 473884 Contact Us For Availability
25
Door, Exhaust WPL 649720 Contact Us For Availability
26
Switch, Rotary WPL 948315 Contact Us For Availability
26
Kit, Wide Window WPL 485676 Contact Us For Availability
27
Spring, Overload WPL 473882 Contact Us For Availability
27
Cabinet Cabinet Front (Includes Items 31, 31 WPL 947667 Contact Us For Availability
27
Control, Temperature WPL 852543 Contact Us For Availability
27
Strip, Seal WPL 855265 Contact Us For Availability
28
Cover, Terminal WPL 647713 Contact Us For Availability
28
Board, Filler WPL 485484 Contact Us For Availability
29
Strap, Terminal Cover WPL 647714 Contact Us For Availability
29
Louver, Vertical WPL 647798 Contact Us For Availability
29
Spring, Fresh Air & Exhaust WPL 859369 Contact Us For Availability
29
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
29
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
30
Relay (Component Of Start Kit) WPL 484363 Contact Us For Availability
30
Door, Control WPL 947669 Contact Us For Availability
30
Wire, Ground WPL 857634 Contact Us For Availability
30
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
31
Capacitor (Component Of Start Kit) WPL 484358 Contact Us For Availability
31
Pin. Hinge (2) WPL 649943 Contact Us For Availability
31
Channel, Wiring WPL 852317 Contact Us For Availability
32
Cap, Capacitor (Component Of Start Kit) WPL 791869 Contact Us For Availability
32
Spring, Catch WPL 649949 Contact Us For Availability
32
Wire, Fresh Air Control WPL 648132 Contact Us For Availability
32
Wire, Exhaust Control WPL 859370 Contact Us For Availability
33
Bracket, Capacitor (Component Of Start Kit) WPL 35564 Contact Us For Availability
33
Nameplate WPL 947408 Contact Us For Availability
33
Guard, Evaporator Impeller WPL 997949 Contact Us For Availability
34
Screw, 10 x 5/8 (Component Of Start Kit) WPL 487880 Contact Us For Availability
34
Screw, 6 x .175 WPL 488734 Contact Us For Availability
35
Handle, Louver (2) WPL 644165 Contact Us For Availability
35
Box, Control WPL 994174 Contact Us For Availability
36
Support (2) WPL 644283 Contact Us For Availability
37
Multiplier, Terminal (Component Of Start Kit) WPL 90654 Contact Us For Availability
37
Support, Unit WPL 852318 Contact Us For Availability
37
Support, Retainer (2) WPL 644285 Contact Us For Availability
38
Clip, Terminal (Component Of Start Kit) WPL 45571 Contact Us For Availability
38
Link (2) WPL 647799 Contact Us For Availability
38
Extension, Support (2) WPL 644284 Contact Us For Availability
39
Bracket, Support (2) WPL 644281 Contact Us For Availability
40
Wheel, Blower WPL 855608 Contact Us For Availability
40
Door, Fresh Air WPL 859639 Contact Us For Availability
41
Tube, Inlet (90~ Bend) WPL 485624 Contact Us For Availability
41
Filter WPL 852413 Contact Us For Availability
41
Actuator, Fresh Air Door WPL 853434 Contact Us For Availability
42
Tube 90~ Bend WPL 485897 Contact Us For Availability
42
Retainer, Filter WPL 476707 Contact Us For Availability
42
Spring, Fresh Air Door WPL 649428 Contact Us For Availability
43
Grommet, Appliance Cable WPL 647849 Contact Us For Availability
44
Adapter, Overload WPL 473883 Contact Us For Availability
46
Dividing Wall Assembly, L.S. WPL 852994 Contact Us For Availability
47
Tube, Outlet (90~ Bend) WPL 485625 Contact Us For Availability
47
Clip, Speed WPL 649620 Contact Us For Availability
51
Clip, Front (2) WPL 649966 Contact Us For Availability
51
Clip, Shroud (3) WPL 647873 Contact Us For Availability
52
Spring (2) WPL 641484 Contact Us For Availability
52
Kit, Outside Support WPL 485679 Contact Us For Availability
53
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
53
Clamp, Cable WPL 648791 Contact Us For Availability
54
Cup, Condensate Drain WPL 647850 Contact Us For Availability
54
Seal WPL 647914 Contact Us For Availability
55
Handle, Base WPL 647971 Contact Us For Availability
55
Bushing, Fresh Air & Exhaust WPL 647879 Contact Us For Availability
56
Seal WPL 649609 Contact Us For Availability
56
Cam, Fresh Air & Exhaust WPL 647882 Contact Us For Availability
57
Seal WPL 649610 Contact Us For Availability
57
Shaft, Fresh Air & Exhaust WPL 852668 Contact Us For Availability
58
Washer, Spring WPL 647881 Contact Us For Availability
59
WPL 978029 WPL 978029 Contact Us For Availability
59
WPL 484069 WPL 484069 Contact Us For Availability
59
WPL 505168 WPL 505168 Contact Us For Availability
59
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
59
WPL 47261 WPL 47261 Contact Us For Availability
59
WPL 47262 WPL 47262 Contact Us For Availability
59
WPL 47263 WPL 47263 Contact Us For Availability
59
WPL 484220 WPL 484220 Contact Us For Availability
59
WPL 484364 WPL 484364 Contact Us For Availability
59
WPL 485426 WPL 485426 Contact Us For Availability
59
WPL 647846 WPL 647846 Contact Us For Availability
59
WPL 647847 WPL 647847 Contact Us For Availability
59
WPL 647848 WPL 647848 Contact Us For Availability
59
WPL 649939 WPL 649939 Contact Us For Availability
59
WPL 799351 WPL 799351 Contact Us For Availability
59
WPL 869793 WPL 869793 Contact Us For Availability
59
WPL 947261 WPL 947261 Contact Us For Availability
59
WPL 978028 WPL 978028 Contact Us For Availability
59
WPL 994121 WPL 994121 Contact Us For Availability
59
WPL 994741 WPL 994741 Contact Us For Availability
59
WPL 998024 WPL 998024 Contact Us For Availability
61
Seal, Meeting Rail WPL 855841 Contact Us For Availability
62
Strip, Seal WPL 477597 Contact Us For Availability
63
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
64
Screw, 8 x 7/16 WPL 488730 Contact Us For Availability
65
Channel, Bottom WPL 644387 Contact Us For Availability
68
Thumbscrew (2) WPL 475581 Contact Us For Availability
69
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
69
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
70
Washer (2) WPL 487656 Contact Us For Availability
71
Kit, Standard Installation WPL 485674 Contact Us For Availability
72
Seal WPL 469877 Contact Us For Availability
73
Strip, Seal WPL 856979 Contact Us For Availability
74
Strip, Seal WPL 856986 Contact Us For Availability
75
Bracket, R.S. WPL 645562 Contact Us For Availability
75
Bracket, L.S. WPL 645563 Contact Us For Availability
82
Board, Filler WPL 647835 Contact Us For Availability
83
Bracket WPL 644228 Contact Us For Availability
84
Wood Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
86
Angle, Top WPL 644380 Contact Us For Availability
87
Angle (2) WPL 645564 Contact Us For Availability
88
Spacer, Block (2) WPL 995274 Contact Us For Availability
89
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
89
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
89
Instructions, Installation (Outside Sill Kit) WPL 485706 Contact Us For Availability
89
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
89
Instructions, Installation (Kit, Standard Ins WPL 648435 Contact Us For Availability
× ![]()
