Model Whirlpool 1ADM302XY0 AIR CONDITIONER – Common Parts & Diagrams

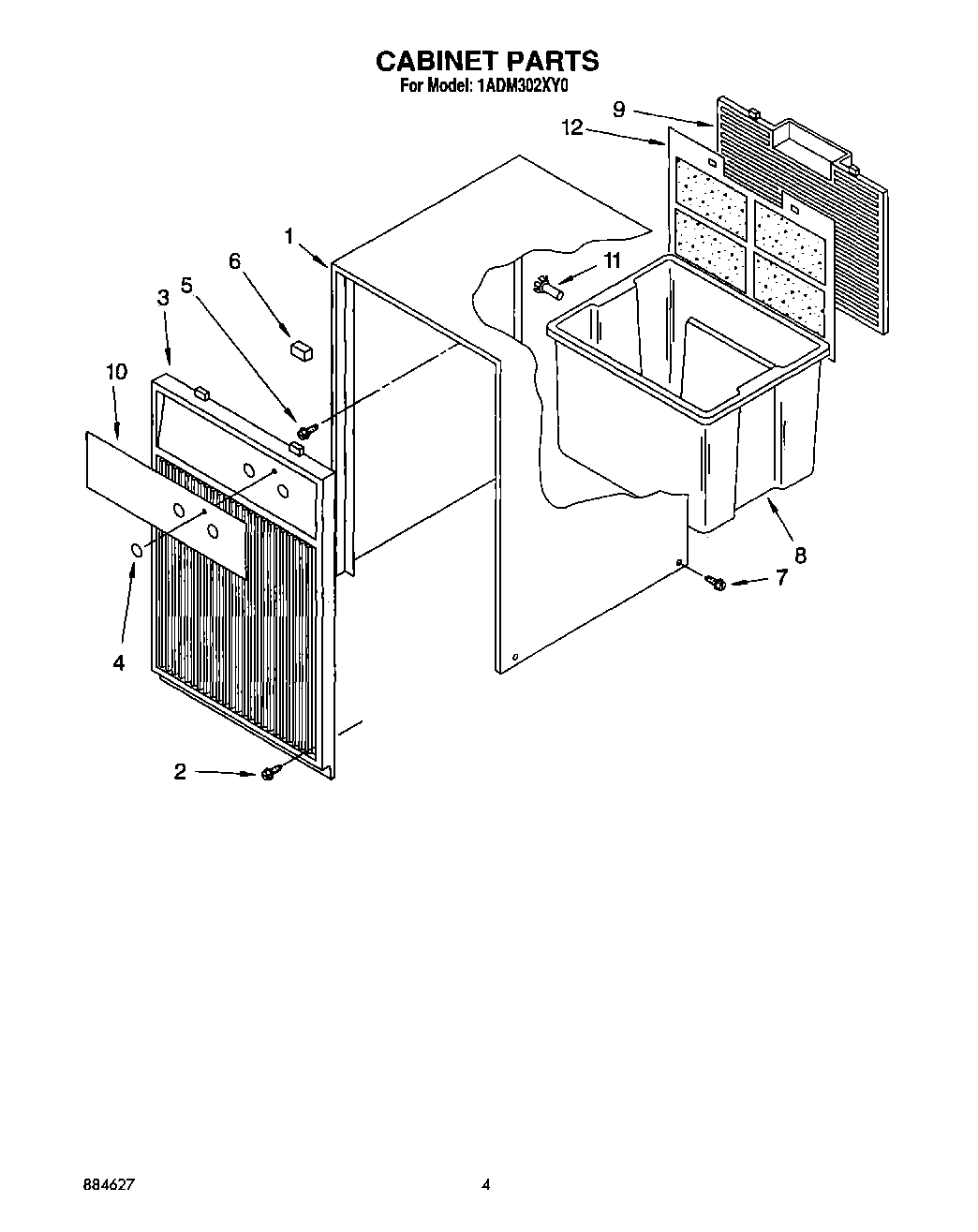

03 - CABINET PARTS

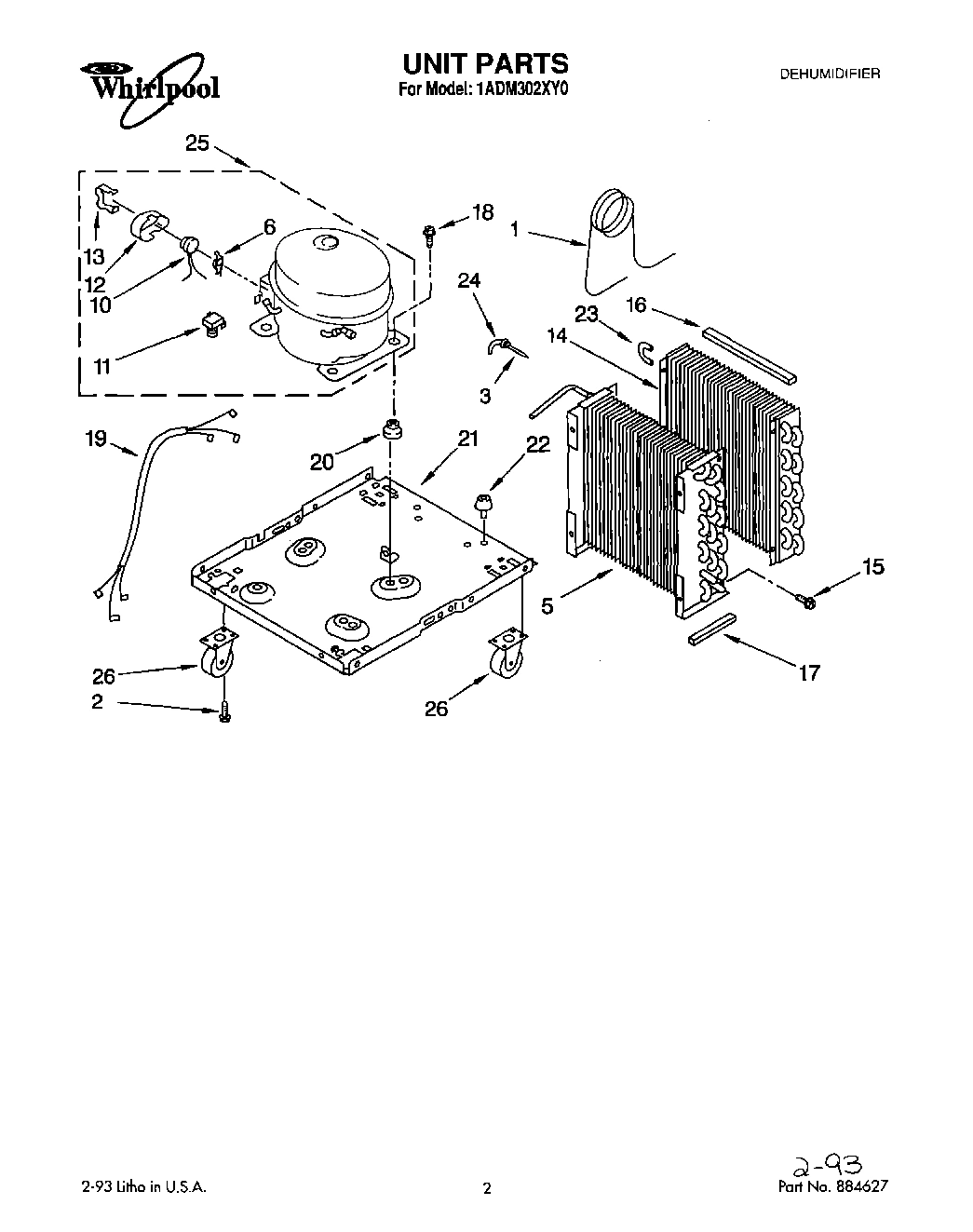

01 - UNIT

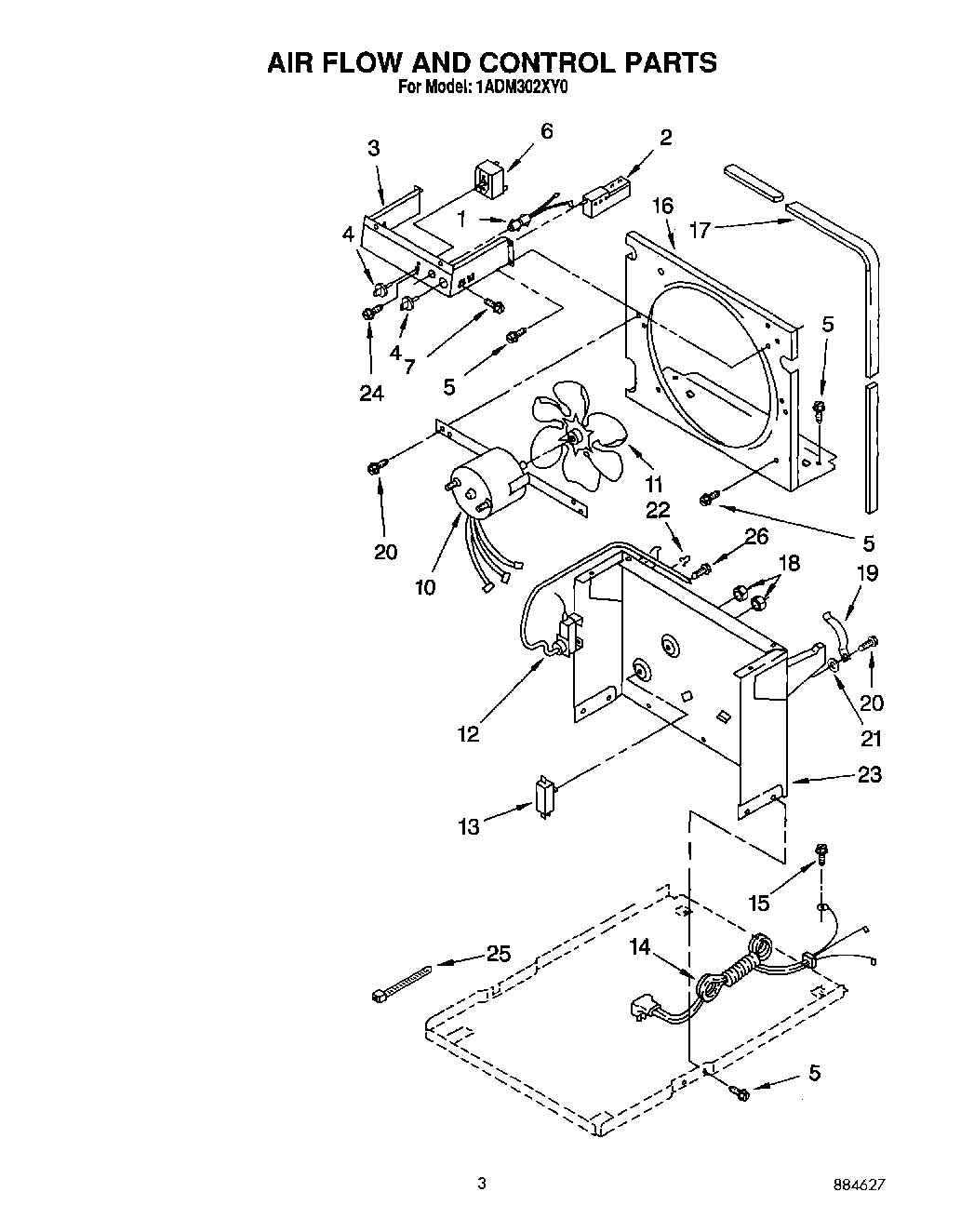

02 - AIRFLOW AND CONTROL PARTS
Common parts from model Whirlpool 1ADM302XY0 AIR CONDITIONER
1
Tube, Restrictor (Length 35.0``) WPL 1162185 Contact Us For Availability
1
Light, Indicator WPL 1158419 Contact Us For Availability
2
Humidistat, Control WPL 1162578 Contact Us For Availability
3
Strainer WPL 1162037 Contact Us For Availability
3
Bracket, Control WPL 951360 Contact Us For Availability
4
Knob, Humidistat Control WPL 1162862 Contact Us For Availability
5
Condenser WPL 1162152 Contact Us For Availability
5
Screw, SM 8 x 3/8 WPL 488624 Contact Us For Availability
6
Spacer, Grille WPL 948584 Contact Us For Availability
6
Spring, Overload (Service) WPL 549086 Contact Us For Availability
6
Switch, Rotary WPL 951361 Contact Us For Availability
8
Pan, Condensate WPL 1159968 Contact Us For Availability
9
Grille, Rear WPL 1160444 Contact Us For Availability
10
Escutcheon WPL 1160945 Contact Us For Availability
10
Overload (Production) WPL 1158823 Contact Us For Availability
10
Overload (Service) WPL 649833 Contact Us For Availability
10
Motor, Fan WPL 1162314 Contact Us For Availability
11
Retainer, Pin (Rear Grill) WPL 998813 Contact Us For Availability
11
Relay, Start (Production) WPL 1156815 Contact Us For Availability
11
Relay, Start (Service) WPL 549339 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
12
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
12
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
12
Filter, Air WPL 1159964 Contact Us For Availability
12
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
12
Cup, Condensate Pan WPL 646753 Contact Us For Availability
12
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
12
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
12
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
12
Cover, Terminal (Production) WPL 1157582 Contact Us For Availability
12
Cover, Terminal (Service) WPL 549336 Contact Us For Availability
12
Thermostat, De-Icer WPL 1155109 Contact Us For Availability
13
Retainer, Cover (Service) WPL 549342 Contact Us For Availability
13
Retainer, Cover (Production) WPL 938384 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
14
Evaporator WPL 1162153 Contact Us For Availability
14
Cord, Appliance WPL 1160447 Contact Us For Availability
16
Seal, Evap. Top WPL 1162348 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 1162372 Contact Us For Availability
17
Seal WPL 1162704 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 1161718 Contact Us For Availability
20
Grommet (4) WPL 1156748 Contact Us For Availability
21
Base WPL 1157588 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
22
Foot (2) WPL 472577 Contact Us For Availability
22
Clamp, Tube To Evaporator Mtg (2) WPL 471363 Contact Us For Availability
23
Bend, Return (4) WPL 855199 Contact Us For Availability
23
Support WPL 1163800 Contact Us For Availability
24
Bend, Return (3) WPL 854624 Contact Us For Availability
24
Screw WPL 488139 Contact Us For Availability
25
Compressor WPL 1156854 Contact Us For Availability
26
Caster (4) WPL 1159961 Contact Us For Availability
× ![]()
