Model LG 19M48A-B – Common Parts & Diagrams

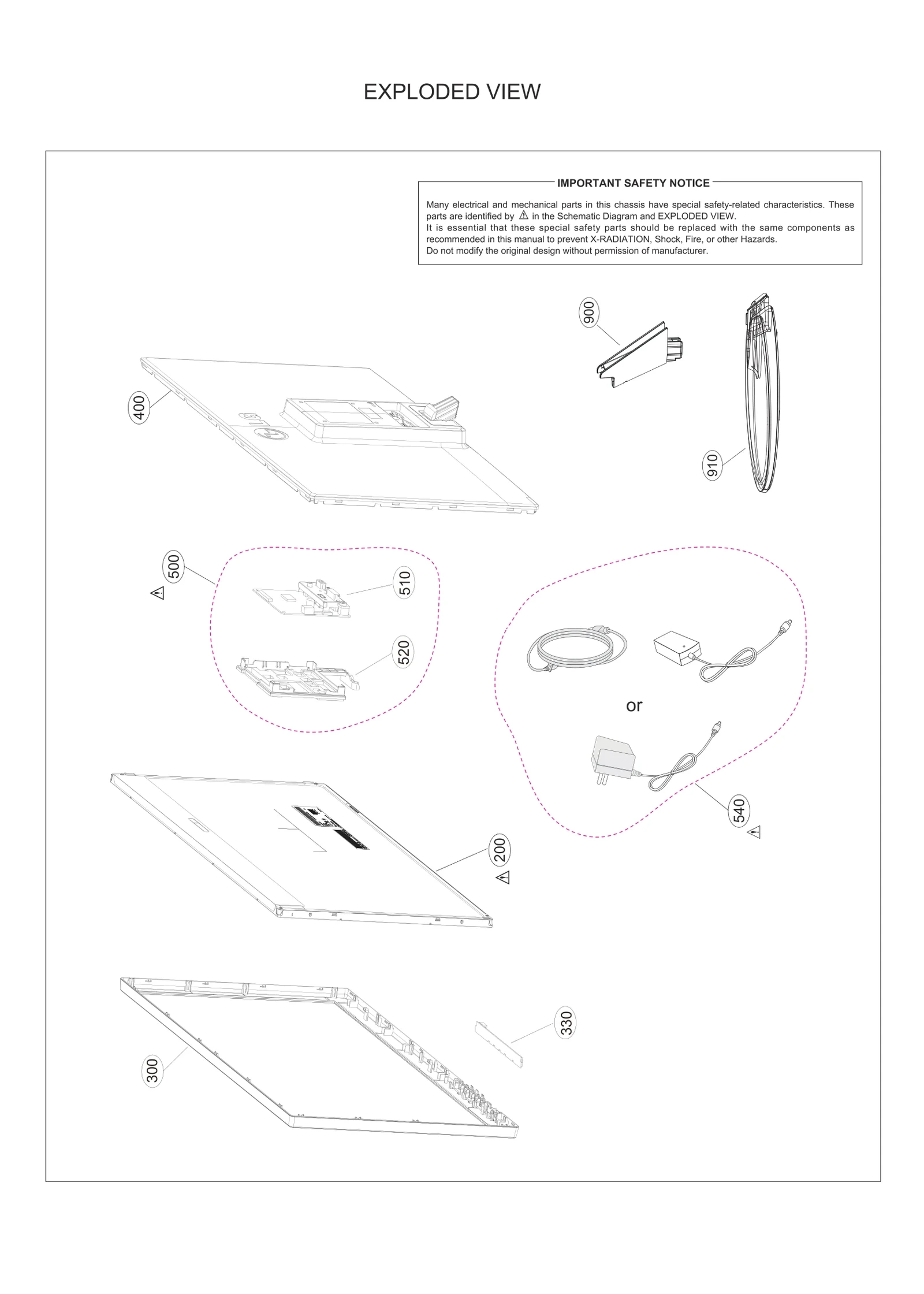

Diagram 0
Diagram 1
Common parts from model LG 19M48A-B
101
Packing LGE MFZ65161301 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63568002 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63568001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75247703 Contact Us For Availability
330
PCB Assembly,Control LGE EBR78288705 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88657908 Contact Us For Availability
500
Package Assembly LGE AGF78422601 Contact Us For Availability
500
PCB Assembly,Main LGE EBR80966406 Contact Us For Availability
500
PCB Assembly,Main LGE EBR80966408 Contact Us For Availability
510
Bracket LGE MAZ64683707 Contact Us For Availability
520
Bracket LGE MAZ63429720 Contact Us For Availability
540
Adapters LGE EAY62768622 Contact Us For Availability
540
Adapters LGE EAY63032004 Contact Us For Availability
541
Cable,Assembly LGE EAD57734001 Contact Us For Availability
541
Cable,Assembly LGE 6850TD9001P Contact Us For Availability
542
Cable,FFC LGE EAD63169891 Contact Us For Availability
543
Harness,Single LGE EAD62186001 Contact Us For Availability
900
Base Assembly LGE AAN75811202 Contact Us For Availability
900
Base Assembly LGE AAN75811201 Contact Us For Availability
910
Base Assembly LGE AAN75811302 Contact Us For Availability
910
Base Assembly LGE AAN75811301 Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P301
WAFER LGE 6602T20009E Contact Us For Availability
P400
Connector,DSUB LGE EAG61072906 Contact Us For Availability
P400
Connector,DSUB LGE EAG61072904 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
× ![]()
