Model Electrolux 18HA181 ROOM AIR CONDITIONER – Common Parts & Diagrams

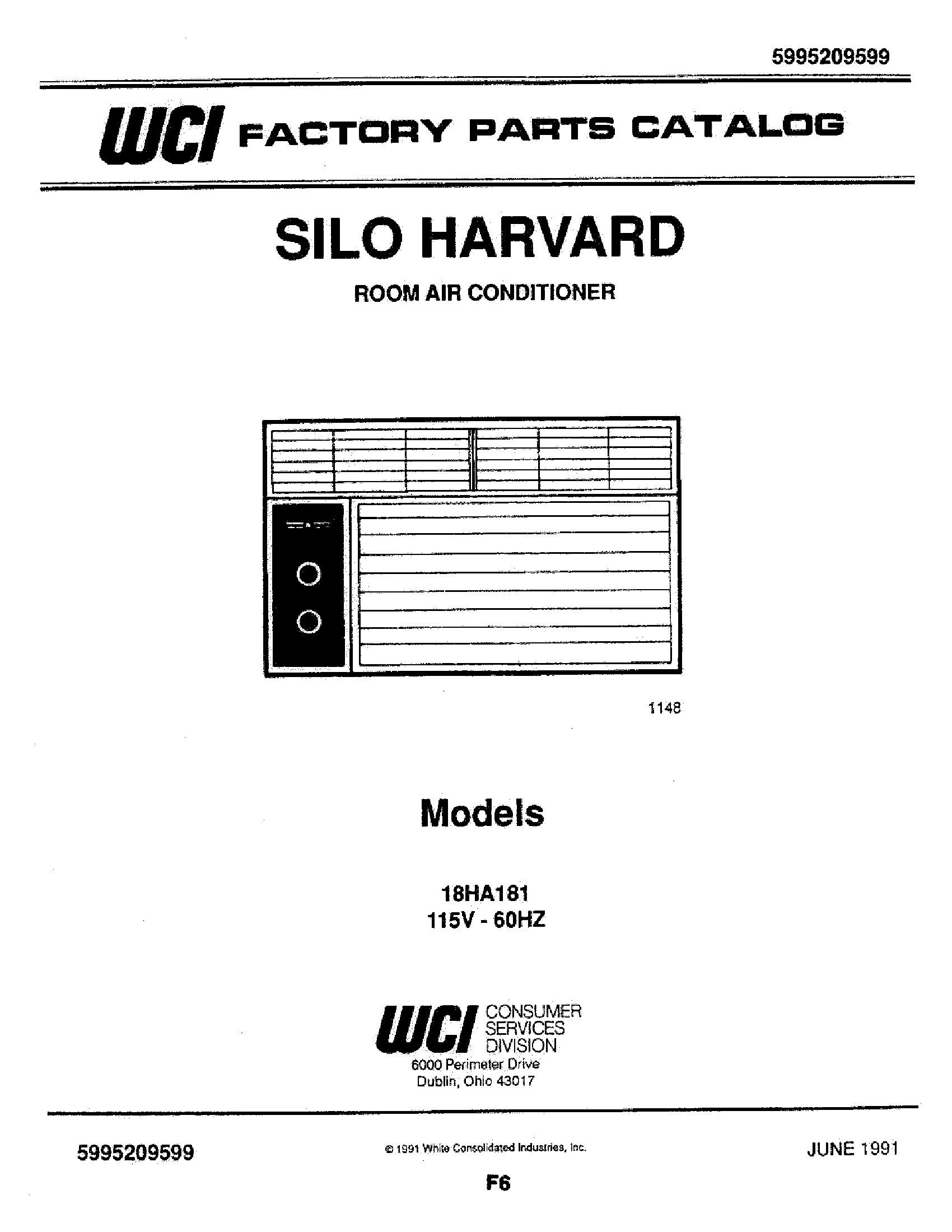

01 - COVER

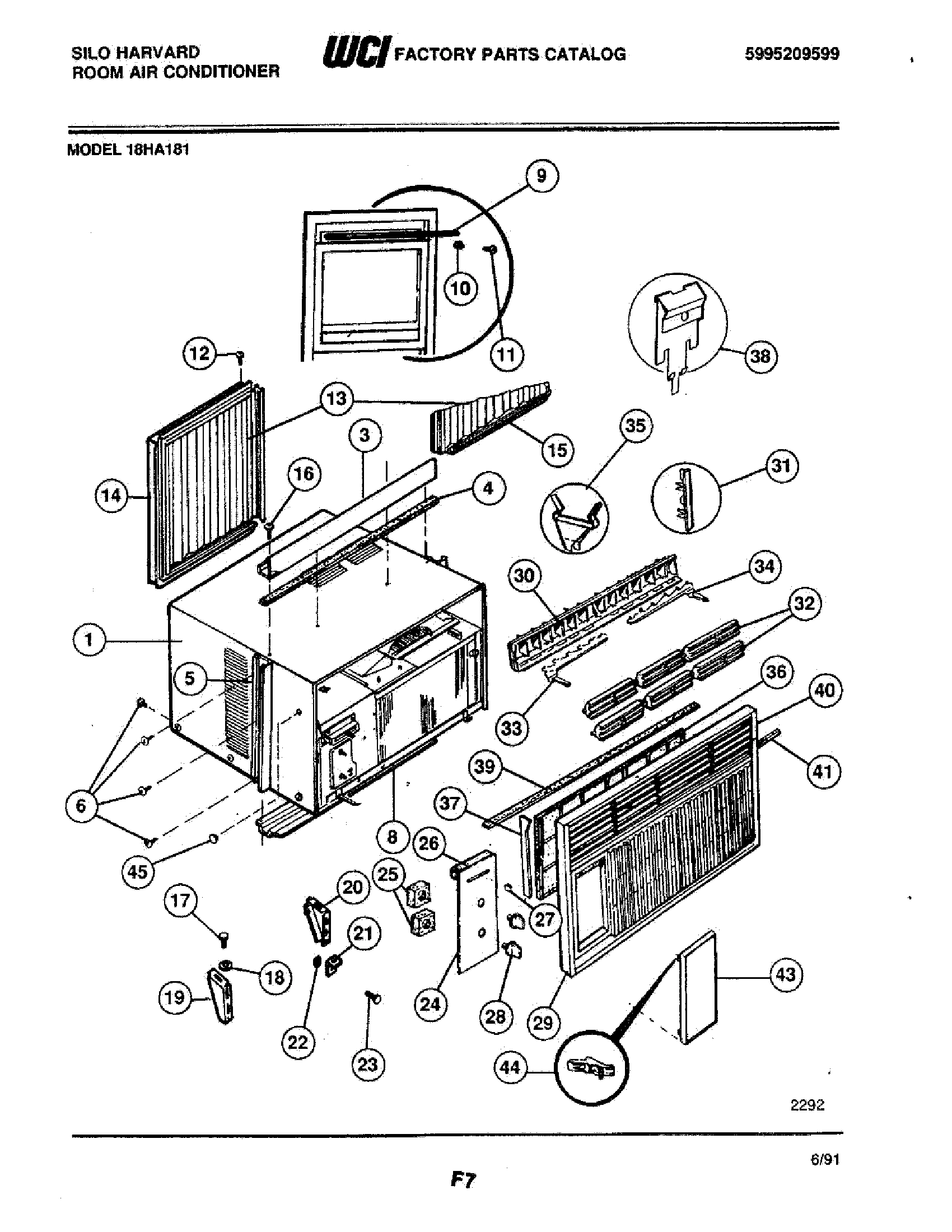

03 - WRAPPER

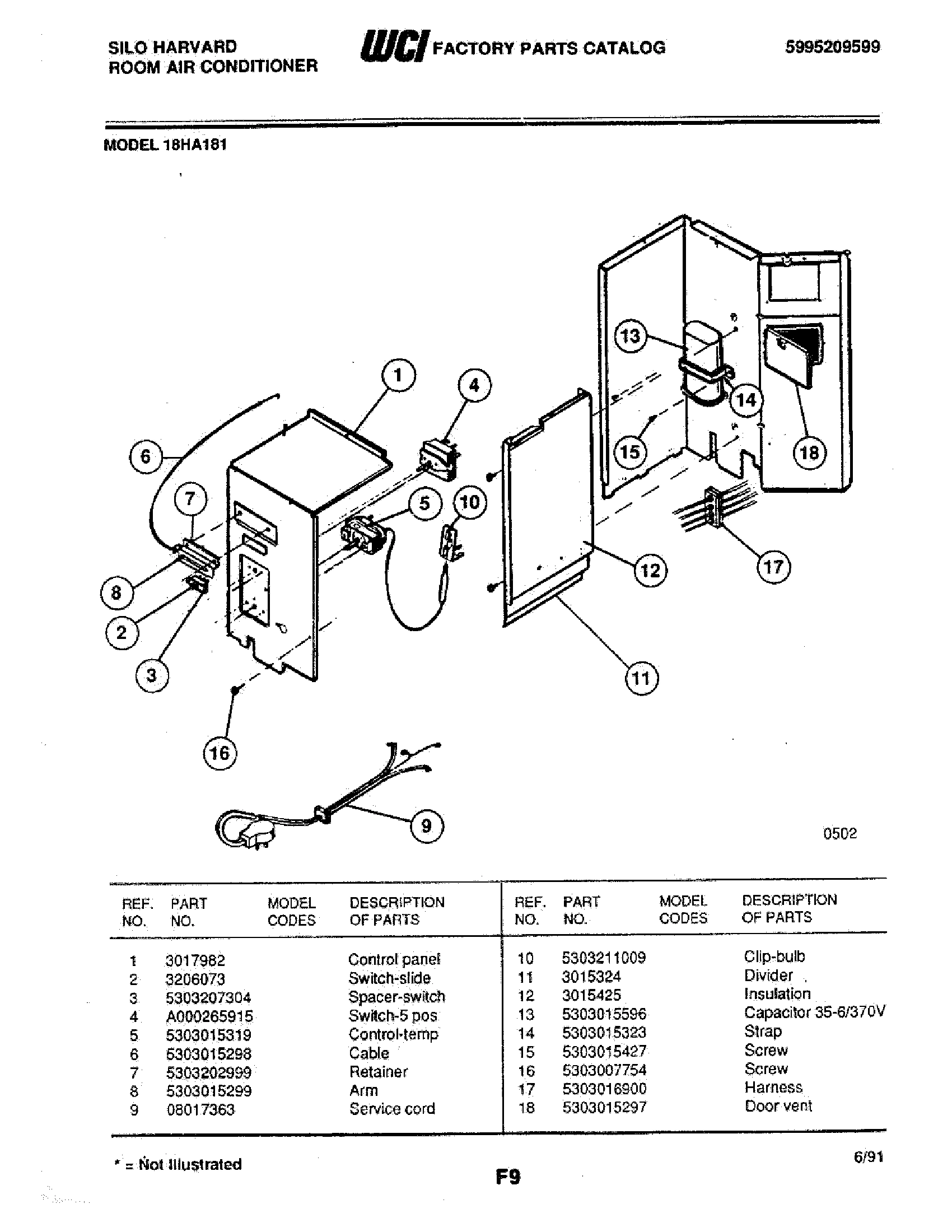

04 - CONTROL PANEL

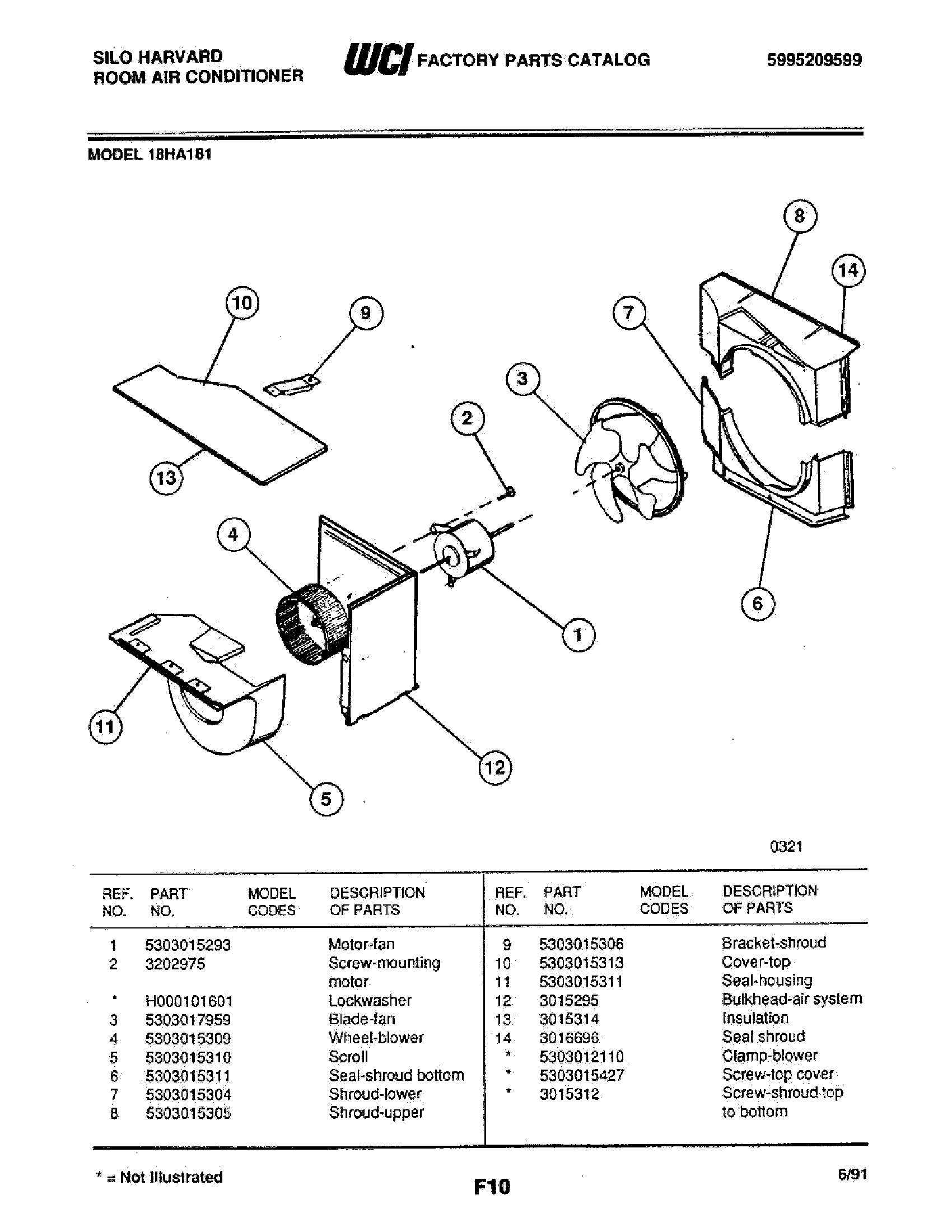

05 - MOTOR/FAN

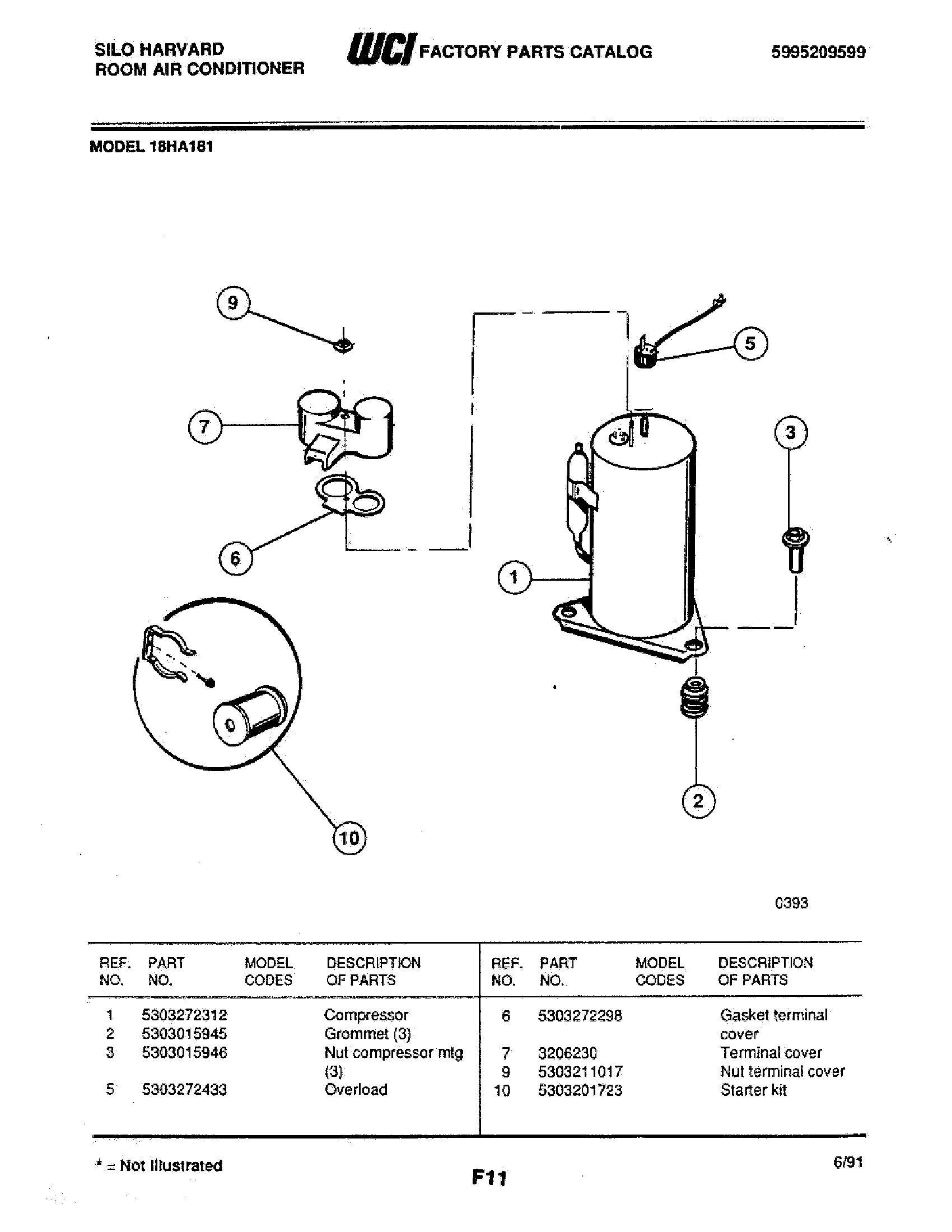

06 - COMPRESSOR

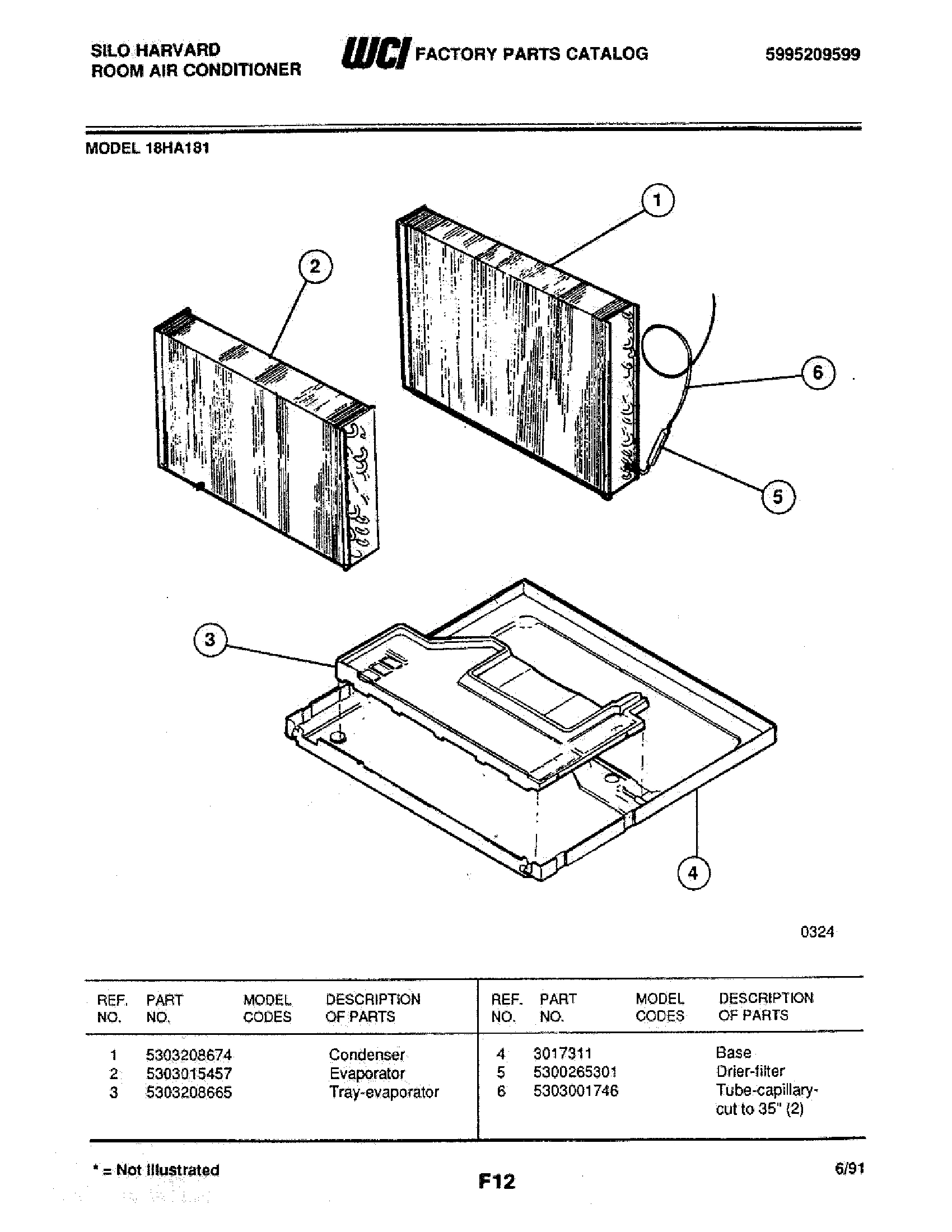

07 - CONDENSER
Common parts from model Electrolux 18HA181 ROOM AIR CONDITIONER
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
WCI H000101601 WCI H000101601 Contact Us For Availability
1
WCI 5303015315 WCI 5303015315 Contact Us For Availability
1
WCI 3017982 WCI 3017982 Contact Us For Availability
1
WCI 5303015293 WCI 5303015293 Contact Us For Availability
1
WCI 5303272312 WCI 5303272312 Contact Us For Availability
1
WCI 5303208674 WCI 5303208674 Contact Us For Availability
2
WCI 3206073 WCI 3206073 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
WCI 5303015457 WCI 5303015457 Contact Us For Availability
3
RAIL TOP WCI 3202499 Contact Us For Availability
3
WCI 5303207304 WCI 5303207304 Contact Us For Availability
3
WCI 5303017959 WCI 5303017959 Contact Us For Availability
3
WCI 5303015946 WCI 5303015946 Contact Us For Availability
3
WCI 5303208665 WCI 5303208665 Contact Us For Availability
4
SEAL RAIL WCI 3001980 Contact Us For Availability
4
WCI A000265915 WCI A000265915 Contact Us For Availability
4
WCI 5303015309 WCI 5303015309 Contact Us For Availability
4
WCI 3017311 WCI 3017311 Contact Us For Availability
5
WCI 3202498 WCI 3202498 Contact Us For Availability
5
WCI 5303015319 WCI 5303015319 Contact Us For Availability
5
WCI 5303015310 WCI 5303015310 Contact Us For Availability
5
WCI 5303272433 WCI 5303272433 Contact Us For Availability
6
WCI 5303015298 WCI 5303015298 Contact Us For Availability
6
WCI 5303272298 WCI 5303272298 Contact Us For Availability
6
CAPILLARY TUBE-CUT TO 35`` WCI 5303001746 Contact Us For Availability
7
RETAINER WCI 5303202999 Contact Us For Availability
7
WCI 5303015304 WCI 5303015304 Contact Us For Availability
7
TERMINAL COVER WCI 3206230 Contact Us For Availability
8
SEAL CHASSIS BTM WCI 5303212504 Contact Us For Availability
8
ARM WCI 5303015299 Contact Us For Availability
8
WCI 5303015305 WCI 5303015305 Contact Us For Availability
9
WCI 5303002608 WCI 5303002608 Contact Us For Availability
9
WCI 08017363 WCI 08017363 Contact Us For Availability
9
WCI 5303015306 WCI 5303015306 Contact Us For Availability
9
Nut,terminal cover WCI 5303211017 Contact Us For Availability
10
BRACKET WINDOW WCI 5303211056 Contact Us For Availability
10
CLIP-BULB WCI 5303211009 Contact Us For Availability
10
WCI 5303015313 WCI 5303015313 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
11
WCI 3015324 WCI 3015324 Contact Us For Availability
11
SEAL - HOUSING WCI 5303015311 Contact Us For Availability
12
WCI 3002801 WCI 3002801 Contact Us For Availability
12
WCI 3015425 WCI 3015425 Contact Us For Availability
12
WCI 3015295 WCI 3015295 Contact Us For Availability
13
ACCORDIAN WCI 5303211382 Contact Us For Availability
13
WCI 5303015596 WCI 5303015596 Contact Us For Availability
13
WCI 3015314 WCI 3015314 Contact Us For Availability
14
WCI 3202964 WCI 3202964 Contact Us For Availability
14
STRAP WCI 5303015323 Contact Us For Availability
14
WCI 3016696 WCI 3016696 Contact Us For Availability
15
WCI 3203060 WCI 3203060 Contact Us For Availability
16
WCI 08012680 WCI 08012680 Contact Us For Availability
16
SCREW WCI 5303007754 Contact Us For Availability
17
WCI 3007756 WCI 3007756 Contact Us For Availability
17
WCI 5303016900 WCI 5303016900 Contact Us For Availability
18
WCI 5303015297 WCI 5303015297 Contact Us For Availability
19
WCI 3016225 WCI 3016225 Contact Us For Availability
20
WCI 3016224 WCI 3016224 Contact Us For Availability
21
BRACKET WINDOW SILL WCI 3001815 Contact Us For Availability
22
WCI 3007759 WCI 3007759 Contact Us For Availability
23
WCI 3002803 WCI 3002803 Contact Us For Availability
24
WCI 5303276906 WCI 5303276906 Contact Us For Availability
25
WCI 5303001775 WCI 5303001775 Contact Us For Availability
26
WCI 5303001984 WCI 5303001984 Contact Us For Availability
27
WCI 5303002189 WCI 5303002189 Contact Us For Availability
28
WCI 5300331902 WCI 5300331902 Contact Us For Availability
29
WCI 5303276907 WCI 5303276907 Contact Us For Availability
30
LOUVERS & LINK WCI 5303002459 Contact Us For Availability
31
WCI 3017303 WCI 3017303 Contact Us For Availability
32
WCI 3200395 WCI 3200395 Contact Us For Availability
33
WCI 5303002163 WCI 5303002163 Contact Us For Availability
34
WCI 5303002162 WCI 5303002162 Contact Us For Availability
35
WCI 5303001844 WCI 5303001844 Contact Us For Availability
36
WCI 3017336 WCI 3017336 Contact Us For Availability
37
WCI 3017335 WCI 3017335 Contact Us For Availability
37
WCI 3017363 WCI 3017363 Contact Us For Availability
38
WCI 3200447 WCI 3200447 Contact Us For Availability
39
WCI 5303271831 WCI 5303271831 Contact Us For Availability
40
WCI 5303207203 WCI 5303207203 Contact Us For Availability
41
WCI 3017299 WCI 3017299 Contact Us For Availability
43
WCI 3202693 WCI 3202693 Contact Us For Availability
44
WCI 5303017980 WCI 5303017980 Contact Us For Availability
45
WCI 30174304 WCI 30174304 Contact Us For Availability
× ![]()
