Model Whirlpool 1873W0A DOUBLE OVEN GAS RANGE – Common Parts & Diagrams

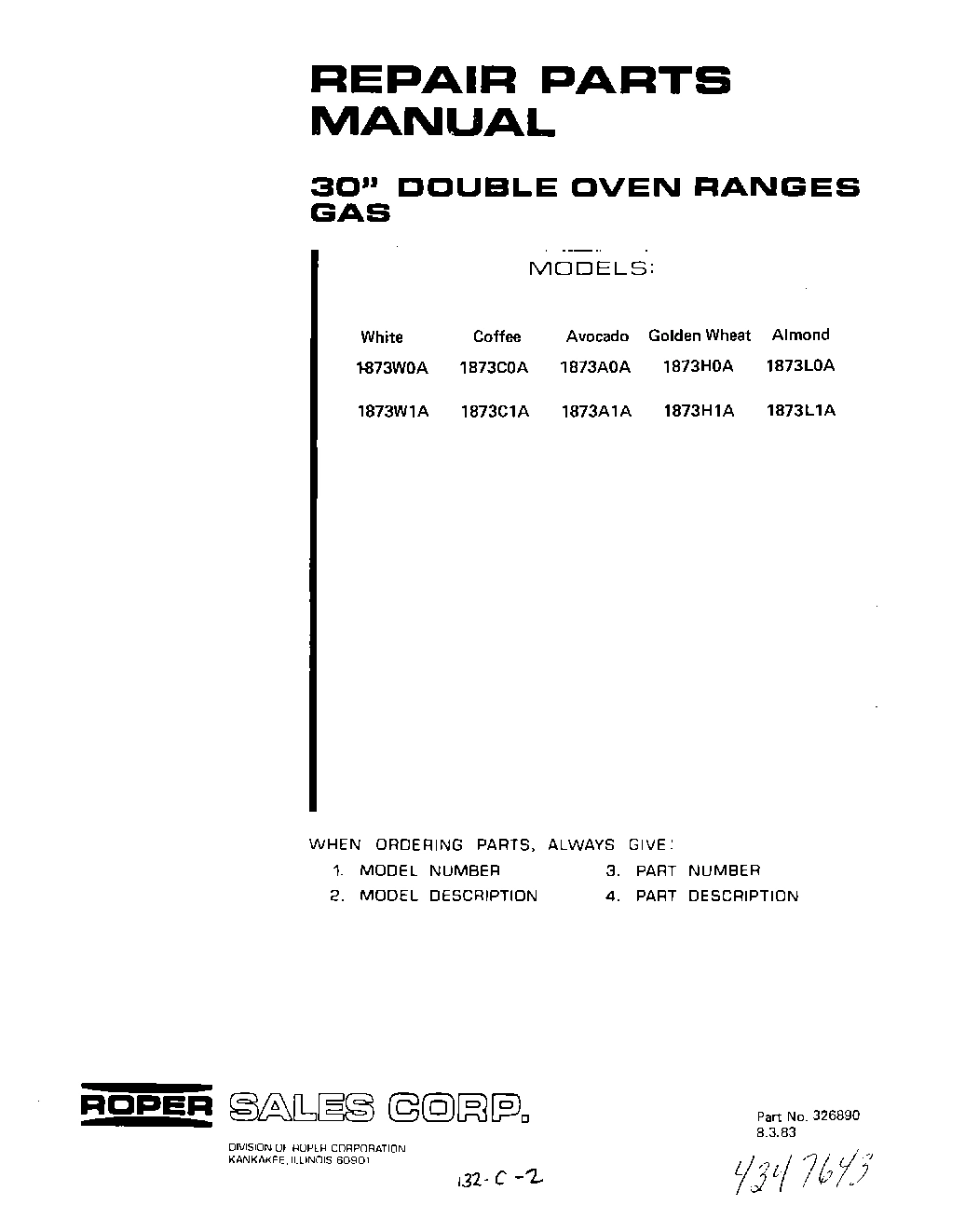

01 - MAIN TOP

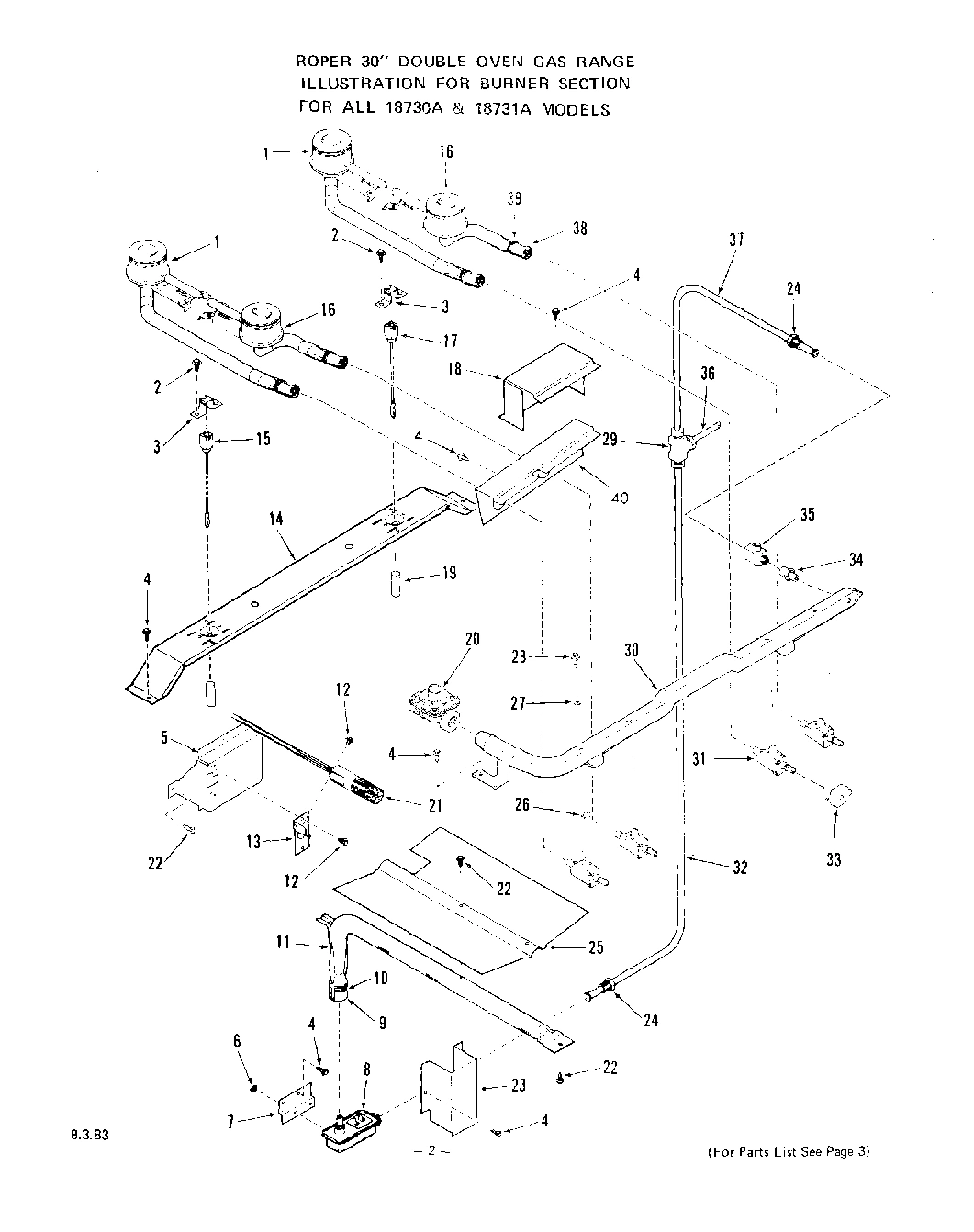

03 - LOWER OVEN BODY

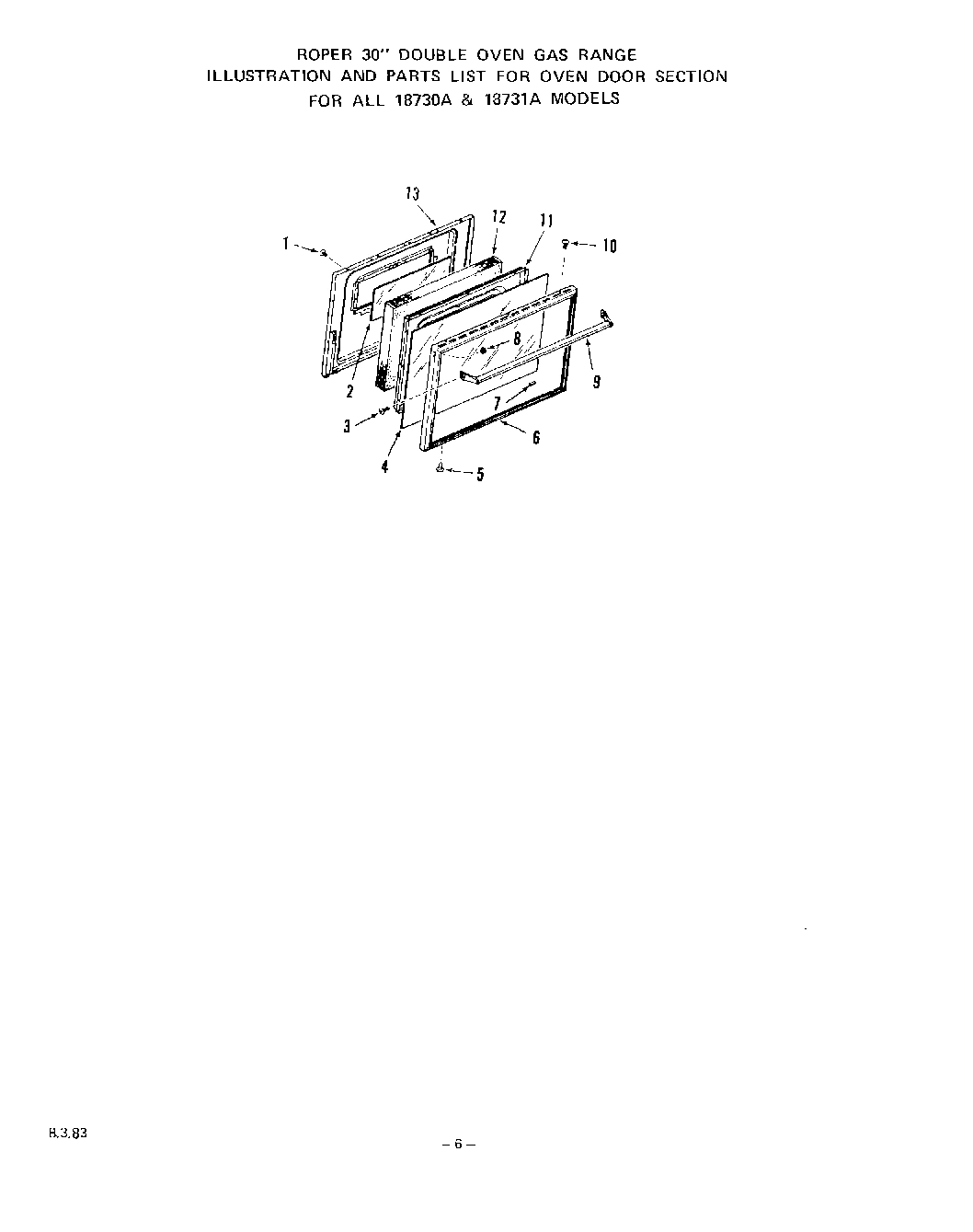

05 - UPPER OVEN BURNER

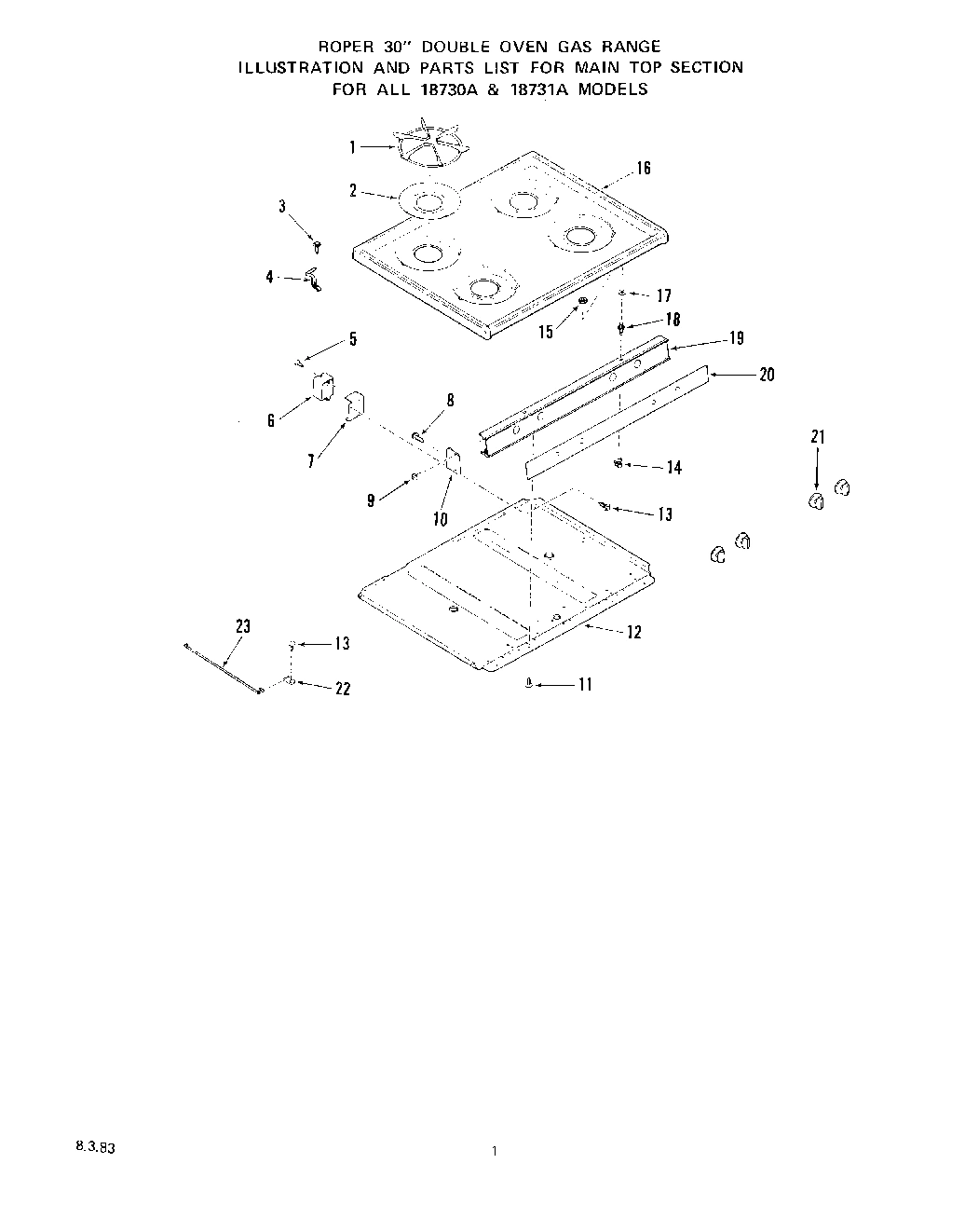

02 - BURNER

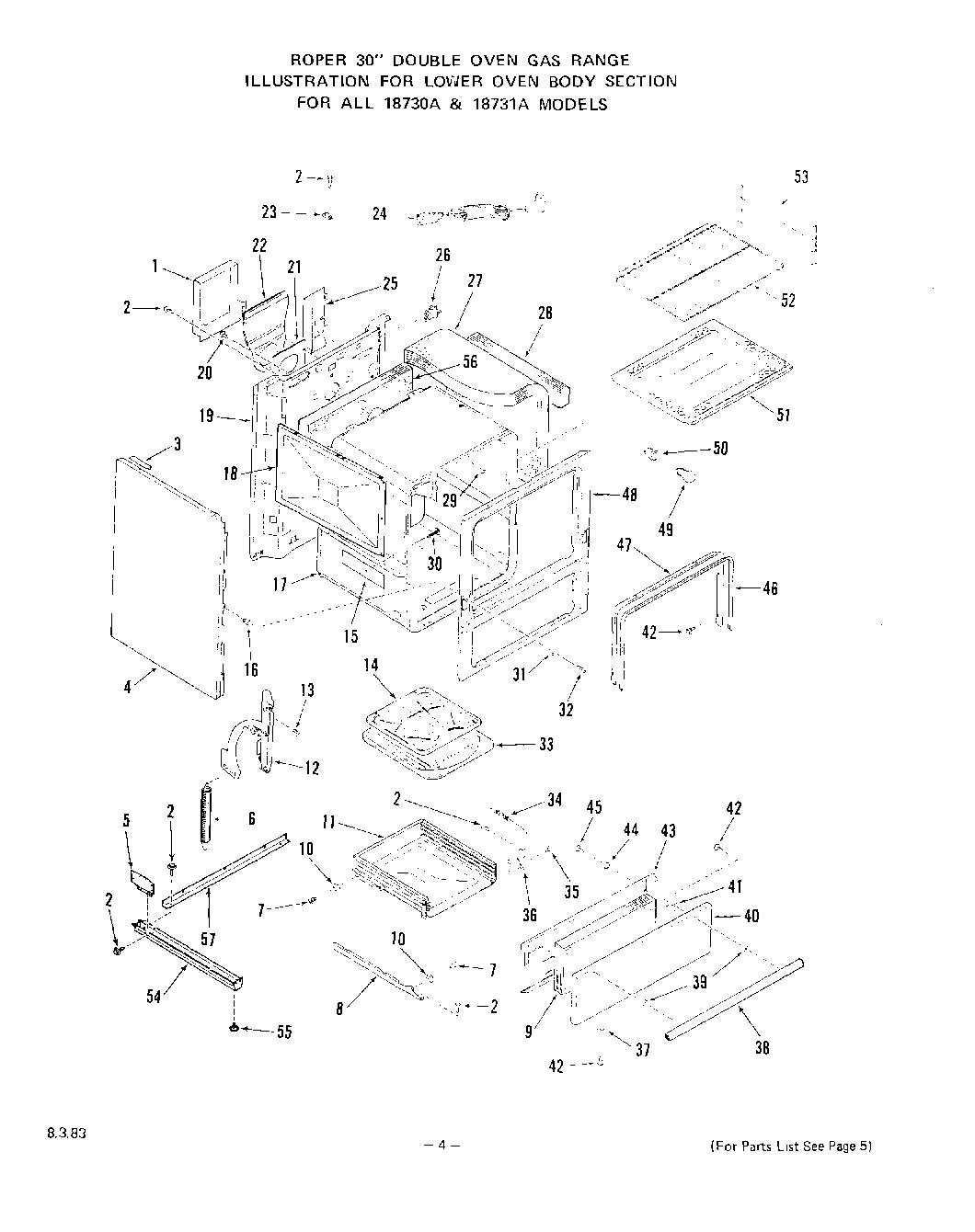

04 - OVEN DOOR

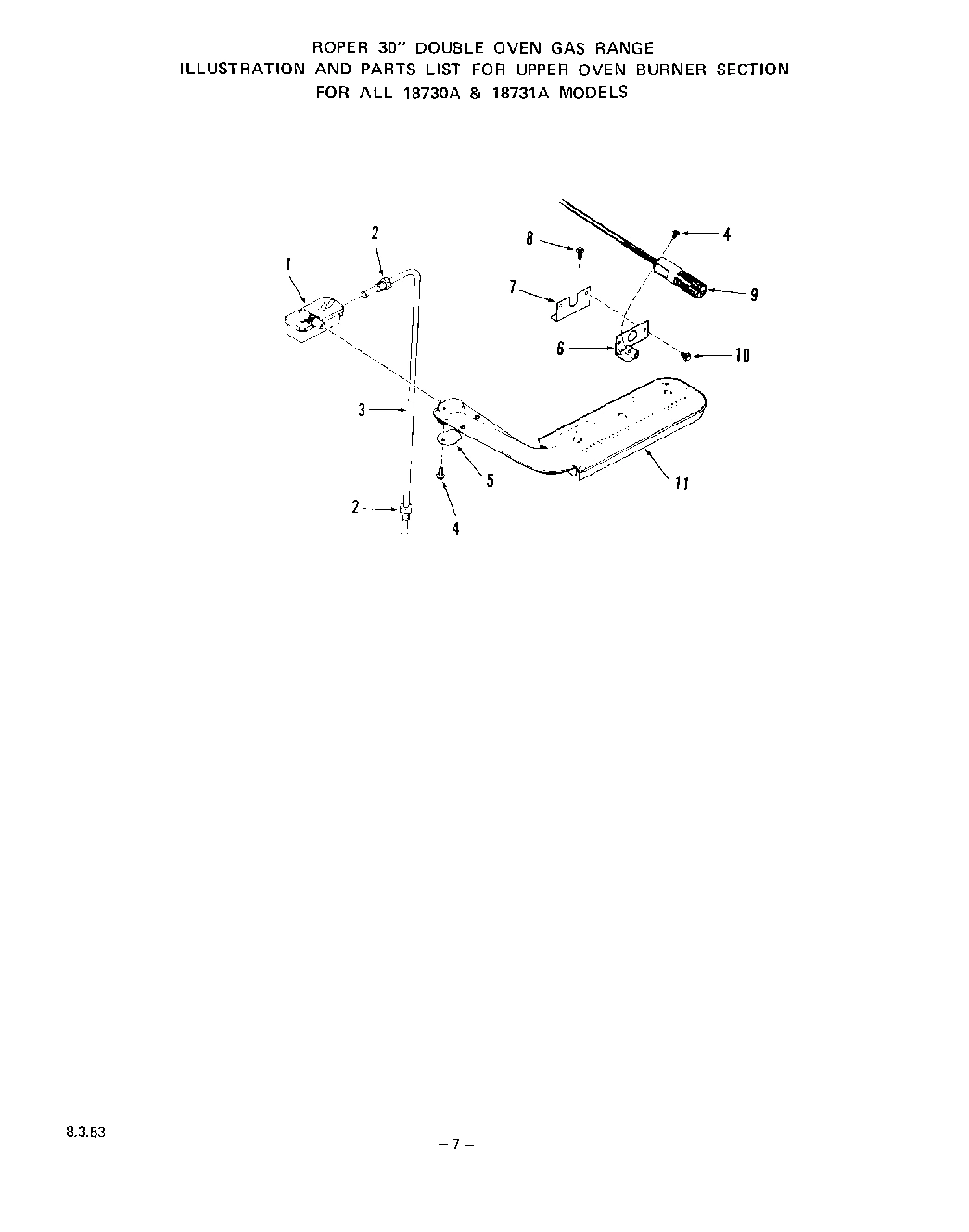

06 - UPPER DOOR
08 - OVEN CONTROL PANEL

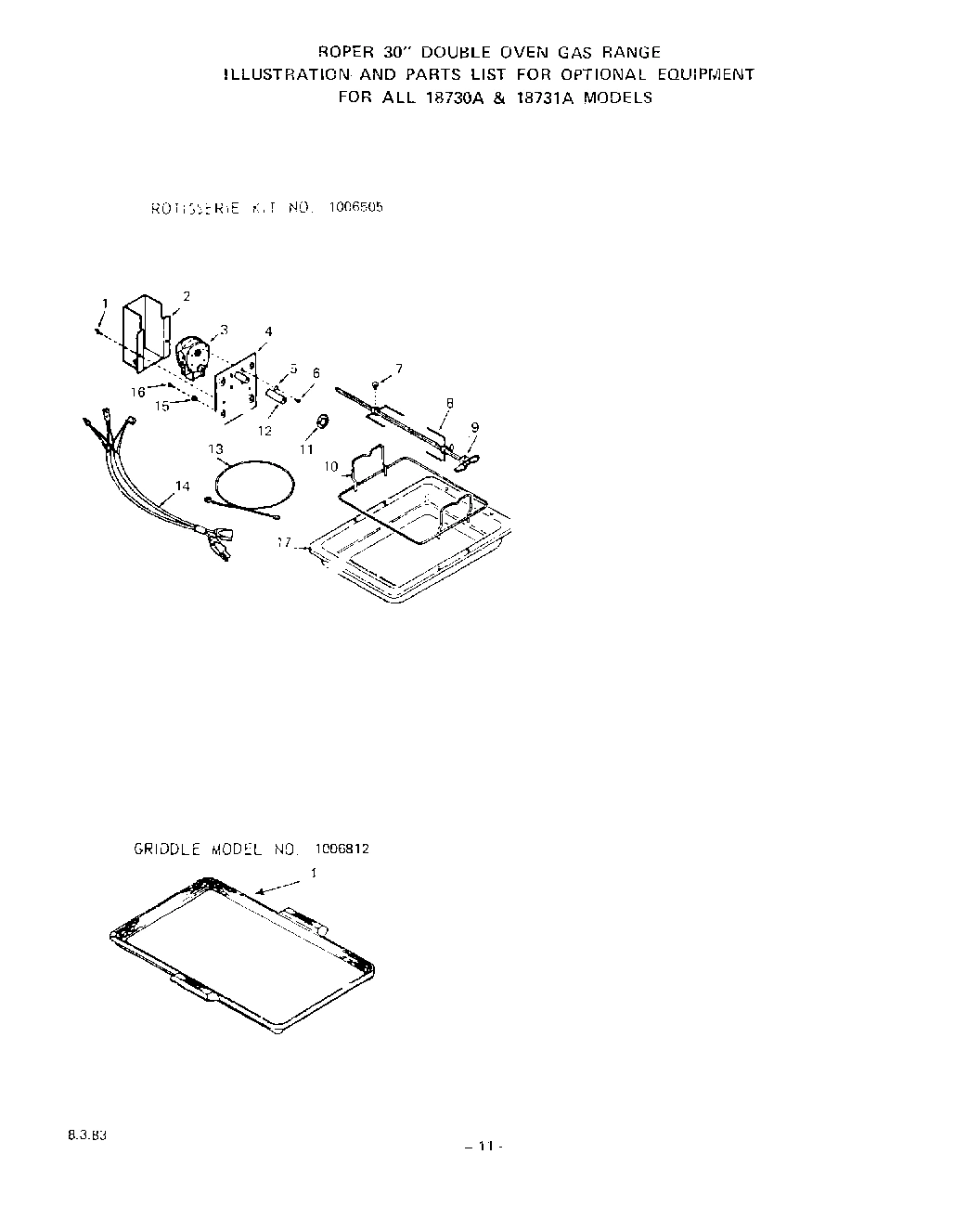

09 - SECTION

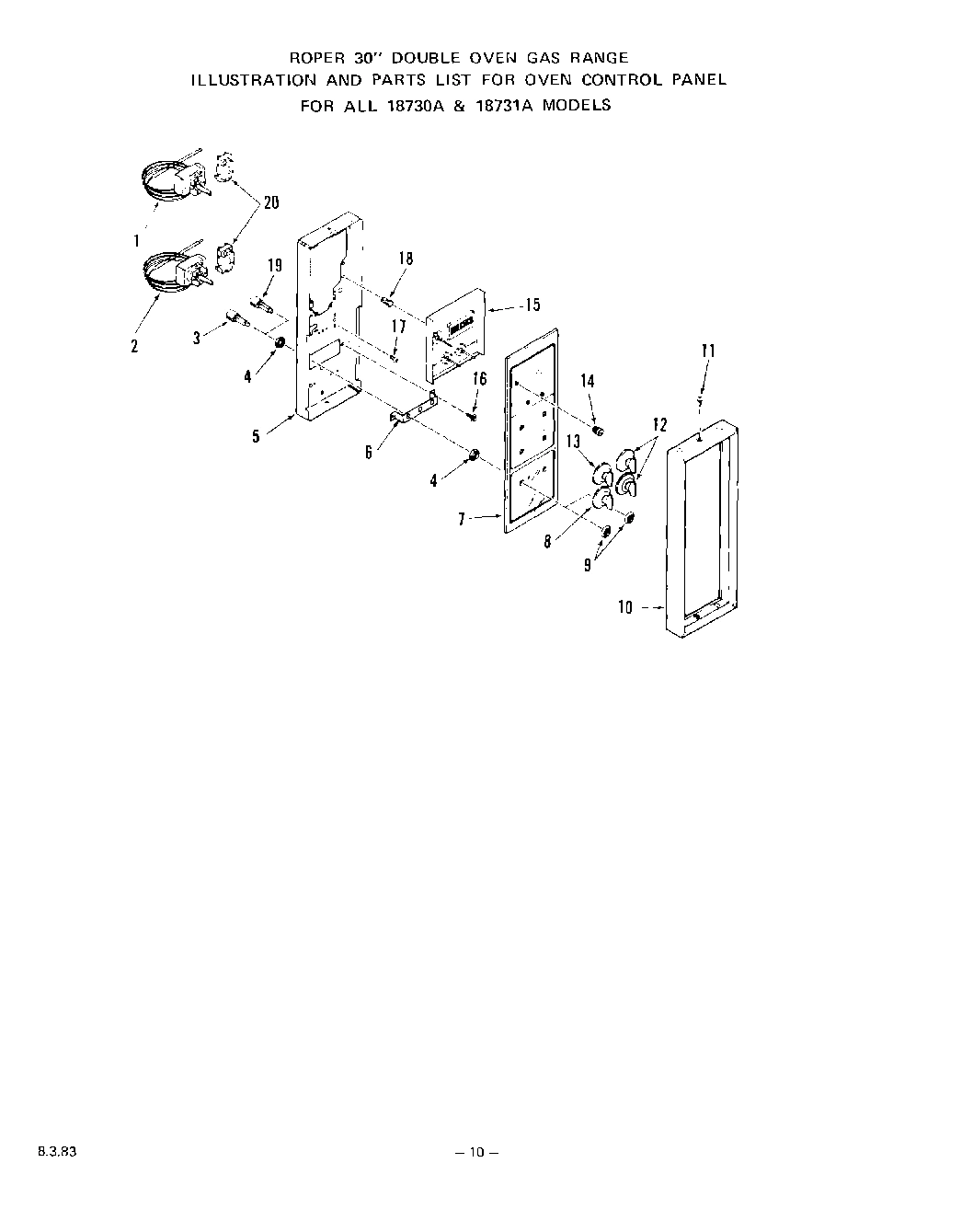

07 - OVEN CONTROL PANEL

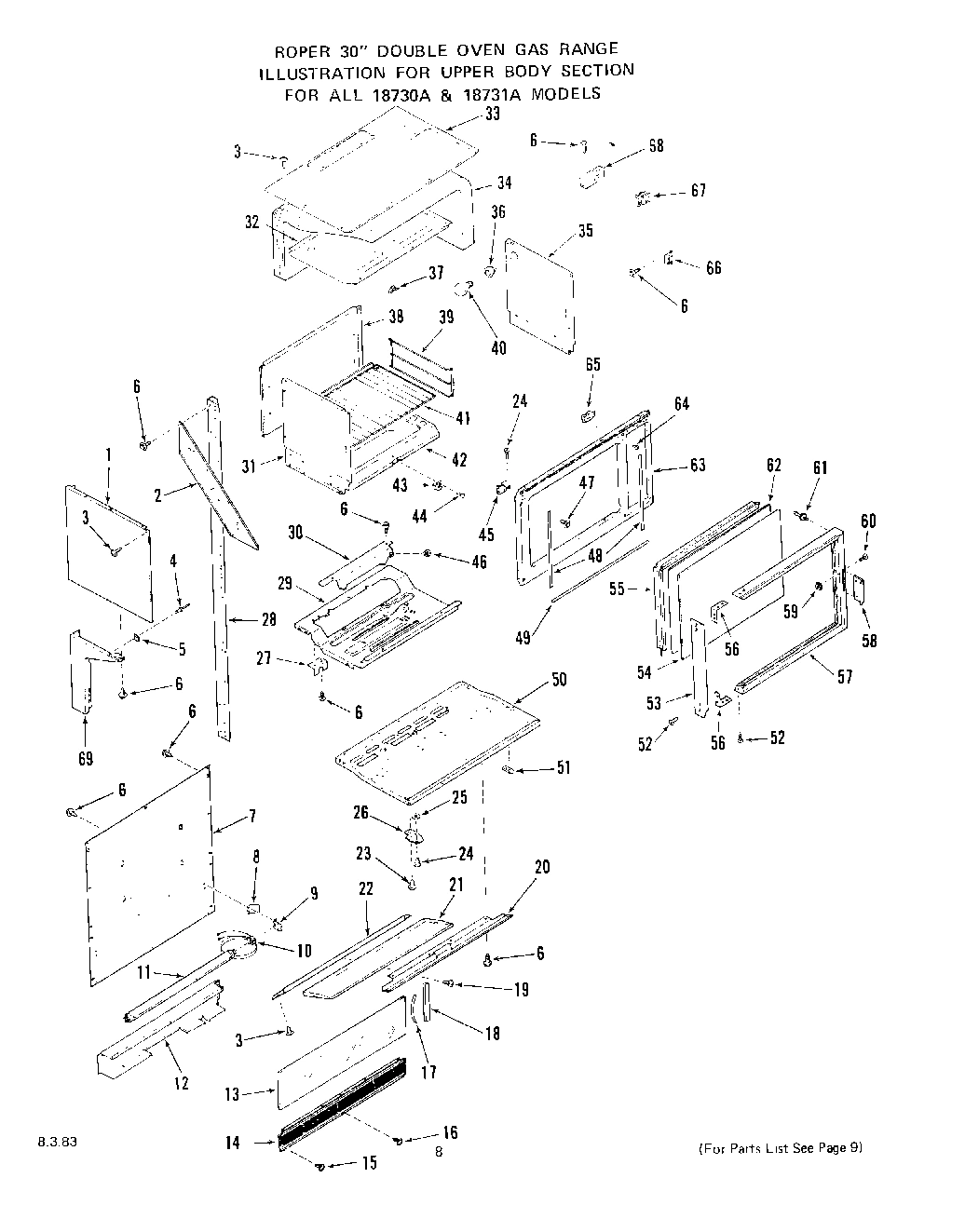

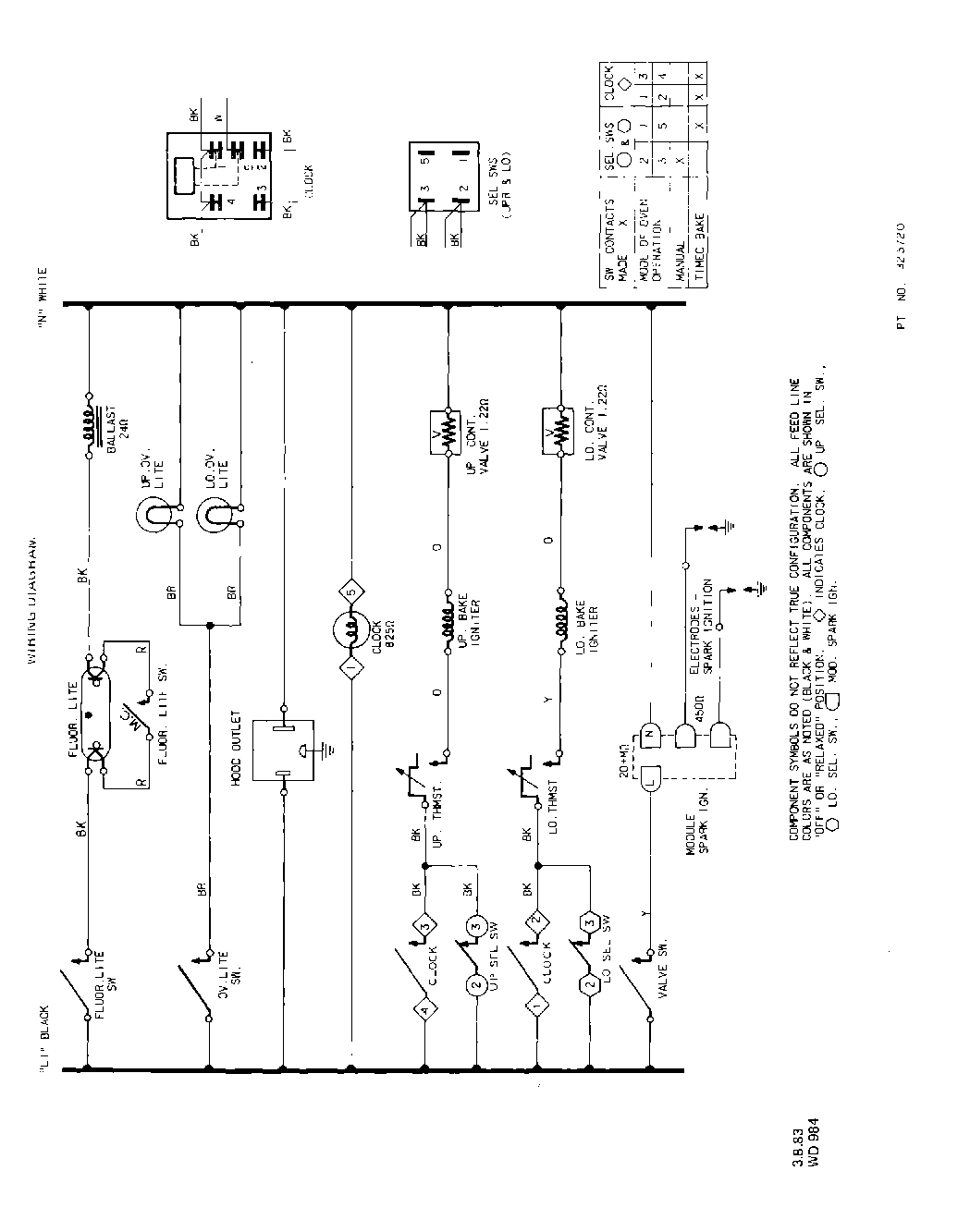

10 - SECTION
Common parts from model Whirlpool 1873W0A DOUBLE OVEN GAS RANGE
xParts Not Shown On Illustration WPL ARI8767A53 Contact Us For Availability
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI8768A50 Contact Us For Availability
1
Rear Top Burner (Inc`s. 38 & 39) WPL 310197 Contact Us For Availability
1
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Shield - Flue Deflector WPL 296011 Contact Us For Availability
1
Control Valve WPL 309946 Contact Us For Availability
1
Thermostat-Upper Oven WPL 324372 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
1
Upper Oven Body Side (White-Right) WPL 323875 Contact Us For Availability
1
Upper Oven Body Side (Coffee-Right) WPL 323876 Contact Us For Availability
1
Upper Oven Body Side (Avocado-Right) WPL 323877 Contact Us For Availability
1
Upper Oven Body Side (Golden Wheat-Right) WPL 323878 Contact Us For Availability
1
Upper Oven Body Side (Almond-Right) WPL 323879 Contact Us For Availability
1
Upper Oven Body Side (White-Left) WPL 323881 Contact Us For Availability
1
Upper Oven Body Side (Coffee-Left) WPL 323882 Contact Us For Availability
1
Upper Oven Body Side (Avocado-Left) WPL 323883 Contact Us For Availability
1
Upper Oven Body Side (Golden Wheat-Left) WPL 323884 Contact Us For Availability
1
Upper Oven Body Side (Almond-Left) WPL 323885 Contact Us For Availability
2
Inner Glass-Oven Door WPL 296214 Contact Us For Availability
2
Spill Bowl (4 Req) WPL 322888 Contact Us For Availability
2
G.M. Inverted Nut 3/8`` WPL 142433 Contact Us For Availability
2
Thermostat-Lower Oven WPL 321513 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Brace - Cabinet Side (Lt or Rt) WPL 324791 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
Tubing 3/8`` (Tee to Upper Control Valve) WPL 324517 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
3
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
3
Spacer-Main Top (Lt. or Rt.) WPL 303513 Contact Us For Availability
3
Push Switch (Fluorescent Light) WPL 288557 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
4
Outer Glass-Oven Door WPL 318315 Contact Us For Availability
4
Hinge-Main Top (Right) WPL 323404 Contact Us For Availability
4
Hinge-Main Top (Left) WPL 323405 Contact Us For Availability
4
Body Side-Lt. or Rt.) (White) WPL 323938 Contact Us For Availability
4
Body Side (Lt. or Rt.) (Coffee) WPL 323939 Contact Us For Availability
4
Body Side (Lt. or Rt.) (Avocado) WPL 323940 Contact Us For Availability
4
Body Side-Lt. or Rt.) (Golden Wheat) WPL 323941 Contact Us For Availability
4
Body Side-Lt. or Rt.) (Almond) WPL 323942 Contact Us For Availability
4
Pal Nut (4 Req) WPL 236129 Contact Us For Availability
4
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
4
Pop Rivet WPL 101523 Contact Us For Availability
5
Bracket-Igniter WPL 316076 Contact Us For Availability
5
Bracket-Support & Base (Lt. or Rt.) WPL 324212 Contact Us For Availability
5
Air Shutter WPL 323455 Contact Us For Availability
5
Mounting Panel-Controls WPL 305727 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Retainer WPL 285523 Contact Us For Availability
6
Hex Nut 6-32 WPL 236313 Contact Us For Availability
6
Bracket-Igniter WPL 311689 Contact Us For Availability
6
Frame-Oven Door WPL 296473 Contact Us For Availability
6
Module-Spark Igniter WPL 320990 Contact Us For Availability
6
Spring-Oven Door (Lt. or Rt.) WPL 296170 Contact Us For Availability
6
Mounting Bracket-Switches WPL 305729 Contact Us For Availability
6
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
7
Bracket-Control Valve WPL 296179 Contact Us For Availability
7
Cushion-Door Glass (5 Required) WPL 112370 Contact Us For Availability
7
Bracket - Spark Igniter Module WPL 315369 Contact Us For Availability
7
Shoulder Rivet WPL 70275 Contact Us For Availability
7
Bracket-Igniter WPL 302535 Contact Us For Availability
7
Glass-Control Panel WPL 325036 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Wire Cover WPL 324755 Contact Us For Availability
8
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
8
Control Valve WPL 308319 Contact Us For Availability
8
Broiler Drawer Guide (Inc`s. 7 & 10) (Right) WPL 296327 Contact Us For Availability
8
Knob-Lower Oven Thermostat WPL 321074 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Shield-Wire WPL 321107 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
9
Igniter WPL 319887 Contact Us For Availability
9
Handle-Oven Door WPL 303342 Contact Us For Availability
9
Trim Nut WPL 321667 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Bracket-Fluorescent Lamp (Rt. or Lt.) WPL 324746 Contact Us For Availability
10
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
10
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
10
End Cap-Manifold Panel (Left) WPL 318258 Contact Us For Availability
10
End Cap-Manifold Panel (Right) WPL 318259 Contact Us For Availability
10
Roller WPL 69006 Contact Us For Availability
10
Screw 10ABx3/8`` WPL 69605 Contact Us For Availability
10
Frame-Control Panel WPL 282279 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Holder-Fluerescent Lamp (Right) WPL 325103 Contact Us For Availability
10
Holder-Fluerescent Lamp (Left) WPL 325104 Contact Us For Availability
11
Oven Burner (Inc`s. 9, 10 & 25) WPL 324864 Contact Us For Availability
11
Retainer - Oven Door Insulation WPL 296471 Contact Us For Availability
11
Broiler Drawer (Inc`s. 7 & 10) WPL 303904 Contact Us For Availability
11
Oven Burner Complete WPL 311323 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
12
Insulation WPL 303556 Contact Us For Availability
12
Burner Box Bottom WPL 323918 Contact Us For Availability
12
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
12
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
12
Knob-Selector Switch WPL 321519 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Wire Cover-Fluorescent Lamp WPL 324514 Contact Us For Availability
13
Lining - Oven Door WPL 296206 Contact Us For Availability
13
Knob-Upper Oven Thermostat WPL 321100 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & PiggyBa WPL 291284 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
13
Fluorescent Lamp Glass WPL 324747 Contact Us For Availability
14
Support-Top Burner WPL 313375 Contact Us For Availability
14
Catch - Main Top Strike WPL 24667 Contact Us For Availability
14
Broiler Pan Grid WPL 313071 Contact Us For Availability
14
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Lower Retainer-Fluorescent Lamp Glass WPL 324393 Contact Us For Availability
15
Electrode-Top Igniter (Lt.) WPL 312455 Contact Us For Availability
15
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Clock w/Hr. Timer WPL 303005 Contact Us For Availability
15
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
16
Front Top Burner (Inc`s. 38 & 39) WPL 310196 Contact Us For Availability
16
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
16
Screw 6-32 x 1/2`` WPL 108788 Contact Us For Availability
16
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
16
Main Top (White) WPL 316813 Contact Us For Availability
16
Main Top (Almond) WPL 316814 Contact Us For Availability
16
Main Top (Golden Wheat) WPL 316815 Contact Us For Availability
16
Main Top (Avocado) WPL 316816 Contact Us For Availability
16
Main Top (Coffee) WPL 316817 Contact Us For Availability
16
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
17
Electrode-Top Igniter (Rt.) WPL 312598 Contact Us For Availability
17
Washer WPL 99279 Contact Us For Availability
17
Oven Body WPL 323854 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
Spring - Lamp Glass End Trim (Lt or Rt) WPL 286327 Contact Us For Availability
18
Wire Cover-Thermostat WPL 308315 Contact Us For Availability
18
Strike (2 Req) WPL 299784 Contact Us For Availability
18
Retainer-Insulation (Lt. or Rt.) WPL 324188 Contact Us For Availability
18
Tubular Clip WPL 293577 Contact Us For Availability
18
End Trim - Lamp Glass (Lt or Rt) WPL 299979 Contact Us For Availability
19
Sleeve-Igniter Wires (Rt. or Lt.) WPL 314132 Contact Us For Availability
19
Manifold Panel WPL 325482 Contact Us For Availability
19
Main Back WPL 323925 Contact Us For Availability
19
Push Switch-Upper & Lower Oven Light WPL 306333 Contact Us For Availability
19
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
20
Pressure Regulator WPL 324529 Contact Us For Availability
20
Trim-Manifold Panel WPL 323806 Contact Us For Availability
20
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
20
Control Valve WPL 308350 Contact Us For Availability
20
Selector Switch WPL 321517 Contact Us For Availability
20
Thermostat WPL 323807 Contact Us For Availability
20
xGas Use & Care Guide WPL 324000 Contact Us For Availability
20
Gas Valve Switches-All 18730A Models WPL 324704 Contact Us For Availability
20
xInstallation & Reference Guide WPL 324771 Contact Us For Availability
20
xOperating Guide WPL 324774 Contact Us For Availability
20
Main WPL 324911 Contact Us For Availability
20
Gas Valve Sw.-All 18731A Models WPL 326868 Contact Us For Availability
20
xRepair Parts Manual WPL 326890 Contact Us For Availability
20
xWire Harness WPL ARI8766A53 Contact Us For Availability
20
Trim-Filter (White) WPL 323820 Contact Us For Availability
20
Trim-Filter (Coffee) WPL 323821 Contact Us For Availability
20
Trim-Filter (Avocado) WPL 323822 Contact Us For Availability
20
Trim Filter (Golden Wheat) WPL 323823 Contact Us For Availability
20
Trim-Filter (Almond) WPL 323824 Contact Us For Availability
21
Knob-Gas Valve (4 Req) WPL 324893 Contact Us For Availability
21
Gasket WPL 296010 Contact Us For Availability
21
Cover-Vent (White) WPL 321660 Contact Us For Availability
21
Cover-Vent (Coffee) WPL 321661 Contact Us For Availability
21
Cover-Vent (Avocado) WPL 321662 Contact Us For Availability
21
Cover - Vent (Golden Whea WPL 321663 Contact Us For Availability
21
WPL 321664 WPL 321664 Contact Us For Availability
22
Clip WPL 285945 Contact Us For Availability
22
Flue Deflector WPL 300917 Contact Us For Availability
22
WPL 320127 WPL 320127 Contact Us For Availability
22
WPL 320128 WPL 320128 Contact Us For Availability
22
WPL 320129 WPL 320129 Contact Us For Availability
22
WPL 320130 WPL 320130 Contact Us For Availability
22
WPL 320131 WPL 320131 Contact Us For Availability
23
Cover-Wire WPL 307002 Contact Us For Availability
23
Support Rod-Main Top WPL 315379 Contact Us For Availability
23
WPL 112013 WPL 112013 Contact Us For Availability
23
Clip (For Key 24) WPL 106767 Contact Us For Availability
24
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
24
Range Service Cord WPL 235822 Contact Us For Availability
24
WPL 292906 WPL 292906 Contact Us For Availability
25
Baffle - Oven Burner WPL 308321 Contact Us For Availability
25
Shield - Oven Light Wire WPL 324240 Contact Us For Availability
25
WPL 67710 WPL 67710 Contact Us For Availability
26
Gasket (4 Req. for Key 31) WPL 313563 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
WPL 323886 WPL 323886 Contact Us For Availability
27
Gasket (4 Req) WPL 304241 Contact Us For Availability
27
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
27
WPL 109289 WPL 109289 Contact Us For Availability
28
Screw 1/4-20 (4 Req) WPL 311455 Contact Us For Availability
28
WPL 324058 WPL 324058 Contact Us For Availability
29
Tee 3/8`` WPL 237347 Contact Us For Availability
29
WPL 302869 WPL 302869 Contact Us For Availability
30
Manifold Pipe WPL 323805 Contact Us For Availability
30
Dart-Button Head (2 Req) WPL 296097 Contact Us For Availability
30
WPL 302870 WPL 302870 Contact Us For Availability
31
Gas Valve (4 Req. Inc`s. 26) WPL 324912 Contact Us For Availability
31
Washer WPL 303963 Contact Us For Availability
31
WPL 323953 WPL 323953 Contact Us For Availability
32
Tubing 3/8`` (Tee to Oven Burner) WPL 324524 Contact Us For Availability
32
WPL 294296 WPL 294296 Contact Us For Availability
33
Switch-Gas Valve (4 Req) WPL 310253 Contact Us For Availability
33
Broiler Pan WPL 290171 Contact Us For Availability
33
WPL 323888 WPL 323888 Contact Us For Availability
33
WPL 323889 WPL 323889 Contact Us For Availability
33
WPL 323890 WPL 323890 Contact Us For Availability
33
WPL 323891 WPL 323891 Contact Us For Availability
33
WPL 323892 WPL 323892 Contact Us For Availability
34
Fitting WPL 312833 Contact Us For Availability
34
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
34
WPL 324318 WPL 324318 Contact Us For Availability
35
Shut Off Valve WPL 292894 Contact Us For Availability
35
Shoulder Rivet WPL 305064 Contact Us For Availability
35
WPL 323951 WPL 323951 Contact Us For Availability
36
Hinge - Broiler Door (Right) WPL 296124 Contact Us For Availability
36
Hinge-Broiler WPL 296125 Contact Us For Availability
36
WPL 295974 WPL 295974 Contact Us For Availability
37
Tubing 3/8`` (Shut-Off Valve to Tee) WPL 324521 Contact Us For Availability
37
WPL 115533 WPL 115533 Contact Us For Availability
37
WPL 21067 WPL 21067 Contact Us For Availability
38
Air Shutter WPL 301910 Contact Us For Availability
38
WPL 292240 WPL 292240 Contact Us For Availability
38
WPL 305541 WPL 305541 Contact Us For Availability
39
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
39
WPL 302343 WPL 302343 Contact Us For Availability
39
WPL 305628 WPL 305628 Contact Us For Availability
40
Wire Cover-Gas Valve-All 18730A Models (Left) WPL 326863 Contact Us For Availability
40
Wire Cover-Gas Valve-All 18730A Models (Right WPL 326865 Contact Us For Availability
40
WPL 296131 WPL 296131 Contact Us For Availability
40
WPL 308346 WPL 308346 Contact Us For Availability
40
WPL 308975 WPL 308975 Contact Us For Availability
40
WPL 308976 WPL 308976 Contact Us For Availability
40
WPL 308977 WPL 308977 Contact Us For Availability
40
WPL 111257 WPL 111257 Contact Us For Availability
41
WPL 296137 WPL 296137 Contact Us For Availability
41
WPL 305629 WPL 305629 Contact Us For Availability
42
WPL 316365 WPL 316365 Contact Us For Availability
42
WPL 288655 WPL 288655 Contact Us For Availability
43
WPL 296332 WPL 296332 Contact Us For Availability
43
WPL 325485 WPL 325485 Contact Us For Availability
44
WPL 99139 WPL 99139 Contact Us For Availability
45
WPL 281781 WPL 281781 Contact Us For Availability
46
WPL 296102 WPL 296102 Contact Us For Availability
46
WPL 98761 WPL 98761 Contact Us For Availability
47
WPL 296103 WPL 296103 Contact Us For Availability
47
WPL 321162 WPL 321162 Contact Us For Availability
48
WPL 323796 WPL 323796 Contact Us For Availability
48
WPL 292912 WPL 292912 Contact Us For Availability
49
WPL 292913 WPL 292913 Contact Us For Availability
50
WPL 323869 WPL 323869 Contact Us For Availability
51
WPL 296070 WPL 296070 Contact Us For Availability
51
WPL 324159 WPL 324159 Contact Us For Availability
52
WPL 305408 WPL 305408 Contact Us For Availability
52
WPL 102559 WPL 102559 Contact Us For Availability
53
WPL 305409 WPL 305409 Contact Us For Availability
53
WPL 281846 WPL 281846 Contact Us For Availability
54
WPL 323929 WPL 323929 Contact Us For Availability
54
WPL 308010 WPL 308010 Contact Us For Availability
55
WPL 69065 WPL 69065 Contact Us For Availability
55
WPL 281992 WPL 281992 Contact Us For Availability
56
WPL 296140 WPL 296140 Contact Us For Availability
56
WPL 292907 WPL 292907 Contact Us For Availability
57
WPL 323931 WPL 323931 Contact Us For Availability
57
WPL 281845 WPL 281845 Contact Us For Availability
58
WPL 293051 WPL 293051 Contact Us For Availability
59
WPL 239764 WPL 239764 Contact Us For Availability
60
WPL 235134 WPL 235134 Contact Us For Availability
61
WPL 299263 WPL 299263 Contact Us For Availability
62
WPL 293049 WPL 293049 Contact Us For Availability
63
WPL 323873 WPL 323873 Contact Us For Availability
64
WPL 78565 WPL 78565 Contact Us For Availability
64
WPL 97411 WPL 97411 Contact Us For Availability
65
WPL 97003 WPL 97003 Contact Us For Availability
66
WPL 98186 WPL 98186 Contact Us For Availability
67
WPL 109180 WPL 109180 Contact Us For Availability
68
WPL 293747 WPL 293747 Contact Us For Availability
69
WPL 325283 WPL 325283 Contact Us For Availability
69
WPL 325284 WPL 325284 Contact Us For Availability
69
WPL 325285 WPL 325285 Contact Us For Availability
69
WPL 325286 WPL 325286 Contact Us For Availability
69
WPL 325287 WPL 325287 Contact Us For Availability
69
WPL 325289 WPL 325289 Contact Us For Availability
69
WPL 325290 WPL 325290 Contact Us For Availability
69
WPL 325291 WPL 325291 Contact Us For Availability
69
WPL 325292 WPL 325292 Contact Us For Availability
69
WPL 325293 WPL 325293 Contact Us For Availability
× ![]()
