Model Whirlpool 1833W0A DOUBLE OVEN GAS RANGE – Common Parts & Diagrams
02 - LOWER OVEN BURNER

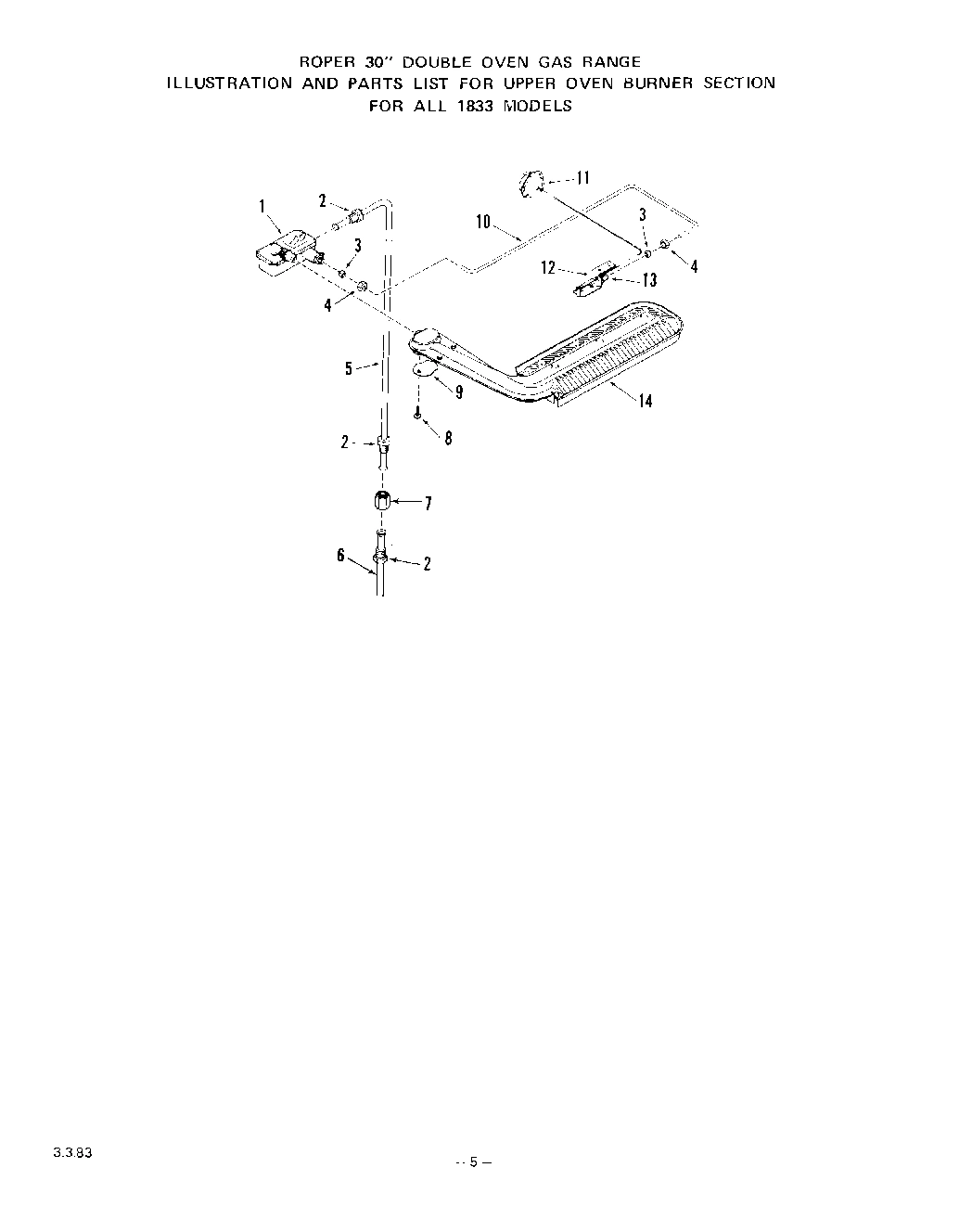

03 - UPPER OVEN BURNER

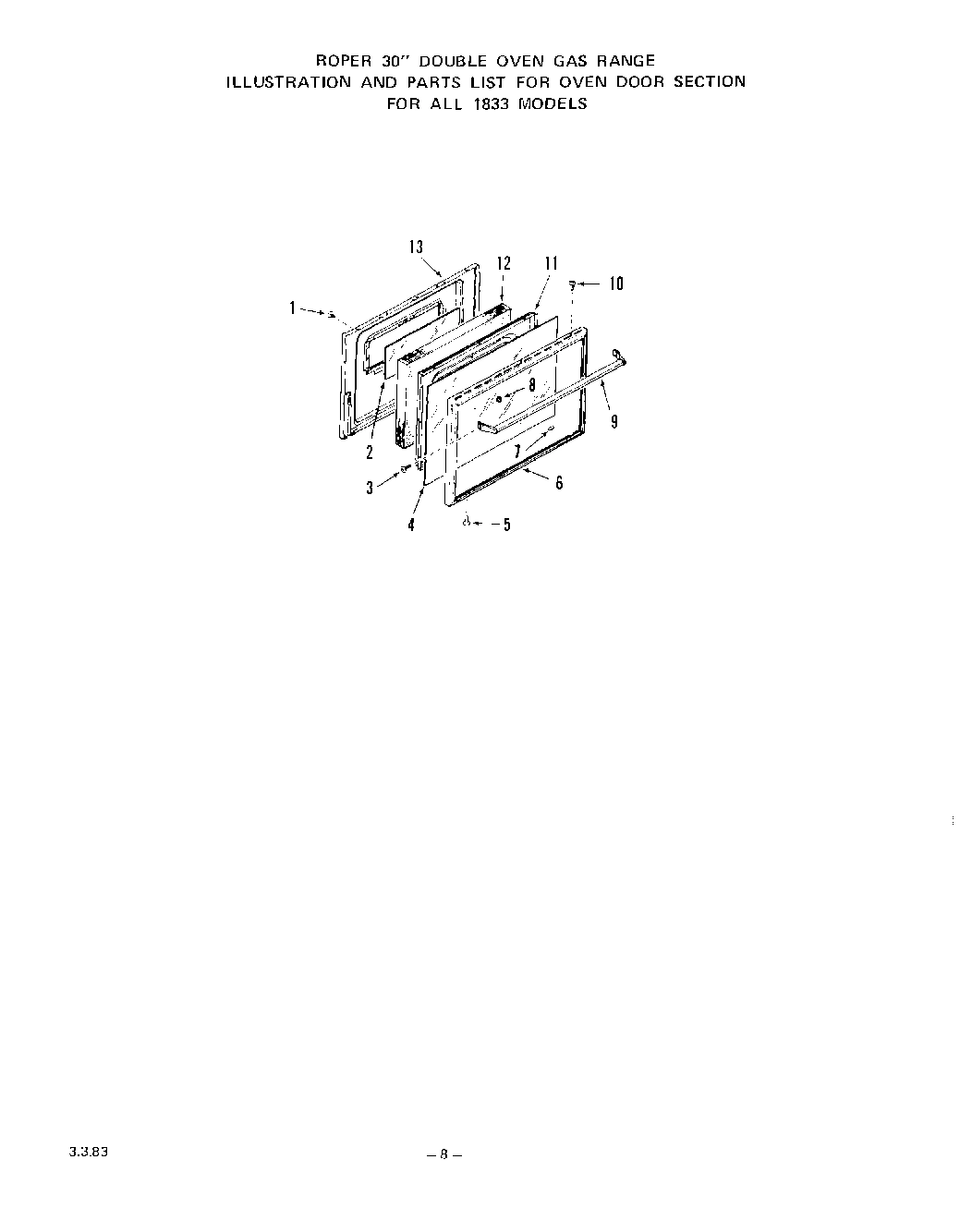

05 - OVEN DOOR

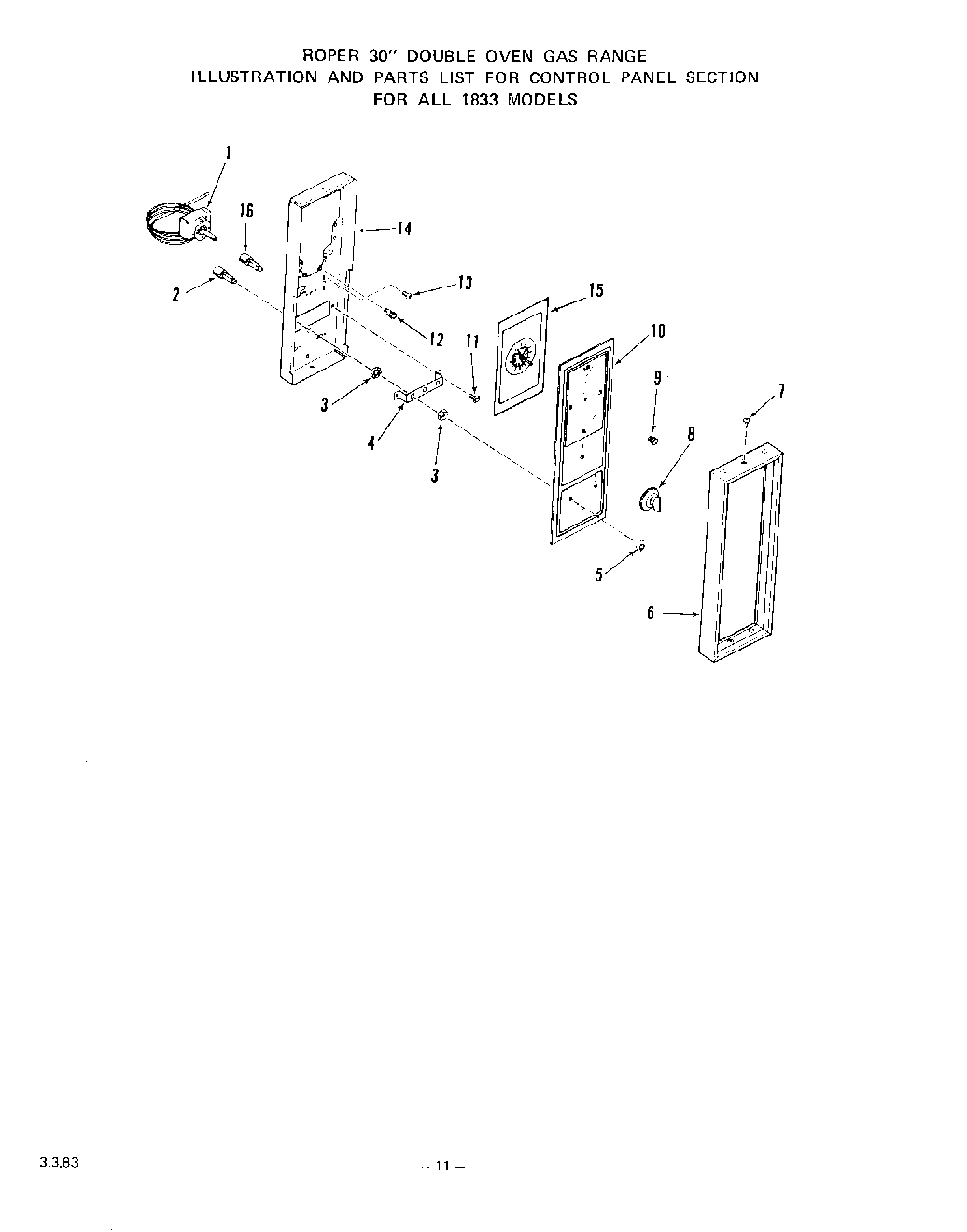

07 - CONTROL PANEL
08 - LIT/OPTIONAL
10 - SECTION
01 - MAIN TOP

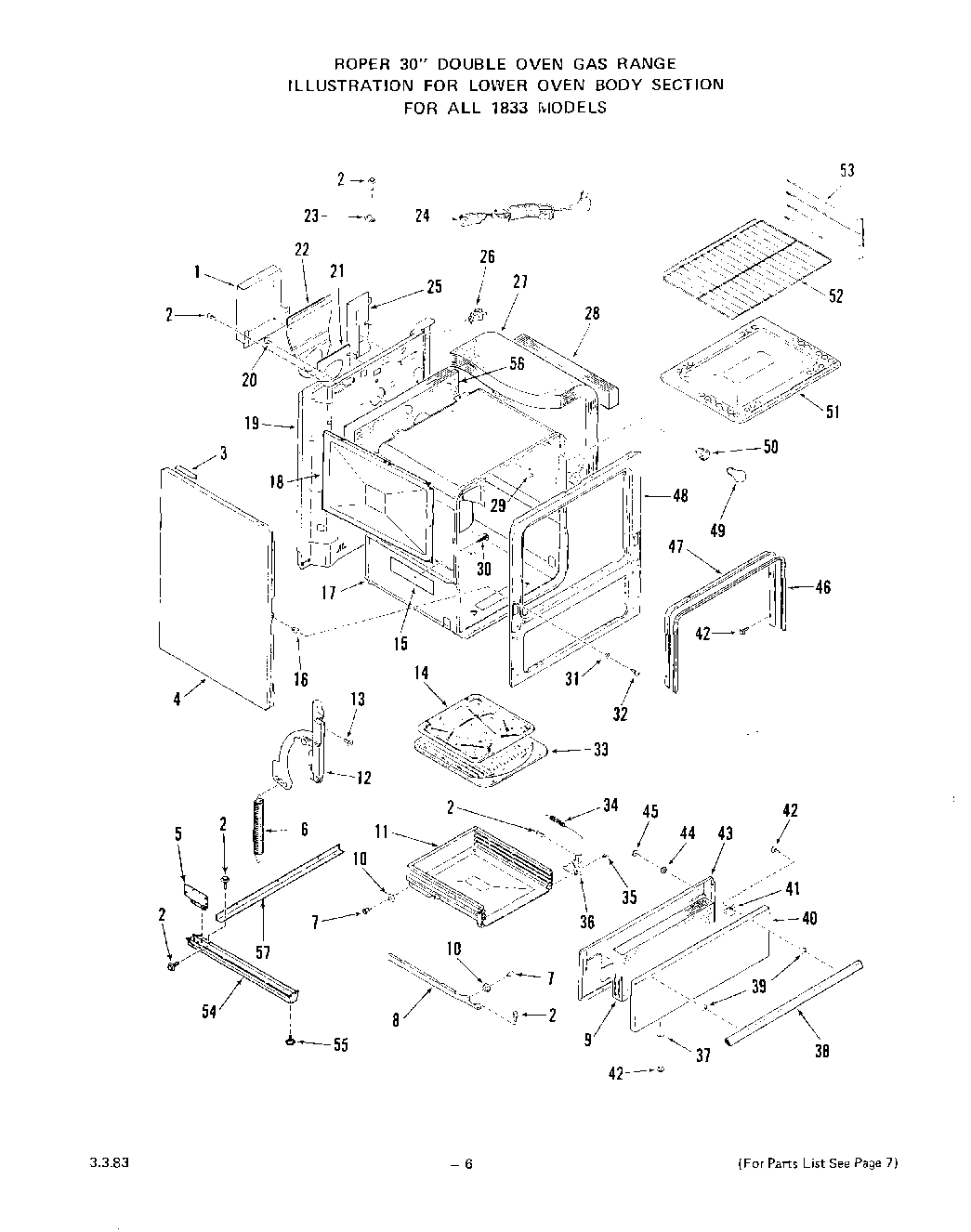

04 - LOWER OVEN BODY

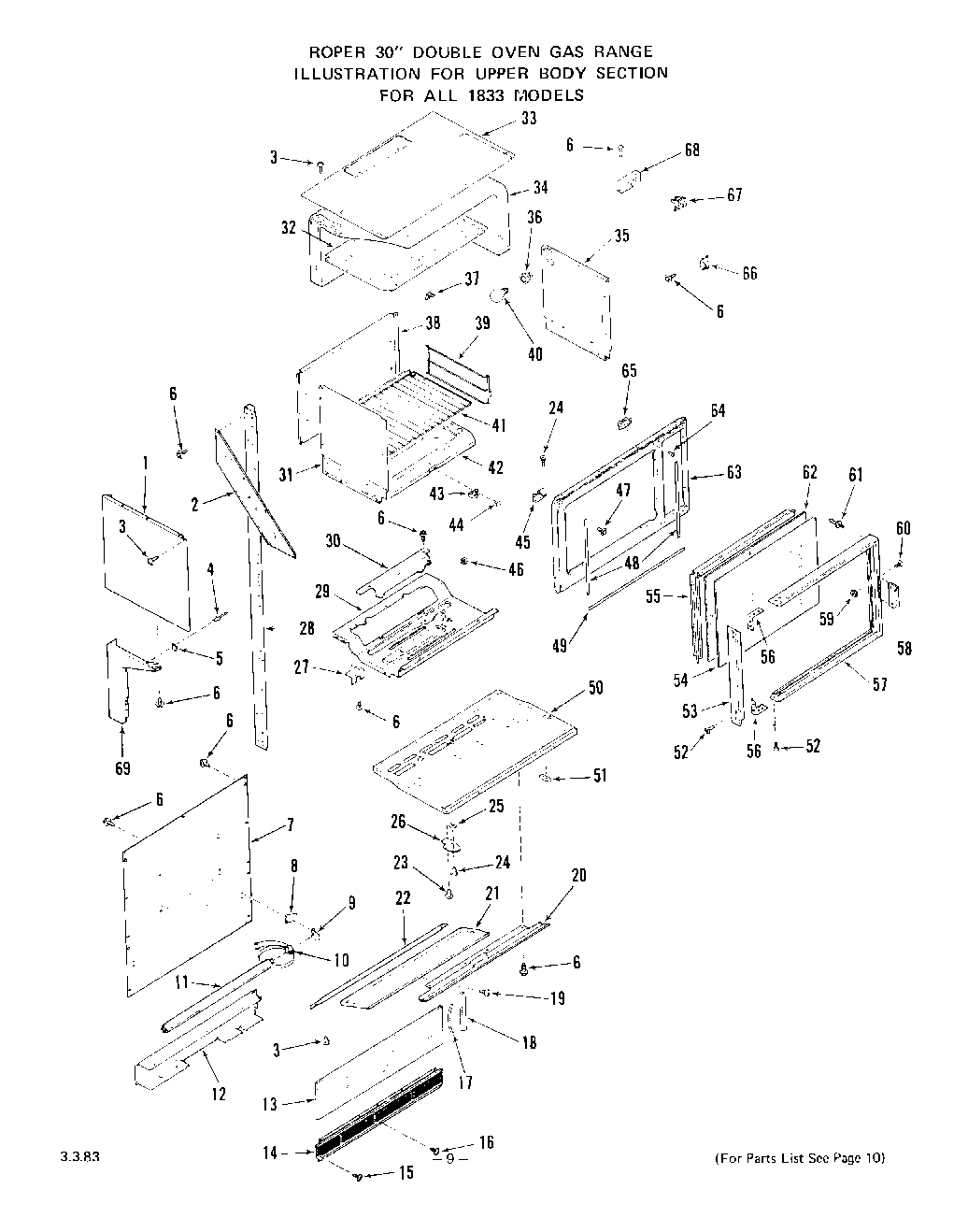

06 - UPPER BODY
Common parts from model Whirlpool 1833W0A DOUBLE OVEN GAS RANGE
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Shield - Flue Deflector WPL 296011 Contact Us For Availability
1
Upper Oven Body Side (White-Right) WPL 323875 Contact Us For Availability
1
Upper Oven Body Side (Golden Wheat-Right) WPL 323878 Contact Us For Availability
1
Upper Oven Body Side (Almond-Right) WPL 323879 Contact Us For Availability
1
Upper Oven Body Side (White-Left) WPL 323881 Contact Us For Availability
1
Upper Oven Body Side (Golden Wheat-Left) WPL 323884 Contact Us For Availability
1
Upper Oven Body Side (Almond-Left) WPL 323885 Contact Us For Availability
1
Thermostat WPL 321022 Contact Us For Availability
1
Control Valve WPL 293796 Contact Us For Availability
2
Cup-Pilot (Lt. or Rt.) WPL 308292 Contact Us For Availability
2
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
2
Brace-Cabinet Side (Lt. or Rt.) WPL 324546 Contact Us For Availability
2
Push Switch (Oven Lamp) WPL 306333 Contact Us For Availability
2
Inner Glass-Oven Door WPL 296214 Contact Us For Availability
3
Hinge (Right) WPL 323404 Contact Us For Availability
3
Hinge (Left) WPL 323405 Contact Us For Availability
3
Shield-Top Pilot (Lt. or Rt.) WPL 296183 Contact Us For Availability
3
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
3
Spacer-Main Top (Lt. or Rt.) WPL 303513 Contact Us For Availability
3
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
3
Pal Nut WPL 236129 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
4
Rear Top Burner-Lt. or Rt. (Inc`s. 6 & 7) WPL 310197 Contact Us For Availability
4
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
4
Body Side-Lt. or Rt.) (White) WPL 323938 Contact Us For Availability
4
Body Side-Lt. or Rt.) (Golden Wheat) WPL 323941 Contact Us For Availability
4
Body Side-Lt. or Rt.) (Almond) WPL 323942 Contact Us For Availability
4
Pop Rivet WPL 101523 Contact Us For Availability
4
Mounting Bracket-Switch WPL 305729 Contact Us For Availability
4
Outer Glass-Oven Door WPL 318315 Contact Us For Availability
5
Washer WPL 310218 Contact Us For Availability
5
Front Top Burner-Lt. or Rt. (Inc`s. 6 & 7) WPL 310196 Contact Us For Availability
5
Bracket-Support & Base (Lt. or Rt.) WPL 324212 Contact Us For Availability
5
Retainer WPL 285523 Contact Us For Availability
5
Trim Nut WPL 321667 Contact Us For Availability
5
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
5
Tubing 3/8`` (Union To Control Valve) WPL 295037 Contact Us For Availability
6
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
6
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
6
Tubing 3/8`` (Shut-Off Valve to Union) WPL 324521 Contact Us For Availability
6
Spring-Oven Door (Lt. or Rt.) WPL 296170 Contact Us For Availability
6
Frame-Control Panel WPL 282279 Contact Us For Availability
6
Frame-Oven Door WPL 296473 Contact Us For Availability
7
Air Shutter WPL 301910 Contact Us For Availability
7
Shoulder Rivet WPL 70275 Contact Us For Availability
7
Wire Cover WPL 324755 Contact Us For Availability
7
Union Connector 3/8`` WPL 113372 Contact Us For Availability
7
Cushion-Door Glass (5 Required) WPL 112370 Contact Us For Availability
8
Keps Nut 8-32 WPL 239764 Contact Us For Availability
8
Burner Box Bottom WPL 325085 Contact Us For Availability
8
Support-Top Burner WPL 308297 Contact Us For Availability
8
Broiler Drawer Guide (Inc`s. 7 & 10) (Right) WPL 296327 Contact Us For Availability
8
Shield-Wire WPL 321107 Contact Us For Availability
8
Knob-Thermostat WPL 321100 Contact Us For Availability
8
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
9
Knob-Thermostat WPL 324942 Contact Us For Availability
9
Pilot Tube (Inc`s. 13 & 14) WPL 315423 Contact Us For Availability
9
Bracket-Fluorescent Lamp (Rt. or Lt.) WPL 324746 Contact Us For Availability
9
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
9
Air Shutter WPL 323455 Contact Us For Availability
9
Handle-Oven Door WPL 303342 Contact Us For Availability
10
Knob-Gas Valve (4 Req) WPL 324893 Contact Us For Availability
10
Pressure Regulator WPL 324529 Contact Us For Availability
10
Roller WPL 69006 Contact Us For Availability
10
Holder-Fluorescent Lamp (Right) WPL 325103 Contact Us For Availability
10
Holder-Fluorescent Lamp (Left) WPL 325104 Contact Us For Availability
10
Glass-Control Panel WPL 324940 Contact Us For Availability
10
Tubing 3/16`` (Control Valve to Flame Switch) WPL 277370 Contact Us For Availability
10
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
11
Catch - Main Top Strike WPL 24667 Contact Us For Availability
11
Manifold Pipe WPL 324916 Contact Us For Availability
11
Broiler Drawer (Inc`s. 7 & 10) WPL 303904 Contact Us For Availability
11
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
11
Flame Switch Only WPL 281285 Contact Us For Availability
11
Retainer - Oven Door Insulation WPL 296471 Contact Us For Availability
12
Manifold Panel (White) WPL 324531 Contact Us For Availability
12
Manifold Panel (Golden Wheat) WPL 324534 Contact Us For Availability
12
Manifold Panel (Almond) WPL 324535 Contact Us For Availability
12
Filter-Top Pilot WPL 290610 Contact Us For Availability
12
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
12
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
12
Wire Cover-Fluorescent Lamp WPL 324514 Contact Us For Availability
12
Tubular Clip (4 Req.) WPL 293577 Contact Us For Availability
12
Pilot & Bracket Only WPL 295946 Contact Us For Availability
12
Insulation WPL 303556 Contact Us For Availability
13
Strike WPL 299784 Contact Us For Availability
13
Compression Nut 1/4`` WPL 4825 Contact Us For Availability
13
Fluorescent Lamp Glass WPL 324747 Contact Us For Availability
13
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
13
Orifice Cup Only WPL 281441 Contact Us For Availability
13
Lining - Oven Door WPL 296206 Contact Us For Availability
14
Washer WPL 99279 Contact Us For Availability
14
Compression Ball Sleeve 1/4`` WPL 867 Contact Us For Availability
14
Broiler Pan Grid WPL 313071 Contact Us For Availability
14
Lower Retainer-Fluorescent Lamp Glass WPL 324393 Contact Us For Availability
14
Mounting Panel-Controls WPL 305727 Contact Us For Availability
14
Oven Burner WPL 311323 Contact Us For Availability
15
Main Top (White) WPL 316813 Contact Us For Availability
15
Main Top (Almond) WPL 316814 Contact Us For Availability
15
Main Top (Golden Wheat) WPL 316815 Contact Us For Availability
15
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
15
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
15
Clock w/4 Hr. Timer WPL 307976 Contact Us For Availability
16
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
16
Screw 6-32 x 1/2`` WPL 108788 Contact Us For Availability
16
Push Switch (Fluorescent Light) WPL 288557 Contact Us For Availability
17
Shut Off Valve WPL 292894 Contact Us For Availability
17
Oven Body WPL 323854 Contact Us For Availability
17
Spring - Lamp Glass End Trim (Lt or Rt) WPL 286327 Contact Us For Availability
18
Spill Bowl (4 Req) WPL 322888 Contact Us For Availability
18
Clip (10 Req) WPL 288401 Contact Us For Availability
18
Retainer-Insulation (Lt. or Rt.) WPL 324188 Contact Us For Availability
18
End Trim - Lamp Glass (Lt or Rt) WPL 299979 Contact Us For Availability
19
Gasket WPL 288186 Contact Us For Availability
19
Main Back WPL 323925 Contact Us For Availability
19
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
20
Gas Valve (4 Req) WPL 324986 Contact Us For Availability
20
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
20
Trim-Filter (White) WPL 323820 Contact Us For Availability
20
Trim Filter (Golden Wheat) WPL 323823 Contact Us For Availability
20
Trim-Filter (Almond) WPL 323824 Contact Us For Availability
21
Baffle - Oven Burner WPL 302729 Contact Us For Availability
21
Gasket WPL 296010 Contact Us For Availability
21
Cover-Vent (White) WPL 321660 Contact Us For Availability
21
Cover - Vent (Golden Wheat) WPL 321663 Contact Us For Availability
21
Cover - Vent (Almond) WPL 321664 Contact Us For Availability
22
Tubing 3/16`` (Thermostat To Oven Pilot) WPL 322447 Contact Us For Availability
22
Flue Deflector WPL 300917 Contact Us For Availability
22
Upper Retainer-Lamp Glass (White) WPL 320127 Contact Us For Availability
22
Upper Retainer-Lamp Glass (Golden Wheat) WPL 320130 Contact Us For Availability
22
Upper Retainer-Lamp Glass (Almond) WPL 320131 Contact Us For Availability
23
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
23
Clip (For Key 24) WPL 106767 Contact Us For Availability
24
Orifice Cup Only WPL 113117 Contact Us For Availability
24
Range Service Cord WPL 235822 Contact Us For Availability
24
Hinge Pin WPL 292906 Contact Us For Availability
25
Pilot Head (Inc`s. 24) WPL 294528 Contact Us For Availability
25
Shield - Oven Light Wire WPL 324240 Contact Us For Availability
25
Washer WPL 67710 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
lower hinge-oven door WPL 323886 Contact Us For Availability
27
Loxit Nut WPL 79673 Contact Us For Availability
27
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
27
Bracket-Oven Orifice WPL 109289 Contact Us For Availability
28
Oven Thermostat WPL 302727 Contact Us For Availability
28
Support - Upp WPL 324058 Contact Us For Availability
29
Fitting-Straight 3/8`` WPL 303503 Contact Us For Availability
29
WPL 302869 WPL 302869 Contact Us For Availability
30
Screw 10-24x3/8`` WPL 299137 Contact Us For Availability
30
Dart-Button Head (2 Req) WPL 296097 Contact Us For Availability
30
WPL 302870 WPL 302870 Contact Us For Availability
31
Tubing 3/8`` (Thermostat To Oven Control) WPL 315807 Contact Us For Availability
31
Washer WPL 303963 Contact Us For Availability
31
WPL 323953 WPL 323953 Contact Us For Availability
32
Oven Burner (Inc`s. 21, 33 & 34) WPL 303398 Contact Us For Availability
32
WPL 294296 WPL 294296 Contact Us For Availability
33
Adjustment Screw-Air Shutter WPL 239268 Contact Us For Availability
33
Broiler Pan WPL 290171 Contact Us For Availability
33
WPL 323888 WPL 323888 Contact Us For Availability
33
WPL 323891 WPL 323891 Contact Us For Availability
33
WPL 323892 WPL 323892 Contact Us For Availability
34
Aid Shutter WPL 239267 Contact Us For Availability
34
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
34
WPL 324318 WPL 324318 Contact Us For Availability
35
Screw 10-32x2`` WPL 112365 Contact Us For Availability
35
Shoulder Rivet WPL 305064 Contact Us For Availability
35
WPL 323951 WPL 323951 Contact Us For Availability
36
Oven Control Valve WPL 294529 Contact Us For Availability
36
Hinge - Broiler Door (Right) WPL 296124 Contact Us For Availability
36
Hinge-Broiler Door (Left) WPL 296125 Contact Us For Availability
36
WPL 295974 WPL 295974 Contact Us For Availability
37
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
37
WPL 115533 WPL 115533 Contact Us For Availability
37
Washer WPL 21067 Contact Us For Availability
38
Handle-Broiler Door WPL 292240 Contact Us For Availability
38
WPL 305541 WPL 305541 Contact Us For Availability
39
Spacer WPL 302343 Contact Us For Availability
39
WPL 305628 WPL 305628 Contact Us For Availability
40
Front Panel-Broiler WPL 296131 Contact Us For Availability
40
WPL 308346 WPL 308346 Contact Us For Availability
40
WPL 308977 WPL 308977 Contact Us For Availability
40
WPL 111257 WPL 111257 Contact Us For Availability
41
WPL 296137 WPL 296137 Contact Us For Availability
41
WPL 305629 WPL 305629 Contact Us For Availability
42
WPL 316365 WPL 316365 Contact Us For Availability
42
WPL 288655 WPL 288655 Contact Us For Availability
43
WPL 296332 WPL 296332 Contact Us For Availability
43
WPL 325485 WPL 325485 Contact Us For Availability
44
WPL 69603 WPL 69603 Contact Us For Availability
44
WPL 99139 WPL 99139 Contact Us For Availability
45
WPL 239113 WPL 239113 Contact Us For Availability
45
WPL 281781 WPL 281781 Contact Us For Availability
46
WPL 296102 WPL 296102 Contact Us For Availability
46
WPL 98761 WPL 98761 Contact Us For Availability
47
WPL 296103 WPL 296103 Contact Us For Availability
47
WPL 321162 WPL 321162 Contact Us For Availability
48
WPL 323796 WPL 323796 Contact Us For Availability
48
WPL 292912 WPL 292912 Contact Us For Availability
49
WPL 292913 WPL 292913 Contact Us For Availability
50
WPL 323869 WPL 323869 Contact Us For Availability
51
WPL 296070 WPL 296070 Contact Us For Availability
51
WPL 324159 WPL 324159 Contact Us For Availability
52
WPL 305408 WPL 305408 Contact Us For Availability
52
WPL 102559 WPL 102559 Contact Us For Availability
53
WPL 305409 WPL 305409 Contact Us For Availability
53
WPL 281846 WPL 281846 Contact Us For Availability
54
WPL 323929 WPL 323929 Contact Us For Availability
54
WPL 308010 WPL 308010 Contact Us For Availability
55
WPL 69065 WPL 69065 Contact Us For Availability
55
WPL 281992 WPL 281992 Contact Us For Availability
56
WPL 296140 WPL 296140 Contact Us For Availability
56
WPL 292907 WPL 292907 Contact Us For Availability
57
WPL 323931 WPL 323931 Contact Us For Availability
57
WPL 281845 WPL 281845 Contact Us For Availability
58
WPL 293051 WPL 293051 Contact Us For Availability
60
WPL 235134 WPL 235134 Contact Us For Availability
61
WPL 299263 WPL 299263 Contact Us For Availability
62
WPL 293049 WPL 293049 Contact Us For Availability
63
WPL 323873 WPL 323873 Contact Us For Availability
64
WPL 97411 WPL 97411 Contact Us For Availability
65
WPL 97003 WPL 97003 Contact Us For Availability
66
WPL 98186 WPL 98186 Contact Us For Availability
67
WPL 109180 WPL 109180 Contact Us For Availability
68
WPL 293747 WPL 293747 Contact Us For Availability
69
WPL 325283 WPL 325283 Contact Us For Availability
69
WPL 325286 WPL 325286 Contact Us For Availability
69
WPL 325287 WPL 325287 Contact Us For Availability
69
WPL 325289 WPL 325289 Contact Us For Availability
69
WPL 325292 WPL 325292 Contact Us For Availability
69
WPL 325293 WPL 325293 Contact Us For Availability
× ![]()
