Model LG 1801FP – Common Parts & Diagrams

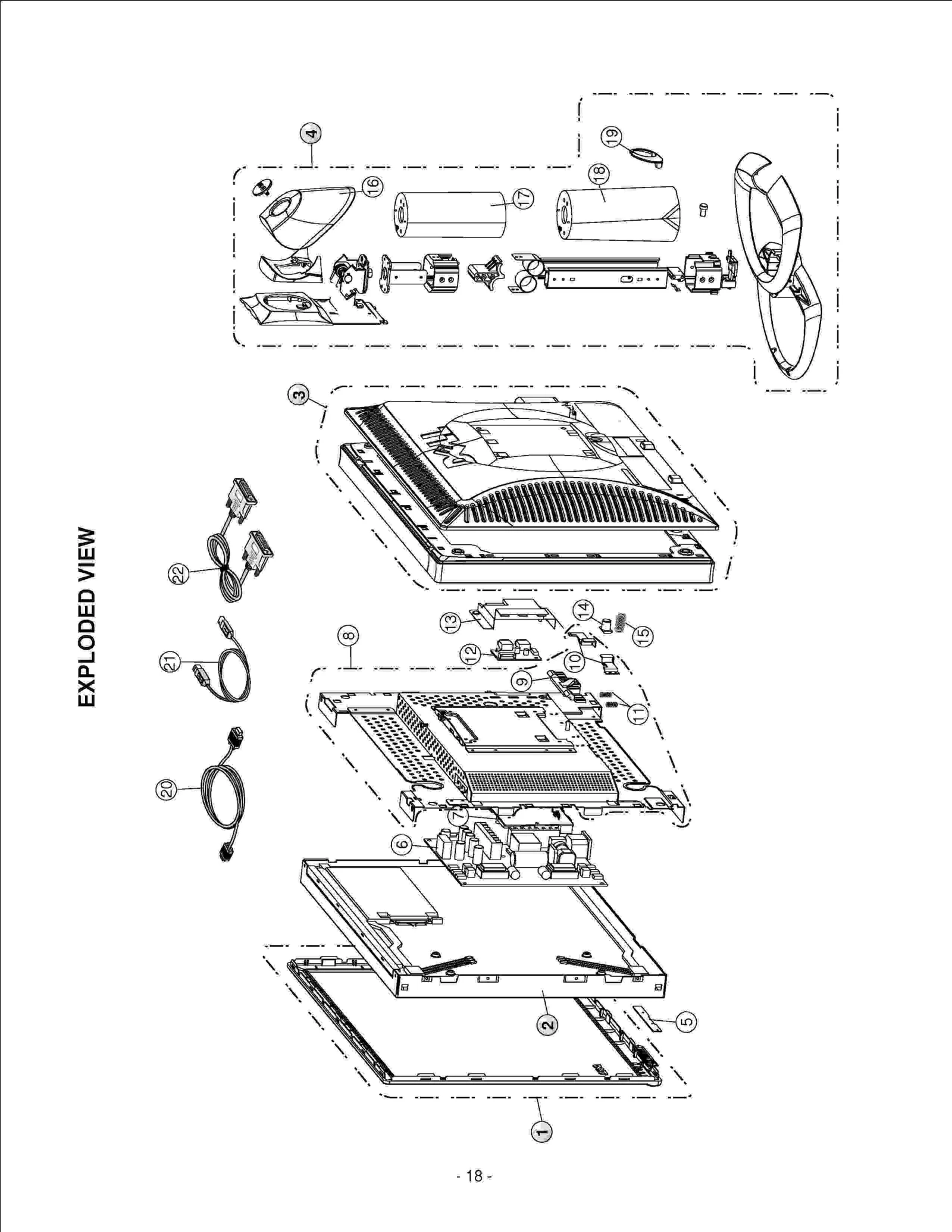

Diagram 0
Common parts from model LG 1801FP
0
SCREW, LGE 1SZZTER001A Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK142D Contact Us For Availability
0
SIGNAL CABLE LGE 6866TDU002A Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004J Contact Us For Availability
0
Screw,Customized LGE 332-068A Contact Us For Availability
0
Harness,Single LGE 6631T20023J Contact Us For Availability
0
LGE 4810TKK216A LGE 4810TKK216A Contact Us For Availability
0
LGE 320-160V LGE 320-160V Contact Us For Availability
0
SCREW ASSY LGE 339-006A Contact Us For Availability
0
LGE 6304FLP093A LGE 6304FLP093A Contact Us For Availability
0
LGE 3550TKK433A LGE 3550TKK433A Contact Us For Availability
0
LGE 6871TUT034A LGE 6871TUT034A Contact Us For Availability
0
POWER CORD LGE 174-206M Contact Us For Availability
0
COVER LGE 3550TKK435A Contact Us For Availability
0
LGE 3880TKZ012E LGE 3880TKZ012E Contact Us For Availability
0
PCB Assembly, Sub LGE 6871TST456A Contact Us For Availability
0
LGE 4951TKK147A LGE 4951TKK147A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTMF008B Contact Us For Availability
0
LGE 332-105M LGE 332-105M Contact Us For Availability
0
SCREW,DRAWING LGE 332-105K Contact Us For Availability
0
LGE 3550TKK436A LGE 3550TKK436A Contact Us For Availability
0
LGE 3880TKZ012A LGE 3880TKZ012A Contact Us For Availability
0
LGE 320-160U LGE 320-160U Contact Us For Availability
0
LGE 4814TKK256A LGE 4814TKK256A Contact Us For Availability
0
Cable,Assembly LGE 6850TD9004F Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT261A Contact Us For Availability
0
LGE 332-102K LGE 332-102K Contact Us For Availability
0
LGE 3550TKK438A LGE 3550TKK438A Contact Us For Availability
0
LGE 4810TKK217A LGE 4810TKK217A Contact Us For Availability
0
Harness,Single LGE 6631T20029A Contact Us For Availability
0
LGE 3890TSE520A LGE 3890TSE520A Contact Us For Availability
0
LGE 3550TKK437A LGE 3550TKK437A Contact Us For Availability
0
LGE 6871TMT489A LGE 6871TMT489A Contact Us For Availability
0
LGE 1MCC0402423 LGE 1MCC0402423 Contact Us For Availability
0
LGE 1SZZTEB001C LGE 1SZZTEB001C Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTMC001A Contact Us For Availability
0
LGE 320-160T LGE 320-160T Contact Us For Availability
0
LGE 4814TKK261A LGE 4814TKK261A Contact Us For Availability
0
LGE 4951TKS127C LGE 4951TKS127C Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11016D Contact Us For Availability
0
LGE 3550TKK434A LGE 3550TKK434A Contact Us For Availability
0
LGE 4810TKK220A LGE 4810TKK220A Contact Us For Availability
0
SCREW LGE 332-095A Contact Us For Availability
0
LGE 1SZZTPC002B LGE 1SZZTPC002B Contact Us For Availability
0
SCREW, LGE 1SZZTPP001C Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171TZ1233D Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL063C Contact Us For Availability
0
LGE 4940TKT198A LGE 4940TKT198A Contact Us For Availability
0
LGE 6631T11017H LGE 6631T11017H Contact Us For Availability
0
SCREW,DRAWING LGE 332-068U Contact Us For Availability
0
LGE 3550TKK432A LGE 3550TKK432A Contact Us For Availability
0
LGE 3920TKE244A LGE 3920TKE244A Contact Us For Availability
0
MAIN TOTAL ASSEMBLY LGE 3313TL8040A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPP001E Contact Us For Availability
C246
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C251
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C402
CAPACITOR,AL.ELECTRO LGE 0CE477EH618 Contact Us For Availability
C409
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C418
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C423
Capacitor,AL,Radial LGE 0CE477EF610 Contact Us For Availability
C833
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C902
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
D622
Diode,Schottky LGE 0DS301109AA Contact Us For Availability
D804
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
J601
LGE 6630TGA004E LGE 6630TGA004E Contact Us For Availability
J602
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
J801
Connector,USB LGE 6630SK00804 Contact Us For Availability
J802
Connector,USB LGE 6630SK00704 Contact Us For Availability
L901
Filter,Bead LGE 6210TCE001B Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q603
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R212
RESISTOR,METAL GLAZE LGE 0RJ0822D677 Contact Us For Availability
R233
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R254
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R269
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R273
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R416
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R606
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R647
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R650
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R802
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R816
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R820
RESISTOR,METAL GLAZE LGE 0RJ3602D677 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
U201
LGE 0IPRPGN013A LGE 0IPRPGN013A Contact Us For Availability
U202
LGE 0IZZTSZ306A LGE 0IZZTSZ306A Contact Us For Availability
U203
IC,KEC LGE 0IKE704200H Contact Us For Availability
U204
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
U401
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U402
IC,POWER MANAGEMENT LGE 0IPMGSG019A Contact Us For Availability
U403
TRANSISTOR,FETS LGE 0TFFC80009A Contact Us For Availability
U803
LGE 0IPRPCY001A LGE 0IPRPCY001A Contact Us For Availability
U804
IC,ROHM LGE 0IRH033000A Contact Us For Availability
X201
RESONATOR,CRYSTAL LGE 6212AA2004F Contact Us For Availability
X801
LGE 6212AA2004C LGE 6212AA2004C Contact Us For Availability
ZD603
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
