  • LG 17Z90UR-P.AU99U3 Parts List

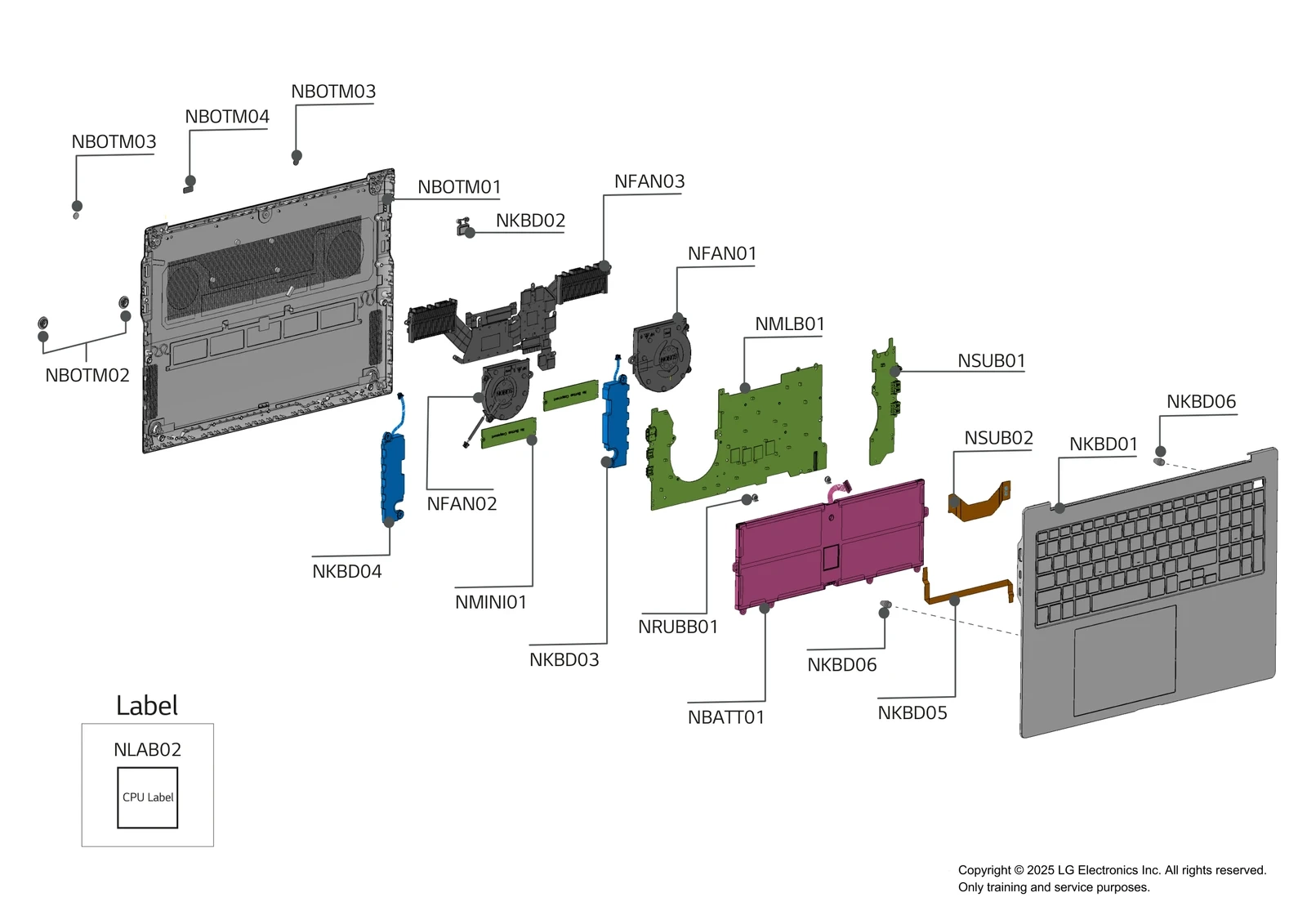

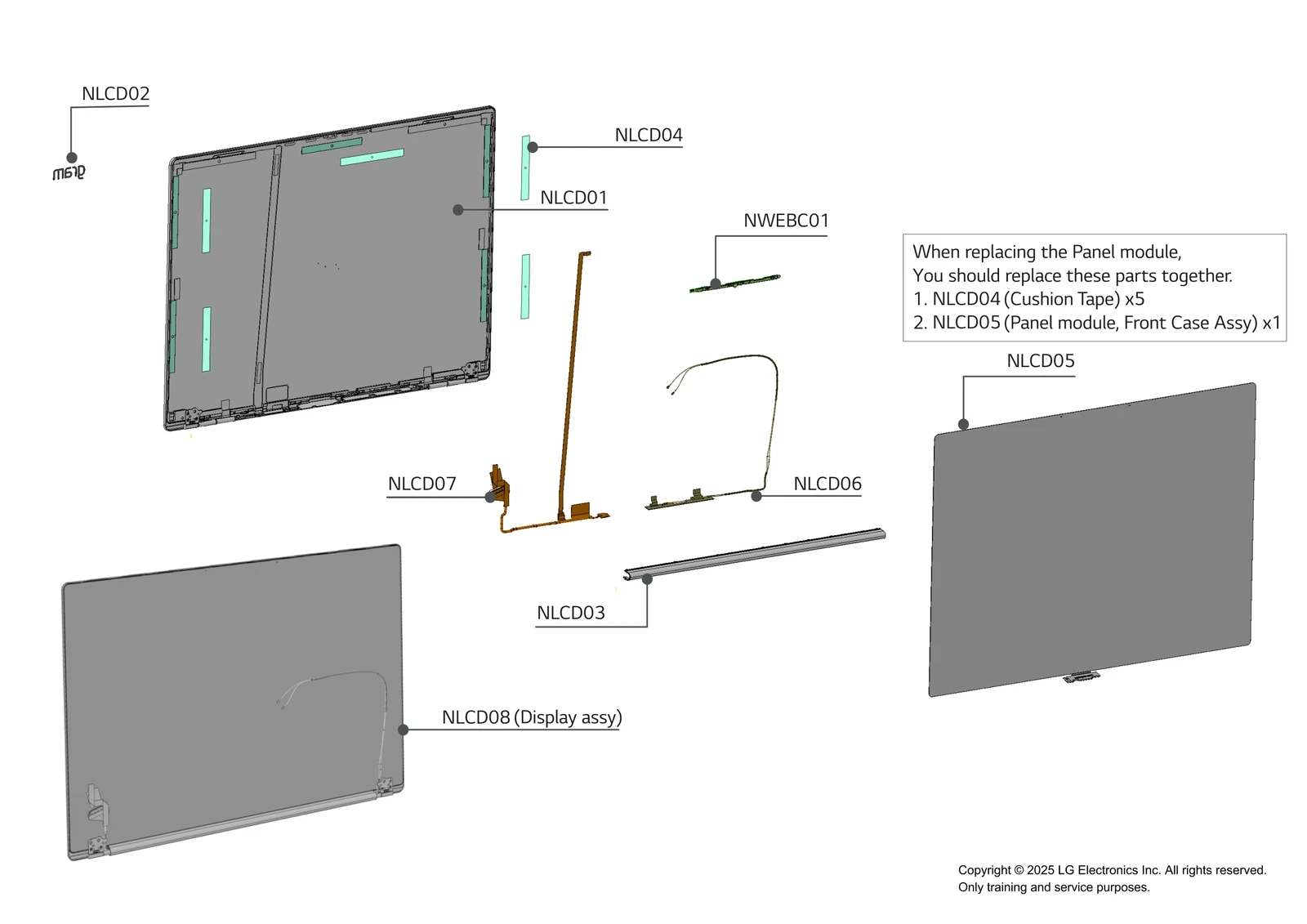

Model LG 17Z90UR-P.AU99U3 B2C – Common Parts & Diagrams

NADT01
Adapters
Adapters LGE EAY30151401 Contact Us For Availability
View on Model
NBATT01
Rechargeable Battery,Lithium Ion
Rechargeable Battery,Lithium Ion LGE EAC64810401 Contact Us For Availability
View on Model
NBOTM01
Case Assembly
Case Assembly LGE ABQ30414901 Contact Us For Availability
View on Model
NBOTM02
Foot
Foot LGE MDP64335212 Contact Us For Availability
View on Model
NBOTM03
Sheet
Sheet LGE MHK67606905 Contact Us For Availability
View on Model
NBOTM04
Sheet
Sheet LGE MHK30169301 Contact Us For Availability
View on Model
NFAN01
Fan Module
Fan Module LGE EAL30347102 Contact Us For Availability
View on Model
NFAN02
Fan Module
Fan Module LGE EAL30347202 Contact Us For Availability
View on Model
NFAN03
Heat Sink
Heat Sink LGE MED30117301 Contact Us For Availability
View on Model
NKBD01
Mechanism Assembly
Mechanism Assembly LGE AFP30034001 Contact Us For Availability
View on Model
NKBD02
Button
Button LGE MBG67861502 Contact Us For Availability
View on Model
NKBD04
Speaker Assembly
Speaker Assembly LGE EAB65832106 Contact Us For Availability
View on Model
NKBD05
Cable,FFC
Cable,FFC LGE EAD00588331 Contact Us For Availability
View on Model
NKBD06
Damper
Damper LGE MCQ30043801 Contact Us For Availability
View on Model
NLAB02
Label
Label LGE MEZ00901904 Contact Us For Availability
View on Model
NLAB03
Label
Label LGE MEZ69097601 Contact Us For Availability
View on Model
NLCD01
Case Assembly
Case Assembly LGE ABQ30414511 Contact Us For Availability
View on Model
NLCD02
Sheet
Sheet LGE MHK30160804 Contact Us For Availability
View on Model
NLCD03
Cap
Cap LGE MBL30060301 Contact Us For Availability
View on Model
NLCD04
Damper
Damper LGE MCQ70910501 Contact Us For Availability
View on Model
NLCD05
Touch Panel
Touch Panel LGE EBD64437630 Contact Us For Availability
View on Model
NLCD06
Antenna Assembly
Antenna Assembly LGE EAA30099901 Contact Us For Availability
View on Model
NLCD07
Harness,Multi
Harness,Multi LGE EAD00590201 Contact Us For Availability
View on Model
NLCD08
LCD Assembly
LCD Assembly LGE AFB31628301 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ30131711 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ30131811 Contact Us For Availability
View on Model
NMLB01
PCB Assembly,Main
PCB Assembly,Main LGE EBR26557001 Contact Us For Availability
View on Model
NPWCD01
Power Cord
Power Cord LGE EAD02428902 Contact Us For Availability
View on Model
NPWCD02
Cable,Assembly
Cable,Assembly LGE EAD65830107 Contact Us For Availability
View on Model
NRUBB01
Frame
Frame LGE MDQ66848701 Contact Us For Availability
View on Model
NSCR01
Screw,Customized
Screw,Customized LGE FAB34989801 Contact Us For Availability
View on Model
NSCR03
Screw,Customized
Screw,Customized LGE FAB34740201 Contact Us For Availability
View on Model
NSCR04
Screw,Customized
Screw,Customized LGE FAB34995001 Contact Us For Availability
View on Model
NSCR05
SCREW,DRAWING
SCREW,DRAWING LGE 1SZZBZ3009J Contact Us For Availability
View on Model
NSCR07
SCREW,DRAWING
SCREW,DRAWING LGE 1SZZBA4023A Contact Us For Availability
View on Model
NSCR11
Screw,Customized
Screw,Customized LGE FAB00005601 Contact Us For Availability
View on Model
NSUB01
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR26557701 Contact Us For Availability
View on Model
NSUB02
PCB,Flexible
PCB,Flexible LGE EAX01965601 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP64158901 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP64158906 Contact Us For Availability
View on Model
