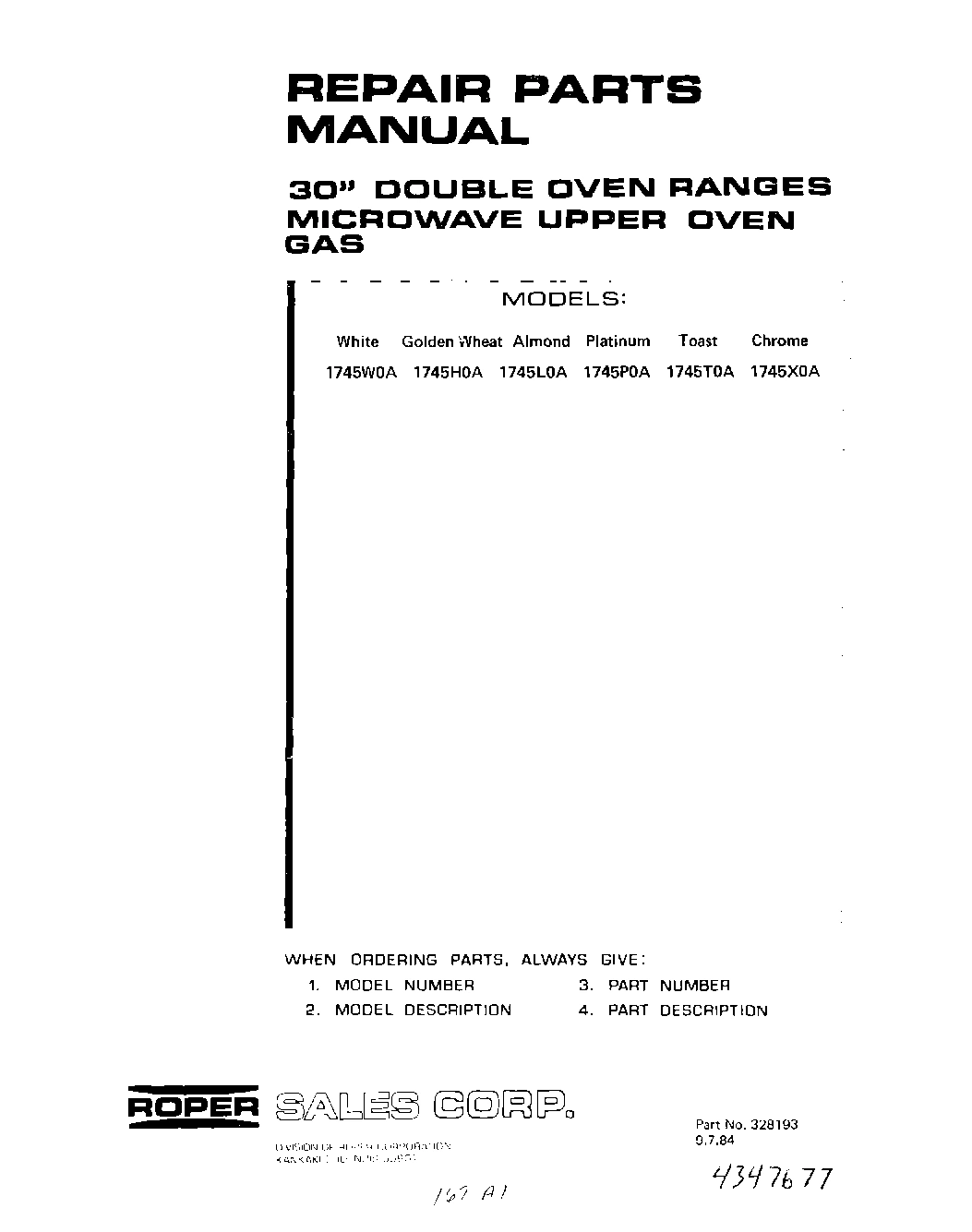

Model Whirlpool 1745W0A DOUBLE OVEN GAS RANGE – Common Parts & Diagrams

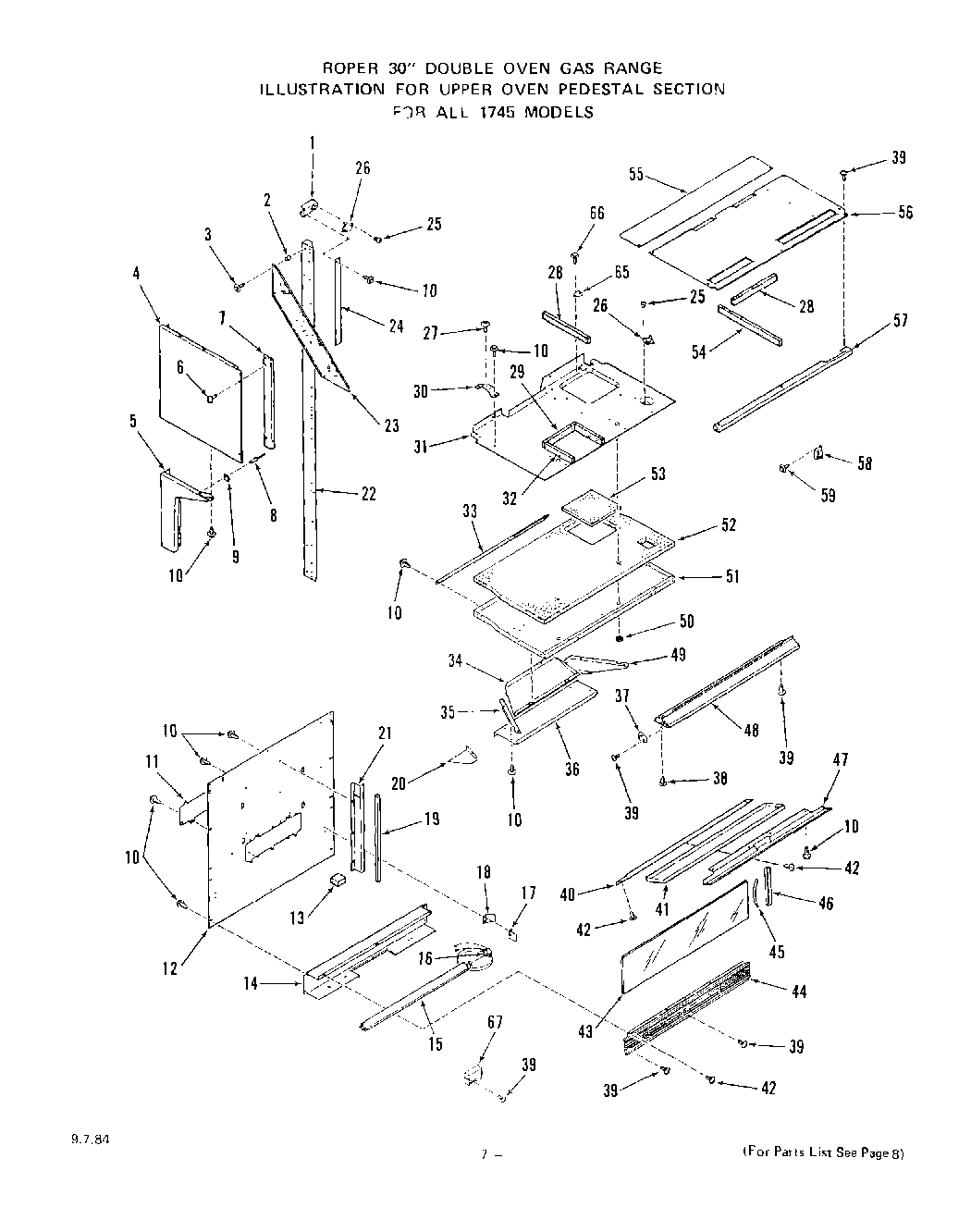

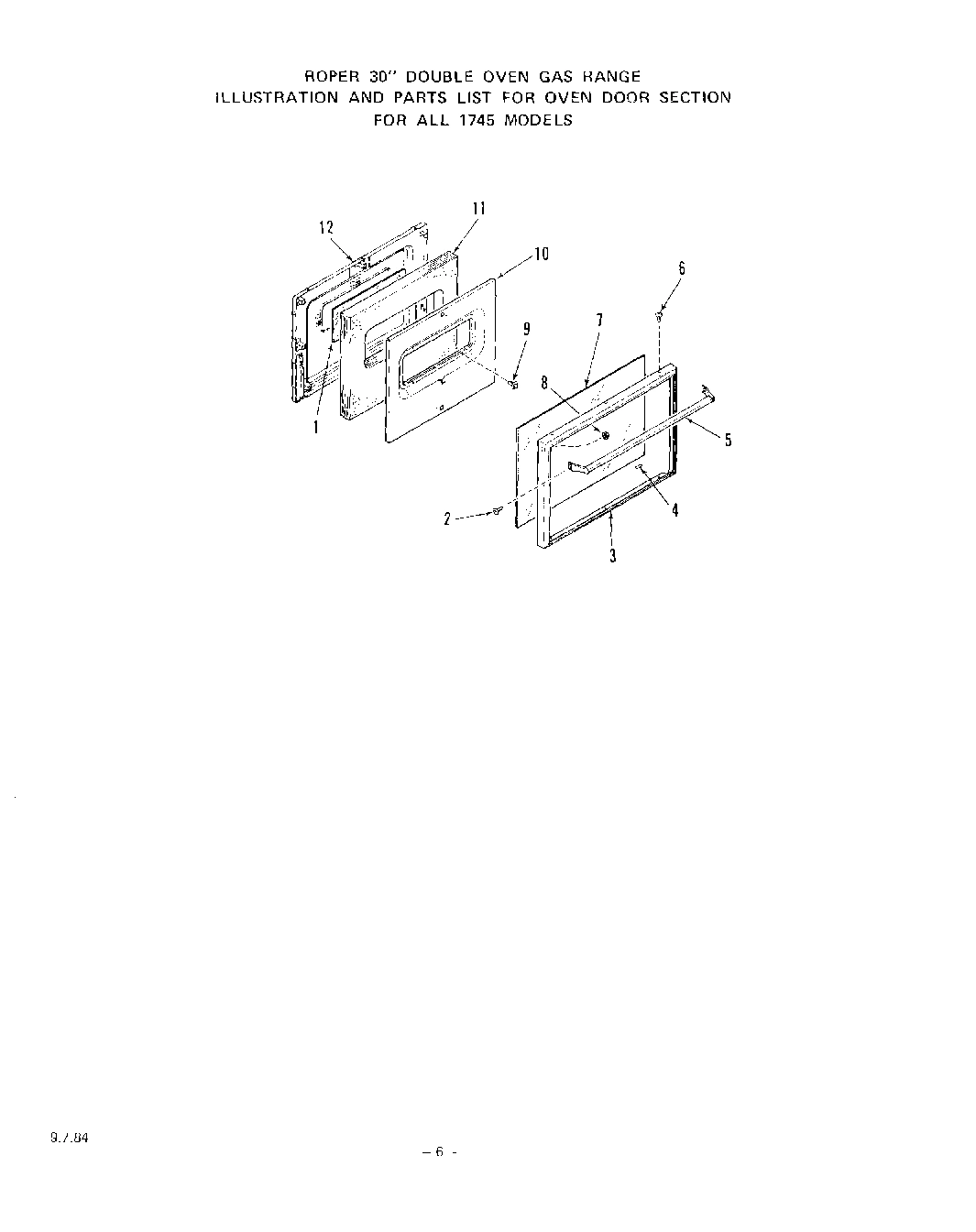

05 - PEDESTAL
03 - LOWER BODY
08 - LIT/OPTIONAL

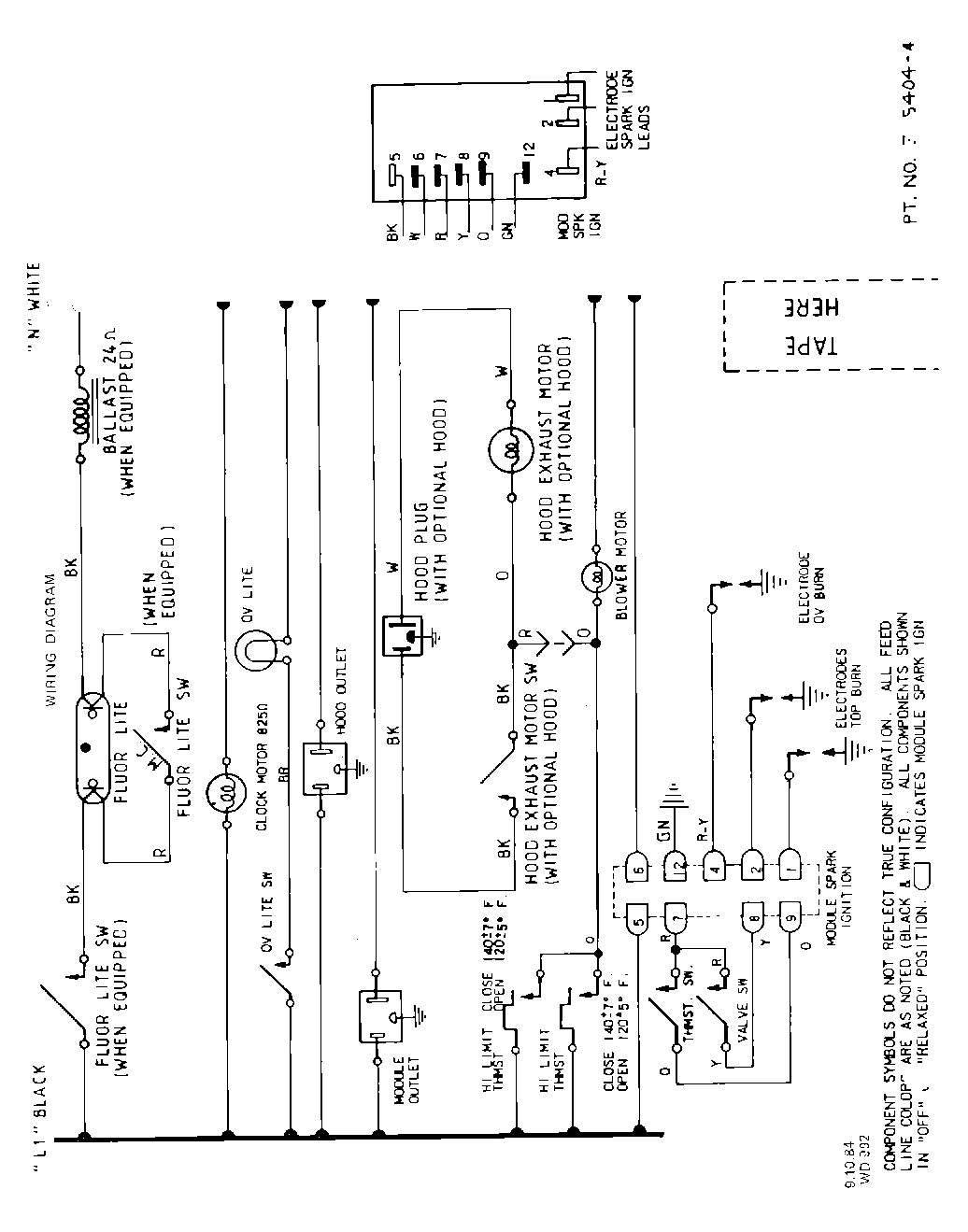

10 - SECTION

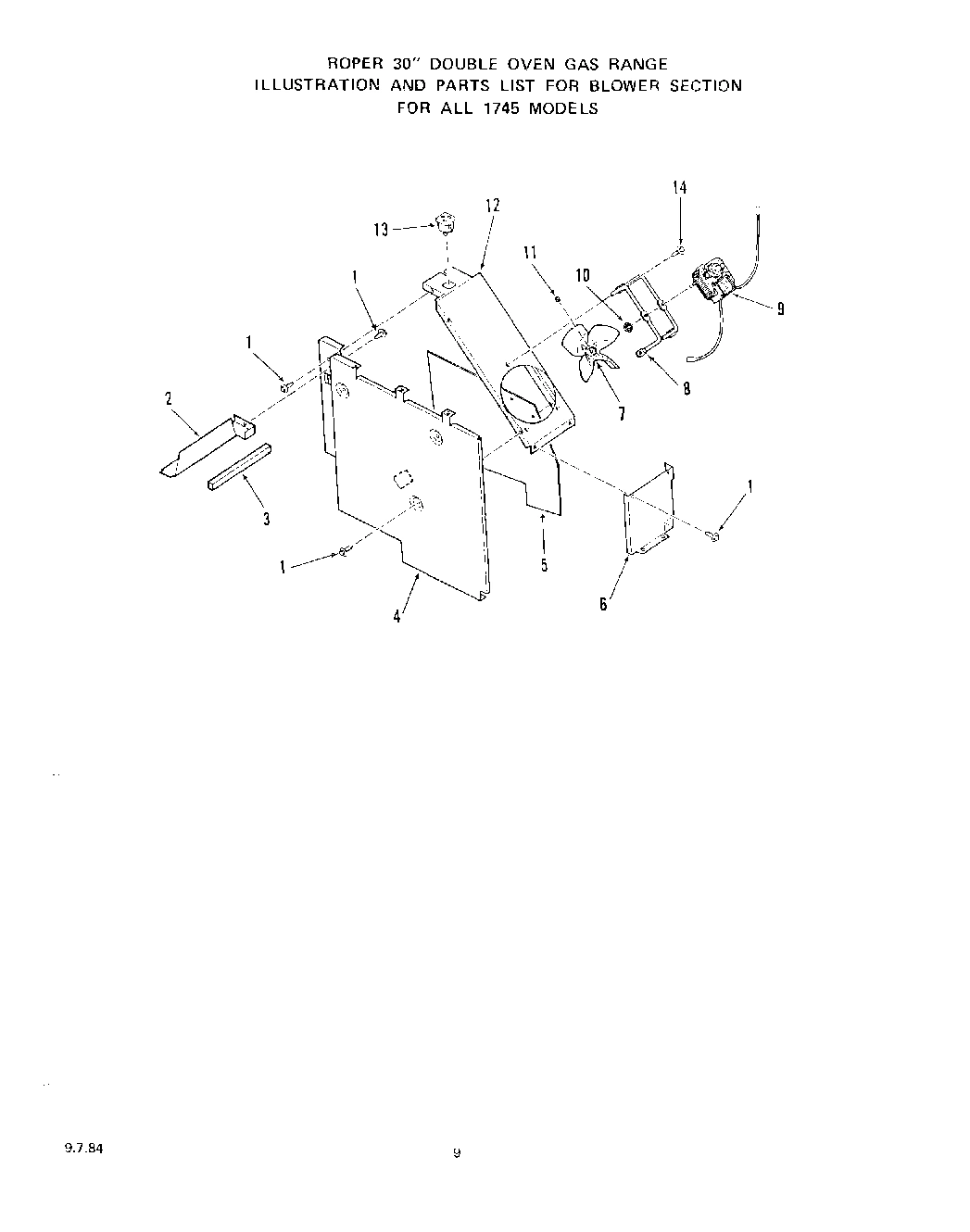

06 - BLOWER , BLOWER

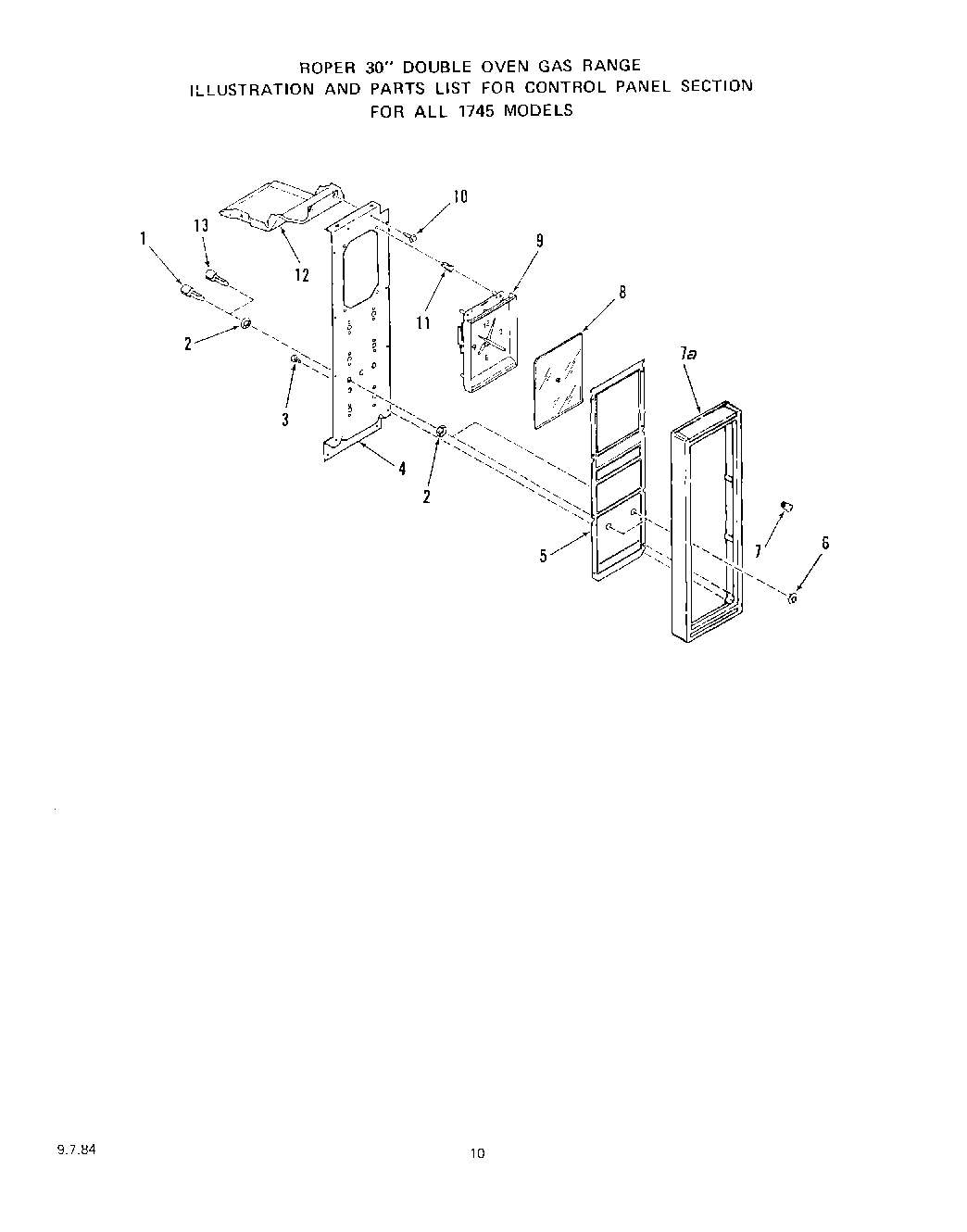

07 - CONTROL PANEL

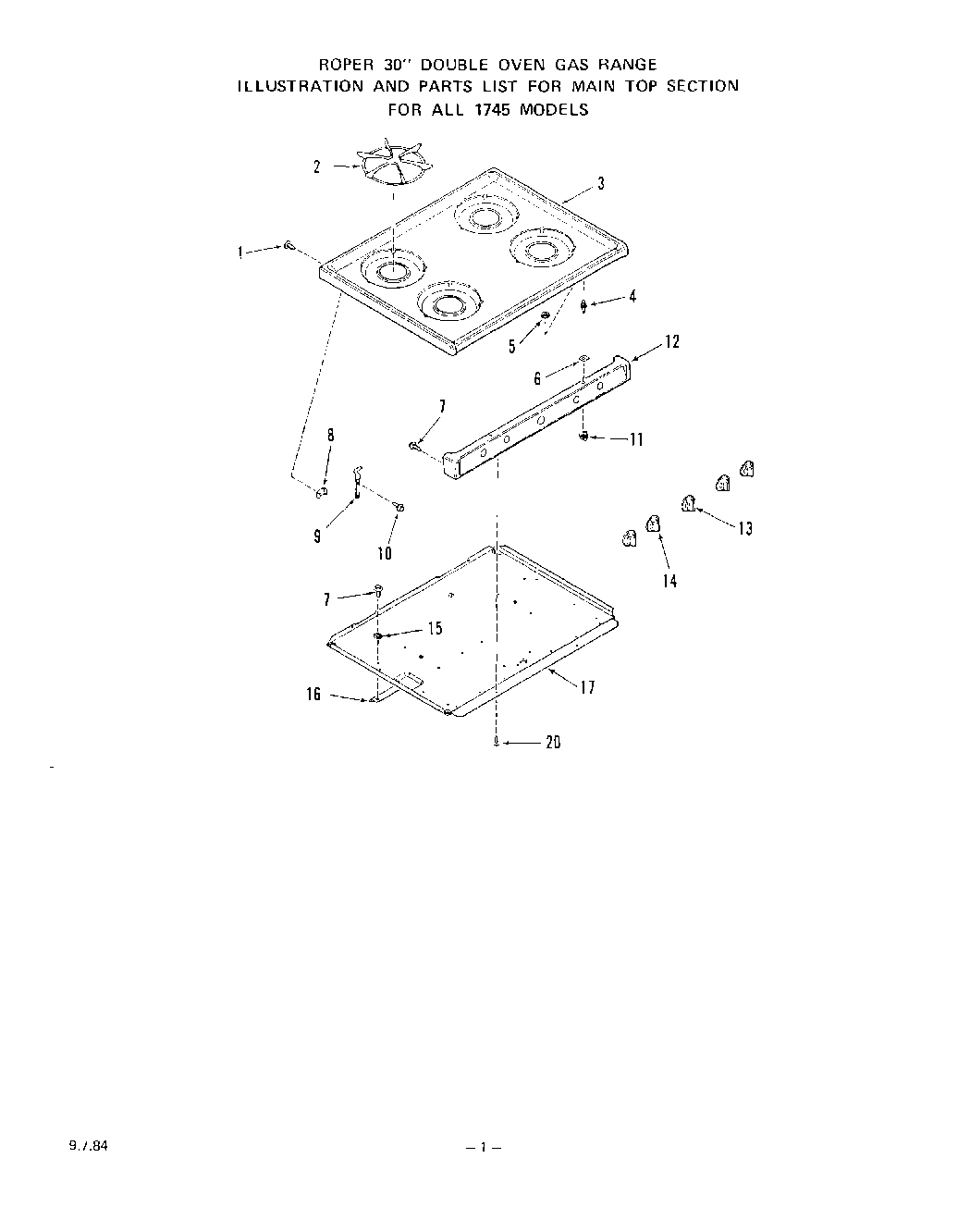

01 - MAIN TOP

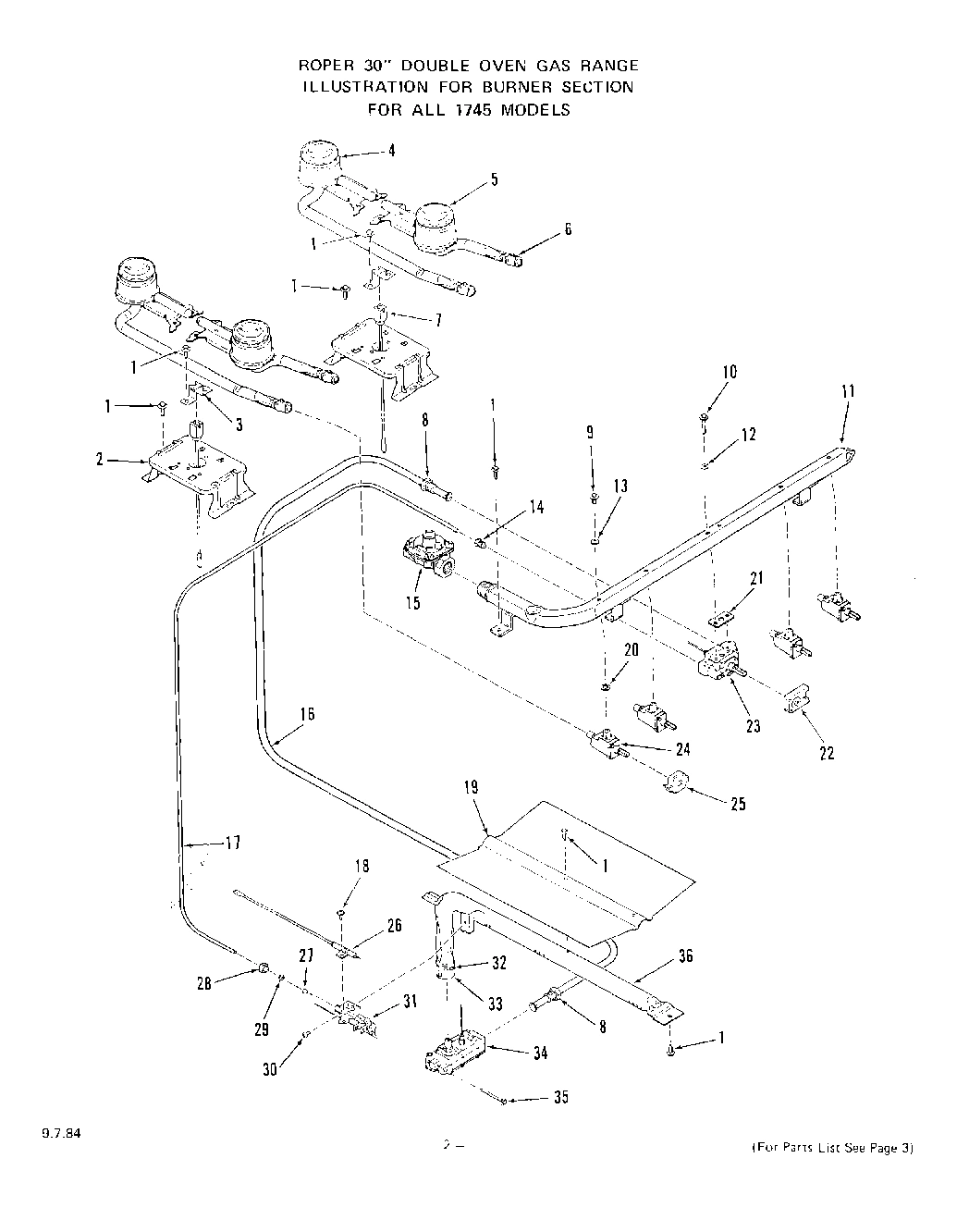

02 - BURNER

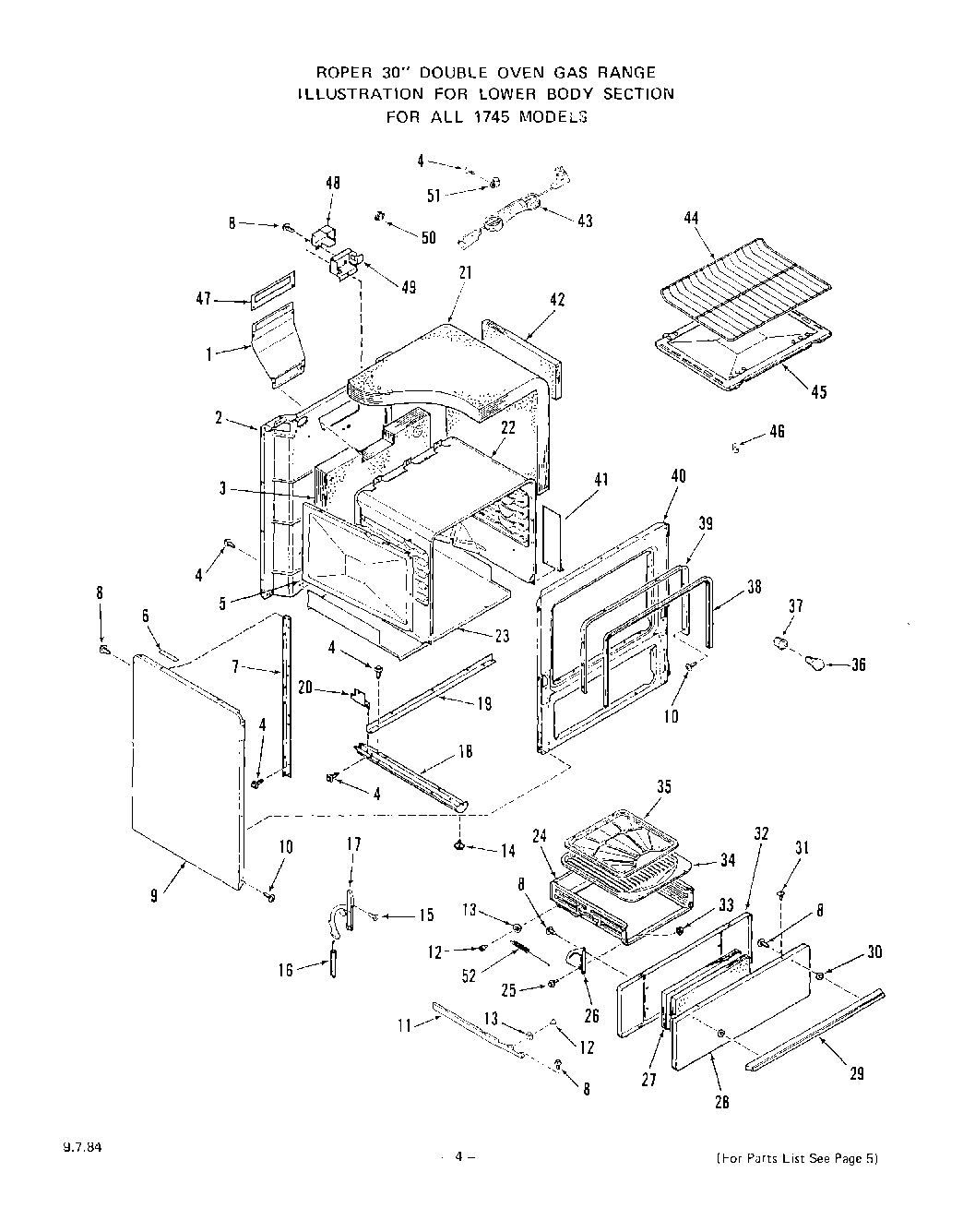

04 - DOOR
Common parts from model Whirlpool 1745W0A DOUBLE OVEN GAS RANGE
1
inner glass-oven door WPL 326010 Contact Us For Availability
1
Push Switch-Fluorescent Lamp WPL 288508 Contact Us For Availability
1
Box - Auxiliary Thermostat WPL 326303 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
2
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
2
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
2
Pal Nut 3/8-27 (4 Req) WPL 236129 Contact Us For Availability
2
Spacer (4 Req) WPL 325308 Contact Us For Availability
2
Baffle - Airway WPL 325743 Contact Us For Availability
2
Top Grate (4 Req) WPL 316786 Contact Us For Availability
2
Main Back WPL 327366 Contact Us For Availability
3
frame-oven door WPL 326002 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
Screw 4-24x1/4`` WPL 315617 Contact Us For Availability
3
Screw 10-32x1`` WPL 313190 Contact Us For Availability
3
Foam Strip WPL 306587 Contact Us For Availability
3
Main Top (White) WPL 328907 Contact Us For Availability
3
Main Top (Golden Wheat) WPL 328910 Contact Us For Availability
3
Main Top (Almond) WPL 328911 Contact Us For Availability
3
Main Top (Chrome) WPL 328912 Contact Us For Availability
3
Main Top (Platinum) WPL 328913 Contact Us For Availability
3
Main Top (Toast) WPL 328914 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
4
Cushion (5 Req) WPL 112370 Contact Us For Availability
4
Rear Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327075 Contact Us For Availability
4
Mounting Panel-Controls WPL 327646 Contact Us For Availability
4
Upper Oven Body Side (White - Left) WPL 325310 Contact Us For Availability
4
Upper Oven Body Side (Golden Wheat - Left) WPL 325313 Contact Us For Availability
4
Upper Oven Body Side (Almond - Left) WPL 325314 Contact Us For Availability
4
Upper Oven Body Side (White - Right) WPL 325316 Contact Us For Availability
4
Upper Oven Body Side (Golden Wheat - Right) WPL 325319 Contact Us For Availability
4
Upper Oven Body Side (Almond - Right) WPL 325320 Contact Us For Availability
4
Upper Oven Body Side (Black - Left) WPL 327643 Contact Us For Availability
4
Upper Oven Body Side (Black - Right) WPL 327644 Contact Us For Availability
4
Upper Oven Body Side (Toast - Left) WPL 328209 Contact Us For Availability
4
Upper Oven Body Side (Toast - Right) WPL 328210 Contact Us For Availability
4
Upper Oven Body Side (Platinum - Left) WPL 328211 Contact Us For Availability
4
Upper Oven Body Side (Platinum - Right) WPL 328212 Contact Us For Availability
4
Side - Compartment WPL 325380 Contact Us For Availability
4
Strike (Rt. or Lt.) WPL 299784 Contact Us For Availability
5
Handle WPL 303342 Contact Us For Availability
5
Keps Nut WPL 239764 Contact Us For Availability
5
Front Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327074 Contact Us For Availability
5
Control Curtain (Inc`s. Key 7a) WPL 329672 Contact Us For Availability
5
Pedestal-Upper Oven (White - Right) WPL 325283 Contact Us For Availability
5
Pedestal-Upper Oven (Golden Wheat - Right) WPL 325286 Contact Us For Availability
5
Pedestal-Upper Oven (Almond - Right) WPL 325287 Contact Us For Availability
5
Pedestal-Upper Oven (White - Left) WPL 325289 Contact Us For Availability
5
Pedestal-Upper Oven (Golden Wheat - Left) WPL 325292 Contact Us For Availability
5
Pedestal-Upper Oven (Almond - Left) WPL 325293 Contact Us For Availability
5
Pedestal-Upper Oven (Black - Left) WPL 327641 Contact Us For Availability
5
Pedestal-Upper Oven (Black - Right) WPL 327642 Contact Us For Availability
5
Pedestal-Upper Oven (Toast - Left) WPL 328127 Contact Us For Availability
5
Pedestal-Upper Oven (Toast - Right) WPL 328128 Contact Us For Availability
5
Pedestal-Upper Oven (Platinum - Left) WPL 328213 Contact Us For Availability
5
Pedestal-Upper Oven (Platinum - Right) WPL 328214 Contact Us For Availability
5
Air Duct WPL 325723 Contact Us For Availability
5
retainer-insulation (lt. or rt.) WPL 327096 Contact Us For Availability
6
Air Shutter WPL 327198 Contact Us For Availability
6
Trim Nut WPL 321667 Contact Us For Availability
6
Front - Blower Mounting Plate WPL 326281 Contact Us For Availability
6
Washer WPL 310218 Contact Us For Availability
6
Spacer (Lt. or Rt.) WPL 326914 Contact Us For Availability
7
Outer Glass - Oven Door WPL 325465 Contact Us For Availability
7
Electrode-Spark Igniter (Right) WPL 312455 Contact Us For Availability
7
Electrode-Spark Igniter (Left) WPL 327216 Contact Us For Availability
7
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
7
Side Trim (Right) WPL 325330 Contact Us For Availability
7
Side Trim (Left) WPL 325492 Contact Us For Availability
7
Fan Blade WPL 326280 Contact Us For Availability
7
support-body side (lt. or rt.) WPL 327035 Contact Us For Availability
7a
Control Panel Trim (Included w/Key 5) WPL ARI8561A54 Contact Us For Availability
8
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
8
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
8
Lens - Clock WPL 325334 Contact Us For Availability
8
Pop Ri WPL 101523 Contact Us For Availability
8
Support-Blower Motor WPL 327321 Contact Us For Availability
8
bracket-main top hinge (lt. or rt.) WPL 327403 Contact Us For Availability
9
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
9
mounting screw 1/4-20 (inc`s. 13) WPL 311455 Contact Us For Availability
9
Clock w/4 Hr. Timer WPL 328521 Contact Us For Availability
9
WPL 285523 WPL 285523 Contact Us For Availability
9
Motor - Blower WPL 326278 Contact Us For Availability
9
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
9
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
9
Body Side (Lt. or Rt.) (White) WPL 326055 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Golden Wheat) WPL 326058 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Almond) WPL 326059 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Platinum) WPL 327939 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Toast) WPL 327940 Contact Us For Availability
10
Insulation Retainer-Oven Door WPL 325996 Contact Us For Availability
10
Mounting Screw 10-24 (Inc`s. 12) WPL 318478 Contact Us For Availability
10
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
10
Keps Nut 6-32 WPL 236313 Contact Us For Availability
10
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
11
Insulation WPL 325999 Contact Us For Availability
11
Manifold Pipe WPL 327089 Contact Us For Availability
11
Tubular Clip WPL 293577 Contact Us For Availability
11
WPL 322992 WPL 322992 Contact Us For Availability
11
Set Screw 10-32 WPL 70286 Contact Us For Availability
11
Catch (2 Req) WPL 24667 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. Keys 12, 13) (Ri WPL 296327 Contact Us For Availability
12
Lining-Oven Door WPL 325946 Contact Us For Availability
12
Silicone Rubber Gasket WPL 318658 Contact Us For Availability
12
Barrier Intrusion WPL 326354 Contact Us For Availability
12
WPL 325773 WPL 325773 Contact Us For Availability
12
Mounting Plate - Blower WPL 325382 Contact Us For Availability
12
Manifold Panel (White) WPL 327451 Contact Us For Availability
12
Manifold Panel (Golden Wheat) WPL 327456 Contact Us For Availability
12
Manifold Panel (Almond) WPL 327457 Contact Us For Availability
12
Manifold Panel (Black) WPL 327458 Contact Us For Availability
12
Manifold Panel (Platinum) WPL 327843 Contact Us For Availability
12
Manifold Panel (Toast) WPL 327844 Contact Us For Availability
12
Shoulder Rivet WPL 70275 Contact Us For Availability
13
Silicone Rubber Gasket WPL 311692 Contact Us For Availability
13
Push Switch - Oven Light WPL 307573 Contact Us For Availability
13
Switches - Gas Valve WPL 326870 Contact Us For Availability
13
Lower WPL 327789 Contact Us For Availability
13
Upper WPL 327945 Contact Us For Availability
13
WPL 326696 WPL 326696 Contact Us For Availability
13
Convenience Outlet (Without Wire Leads) (1 Re WPL 109180 Contact Us For Availability
13
Convenience Outlet (With Wire Leads (1 Req)) WPL 328870 Contact Us For Availability
13
Knob-Thermostat WPL 322981 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
14
Loxit Nut WPL 79673 Contact Us For Availability
14
WPL 327045 WPL 327045 Contact Us For Availability
14
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
14
Knob-Gas Valve (4 Req) WPL 327484 Contact Us For Availability
14
Leg Leveler (4 Req) WPL 326125 Contact Us For Availability
15
Pressure Regulator WPL 324528 Contact Us For Availability
15
WPL 71734 WPL 71734 Contact Us For Availability
15
Washer WPL 106462 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
16
Tubing 3/8`` WPL 315807 Contact Us For Availability
16
WPL 327790 WPL 327790 Contact Us For Availability
16
WPL 327791 WPL 327791 Contact Us For Availability
16
stiffener-burner box bottom (front) WPL 327705 Contact Us For Availability
16
Stiffener-Burner Box Bottom (Rear) WPL 329158 Contact Us For Availability
16
spring-oven door (lt. or rt.) WPL 326962 Contact Us For Availability
17
Tubing 3/16`` WPL 322446 Contact Us For Availability
17
WPL 324746 WPL 324746 Contact Us For Availability
17
Burner Box Bottom WPL 327425 Contact Us For Availability
17
Hinge-Oven Door (Right) WPL 326012 Contact Us For Availability
17
Hinge-Oven Door (Left) WPL 326013 Contact Us For Availability
18
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
18
WPL 321107 WPL 321107 Contact Us For Availability
18
Base w/Leg Levelers (Lt. or Rt.) WPL 327020 Contact Us For Availability
19
Baffle - Oven Burner WPL 329316 Contact Us For Availability
19
WPL 306543 WPL 306543 Contact Us For Availability
19
WPL 326697 WPL 326697 Contact Us For Availability
19
Strap-Main Back & Base WPL 327026 Contact Us For Availability
20
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
20
WPL 322933 WPL 322933 Contact Us For Availability
20
WPL 322935 WPL 322935 Contact Us For Availability
20
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
20
Bracket-Support & Base (Left) WPL 327022 Contact Us For Availability
20
Bracket-Support & Base (Right) WPL 327024 Contact Us For Availability
21
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
21
WPL 325726 WPL 325726 Contact Us For Availability
21
WPL 325728 WPL 325728 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
22
WPL 327028 WPL 327028 Contact Us For Availability
22
WPL 327030 WPL 327030 Contact Us For Availability
22
Oven Body WPL 324957 Contact Us For Availability
23
Oven Thermostat (Inc`s. 21) WPL 321983 Contact Us For Availability
23
WPL 325388 WPL 325388 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
Gas Valve (4 Req) (Inc`s. 20) WPL 324482 Contact Us For Availability
24
WPL 326417 WPL 326417 Contact Us For Availability
24
Broiler Drawer (Inc`s. 12, 13) WPL 328041 Contact Us For Availability
25
Switch-Gas Valve (4 Req) WPL 312457 Contact Us For Availability
25
WPL 9412070 WPL 9412070 Contact Us For Availability
25
Shoulder Rivet WPL 329271 Contact Us For Availability
26
Electrode-Oven Spark Igniter WPL 327217 Contact Us For Availability
26
WPL 325401 WPL 325401 Contact Us For Availability
26
Hinge-Broiler Drawer (Right) WPL 327482 Contact Us For Availability
26
Hinge-Broiler Drawer (Left) WPL 327483 Contact Us For Availability
27
Orifice Cup Only (For 31) WPL 318485 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
28
WPL 324504 WPL 324504 Contact Us For Availability
28
Front Panel-Broiler Door (White) WPL 326287 Contact Us For Availability
28
Front Panel-Broiler Door (Golden Wheat) WPL 326290 Contact Us For Availability
28
Front Panel-Broile WPL 326291 Contact Us For Availability
28
WPL 326292 WPL 326292 Contact Us For Availability
28
WPL 327941 WPL 327941 Contact Us For Availability
28
WPL 327942 WPL 327942 Contact Us For Availability
29
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
29
WPL 328020 WPL 328020 Contact Us For Availability
29
WPL 286357 WPL 286357 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
30
WPL 328492 WPL 328492 Contact Us For Availability
30
WPL 302343 WPL 302343 Contact Us For Availability
31
WPL 316849 WPL 316849 Contact Us For Availability
31
Pilot Only (Inc`s. 27) WPL 318486 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
32
WPL 328021 WPL 328021 Contact Us For Availability
32
WPL 327060 WPL 327060 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
33
WPL 325301 WPL 325301 Contact Us For Availability
33
WPL 74056 WPL 74056 Contact Us For Availability
34
Control Valve (Inc`s. 27 & 31) WPL 321755 Contact Us For Availability
34
WPL 322937 WPL 322937 Contact Us For Availability
34
WPL 290171 WPL 290171 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
WPL 322949 WPL 322949 Contact Us For Availability
35
WPL 313071 WPL 313071 Contact Us For Availability
36
Oven Burner (Inc`s. 19, 32 & 33) WPL 329651 Contact Us For Availability
36
WPL 320261 WPL 320261 Contact Us For Availability
36
WPL 111257 WPL 111257 Contact Us For Availability
37
WPL 325337 WPL 325337 Contact Us For Availability
37
WPL 325338 WPL 325338 Contact Us For Availability
37
WPL 295974 WPL 295974 Contact Us For Availability
38
WPL 326047 WPL 326047 Contact Us For Availability
39
WPL 329382 WPL 329382 Contact Us For Availability
39
WPL 327875 WPL 327875 Contact Us For Availability
40
WPL 320127 WPL 320127 Contact Us For Availability
40
WPL 320130 WPL 320130 Contact Us For Availability
40
WPL 320131 WPL 320131 Contact Us For Availability
40
WPL 328219 WPL 328219 Contact Us For Availability
40
WPL 328222 WPL 328222 Contact Us For Availability
40
WPL 329671 WPL 329671 Contact Us For Availability
40
WPL 327279 WPL 327279 Contact Us For Availability
41
WPL 327578 WPL 327578 Contact Us For Availability
41
WPL 327581 WPL 327581 Contact Us For Availability
41
WPL 327582 WPL 327582 Contact Us For Availability
41
WPL 328321 WPL 328321 Contact Us For Availability
41
WPL 328322 WPL 328322 Contact Us For Availability
41
WPL 328426 WPL 328426 Contact Us For Availability
41
WPL 328984 WPL 328984 Contact Us For Availability
42
WPL 327621 WPL 327621 Contact Us For Availability
43
WPL 327786 WPL 327786 Contact Us For Availability
43
WPL 312353 WPL 312353 Contact Us For Availability
44
WPL 327622 WPL 327622 Contact Us For Availability
44
WPL 326068 WPL 326068 Contact Us For Availability
45
WPL 286327 WPL 286327 Contact Us For Availability
45
WPL 327084 WPL 327084 Contact Us For Availability
46
WPL 299979 WPL 299979 Contact Us For Availability
46
WPL 115533 WPL 115533 Contact Us For Availability
47
WPL 323820 WPL 323820 Contact Us For Availability
47
WPL 323823 WPL 323823 Contact Us For Availability
47
WPL 323824 WPL 323824 Contact Us For Availability
47
WPL 327639 WPL 327639 Contact Us For Availability
47
WPL 328130 WPL 328130 Contact Us For Availability
47
WPL 328216 WPL 328216 Contact Us For Availability
47
WPL 329314 WPL 329314 Contact Us For Availability
48
WPL 325336 WPL 325336 Contact Us For Availability
48
WPL 327252 WPL 327252 Contact Us For Availability
49
WPL 320257 WPL 320257 Contact Us For Availability
49
WPL 327232 WPL 327232 Contact Us For Availability
50
WPL 288197 WPL 288197 Contact Us For Availability
50
WPL 232150 WPL 232150 Contact Us For Availability
51
WPL 328608 WPL 328608 Contact Us For Availability
51
WPL 97047 WPL 97047 Contact Us For Availability
52
WPL 327799 WPL 327799 Contact Us For Availability
52
WPL 327481 WPL 327481 Contact Us For Availability
53
WPL 326031 WPL 326031 Contact Us For Availability
54
WPL 325029 WPL 325029 Contact Us For Availability
55
WPL 320476 WPL 320476 Contact Us For Availability
55
WPL 321671 WPL 321671 Contact Us For Availability
55
WPL 321672 WPL 321672 Contact Us For Availability
55
WPL 327638 WPL 327638 Contact Us For Availability
55
WPL 328205 WPL 328205 Contact Us For Availability
55
WPL 328206 WPL 328206 Contact Us For Availability
56
WPL 325322 WPL 325322 Contact Us For Availability
56
WPL 325325 WPL 325325 Contact Us For Availability
56
WPL 325326 WPL 325326 Contact Us For Availability
56
WPL 327640 WPL 327640 Contact Us For Availability
56
WPL 328207 WPL 328207 Contact Us For Availability
56
WPL 328208 WPL 328208 Contact Us For Availability
57
WPL 325328 WPL 325328 Contact Us For Availability
58
WPL 98186 WPL 98186 Contact Us For Availability
59
WPL 105771 WPL 105771 Contact Us For Availability
65
WPL 237762 WPL 237762 Contact Us For Availability
67
WPL 326136 WPL 326136 Contact Us For Availability
× ![]()
