Model Whirlpool 1743W0A DOUBLE OVEN GAS RANGE – Common Parts & Diagrams

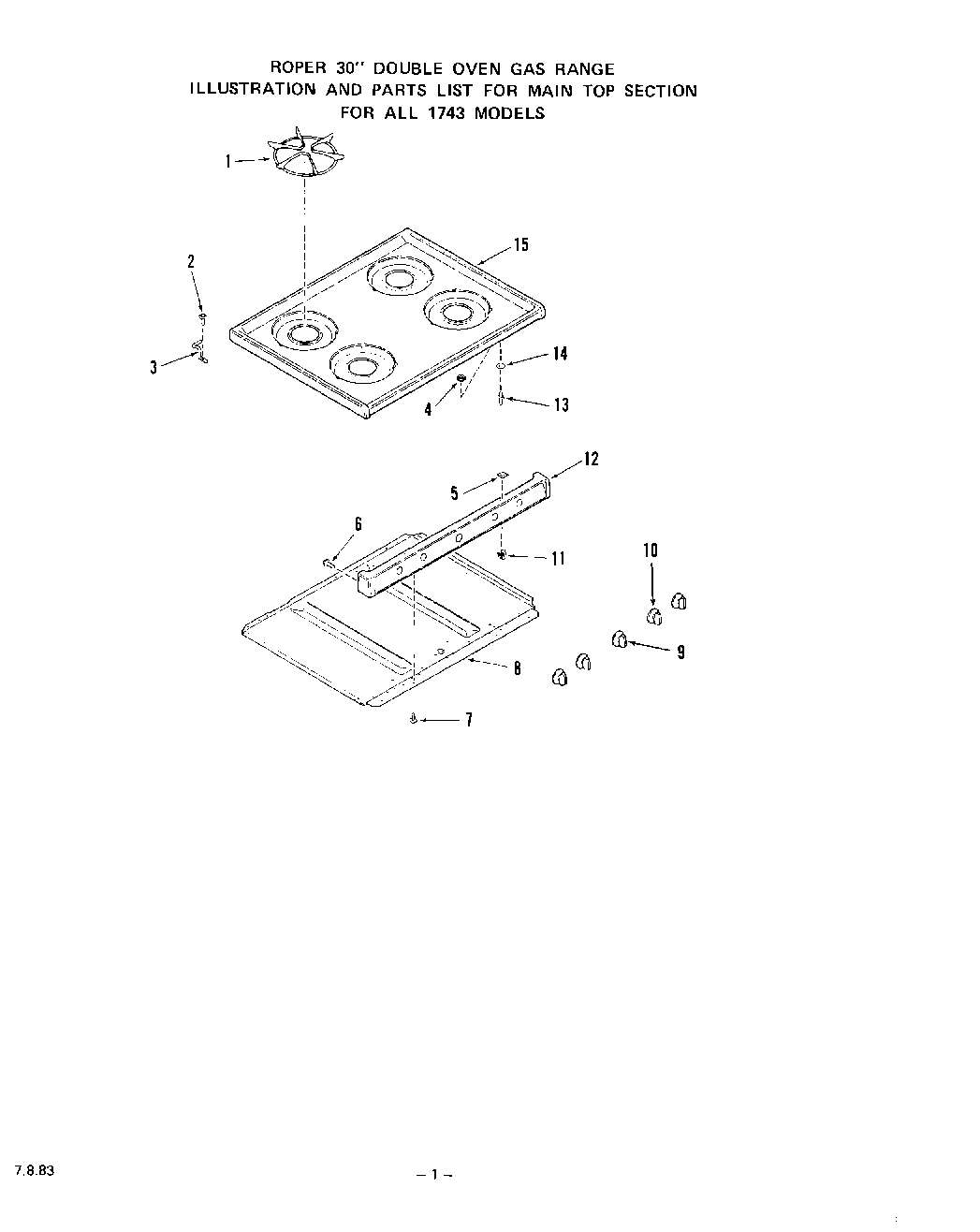

02 - MAIN TOP

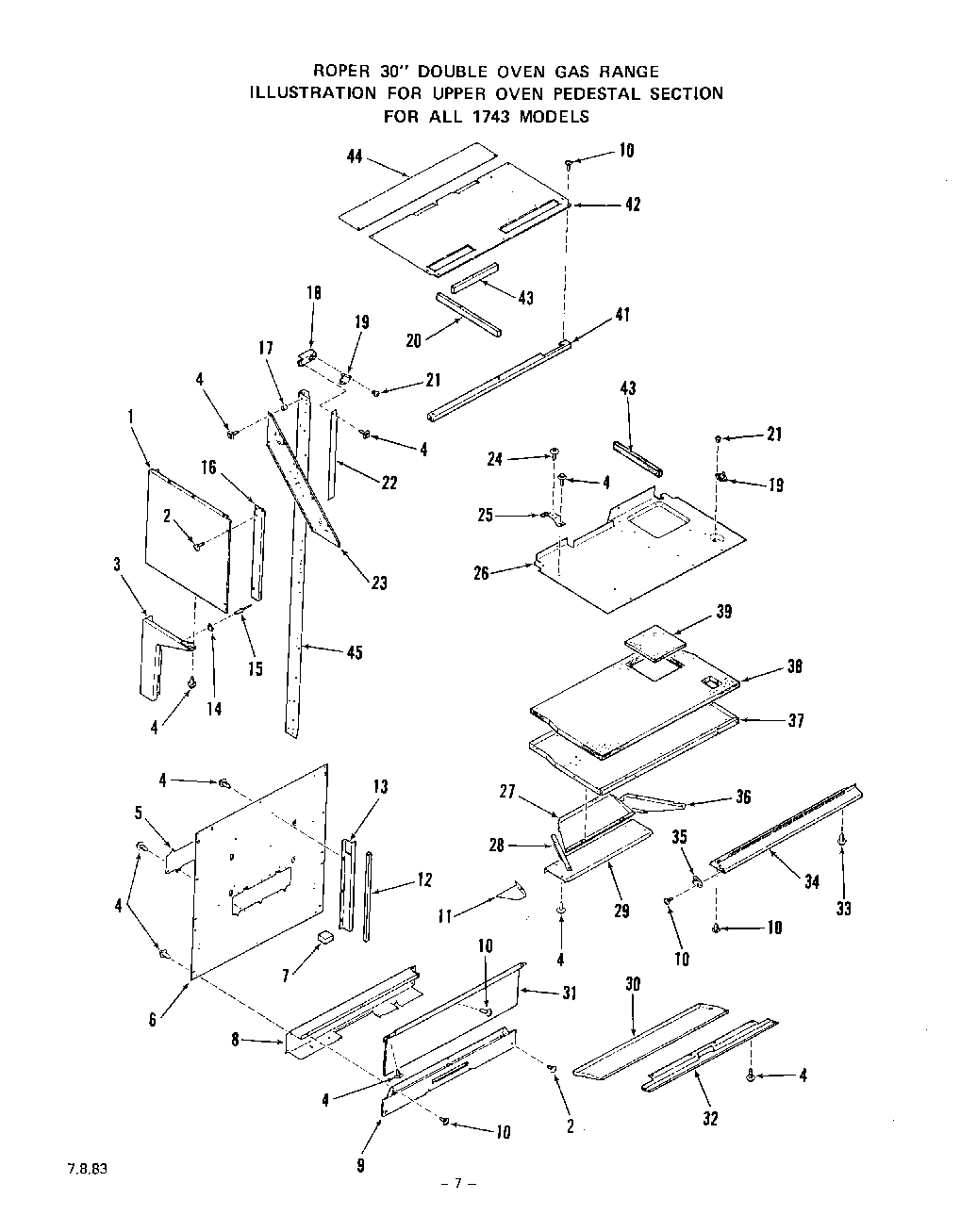

06 - UPPER OVEN PEDESTAL

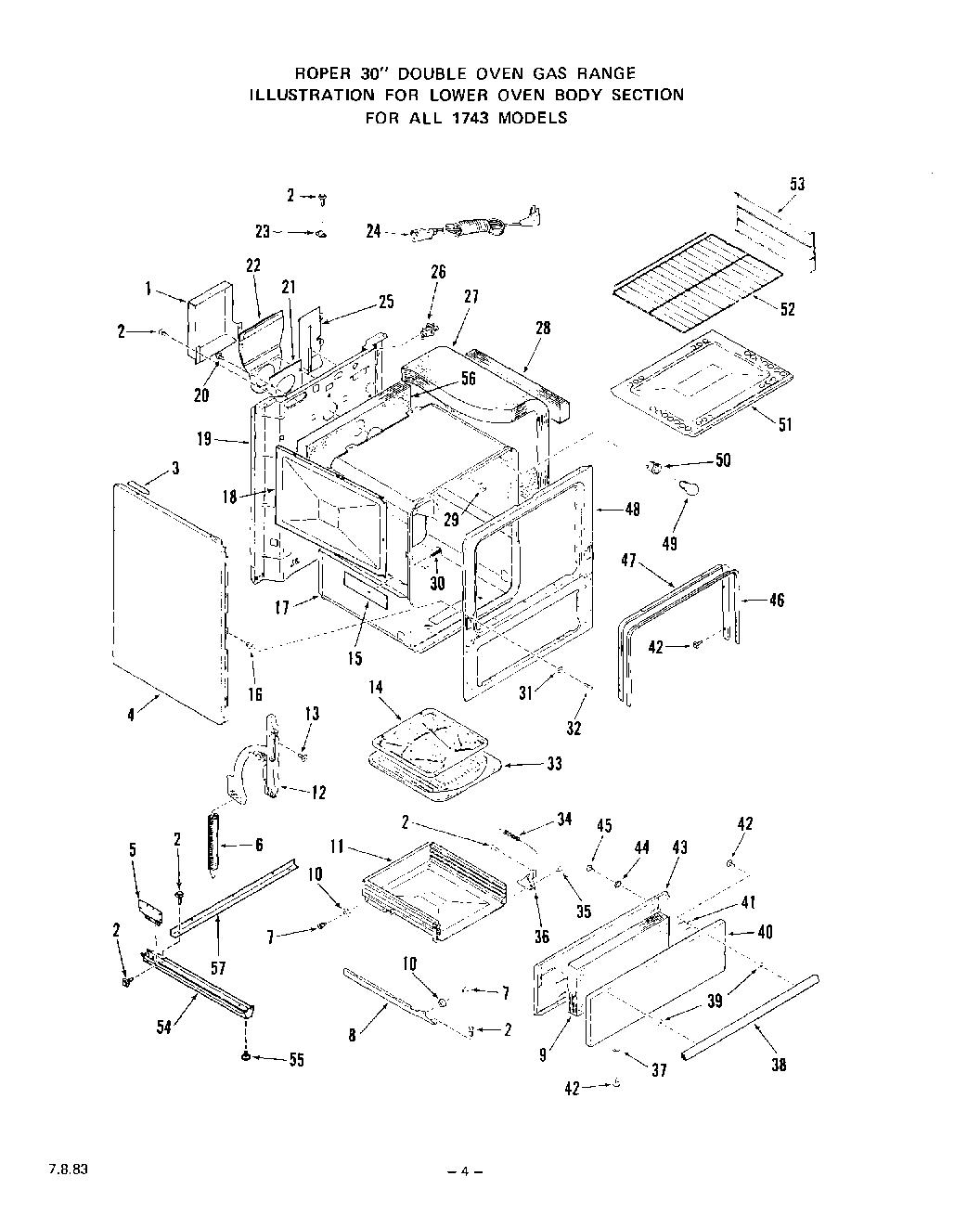

04 - LOWER OVEN BODY

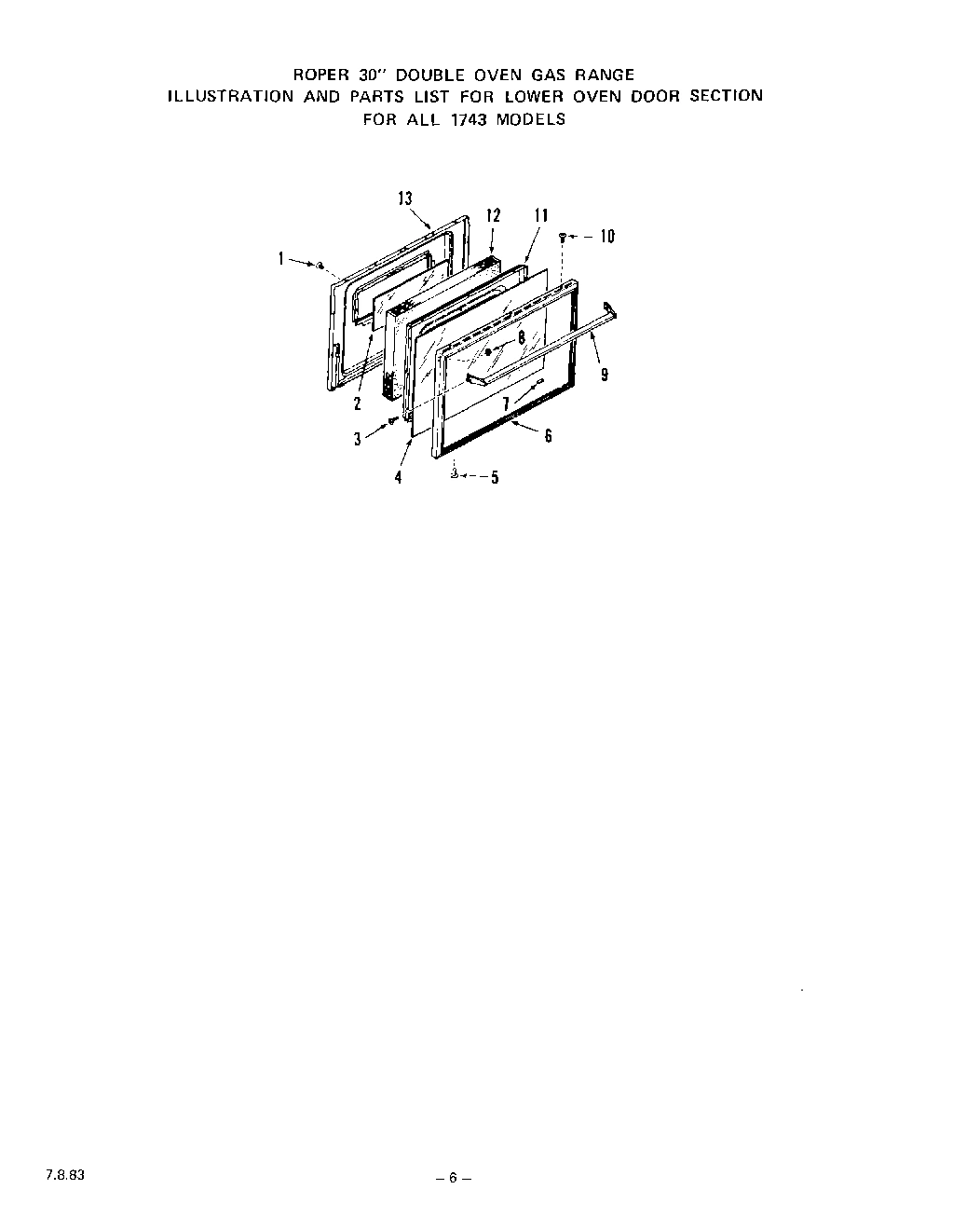

05 - LOWER OVEN DOOR

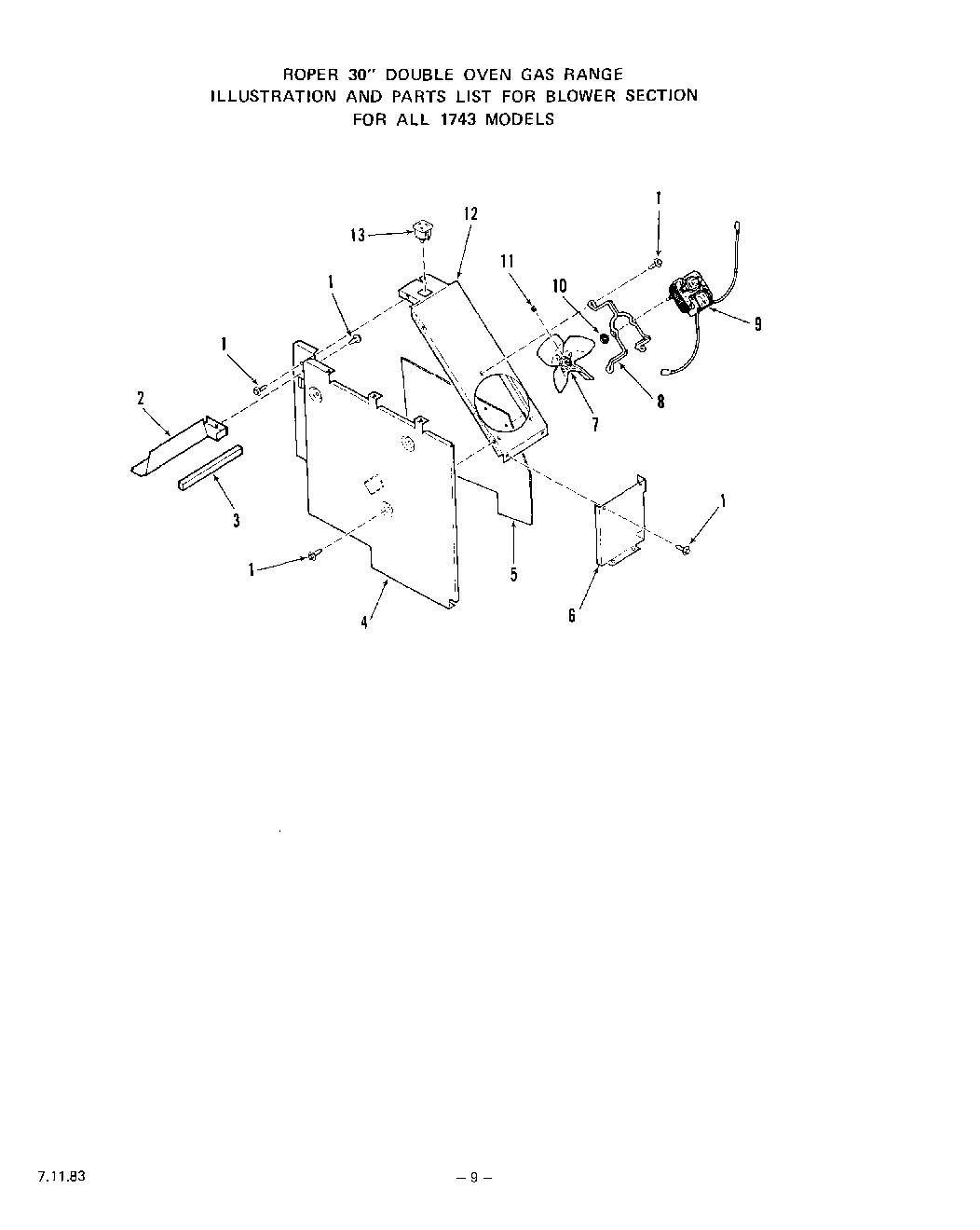

07 - BLOWER

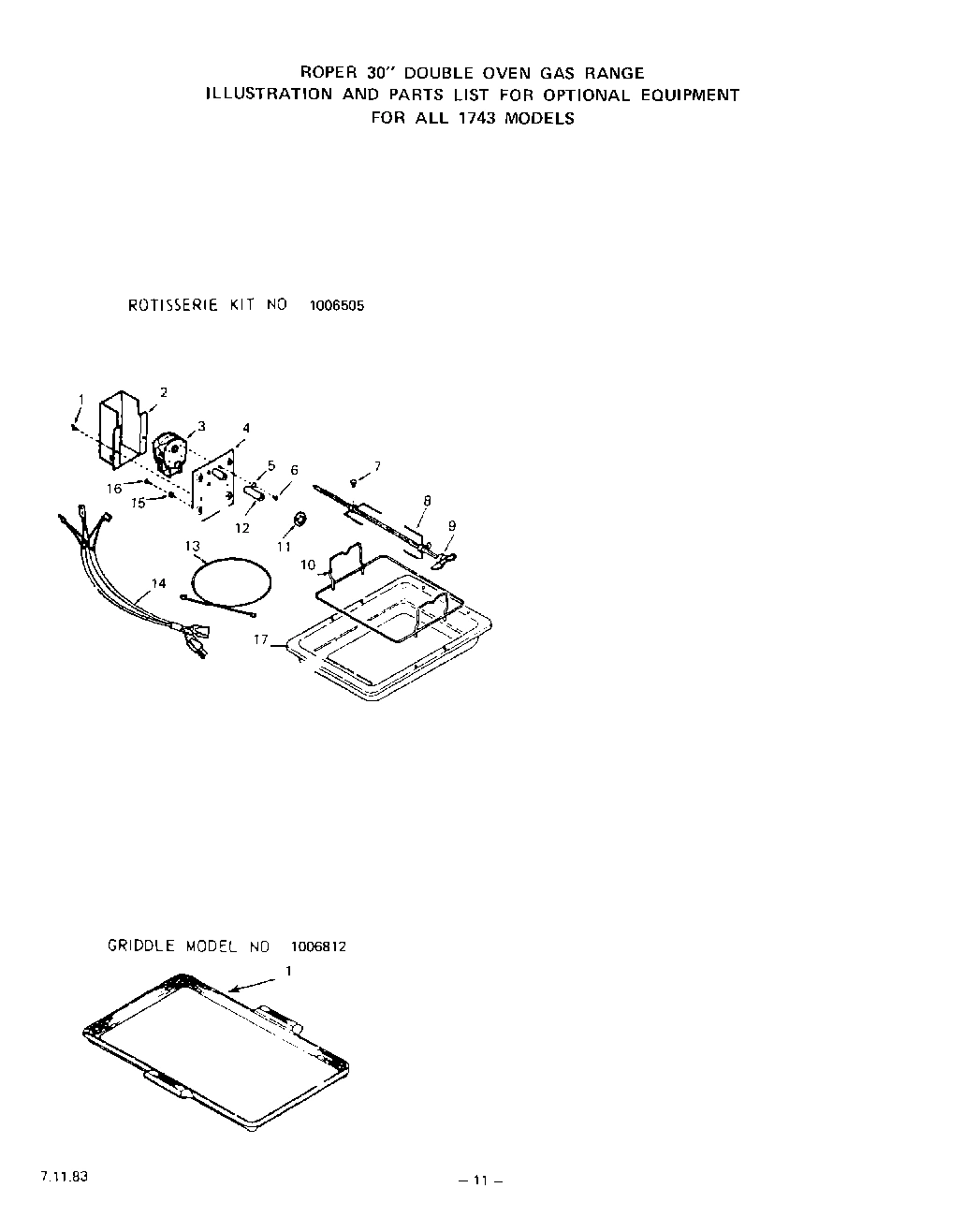

09 - ROTISSERIE KIT, GRIDDLE

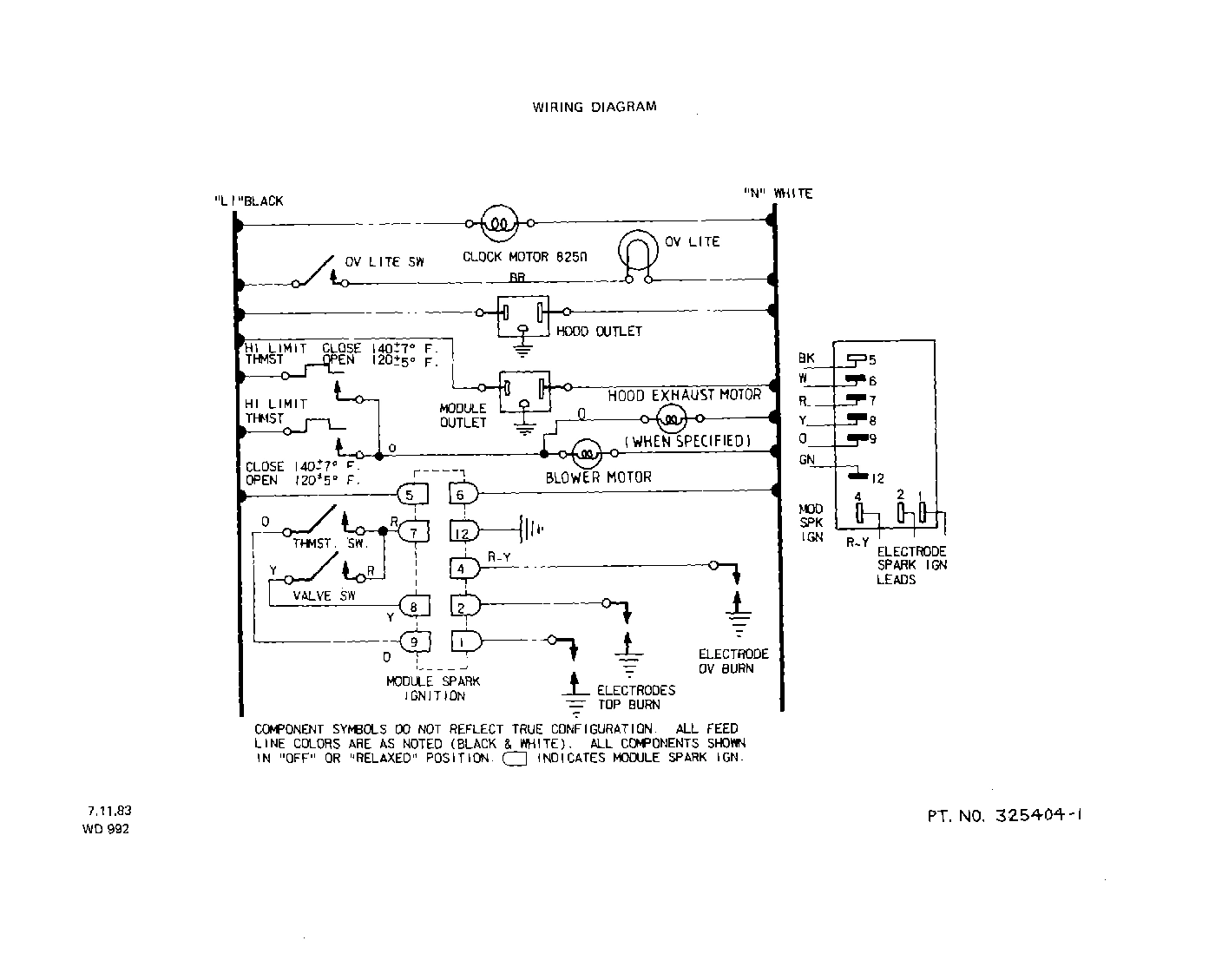

10 - WIRING DIAGRAM

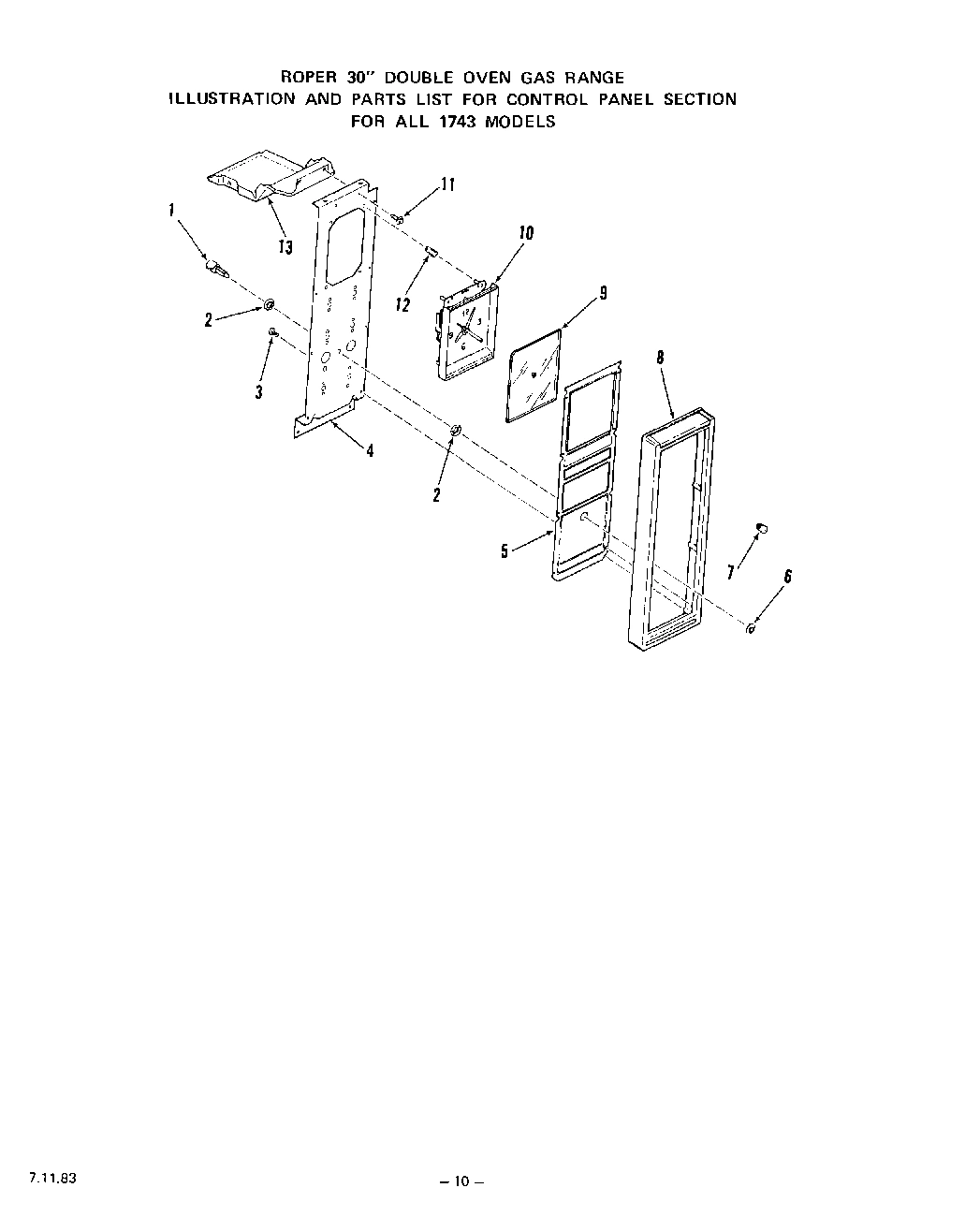

08 - CONTROL PANEL, LIT/OPTIONAL

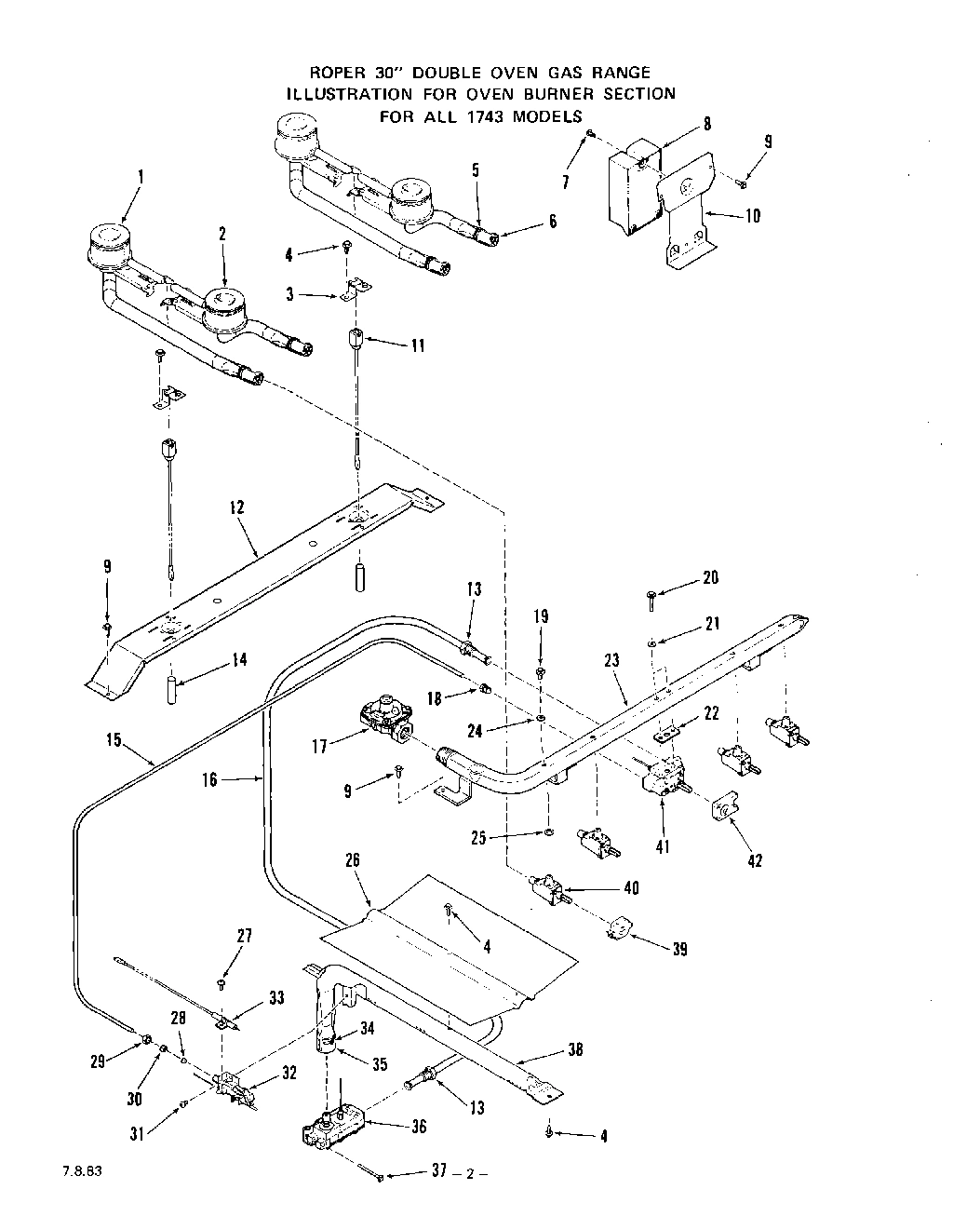

03 - OVEN BURNER
Common parts from model Whirlpool 1743W0A DOUBLE OVEN GAS RANGE
xInstallation Instructions WPL 300668 Contact Us For Availability
Module WPL 323283 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Upper Oven Body Side (White - Left) WPL 325310 Contact Us For Availability
1
Upper Oven Body Side (Golden Wheat - Left) WPL 325313 Contact Us For Availability
1
Upper Oven Body Side (Almond - Left) WPL 325314 Contact Us For Availability
1
Upper Oven Body Side (White - Right) WPL 325316 Contact Us For Availability
1
Upper Oven Body Side (Golden Wheat - Right) WPL 325319 Contact Us For Availability
1
Upper Oven Body Side (Almond - Right) WPL 325320 Contact Us For Availability
1
Shield - Flue Deflector WPL 296011 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
1
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
1
Push Switch - Oven Light WPL 307573 Contact Us For Availability
1
Rear Top Burner-Lt. or Rt. (Inc`s. 5 & 6) WPL 310197 Contact Us For Availability
2
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
2
Inner Glass-Oven Door WPL 296214 Contact Us For Availability
2
Baffle - Airway WPL 325743 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
2
Front Top Burner-Lt. or Rt. (Inc`s. 5 & 6) WPL 310196 Contact Us For Availability
3
Hinge (Right) WPL 323404 Contact Us For Availability
3
Hinge (Left) WPL 323405 Contact Us For Availability
3
Pedestal-Upper Oven (White - Right) WPL 325283 Contact Us For Availability
3
Pedestal-Upper Oven (Golden Wheat - Right) WPL 325286 Contact Us For Availability
3
Pedestal-Upper Oven (Almond - Right) WPL 325287 Contact Us For Availability
3
Pedestal-Upper Oven (White - Left) WPL 325289 Contact Us For Availability
3
Pedestal-Upper Oven (Golden Wheat - Left) WPL 325292 Contact Us For Availability
3
Pedestal-Upper Oven (Almond - Left) WPL 325293 Contact Us For Availability
3
Spacer-Main Top (Lt. or Rt.) WPL 303513 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
3
Foam Strip WPL 306587 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
Screw 4-24x1/4`` WPL 315617 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
4
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
4
Screw 10-32x7/16`` WPL 311384 Contact Us For Availability
4
Body Side-Lt. or Rt.) (White) WPL 323938 Contact Us For Availability
4
Body Side-Lt. or Rt.) (Golden Wheat) WPL 323941 Contact Us For Availability
4
Body Side-Lt. or Rt.) (Almond) WPL 323942 Contact Us For Availability
4
Outer Glass - Oven Door WPL 325465 Contact Us For Availability
4
Side - Compartment WPL 325380 Contact Us For Availability
4
Switch (For Key No 352) WPL 280199 Contact Us For Availability
4
Mounting Panel - Controls WPL 325268 Contact Us For Availability
5
Washer WPL 310218 Contact Us For Availability
5
Cover Plate WPL 322992 Contact Us For Availability
5
Bracket-Support & Base (Lt. or Rt.) WPL 324212 Contact Us For Availability
5
Air Duct WPL 325723 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Control Curtain (Inc`s. 8) WPL 326693 Contact Us For Availability
5
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
6
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
6
Wire Cover - Upper Oven WPL 325773 Contact Us For Availability
6
Spring-Oven Door (Lt. or Rt.) WPL 296170 Contact Us For Availability
6
Frame-Oven Door WPL 296473 Contact Us For Availability
6
Front - Blower Mounting Plate WPL 326281 Contact Us For Availability
6
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
6
Trim Nut WPL 321667 Contact Us For Availability
6
Air Shutter WPL 301910 Contact Us For Availability
7
Foam Strip-Rt. or Lt. WPL 326696 Contact Us For Availability
7
Shoulder Rivet WPL 70275 Contact Us For Availability
7
Cushion-Door Glass (5 Required) WPL 112370 Contact Us For Availability
7
Fan Blade WPL 326280 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
7
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
8
Keps Nut 8-32 WPL 239764 Contact Us For Availability
8
Burner Box Bottom WPL 323918 Contact Us For Availability
8
Wire Cover WPL 323956 Contact Us For Availability
8
Broiler Drawer Guide (Inc`s. 7 & 10) (Right) WPL 296327 Contact Us For Availability
8
Support - Blower Motor WPL 326279 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Control Panel Trim w/Top & Bottom Inlays WPL 326692 Contact Us For Availability
8
Module - Spark Igniter WPL 326136 Contact Us For Availability
9
Knob - Thermostat WPL 325513 Contact Us For Availability
9
Lower Backsplash WPL 325902 Contact Us For Availability
9
Handle-Oven Door WPL 303342 Contact Us For Availability
9
Motor - Blower WPL 326278 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Lens - Clock WPL 325334 Contact Us For Availability
10
Knob - Gas Valve (4 Req) WPL 325512 Contact Us For Availability
10
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
10
Roller WPL 69006 Contact Us For Availability
10
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
10
Keps Nut 6-32 WPL 236313 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Clock w/4 Hr. Timer WPL 325333 Contact Us For Availability
10
Support-Spark Igniter WPL 318439 Contact Us For Availability
11
Catch - Main Top Strike WPL 24667 Contact Us For Availability
11
End-Vent (Left) WPL 322933 Contact Us For Availability
11
End - Vent (Right) WPL 322935 Contact Us For Availability
11
Broiler Drawer (Inc`s. 7 & 10) WPL 303904 Contact Us For Availability
11
Retainer - Oven Door Insulation WPL 296471 Contact Us For Availability
11
Set Screw 10-32 WPL 70286 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Electrode-Spark Igniter (Left) WPL 312455 Contact Us For Availability
11
Electrode Spark Igniter (Right) WPL 312598 Contact Us For Availability
12
Manifold Panel (Black) WPL 325344 Contact Us For Availability
12
Manifold Panel (White) WPL 326143 Contact Us For Availability
12
Manifold Panel (Golden Wheat) WPL 326145 Contact Us For Availability
12
Manifold Panel (Almond) WPL 326147 Contact Us For Availability
12
Foam Strip (Right) WPL 305749 Contact Us For Availability
12
Foam Strip (Left) WPL 326697 Contact Us For Availability
12
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
12
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
12
Insulation WPL 303556 Contact Us For Availability
12
Mounting Plate - Blower WPL 325382 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Tubular Clip WPL 293577 Contact Us For Availability
12
Support-Top Burner WPL 313375 Contact Us For Availability
13
Strike WPL 299784 Contact Us For Availability
13
Airway - Side (Left) WPL 325726 Contact Us For Availability
13
Airway - Side (Right) WPL 325728 Contact Us For Availability
13
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
13
Lining - Oven Door WPL 296206 Contact Us For Availability
13
Convenience Outlet (2 Req) WPL 109180 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 291284 Contact Us For Availability
13
(With 1/4`` Faston & Eyelet Terminals) (White WPL 321951 Contact Us For Availability
13
(With 1/4`` Faston & Eyelet Terminals) (Black WPL 321952 Contact Us For Availability
13
Gas Use & Care Guide WPL 324000 Contact Us For Availability
13
Installation & Reference Guide WPL 325159 Contact Us For Availability
13
Operating Guide WPL 325165 Contact Us For Availability
13
Main WPL 325405 Contact Us For Availability
13
Repair Parts List WPL 325499 Contact Us For Availability
13
Barrier Intrusion WPL 326354 Contact Us For Availability
13
Switches - Gas Valve WPL 326870 Contact Us For Availability
13
Wire Harness WPL ARI8559A74 Contact Us For Availability
13
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
14
Washer WPL 99279 Contact Us For Availability
14
Retainer-Lt. or Rt. WPL 285523 Contact Us For Availability
14
Broiler Pan Grid WPL 313071 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Sleeve-Igniter Wire (Lt. or Rt.) WPL 314132 Contact Us For Availability
15
Main Top (White) WPL 316813 Contact Us For Availability
15
Main Top (Almond) WPL 316814 Contact Us For Availability
15
Main Top (Golden Wheat) WPL 316815 Contact Us For Availability
15
Main Top (Chrome) WPL 322876 Contact Us For Availability
15
Pop Rivet WPL 101523 Contact Us For Availability
15
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Tubing 3/16`` WPL 322446 Contact Us For Availability
16
Side Trim (Right) WPL 325330 Contact Us For Availability
16
Side Trim (Left) WPL 325492 Contact Us For Availability
16
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
16
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
16
Tubing 3/8`` WPL 295037 Contact Us For Availability
17
Spacer (4 Req) WPL 325308 Contact Us For Availability
17
Oven Body WPL 323854 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
Pressure Regulator WPL 324529 Contact Us For Availability
18
Box - Auxiliary Thermostat WPL 326303 Contact Us For Availability
18
Retainer-Insulation (Lt. or Rt.) WPL 324188 Contact Us For Availability
18
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
19
Auxiliary Thermostat WPL 325401 Contact Us For Availability
19
Main Back WPL 325281 Contact Us For Availability
19
Mounting Screw (Inc`s. 24) WPL 311455 Contact Us For Availability
20
Foam Strip WPL 325029 Contact Us For Availability
20
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
20
Mounting Screw (2 Req. for 41) WPL 318478 Contact Us For Availability
21
Screw 4-40x1/4`` WPL 230710 Contact Us For Availability
21
Gasket WPL 296010 Contact Us For Availability
21
Gasket WPL 318658 Contact Us For Availability
22
Cover - Wire Support WPL 326417 Contact Us For Availability
22
Flue Deflector WPL 300917 Contact Us For Availability
22
Gasket WPL 318657 Contact Us For Availability
23
Brace-Cabinet Side WPL 325388 Contact Us For Availability
23
Clip (for Key 24) WPL 97047 Contact Us For Availability
23
Manifold Pipe WPL 318481 Contact Us For Availability
24
Screw 10-32x1/2`` WPL 239114 Contact Us For Availability
24
Range Service Cord WPL 312353 Contact Us For Availability
24
Gasket WPL 304241 Contact Us For Availability
25
Support - Microwave (4 Req) WPL 325704 Contact Us For Availability
25
Shield - Oven Light Wire WPL 325519 Contact Us For Availability
25
Gasket WPL 313563 Contact Us For Availability
26
Base - Microwave WPL 325303 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
Baffle - Oven Burner WPL 302729 Contact Us For Availability
27
Baffle - Vent WPL 322937 Contact Us For Availability
27
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
27
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
28
Vent Side-Left WPL 322949 Contact Us For Availability
28
Orifice Cup Only (For 32) WPL 318485 Contact Us For Availability
29
Bottom-Vent WPL 320261 Contact Us For Availability
29
Clip-Thermostat Bulb WPL 115533 Contact Us For Availability
29
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
30
Cove WPL 321660 Contact Us For Availability
30
WPL 321663 WPL 321663 Contact Us For Availability
30
WPL 321664 WPL 321664 Contact Us For Availability
30
Dart-Button Head (2 Req) WPL 296097 Contact Us For Availability
30
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
31
WPL 325346 WPL 325346 Contact Us For Availability
31
WPL 325349 WPL 325349 Contact Us For Availability
31
WPL 325350 WPL 325350 Contact Us For Availability
31
Washer WPL 303963 Contact Us For Availability
31
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
32
WPL 323820 WPL 323820 Contact Us For Availability
32
WPL 323823 WPL 323823 Contact Us For Availability
32
WPL 323824 WPL 323824 Contact Us For Availability
32
Pilot Only (Inc`s. 28) WPL 318486 Contact Us For Availability
33
Broiler Pan WPL 290171 Contact Us For Availability
33
Electrode - Oven Spark Igniter WPL 318431 Contact Us For Availability
34
WPL 325471 WPL 325471 Contact Us For Availability
34
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
34
Adjustment Screw-Air Shutter WPL 239268 Contact Us For Availability
35
WPL 325337 WPL 325337 Contact Us For Availability
35
WPL 325338 WPL 325338 Contact Us For Availability
35
Shoulder Rivet WPL 305064 Contact Us For Availability
35
Air Shutter WPL 239267 Contact Us For Availability
36
WPL 320257 WPL 320257 Contact Us For Availability
36
Hinge - Broiler Door (Right) WPL 296124 Contact Us For Availability
36
Hinge-Broiler Door (Left) WPL 296125 Contact Us For Availability
36
Control Valve (Inc`s. 28 & 32) WPL 318482 Contact Us For Availability
37
WPL 325297 WPL 325297 Contact Us For Availability
37
Washer WPL 21067 Contact Us For Availability
37
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
38
WPL 325299 WPL 325299 Contact Us For Availability
38
Handle-Broiler Door WPL 292240 Contact Us For Availability
38
Oven Burner (Inc`s. 26, 34 & 35) WPL 319255 Contact Us For Availability
39
WPL 326031 WPL 326031 Contact Us For Availability
39
Spacer WPL 302343 Contact Us For Availability
39
Switch - Valve (1 Ea. For 40) WPL 312457 Contact Us For Availability
40
Front Panel-Broiler WPL 296131 Contact Us For Availability
40
WPL 308346 WPL 308346 Contact Us For Availability
40
WPL 308977 WPL 308977 Contact Us For Availability
40
WPL 324696 WPL 324696 Contact Us For Availability
40
Gas Valve - 4 Req. WPL 324987 Contact Us For Availability
41
WPL 325328 WPL 325328 Contact Us For Availability
41
WPL 296137 WPL 296137 Contact Us For Availability
41
Oven Thermostat WPL 318477 Contact Us For Availability
42
WPL 325322 WPL 325322 Contact Us For Availability
42
WPL 325325 WPL 325325 Contact Us For Availability
42
WPL 325326 WPL 325326 Contact Us For Availability
42
Switch-Oven Thermostat WPL 318432 Contact Us For Availability
43
WPL 324504 WPL 324504 Contact Us For Availability
43
WPL 296332 WPL 296332 Contact Us For Availability
44
WPL 320476 WPL 320476 Contact Us For Availability
44
WPL 321671 WPL 321671 Contact Us For Availability
44
WPL 321672 WPL 321672 Contact Us For Availability
45
WPL 239113 WPL 239113 Contact Us For Availability
45
WPL 325307 WPL 325307 Contact Us For Availability
45
WPL 325802 WPL 325802 Contact Us For Availability
46
WPL 296102 WPL 296102 Contact Us For Availability
47
WPL 296103 WPL 296103 Contact Us For Availability
48
WPL 323796 WPL 323796 Contact Us For Availability
49
WPL 111257 WPL 111257 Contact Us For Availability
50
WPL 295974 WPL 295974 Contact Us For Availability
51
WPL 296070 WPL 296070 Contact Us For Availability
52
WPL 305408 WPL 305408 Contact Us For Availability
53
WPL 305409 WPL 305409 Contact Us For Availability
54
WPL 323929 WPL 323929 Contact Us For Availability
55
WPL 69065 WPL 69065 Contact Us For Availability
56
WPL 296140 WPL 296140 Contact Us For Availability
57
WPL 323931 WPL 323931 Contact Us For Availability
× ![]()
