Model Whirlpool 1463W0A GAS RANGE – Common Parts & Diagrams
05 - BODY
07 - OVEN DOOR, LIT/OPTIONAL

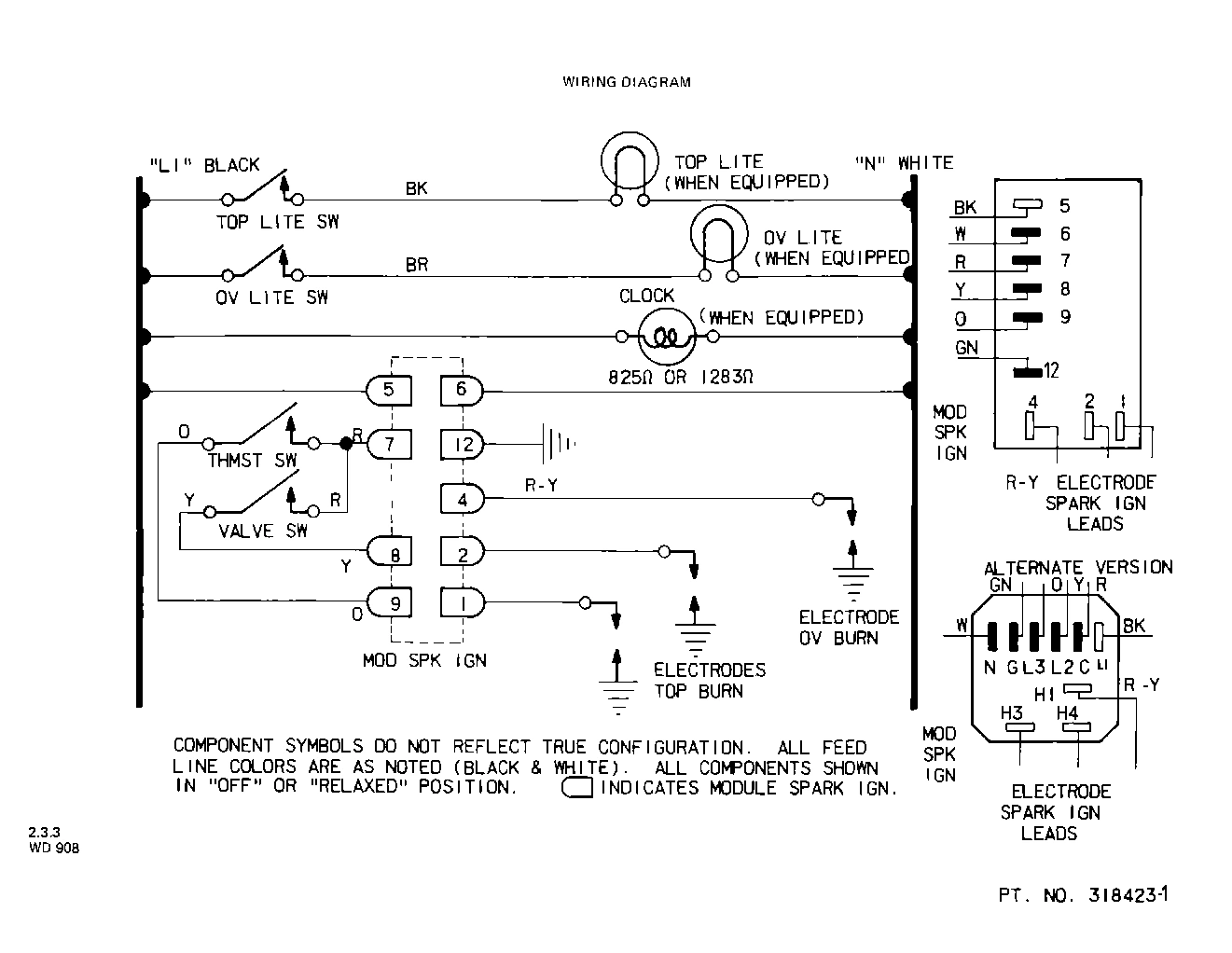

09 - WIRING DIAGRAM

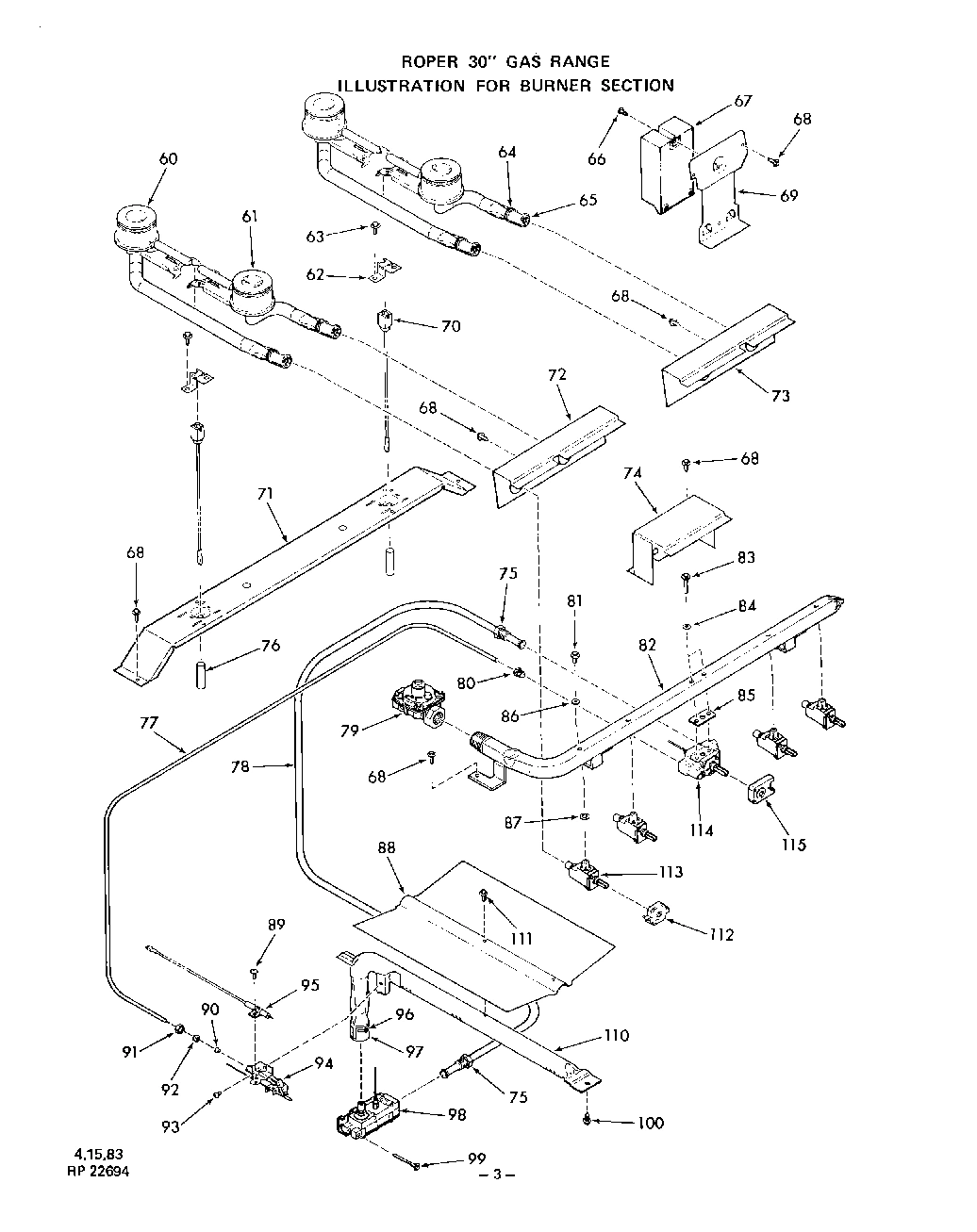

04 - BURNER

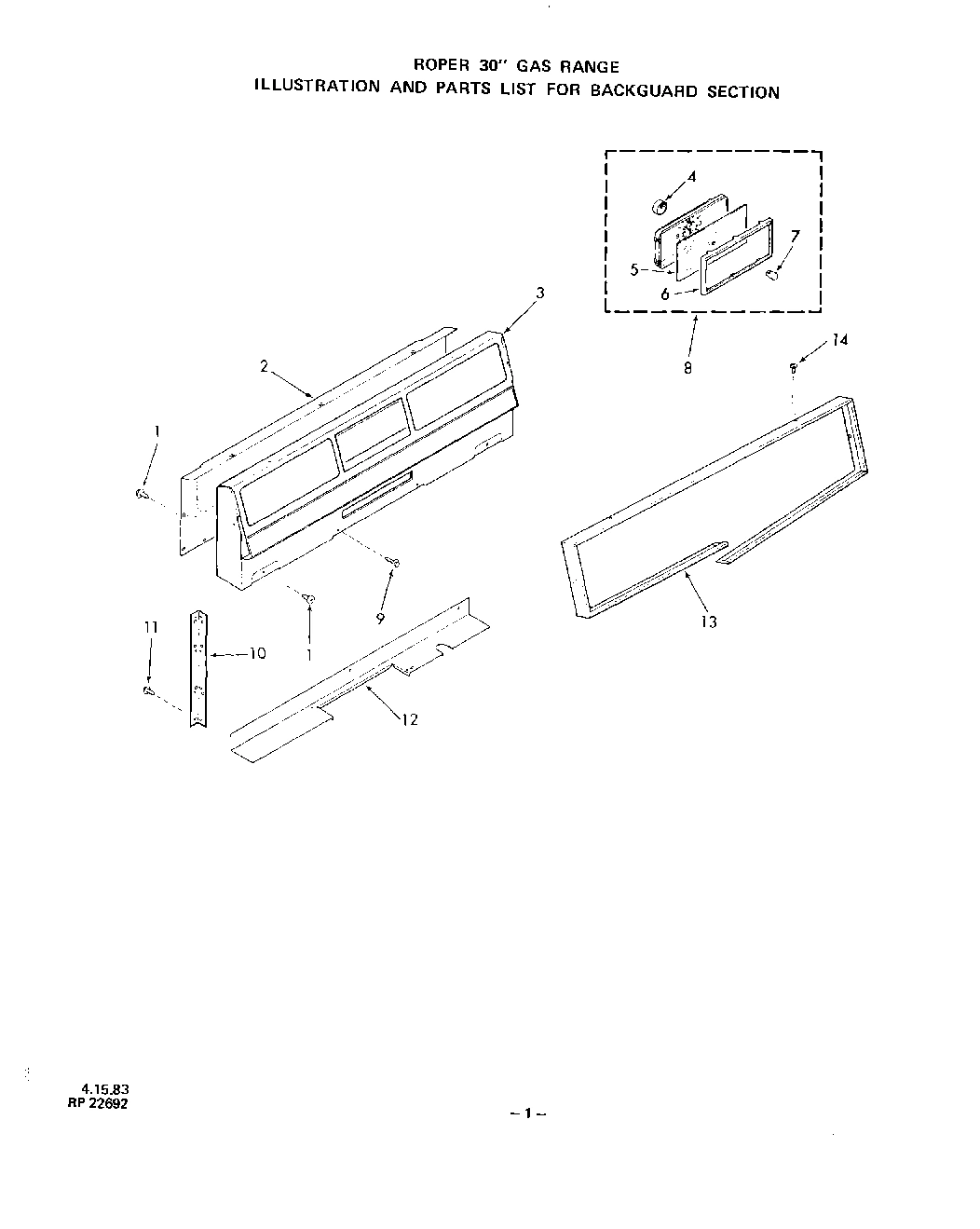

02 - BACKGUARD

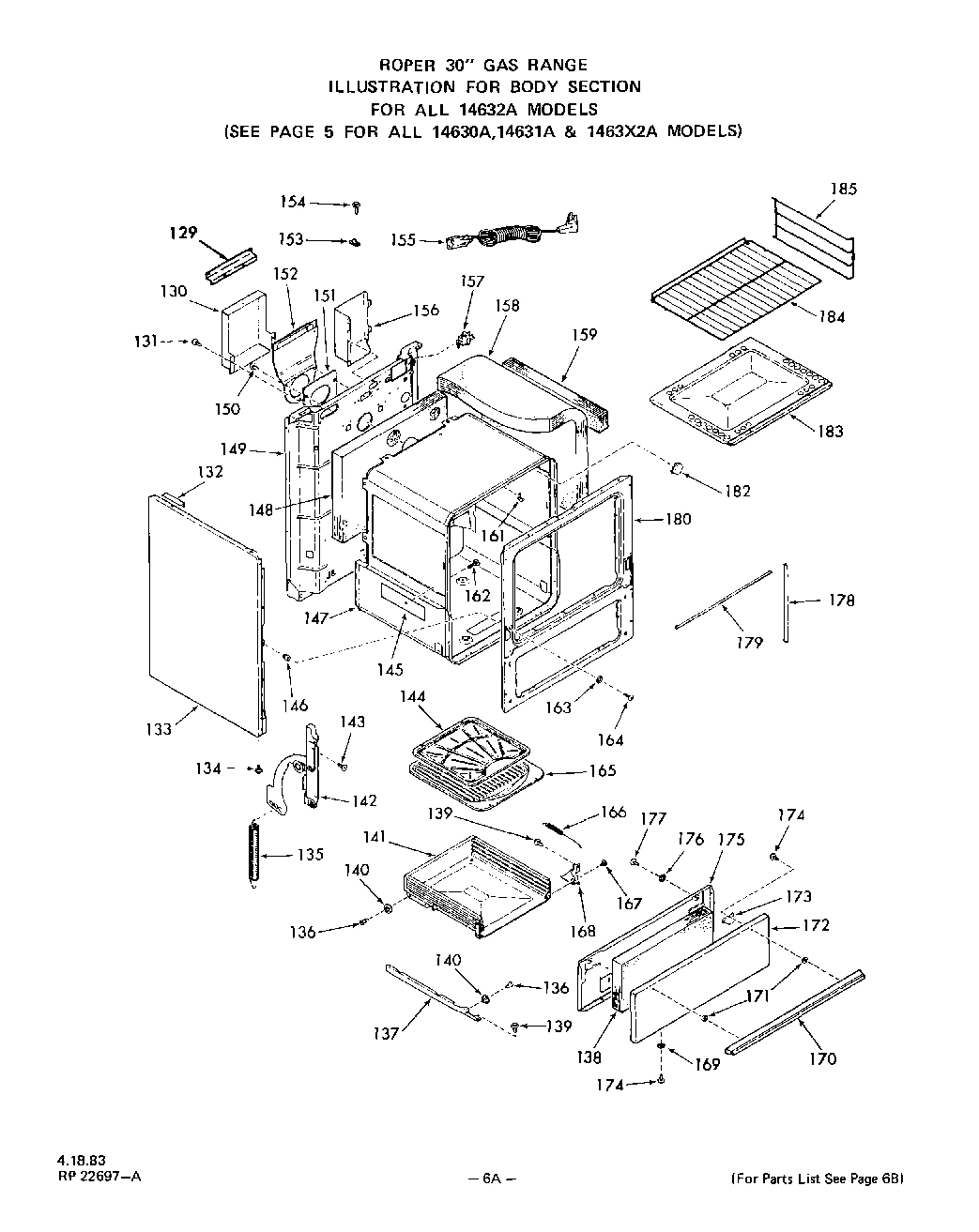

06 - SECTION

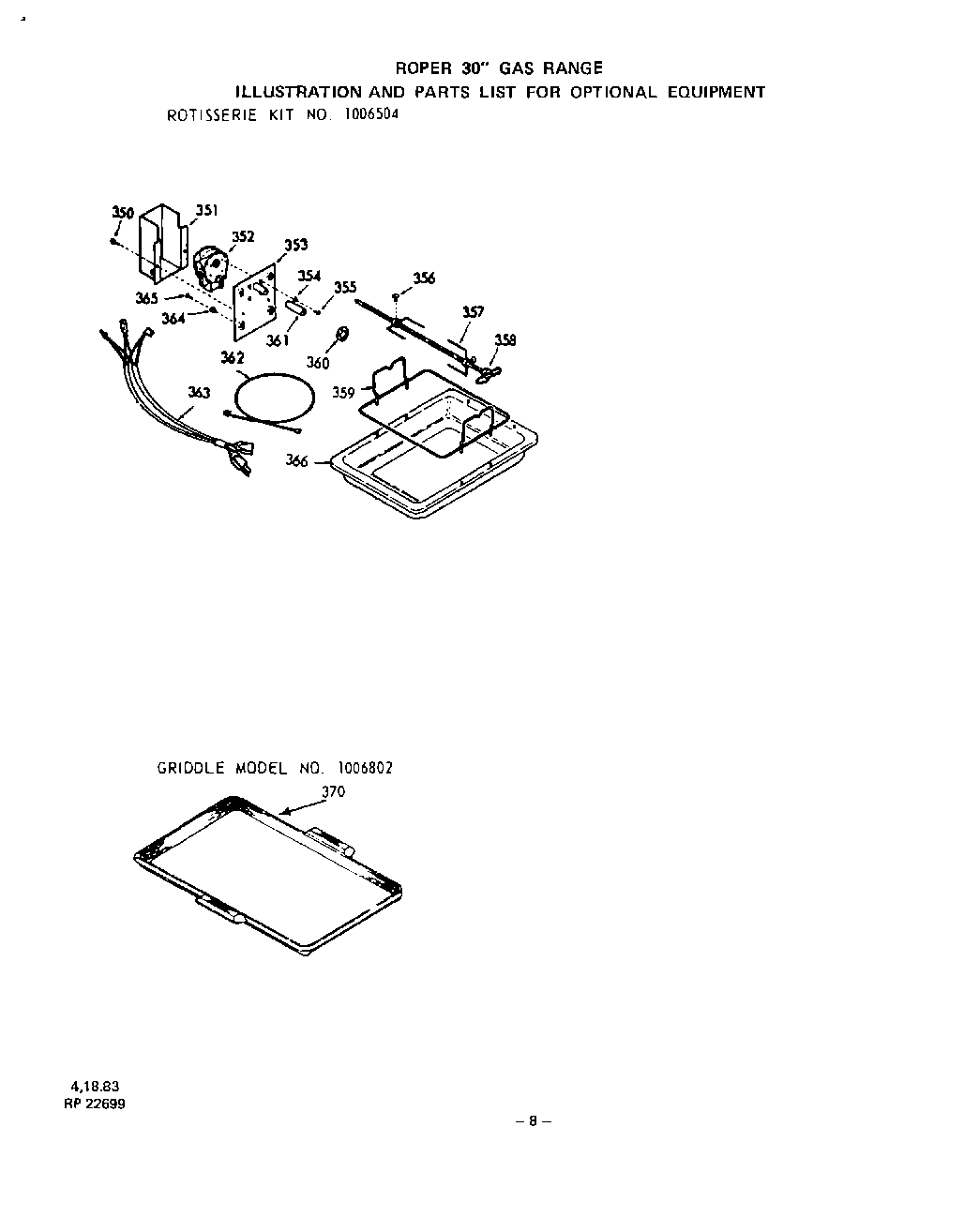

08 - ROTISSERIE KIT, GRIDDLE

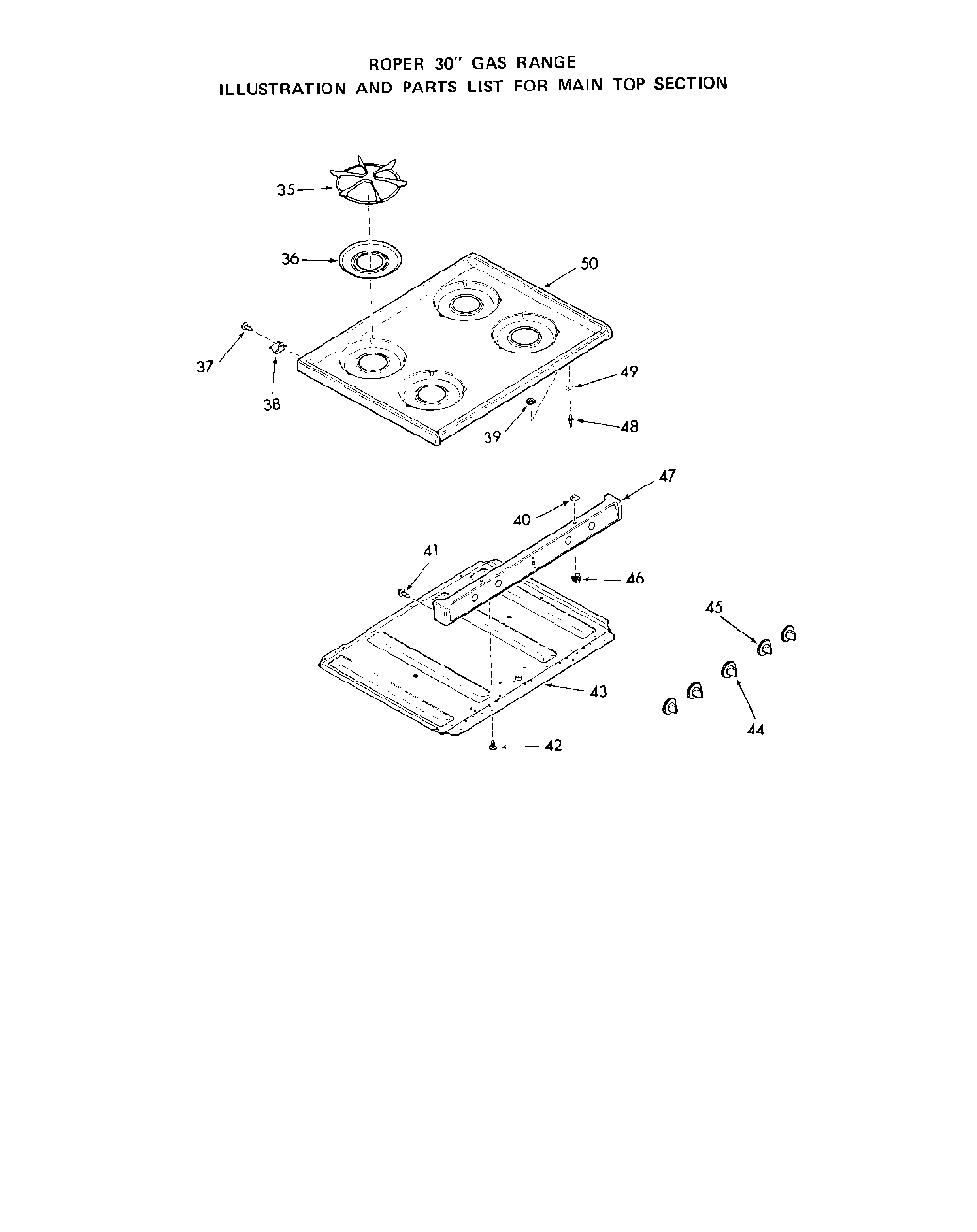

03 - MAINTOP
Common parts from model Whirlpool 1463W0A GAS RANGE
Gas Valve Switches WPL 322226 Contact Us For Availability
2
Wire Cover-Backguard WPL 320767 Contact Us For Availability
3
Backguard Crosstie WPL 324566 Contact Us For Availability
4
Clock Motor WPL 283296 Contact Us For Availability
5
Clock Glass WPL 284183 Contact Us For Availability
7
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
8
Clock W/4 Hr. Timer (Inc`s. 4-7) WPL 315261 Contact Us For Availability
10
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
12
Bottom-Wire Cover WPL 296569 Contact Us For Availability
13
Bezel-Backguard WPL 310603 Contact Us For Availability
14
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
35
Top Grate (4 Required) WPL 316786 Contact Us For Availability
36
Spill Bowl WPL 322888 Contact Us For Availability
37
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
38
Retainer-Main Top (2 Required) WPL 301672 Contact Us For Availability
39
Keps Nut 8-32 WPL 239764 Contact Us For Availability
40
Washer WPL 310218 Contact Us For Availability
42
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
43
Burner Box Bottom WPL 320408 Contact Us For Availability
44
Knob-Oven Thermostat (All 14631A Models) WPL 318488 Contact Us For Availability
44
Knob-Oven Thermostat (All 14630A Models) WPL 322170 Contact Us For Availability
45
Knob-Gas Valve (4Req) (All 14631A, 14632A Mod WPL 314773 Contact Us For Availability
45
Knob-Gas Valve (4Req) (All 14630A Models) WPL 320904 Contact Us For Availability
46
Catch-Main Top Strike (2 Required) WPL 24667 Contact Us For Availability
47
Manifold Panel (White) WPL 324531 Contact Us For Availability
47
Manifold Panel (Golden Wheat) WPL 324534 Contact Us For Availability
47
Manifold Panel (Almond) WPL 324535 Contact Us For Availability
47
Manifold Panel (Black) WPL 324537 Contact Us For Availability
48
Strike-Main Top (2 Required) WPL 299784 Contact Us For Availability
49
Washer WPL 99279 Contact Us For Availability
50
Main Top (White) WPL 316813 Contact Us For Availability
50
Main Top (Almond) WPL 316814 Contact Us For Availability
50
Main Top (Golden Wheat) WPL 316815 Contact Us For Availability
50
Main Top (Chrome) WPL 322876 Contact Us For Availability
60
Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) WPL 310197 Contact Us For Availability
61
Front Top Burner-Lt. or Rt. (Inc`s 64 & 65) WPL 310196 Contact Us For Availability
62
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
64
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
65
Air Shutter WPL 301910 Contact Us For Availability
66
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
67
Module-Spark Igniter WPL 318430 Contact Us For Availability
69
Support-Spark Igniter WPL 318439 Contact Us For Availability
70
Electrode-Spark Igniter (Left) WPL 312455 Contact Us For Availability
70
Electrode Spark Igniter (Right) WPL 312598 Contact Us For Availability
71
Support-Top Burner WPL 313375 Contact Us For Availability
72
Valve Cover-Left WPL 321172 Contact Us For Availability
73
Valve Cover-Right WPL 321170 Contact Us For Availability
74
Wire Cover-Oven Thermostat WPL 318460 Contact Us For Availability
75
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
76
Sleeve-Igniter Wire (Lt. or Rt.) WPL 314132 Contact Us For Availability
77
Tubing 3/16`` WPL 322466 Contact Us For Availability
78
Tubing 3/8`` WPL 295037 Contact Us For Availability
79
Pressure Regulator WPL 324529 Contact Us For Availability
80
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
81
Mounting Screw (Inc`s 86) WPL 311455 Contact Us For Availability
82
Manifold Pipe WPL 318481 Contact Us For Availability
83
Mounting Screw (2 Req. for 114) WPL 318478 Contact Us For Availability
84
Gasket (For 83) WPL 318658 Contact Us For Availability
85
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
86
Gasket (For 81) WPL 304241 Contact Us For Availability
87
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
88
Baffle - Oven Burner WPL 302729 Contact Us For Availability
89
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
90
Orifice Cup Only (For 94) WPL 318485 Contact Us For Availability
91
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
92
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
93
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
94
Pilot Only (Inc`s 90) WPL 318486 Contact Us For Availability
95
Electrode - Oven Spark Igniter WPL 318431 Contact Us For Availability
96
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
97
Air Shutter WPL 312988 Contact Us For Availability
98
Control Valve (Inc`s 90 & 94) WPL 318482 Contact Us For Availability
99
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
110
Oven Burner (Inc`s 88, 96 & 97) WPL 319255 Contact Us For Availability
112
WPL 312457 WPL 312457 Contact Us For Availability
113
WPL 318479 WPL 318479 Contact Us For Availability
114
WPL 318477 WPL 318477 Contact Us For Availability
115
WPL 318432 WPL 318432 Contact Us For Availability
129
Support-Flue Deflector WPL 301624 Contact Us For Availability
130
Shield - Flue Deflector WPL 296011 Contact Us For Availability
132
Spacer-Main Top WPL 303513 Contact Us For Availability
133
Body Side (White-Right) WPL 323084 Contact Us For Availability
133
Body Side (White-Left) WPL 323085 Contact Us For Availability
133
Body Side (Wheat-Right) WPL 323090 Contact Us For Availability
133
Body Side (Wheat-Left) WPL 323091 Contact Us For Availability
133
Body Side (Almond- Right) WPL 323092 Contact Us For Availability
133
Body Side (Almond-Left) WPL 323093 Contact Us For Availability
133
Body Side (Black-Left) WPL 325807 Contact Us For Availability
133
Body Side (Black-Right) WPL 328806 Contact Us For Availability
134
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
135
Broiler Drawer WPL 305259 Contact Us For Availability
135
Spring-Oven Door (Lt. or Rt.) WPL 308735 Contact Us For Availability
136
Shoulder Rivet WPL 70275 Contact Us For Availability
137
Broiler Drawer Guide (Inc`s. 136 & 140) (Righ WPL 296327 Contact Us For Availability
139
Nut-Retainer (2 Required) WPL 304980 Contact Us For Availability
140
Roller WPL 69006 Contact Us For Availability
141
Broiler Drawer (Inc`s. 136 & 140) WPL 303904 Contact Us For Availability
142
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
142
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
143
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
144
Broiler Pan Grid WPL 313071 Contact Us For Availability
145
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
146
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
147
Oven Body WPL 323854 Contact Us For Availability
148
Insulation - Oven Back WPL 296140 Contact Us For Availability
149
Main Back WPL 322910 Contact Us For Availability
150
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
150
Wire Shield WPL 318443 Contact Us For Availability
151
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
152
Flue Deflector WPL 300917 Contact Us For Availability
153
Clip WPL 106767 Contact Us For Availability
153
Clip-Thermostat Bulb (2 Required) WPL 115533 Contact Us For Availability
155
Range Service Cord WPL 235822 Contact Us For Availability
156
Wire Shield WPL 296025 Contact Us For Availability
157
Disconnect WPL 232150 Contact Us For Availability
158
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
159
Catch-Broiler Door Strike WPL 306961 Contact Us For Availability
160
Thumbscrew-Rt. or Lt. WPL 278797 Contact Us For Availability
161
Thermostat Bulb Clip (2 Required) WPL 155533 Contact Us For Availability
162
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
163
Strike-Broiler Door WPL 24668 Contact Us For Availability
163
Washer WPL 303963 Contact Us For Availability
165
Hinge-Broiler Door (Lt. or Rt.) WPL 285675 Contact Us For Availability
165
Broiler Pan WPL 290171 Contact Us For Availability
166
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
167
Shoulder Screw 10-32x1 WPL 289730 Contact Us For Availability
167
Shoul WPL 305064 Contact Us For Availability
168
WPL 296124 WPL 296124 Contact Us For Availability
168
WPL 296125 WPL 296125 Contact Us For Availability
170
WPL 292240 WPL 292240 Contact Us For Availability
172
WPL 322872 WPL 322872 Contact Us For Availability
173
WPL 296137 WPL 296137 Contact Us For Availability
174
WPL 316365 WPL 316365 Contact Us For Availability
175
WPL 296332 WPL 296332 Contact Us For Availability
176
WPL 21067 WPL 21067 Contact Us For Availability
178
WPL 314573 WPL 314573 Contact Us For Availability
178
WPL 302267 WPL 302267 Contact Us For Availability
179
WPL 314574 WPL 314574 Contact Us For Availability
180
WPL 316994 WPL 316994 Contact Us For Availability
181
WPL 302343 WPL 302343 Contact Us For Availability
182
WPL 101063 WPL 101063 Contact Us For Availability
183
WPL 296070 WPL 296070 Contact Us For Availability
184
WPL 305408 WPL 305408 Contact Us For Availability
185
WPL 305409 WPL 305409 Contact Us For Availability
241
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
242
Glass-Oven Door WPL 320736 Contact Us For Availability
245
Cushion-Door Glass WPL 112370 Contact Us For Availability
246
Frame-Door Glass WPL 296473 Contact Us For Availability
247
Handle-Oven Door WPL 303342 Contact Us For Availability
248
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
249
Retainer-Oven Door Insulation WPL 320735 Contact Us For Availability
250
Insulation-Oven Door WPL 296142 Contact Us For Availability
251
Flue Collar Kit (Optional) WPL 1002100 Contact Us For Availability
251
Module WPL 318427 Contact Us For Availability
251
Lining-Oven Door WPL 321411 Contact Us For Availability
251
Gas Use & Care Guide WPL 324000 Contact Us For Availability
251
Installation & Reference Guide WPL 324266 Contact Us For Availability
251
Operating Guide WPL 324579 Contact Us For Availability
251
Repair Parts Manual WPL 325820 Contact Us For Availability
251
xWire Harness WPL ARI8535A26 Contact Us For Availability
350
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
351
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
352
Rotisserie Motor WPL 106575 Contact Us For Availability
352
Switch (For Key No. 352) WPL 208199 Contact Us For Availability
353
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
354
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
355
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
356
Thumbscrew WPL 70287 Contact Us For Availability
357
Skewer WPL 88433 Contact Us For Availability
358
Rotisserie Spit WPL 100092 Contact Us For Availability
359
Spit Support WPL 232137 Contact Us For Availability
360
Plug Button WPL 100095 Contact Us For Availability
361
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 291284 Contact Us For Availability
362
Fixture Wire Lead (With 1/4`` Faston & Eyelet WPL 321951 Contact Us For Availability
362
Fixture Wire Lead (With 1/4`` Faston & Eyelet WPL 321952 Contact Us For Availability
363
Rotisserie Cord WPL 282924 Contact Us For Availability
364
Lockwasher WPL 69603 Contact Us For Availability
365
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
366
Rotisserie Pan WPL 291397 Contact Us For Availability
366
Installation Instructions WPL 300668 Contact Us For Availability
370
Set-On-Griddle (Optional) WPL 100680 Contact Us For Availability
× ![]()
