Model Whirlpool 1446W0A GAS RANGE – Common Parts & Diagrams
02 - MAIN TOP
04 - BODY
06 - OVEN DOOR
08 - SECTION
01 - BACKGUARD

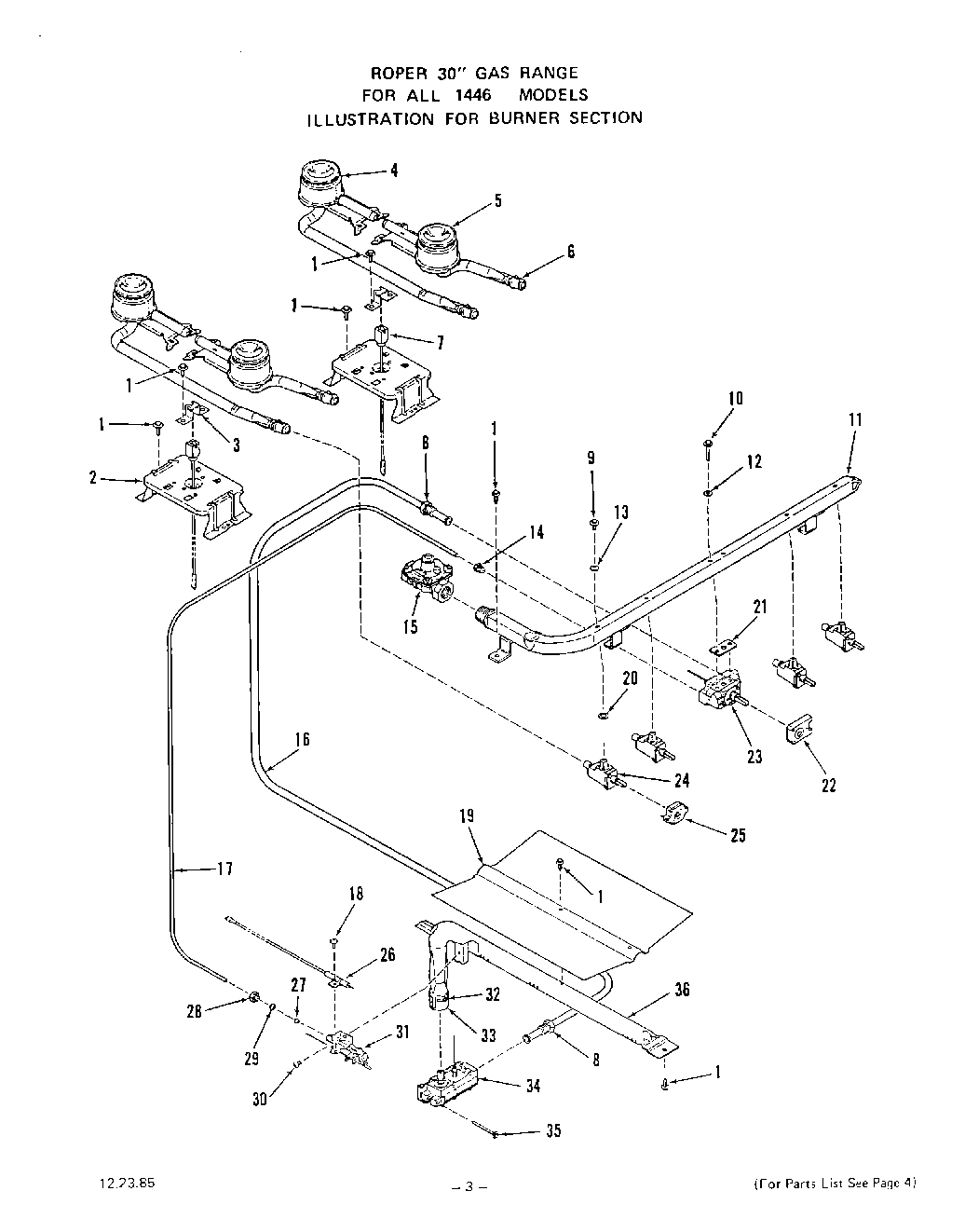

03 - BURNER
05 - GRIDDLE
Common parts from model Whirlpool 1446W0A GAS RANGE
1
Clock w/4 Hr. Timer (Inc`s. Key 3) (14460A Mo WPL 327536 Contact Us For Availability
1
Clock w/4 Hr. Timer (Inc`s. Key 3) (14451A Mo WPL 333603 Contact Us For Availability
1
Top Grate (4 Required) WPL 316786 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
2
Clip-Clock (4 Req) WPL 326329 Contact Us For Availability
2
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
3
Clock Motor WPL 283296 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
3
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
4
Clock Glass (14460A Models) WPL 323176 Contact Us For Availability
4
Clock Glass (14461A Models) WPL 333690 Contact Us For Availability
4
Rear Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327075 Contact Us For Availability
4
bracket-main top hinge (lt. or rt.) WPL 327403 Contact Us For Availability
5
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
5
Front Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327074 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
6
Clip WPL 70588 Contact Us For Availability
6
Air Shutter WPL 327198 Contact Us For Availability
6
Spacer-Main Top WPL 326914 Contact Us For Availability
7
End Cap (Right) WPL 326282 Contact Us For Availability
7
End Cap (Left) WPL 326283 Contact Us For Availability
7
Electrode-Spark Igniter (Right) WPL 312455 Contact Us For Availability
7
Electrode-Spark Igniter (Left) WPL 327216 Contact Us For Availability
7
Burner Box Bottom WPL 331575 Contact Us For Availability
7
Leveler-Leg (4 Req) WPL 326052 Contact Us For Availability
8
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
8
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
8
Washer WPL 106462 Contact Us For Availability
9
mounting screw 1/4-20 (inc`s. 13) WPL 311455 Contact Us For Availability
9
stiffener-burner box bottom (front) WPL 327705 Contact Us For Availability
9
Stiffener-Burner Box Bottom (Rear) WPL 329158 Contact Us For Availability
9
Side-Body (Lt. or Rt.) (White) WPL 326055 Contact Us For Availability
9
Side-Body (Lt. or Rt.) (Almond) WPL 326059 Contact Us For Availability
10
Support-Backguard (Right) WPL 327106 Contact Us For Availability
10
Support-Backguard (Left) WPL 327107 Contact Us For Availability
10
Mounting Screw 10-24 (Inc`s. 12) WPL 318478 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
11
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
11
Manifold Pipe WPL 327089 Contact Us For Availability
11
Bracket-Manifold Panel (Left) WPL 328808 Contact Us For Availability
11
Bracket-Manifold Panel (Right) WPL 328924 Contact Us For Availability
11
Guide-Broiler Drawer (Inc`s. 12,13) (Right) WPL 296327 Contact Us For Availability
12
Push Switch WPL 298793 Contact Us For Availability
12
Silicone Rubber Gasket WPL 318658 Contact Us For Availability
12
End Cap-Manifold Panel (Right) WPL 328498 Contact Us For Availability
12
End Cap-Manifold Panel (Left) WPL 328499 Contact Us For Availability
12
Rivet-Shoulder WPL 70275 Contact Us For Availability
13
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
13
Silicone Rubber Gasket WPL 311692 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
14
Panel-Backguard WPL 333375 Contact Us For Availability
14
Loxit Nut WPL 79673 Contact Us For Availability
14
Knob-Gas Valve (4 Req) WPL 329412 Contact Us For Availability
14
spring-oven door (lt. or rt.) WPL 326962 Contact Us For Availability
15
Knurled Nut WPL 87403 Contact Us For Availability
15
Pressure Regulator WPL 324528 Contact Us For Availability
15
Catch-Main Top Strike (2 Required) WPL 24667 Contact Us For Availability
15
Screw WPL 331704 Contact Us For Availability
16
Wire Cover-Backguard WPL 320767 Contact Us For Availability
16
Tubing 3/8`` WPL 295037 Contact Us For Availability
16
Knob-Thermostat WPL 331768 Contact Us For Availability
16
Hinge-Oven Door (Left) WPL 329653 Contact Us For Availability
16
Hinge-Oven Door (Right) WPL 329654 Contact Us For Availability
17
Module - Spark Igniter WPL 326136 Contact Us For Availability
17
Tubing 3/16`` WPL 322447 Contact Us For Availability
18
Screw 13-16 x 1/2`` WPL 329676 Contact Us For Availability
18
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
18
Manifold Panel WPL 331763 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
19
Trim-Crosstie WPL 329236 Contact Us For Availability
19
Baffle - Oven Burner WPL 329316 Contact Us For Availability
19
Cover-Backguard Bottom Wire WPL 327251 Contact Us For Availability
20
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
20
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
21
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
22
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
22
Oven Body WPL 331586 Contact Us For Availability
23
Oven Thermostat (Inc`s. 21) WPL 321983 Contact Us For Availability
23
Keps Nut 8-32 WPL 239764 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
Gas Valve (4 Req) (Inc`s. 20) WPL 332001 Contact Us For Availability
24
Strike (2 Required) WPL 299784 Contact Us For Availability
24
Drawer-Broiler (Inc`s. 12, 13) WPL 331566 Contact Us For Availability
25
Switch-Gas Valve (4 Req) WPL 312457 Contact Us For Availability
25
Main Top (White) WPL 328907 Contact Us For Availability
25
Main Top (Almond) WPL 328911 Contact Us For Availability
25
Bolt-Shoulder WPL 329271 Contact Us For Availability
26
Electrode-Oven Spark Igniter WPL 327217 Contact Us For Availability
26
Washer (2 Required) WPL 310218 Contact Us For Availability
26
Hinge-Broiler Drawer (Lt. or Rt.) (Right) WPL 327482 Contact Us For Availability
26
Hinge-Broiler Drawer (Lt. or Rt.) (Left) WPL 327483 Contact Us For Availability
27
Orifice Cup Only (For 31) WPL 318485 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
28
Panel-Front Broiler Door (White) WPL 326287 Contact Us For Availability
28
Panel-Front Broiler Door (Almond) WPL 326291 Contact Us For Availability
29
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
29
Handle WPL 292240 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
30
Spacer WPL 302343 Contact Us For Availability
31
Pilot Only (Inc`s. 27) WPL 318486 Contact Us For Availability
31
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
32
Lining-Broiler Door WPL 331567 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
33
Nut-Keps 10-24 WPL 74056 Contact Us For Availability
34
Control Valve (Inc`s. 27 & 31) WPL 321755 Contact Us For Availability
34
Pan-Broiler WPL 331593 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
Grid-Broiler Pan WPL 331588 Contact Us For Availability
36
Oven Burner (Inc`s. 19, 32 & 33) WPL 319255 Contact Us For Availability
36
Bulb-Oven Lamp WPL 111257 Contact Us For Availability
37
Holder-Oven Lamp Bulb WPL 295974 Contact Us For Availability
38
seal-oven door WPL 326047 Contact Us For Availability
39
Retainer-Oven Door Seal WPL 327875 Contact Us For Availability
40
Front Frame WPL 332687 Contact Us For Availability
41
Retainer-Insulation (Lt. or Rt.) WPL 328984 Contact Us For Availability
43
Cord-Range Service WPL 235822 Contact Us For Availability
44
Rack-Oven (2 Req) WPL 326068 Contact Us For Availability
45
Bottom- WPL 331539 Contact Us For Availability
46
WPL 115533 WPL 115533 Contact Us For Availability
47
WPL 329314 WPL 329314 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
× ![]()
