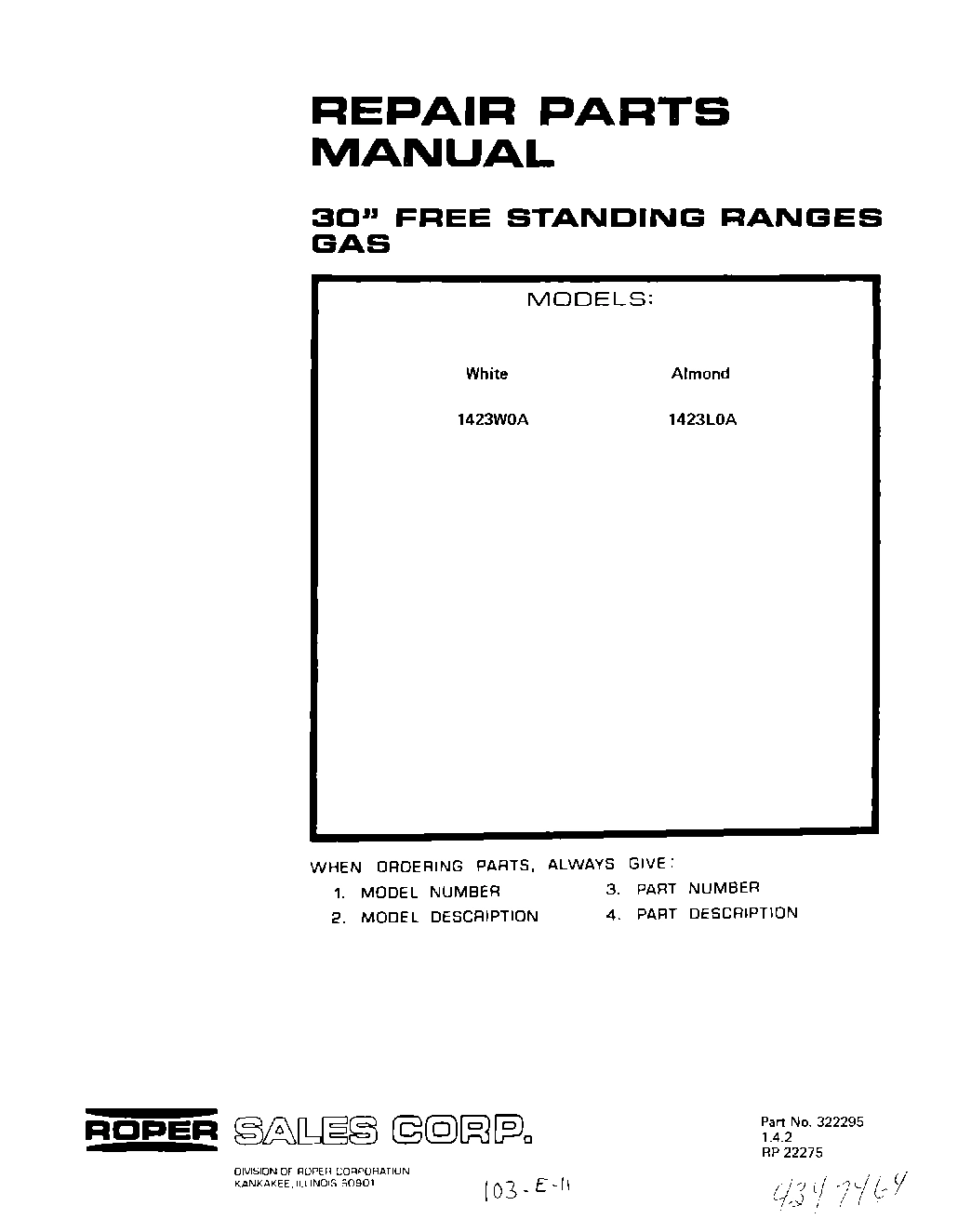

Model Whirlpool 1423W0A GAS RANGE – Common Parts & Diagrams
05 - ROTISSERIE , GRIDDLE

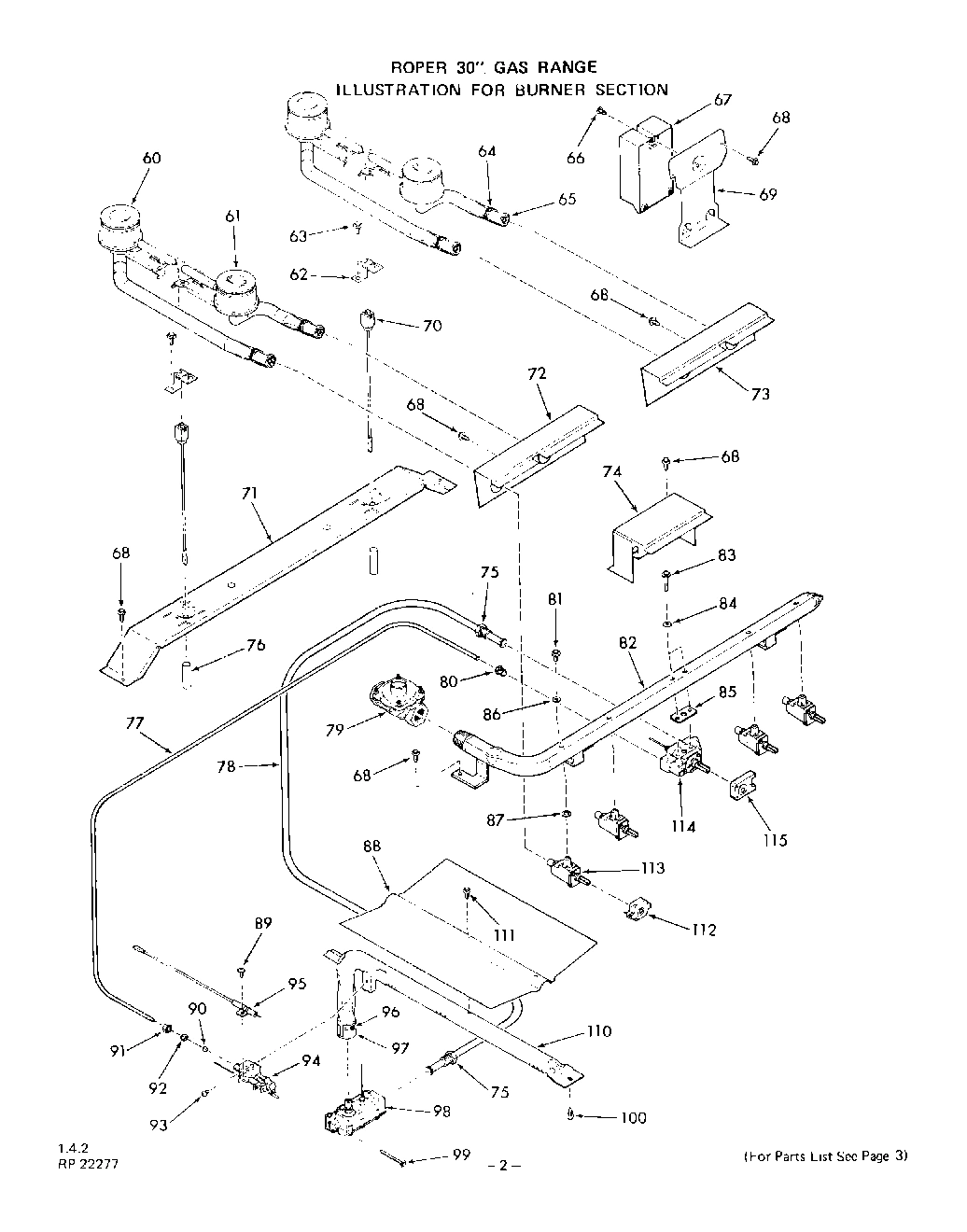

02 - BURNER

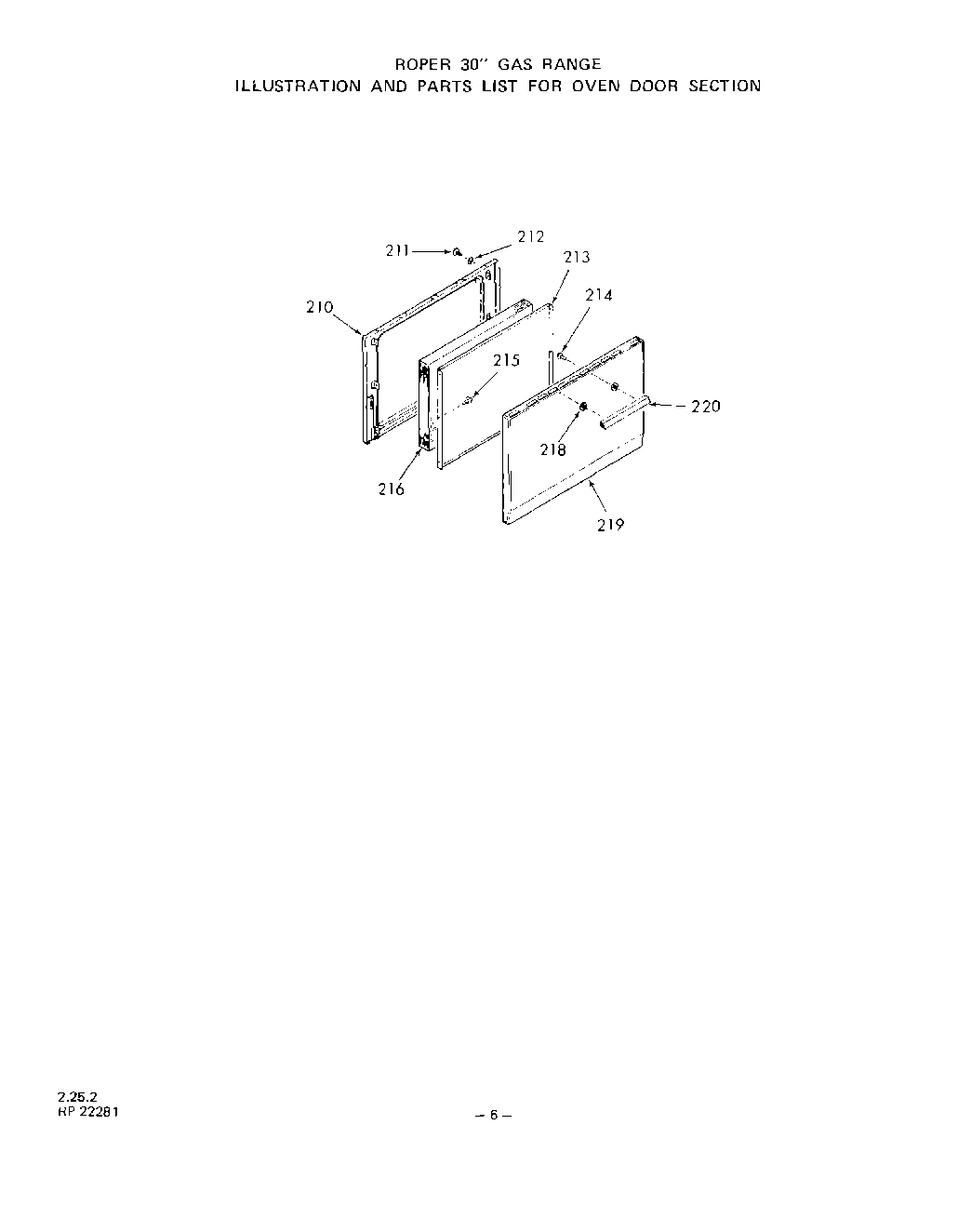

04 - OVEN DOOR
07 - SECTION

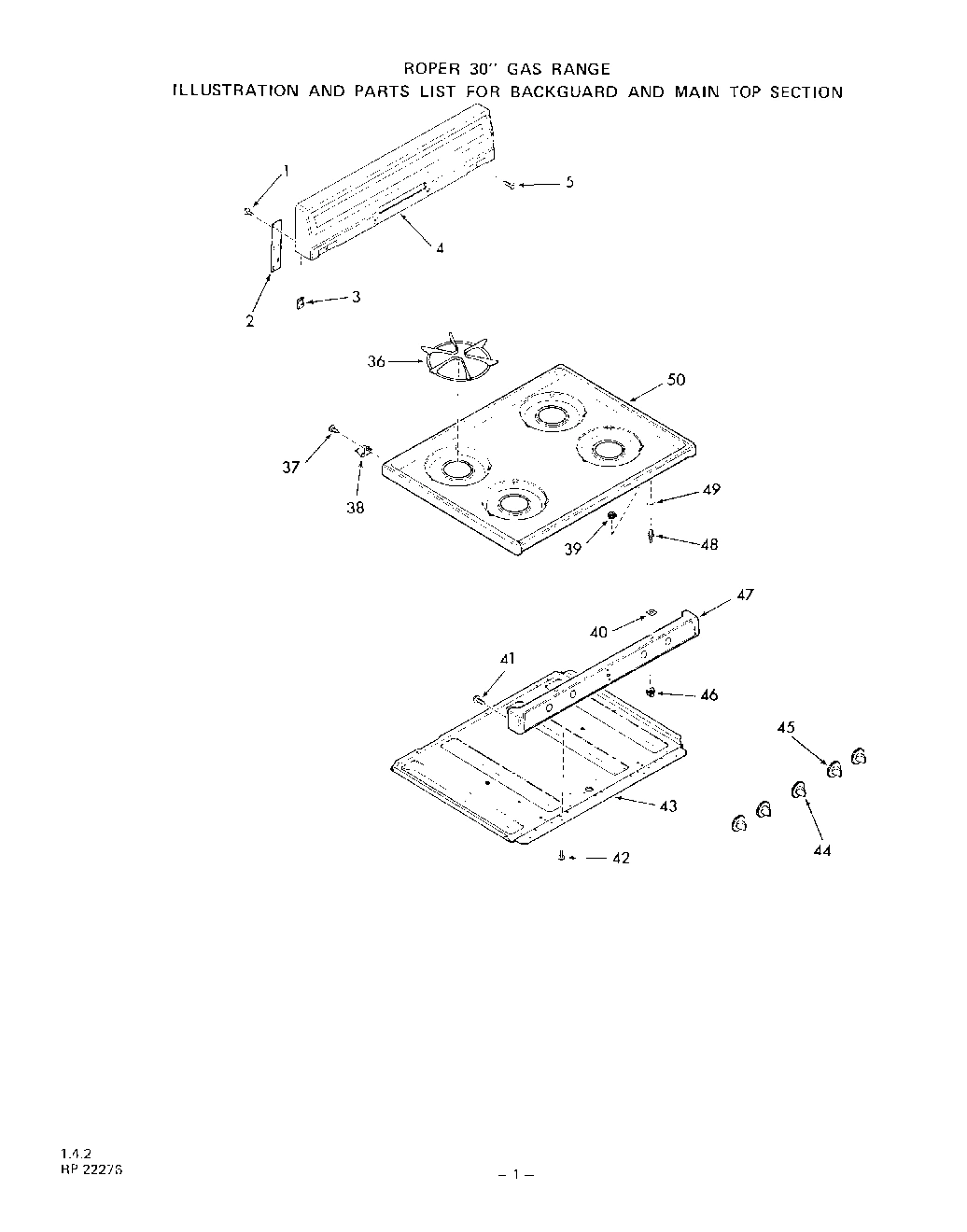

01 - BACKGUARD AND MAIN TOP

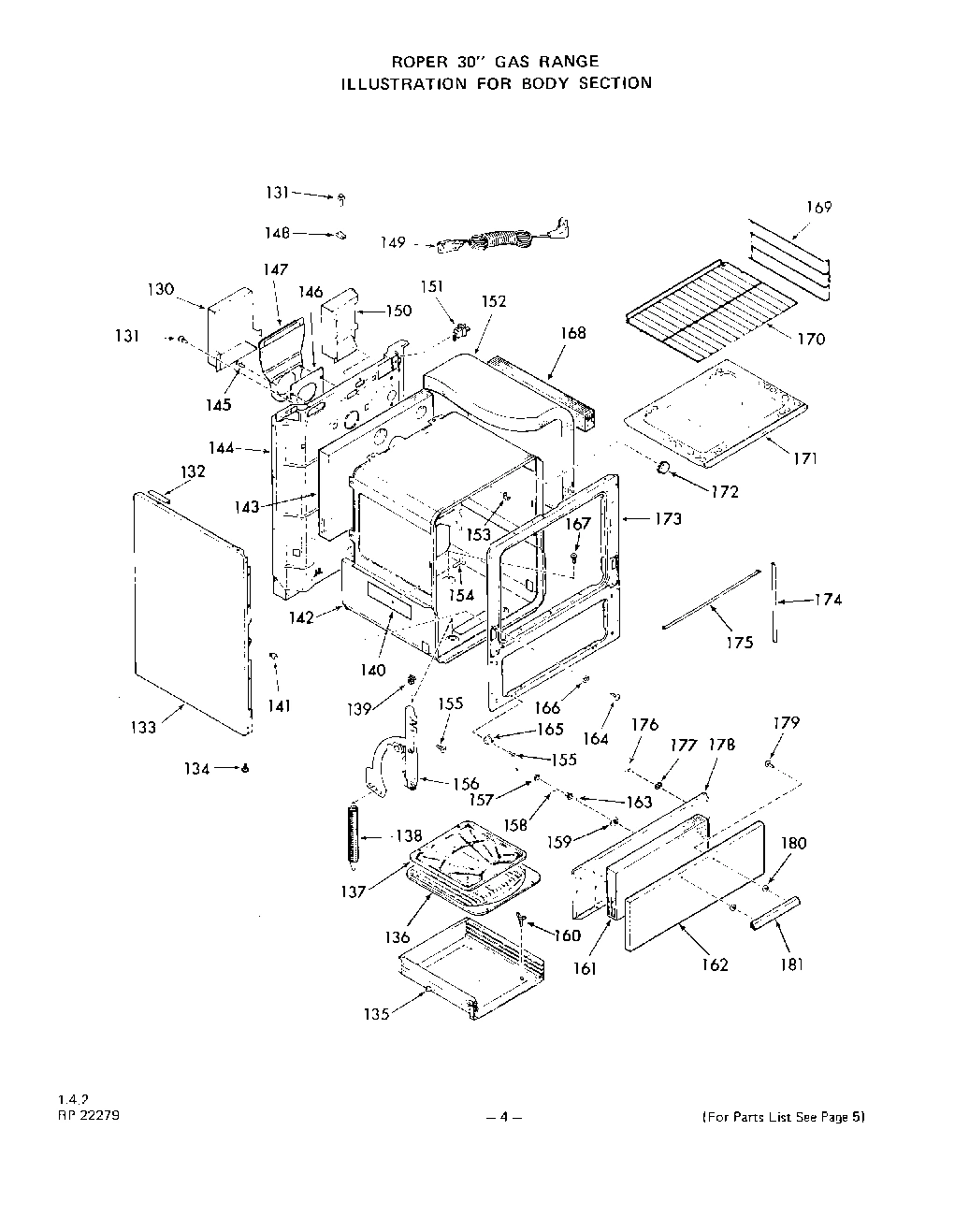

03 - BODY
Common parts from model Whirlpool 1423W0A GAS RANGE
2
Support-Backguard (Lt. or Rt.) WPL 296390 Contact Us For Availability
3
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
4
Backguard (White) WPL 322203 Contact Us For Availability
4
Backguard (Almond) WPL 322204 Contact Us For Availability
36
Top Grate (4 Required) WPL 316786 Contact Us For Availability
37
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
38
Retainer-Main Top (2 Required) WPL 301672 Contact Us For Availability
40
Washer WPL 310218 Contact Us For Availability
43
Burner Box Bottom WPL 320408 Contact Us For Availability
44
Knob-Oven Thermostat WPL 322170 Contact Us For Availability
45
Knob-Gas Valve (4 Required) WPL 320904 Contact Us For Availability
46
Catch-Main Top Strike (2 Required) WPL 24667 Contact Us For Availability
47
Manifold Panel (White) WPL 314667 Contact Us For Availability
47
Manifold Panel (Almond) WPL 314671 Contact Us For Availability
48
Strike-Main Top (2 Required) WPL 299784 Contact Us For Availability
50
Main Top (White) WPL 316813 Contact Us For Availability
50
Main Top (Almond) WPL 316814 Contact Us For Availability
60
Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) WPL 310197 Contact Us For Availability
61
Front Top Burner-Lt. or Rt. (Inc`s 64 & 65) WPL 310196 Contact Us For Availability
62
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
64
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
65
Air Shutter WPL 301910 Contact Us For Availability
66
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
67
Module-Spark Igniter WPL 318430 Contact Us For Availability
69
Support-Spark Igniter WPL 318439 Contact Us For Availability
70
Electrode-Spark Igniter (Left) WPL 312455 Contact Us For Availability
70
Electrode Spark Igniter (Right) WPL 312598 Contact Us For Availability
71
Support-Top Burner WPL 313375 Contact Us For Availability
72
Valve Cover-Left WPL 308317 Contact Us For Availability
73
Valve Cover-Right WPL 308316 Contact Us For Availability
74
Wire Cover-Oven Thermostat WPL 318460 Contact Us For Availability
75
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
76
Sleeve-Igniter Wire (Lt. or Rt.) WPL 314132 Contact Us For Availability
78
Tubing 3/8`` WPL 319906 Contact Us For Availability
79
Pressure Regulator WPL 298776 Contact Us For Availability
80
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
81
Mounting Screw (Inc`s 86) WPL 311455 Contact Us For Availability
82
Manifold Pipe WPL 318481 Contact Us For Availability
83
Mounting Screw (2 Req. for 114) WPL 318478 Contact Us For Availability
84
Gasket (For 83) WPL 318658 Contact Us For Availability
85
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
86
Gasket (For 81) WPL 304241 Contact Us For Availability
87
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
88
Baffle - Oven Burner WPL 302729 Contact Us For Availability
89
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
90
Orifice Cup Only (For 94) WPL 318485 Contact Us For Availability
91
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
92
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
93
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
94
Pilot Only (Inc`s 90) WPL 318486 Contact Us For Availability
95
Electrode - Oven Spark Igniter WPL 318431 Contact Us For Availability
96
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
97
Air Shutter WPL 312988 Contact Us For Availability
98
Control Valve (Inc`s 90 & 94) WPL 318482 Contact Us For Availability
99
Screw 10-32x2`` WPL 112365 Contact Us For Availability
110
Oven Burner (Inc`s 88, 96 & 97) WPL 319255 Contact Us For Availability
111
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
112
Sw WPL 312457 Contact Us For Availability
113
WPL 318479 WPL 318479 Contact Us For Availability
114
WPL 318477 WPL 318477 Contact Us For Availability
115
WPL 318432 WPL 318432 Contact Us For Availability
130
Shield - Flue Deflector WPL 296011 Contact Us For Availability
132
Pad-Body Side (2 Required) WPL 303513 Contact Us For Availability
133
Body Side (White-Right) WPL 316978 Contact Us For Availability
133
Body Side (White-Left) WPL 316979 Contact Us For Availability
133
Body Side (Almond-Right) WPL 316984 Contact Us For Availability
133
Body Side (Almond-Left) WPL 316985 Contact Us For Availability
134
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
135
Broiler Drawer WPL 305259 Contact Us For Availability
136
Broiler Pan WPL 290171 Contact Us For Availability
137
Broiler Pan Grid WPL 313071 Contact Us For Availability
138
Spring-Oven Door (2 Required) WPL 308735 Contact Us For Availability
139
Nut-Retainer (2 Required) WPL 304980 Contact Us For Availability
140
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
141
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
142
Oven Body WPL 315365 Contact Us For Availability
143
Insulation - Oven Back WPL 296140 Contact Us For Availability
144
Main Back WPL 318437 Contact Us For Availability
145
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
146
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
147
Flue Deflector WPL 300917 Contact Us For Availability
148
Clip WPL 106767 Contact Us For Availability
149
Range Service Cord WPL 235822 Contact Us For Availability
150
Wire Shield-Oven Light WPL 318468 Contact Us For Availability
151
Disconnect WPL 232150 Contact Us For Availability
152
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
153
Clip-Thermostat Bulb (2 Required) WPL 115533 Contact Us For Availability
154
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
155
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
156
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
156
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
157
Keps Nut WPL 239764 Contact Us For Availability
158
Washer WPL 99279 Contact Us For Availability
159
Catch-Broiler Door Strike WPL 306961 Contact Us For Availability
160
Thumbscrew-Rt. or Lt. WPL 278797 Contact Us For Availability
162
Front Panel-Broiler Door (Almond) WPL 308942 Contact Us For Availability
163
Strike-Broiler Door WPL 24668 Contact Us For Availability
165
Hinge-Broiler Door (Lt. or Rt.) WPL 285675 Contact Us For Availability
166
Washer WPL 303963 Contact Us For Availability
167
Shoulder Screw 10-32x1/2`` WPL 289730 Contact Us For Availability
169
Guide-Oven Rack (Rt. or L WPL 305409 Contact Us For Availability
170
WPL 305408 WPL 305408 Contact Us For Availability
171
WPL 296069 WPL 296069 Contact Us For Availability
172
WPL 101063 WPL 101063 Contact Us For Availability
173
WPL 316994 WPL 316994 Contact Us For Availability
174
WPL 314573 WPL 314573 Contact Us For Availability
175
WPL 314574 WPL 314574 Contact Us For Availability
176
WPL 239113 WPL 239113 Contact Us For Availability
177
WPL 69603 WPL 69603 Contact Us For Availability
178
WPL 302267 WPL 302267 Contact Us For Availability
180
WPL 302343 WPL 302343 Contact Us For Availability
181
WPL 309871 WPL 309871 Contact Us For Availability
211
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
212
Washer WPL 106462 Contact Us For Availability
213
Retainer-Oven Door Insulation WPL 318463 Contact Us For Availability
216
Insulation-Oven Door WPL 296142 Contact Us For Availability
219
Front Panel-Oven Door (White) WPL 302075 Contact Us For Availability
219
Front Panel-Oven Door (Almond) WPL 308946 Contact Us For Availability
× ![]()
