Model Whirlpool 1414W0A GAS RANGE – Common Parts & Diagrams
05 - BODY
07 - ROTISSERIE KIT, GRIDDLE

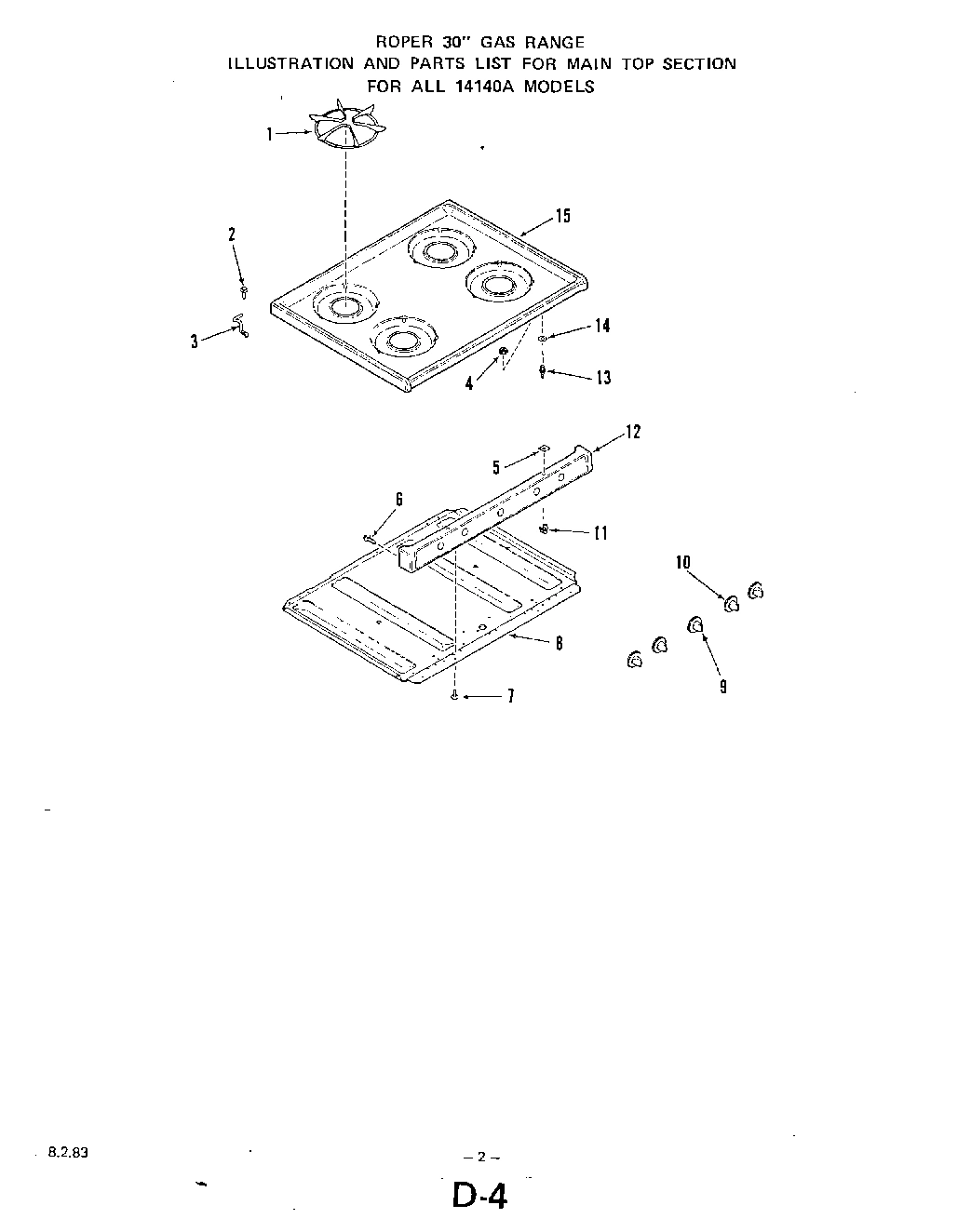

03 - MAIN TOP

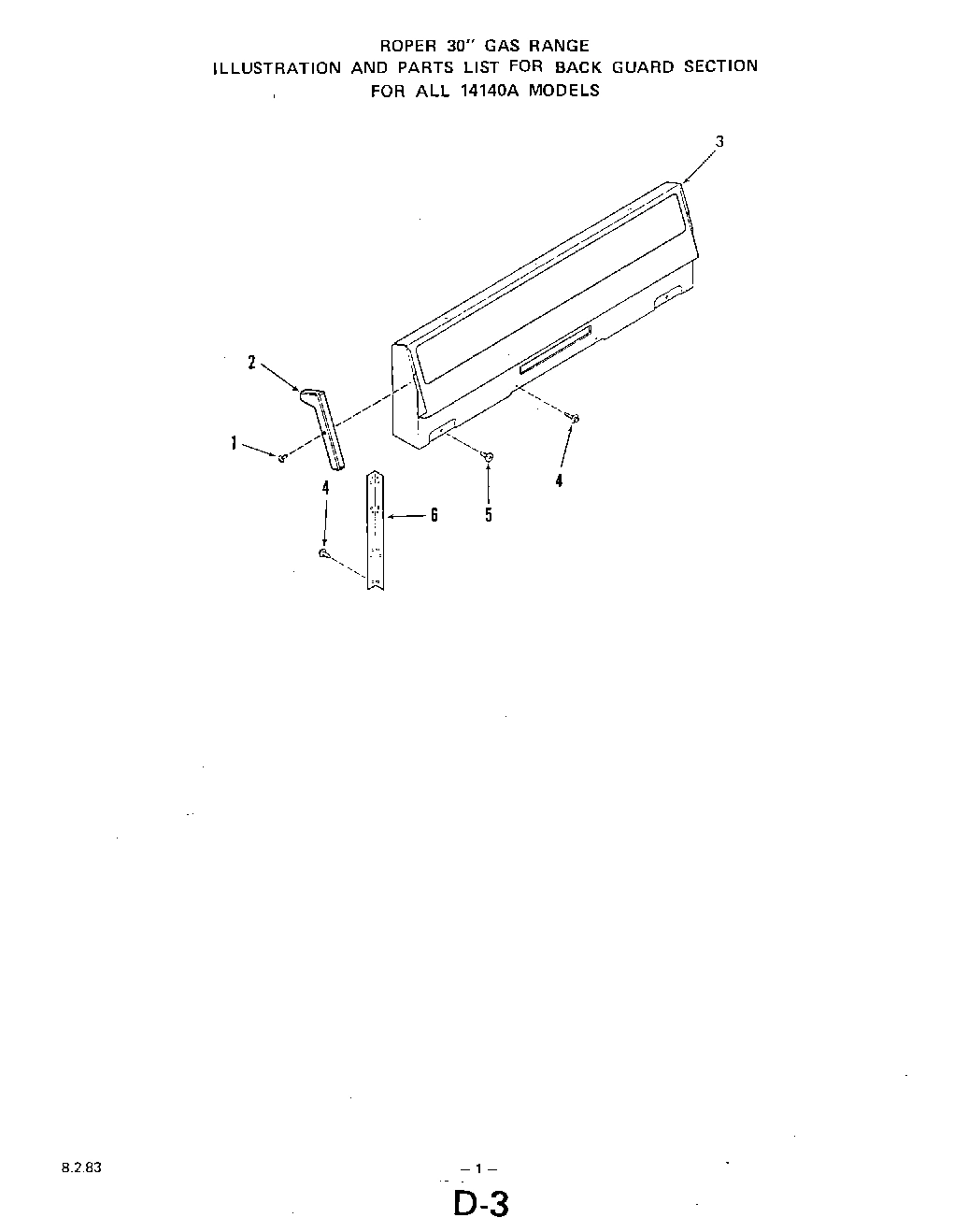

02 - BACKGUARD

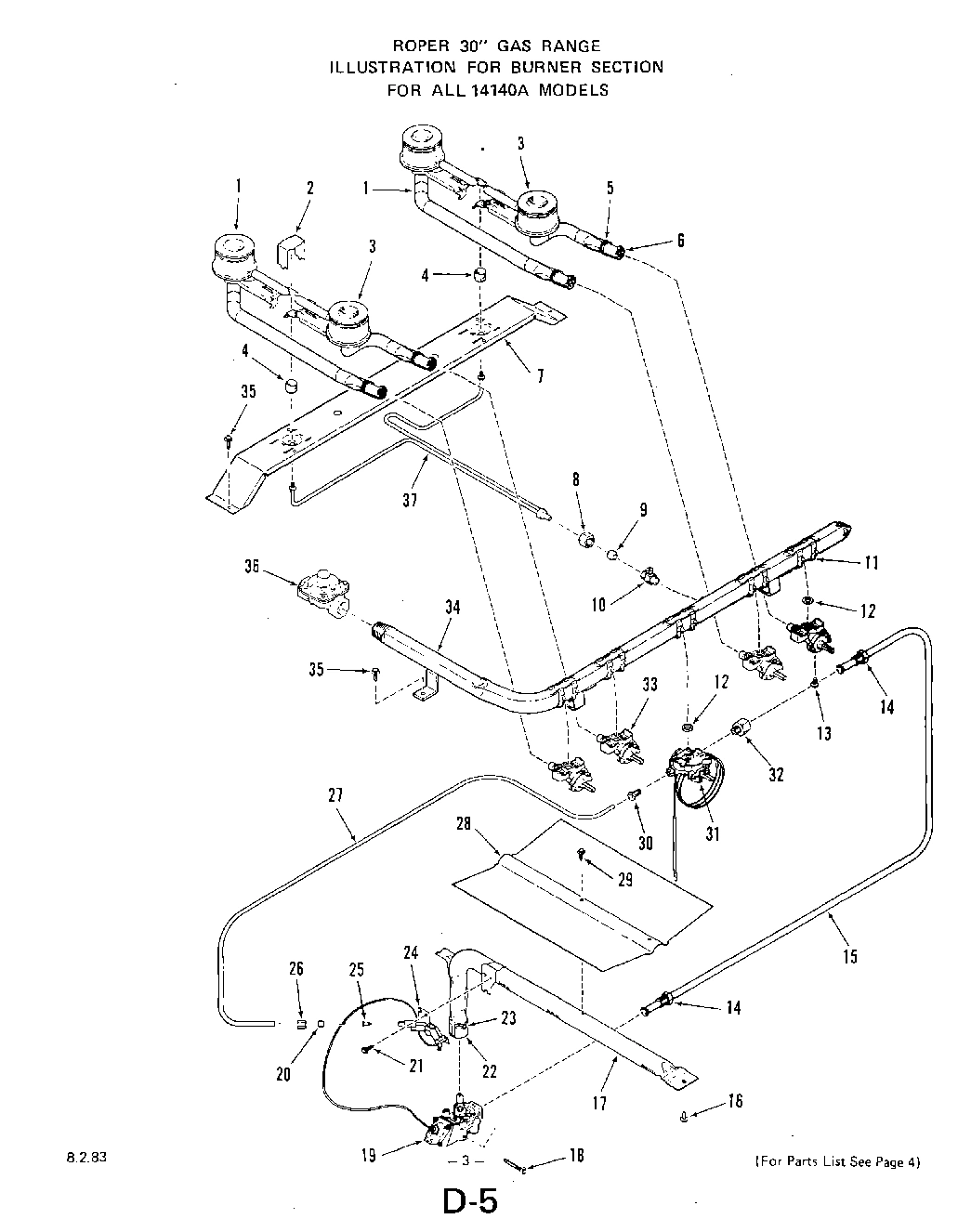

04 - BURNER

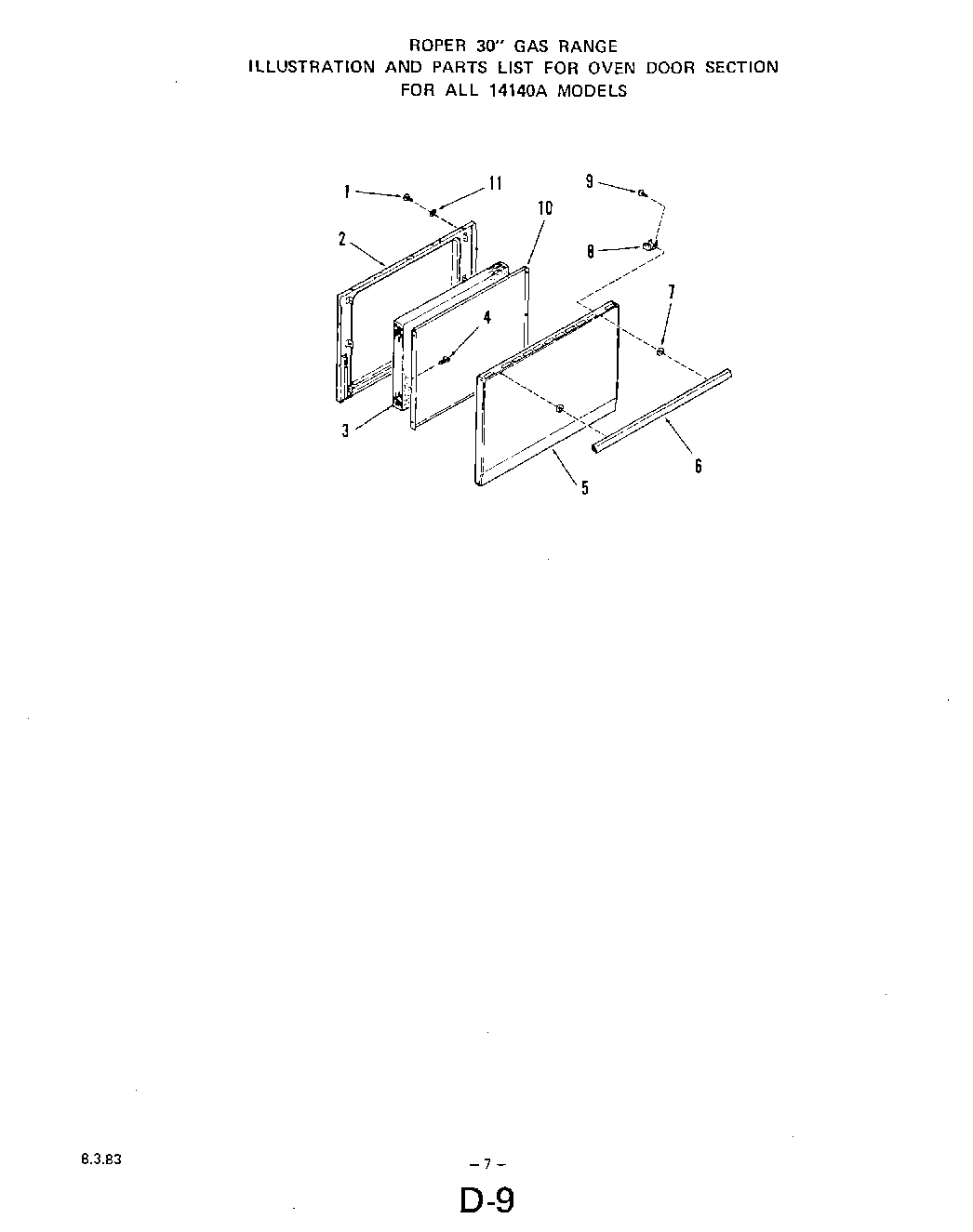

06 - OVEN DOOR
Common parts from model Whirlpool 1414W0A GAS RANGE
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
1
Shield - Flue Deflector WPL 296011 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
1
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
1
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Screw 6-32x1/2`` WPL 99931 Contact Us For Availability
1
Top Burner-Rear (Inc. Keys 5 & 6) WPL 310197 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Right WPL 326284 Contact Us For Availability
2
Left WPL 326285 Contact Us For Availability
2
End Cap-Backguard WPL ARI8167A92 Contact Us For Availability
2
Shield-Top Pilot (Lt. or Rt.) WPL 296183 Contact Us For Availability
2
Lining-Oven Door WPL 318526 Contact Us For Availability
3
Spacer-Main Top WPL 303513 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
Right WPL 323404 Contact Us For Availability
3
Left WPL 323405 Contact Us For Availability
3
Hinge WPL ARI8168A28 Contact Us For Availability
3
Crosstie-Backguard WPL 326750 Contact Us For Availability
3
Top Burner-Frt. (Inc. Keys 5 & 6) WPL 310196 Contact Us For Availability
3
Insulation-Oven Door WPL 296142 Contact Us For Availability
4
White-Right WPL 323084 Contact Us For Availability
4
White-Left WPL 323085 Contact Us For Availability
4
Golden Wheat-Right WPL 323090 Contact Us For Availability
4
Golden Wheat-Left WPL 323091 Contact Us For Availability
4
Almond-Right WPL 323092 Contact Us For Availability
4
Almond-Left WPL 323093 Contact Us For Availability
4
Body Side WPL ARI8171A38 Contact Us For Availability
4
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
4
hex nut 8-32 WPL 239764 Contact Us For Availability
4
Cup-Top Pilot WPL 308292 Contact Us For Availability
5
Leg Leveler (4 Req) WPL 69065 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Washer WPL 310218 Contact Us For Availability
5
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
5
Screw WPL 301911 Contact Us For Availability
5
White WPL 296188 Contact Us For Availability
5
Almond WPL 308418 Contact Us For Availability
5
Golden Wheat WPL 309041 Contact Us For Availability
5
Front Panel-Oven Door WPL ARI8176A31 Contact Us For Availability
6
Spring-Oven Door (Lt. or Rt.) WPL 308735 Contact Us For Availability
6
Handle-Oven Door WPL 292240 Contact Us For Availability
6
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
6
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
6
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
6
Air Shutter WPL 301910 Contact Us For Availability
7
Shoulder Rivet WPL 70275 Contact Us For Availability
7
Spacer-Door Handle WPL 302343 Contact Us For Availability
7
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Support-Top Burners WPL 308297 Contact Us For Availability
8
Right WPL 296327 Contact Us For Availability
8
Broiler Drawer Guide (Inc`s. 7 & 11) WPL ARI8172A76 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Burner Box Bottom WPL 308300 Contact Us For Availability
8
Compression Nut 1/4`` WPL 4825 Contact Us For Availability
8
Spacer-Oven Door (2 Required) WPL 296224 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Knob-Thermostat WPL 320905 Contact Us For Availability
9
Compression Ball Sleeve 1/4`` WPL 867 Contact Us For Availability
9
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
10
Filter-Top Pilot WPL 296010 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Knob-Gas Valve (4 Req) WPL 320904 Contact Us For Availability
10
Retainer-Oven Door Insulation WPL 318463 Contact Us For Availability
11
Roller WPL 69006 Contact Us For Availability
11
Washer WPL 21067 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Catch - Main Top Strike WPL 24667 Contact Us For Availability
11
Clip (10 Req) WPL 288401 Contact Us For Availability
12
Broiler Drawer (Inc`s. 7 & 11) WPL 303904 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
White WPL 324531 Contact Us For Availability
12
Golden Wheat WPL 324534 Contact Us For Availability
12
Almond WPL 324535 Contact Us For Availability
12
Manifold Panel WPL ARI8169A60 Contact Us For Availability
12
Gasket (5 Req. for Keys 31 & 33) WPL 288186 Contact Us For Availability
13
Right WPL 303132 Contact Us For Availability
13
Left WPL 303133 Contact Us For Availability
13
Hinge-Oven Door WPL ARI8173A82 Contact Us For Availability
13
White WPL 284278 Contact Us For Availability
13
Black With 1/4`` Faston & Eyelet Terminals WPL 291284 Contact Us For Availability
13
White WPL 321951 Contact Us For Availability
13
Black WPL 321952 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggy B WPL ARI8177A77 Contact Us For Availability
13
Strike WPL 299784 Contact Us For Availability
13
Screw (10 Required) WPL 299137 Contact Us For Availability
14
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Washer WPL 99279 Contact Us For Availability
14
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
15
Broiler Pan Grid WPL 313071 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
White WPL 316813 Contact Us For Availability
15
Almond WPL 316814 Contact Us For Availability
15
Golden Wheat WPL 316815 Contact Us For Availability
15
Main Top WPL ARI8170A91 Contact Us For Availability
15
Tubing 3/8`` (Thmst. to Cont. Valve) WPL 315807 Contact Us For Availability
16
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
17
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
Burner-Oven (Inc. Keys 22, 23 & 28) WPL 303398 Contact Us For Availability
18
Oven Body WPL 322913 Contact Us For Availability
18
Screw 10-32x2`` WPL 112365 Contact Us For Availability
19
Insulation - Oven Back WPL 296140 Contact Us For Availability
19
Control Valve (Inc`s. Keys 24 & 25) WPL 294529 Contact Us For Availability
20
Main Back WPL 324046 Contact Us For Availability
20
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
21
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
21
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
22
Air Shutter WPL 239267 Contact Us For Availability
23
Flue Deflector WPL 300917 Contact Us For Availability
23
Screw WPL 239268 Contact Us For Availability
24
Pilot-Oven (Inc. Key 25) WPL 294528 Contact Us For Availability
25
Orifice Cup WPL 113117 Contact Us For Availability
26
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
27
Tubing 3/16`` (Thermostat to Pilot) WPL 322447 Contact Us For Availability
28
Baffle - Oven Burner WPL 302729 Contact Us For Availability
29
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
29
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
30
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
31
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
31
Thermostat-Inc. Keys 12 & 32) WPL 302727 Contact Us For Availability
32
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
32
Fitting WPL 303503 Contact Us For Availability
33
Washer WPL 303963 Contact Us For Availability
33
Gas Valve (4 Required-Inc`s. Key 12) WPL 324988 Contact Us For Availability
34
Manifold Pipe WPL 308323 Contact Us For Availability
35
Broiler Pan WPL 290171 Contact Us For Availability
36
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
36
Pressure Regulator WPL 324529 Contact Us For Availability
37
Shoulder Rivet WPL 305064 Contact Us For Availability
37
Pilot Tube (Inc. Keys 8 & 9) WPL 325683 Contact Us For Availability
38
Right WPL 296124 Contact Us For Availability
38
Left WPL 296125 Contact Us For Availability
38
Hinge-Broiler Door WPL ARI8174A11 Contact Us For Availability
42
White WPL 296131 Contact Us For Availability
42
Almond WPL 308346 Contact Us For Availability
42
Golden Wheat WPL 308977 Contact Us For Availability
42
Front Panel-Broiler Door WPL ARI8175A40 Contact Us For Availability
43
Spacer-Broiler Door (2 Req) WPL 296137 Contact Us For Availability
45
Lining - Broiler Door WPL 296332 Contact Us For Availability
48
WPL 314573 WPL 314573 Contact Us For Availability
49
WPL 314574 WPL 314574 Contact Us For Availability
50
WPL 316994 WPL 316994 Contact Us For Availability
51
WPL 101063 WPL 101063 Contact Us For Availability
52
WPL 296069 WPL 296069 Contact Us For Availability
53
WPL 305408 WPL 305408 Contact Us For Availability
54
WPL 305409 WPL 305409 Contact Us For Availability
55
WPL 301624 WPL 301624 Contact Us For Availability
× ![]()
