Model Whirlpool 1413W0A GAS RANGE – Common Parts & Diagrams

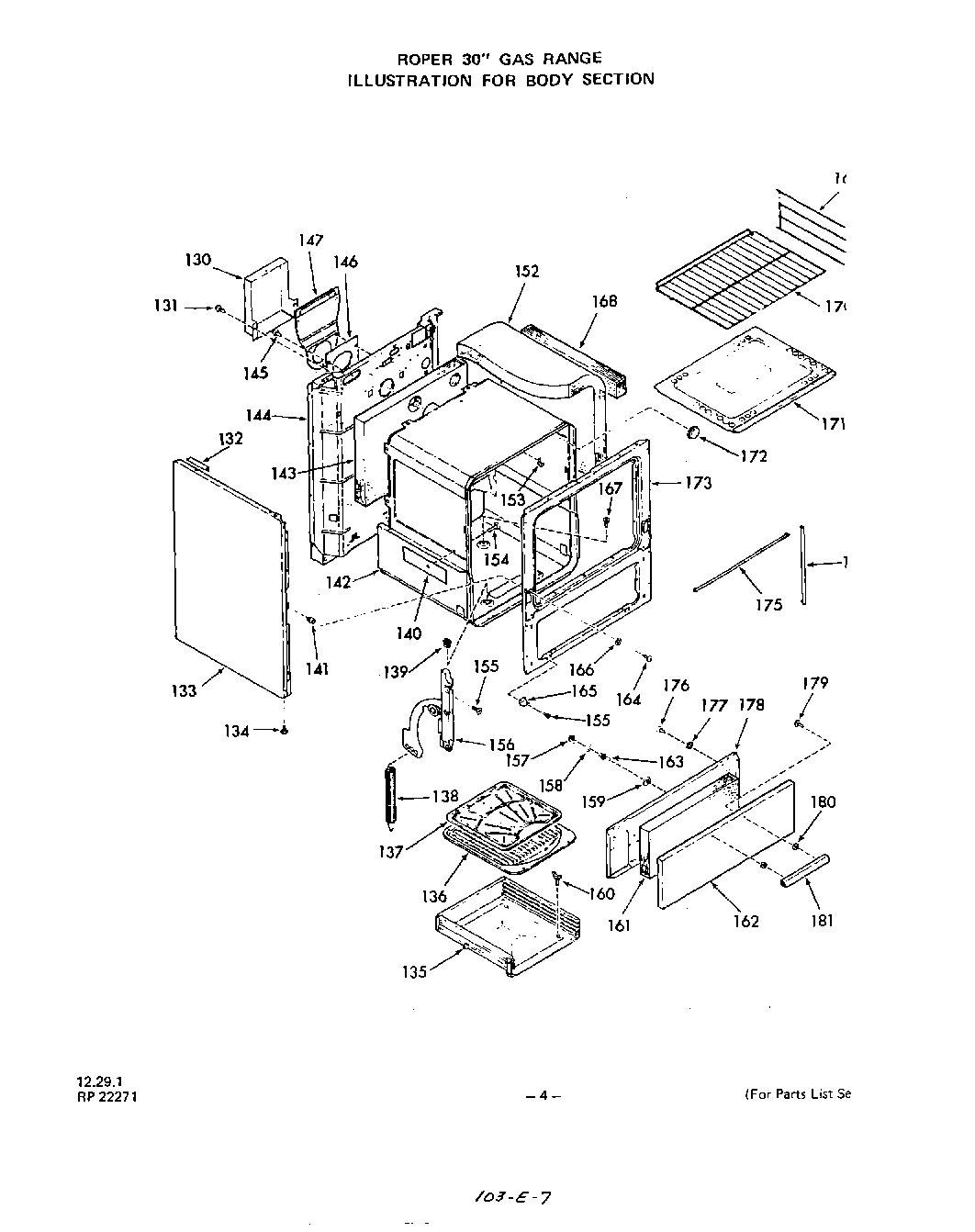

03 - BODY

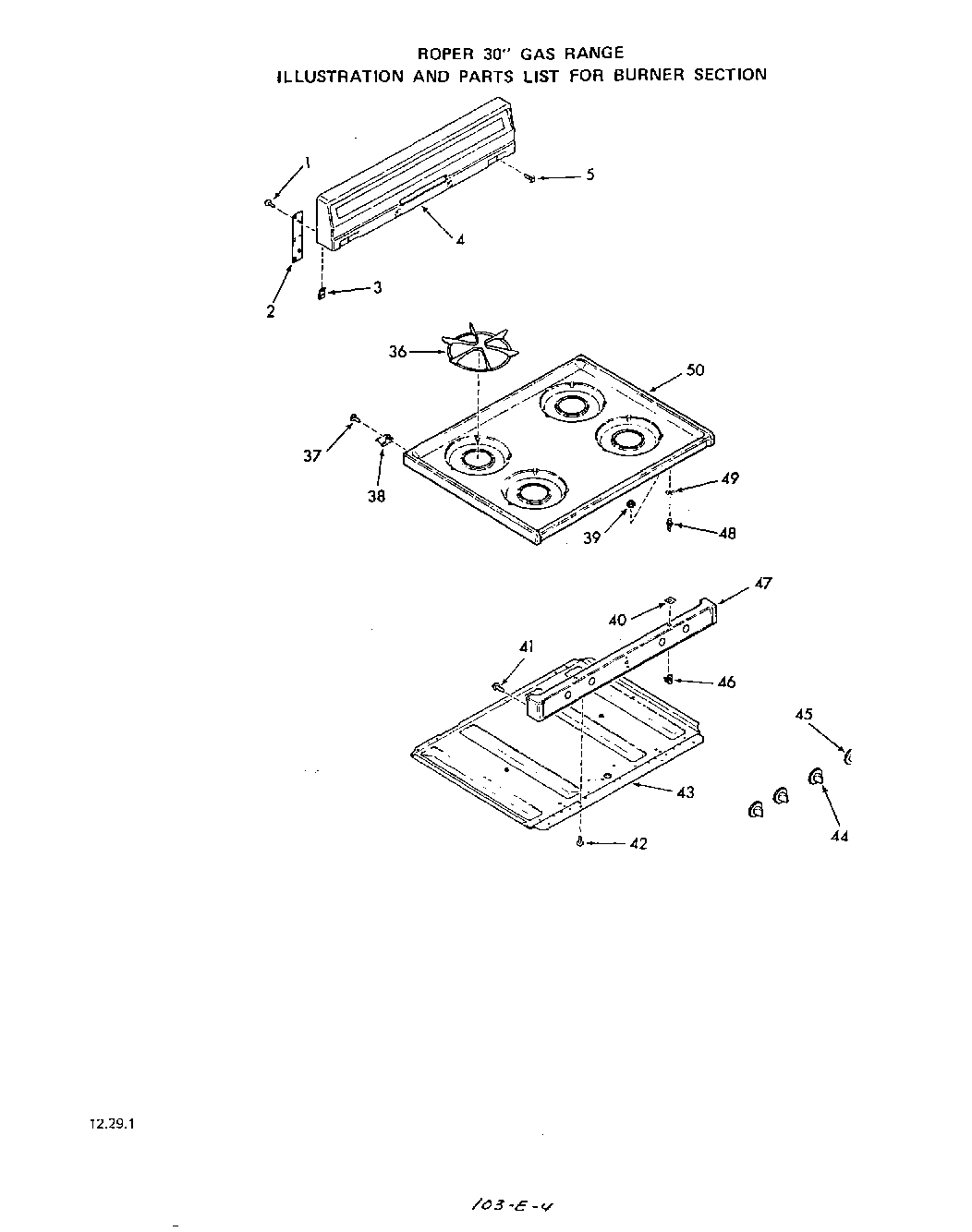

06 - SECTION
02 - SECTION
04 - OVEN DOOR
01 - BURNER
Common parts from model Whirlpool 1413W0A GAS RANGE
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI8144A57 Contact Us For Availability
2
Support-Backguard (Lt. or Rt.) WPL 296390 Contact Us For Availability
3
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
4
Backguard (White) WPL 322203 Contact Us For Availability
4
Backguard (Almond) WPL 322204 Contact Us For Availability
36
Top Grate (4 Required) WPL 316786 Contact Us For Availability
37
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
38
Retainer-Main Top (2 Required) WPL 301672 Contact Us For Availability
40
Washer WPL 310218 Contact Us For Availability
43
Burner Box Bottom WPL 308300 Contact Us For Availability
44
Knob-Oven Thermostat WPL 320905 Contact Us For Availability
45
Knob-Gas Valve (4 Required) WPL 320904 Contact Us For Availability
46
Catch-Main Top Strike (2 Required) WPL 24667 Contact Us For Availability
47
Manifold Panel (White) WPL 314667 Contact Us For Availability
47
Manifold Panel (Almond) WPL 314671 Contact Us For Availability
48
Strike-Main Top (2 Required) WPL 299784 Contact Us For Availability
50
Main Top (White) WPL 316813 Contact Us For Availability
50
Main Top (Almond) WPL 316814 Contact Us For Availability
61
Top Burner-Frt. (Inc. Keys 63 & 64) WPL 310196 Contact Us For Availability
62
Cup-Top Pilot WPL 308292 Contact Us For Availability
63
Screw WPL 301911 Contact Us For Availability
64
Air Shutter WPL 301910 Contact Us For Availability
65
Support-Top Burners WPL 308297 Contact Us For Availability
66
Compression Nut 1/4`` WPL 4825 Contact Us For Availability
67
Compression Ball Sleeve 1/4`` WPL 867 Contact Us For Availability
68
Filter-Top Pilot WPL 290610 Contact Us For Availability
69
Clip (10 Req) WPL 288401 Contact Us For Availability
70
Gasket (5 Req. for Keys 89 & 91) WPL 288186 Contact Us For Availability
71
Screw (10 Required) WPL 299137 Contact Us For Availability
72
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
73
Tubing 3/8`` (Thmst. to Cont. Valve) WPL 315808 Contact Us For Availability
75
Burner-Oven (Inc. Keys 80,81 & 86) WPL 303398 Contact Us For Availability
76
Screw 10-32x2`` WPL 112365 Contact Us For Availability
77
Control Valve (Inc. Keys 82 & 83) WPL 294529 Contact Us For Availability
78
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
79
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
80
Air Shutter WPL 239267 Contact Us For Availability
81
Screw WPL 239268 Contact Us For Availability
82
Pilot-Oven (Inc. Key 83) WPL 294528 Contact Us For Availability
83
Orifice Cup WPL 113117 Contact Us For Availability
84
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
85
Tubing 3/16`` (Thermostat to Pilot) WPL 308331 Contact Us For Availability
86
Baffle - Oven Burner WPL 302729 Contact Us For Availability
88
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
89
Thermostat-Inc. Keys 70 & 90 WPL 306533 Contact Us For Availability
90
Fitting WPL 303503 Contact Us For Availability
91
Gas Valve (4 Required-Inc`s. Key 70) WPL 314677 Contact Us For Availability
92
Manifold Pipe WPL 308323 Contact Us For Availability
94
Pressure Regulator WPL 298776 Contact Us For Availability
95
Pilot Tube (Inc. Keys 66 & 67) WPL 315423 Contact Us For Availability
96
Shield-Top Pilot (Rt. or Lt.) WPL 296183 Contact Us For Availability
130
Shield - Flue Deflector WPL 296011 Contact Us For Availability
132
Pad-Body Side (2 Required) WPL 303513 Contact Us For Availability
133
Body Side (White-Right) WPL 316978 Contact Us For Availability
133
Body Side (White-Left) WPL 316979 Contact Us For Availability
133
Body Side (Almond-Right) WPL 316984 Contact Us For Availability
133
Body Side (Almond-Left) WPL 316985 Contact Us For Availability
134
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
135
Broiler Drawer WPL 305259 Contact Us For Availability
136
Broiler Pan WPL 290171 Contact Us For Availability
137
Broiler Pan Grid WPL 313071 Contact Us For Availability
138
Spring-Oven Door (2 Required) WPL 308735 Contact Us For Availability
139
Nut-Retainer (2 Required) WPL 304980 Contact Us For Availability
140
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
141
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
142
Oven Body WPL 315365 Contact Us For Availability
143
Insulation - Oven Back WPL 296140 Contact Us For Availability
144
Main Back WPL 316067 Contact Us For Availability
145
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
146
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
147
Flue Deflector WPL 300917 Contact Us For Availability
152
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
153
Clip-Thermostat Bulb (2 Required) WPL 115533 Contact Us For Availability
154
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
155
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
156
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
156
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
157
Keps Nut WPL 239764 Contact Us For Availability
158
Washer WPL 99279 Contact Us For Availability
159
Catch-Broiler Door Strike WPL 306961 Contact Us For Availability
160
Thumbscrew-Rt. or Lt. WPL 278797 Contact Us For Availability
162
Front Panel-Broiler Door (Almond) WPL 308942 Contact Us For Availability
163
Strike-Broiler Door WPL 24668 Contact Us For Availability
165
Hinge-Broiler Door (Lt. or Rt.) WPL 285675 Contact Us For Availability
166
Washer WPL 303963 Contact Us For Availability
167
Shoulder Screw 10-32x1/2`` WPL 289730 Contact Us For Availability
169
Guide-Oven Rack (Rt. or Lt.) WPL 305409 Contact Us For Availability
170
Oven Rack (2 Required) WPL 305408 Contact Us For Availability
171
Oven Bottom WPL 296069 Contact Us For Availability
172
Plug Button WPL 101063 Contact Us For Availability
173
Front F WPL 316994 Contact Us For Availability
174
WPL 314573 WPL 314573 Contact Us For Availability
175
WPL 314574 WPL 314574 Contact Us For Availability
176
WPL 239113 WPL 239113 Contact Us For Availability
177
WPL 69603 WPL 69603 Contact Us For Availability
178
WPL 302267 WPL 302267 Contact Us For Availability
179
WPL 316365 WPL 316365 Contact Us For Availability
180
WPL 302343 WPL 302343 Contact Us For Availability
181
WPL 309871 WPL 309871 Contact Us For Availability
350
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
351
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
352
Rotisserie Motor WPL 106575 Contact Us For Availability
353
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
354
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
355
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
356
Thumbscrew WPL 70287 Contact Us For Availability
357
Skewer WPL 88433 Contact Us For Availability
358
Rotisserie Spit WPL 100092 Contact Us For Availability
359
Spit Support WPL 232137 Contact Us For Availability
360
Plug Button WPL 100095 Contact Us For Availability
361
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & PiggyBa WPL 291284 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
363
Rotisserie Cord WPL 282924 Contact Us For Availability
365
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
366
Rotisserie Pan WPL 291397 Contact Us For Availability
370
Set-On-Griddle (Optional) WPL 1006802 Contact Us For Availability
× ![]()
