Model Whirlpool 1333W1A GAS RANGE – Common Parts & Diagrams

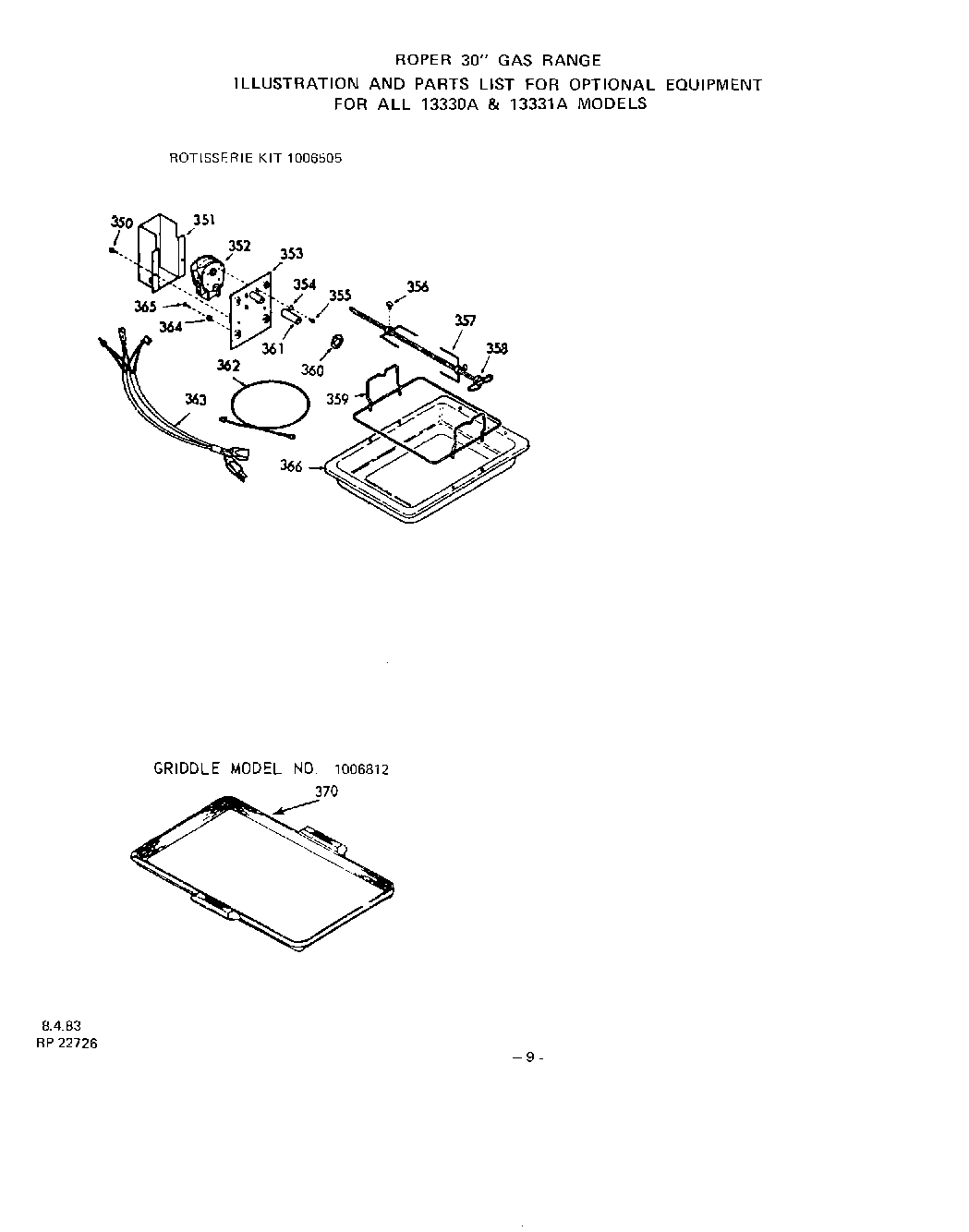

07 - ROTISSERIE KIT

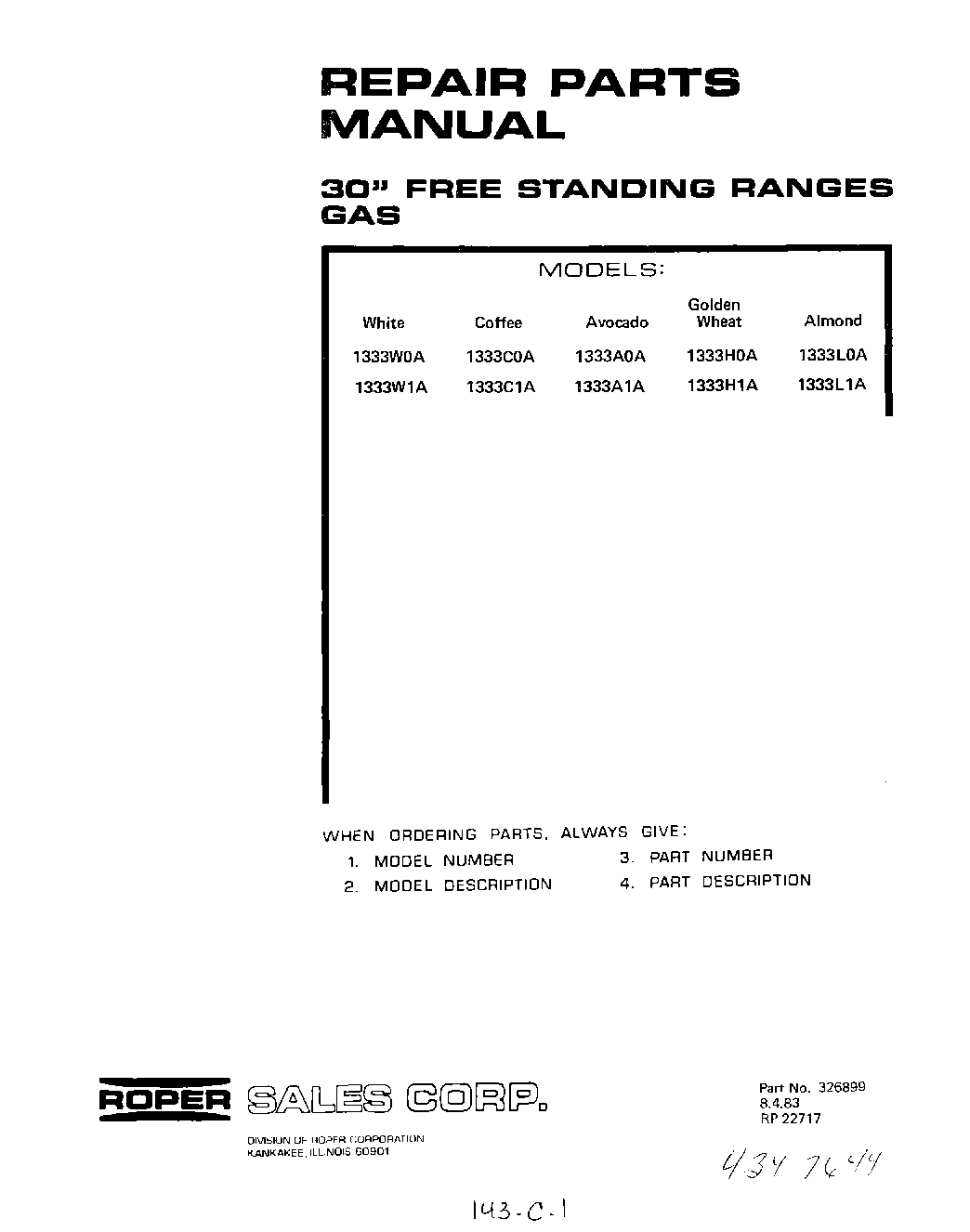

01 - BACKGUARD

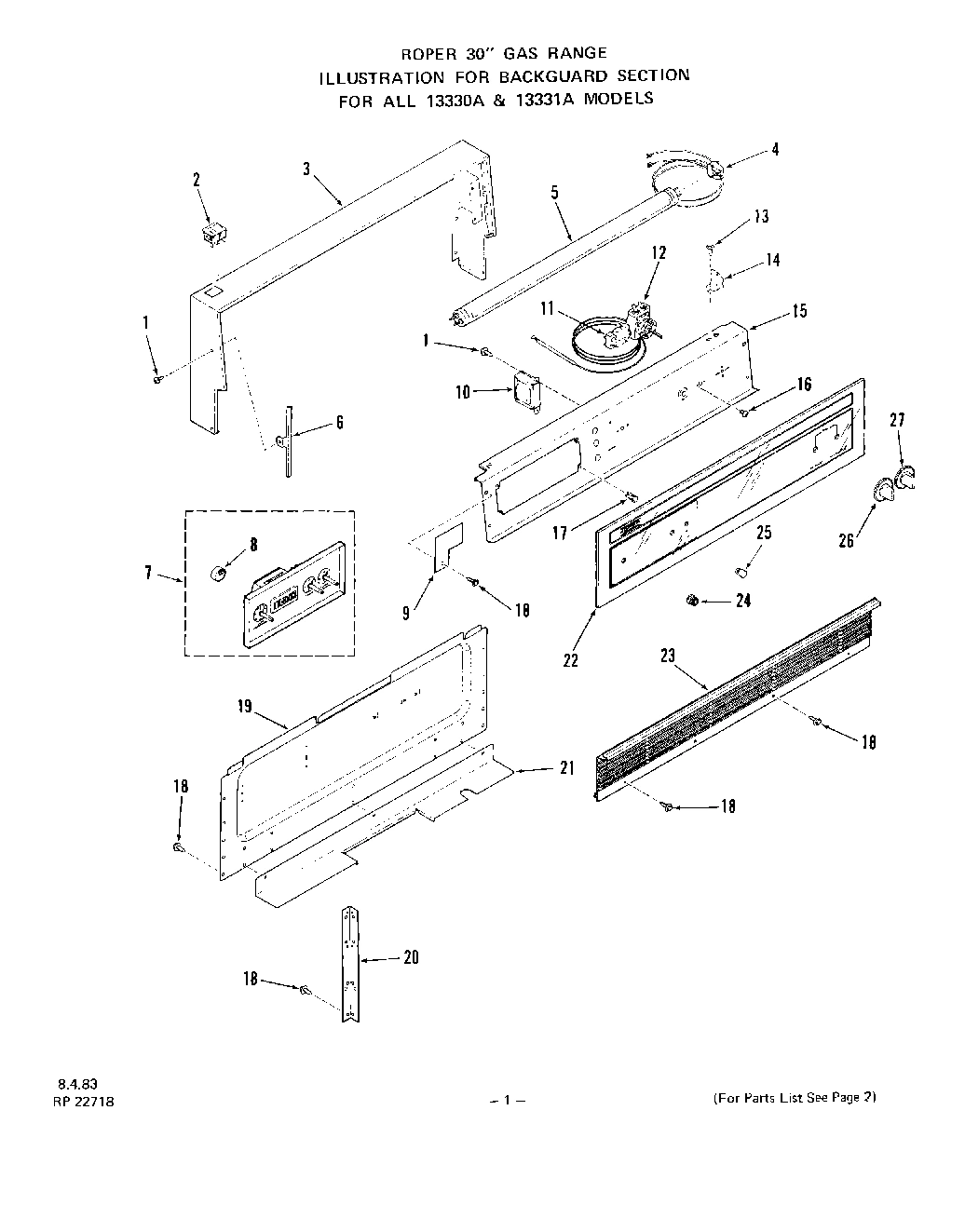

02 - MAIN TOP

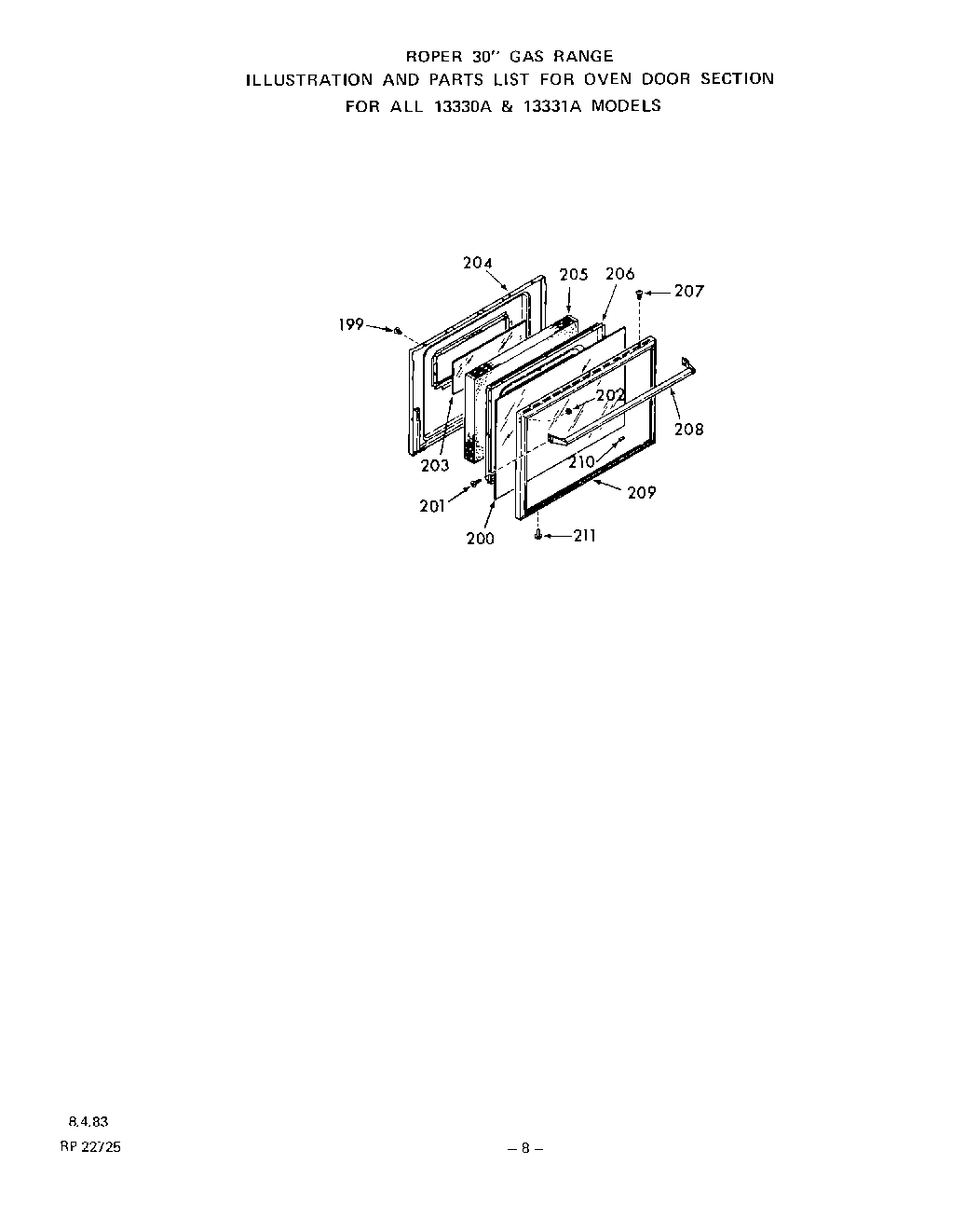

06 - LIT/OPTIONAL
08 - SECTION

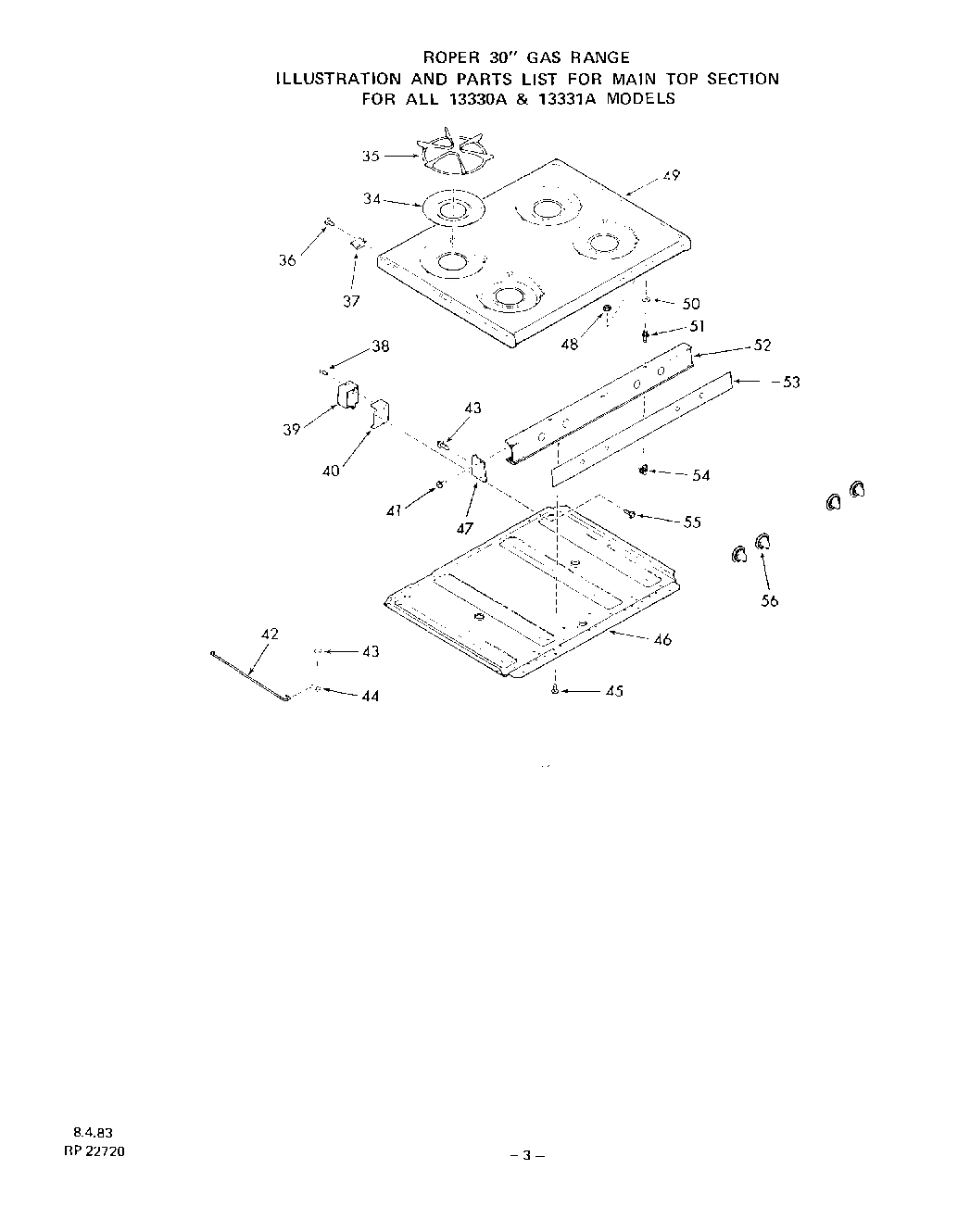

03 - BURNER

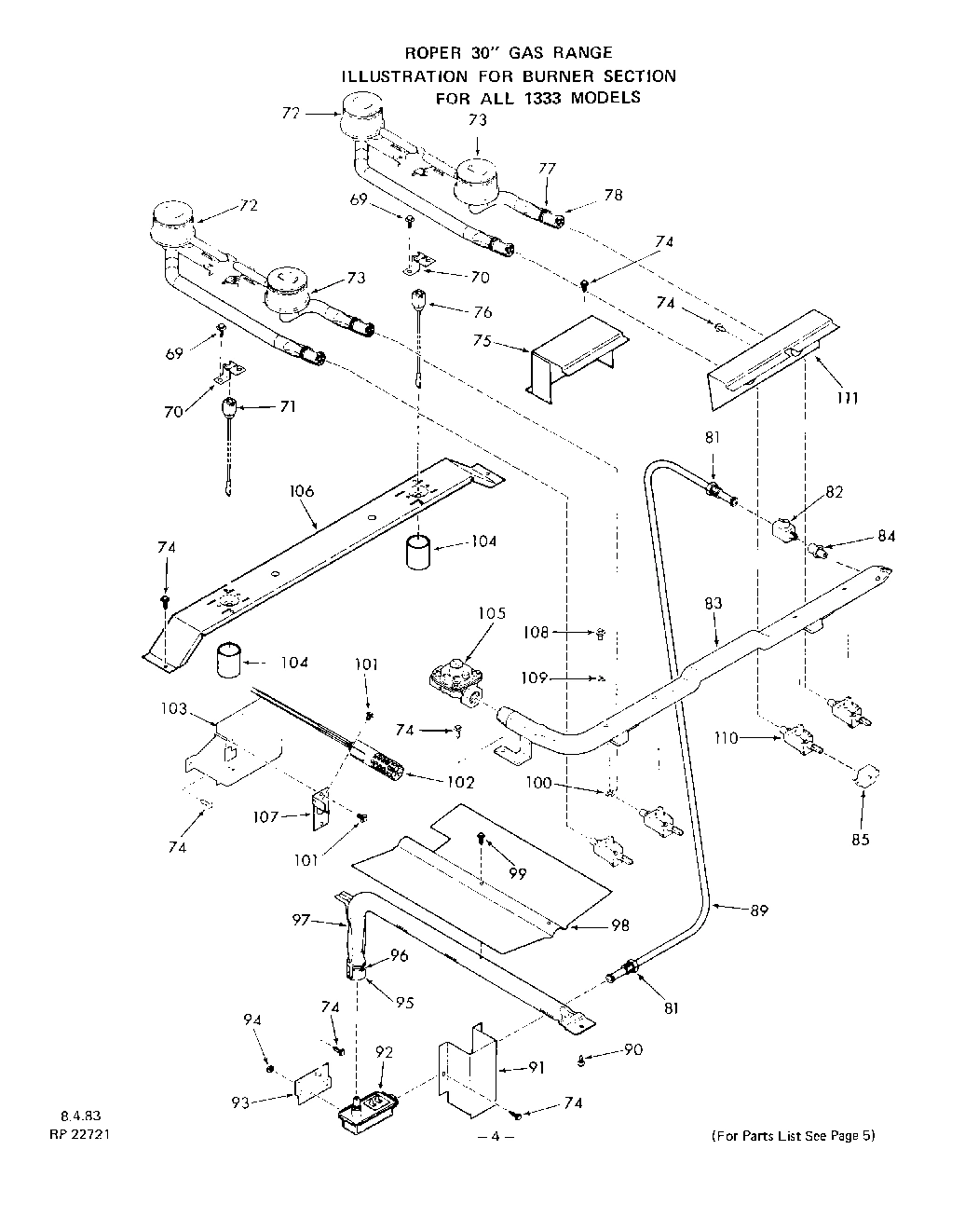

04 - BODY

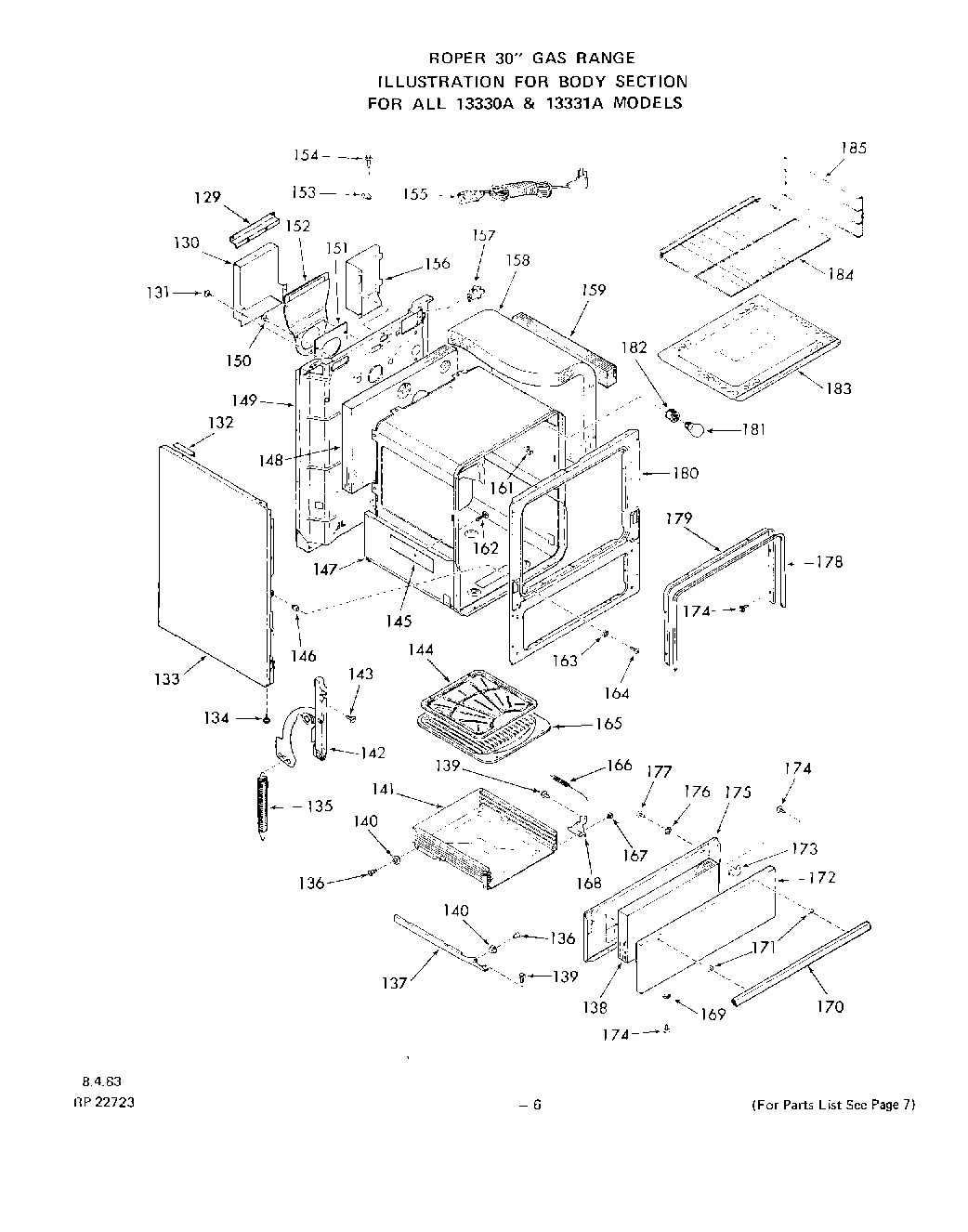

05 - OVEN DOOR
Common parts from model Whirlpool 1333W1A GAS RANGE
xParts Not Shown On Illustration WPL ARI8059A84 Contact Us For Availability
xGas Valve Switch-13331A Models WPL 326868 Contact Us For Availability
xWire Harness WPL ARI8057A65 Contact Us For Availability
2
Switch-Top & Oven Light WPL 307411 Contact Us For Availability
3
Frame-Backguard WPL 312462 Contact Us For Availability
4
Left WPL 229982 Contact Us For Availability
4
Right WPL 307553 Contact Us For Availability
4
Holder-Fluorescent Lamp WPL ARI8048A98 Contact Us For Availability
5
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
6
End Trim-Lamp Glass (Lt. or Rt.) WPL 299705 Contact Us For Availability
7
Clock w/1 Hr. Timer (Inc`s. 8) WPL 307446 Contact Us For Availability
8
Clock Motor WPL 283296 Contact Us For Availability
9
Shield Switch WPL 300330 Contact Us For Availability
10
Ballast WPL 98186 Contact Us For Availability
11
Selector Switch WPL 321517 Contact Us For Availability
12
Thermostat WPL 321022 Contact Us For Availability
14
Bracket-Flourescent Lamp (Rt. or Lt.) WPL 113236 Contact Us For Availability
15
Mounting Panel-Controls WPL 310593 Contact Us For Availability
16
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
17
Tubular Clip (4 Required) WPL 293577 Contact Us For Availability
19
Wire Cover-Backguard WPL 302906 Contact Us For Availability
20
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
21
Bottom-Backguard Wire Cover WPL 296569 Contact Us For Availability
22
Lamp Glass-Backguard WPL 323808 Contact Us For Availability
23
Front-Backguard Bottom WPL 324065 Contact Us For Availability
24
Knob-Clock (Minute Timer) WPL 294810 Contact Us For Availability
25
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
26
Knob-Selector Switch WPL 323812 Contact Us For Availability
27
Knob-Thermostat WPL 323811 Contact Us For Availability
34
Spill Bowl (4 Required) WPL 322888 Contact Us For Availability
35
Top Grate (4 Required) WPL 316786 Contact Us For Availability
36
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
37
Retainer-Main Top (Lt. or Rt.) WPL 301672 Contact Us For Availability
38
Screw 6-32 x 1/2`` WPL 108788 Contact Us For Availability
39
Module-Spark Igniter WPL 320990 Contact Us For Availability
40
Bracket - Spark Igniter Module WPL 315369 Contact Us For Availability
41
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
42
Support-Main Top WPL 315379 Contact Us For Availability
44
Clip WPL 285945 Contact Us For Availability
46
Burner Box Bottom WPL 320408 Contact Us For Availability
47
Left WPL 318258 Contact Us For Availability
47
Right WPL 318259 Contact Us For Availability
47
End Cap-Manifold Panel WPL ARI8049A73 Contact Us For Availability
48
hex nut 8-32 WPL 239764 Contact Us For Availability
49
White WPL 316813 Contact Us For Availability
49
Almond WPL 316814 Contact Us For Availability
49
Golden Wheat WPL 316815 Contact Us For Availability
49
Avocado WPL 316816 Contact Us For Availability
49
Coffee WPL 316817 Contact Us For Availability
49
Main Top WPL ARI8050A68 Contact Us For Availability
50
Washer WPL 99279 Contact Us For Availability
51
Strike (Rt. or Lt.) WPL 299784 Contact Us For Availability
52
Manifold Panel WPL 322807 Contact Us For Availability
53
Trim-Manifold Panel WPL 323806 Contact Us For Availability
54
Catch-Main Top Strike (Rt. or Lt.) WPL 24667 Contact Us For Availability
56
Knob-Gas Valve (4 Required) WPL 322502 Contact Us For Availability
70
Bracket-Top Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
71
Electrode-Top Igniter (Lt.) WPL 312455 Contact Us For Availability
72
Top Burner-Rear (Inc`s. Keys 77 & 78) WPL 310197 Contact Us For Availability
73
Top Burner-Front (Inc`s. 77 & 78) WPL 310196 Contact Us For Availability
75
Wire Cover-Thermostat WPL 308315 Contact Us For Availability
76
Electrode-Top Igniter (Rt.) WPL 312598 Contact Us For Availability
77
Screw WPL 301911 Contact Us For Availability
78
Air Shutter WPL 301910 Contact Us For Availability
81
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
82
Shut Off Valve WPL 292894 Contact Us For Availability
83
Manifold Pipe WPL 323805 Contact Us For Availability
84
Fitting WPL 312833 Contact Us For Availability
85
Switch-Gas Valve (4 Required) WPL 310253 Contact Us For Availability
89
Tubing 3/8`` (Shut-Off to Control Valve) WPL 315807 Contact Us For Availability
91
Cover-Igniter Wires WPL 307002 Contact Us For Availability
92
Control Valve WPL 308319 Contact Us For Availability
93
Bracket-Control Valve WPL 296179 Contact Us For Availability
94
Nut 6-32 WPL 236313 Contact Us For Availability
95
Screw WPL 312989 Contact Us For Availability
96
Air Shutter WPL 312988 Contact Us For Availability
97
Oven Burner (Inc. Keys 95, 96 & 98) WPL 324864 Contact Us For Availability
98
Baffle - Oven Burner WPL 308321 Contact Us For Availability
100
Gasket (4 Required for Key 110) WPL 313563 Contact Us For Availability
101
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
102
Igniter-Oven Burner WPL 319887 Contact Us For Availability
103
Bracket-Igniter Mounting WPL 316076 Contact Us For Availability
104
Sleeve-Igniter Wires WPL 314132 Contact Us For Availability
105
Pressure Regulator WPL 324529 Contact Us For Availability
106
Support-Top Burner WPL 313375 Contact Us For Availability
107
Bracket-Igniter WPL 311689 Contact Us For Availability
108
Screw 1/4-20 (1 Ea. for Keys 84 & 110) WPL 311455 Contact Us For Availability
109
Rubber Gasket (5 Required) WPL 304241 Contact Us For Availability
110
Gas Valve (4 Required), Inc`s. 100) WPL 324912 Contact Us For Availability
111
Left WPL 326863 Contact Us For Availability
111
Right WPL 326865 Contact Us For Availability
111
Wire Cover-Gas Valve_All 13330A Models WPL ARI8051A95 Contact Us For Availability
129
Support-Flue Deflector WPL 301624 Contact Us For Availability
130
Shield - Flue Deflector WPL 296011 Contact Us For Availability
132
Spacer-Main Top WPL 303513 Contact Us For Availability
133
White-Right WPL 323084 Contact Us For Availability
133
White-Left WPL 323085 Contact Us For Availability
133
Coffee-Right WPL 323086 Contact Us For Availability
133
Coffee-Left WPL 323087 Contact Us For Availability
133
Avocado-Right WPL 323088 Contact Us For Availability
133
Avocado-Left WPL 323089 Contact Us For Availability
133
Golden Wheat-Right WPL 323090 Contact Us For Availability
133
Golder, Wheat-Left WPL 323091 Contact Us For Availability
133
Almond-Right WPL 323092 Contact Us For Availability
133
Almond-Left WPL 323093 Contact Us For Availability
133
Body Side WPL ARI8052A38 Contact Us For Availability
134
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
135
Spring-Oven Door (Lt. or Rt.) WPL 296170 Contact Us For Availability
136
Shoulder Rivet WPL 70275 Contact Us For Availability
137
Right WPL 296327 Contact Us For Availability
137
Broiler Drawer Guide (Inc`s. 136 & 140) WPL ARI8053A57 Contact Us For Availability
140
Roller WPL 69006 Contact Us For Availability
141
Broiler Drawer (Inc`s. 136 & 140) WPL 303904 Contact Us For Availability
142
Right WPL 303132 Contact Us For Availability
142
Left WPL 303133 Contact Us For Availability
142
Hinge-Oven Door WPL ARI8054A18 Contact Us For Availability
143
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
144
Broiler Pan Grid WPL 313071 Contact Us For Availability
145
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
146
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
147
Oven Body WPL 323854 Contact Us For Availability
148
Insulation - Oven Back WPL 296140 Contact Us For Availability
149
Main Back WPL 324046 Contact Us For Availability
150
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
151
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
152
Flue Deflector WPL 300917 Contact Us For Availability
153
Clip (For Key 155) WPL 106767 Contact Us For Availability
155
Range Service Cord WPL 235822 Contact Us For Availability
156
Wire Shield WPL 318443 Contact Us For Availability
157
Disconnect WPL 232150 Contact Us For Availability
158
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
161
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
162
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
163
Washer WPL 303963 Contact Us For Availability
165
Broiler Pan WPL 290171 Contact Us For Availability
166
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
167
Shoulder Rivet WPL 305064 Contact Us For Availability
168
Right WPL 296124 Contact Us For Availability
168
Left WPL 296125 Contact Us For Availability
168
Hinge-Broiler Door WPL ARI8055A76 Contact Us For Availability
169
Washer WPL 21067 Contact Us For Availability
170
H WPL 292240 Contact Us For Availability
171
WPL 302343 WPL 302343 Contact Us For Availability
172
WPL 296131 WPL 296131 Contact Us For Availability
172
WPL 308346 WPL 308346 Contact Us For Availability
172
WPL 308975 WPL 308975 Contact Us For Availability
172
WPL 308976 WPL 308976 Contact Us For Availability
172
WPL 308977 WPL 308977 Contact Us For Availability
172
WPL ARI8056A66 WPL ARI8056A66 Contact Us For Availability
173
WPL 296137 WPL 296137 Contact Us For Availability
174
WPL 316365 WPL 316365 Contact Us For Availability
175
WPL 296332 WPL 296332 Contact Us For Availability
176
WPL 69603 WPL 69603 Contact Us For Availability
177
WPL 239113 WPL 239113 Contact Us For Availability
178
WPL 296102 WPL 296102 Contact Us For Availability
179
WPL 296103 WPL 296103 Contact Us For Availability
180
WPL 323357 WPL 323357 Contact Us For Availability
181
WPL 111257 WPL 111257 Contact Us For Availability
182
WPL 87883 WPL 87883 Contact Us For Availability
183
WPL 296070 WPL 296070 Contact Us For Availability
184
WPL 305408 WPL 305408 Contact Us For Availability
185
WPL 305409 WPL 305409 Contact Us For Availability
200
Outer Glass-Oven Door WPL 318315 Contact Us For Availability
201
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
203
Inner Glass-Oven Door WPL 296214 Contact Us For Availability
204
Lining - Oven Door WPL 296206 Contact Us For Availability
205
Insulation WPL 303556 Contact Us For Availability
206
Retainer - Oven Door Insulation WPL 296471 Contact Us For Availability
207
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
208
Handle-Oven Door WPL 303342 Contact Us For Availability
209
Frame-Oven Door WPL 296473 Contact Us For Availability
210
Cushion-Door Glass (3 Required) WPL 112370 Contact Us For Availability
211
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
211
Control Valve WPL 308350 Contact Us For Availability
211
Thermostat WPL 323807 Contact Us For Availability
211
Backguard WPL 323809 Contact Us For Availability
211
Gas Valve Switch-13330A Models WPL 324704 Contact Us For Availability
211
Repair Parts List WPL 326899 Contact Us For Availability
351
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
352
Rotisserie Motor WPL 106575 Contact Us For Availability
352
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
353
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
354
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
355
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
356
Thumbscrew WPL 70287 Contact Us For Availability
357
Skewer WPL 88433 Contact Us For Availability
358
Rotisserie Spit WPL 100092 Contact Us For Availability
359
Spit Support WPL 232137 Contact Us For Availability
360
Plug Button WPL 100095 Contact Us For Availability
361
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
362
White WPL 284278 Contact Us For Availability
362
Black With 1/4`` Faston & Eyelet Terminals WPL 291284 Contact Us For Availability
362
White WPL 321951 Contact Us For Availability
362
Black WPL 321952 Contact Us For Availability
362
Fixture Wire Lead With 1/4`` Faston & Piggy B WPL ARI8058A16 Contact Us For Availability
363
Rotisserie Cord WPL 282924 Contact Us For Availability
366
Rotisserie Pan WPL 291397 Contact Us For Availability
366
xInstallation Instructions WPL 300668 Contact Us For Availability
370
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
× ![]()
