Model Whirlpool 1315W0A GAS RANGE – Common Parts & Diagrams

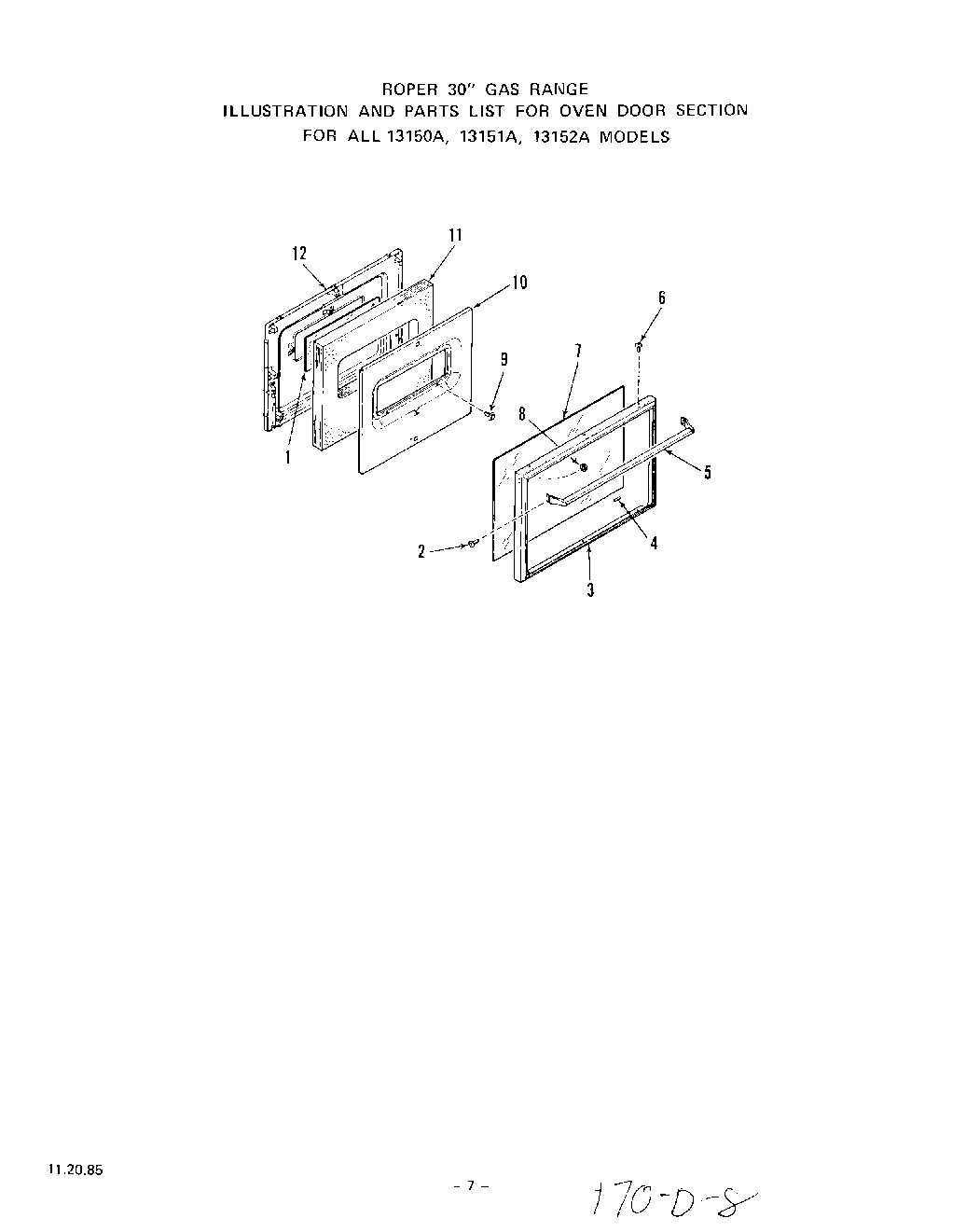

06 - OVEN DOOR
08 - WIRING DIAGRAM

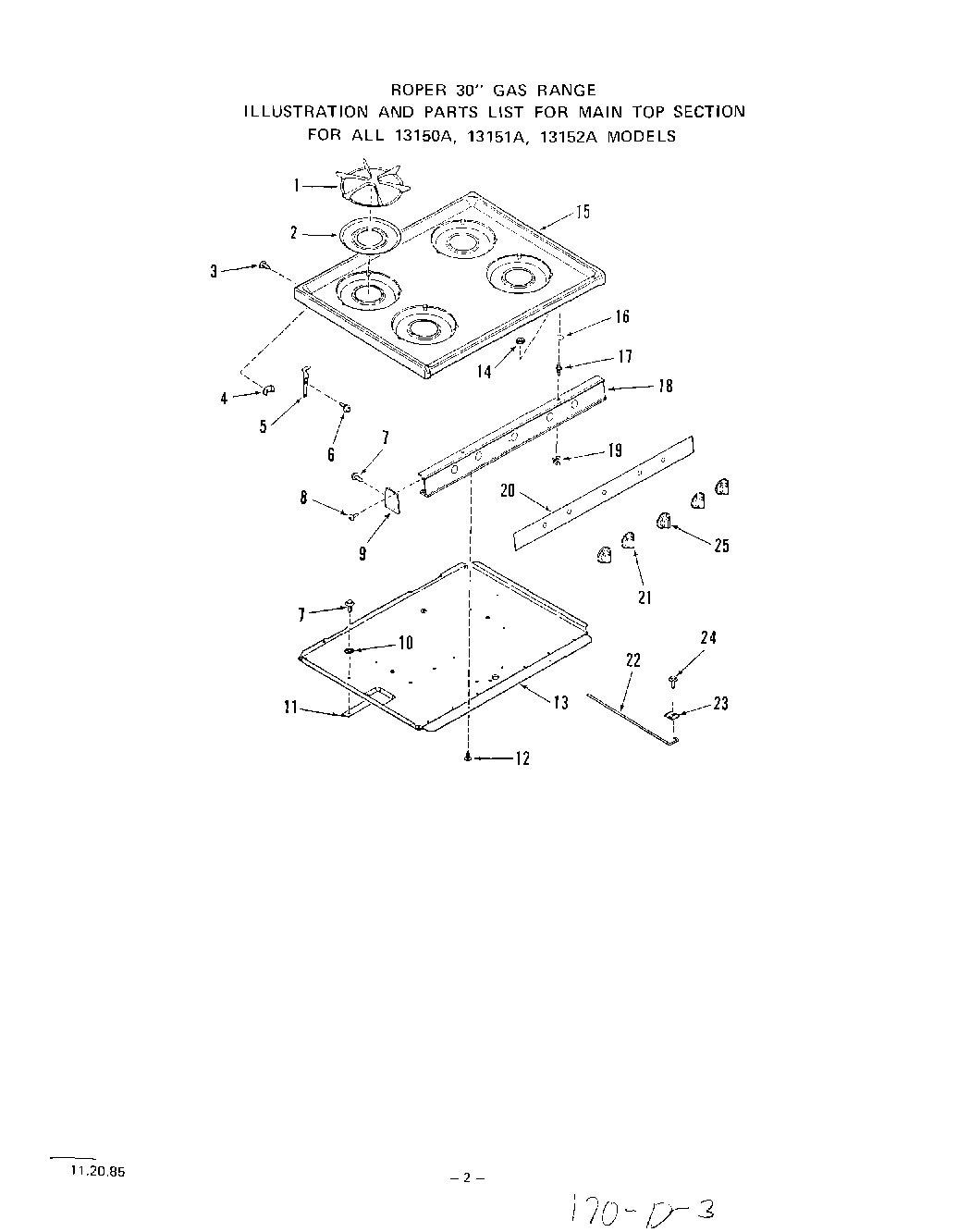

03 - MAIN TOP

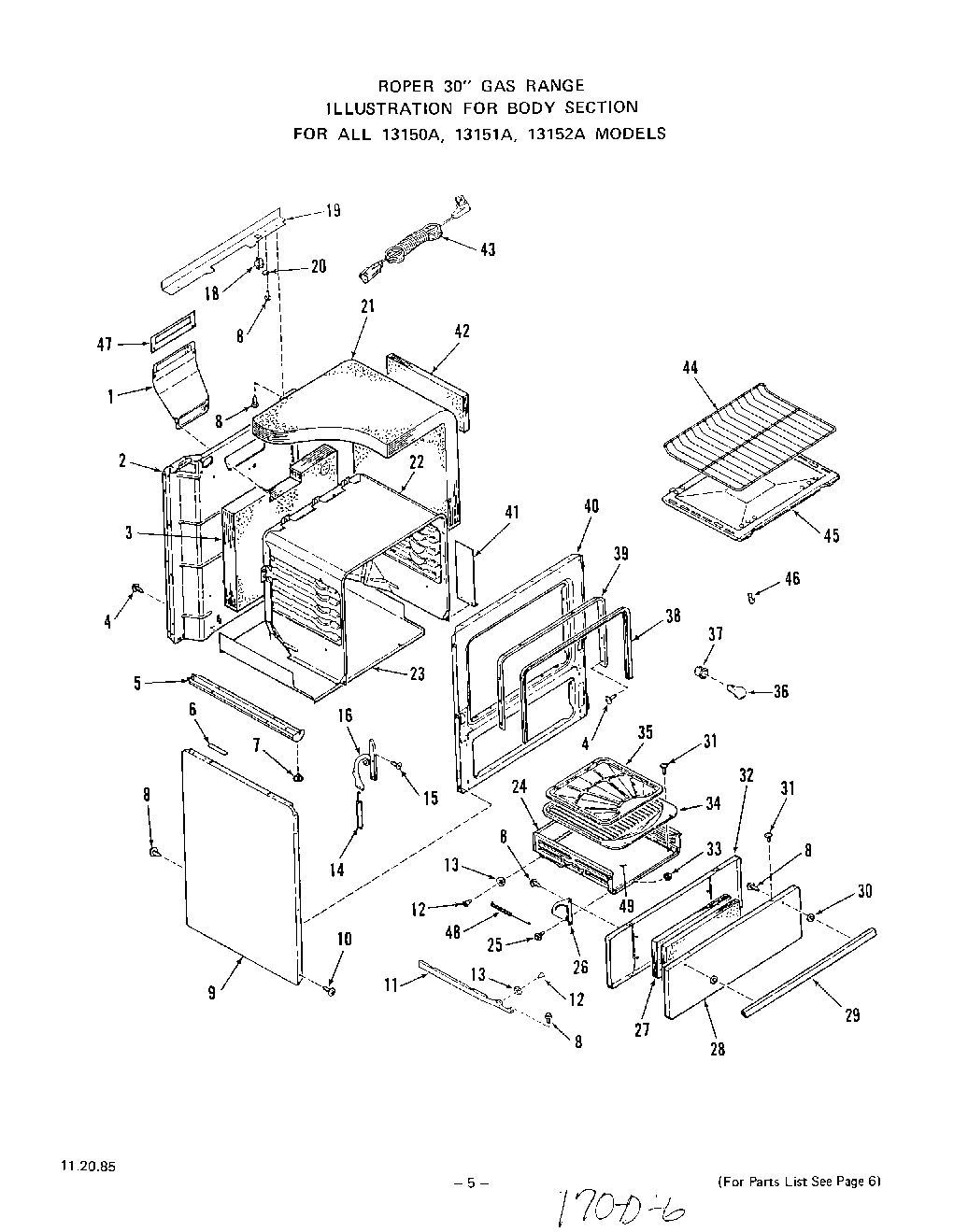

05 - BODY

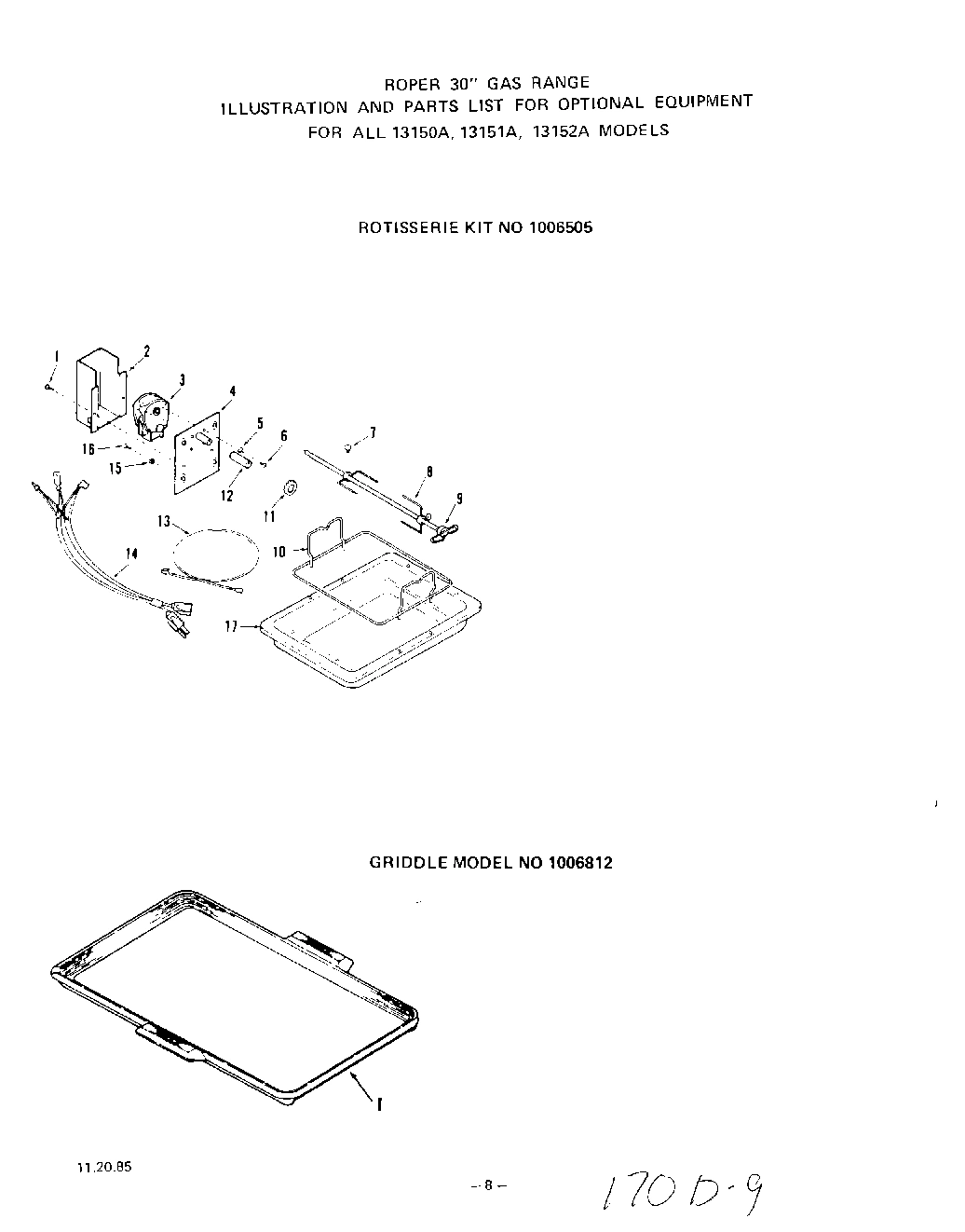

07 - ROTISSERIE KIT , GRIDDLE

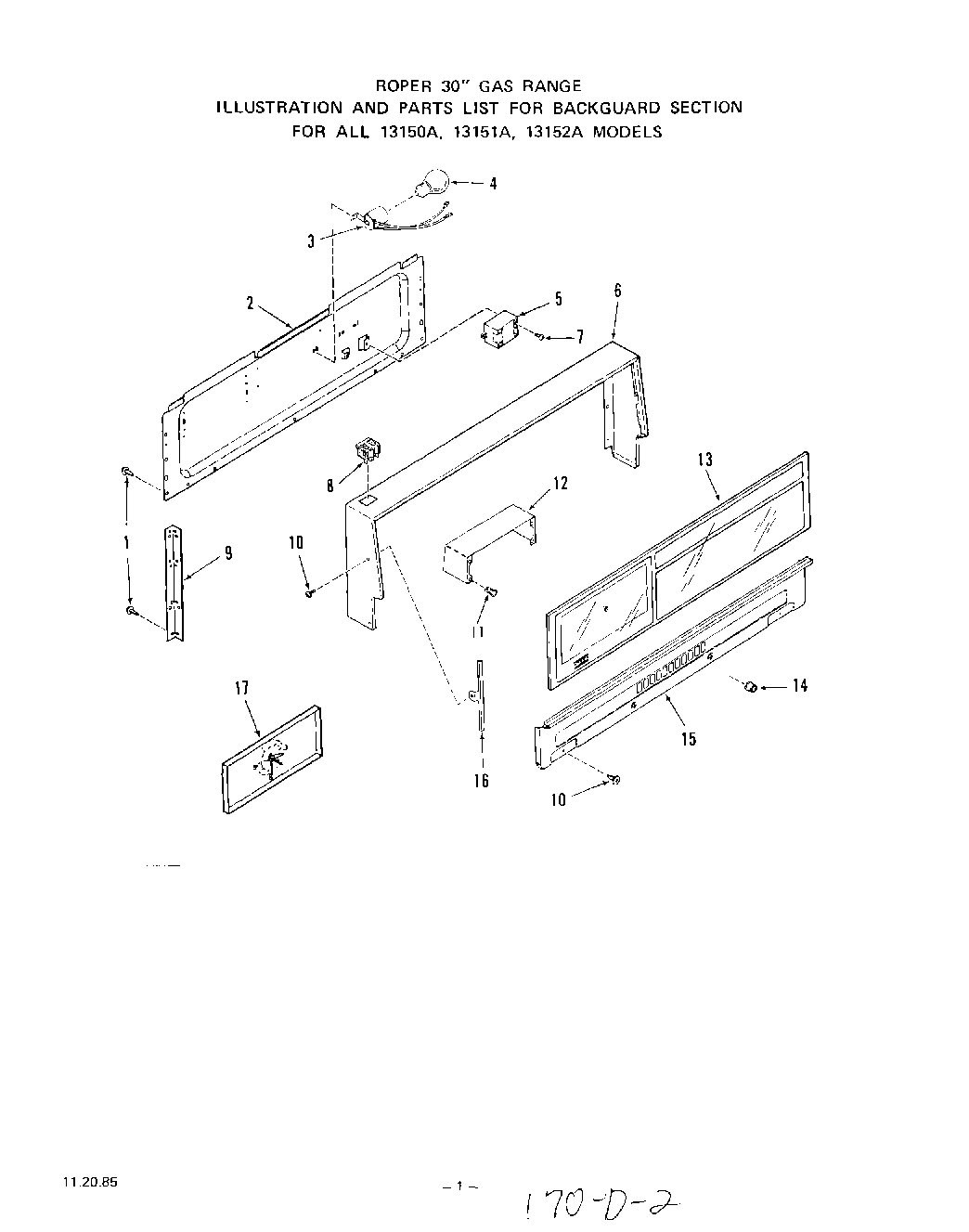

02 - BACKGUARD

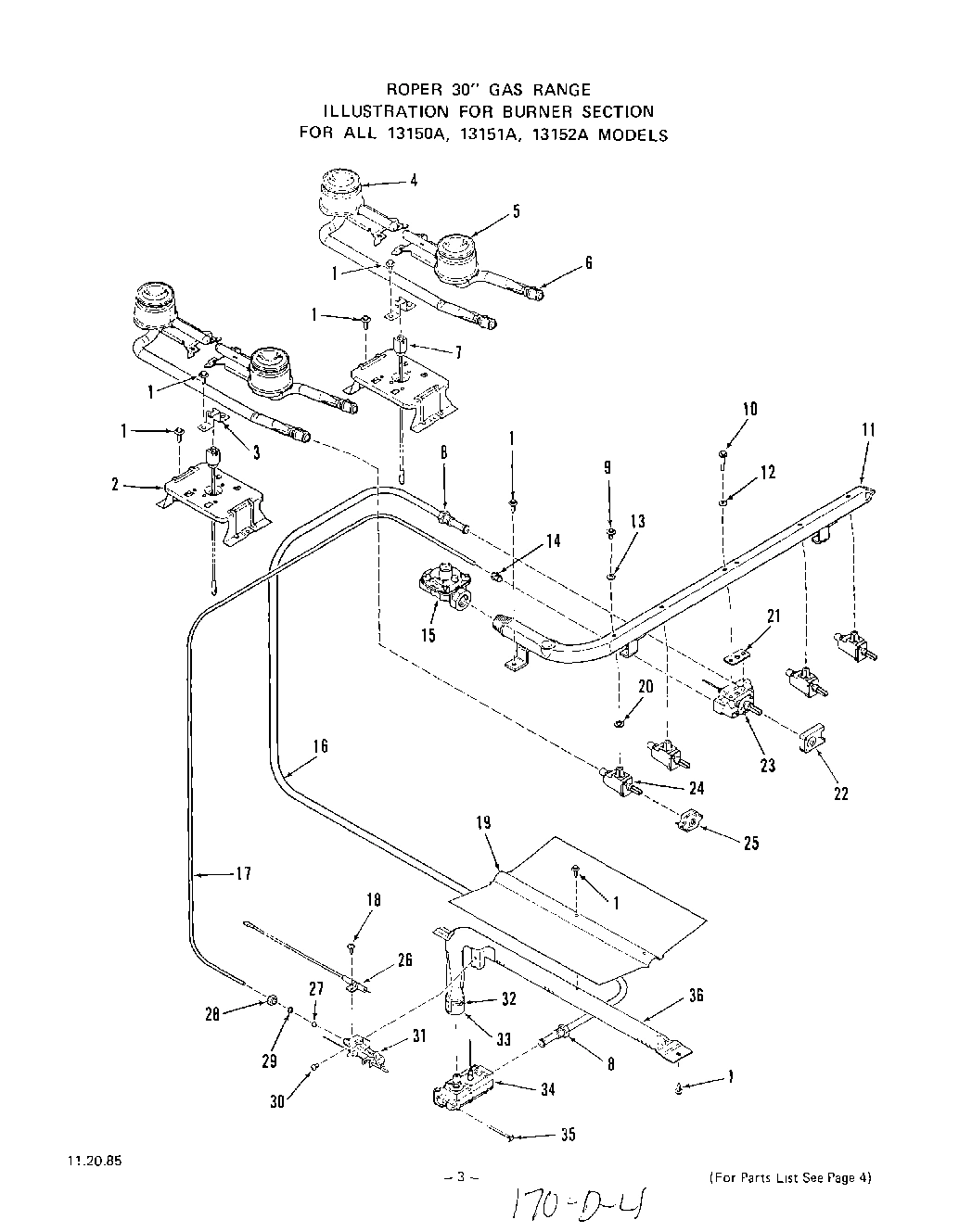

04 - BURNER
Common parts from model Whirlpool 1315W0A GAS RANGE
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI8009A22 Contact Us For Availability
1
inner glass-oven door WPL 326010 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
1
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
2
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
2
Aeration Pan (4 Req) WPL 322888 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Wire Cover-Backguard WPL 329714 Contact Us For Availability
2
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
3
frame-oven door WPL 326002 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
Lamp Holder w/Leads (All 13150A Models) WPL 328075 Contact Us For Availability
3
Lamp Holder w/Leads (All 13151A Models) WPL 329713 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
4
Cushion (5 Req) WPL 112370 Contact Us For Availability
4
bracket-main top hinge (lt. or rt.) WPL 327403 Contact Us For Availability
4
Lamp Bulb WPL 111257 Contact Us For Availability
4
mounting bracket-rotisserie motor WPL 324623 Contact Us For Availability
4
Rear Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327075 Contact Us For Availability
5
Handle WPL 303342 Contact Us For Availability
5
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
5
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Module - Spark Igniter WPL 326136 Contact Us For Availability
5
Front Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327074 Contact Us For Availability
6
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
6
Spacer-Main Top WPL 326914 Contact Us For Availability
6
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
6
Frame-Backguard WPL 328408 Contact Us For Availability
6
Air Shutter WPL 327198 Contact Us For Availability
7
outer glass-oven door WPL 326367 Contact Us For Availability
7
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
7
Electrode-Spark Igniter (Right) WPL 312455 Contact Us For Availability
7
Electrode-Spark Igniter (Left) WPL 327216 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Switch-Oven & Top Light WPL 307410 Contact Us For Availability
8
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
9
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
9
End Cap-Manifold Panel (Left) WPL 318258 Contact Us For Availability
9
End Cap-Manifold Panel (Right) WPL 318259 Contact Us For Availability
9
Body Side (Lt. or Rt.) (White) WPL 326055 Contact Us For Availability
9
Body Side-Lt. or Rt. (Coffee) WPL 326056 Contact Us For Availability
9
Body Side-Lt. or Rt. (Avocado) WPL 326057 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Golden Wheat) WPL 326058 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Almond) WPL 326059 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
9
mounting screw 1/4-20 (inc`s. 13) WPL 311455 Contact Us For Availability
10
Insulation Retainer-Oven Door WPL 325996 Contact Us For Availability
10
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
10
Washer WPL 106462 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Mounting Screw 10-24 (Inc`s. 12) WPL 318478 Contact Us For Availability
11
Insulation WPL 325999 Contact Us For Availability
11
stiffener-burner box bottom (front) WPL 327705 Contact Us For Availability
11
Stiffener-Burner Box Bottom (Rear) WPL 329158 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. 12, 13) (Right) WPL 296327 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Tubular Clip (4 Req.) WPL 293577 Contact Us For Availability
11
Manifold Pipe WPL 327089 Contact Us For Availability
12
gas valve switches WPL 326870 Contact Us For Availability
12
Lining-Oven Door (13150A & 13151A Models) WPL 327254 Contact Us For Availability
12
Main All 13150A Models WPL 327686 Contact Us For Availability
12
Main All 13151A Models WPL 329700 Contact Us For Availability
12
Lining-Oven Door (13152A Models) WPL 331581 Contact Us For Availability
12
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
12
Shoulder Rivet WPL 70275 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Mounting Bracket-Clock WPL 293560 Contact Us For Availability
12
Silicone Rubber Gasket WPL 318658 Contact Us For Availability
13
Burner Box Bottom (13150A & 13151A Models) WPL 327250 Contact Us For Availability
13
Burner Box Bottom (13152A Models) WPL 331577 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggy B WPL 291284 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
13
Top Lamp Glass WPL 324263 Contact Us For Availability
13
Silicone Rubber Gasket WPL 311692 Contact Us For Availability
14
Keps Nut 8-32 WPL 239764 Contact Us For Availability
14
spring-oven door (lt. or rt.) WPL 326962 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Knob-Clock WPL 294810 Contact Us For Availability
14
Loxit Nut WPL 79673 Contact Us For Availability
15
Main Top (White) WPL 328907 Contact Us For Availability
15
Main Top (Coffee) WPL 328908 Contact Us For Availability
15
Main Top (Avocado) WPL 328909 Contact Us For Availability
15
Main Top (Golden Wheat) WPL 328910 Contact Us For Availability
15
Main Top (Almond) WPL 328911 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Front-Backguard Bottom WPL 307717 Contact Us For Availability
15
Pressure Regulator WPL 324528 Contact Us For Availability
16
Washer WPL 74417 Contact Us For Availability
16
Hinge-Oven Door (Right) WPL 329653 Contact Us For Availability
16
Hinge-Oven Door (Left) WPL 329654 Contact Us For Availability
16
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
16
End Trim- Top Lamp Glass (Lt. or Rt.) WPL 299705 Contact Us For Availability
16
Tubing 3/8`` WPL 295037 Contact Us For Availability
17
Strike (Rt. or Lt.) WPL 299784 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
Clock w/4 Hr. Timer WPL 327884 Contact Us For Availability
17
Tubing 3/16`` WPL 322447 Contact Us For Availability
18
Manifold Panel WPL 322807 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
18
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
19
Catch-Rt. or Lt. WPL 24667 Contact Us For Availability
19
Wire Cover Bottom-Backguard WPL 327251 Contact Us For Availability
19
Baffle - Oven Burner WPL 329316 Contact Us For Availability
20
Trim-Manifold Panel WPL 327502 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
20
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
21
Knob-Gas Valve (4 Req) WPL 327485 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
21
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
22
Support Rod-Main Top WPL 326066 Contact Us For Availability
22
Oven Body (13150A & 13151A Models) WPL 324958 Contact Us For Availability
22
Oven Body (13152A Models) WPL 331586 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
23
Clamp-Support Rod WPL 326348 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
23
Oven Thermostat (Inc`s. 21) WPL 321983 Contact Us For Availability
24
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
24
Broiler Drawer (Inc`s. 12. 13) (13150A & 1315 WPL 330100 Contact Us For Availability
24
Broiler Drawer (Inc`s. 12. 13) (13152A Models WPL 331566 Contact Us For Availability
24
Gas Valve (4 Req. - Inc`s. 20) WPL 324511 Contact Us For Availability
25
Knob-Thermostat WPL 322981 Contact Us For Availability
25
Shoulder Bolt WPL 329271 Contact Us For Availability
25
Switch-Gas Valve (4 Req) WPL 310253 Contact Us For Availability
26
Hinge-Broiler Door (Right) WPL 327482 Contact Us For Availability
26
Hinge-Broiler Door (Left) WPL 327483 Contact Us For Availability
26
Electrode-Oven Spark Igniter WPL 327217 Contact Us For Availability
27
Orifice Cup Only (For 31) WPL 318485 Contact Us For Availability
28
Front Panel-Broiler Door (White) WPL 326287 Contact Us For Availability
28
Front Panel-Broiler Door (Coffee) WPL 326288 Contact Us For Availability
28
Front Panel-Broiler Door (Avocado) WPL 326289 Contact Us For Availability
28
Front Panel-Broiler Door (Golden Wheat) WPL 326290 Contact Us For Availability
28
Fr WPL 326291 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
29
WPL 292240 WPL 292240 Contact Us For Availability
29
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
30
WPL 302343 WPL 302343 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
31
WPL 316849 WPL 316849 Contact Us For Availability
31
Pilot Only (Inc`s. 27) WPL 318486 Contact Us For Availability
32
WPL 327060 WPL 327060 Contact Us For Availability
32
WPL 331567 WPL 331567 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
33
WPL 74056 WPL 74056 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
34
WPL 290171 WPL 290171 Contact Us For Availability
34
WPL 331593 WPL 331593 Contact Us For Availability
34
Control Valve (Inc`s. 27 & 31) WPL 321755 Contact Us For Availability
35
WPL 313071 WPL 313071 Contact Us For Availability
35
WPL 331588 WPL 331588 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
36
Oven Burner (Inc`s. 19, 32 & 33) WPL 319255 Contact Us For Availability
37
WPL 295974 WPL 295974 Contact Us For Availability
38
WPL 326047 WPL 326047 Contact Us For Availability
39
WPL 327875 WPL 327875 Contact Us For Availability
40
WPL 326042 WPL 326042 Contact Us For Availability
40
WPL 332687 WPL 332687 Contact Us For Availability
41
WPL 328984 WPL 328984 Contact Us For Availability
43
WPL 235822 WPL 235822 Contact Us For Availability
44
WPL 326068 WPL 326068 Contact Us For Availability
45
WPL 327083 WPL 327083 Contact Us For Availability
45
WPL 331539 WPL 331539 Contact Us For Availability
46
WPL 115533 WPL 115533 Contact Us For Availability
47
WPL 327925 WPL 327925 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 329862 WPL 329862 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
× ![]()
