Model Electrolux 12-4980-00-05 WALL OVEN – Common Parts & Diagrams

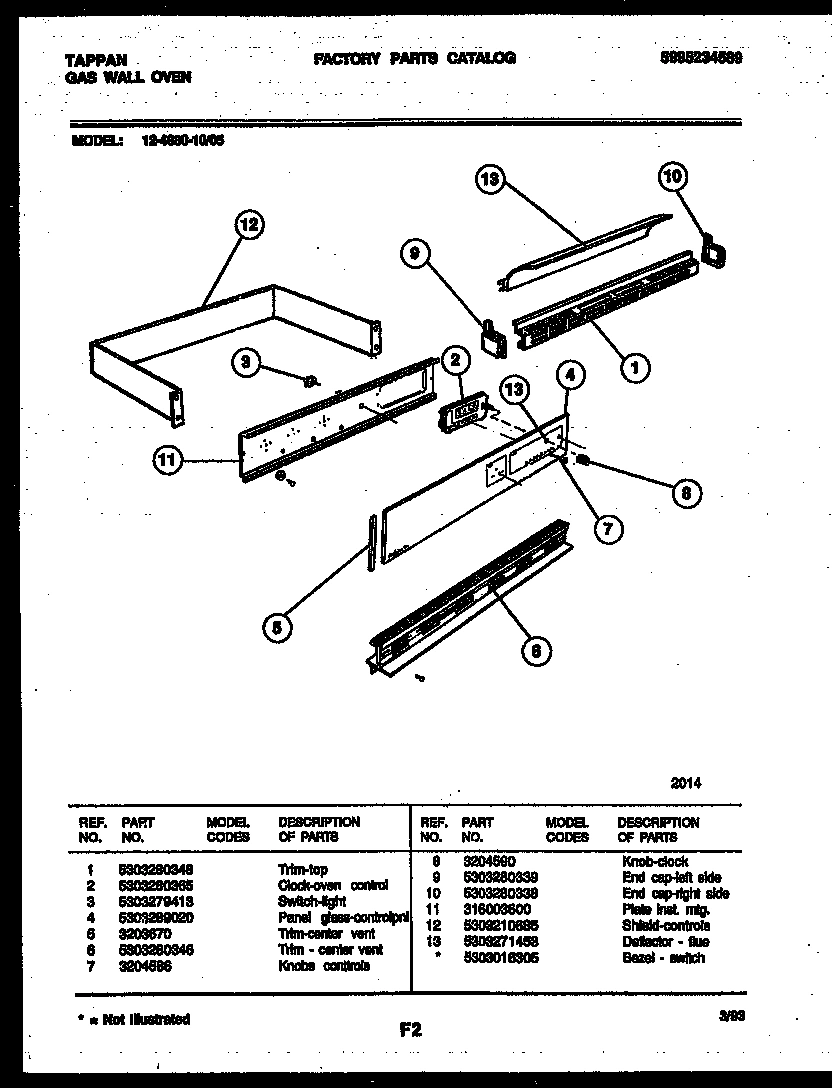

02 - CONTROL PANEL

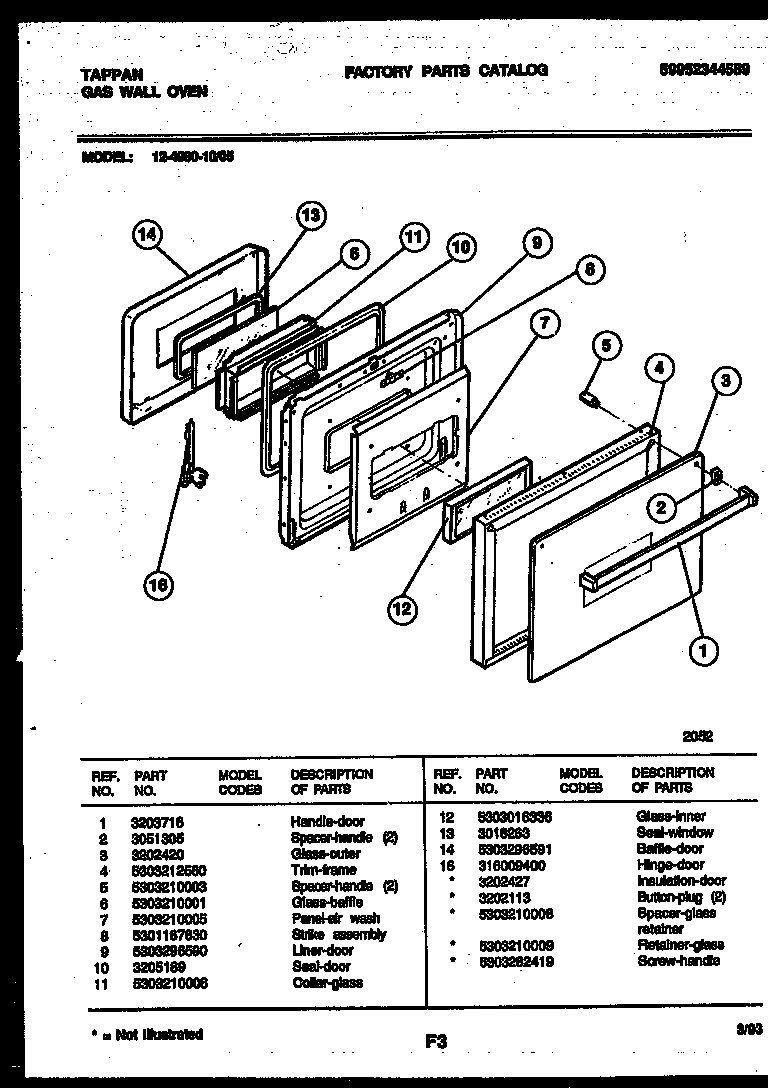

03 - DOOR PARTS

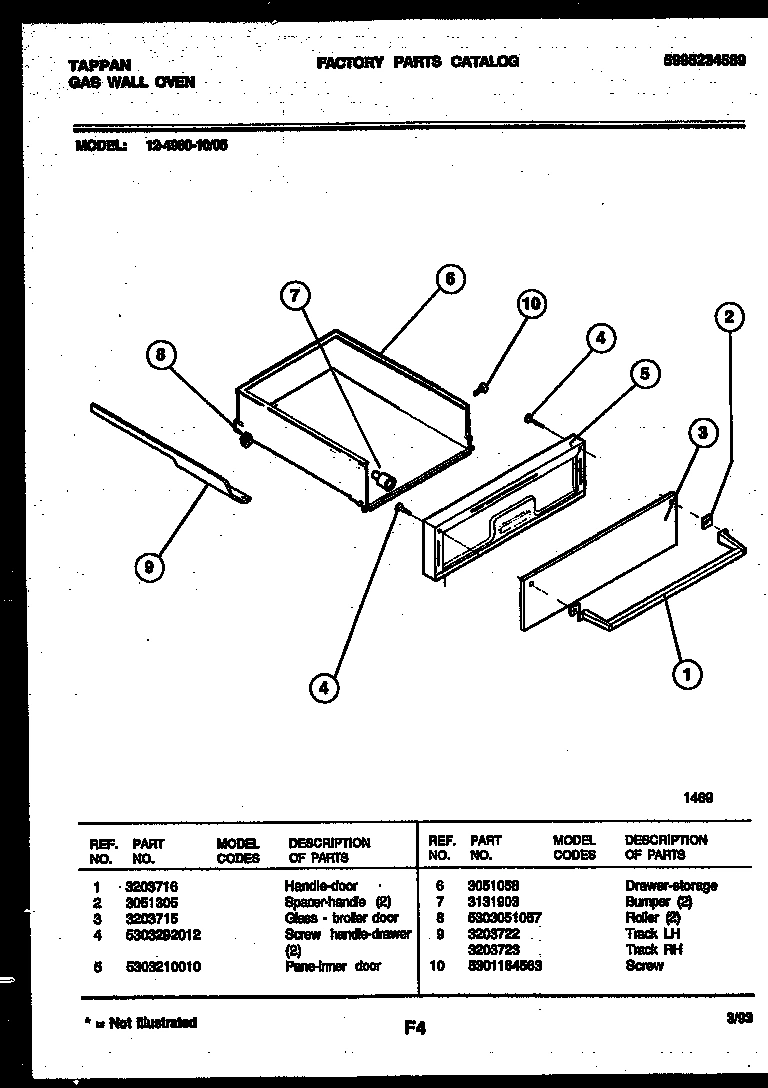

04 - DRAWER PARTS

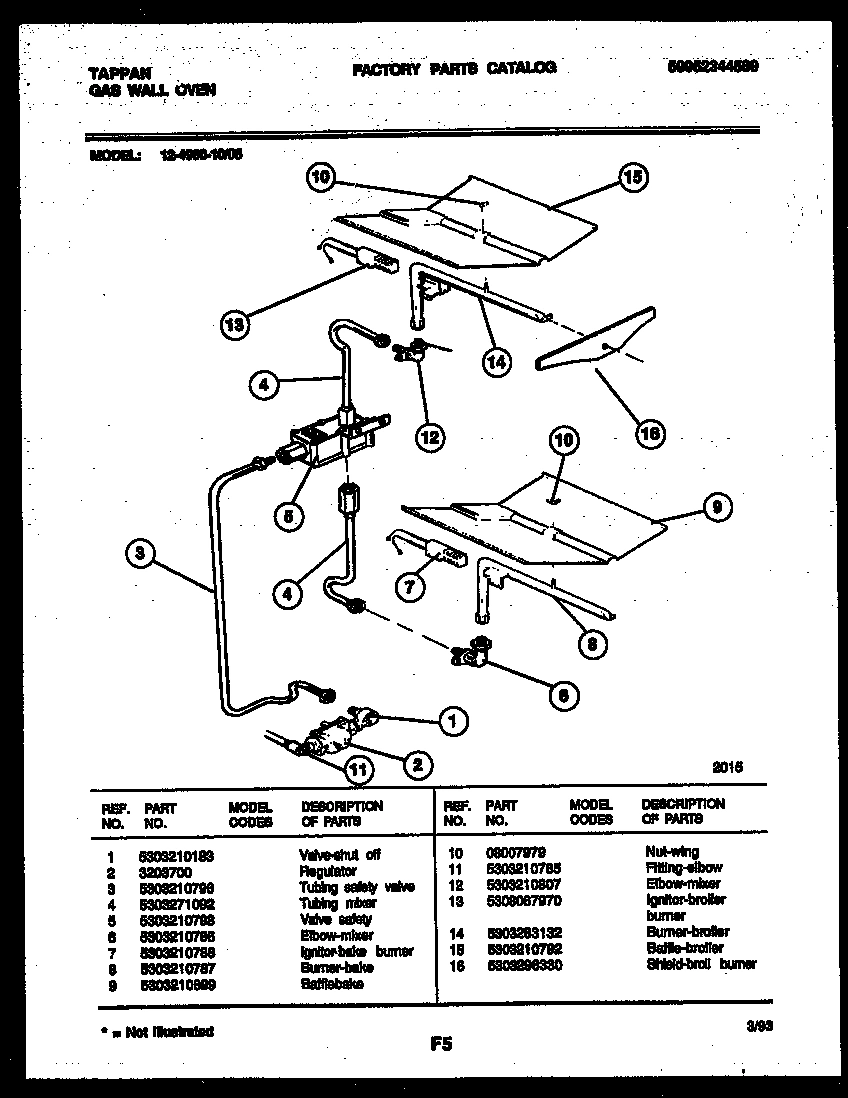

05 - BURNER AND GAS CONTROL

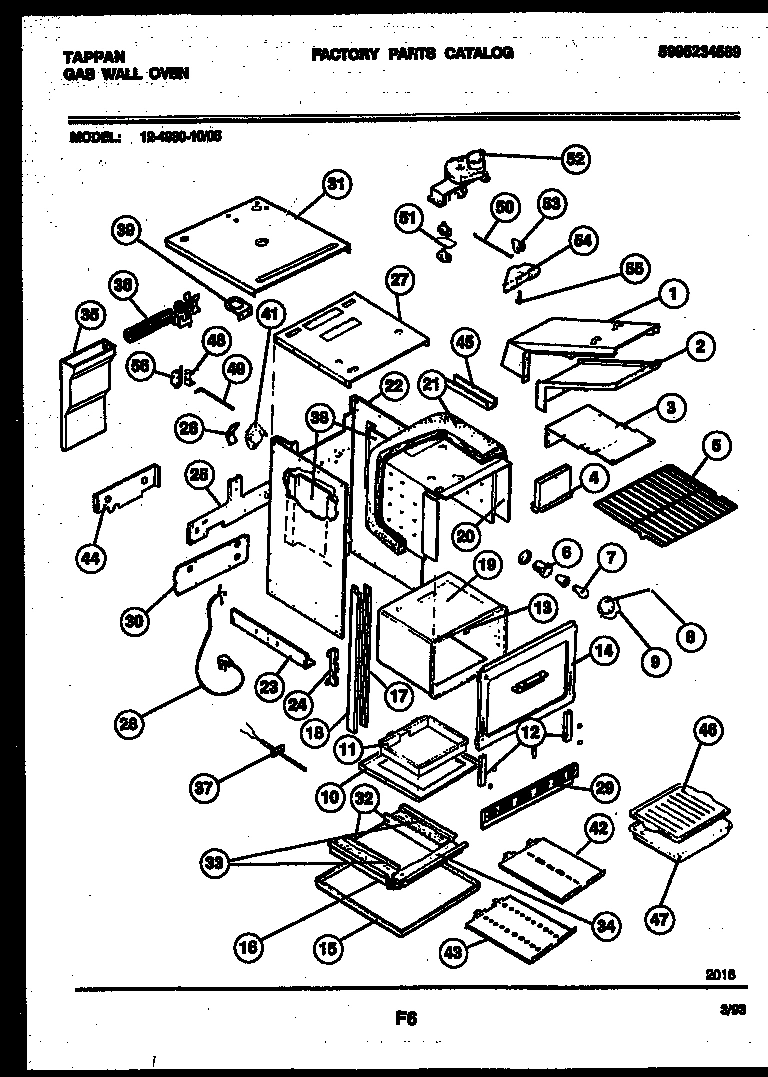

06 - BODY PARTS
Common parts from model Electrolux 12-4980-00-05 WALL OVEN
*83924
INSULATION-DOOR WCI 3202427 Contact Us For Availability
*83925
BUTTON-PLUG (2) WCI 3202113 Contact Us For Availability
*83925
WCI 5303210008 WCI 5303210008 Contact Us For Availability
*83925
WCI 5303210009 WCI 5303210009 Contact Us For Availability
*83925
SCREW, HANDLE WCI 5303282419 Contact Us For Availability
*83934
WCI 19100260005 WCI 19100260005 Contact Us For Availability
*83934
SPRING ROD WCI 3202114 Contact Us For Availability
1
HANDLE-DOOR WCI 3203716 Contact Us For Availability
1
WCI 5303210183 WCI 5303210183 Contact Us For Availability
1
WCI 5303210822 WCI 5303210822 Contact Us For Availability
2
WCI 3051305 WCI 3051305 Contact Us For Availability
2
REGULATOR WCI 3203700 Contact Us For Availability
2
WCI 3203725 WCI 3203725 Contact Us For Availability
3
WCI 3203715 WCI 3203715 Contact Us For Availability
3
WCI 3202420 WCI 3202420 Contact Us For Availability
3
WCI 5303210796 WCI 5303210796 Contact Us For Availability
3
SHIELD - FLUE BOTTOM WCI 3203686 Contact Us For Availability
4
WCI 5303212560 WCI 5303212560 Contact Us For Availability
4
TUBING MIXER WCI 5303271092 Contact Us For Availability
4
WCI 3203730 WCI 3203730 Contact Us For Availability
5
WCI 5303210003 WCI 5303210003 Contact Us For Availability
5
PANE-INNER DOOR WCI 5303210010 Contact Us For Availability
5
RACK-OVEN WCI 3202442 Contact Us For Availability
6
WCI 5303280346 WCI 5303280346 Contact Us For Availability
6
WCI 5303210001 WCI 5303210001 Contact Us For Availability
6
DRAWER-STORAGE WCI 3051058 Contact Us For Availability
6
WCI 5303210786 WCI 5303210786 Contact Us For Availability
6
WCI 08011171 WCI 08011171 Contact Us For Availability
7
KNOBS CONTROLS WCI 3204586 Contact Us For Availability
7
WCI 5303210005 WCI 5303210005 Contact Us For Availability
8
KNOB-CLOCK WCI 3204590 Contact Us For Availability
8
WCI 5301167830 WCI 5301167830 Contact Us For Availability
8
WCI 5303051057 WCI 5303051057 Contact Us For Availability
9
END CAP-LEFT SIDE WCI 5303280339 Contact Us For Availability
9
WCI 5303296590 WCI 5303296590 Contact Us For Availability
9
BAFFLEBAKE WCI 5303210699 Contact Us For Availability
9
WCI 3204483 WCI 3204483 Contact Us For Availability
10
END CAP-RIGHT SIDE WCI 5303280338 Contact Us For Availability
10
WCI 3205189 WCI 3205189 Contact Us For Availability
10
WCI 5301164563 WCI 5301164563 Contact Us For Availability
10
NUT - WING WCI 08007979 Contact Us For Availability
10
BOTTOM - OVEN WCI 5303296327 Contact Us For Availability
11
WCI 316003600 WCI 316003600 Contact Us For Availability
11
WCI 5303210006 WCI 5303210006 Contact Us For Availability
11
FITTING-ELBOW WCI 5303210785 Contact Us For Availability
11
BOX -BURNER WCI 5303210700 Contact Us For Availability
12
SHIELD-CONTROLS WCI 5303210685 Contact Us For Availability
12
WCI 5303016336 WCI 5303016336 Contact Us For Availability
12
ELBOW - MIXER WCI 5303210807 Contact Us For Availability
12
SUPPORT-OVEN FRONT (2) WCI 3203688 Contact Us For Availability
13
DEFLECTOR - FLUE WCI 5303271453 Contact Us For Availability
13
WCI 3016263 WCI 3016263 Contact Us For Availability
14
WCI 5303296591 WCI 5303296591 Contact Us For Availability
14
WCI 5303283132 WCI 5303283132 Contact Us For Availability
14
WCI 5303296326 WCI 5303296326 Contact Us For Availability
15
BAFFLE-BROILER WCI 5303210792 Contact Us For Availability
15
WCI 3202447 WCI 3202447 Contact Us For Availability
16
WCI 316009400 WCI 316009400 Contact Us For Availability
16
WCI 5303296330 WCI 5303296330 Contact Us For Availability
16
WCI 5303210706 WCI 5303210706 Contact Us For Availability
17
WCI 3203664 WCI 3203664 Contact Us For Availability
17
WCI 3203665 WCI 3203665 Contact Us For Availability
18
WCI 5303280347 WCI 5303280347 Contact Us For Availability
19
WCI 5303296407 WCI 5303296407 Contact Us For Availability
20
SHIELD-TOP & SIDES WCI 3203684 Contact Us For Availability
21
INSULATION, TOP & SIDES WCI 5303210707 Contact Us For Availability
21
INSULATION-BOTTOM WCI 5303210708 Contact Us For Availability
21
WCI 5303210709 WCI 5303210709 Contact Us For Availability
21
WCI 5303210713 WCI 5303210713 Contact Us For Availability
21
WCI 5303210714 WCI 5303210714 Contact Us For Availability
22
WRAPPER-OUTER BACK & SIDES WCI 5303210686 Contact Us For Availability
23
WCI 3016278 WCI 3016278 Contact Us For Availability
24
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
25
WCI 5303210721 WCI 5303210721 Contact Us For Availability
26
SPRING, OVEN WCI 3016281 Contact Us For Availability
27
WCI 5303210683 WCI 5303210683 Contact Us For Availability
28
WCI 3203699 WCI 3203699 Contact Us For Availability
29
WCI 3202237 WCI 3202237 Contact Us For Availability
30
WCI 3203678 WCI 3203678 Contact Us For Availability
31
WCI 5303210681 WCI 5303210681 Contact Us For Availability
32
ANGLES-SHIELD WCI 5303203729 Contact Us For Availability
33
INSULATION-BOTTOM & SIDES WCI 5303210711 Contact Us For Availability
34
INSULATION-BOTTOM & FRONT WCI 5303210712 Contact Us For Availability
35
DUCT-BLOWER MOTOR WCI 5303210839 Contact Us For Availability
36
MOTOR WCI 5303210808 Contact Us For Availability
37
SENSOR WCI 5303210806 Contact Us For Availability
38
WCI 5303210841 WCI 5303210841 Contact Us For Availability
39
WCI 5303210842 WCI 5303210842 Contact Us For Availability
41
SWITCH-THERMO WCI 5303210644 Contact Us For Availability
42
SHIELD-LOWER BURNER WCI 5303210844 Contact Us For Availability
43
SHIELD-INSULATION WCI 5303210843 Contact Us For Availability
44
SHIELD-HOUSING WCI 5303210845 Contact Us For Availability
45
SHIELD-INSULATION WCI 5303210846 Contact Us For Availability
46
WCI 5303293415 WCI 5303293415 Contact Us For Availability
47
WCI 5303293416 WCI 5303293416 Contact Us For Availability
48
WCI 3202384 WCI 3202384 Contact Us For Availability
49
WCI 3202077 WCI 3202077 Contact Us For Availability
50
WCI 3016241 WCI 3016241 Contact Us For Availability
51
BRACKET-MOTOR MTG WCI 3016276 Contact Us For Availability
52
WCI 5303269766 WCI 5303269766 Contact Us For Availability
53
WCI 3051648 WCI 3051648 Contact Us For Availability
54
BASE-LATCH MOTOR WCI 3051647 Contact Us For Availability
55
WCI 5308012004 WCI 5308012004 Contact Us For Availability
55A
SPACER-OVEN (2) (NON-ILLUSTRATED) WCI 3201632 Contact Us For Availability
55B
INSULATION-BOTTOM (NON-ILLUSTRATED) WCI 5303210710 Contact Us For Availability
55C
HOUSING-LATCH (NON-ILLUSTRATED) WCI 3019069 Contact Us For Availability
55D
RETAINER-DOOR (2) (NON-ILLUSTRATED) WCI 3019063 Contact Us For Availability
55E
SHIELD-INSULATION BASE (NON-ILLUSTRATED) WCI 5303210851 Contact Us For Availability
56
SWITCH - OVEN LIGHT WCI 5303275924 Contact Us For Availability
× ![]()
