Model Electrolux 12-3219-00-01 WALL OVEN – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS

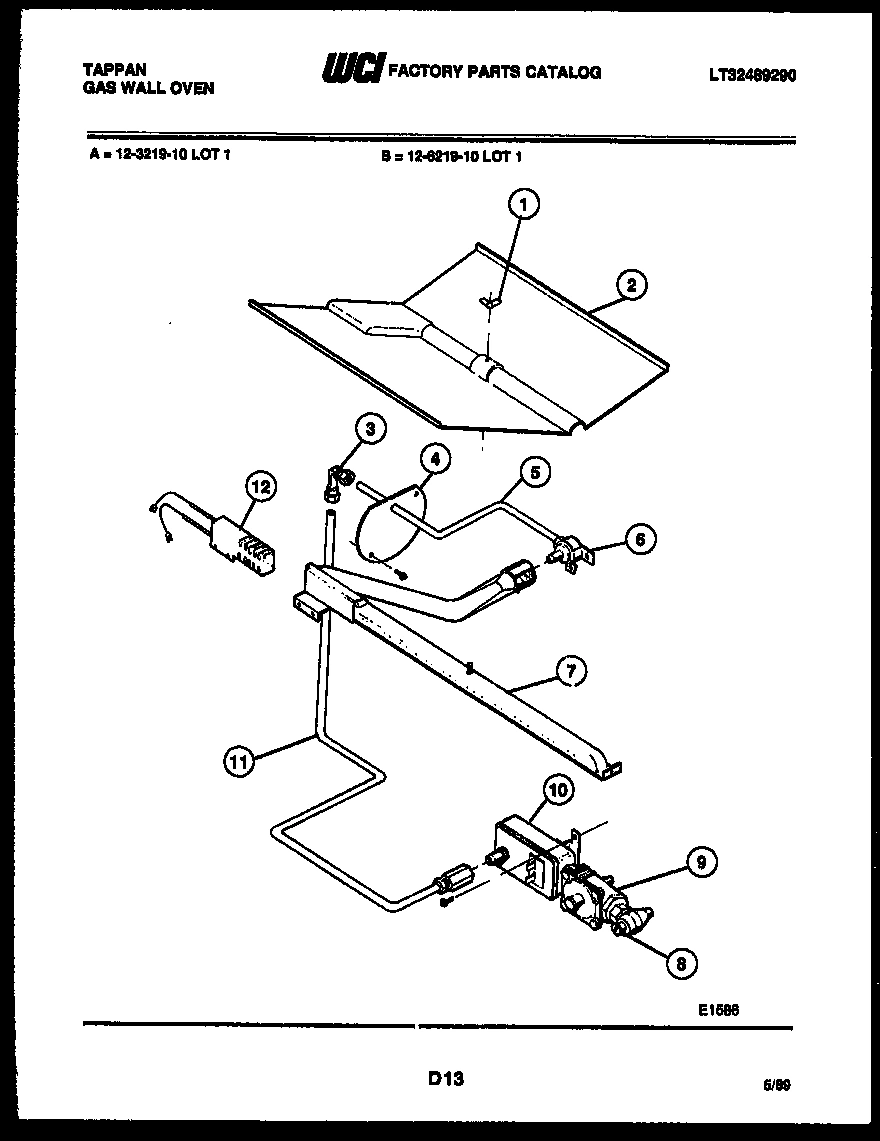

04 - GAS CONTROL

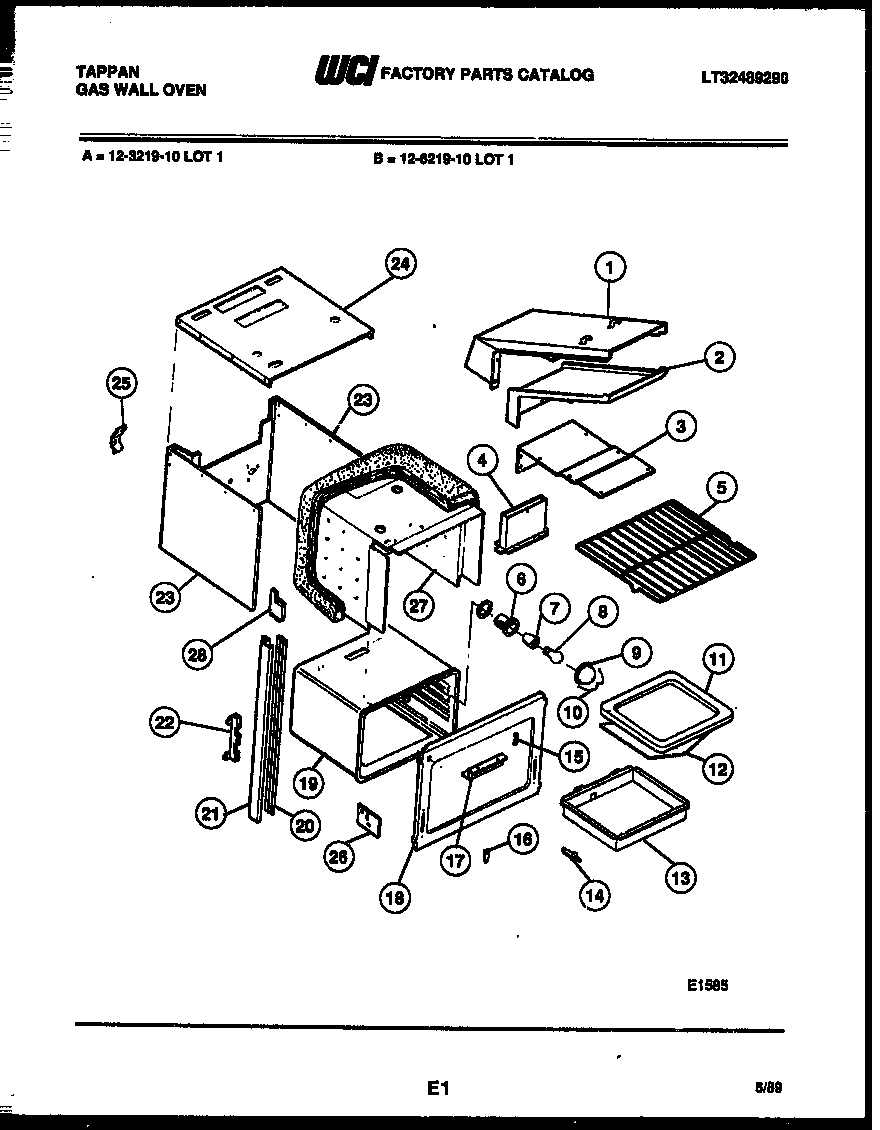

05 - BODY PARTS

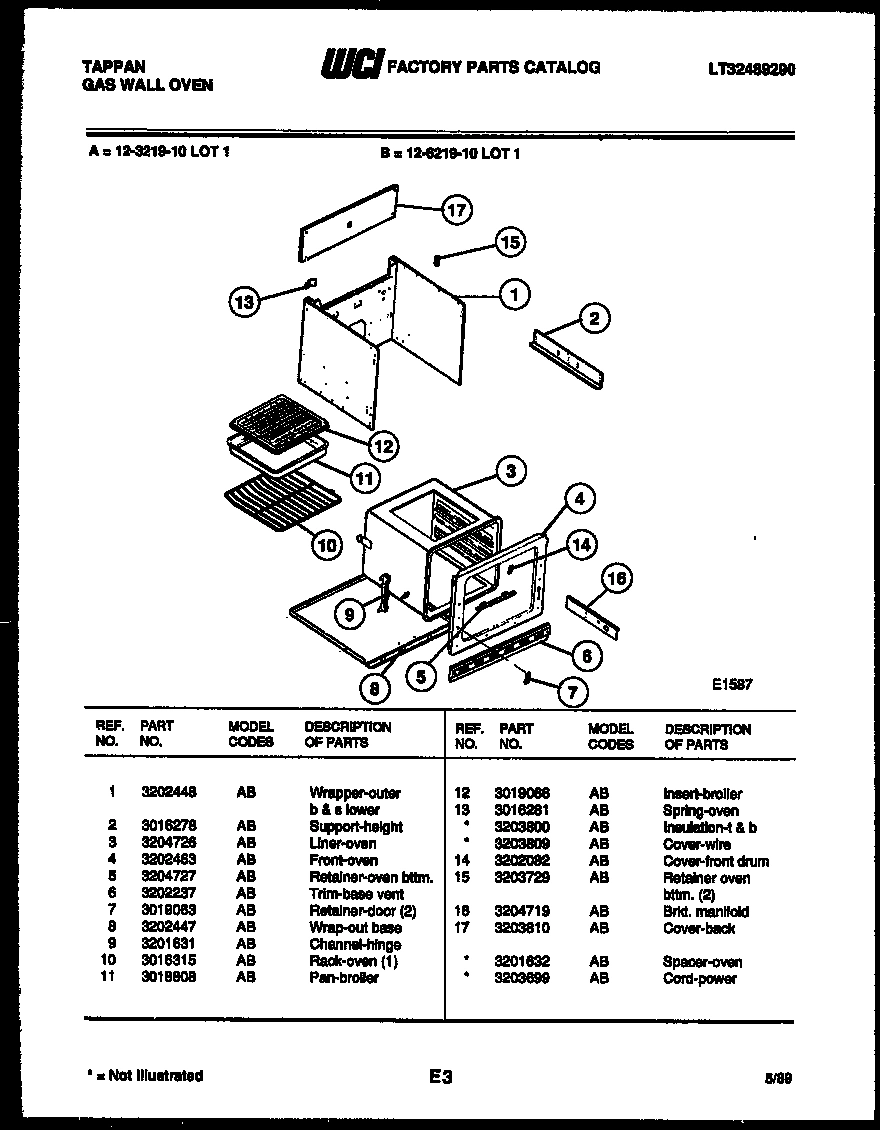

06 - WRAPPER AND BODY PARTS
Common parts from model Electrolux 12-3219-00-01 WALL OVEN
*24255
BUTTON-SPACER (4) WCI 3202113 Contact Us For Availability
*24255
SEAL-TAPE WCI 3202266 Contact Us For Availability
*24262
SPACER-OVEN WCI 3201632 Contact Us For Availability
*24262
WCI 3203699 WCI 3203699 Contact Us For Availability
1
HANDLE-DOOR (2) WCI 3203716 Contact Us For Availability
1
WCI 08007979 WCI 08007979 Contact Us For Availability
1
SHIELD-TOP WCI 3204210 Contact Us For Availability
1
WRAPPER-OUTER B & S LOWER WCI 3202448 Contact Us For Availability
2
BRACKET-TIMER WCI 3202088 Contact Us For Availability
2
SPACER-HANDLE MOUNT (4) WCI 3202508 Contact Us For Availability
2
WCI 3203806 WCI 3203806 Contact Us For Availability
2
WCI 3203725 WCI 3203725 Contact Us For Availability
2
SUPPORT-HEIGHT WCI 3016278 Contact Us For Availability
3
WCI 3203708 WCI 3203708 Contact Us For Availability
3
GLASS-OUTER (2) WCI 3202420 Contact Us For Availability
3
WCI 3203799 WCI 3203799 Contact Us For Availability
3
SHIELD - FLUE BOTTOM WCI 3203686 Contact Us For Availability
3
WCI 3204726 WCI 3204726 Contact Us For Availability
4
WCI 3202196 WCI 3202196 Contact Us For Availability
4
TRIM-DOOR FRAME WCI 3202422 Contact Us For Availability
4
WCI 3203808 WCI 3203808 Contact Us For Availability
4
WCI 3203730 WCI 3203730 Contact Us For Availability
4
FRONT-OVEN WCI 3202463 Contact Us For Availability
5
WCI 3203713 WCI 3203713 Contact Us For Availability
5
SPACER-HANDLE (4) WCI 3016256 Contact Us For Availability
5
WCI 3203798 WCI 3203798 Contact Us For Availability
5
WCI 3204727 WCI 3204727 Contact Us For Availability
6
PLATE-INST. MTG WCI 3203714 Contact Us For Availability
6
PANEL-AIR-WASH (2) WCI 3016255 Contact Us For Availability
6
WCI 3203807 WCI 3203807 Contact Us For Availability
6
WCI 3016243 WCI 3016243 Contact Us For Availability
6
TRIM-BASE VENT WCI 3202237 Contact Us For Availability
7
LIGHT INDICATOR (1) WCI 3202193 Contact Us For Availability
7
RETAINER-GLASS (2) WCI 3016267 Contact Us For Availability
7
WCI 3204716 WCI 3204716 Contact Us For Availability
7
WCI 3019063 WCI 3019063 Contact Us For Availability
8
BUMPER (4) WCI 3202093 Contact Us For Availability
8
INSULATION (4) WCI 3016265 Contact Us For Availability
8
WCI 3203701 WCI 3203701 Contact Us For Availability
8
WRAP-OUT BASE WCI 3202447 Contact Us For Availability
9
TRIM-CONTROL PNL. WCI 3203670 Contact Us For Availability
9
GLASS-INNER (2) WCI 3016336 Contact Us For Availability
9
CONTROL REGUL. WCI 3203700 Contact Us For Availability
9
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
10
SEAL-WINDOW (2) WCI 3016338 Contact Us For Availability
10
KNOB-THERMO. (1) WCI 3202178 Contact Us For Availability
10
WCI 3204717 WCI 3204717 Contact Us For Availability
10
WCI 3016244 WCI 3016244 Contact Us For Availability
11
EXTRUSION-CENT. VENT WCI 3202416 Contact Us For Availability
11
LINER-OVEN DOOR (2) WCI 3202465 Contact Us For Availability
11
WCI 3203805 WCI 3203805 Contact Us For Availability
11
WCI 3203721 WCI 3203721 Contact Us For Availability
11
WCI 3018808 WCI 3018808 Contact Us For Availability
12
WCI 3203674 WCI 3203674 Contact Us For Availability
12
SCREW-HANDLE (8) WCI 3202117 Contact Us For Availability
12
WCI 3204718 WCI 3204718 Contact Us For Availability
12
WCI 3203720 WCI 3203720 Contact Us For Availability
12
INSERT-BROILER WCI 3019066 Contact Us For Availability
13
WCI 3203658 WCI 3203658 Contact Us For Availability
13
SEAL-DOOR (2) WCI 3202116 Contact Us For Availability
13
WCI 3204724 WCI 3204724 Contact Us For Availability
13
SPRING, OVEN WCI 3016281 Contact Us For Availability
13A
WCI 3203800 WCI 3203800 Contact Us For Availability
13B
WCI 3203809 WCI 3203809 Contact Us For Availability
14
WCI 3202418 WCI 3202418 Contact Us For Availability
14
HINGE OVEN DOOR (4) WCI 3202464 Contact Us For Availability
14
WCI 3051531 WCI 3051531 Contact Us For Availability
14
COVER-FRONT DRUM WCI 3202082 Contact Us For Availability
15
COVER-CONTROL HSG. WCI 3203677 Contact Us For Availability
15
WCI 08003264 WCI 08003264 Contact Us For Availability
15
WCI 3203729 WCI 3203729 Contact Us For Availability
16
SPACER-DIAL WCI 3203712 Contact Us For Availability
16
WCI 3204719 WCI 3204719 Contact Us For Availability
17
DIAL-THERMO. WCI 3203709 Contact Us For Availability
17
SHIELD-VENT WCI 3203685 Contact Us For Availability
17
WCI 3203810 WCI 3203810 Contact Us For Availability
18
WCI 3016305 WCI 3016305 Contact Us For Availability
19
LINER (UPPER) WCI 3203727 Contact Us For Availability
20
WCI 3203802 WCI 3203802 Contact Us For Availability
20A
WCI 3203803 WCI 3203803 Contact Us For Availability
21
WCI 3203804 WCI 3203804 Contact Us For Availability
23
WRAPPER-(UPPER) WCI 3203861 Contact Us For Availability
24
WCI 3203690 WCI 3203690 Contact Us For Availability
25A
INSULATION-WRAPPER (NON-ILLUSTRATED) WCI 3016323 Contact Us For Availability
25B
INSULATION-ADAPTOR (NON-ILLUSTRATED) WCI 3203660 Contact Us For Availability
25C
WCI 3203801 WCI 3203801 Contact Us For Availability
25D
CLIP-CAPILLARY (NON-ILLUSTRATED) WCI 3131060 Contact Us For Availability
26
COVER-CAPIL. TUBE WCI 3203680 Contact Us For Availability
27
SHIELD-INSULATION (TOP & SIDE) WCI 3203684 Contact Us For Availability
28
WCI 3203667 WCI 3203667 Contact Us For Availability
28A
WCI 3203668 WCI 3203668 Contact Us For Availability
× ![]()
