Model Electrolux 12-1263-57-01 RANGE – Common Parts & Diagrams

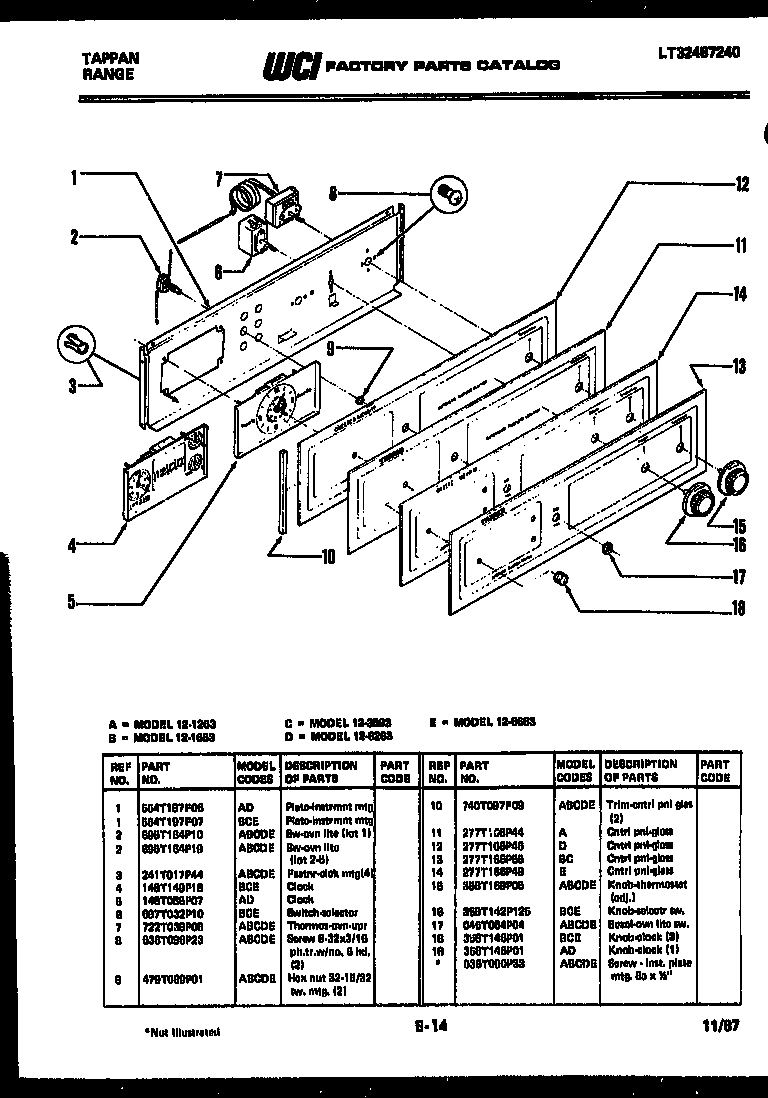

02 - CONTROL PANEL

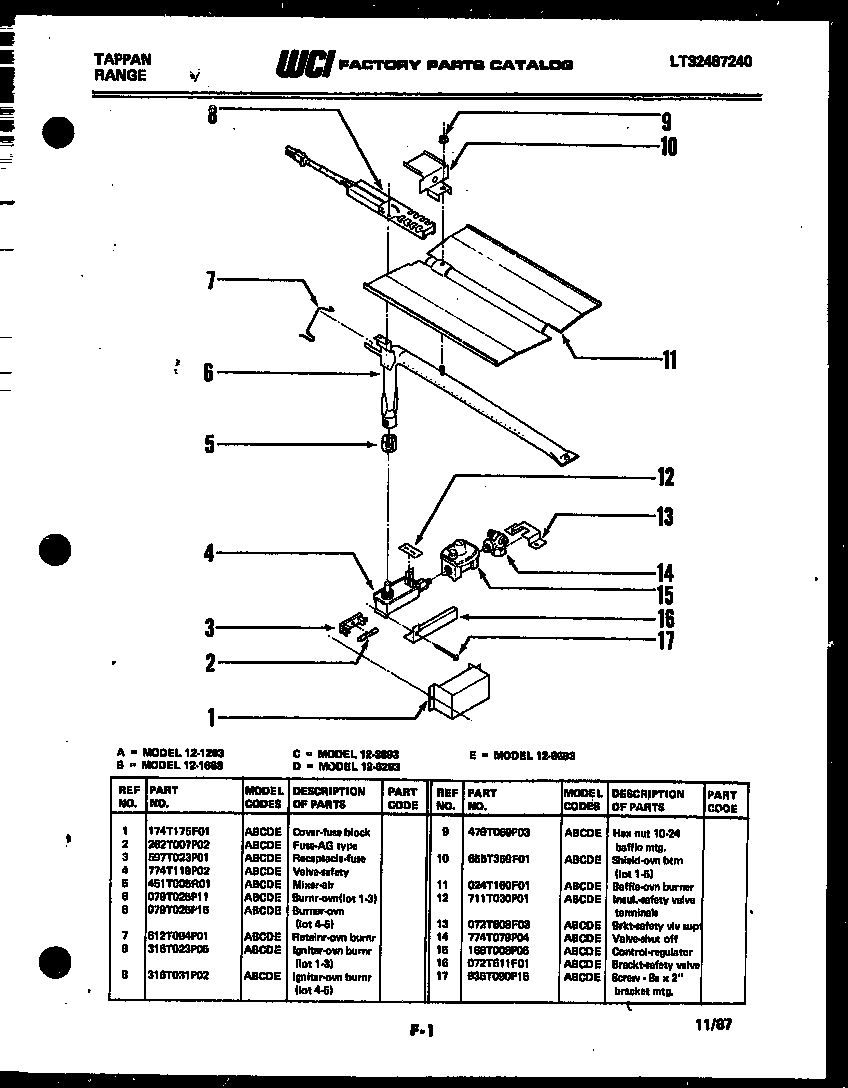

03 - GAS CONTROL

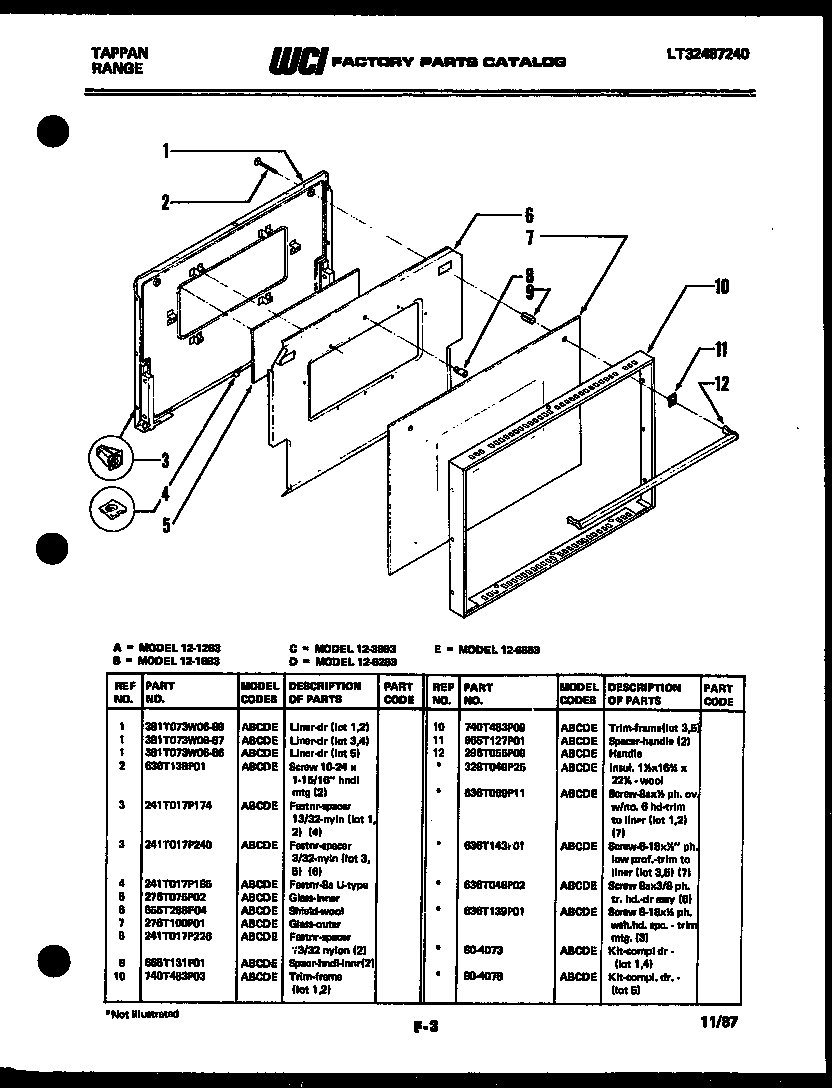

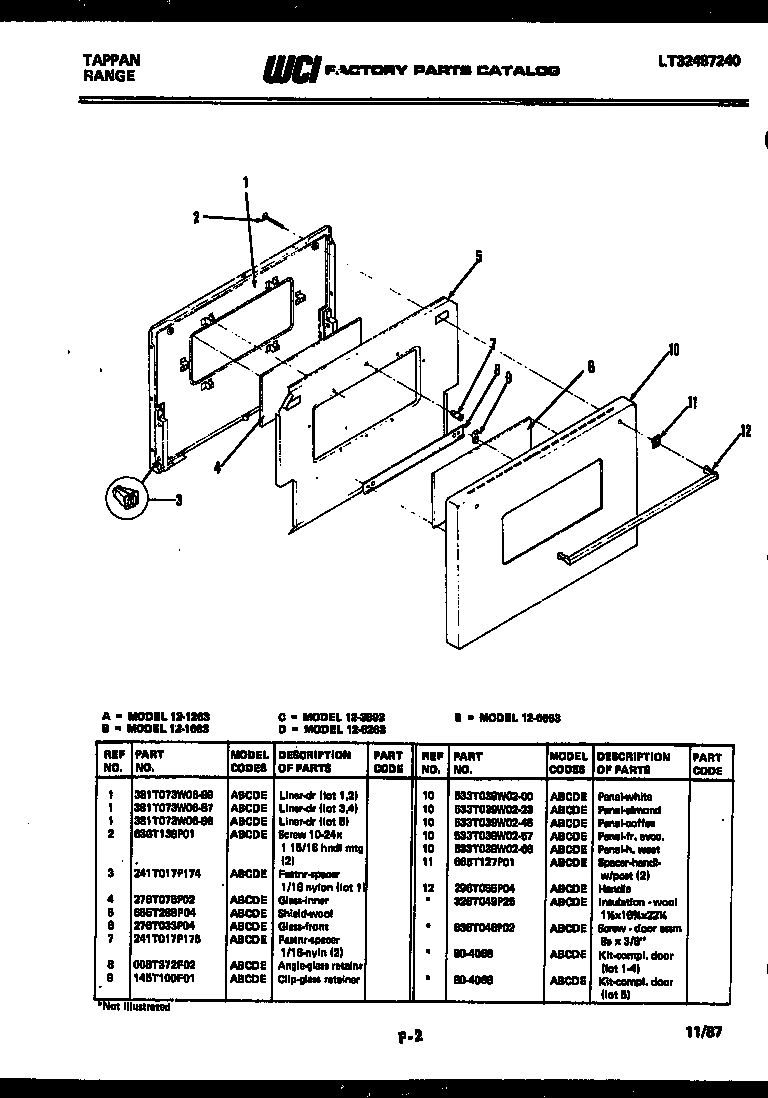

04 - DOOR PARTS
05 - DOOR PARTS

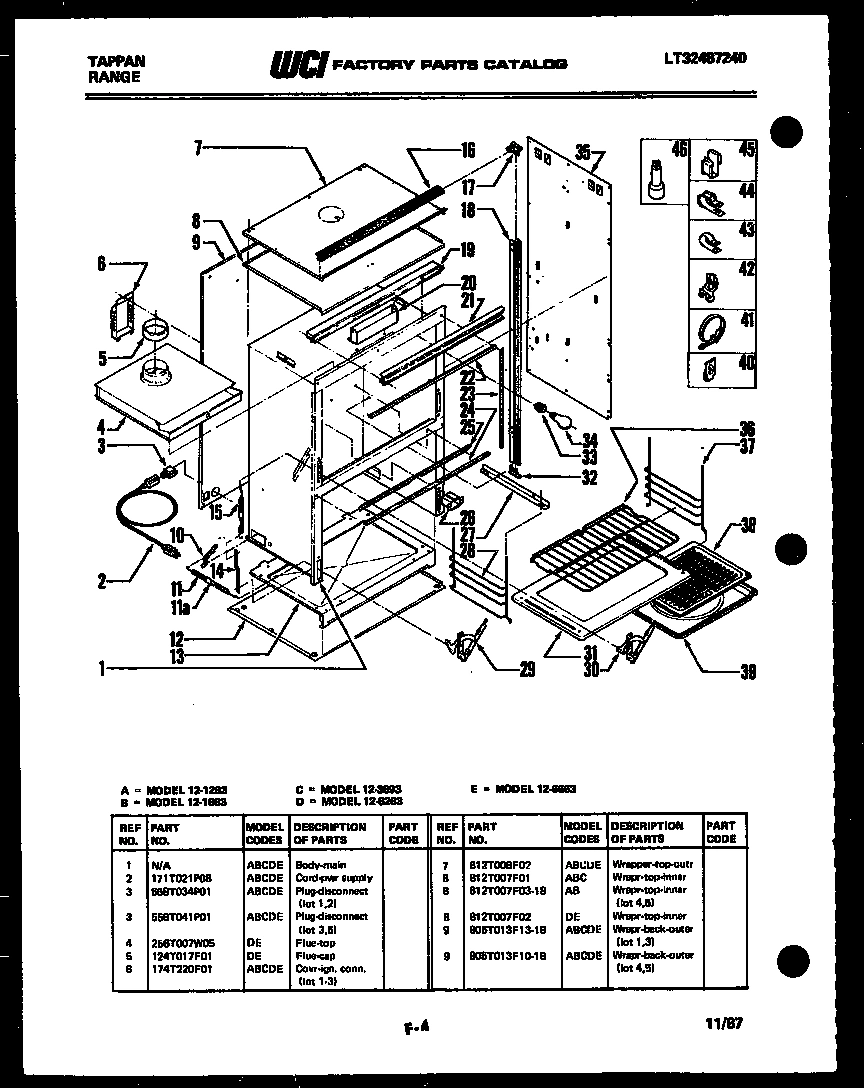

06 - BODY PARTS
Common parts from model Electrolux 12-1263-57-01 RANGE
*86014
KIT-COMPL. DOOR (LOT 1-4) WCI 80-4065 Contact Us For Availability
*86014
KIT-COMPL. DOOR (LOT 5) WCI 80-4066 Contact Us For Availability
*86025
INSUL. 1 1/2 X 16 3/4 X 22 1/4 - WOOL WCI 328T049P25 Contact Us For Availability
*86031
SCREW 8A X 3/8 PH. TR. HD.-DR ASSY (6) WCI 636T046P02 Contact Us For Availability
*86032
SCREW 8-18 X 1/2 PH. WSH. HD. SPC. - TRIM MTG WCI 636T139P01 Contact Us For Availability
*86032
WCI 80-4073 WCI 80-4073 Contact Us For Availability
*86032
KIT-COMPL DR. (LOT 5) WCI 80-4076 Contact Us For Availability
*86082
SCRW 8A X 2 1/4 PH. OV. W/ NO. 6 HD.-UNIT TO WCI 636T090P35 Contact Us For Availability
*86084
WCI 328T015P117 WCI 328T015P117 Contact Us For Availability
*86084
WCI 328T015P46 WCI 328T015P46 Contact Us For Availability
*86085
WCI 328T015P47 WCI 328T015P47 Contact Us For Availability
*86088
LINER-BACK WCI 379T043F03 Contact Us For Availability
*86089
LINER-SIDE LH WCI 382T023F08CE Contact Us For Availability
*86091
LINER-SIDE RH WCI 382T023F11CE Contact Us For Availability
1
WCI 554T197F06 WCI 554T197F06 Contact Us For Availability
1
WCI 174T175F01 WCI 174T175F01 Contact Us For Availability
1
LINER-DR (LOT 5) WCI 381T073W06-86 Contact Us For Availability
1
LINER-DR (LOT 3, 4) WCI 381T073W06-87 Contact Us For Availability
1
LINER-DR (LOT 1, 2) WCI 381T073W06-89 Contact Us For Availability
2
SW-OVN LITE (LOT 1) WCI 695T164P10 Contact Us For Availability
2
SW-OVN LITE (LOT 2-5) WCI 695T164P19 Contact Us For Availability
2
FUSE-AG TYPE WCI 262T007P02 Contact Us For Availability
2
SCREW 10-24 X 1 15/16 HNDL MTG (2) WCI 636T138P01 Contact Us For Availability
2
CORD-PWR SUPPLY WCI 171T021P08 Contact Us For Availability
3
FASTNR-CLCK MTG (4) WCI 241T017P44 Contact Us For Availability
3
WCI 597T023P01 WCI 597T023P01 Contact Us For Availability
3
FASTNR-SPACER 13/32-NYLN (LOT 1, 2) (4) WCI 241T017P174 Contact Us For Availability
3
FASTNR-SPACER 3/32-NYLN (LOT 3, 5) (6) WCI 241T017P240 Contact Us For Availability
3
PLUG-DISCONNECT (LOT 1, 2) WCI 558T034P01 Contact Us For Availability
3
PLUG-DISCONNECT (LOT 3, 5) WCI 558T041P01 Contact Us For Availability
4
VALVE-SAFETY WCI 774T119P02 Contact Us For Availability
4
FASTNR 8A U-TYPE WCI 241T017P185 Contact Us For Availability
4
WCI 256T007W05 WCI 256T007W05 Contact Us For Availability
5
WCI 148T085P07 WCI 148T085P07 Contact Us For Availability
5
WCI 451T005R01 WCI 451T005R01 Contact Us For Availability
5
WCI 276T075P02 WCI 276T075P02 Contact Us For Availability
6
WCI 079T025P11 WCI 079T025P11 Contact Us For Availability
6
WCI 079T025P15 WCI 079T025P15 Contact Us For Availability
6
WCI 655T288F04 WCI 655T288F04 Contact Us For Availability
6
WCI 276T033P04 WCI 276T033P04 Contact Us For Availability
6
COVR-IGN. CONN. (LOT 1-3) WCI 174T220F01 Contact Us For Availability
7
THERMOS-OVN-UPR WCI 722T038P08 Contact Us For Availability
7
WCI 612T094P01 WCI 612T094P01 Contact Us For Availability
7
FASTNR-SPACER 1/16-NYLN (2) WCI 241T017P175 Contact Us For Availability
7
GLASS-OUTER WCI 276T100P01 Contact Us For Availability
7
WRAPPER-TOP-OUTR WCI 812T008F02 Contact Us For Availability
8
IGNITER-OVN BURNR (LOT 1-3) WCI 316T023P05 Contact Us For Availability
8
WCI 008T372F02 WCI 008T372F02 Contact Us For Availability
8
FASTNR-SPACER 13/32 NYLON (2) WCI 241T017P226 Contact Us For Availability
8
WRAPR-TOP-INNER WCI 812T007F01 Contact Us For Availability
8
WRAPR-TOP-INNER (LOT 4, 5) WCI 812T007F03-18 Contact Us For Availability
9
HEX NUT 32-15/32 SW. MTG. (2) WCI 479T089P01 Contact Us For Availability
9
CLIP-GLASS RETAINER WCI 145T100F01 Contact Us For Availability
9
SPACR-HNDL-INNR (2) WCI 665T131P01 Contact Us For Availability
9
WCI 805T013F10-18 WCI 805T013F10-18 Contact Us For Availability
9
WCI 805T013F13-18 WCI 805T013F13-18 Contact Us For Availability
10
TRIM-CNTRL PNL GLAS (2) WCI 740T097F09 Contact Us For Availability
10
SHIELD-OVN BTM (LOT 1-5) WCI 655T359F01 Contact Us For Availability
10
PANEL-FR. AVOC. WCI 533T039W02-57 Contact Us For Availability
10
TRIM-FRAME (LOT 1, 2) WCI 740T483P03 Contact Us For Availability
10
TRIM-FRAME (LOT 3, 5) WCI 740T483P09 Contact Us For Availability
10
WCI 072T476F01 WCI 072T476F01 Contact Us For Availability
11
WCI 277T166P44 WCI 277T166P44 Contact Us For Availability
11
WCI 024T160F01 WCI 024T160F01 Contact Us For Availability
11
SPACER-HANDLE (2) WCI 665T127P01 Contact Us For Availability
11
SPRING-OVN DR-LOWER - L & R (2) WCI 675T041P05 Contact Us For Availability
12
INSUL.-SAFETY VALVE TERMINALS WCI 711T030P01 Contact Us For Availability
12
WCI 296T055P04 WCI 296T055P04 Contact Us For Availability
12
WCI 296T055P09 WCI 296T055P09 Contact Us For Availability
12
WCI 036T034F04 WCI 036T034F04 Contact Us For Availability
13
WCI 072T608F03 WCI 072T608F03 Contact Us For Availability
13
WCI 060T006W04-86 WCI 060T006W04-86 Contact Us For Availability
13
WCI 060T006W04-87 WCI 060T006W04-87 Contact Us For Availability
13
WCI 060T006W04-89 WCI 060T006W04-89 Contact Us For Availability
14
WCI 774T079P04 WCI 774T079P04 Contact Us For Availability
14
WCI 072T476F02 WCI 072T476F02 Contact Us For Availability
15
KNOB-THERMOSTAT (ADJ.) WCI 358T169P05 Contact Us For Availability
15
CONTROL-REGULATOR WCI 166T008P05 Contact Us For Availability
15
SPRING-OVN DR - UPPER L&R WCI 675T041P07 Contact Us For Availability
15A
SLEEVE-DR SPRING (4) (NON-ILLUSTRATED) WCI 660T037P01 Contact Us For Availability
16
WCI 072T611F01 WCI 072T611F01 Contact Us For Availability
16
WCI 740T327P03 WCI 740T327P03 Contact Us For Availability
16
TRIM-TP (LOT 4-5) WCI 740T327P04 Contact Us For Availability
17
WCI 045T064P04 WCI 045T064P04 Contact Us For Availability
17
SCREW-8A X 2`` BRACKET MTG. WCI 636T090P15 Contact Us For Availability
17
WCI 123T064P03 WCI 123T064P03 Contact Us For Availability
17
CAP-END-TOP L&R (LOT 2, 5) (2) WCI 123T064P04 Contact Us For Availability
17A
SCREW 8A X 3/8`` PH OV. W/NO. 6 HD. CAP & TRI WCI 636T090P34 Contact Us For Availability
18
KNOB-CLOCK (1) WCI 358T146P01 Contact Us For Availability
18
WCI 740T328P13 WCI 740T328P13 Contact Us For Availability
18
WCI 740T328P14 WCI 740T328P14 Contact Us For Availability
19
FLUE BX-HORIZ. WCI 252T020W01 Contact Us For Availability
20
FLUE BX-VERT. WCI 252T019W01 Contact Us For Availability
21
WCI 740T411P01 WCI 740T411P01 Contact Us For Availability
21
WCI 740T411P04 WCI 740T411P04 Contact Us For Availability
22
SEAL-DR-TP BAKE OV WCI 647T081P04 Contact Us For Availability
23
SEAL-DR-SDS-BAKE OVN (2) WCI 647T081P03 Contact Us For Availability
24
WCI 647T069P07 WCI 647T069P07 Contact Us For Availability
25
WCI 655T142F07 WCI 655T142F07 Contact Us For Availability
26
TUBE-IGN. (LOT 1, 3) WCI 750T207F01 Contact Us For Availability
27
WCI 008T309F01 WCI 008T309F01 Contact Us For Availability
28
WCI 280T052P01 WCI 280T052P01 Contact Us For Availability
29
WCI 117T014S03 WCI 117T014S03 Contact Us For Availability
29
WCI 117T014S04 WCI 117T014S04 Contact Us For Availability
29
CAM-OVN DR-LL (LOT 2, 5) WCI 117T014S09 Contact Us For Availability
29
CAM-OVN DR-LR (LOT 2, 5) WCI 117T014S10 Contact Us For Availability
30
CAM-OVN DR-UPR L (LOT 1) WCI 117T013S07 Contact Us For Availability
30
CAM-OVN DR-UPR R (LOT 1) WCI 117T013S08 Contact Us For Availability
30
CAM-OVN DR-UPR L (LOT 2, 5) WCI 117T013S13 Contact Us For Availability
30
CAM-OVN DR-UPR R (LOT 2, 5) WCI 117T013S14 Contact Us For Availability
30A
KIT-DR ADJ. (NON-ILLUSTRATED) WCI 355T588S01 Contact Us For Availability
30B
SCRW 8A X 1/2 CAM MTG. (8) (NON-ILLUSTRATED) WCI 636T069P07 Contact Us For Availability
31
WCI 058T015F10-86 WCI 058T015F10-86 Contact Us For Availability
31
WCI 058T015F10-87 WCI 058T015F10-87 Contact Us For Availability
31
WCI 058T015F10-89 WCI 058T015F10-89 Contact Us For Availability
32
CAP-VERT TR-BTM LH WCI 123T065P03 Contact Us For Availability
32
CAP-VERT TR-BTM RH WCI 123T065P04 Contact Us For Availability
33
SOCKT-OV. LITE-(LOT 1) WCI 662T012P12 Contact Us For Availability
33
SOCKT-OV. LITE-(LOT 2 WCI 662T024P01 Contact Us For Availability
35
WCI 809T010F08-18 WCI 809T010F08-18 Contact Us For Availability
36
WCI 591T038P02 WCI 591T038P02 Contact Us For Availability
36
WCI 591T059P01 WCI 591T059P01 Contact Us For Availability
37
WCI 280T016P01 WCI 280T016P01 Contact Us For Availability
38
WCI 319T011F03-86 WCI 319T011F03-86 Contact Us For Availability
38
WCI 319T011F03-87 WCI 319T011F03-87 Contact Us For Availability
38
WCI 319T011F03-89 WCI 319T011F03-89 Contact Us For Availability
39
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
39
WCI 539T010F01-87 WCI 539T010F01-87 Contact Us For Availability
39
WCI 539T010F01-89 WCI 539T010F01-89 Contact Us For Availability
40
WCI 241T014P01 WCI 241T014P01 Contact Us For Availability
40
WCI 241T017P02 WCI 241T017P02 Contact Us For Availability
43
WCI 241T017P203 WCI 241T017P203 Contact Us For Availability
44
WCI 241T017P128 WCI 241T017P128 Contact Us For Availability
45
WCI 241T003P01 WCI 241T003P01 Contact Us For Availability
× ![]()
