Model Whirlpool 1171WF-36GK GAS COOK-TOP – Common Parts & Diagrams

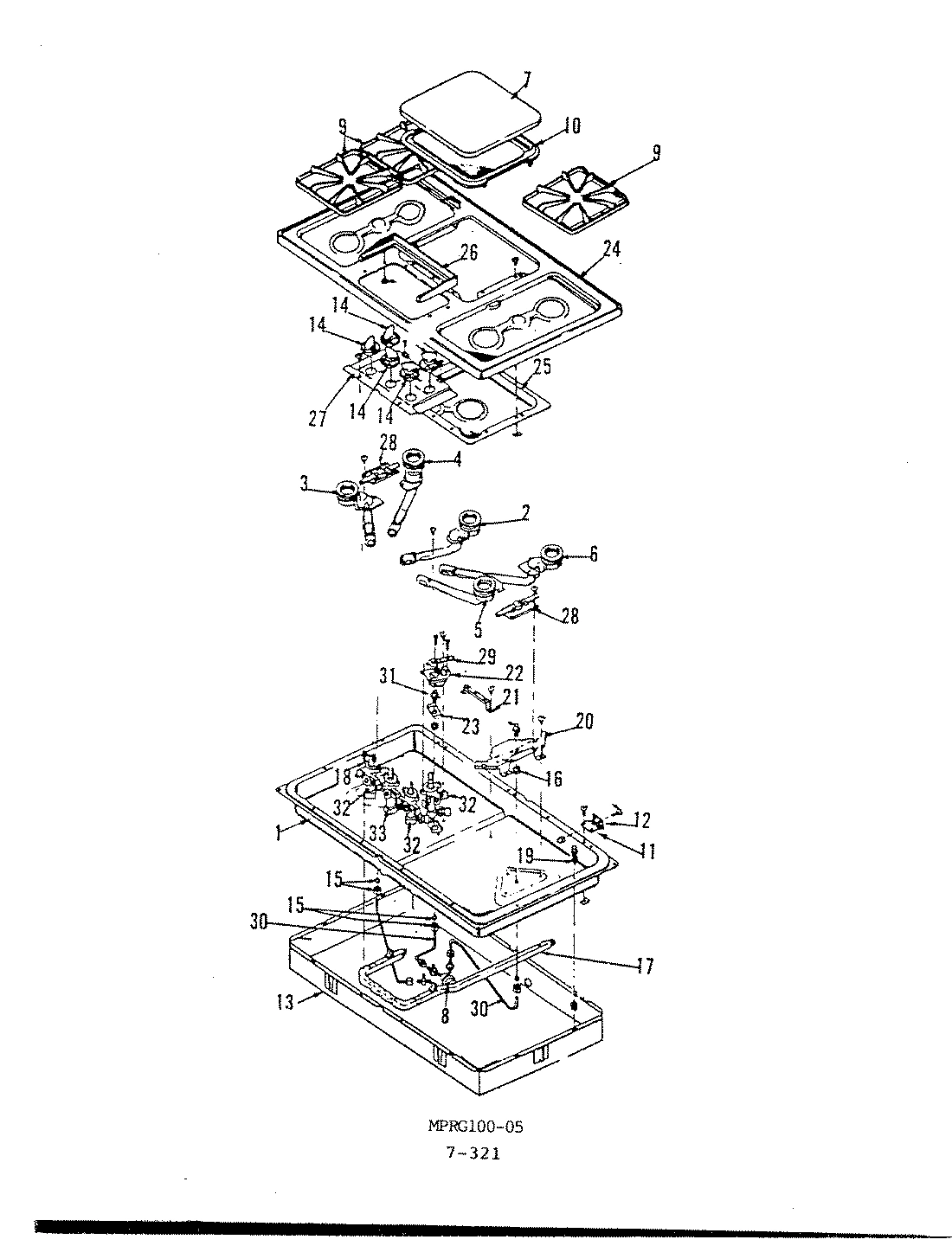

01 - TOP ASSEMBLY
Common parts from model Whirlpool 1171WF-36GK GAS COOK-TOP
1
BOTTOM, BURNER BOX WPL 0237106 Contact Us For Availability
2
BURNER, GRIDDLE WPL 7505E050 Contact Us For Availability
3
BURNER, L.FR. WPL 7505E051 Contact Us For Availability
4
BURNER, L. REA WPL 7505E052 Contact Us For Availability
5
BURNER, R. FR. WPL 7505E054 Contact Us For Availability
6
BURNER, R. REA WPL 7505E053 Contact Us For Availability
7
COVER WPL 0329211S Contact Us For Availability
8
+ FILTER WPL 1278233 Contact Us For Availability
8
FILTER WPL 1278235 Contact Us For Availability
8
FITTING WPL 1285300 Contact Us For Availability
8
FITTING WPL 1285328 Contact Us For Availability
9
GRATE WPL Y0505218 Contact Us For Availability
10
GRIDDLE WPL 1337207 Contact Us For Availability
11
HINGE WPL 1376233 Contact Us For Availability
12
HINGE WPL 1376218 Contact Us For Availability
13
HOUSING WPL 0537244 Contact Us For Availability
14
KNOB, VALVE WPL 1356392 Contact Us For Availability
14
KNOB, VALVE WPL 7711P15060 Contact Us For Availability
15
NUT , 1/8`` WPL 1555225 Contact Us For Availability
15
NUT WPL 1555241 Contact Us For Availability
15
NYLON NUT WPL 1555256 Contact Us For Availability
16
NUT WPL 1555226 Contact Us For Availability
17
PLUG WPL 1605207 Contact Us For Availability
17
REGULATOR, PRESSURE WPL 1665251 Contact Us For Availability
17
REGULATOR, PRESSURE WPL 7510P01560 Contact Us For Availability
17
PIPE, MANIFOLD WPL 7513E032 Contact Us For Availability
18
COVER WPL 1201208 Contact Us For Availability
18
SCREW SPECIAL WPL 1986286 Contact Us For Availability
19
SPACER WPL 1783206 Contact Us For Availability
20
SUPPORT, BURNER WPL 3807Z196 Contact Us For Availability
21
SUPPORT, GRIDDLE WPL 3807Z198 Contact Us For Availability
22
SUPPORT WPL 0862409 Contact Us For Availability
23
SUPPORT WPL 0862443 Contact Us For Availability
24
TOP, MAIN ALM WPL 2001A031 Contact Us For Availability
24
TOP, MAIN COF WPL 2001B031 Contact Us For Availability
24
TOP, MAIN FSH AVCD WPL 2001G031 Contact Us For Availability
24
TOP, MAIN SN WHT WPL 2001N031 Contact Us For Availability
24
TOP, MAIN WPL 2001S031 Contact Us For Availability
24
TOP, MAIN HVST WHT WPL 2001Y031 Contact Us For Availability
25
TRAY WPL 0915237 Contact Us For Availability
26
TRIM WPL 1916575 Contact Us For Availability
27
TRIM WPL 1916178 Contact Us For Availability
28
TUBE WPL 1930305 Contact Us For Availability
29
TUBE WPL 1930307 Contact Us For Availability
31
PILOT ASSY. WPL 1566241 Contact Us For Availability
32
VALVE, TOP BURNER WPL 1951385 Contact Us For Availability
32
VALVE, TOP BURNER WPL 1951386 Contact Us For Availability
32
VALVE, TOP BURNER WPL 1951387 Contact Us For Availability
32
VALVE, TOP BURNER WPL 1951388 Contact Us For Availability
33
VALVE, TOP BURNER WPL 1951384 Contact Us For Availability
× ![]()
